MONITOR WITH DVD RECEIVER
INSTRUCTION MANUAL
KW-V620BT
2016KW-VMidE.indb12016KW-VMidE.indb1 2015/12/1410:092015/12/1410:09

2
CONTENTSCONTENTS
BEFORE USE............................................................ 2
How to reset your unit.................................................... 3
INITIAL SETTINGS .................................................. 4
Initial setup......................................................................... 4
Calendar/Clock settings................................................. 4
BASICS .................................................................... 5
Component names and functions............................. 5
Common operations....................................................... 5
Common screen operations......................................... 6
Selecting the playback source..................................... 8
Using the pop-up short-cut menu............................. 9
DISCS .................................................................... 10
USB........................................................................ 15
iPod/iPhone ......................................................... 17
APPs...................................................................... 20
TUNER................................................................... 21
OTHER EXTERNAL COMPONENTS ...................... 25
Using external audio/video players—AV-IN ........25
Using the rear view camera........................................25
Using a smartphone—HDMI/MHL...........................27
Using an external monitor— Rear Source ............27
BLUETOOTH ......................................................... 28
SETTINGS.............................................................. 37
Settings for using applications of iPod/iPhone/
Android..............................................................................37
Sound adjustment .........................................................39
Adjustment for video playback.................................40
Changing the display design.....................................42
Customizing the Home screen..................................43
Customizing the system settings .............................44
Setting menu items.......................................................45
REMOTE CONTROLLER ........................................ 48
CONNECTION/INSTALLATION ............................ 50
REFERENCES......................................................... 56
Maintenance....................................................................56
More information...........................................................56
Error message list...........................................................60
Troubleshooting.............................................................61
Specifications...................................................................63
BEFORE USEBEFORE USE
IMPORTANT
To ensure proper use, please read through this
manual before using this product. It is especially
important that you read and observe WARNINGS
and CAUTIONS in this manual. Please keep the
manual in a safe and accessible place for future
reference.
VWARNINGS: (To prevent accidents and
damage)
• DO NOT install any unit or wire any cable in a
location where;
– it may obstruct the steering wheel and gearshift
lever operations.
– it may obstruct the operation of safety devices
such as air bags.
– it may obstruct visibility.
• DO NOT operate the unit while driving.
If you need to operate the unit while driving, be
sure to look around carefully.
• The driver must not watch the monitor while
driving.
The marking of products using lasers
The label is attached to the chassis/case and says
that the component uses laser beams that have
been classified as Class 1. It means that the unit is
utilizing laser beams that are of a weaker class. There
is no danger of hazardous radiation outside the unit.
How to read this manual:
• The displays and panels shown in this manual are examples used to provide clear explanations of the
operations. For this reason, they may be different from the actual displays or panels.
• This manual mainly explains operations using the buttons on the monitor panel and touch panel. For
operations using the remote controller (RM-RK258: separately purchased), see page49.
• < > indicates the various screens/menus/operations/settings that appear on the touch panel.
• [ ] indicates the buttons on the touch panel.
• Indication language: English indications are used for the purpose of explanation. You can select the
indication language from the <Settings> menu. (Page47)
• Updated information (the latest Instruction Manual, system updates, new functions, etc.) is available
from <http://www.jvc.net/cs/car/>.
2016KW-VMidE.indb22016KW-VMidE.indb2 2015/12/1410:092015/12/1410:09

ENGLISH 3
Information on Disposal of Old Electrical and
Electronic Equipment and Batteries (applicable
for countries that have adopted separate waste
collection systems)
Products and batteries with the symbol (crossed-
out wheeled bin) cannot be disposed as household
waste.
Old electrical and electronic equipment and
batteries should be recycled at a facility capable of
handling these items and their waste byproducts.
Contact your local authority for details in locating a
recycle facility nearest to you.
Proper recycling and waste disposal will help
conserve resources whilst preventing detrimental
effects on our health and the environment.
Notice: The sign “Pb” below the symbol for batteries
indicates that this battery contains lead.
For Israel
VCautions on the monitor:
• The monitor built into this unit has been
produced with high precision, but it may have
some ineffective dots. This is inevitable and is not
considered defective.
• Do not expose the monitor to direct sunlight.
• Do not operate the touch panel using a ball-point
pen or similar tool with a sharp tip.
Touch the buttons on the touch panel with your
finger directly (if you are wearing a glove, take it
off).
• When the temperature is very cold or very hot...
– Chemical changes occur inside, causing
malfunction.
– Pictures may not appear clearly or may move
slowly. Pictures may not be synchronized with
the sound or picture quality may decline in such
environments.
For safety...
• Do not raise the volume level too much, as this
will make driving dangerous by blocking outside
sounds, and may cause hearing loss.
• Stop the car before performing any complicated
operations.
Temperature inside the car...
If you have parked the car for a long time in hot or
cold weather, wait until the temperature in the car
becomes normal before operating the unit.
❏How to reset your unit
If the unit fails to operate properly, press the reset
button.
BEFORE USEBEFORE USE
2016KW-VMidE.indb32016KW-VMidE.indb3 2015/12/1410:092015/12/1410:09

4
INITIAL SETTINGSINITIAL SETTINGS
Initial setup
When you power on the unit for the first time or
reset the unit, the initial setting screen appears.
• You can also change the settings on the
<Settings> screen. (Page45)
1Perform the initial settings.
<Language>
(Page47)
Select the text language
used for on-screen
information.
• Set <GUI Language>
to display the operation
buttons and menu
items in the selected
language ([Local]) or
English.
<R-CAM Interrupt>
(Page47)
Select [ON] when
connecting the rear view
camera.
<User Customize>
(Page42)
Change the display
design.
<Demonstration>
(Page46)
Activate or deactivate the
display demonstration.
2Finish the procedure.
The Home screen is displayed.
• [AV Off] is selected initially. Select the
playback source. (Page 8)
Calendar/Clock settings
1Display the Home screen.
On the monitor panel:
2Display the <Settings> screen.
3Display the <Calendar Setting> screen.
4Select the time display format (1), then set
the calendar and the clock time (2).
• Press [Set] to set the second to “00”.
5Finish the procedure.
• Date is displayed on the Home screen when the
Home screen design below is selected on the
<User Customize> screen. (Page42)
2016KW-VMidE.indb42016KW-VMidE.indb4 2015/12/1410:092015/12/1410:09

ENGLISH 5
BASICSBASICS
Component names and functions
VCaution on the volume setting:
Digital devices produce very little noise compared
with other sources. Lower the volume before
playing these digital sources to avoid damaging
the speakers by sudden increase of the output
level.
1button
• Turns on the power. (Press) (See the right
column.)
• Turns off the power. (Hold) (See the right
column.)
• Pops up the short-cut menu when pressed on
the control screen. (Press)(Page 9)
2Reset button
Resets the unit. (Page 3)
3Loading slot
4HOME/ button
• Displays the Home screen. (Press) (Page 7)
• Activates the voice dialing. (Hold) (Page 34)
5button
• Switches the screen between the current
source and the App screen from the
connected iPod touch/iPhone/Android. (Press)
(Page 20)
• Turns off the screen. (Hold) (See the right
column.)
• Turns on the screen. (Hold) (See the right
column.)
6Volume +/– button
Adjusts the audio volume. (See the right column.)
7Monitor panel
8Screen (touch panel)
Common operations
❏Turning on the power
❏Turning off the power
(Hold)
❏Adjusting the volume
To adjust the volume (00 to 35)
Press + to increase, and press −to decrease.
• Holding + increases the volume continuously to
level 15.
To attenuate the sound
The [ ] button becomes blue.
To cancel the attenuation: Press the same button
again. (The [ ] button becomes white.)
❏Turning off the screen
On the monitor panel:
(Hold)
To turn on the screen: Press and the hold , or
touch the display.
2016KW-VMidE.indb52016KW-VMidE.indb5 2015/12/1410:092015/12/1410:09

6
BASICSBASICS
❏Turning on/off the AV source
You can activate the AV function by selecting a
source on the Home screen.
To select a source not displayed on the Home
screen: Press [ ]. (Page 8)
To turn off the AV source:
Common screen operations

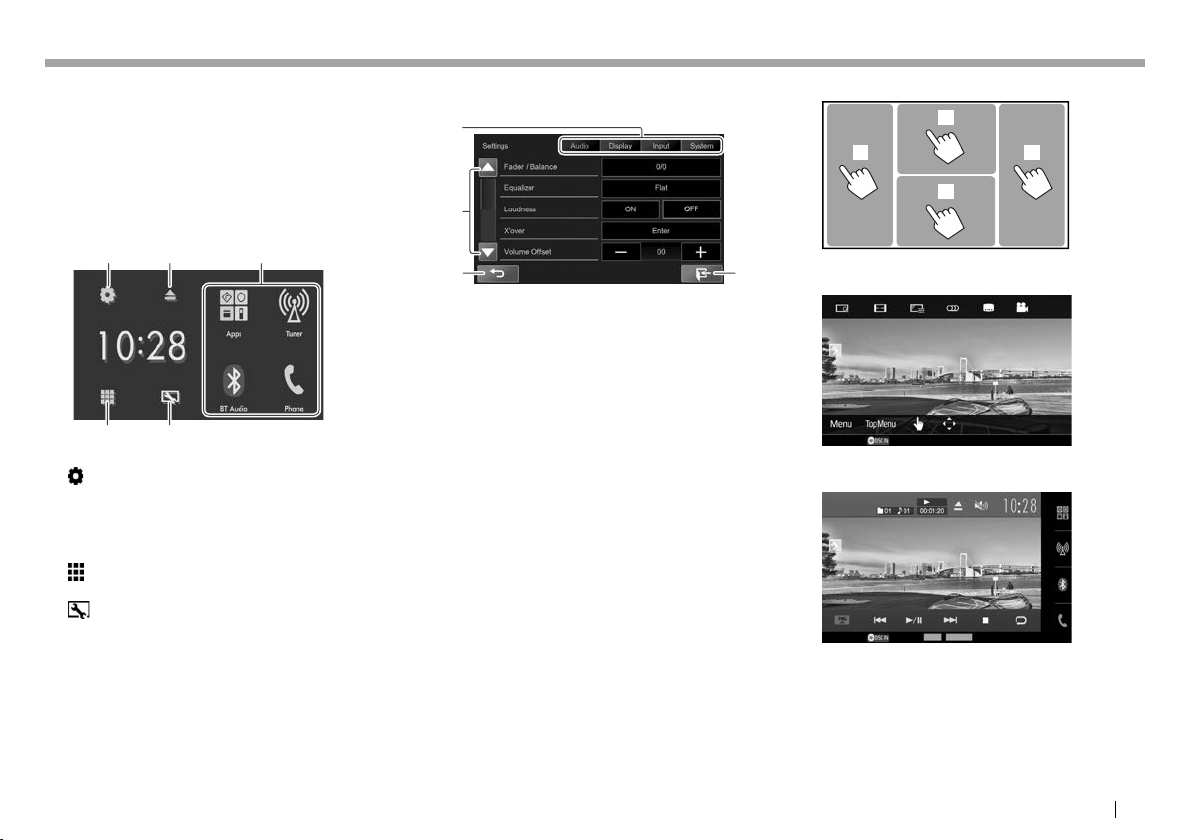

❏Common screen descriptions
You can display other screens any time to change
the source, show the information, or change the
settings, etc.
Source control screen
Performs source playback operations.
• The operation buttons and information displayed
vary depending on the selected source.
2
1
3
Common operating buttons:
1Displays the other operation button window.
2Pops up/closes the short-cut menu. (Page 9)
3Source buttons
Changes the playback source. (Page 8)
• The source buttons shown on the Home screen
are displayed. (Page 7)
Gesture control on the source control screen:
You can also control playback by moving your finger
on the touch panel as follows (for some sources, the
gesture control is not available).
• Sliding the finger towards up/down: Functions
same as pressing [ ]/[ ].
• Sliding the finger towards left/right: Functions
same as pressing [S]/[T].
• Moving your finger clockwise or counter-
clockwise: increases/decreases the volume.
2016KW-VMidE.indb62016KW-VMidE.indb6 2015/12/1410:092015/12/1410:09

ENGLISH 7
BASICSBASICS
Home screen
Displays the source control screen and settings
screen.
• To display the Home screen, press HOME on the
monitor panel.
• You can change the Home screen design on the
<User Customize> screen. (Page42)
• You can arrange the items to display on the Home
screen.(Page 43)
12 3
45
Common operating buttons:
1button: Displays the <Settings> screen. (See
the right column.)
2M(Eject) button: Ejects the disc. (Press)
(Page 10)
3Changes the playback source. (Page 9)
4button: Displays all playback sources and
items. (Page8)
5button: Displays the <User Customize>
screen. (Page 42)
<Settings> screen
Changes the detailed settings. (Page 45)
34
2
1
Common operating buttons:
1Selects the menu category.
2Changes the page.
3Returns to the previous screen.
4Displays the current source control screen.
❏Touch screen operations
1
3
2
4
1Displays the video control menu while playing a
video.
2Displays the source control screen while playing
a video.
• The operation buttons disappear when the
screen is touched or when no operation is
done for about 5 seconds.
3Goes to the previous chapter/track.*
4Goes to the next chapter/track.*
* Not available for video from an external component.
2016KW-VMidE.indb72016KW-VMidE.indb7 2015/12/1410:092015/12/1410:09

8
BASICSBASICS
Selecting the playback source
On the Home screen:
[Apps] Switches to the App screen from
the connected iPod touch/iPhone/
Android device. (Page 20)
[Tuner] Switches to the radio broadcast.
(Page 21)
[Disc] Plays a disc. (Page 10)
[USB] Plays files on a USB device.
(Page 15)
[iPod] Plays an iPod/iPhone. (Page 17)
[AV-IN] Switches to an external
component connected to the
AV-IN1 input terminal. (Page 25)
[HDMI MHL] Plays a device connected to
the HDMI/MHL input terminal.
(Page 27)
[BT Audio] Plays a Bluetooth audio player.
(Page 35)
[Phone] Switches to the phone control
screen. (Page 32)
[AV Off] Turns off the AV source.
(Page 6)
[Camera] Switches to a camera connected
to the rear view camera input.
(Page 26)
[RearSource] Selects the rear source to
display on the external monitor.
(Page 27)
To return to the Home screen
2016KW-VMidE.indb82016KW-VMidE.indb8 2015/12/1410:092015/12/1410:09

ENGLISH 9
BASICSBASICS
❏Selecting the playback source on the
Home screen
• You can change the items to display on the Home
screen. (Page43)
• You can also select the playback sources shown on
the Home screen on the source control screen.
Using the pop-up short-cut menu
While displaying the source control screen, you can
jump to the other screen from the pop-up short-cut
menu.
1Display the pop-up short-cut menu.
On the source control screen.
• You can also display the pop-up short-cut
menu by pressing Bon the monitor panel
while the source control screen is displayed.
2Select an item to jump to.
[ ] Displays the phone control screen.
(Page32)
[ ] Activates the voice dialing. (Page 34)
[ ] Displays the <Equalizer> screen.
(Page 39)
[ ] Displays the picture adjustment screen.
(Page40)
[ ] Displays the <User Customize> screen.
(Page 42)
To close the pop-up menu: Press [K] or Bon the
monitor panel.
2016KW-VMidE.indb92016KW-VMidE.indb9 2015/12/1410:092015/12/1410:09

10
DISCSDISCS
Playing a disc
• If a disc does not have a disc menu, all tracks on
it will be played repeatedly until you change the
source or eject the disc.
• For playable disc types/file types, see page 58.
❏Inserting a disc
Insert a disc with the label side facing up.
The source changes to “DISC” and playback starts.
• The DISC IN ( ) indicator lights up while a
disc is inserted.
• If “ ” appears on the screen, the unit cannot
accept the operation you have tried to do.
– In some cases, without showing “ ,”
operations will not be accepted.
• When playing back a multi-channel encoded
disc, the multi-channel signals are downmixed
to stereo.
❏Ejecting a disc
On the Home screen:
On the source control screen:
• When removing a disc, pull it horizontally.
• You can eject a disc when playing another AV
source.
• If the ejected disc is not removed within
60 seconds, the disc is automatically inserted
again into the loading slot to protect it from dust.
Playback operations
When the operation buttons are
not displayed on the screen, touch
the area shown on the illustration.
• To change settings for video
playback, see page40.
❏Indications and buttons on the source
control screen
For video playback
23
567
41
Playback information
• The information displayed on the screen differs
depending on the type of disc/file being played
back.
1Media type
2Current playback item information (title no./
chapter no./folder no./file no./track no.)
3Playback status
4Playing time
5DISC IN indicator
6Audio format
7Playback mode (Page13)
2016KW-VMidE.indb102016KW-VMidE.indb10 2015/12/1410:092015/12/1410:09

ENGLISH 11
DISCSDISCS
Operation buttons
• Available buttons on the screen and operations
differ depending on the type of disc/file being
played back.
[ ] Displays the other operation button
window.
• To hide the window, press [ ].
[ ] Displays the folder/track list.
(Page12)
[FNC J]Displays the pop-up short-cut menu.
(Page9)
• To close the menu, press [K].
[S] [T]• Selects a chapter/track. (Press)
• Reverse/forward search. (Hold)
[I/W]Starts/pauses playback.
[ ] Selects Repeat playback mode.
(Page13)
[ ] Selects Random playback mode.
(Page13)
[MODE] Changes the settings for disc playback
on the <Mode> screen. (Page13)
[o]Stops playback.
[ ] [ ] Selects a folder.
[ ] [ ] Plays in frame-by-frame.
[Playlist ] Displays the Original Program/Playlist
screen.
[PBC] Activates or deactivates the VCD PBC
(Playback Control) function.
• To display all available operation buttons, press
[ ] to display the other operation button
window.

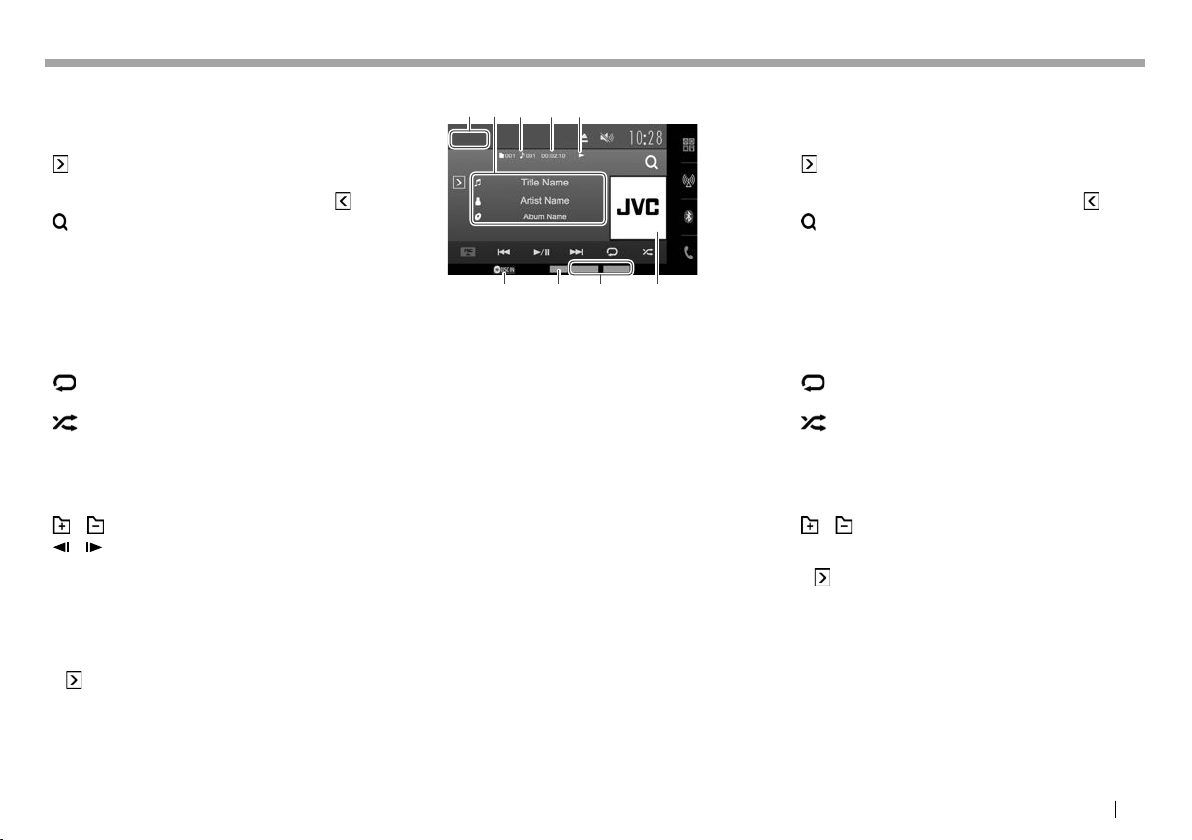

For audio playback
2
67
345
89
1
Playback information
• The information displayed on the screen differs
depending on the type of disc/file being played
back.
1Media type
2Track/file information
• Touching the text scrolls it if not all of the text
is shown.
3Current playback item information (folder no./file
no./track no.)
4Playing time
5Playback status
6DISC IN indicator
7Audio format
8Playback modes (Page13)
9Jacket picture (Shown while playing if the file has
tag data that includes the jacket picture)
Operation buttons
• Available buttons on the screen and operations
differ depending on the type of disc/file being
played back.
[ ] Displays the other operation button
window.
• To hide the window, press [ ].
[ ] Displays the folder/track list.
(Page12)
[FNC J]Displays the pop-up short-cut menu.
(Page9)
• To close the menu, press [K].
[S] [T]• Selects a track. (Press)
• Reverse/forward search. (Hold)
[I/W]Starts/pauses playback.
[ ] Selects Repeat playback mode.
(Page13)
[ ] Selects Random playback mode.
(Page13)
[MODE] Changes the settings for disc playback
on the <Mode> screen. (Page13)
[o]Stops playback.
[ ] [ ] Selects a folder.
• To display all available operation buttons, press
[ ] to display the other operation button
window.
2016KW-VMidE.indb112016KW-VMidE.indb11 2015/12/1410:092015/12/1410:09

12
DISCSDISCS
❏Selecting a folder/track on the list
1Display the folder/track list.
2Select the folder (1), then the item in the
selected folder (2).
• Repeat the procedure until you select the
desired track.
• You can change the page to display more
items by pressing [J]/[K].
• Press [ ] to open the folder containing the
current track.
• Press [ ] to return to the root folder.
• Press [ ] to return to the upper layer.
❏Video menu operations
You can display the video menu screen during video
playback.
• The operation buttons disappear when the screen
is touched or when no operation is done for about
5 seconds.
For video playback except VCD
• Available buttons on the screen and operations
differ depending on the type of disc/file being
played back.
[ ] Displays the picture size selection
screen. (Page41)
[ ] Selects the aspect ratio. (Page41)
[ ] Displays the picture adjustment
screen. (Page40)
[ ] Selects the audio type.
• For DVD-VR: Selects the audio
channel (ST: stereo, L: left, R: right).
[ ] Selects the subtitle type.
[ ] Selects the view angle.
[ ] Switches to the direct disc menu
mode. Touch the target item to select.
• To exit the menu selection screen,
press [ ].
[ ] Displays the menu/playlist/original
program/scene selection screen.
• [J] [K] [H] [I]: Selects an item.
• [Enter]: Confirms the selection.
• [Return]: Returns to the previous
screen.
• [ ]: Displays the menu screen
of the top layer when several menu
screens exist on the disc.
– For DivX: Exits the scene selection
screen.
[Menu] Displays the disc menu.
[Top Menu] Displays the disc menu (DVD).
2016KW-VMidE.indb122016KW-VMidE.indb12 2015/12/1410:092015/12/1410:09

ENGLISH 13
DISCSDISCS
For VCD
[ ] Displays the picture size selection screen.
(Page41)
[ ] Selects the aspect ratio. (Page41)
[ ] Displays the picture adjustment screen.
(Page40)
[ ] Selects the audio channel (ST: stereo, LL:
left, RR: right).
[Menu] Displays the disc menu.
[ ] Displays/hides the direct selection buttons.
(See below.)
To select a track directly on a VCD
While playing a VCD with PBC activated...
• When PBC is deactivated, activate the PBC
function by pressing [ ] then [PBC] on the
source control screen.
• When you enter a wrong number, press [CLR] to
delete the last entry.
❏Selecting playback mode
[ ] Selects Repeat playback mode.
[ ] Selects Random playback mode.
• The location of the buttons differ depending on
the type of disc/file being played back.
– When [ ] is not displayed, display the other
operation button window by pressing [ ].
• Available playback modes differ depending on the
type of disc/file being played back.
• You cannot activate the repeat mode and the
random mode at the same time.
• Each time you press the button, the playback
mode changes. (The corresponding indicator
lights up.)
– Available items differ depending on the type of
disc/file being played back.
CHAPTER Repeats current chapter.
TITLE Repeats current title.
SONGS Repeats current track.
FOLDER Repeats all tracks of the current
folder.
FOLDER Randomly plays all tracks of the
current folder, then tracks of the
next folders.
ALL Randomly plays all tracks.
To cancel Repeat/Random playback: Press the
button repeatedly until the indicator disappears.
Settings for disc playback
1Display the <Mode> screen.
2
• Press [J]/[K] to change the page.
• Available items shown on the <Mode> screen
differ depending on the type of disc/file being
played back.
2016KW-VMidE.indb132016KW-VMidE.indb13 2015/12/1410:092015/12/1410:09

14
DISCSDISCS
❏Setting items
<Menu
Language>*
Select the initial disc menu language.
(Initial: English) (Page60)
<Subtitle
Language>*
Select the initial subtitle language
or turn subtitles off (OFF). (Initial:
English) (Page60)
<Audio
Language>*
Select the initial audio language.
(Initial: Original) (Page60)
<Dynamic
Range
Control>*
You can change the dynamic range
while playing using Dolby Digital
software.
• OFF: Select this to enjoy a powerful
sound at a low volume level with
its full dynamic range.
• ON (Initial): Select this to reduce
the dynamic range a little.
• Dialog: Select this to reproduce
movie dialog more clearly.
<Angle
Mark>
Select whether to display the angle
mark.
• ON (Initial): Select this to display
the angle mark.
• OFF: Select this to hide the angle
mark.

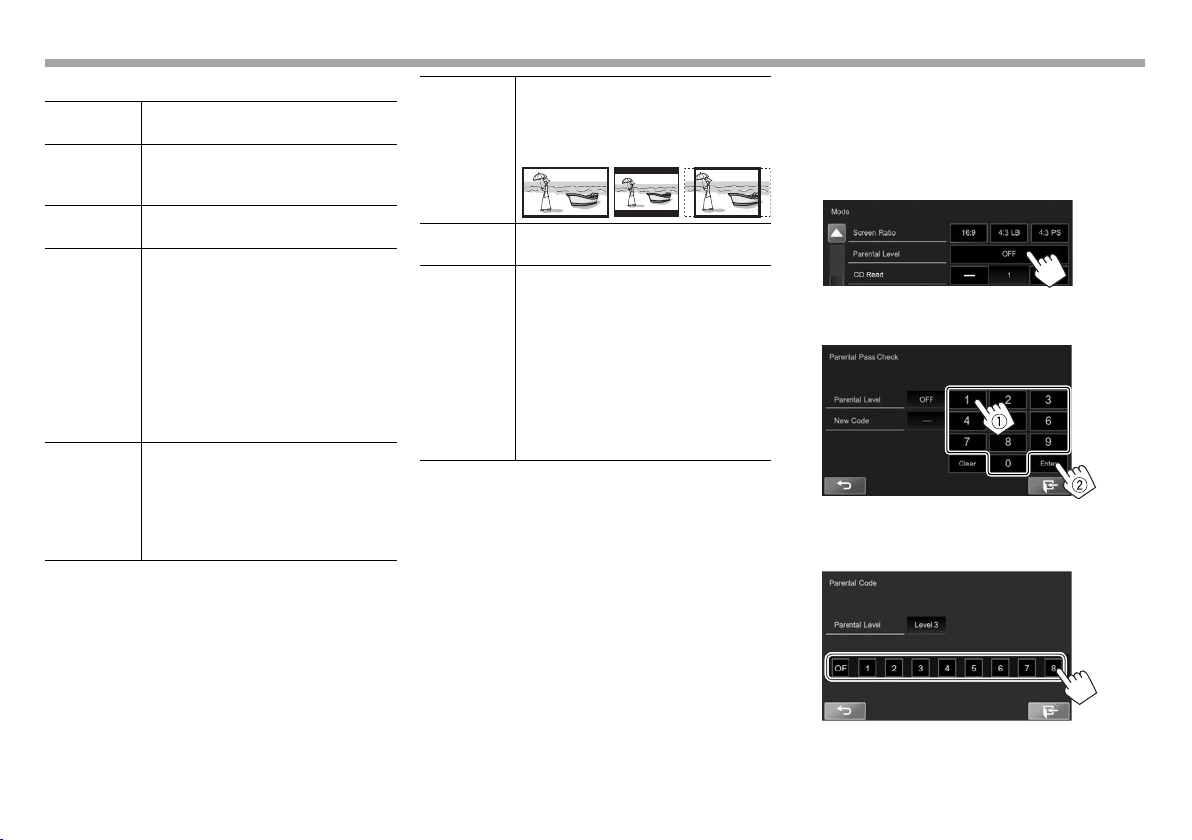

<Screen
Ratio>*
Select the monitor type to watch a
wide screen picture on the external
monitor.
16:9 (Initial) 4:3 LB 4:3 PS
<Parental
Level>*
Set the parental lock.
(See the right column.)
<CD Read> Select the files to play on a disc
containing music files. You cannot
change the setting when a disc is
inserted.
• 1 (Initial): Automatically
distinguishes between audio file
discs and music CDs.
• 2: Forcesplayback as a music CD.
No sound can be heard if an audio
file disc is played.
* You can change these settings only while playback is stopped.
Setting the parental lock
The parental lock cannot be set during DVD
playback.
1Display the <Parental Pass Check>
screen.
On the <Mode> screen:
2Enter the 4-digit parental pass code (1),
and press [Enter] (2).
• To clear the entry, press [Clear].
3Adjust the parental level ([OF] (off), [1] to
[8]).
To deactivate the parental lock: Select [OF] (off)
for <Parental Level>.
2016KW-VMidE.indb142016KW-VMidE.indb14 2015/12/1410:092015/12/1410:09

ENGLISH 15
USBUSB
Connecting a USB device
You can connect a USB mass storage class device
such as a USB memory, Digital Audio Player etc. to
the unit.
• For details about connecting USB devices, see
page 54.
• You cannot connect a computer or portable HDD
to the USB input terminal.
• For playable file types and notes on using USB
devices, see page 58.
When a USB device is connected...
The source changes to “USB” and playback starts.
• All tracks in the USB device will be played
repeatedly until you change the source.
To disconnect the USB device safely:
Press [MUSB], then disconnect the USB device after
“No Device” appears.
Playback operations
When the operation buttons are
not displayed on the screen, touch
the area shown on the illustration.
• To change settings for video
playback, see page40.
❏Indications and buttons on the source
control screen
1
6
234 5
7
Playback information
• The information displayed on the screen differs
depending on the type of file being played back.
1Track/file information
• Touching the text scrolls it if not all of the text
is shown.
2Current playback item information (folder no./file
no.)
3Playing time
4Playback status
5Jacket picture (Shown while playing if the file has
tag data that includes the jacket picture)
6Audio format
7Playback modes (See the right column.)
Operation buttons
• Available buttons on the screen and operations
differ depending on the type of file being played
back.
[ ] Displays the other operation button
window.
• To hide the window, press [ ].
[ ] Displays the list selection screen.
(Page16)
[FNC J]Displays the pop-up short-cut menu.
(Page9)
• To close the menu, press [K].
[S] [T]• Selects a track. (Press)
• Reverse/forward search. (Hold)
[I/W]Starts/pauses playback.
[ ]*1*2Selects repeat playback mode.
• SONGS: Repeats current track/
file.
• FOLDER: Repeats all tracks/files
in the current folder or specified
category.
[ ]*1*2Selects random playback mode. (The
ALL indicator appears.)
• When selecting the track/file from a
folder, randomly plays all tracks/files
of the current folder, then the tracks/
files of the next folder.
• When selecting the track/file from a
category, randomly plays all tracks/
files of the specified category.
[MODE] Changes the settings for USB playback
on the <Mode> screen. (Page16)
[MUSB] Disconnects the USB device safely.
[ ] [ ] Selects a folder.
• To display all available operation buttons, press
[ ] to display the other operation button
window.
*1To cancel random or repeat mode, press the button repeatedly until
the indicator disappears.
*2You cannot activate the repeat mode and the random mode at the
same time.
2016KW-VMidE.indb152016KW-VMidE.indb15 2015/12/1410:092015/12/1410:09

16
USBUSB
❏Setting picture display time
Select the interval between slides during slide-shows
of the picture files.
1Display the <Mode> screen.
2
❏Selecting a track in the list
1Display the list selection screen.
2Select the list type.
• To cancel the procedure, press [ ].
3Select the track.
• You can change the page to display more
items by pressing [J]/[K].
• Press [ ] to open the folder containing the
current track.
• On the <Category List>/<Link search>
screen: To list the items in alphabetical order,
press [ABC ], then select the first character.
• Press [ ] to return to the root folder.
• Press [ ] to return to the upper layer.
• If you want to play all tracks in the folder,
press [I] on the right of the desired folder.
• On the <Category List>/<Folder List>
screen: You can switch the file type to list:
Press [ ] to list audio files, [ ] to list video
files, or [ ] to list still picture files.
From the <Category List> screen:
Select the category (1), then the item in the
selected category (2).
From the <Link Search> screen:
Select the tag type (1) to display a list of
content that contains the same tag as the track/
file currently being played, then the item (2).
From the <Folder List> screen:
Select the folder (1), then the item in the
selected folder (2).
2016KW-VMidE.indb162016KW-VMidE.indb16 2015/12/1410:092015/12/1410:09

ENGLISH 17
iPod/iPhoneiPod/iPhone
Preparation
❏Connecting iPod/iPhone
• For details about connecting iPod/iPhone, see
page54.
• For playable iPod/iPhone types, see page59.
Connect your iPod/iPhone according to your
purpose or the type of iPod/iPhone.
Wired connection
• To listen to music:
– For Lightning connector models: Use USB
Audio cable for iPod/iPhone—KS-U62 (optional
accessory).
– For 30-pin connector models: Use 30-pin to USB
cable (accessory of iPod/iPhone).
• To watch video and listen to music:
– For Lightning connector models: Use the HDMI
cable KS-U60 (optional accessory) and KS-U62
(optional accessory) through a Lightning-Digital
AV adapter (accessory of the iPod/iPhone).
– For 30-pin connector models: Use USB Audio
and Video cable for iPod/iPhone—KS-U59
(optional accessory).
Bluetooth connection
Pair the iPod/iPhone through Bluetooth. (Page28)
• For Lightning connector models: To watch video,
connect your iPod/iPhone to the HDMI/MHL
input terminal using KS-U60 (optional accessory).
(Page54)
• For 30-pin connector models: You cannot watch
video with a Bluetooth connection.
❏Selecting the iPod/iPhone device to
play and connection method
When connecting the iPod/iPhone device for the
first time, the setup screen (for connection, etc.)
appears. Follow the procedure on the setup screen
to configure the settings.
1Display the <iPod Settings> screen.
On the Home screen:
• If [Enter] for <iPod Setup> cannot be
selected, turn off the AV source. (Page6)
2
• If you do not need to change the settings,
press [OK] to exit the setup screen.
3Select the connection method (1), then
press [Next] (2).
<USB +
AV-IN>
Select this when the iPod/
iPhone is connected using
KS-U59 (optional accessory).
<USB 1 Wire> Select this when the iPod/
iPhone is connected using a
USB 2.0 cable (accessory of
the iPod/iPhone) or KS-U62
(optional accessory).
<HDMI +
Bluetooth>
Select this when the iPod/
iPhone is connected using
HDMI cable KS-U60 (optional
accessory) and KS-U62 (optional
accessory) through a Lightning-
Digital AV adapter (accessory of
the iPod/iPhone).
<Bluetooth> Select this when the iPod/
iPhone is connected via
Bluetooth.
• When selecting <USB + AV-IN> or <USB 1
Wire>, go to step 5.
Continued on the next page...
2016KW-VMidE.indb172016KW-VMidE.indb17 2015/12/1410:092015/12/1410:09

18
iPod/iPhoneiPod/iPhone
4When selecting <HDMI + Bluetooth> or
<Bluetooth> as the connection method,
the paired device list appears. Select the
target device (1), then press [Next] (2).
• You can delete the Bluetooth registration of a
device. Press [Remove], then press [Yes] after
a confirmation message appears.
• If the desired device is not listed, press
[Search] to search for the available iPod/
iPhone devices, then select the target device
from the <Available Devices> screen.
– You can change the page to display more
items by pressing [J]/[K].
– To stop searching, press [Cancel].
5Confirm the settings.
❏Selecting preference settings for iPod/
iPhone playback
When the source is “iPod”...
1Display the <Mode> screen.
2
<Audiobooks> Select the speed of audio
books.
<Wide
Screen>*
• [ON]: Select this to display
video compatible with
wide-screen display in wide-
screen.
• [OFF]: Select this to
deactivate.
* You cannot change the setting when iPod/iPhone is connected.
Playback operations
When the operation buttons are
not displayed on the screen, touch
the area shown on the illustration.
• To change settings for video
playback, see page40.
❏Indications and buttons on the source
control screen
12345
6
Playback information
1Song information
• Touching the text scrolls it if not all of the text
is shown.
2Track no./Total track number
3Playing time
4Playback status
5Artwork (Shown if the song contains artwork)
6Playback modes (Page19)
2016KW-VMidE.indb182016KW-VMidE.indb18 2015/12/1410:092015/12/1410:09

ENGLISH 19
iPod/iPhoneiPod/iPhone

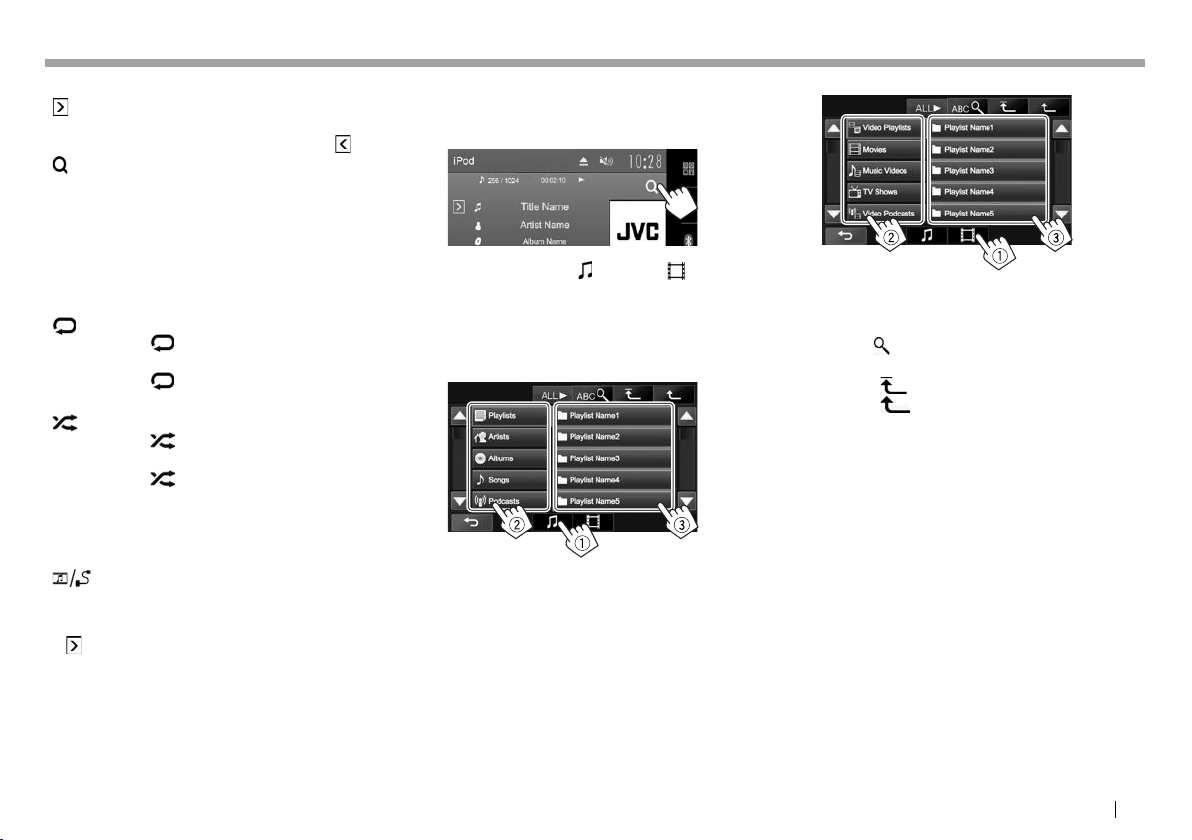

Operation buttons
[ ] Displays the other operation button
window.
• To hide the window, press [ ].
[ ] Displays the audio/video track menu.
(See the right column.)
[FNC J]Displays the pop-up short-cut menu.
(Page9)
• To close the menu, press [K].
[S] [T]• Selects a track. (Press)
• Reverse/forward search. (Hold)
[I/W]Starts/pauses playback.
[ ] Selects repeat playback mode.
• SONGS: Functions the same as
Repeat One.
• ALL: Functions the same as
Repeat All.
[ ]*Selects random playback mode.
• SONGS: Functions the same as
Shuffle Songs.
• ALBUMS: Functions the same as
Shuffle Albums.
[MODE] Changes the settings for iPod/iPhone
playback on the <Mode> screen.
(Page18)
[ ] Displays the <iPod Settings> screen.
(Page17)
• To display all available operation buttons, press
[ ] to display the other operation button
window.
*To cancel random mode, press the button repeatedly until the
indicator disappears.
❏Selecting an audio/video track from the
menu
1Display the menu screen.
2Select the menu ( : audio or : video)
(1), a category (2), then a desired item
(3).
• Select an item in each layer until you reach
and select the desired track.
Audio menu:
Video menu:
• You can change the page to display more
items by pressing [J]/[K].
• To list the items in alphabetical order, press
[ABC ], then select the first character.
• Press [ALL I]to play all songs/videos.
• Press [ ] to return to the top layer.
• Press [ ] to return to the upper layer.
• Available categories differ depending on the type
of your iPod/iPhone.
2016KW-VMidE.indb192016KW-VMidE.indb19 2015/12/1410:092015/12/1410:09

20
APPsAPPs
You can use an App of the connected iPod touch/
iPhone/Android on this unit.
• For Apps you can use on this unit, visit
<http://www.jvc.net/cs/car/>.
• For Android devices, you can use more functions
with the JVC Smartphone Control application. For
details, visit <http://www.jvc.net/car/app/>
Preparation
1Connect the iPod touch/iPhone/Android.
• For wired connection, see page 54 for iPod
touch/iPhone or page 55 for Android.
– To view video, connect the device using
KS-U59 or KS-U60 (optional accessory).
• For Bluetooth connection, see page 28.
2Select the iPod touch/iPhone/Android
device to use and connection method on
the <APP Settings> screen. (Page 37)
Using an App
When the operation buttons are not displayed on
the screen, touch the screen to show them.
• To change settings for video playback, see
page40.
❏Playback operations
1Start App on your iPod touch/iPhone/
Android.
2Select “Apps” as the source. (Page8)
• When a caution message is displayed, operate
by following the message.
❏Operation buttons on the source
control screen
[ ] Displays the other operation button
window.
• To hide the window, press [ ].
[FNC J]Displays the pop-up short-cut menu.
(Page9)
• To close the menu, press [K].
[S] [T]Selects an audio/video file.
[I/W]Starts/pauses playback.
[ ] Displays the <APP Settings> screen.
(Page37)
• To display all available operation buttons, press
[ ] to display the other operation button
window.
• You can operate some functions of the App on the
touch panel.
• For some applications such as navigation
applications, the operation buttons and
information are not shown. You can perform the
operations on the touch panel, such as scrolling
the map.
– If “ ” appears on the screen, the unit cannot
accept the touch operation you have tried to do.
• You can also play back the audio/video using
iPod/iPhone/Android itself instead of the unit.
❏Switching to the App screen while
listening to another source
To return to the source control screen: Press
on the monitor panel.
2016KW-VMidE.indb202016KW-VMidE.indb20 2015/12/1410:092015/12/1410:09
