2ENGLISH
Thank you for purchasing a JVC product.
Please read all instructions carefully before operation, to ensure your complete understanding and
to obtain the best possible performance from the unit.
IMPORTANT FOR LASER PRODUCTS
1.CLASS 1 LASER PRODUCT
2.CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave
all servicing to qualified service personnel.
3.CAUTION: Visible and/or invisible class 1M laser radiation when open. Do not view directly with
optical instruments.
4.REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUTSIDE THE UNIT.
[European Union only]
Warning:
If you need to operate the unit while driving,
be sure to look around carefully or you may be
involved in a traffic accident.
For safety...
• Do not raise the volume level too much, as
this will block outside sounds, making driving
dangerous.
• Stop the car before performing any
complicated operations.
Temperature inside the car...
If you have parked the car for a long time in
hot or cold weather, wait until the temperature
in the car becomes normal before operating
the unit.
How to read this manual
The following icons/symbols are used to
indicate:
Press and hold the button(s)
until the desired operation
begins.
Turn the control dial.
Turn the control dial
to make a selection,
then press to confirm.
( XX) Reference page number
<XXXX> Menu setting item
Continued on the next page
Caution on volume setting:
Digital devices (CD/USB) produce very little
noise compared with other sources. Lower the
volume before playing these digital sources to
avoid damaging the speakers by the sudden
increase of the output level.
[Hold]
EN02-11_KD-R716_001A_f.indd 2EN02-11_KD-R716_001A_f.indd 2 12/17/09 3:04:28 PM12/17/09 3:04:28 PM

3ENGLISH
CONTENTS
2 How to read this manual
3 How to attach/detach the control
panel
3 How to reset your unit
3 How to forcibly eject a disc
4 Canceling the display
demonstration
4 Setting the clock
5 Preparing the remote controller
(RM-RK50)
6 Basic operations
7 Listening to the radio
9 Listening to a disc
10 Listening to the USB device
12 Using the Bluetooth® device
14 Using a Bluetooth mobile phone
16 Using a Bluetooth audio player
17 Changing the Bluetooth settings
19 Listening to the iPod/iPhone
21 Listening to the other external
components
22 Selecting a preset sound mode
23 Menu operations
26 More about this unit
29 Maintenance
30 Troubleshooting
34 Specifications
How to attach/detach the control
panel
How to reset your unit
Your preset adjustments
will also be erased (except
the registered Bluetooth
device). ( 13)
How to forcibly eject a disc
• You can forcibly eject the loaded disc even
if the disc is locked. To lock/unlock the disc,
9.
• Be careful not to drop the disc when it ejects.
• If this does not work, reset your unit.
[Hold]
EN02-11_KD-R716_001A_f.indd 3EN02-11_KD-R716_001A_f.indd 3 12/17/09 3:04:29 PM12/17/09 3:04:29 PM

4ENGLISH
1 Turn on the power.
2
3
Setting the clock
1 Turn on the power.
2
3 Select <CLOCK>.
4 Select <CLOCK SET>.
5 Adjust the hour.
6 Adjust the minute.
7 Finish the procedure.
4 Select <DEMO OFF>.
5
6 Finish the procedure.
Canceling the display demonstration
(Initial setting)
[Hold]
(Initial setting)
[Hold]
EN02-11_KD-R716_001A_f.indd 4EN02-11_KD-R716_001A_f.indd 4 12/17/09 3:04:29 PM12/17/09 3:04:29 PM

5ENGLISH
Warning (to prevent accidents and
damage):
• Do not install any battery other than CR2025
or its equivalent.
• Do not leave the remote controller in a place
(such as dashboards) exposed to direct
sunlight for a long time.
• Store the battery in a place where children
cannot reach.
• Do not recharge, short, disassemble, heat the
battery, or dispose of it in a fire.
• Do not leave the battery with other metallic
materials.
• Do not poke the battery with tweezers or
similar tools.
• Wrap the battery with tape and insulate when
throwing away or saving it.
This unit is equipped with the steering wheel
remote control function.
Before operating, connect an exclusive remote
adapter (not supplied) which matches your car
to the steering wheel remote input terminal on
the rear of the unit.
• For details, refer also to the instructions
supplied with the remote adapter.
Preparing the remote controller (RM-RK50)
When you use the remote controller for the first
time, pull out the insulation sheet.
If the effectiveness of the remote controller
decreases, replace the battery.
Replacing the lithium coin battery
CR2025
Caution:
• Danger of explosion if battery is incorrectly
replaced. Replace only with the same or
equivalent type.
• Battery shall not be exposed to excessive heat
such as sunshine, fire, or the like.
Insulation sheet
EN02-11_KD-R716_001A_f.indd 5EN02-11_KD-R716_001A_f.indd 5 12/17/09 3:04:30 PM12/17/09 3:04:30 PM

6ENGLISH
Basic operations
Control dial
Ejects the disc Loading slot
USB (Universal Serial Bus)
input terminal
Display window Auxiliary input jack
Detaches the panel
Returns to the previous menu
When you press or hold the following button(s)...
Main unit Remote
controller General operation
Turns on.
• When the power is on, pressing /I/ATT on the remote controller
also mutes the sound or pauses. Press /I/ATT again to cancel
muting or resume playback.
Turns off if pressed and held.
Selects the available sources (if the power is turned on).
• If the source is ready, playback also starts.
Adjusts the volume level.
— Selects items.
—
• Mutes the sound while listening to a source. If the source is “CD,”
“USB FRONT/USB REAR,” or “IPOD-FRONT/IPOD-REAR,” playback
pauses. Press the control dial again to cancel muting or resume
playback.
• Enters playback mode menu directly if pressed and held.
• Confirms selection.
Remote sensor
• DO NOT expose to bright sunlight.
EN02-11_KD-R716_001A_f.indd 6EN02-11_KD-R716_001A_f.indd 6 12/17/09 3:04:30 PM12/17/09 3:04:30 PM

7ENGLISH
Manual search
“M” flashes, then press
the button repeatedly.
When an FM stereo broadcast is
hard to receive
1
2
] <TUNER> ] <MONO> ]
<MONO ON>
Reception improves, but stereo effect
will be lost.
To restore the stereo effect, repeat the same
procedure to select <MONO OFF>.
Automatic presetting (FM)—
SSM (Strong-station Sequential Memory)
You can preset up to 18 stations for FM.
While listening to a station...
1
2
] <TUNER> ] <SSM> ]
<SSM 01 – 06> / <SSM 07 – 12> /
<SSM 13 – 18>
“SSM” flashes and local stations with
the strongest signals are searched and
stored automatically.
To preset another 6 stations, repeat the above
procedure by selecting one of the other 6 SSM
setting ranges.
Main unit Remote
controller General operation
Selects the sound mode.
• Enters tone level adjustment directly ( 22) if pressed and held
EQ/BASS-TRE on the main unit.
—
• Enters “Call Menu” screen or answers incoming call when the unit
rings.
• Ends a call if pressed and held.
—Power off : Checks the current clock time.
Power on : Changes the display information.
[Hold]
[Hold]
[Hold]
Listening to the radio
~
] “FM” or “AM”
Ÿ
“ST” lights up when receiving an FM stereo broadcast
with sufficient signal strength.
EN02-11_KD-R716_001A_f.indd 7EN02-11_KD-R716_001A_f.indd 7 12/17/09 3:04:30 PM12/17/09 3:04:30 PM

8ENGLISH
Manual presetting (FM/AM)
You can preset up to 18 stations for FM and 6
stations for AM.
Ex.: Storing FM station of 92.50 MHz into preset
number “04.”
1
] “92.50MHz”
2
“PRESET MODE” flashes.
3
] Selects preset number “04.”
“P04” flashes and “MEMORY” appears.
Selecting a preset station
or
1
2
Changing the display information
Station name * = Frequency =
Clock = (back to the beginning)
* If no title is assigned to a station, “NO NAME”
appears for a few seconds.
Using the remote controller
5 U / D ∞ : Changes the preset
stations
2 R / F 3 : Searches for stations
[Hold]
Title assignment
You can assign titles up to 30 station
frequencies (FM and AM) using 8 characters
(maximum) for each title.
• If you try to assign titles to more than 30
station frequencies, “NAME FULL” appears.
Delete unwanted titles before assignment.
1
] “FM” or “AM”
2
] Show the title entry screen.
3
] Select a character.
4
] Move to the next (or previous)
character position.
5Repeat steps 3and 4until you have
finished entering the title.
6
To erase the entire title, press and hold DISP
after step 2, then press the control dial.
Available characters
ABCDEFGH I
JKLMNOPQR
STUVWXYZ0
123456789
—/ <> Space
[Hold]
EN02-11_KD-R716_001A_f.indd 8EN02-11_KD-R716_001A_f.indd 8 12/17/09 3:04:31 PM12/17/09 3:04:31 PM

9ENGLISH
Stopping playback and ejecting
the disc
“NO DISC” appears.
Remove the disc, then press
/ SOURCE to listen to another
playback source.
Prohibiting disc ejection
To cancel the prohibition, repeat the same
procedure.
Selects folder of the MP3/WMA
Selects track
Fast-forwards or
reverses the track
Selecting a folder/track on the
list
While listening to a disc....
1
] Enter the list menu.
Listening to a disc
~
] Turn on the power.
Ÿ
All tracks will be played repeatedly until you change
the source or eject the disc.
[Hold]
[Hold]
2
] Select your desired item.
MP3/WMA: Select your desired folder,
then the desired track by repeating
this step.
• If the MP3/WMA disc contains many tracks,
you can fast search (±10, ±100, ±1000)
through the disc by turning the control dial
quickly.
• To return to the previous menu, press
BACK .
For MP3/WMA disc, you can also use the search
menu (A to Z, 0 to 9, and OTHERS) to scroll
through the list menu.
• “OTHERS” appears if the 1st character is not A
to Z or 0 to 9, such as #, —, !, and etc.
While in list menu....
1 Press 5 / ∞ to show the search menu.
• The first character of the current folder/file
name appears.
2 Press 5 / ∞ to select your desired character.
Then press the control dial to confirm.
• The track list with the selected character
appears.
3 Turn the control dial to select your desired
track. Then press the control dial to confirm.
• Only the existing characters will be shown on
the search menu.
• Press and hold 5 / ∞ to continuously change
the character of the search menu.
EN02-11_KD-R716_001A_f.indd 9EN02-11_KD-R716_001A_f.indd 9 12/17/09 3:04:31 PM12/17/09 3:04:31 PM

10 ENGLISH
• If your disc contains many tracks, searching
take some time.
Selecting the playback modes
You can use only one of the following playback
modes at a time.
1
2
] “REPEAT” j “RANDOM”
3
REPEAT
TRACK RPT : Repeats current track
FOLDER RPT : Repeats current folder
RANDOM
FOLDER RND : Randomly plays all tracks
of current folder, then
tracks of next folders
ALL RND : Randomly plays all tracks
To cancel repeat play or random play, select
“RPT OFF” or “RND OFF.”
Listening to the USB device
This unit is equipped with two USB input terminals (on the control panel and USB cable from the
rear of the unit). You can use these two terminals at the same time.
• You can also connect a USB Bluetooth Adapter, KS-UBT1 (supplied), ( 12) and/or an Apple
iPod/iPhone ( 19) to the USB input terminal(s).
This unit can play MP3/WMA/WAV tracks stored in a USB mass storage class device (such
as a USB memory, Digital Audio Player, etc.).
Changing the display information
Disc title/Album name/performer (folder
name)* = Track title (file name)* = Current
track number with the elapsed playing time
= Current track number with the clock
time
= (back to the beginning)
* If the current disc is an audio CD (except for CD
Text), “NO NAME” appears.
If an MP3/WMA file does not have Tag
information or <TAG DISPLAY> is set to
<TAG OFF> ( 23), folder name and file name
appear.
Using the remote controller
5 U / D ∞ : Selects folder of the
MP3/WMA
2 R / F 3 : Selects track
2 R / F 3
[Hold]
: Fast-forwards or
reverses the track
[Hold]
EN02-11_KD-R716_001A_f.indd 10EN02-11_KD-R716_001A_f.indd 10 12/22/09 2:01:28 PM12/22/09 2:01:28 PM

11ENGLISH
~
] Turn on the power.
Ÿ
and / or
All tracks will be played repeatedly until you change the source or detach the USB device.
If you have turned off the power (without
detaching the USB device)...
Pressing
/SOURCE turns on the power and
playback starts from where it has been stopped
previously.
• If a different USB device is currently attached,
playback starts from the beginning.
Stopping playback and detaching
the USB device
Straightly pull it out from the unit.
“NO USB” appears. Press /SOURCE to listen to
another playback source.
You can operate the USB device in the same
way you operate the files on a disc. ( 9,
10)
• You can listen to WAV files by following the
MP3/WMA file operations. ( 9, 10)
Cautions:
• Avoid using the USB device if it might hinder
your safety driving.
• While “READING” is shown on the display:
–Do not pull out and attach the USB device
repeatedly.
–Do not pull out or attach another USB
device.
• Do not start the car engine if a USB device is
connected.
• This unit may not be able to play the files
depending on the type of USB device.
• Operation and power supply may not work as
intended for some USB devices.
• You cannot connect a computer to the USB
input terminal of the unit.
• Make sure all important data has been backed
up to avoid losing the data.
• Electrostatic shock at connecting a USB device
may cause abnormal playback of the device.
In this case, disconnect the USB device then
reset this unit and the USB device.
• Do not leave a USB device in the car, expose
to direct sunlight, or high temperature to
avoid deformation or cause damages to the
device.
• Some USB devices may not work immediately
after you turn on the power.
• The detect time and response time may
be very long for some USB devices (such as
Digital Audio Player, etc.).
• For more details about USB operations,
27.
USB input terminal USB memory USB cable from the
rear of the unit
EN02-11_KD-R716_001A_f.indd 11EN02-11_KD-R716_001A_f.indd 11 12/17/09 3:04:32 PM12/17/09 3:04:32 PM

12 ENGLISH
Using the Bluetooth® device
Bluetooth is a short-range wireless radio communication technology for the mobile device such
as mobile phones, portable PCs, and other devices. The Bluetooth devices can be connected
without cables and communicate with each other.
• Refer to pages iand ii at the end of the manual to check the countries where you may use the
Bluetooth® function.
Bluetooth profile
This unit supports the following Bluetooth profiles;
HFP (Hands-Free Profile) 1.5 ; OPP (Object Push Profile) 1.1 ; PBAP (Phonebook Access Profile)
1.0 ; A2DP (Advanced Audio Distribution Profile) 1.2 ; AVRCP (Audio/Video Remote Control
Profile) 1.3
Refer also to the instructions supplied with the Bluetooth device.
Preparation:
• Connect the supplied USB Bluetooth Adapter (KS-UBT1) to one of the USB input terminals of the
unit.
• Operate the device to turn on its Bluetooth function.
~
] Turn on the power.
Ÿ
or
Only one USB Bluetooth Adapter can be detected at a time.
USB input terminal KS-UBT1 USB cable from the
rear of the unit
Pairing a device
When you connect a Bluetooth device to the unit for the first time, make pairing between the unit
and the device.
• Once the connection is established, it is registered in the unit even if you reset the unit. Up to five
devices can be registered in total.
• Only one device for Bluetooth phone and one for Bluetooth audio can be connected at a time.
EN12-21_KD-R716_001A_f.indd 12EN12-21_KD-R716_001A_f.indd 12 12/17/09 3:04:05 PM12/17/09 3:04:05 PM

13ENGLISH
1
2
]<BLUETOOTH> ]<NEW PAIRING>
3
] Enter a PIN (Personal Identification
Number) code in to the unit.
You can enter any number you like
(1-digit to 16-digit number).
[Initial: 0000]
• Some devices have their own PIN
code. Enter the specified PIN code in
to the unit.
4Repeat step 3until you have finished
entering the PIN code.
5
] Confirm the entry.
“SEARCH NOW” and “USING PHONE”
appear alternately on the display.
6Use the Bluetooth device to search.
On the device to be connected, enter
the same PIN code you have just
entered for this unit.
“PAIRING OK“ and “[Device Name]”
appear alternately when the pairing is
established.
appears when Bluetooth connection
is established.
7Use the Bluetooth device to connect*
when “CONNECT NOW” and “USING
PHONE” alternate on the display.
• Refer to the table on the right column
for connectivity results shown on the
display.
* Operations may be different according
to the connected device.
Display result Hands-
Free Call
Audio
Streaming
CONNECT OK
j
[Device Name]
‡‡
H.FREE OK j
[Device Name]
‡
—
A. STREAM OK
j
[Device Name] —
‡
CONNCT FAIL j
TRY CONNECT ——
The device remains registered even after you
disconnect the device. Use <CONNECT PH> or
<CONNECT AU> (or activate <AUTO CNNCT>,
18) to connect the same device from next
time on.
Deleting a registered device
1
2
]<BLUETOOTH> ]<DELETE PAIR>
3
] Select a device you want to delete.
4
] Select <DELETE YES> to confirm.
“DELETED” appears when the device is
deleted.
• If <DELETE NO> is selected, the unit
returns to step 3above.
[Hold]
[Hold]
EN12-21_KD-R716_001A_f.indd 13EN12-21_KD-R716_001A_f.indd 13 12/17/09 3:04:06 PM12/17/09 3:04:06 PM

14 ENGLISH
Connecting/disconnecting a
registered device
1
2
]<BLUETOOTH> ]<CONNECT PH/
CONNECT AU> or <DISCONNT PH/
DISCONNT AU>.
• For connecting a device, go to step 3.
• For disconnecting a device,
“DISCONNECT” and “[Device Name]”
appear alternately on the display
when the device is disconnected.
3
] Select a device you want to connect.
• “CONNECTING” and “[Device Name]”
appear alternately, then “CONNECTED”
and “[Device Name]” appear
alternately on the display when the
device is connected.
Using a Bluetooth mobile
phone
Making a call

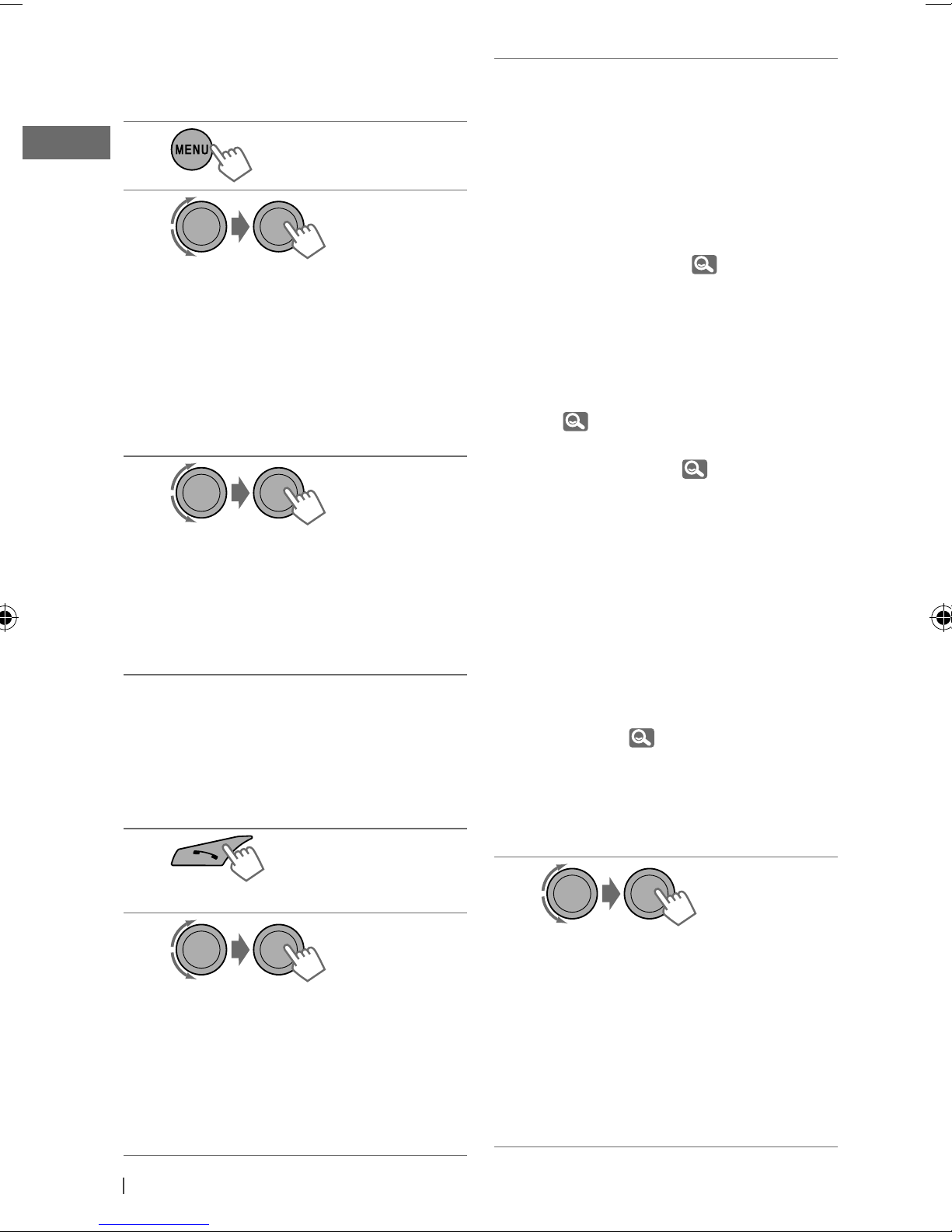

1
]Enter “Call Menu” screen.
2
]Select the method to make a call.
• DIALED* 1: Shows the list of the phone
numbers you have dialed. Go to the
following step.
• RECEIVED* 1: Shows the list of the
received calls. Go to the following
step.
[Hold]
• MISSED CALL* 1: Shows the list of the
missed calls. Go to the following step.
• PHONEBOOK* 2: Shows the name/
phone number of the phonebook
registered in the unit or from the
connected phone*3. Go to the
following step.
–To copy the phonebook memory,
<P. BOOK WAIT>, 18.
–If the phonebook contains many
numbers, you can fast search (±10,
±100, ±1000 numbers) through the
phonebook by turning the control
dial quickly.
–To search through the phonebook,
15.
• DIAL NUMBER: Shows the “Dial
Number” screen. ( the following)
• VOICE DIAL (only accessible when
the connected mobile phone has the
voice recognition system): Speak the
name (registered words) you want to
call when “SAY NAME” appears*4, *5.
*1 “NO HISTORY” appears if there is no
history stored.
*2 “NO DATA” or “SEND P. BOOK” j
“MANUALLY” appears depending on
the <P. BOOK SEL> settings.
*3 Depends on the <P. BOOK SEL>
settings, 18.
*4 Operations may be different according
to the connected device.
*5 “NOT SUPPORT” appears if the
connected phone does not support
this feature.
3
] Select the name/phone number you
want to call.
• When the sound is stopped or
interrupted during the use of a
Bluetooth device, turn off, then turn
on the unit.
–If the sound is not yet restored,
connect the device again using
<CONNECT PH>.
EN12-21_KD-R716_001A_f.indd 14EN12-21_KD-R716_001A_f.indd 14 12/17/09 3:04:06 PM12/17/09 3:04:06 PM

15ENGLISH
How to enter phone number
1 Turn the control dial to select a number.
2 Press 4 / ¢ to move the entry
position.
3 Repeat steps 1 and 2 until you finish
entering the phone number.
4 Press the control dial to confirm the entry.
How to delete name/phone number
Only when <PB IN UNIT> is selected for
<P. BOOK SEL>, 18.
1 Press to enter “Call Menu” screen.
2 Display the list of name/phone numbers
using one of the dialing method (see step 2
of “Making a call,” 14).
3 Turn the control dial to select the name/
phone number you want to delete.
4 Press and hold BACK to enter the “Delete
Entries” screen.
5 Turn the control dial to select “DELETE” or
“DELETE ALL.”
• If “DELETE” is selected, the selected name/
phone number in step
3 is deleted.
• If “DELETE ALL” is selected, the listed
numbers in step 2 selection are deleted.
6 Press the control dial to confirm.
Selecting a contact from the
phonebook
1
]Enter “Call Menu” screen.
2
] <PHONEBOOK>
3
] Show the search menu (A to Z, 0 to
9, and OTHERS).
The first character of the first contact on
the phonebook appears.
• “OTHERS” appears if the 1st character
is not A to Z or 0 to 9, such as #, —, !,
and etc.
4
] Select your desired character.
The name list of the selected character
appears.
5
] Select your desired contact.
• To return to the previous menu, press
BACK .
• Only the existing characters will be shown on
the search menu.
• Press and hold 5 / ∞ to continuously change
the character of the search menu.
• If your phonebook contains many contacts,
searching take some time.
Receiving a call
When a call comes in, the source is
automatically changed to “BT FRONT/BT REAR.”
“RECEIVING” appears for a while, then the
phone number or name appears on the display.
EN12-21_KD-R716_001A_ff.indd 15EN12-21_KD-R716_001A_ff.indd 15 1/6/10 12:45:40 PM1/6/10 12:45:40 PM

16 ENGLISH
When <AUTO ANSWER> is activated....
The unit answers the incoming calls
automatically, 18.
• Press or the control dial to answer the
incoming call when <AUTO ANSWER> is
deactivated.
• Press 5 / ∞ to adjust the microphone volume
(01 – 03) during a phone call conversation.
To preset the microphone volume, 18.
• Press 4 / ¢ to turn on/off the
Noise Reduction and Echo Cancelation mode.
( 18)
To end the call an incoming call, press and
hold or the control dial.
Switching conversation media (the unit/
mobile phone)
Press the control dial during a phone call
conversation, then continue your conversation
using the other media.
• Operations may be different according to the
connected Bluetooth device.
Switching the connected mobile phone
You can switch the current connected mobile
phone to the last connected mobile phone.
and “CONNECTING” flashes on the display.
When the last connected phone is being
reconnected again, “CONNECTED” and “[Device
Name]” appear alternately on the display. Now
you can use the last connected mobile phone
with the unit.
Arriving of a text message
When a text message comes in, the unit rings
if your mobile phone is compatible with text
message and <MSG NOTICE> is set to <ON>
( 18).
• You cannot read, edit, or send a message
through the unit.
[Hold]
Using the remote controller
5 U / D ∞ /
2 R / F 3 /
SOURCE
: Answers calls
5 U / D ∞ /
2 R / F 3 /
SOURCE
[Hold]
: Rejects calls
: Switches the conversation media
(between the unit and mobile
phone) during a phone call
conversation
Using a Bluetooth audio
player
Operations and display indications differ
depending on their availability on the
connected device.
]Select “BT FRONT” or
“BT REAR.”
• If playback does not start automatically,
operate the Bluetooth audio player to start
playback.
Starts or resumes
playback
Mutes the sound
Selects group/folder
Forward skips or
reverse skips
Fast-forwards or
reverses the track
[Hold]
EN12-21_KD-R716_001A_f.indd 16EN12-21_KD-R716_001A_f.indd 16 12/17/09 3:04:07 PM12/17/09 3:04:07 PM

17ENGLISH
Warning messages
ERROR CNNCT : The device is registered but
the connection has failed. Use <CONNECT
PH/CONNECT AU> to connect the device
again.
ERROR : Try the operation again. If <ERROR>
appears again, check if the device supports
the function you have tried.
PLEASE WAIT : The unit is preparing to use
the Bluetooth function. If the message does
not disappear, turn off and turn on the unit,
then connect the device again (or reset the
unit).
HW ERROR : Reset the unit and try the
operation again. If “HW ERROR” appears
again, consult your nearest JVC car audio
dealers.
Bluetooth Information:
If you wish to receive more information about
Bluetooth, visit the following JVC web site:
<http://www.jvc.co.jp/english/car/> (English
website only).
Changing the Bluetooth
settings
1
2
] <BLUETOOTH> ] <SETTINGS>
3
] Select a setting item, then repeat
the procedure to change the setting
accordingly.
• To return to the previous menu, press
BACK .
• To exit from the menu, press DISP or MENU .
Using the remote controller
2 R / F 3 : Reverse skips/
Forward skips
2 R / F 3
[Hold]
: Fast-forwards or
reverses the track
Selecting the playback modes
• For Bluetooth devices that support AVRCP 1.3.
1
2
] “REPEAT” j “RANDOM”
3
REPEAT
TRACK
ALL
GROUP
: Repeats current track
: Repeats all tracks
: Repeats all track of current
group
RANDOM
ALL
GROUP
: Randomly plays all tracks
: Randomly plays all track of
current group
To cancel repeat play or random play, select
“RPT OFF” or “RND OFF.”
• To return to the previous menu, press
BACK .
Changing the display information
Current track number with the elapsed
playing time = Current track number with
the clock time = Album name/performer
= Track title = (back to the beginning)
[Hold]
[Hold]
EN12-21_KD-R716_001A_f.indd 17EN12-21_KD-R716_001A_f.indd 17 12/23/09 9:58:26 AM12/23/09 9:58:26 AM

18 ENGLISH
Setting item Selectable setting, [Initial: Underlined]
AUTO CNNCT • LAST
• OFF
: The connection is established automatically with the last
connected Bluetooth device when you turn on the unit.
: The unit does not connect the Bluetooth device
automatically. Connect the device manually. ( 14)
AUTO ANSWER • ON
• OFF
: The unit answers the incoming calls automatically.
: The unit does not answer the calls automatically. Answer
the calls manually. ( 15, 16)
MSG NOTICE • ON
• OFF
: The unit informs you of the arrival of a message by
ringing and displaying “RCV MESSAGE.”
: The unit does not inform you of the arrival of a message.
MIC LEVEL —: Adjust the volume of the microphone connected to the
unit. [ LEVEL 01/02/03 ]
NR/EC MODE • ON
• OFF
: The unit adjusts the Noise Reduction and Echo
Cancelation of the microphone connected to the unit
for clearer sound.
: Cancels.
RING TONE • IN UNIT
• IN PHONE
: The unit rings to alert you when a call/Text Message
comes in.
CALL: Select your preferred ring tone when a call
comes in. [ TONE 1/2/3 ]
MESSAGE: Select your preferred ring tone when a Text
Message comes in. [ TONE 1/2/3 ]
: The unit rings (using the connected phones’ ring tone)
to alert you when a call/Text Message comes in. (The
connected mobile phone rings if it does not support this
feature.)
P. BOOK SEL*1• PB IN PHONE
• PB IN UNIT
: The unit browses the phonebook of the connected
phone.
: The unit browses the phonebook registered in the unit.
P. BOOK WAIT — : You can copy the phonebook memory of a mobile
phone into the unit (via OPP).
Enter the PIN code to the unit to transfer the phonebook
into the unit. You can transfer a maximum of 400
numbers.
INITIALIZE • YES
• NO
: Initialize all the Bluetooth settings (including stored
pairing, phonebook, and etc.).
: Cancels.
INFORMATION • MY BT NAME
• MY ADDRESS
• BT SW VER
• PH CNNT DEV*2
• AU CNNT DEV*2
: Shows the unit name.
: Shows address of USB Bluetooth Adapter.
: Shows the software version.
: Shows connected phone name.
: Shows connected audio device name.
*1 Selectable only when the connected phone supports PBAP.
*2 Displayed only when a Bluetooth phone/audio player is connected.
EN12-21_KD-R716_001A_f.indd 18EN12-21_KD-R716_001A_f.indd 18 12/17/09 3:04:07 PM12/17/09 3:04:07 PM

19ENGLISH
Listening to the iPod/iPhone
You can connect the iPod/iPhone using the USB 2.0 cable (accessory of the iPod/iPhone) to the
USB input terminal on the control panel or USB cable from the rear of the unit.
There are three control terminals: <HEAD MODE>, control by this unit; <IPOD MODE>, control
by the connected iPod/iPhone; <EXT MODE>, the sound of any functions (musics, games,
applications, etc.) running on the connected iPod/iPhone is emitted through the speakers
connected to this unit.
Preparation:
Select the controlling terminal, <HEAD MODE>, <IPOD MODE>, or <EXT MODE> for iPod playback:
• Press and hold BACK button.
• Make the selection from <IPOD SWITCH> setting, 25.
The operations explained below are under <HEAD MODE>.
~
] Turn on the power.
Ÿ
and/or
Playback starts automatically.
USB input terminal
USB cable from the
rear of the unit
iPod/iPhone
iPod/iPhone
USB 2.0 cable (accessory of the iPod/iPhone)
USB 2.0 cable (accessory of the iPod/iPhone)
Caution:
• Some of the applications in the connected
iPod/iPhone may not work correctly with this
unit.
• Avoid using the iPod/iPhone if it might hinder
your safety while driving.
• Make sure all important data has been backed
up to avoid losing the data.
Stopping playback and
detaching the iPod/iPhone
Straightly pull the USB 2.0 cable out from the
unit.
“NO USB” appears. Press /SOURCE to listen to
another playback source.
• For details, refer also to the instructions
supplied with your iPod/iPhone.
EN12-21_KD-R716_001A_f.indd 19EN12-21_KD-R716_001A_f.indd 19 12/17/09 3:04:07 PM12/17/09 3:04:07 PM

20 ENGLISH
You can also use the search menu (A to Z and 0
to 9) to scroll through the desired menu.
After you have selected your desired menu (in
step 2)....
1 Press 5 / ∞ to show the search menu.
• The first character of the current file name
appears.
2 Press 5 / ∞ to select your desired character.
Then press the control dial to confirm.
• The track list with the selected character
appears.
3 Turn the control dial to select your desired
track. Then press the control dial to confirm.
• Only the existing characters will be shown on
the search menu.
• Press and hold 5 / ∞ to continuously change
the character of the search menu.
• If your iPod/iPhone contains many tracks,
searching take some time.
• Searching may not work on some of the layers
of the selected menu.
Selecting the playback modes
The following is not applicable in
<IPOD MODE> and <EXT MODE>.
1
2
] “REPEAT” j “RANDOM”
The following is not applicable in <EXT MODE>.
Starts playback or pauses/
resumes playback
• While in <EXT MODE>, the
sound mutes.
Selects track or
chapter
Fast-forwards or
reverses the track
Selecting a track from the menu
The following is not applicable in
<IPOD MODE> and <EXT MODE>.
1
2
] Select the desired menu.
PLAYLISTS jARTISTS jALBUMS
jSONGS jPODCASTS jGENRES
jCOMPOSERS jAUDIOBOOKS
j(back to the beginning)
3
] Select your desired track.
Repeat this procedure until the desired
track is selected.
• If the selected menu contains many tracks,
you can fast search (±10, ±100, ±1000)
through the menu by turning the control dial
quickly.
• To return to the previous menu, press
BACK .
[Hold]
[Hold]
EN12-21_KD-R716_001A_f.indd 20EN12-21_KD-R716_001A_f.indd 20 12/22/09 2:02:19 PM12/22/09 2:02:19 PM
