JVC KD-X200 User manual

DIGITAL MEDIA RECEIVER
INSTRUCTION MANUAL
Please read all instructions carefully before operation to obtain the best
possible performance from the unit.
ʷʿʾʼƖʷʷʸ
ƾƭƿ
KD-X200/KD-X150/KD-X100

Warning
Do not operate any function that takes your
attention away from safe driving.
Caution
Volume setting:
Adjust the volume so that you can hear sounds
outside the car to prevent accident.
Lower the volume before playing digital sources
to avoid damaging the speakers by the sudden
increase of the output level.
General:
Avoid using the USB device or iPod/iPhone if it
might hinder driving safety.
Make sure all important data has been backed
up. We shall bear no responsibility for any loss of
recorded data.
Never put or leave any metallic objects (such as
coins or metal tools) inside the unit, to prevent a
short circuit.
How to attach/detach the
faceplate
How to reset your unit
Your preset adjustments will
also be erased.
Maintenance
Cleaning the unit
Wipe off dirt on the faceplate with a dry silicon or
soft cloth.
Cleaning the connector
Detach the faceplate and clean the connector
with a cotton swab gently, taking care not to
damage the connector.
How to read this manual:
This manual mainly explains operations using
the buttons on the faceplate.
< > indicates the displays on the faceplate.
[XX] indicates the initial setting of a menu
item.
2|ޓENGLISH
2012/12/14ޓ21:24:19KD-X200_150_100_U_EN

Contents
Preparation ............................................................ 3
Canceling the display demonstration
Setting the clock
Basic operations ................................................... 4
Remote control
(KD-X200/KD-X100 only) ........ 5
Radio ........................................................................ 6
USB ............................................................................ 7
iPod/iPhone
(KD-X200 only) ................................ 8
External components ......................................... 9
Bluetooth姞............................................................. 9

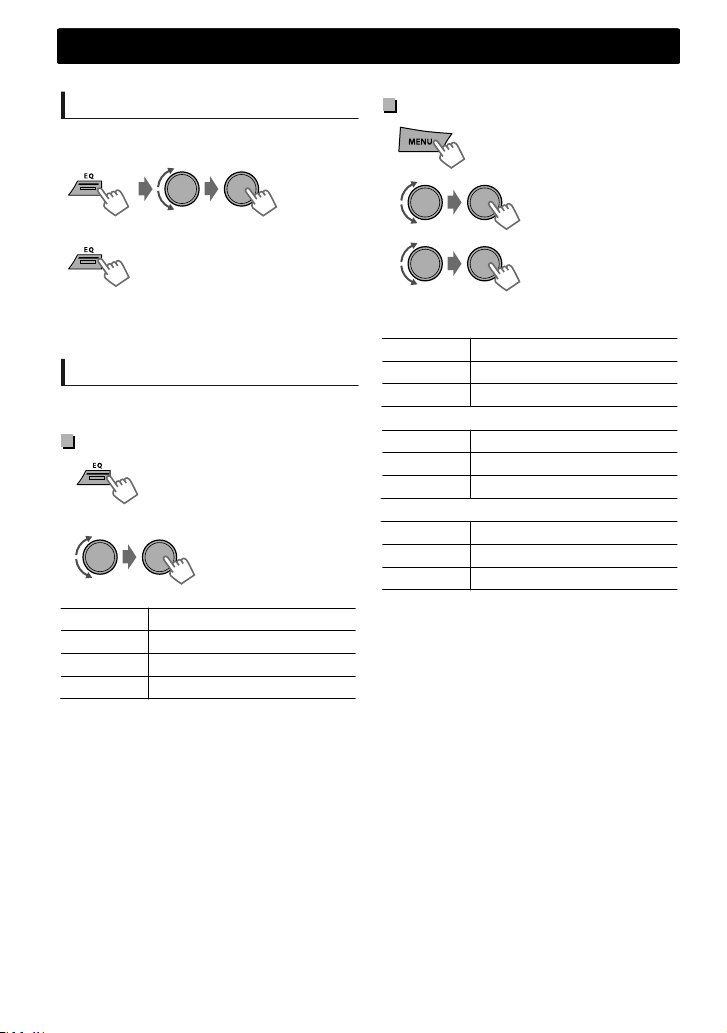

Sound adjustments .......................................... 10

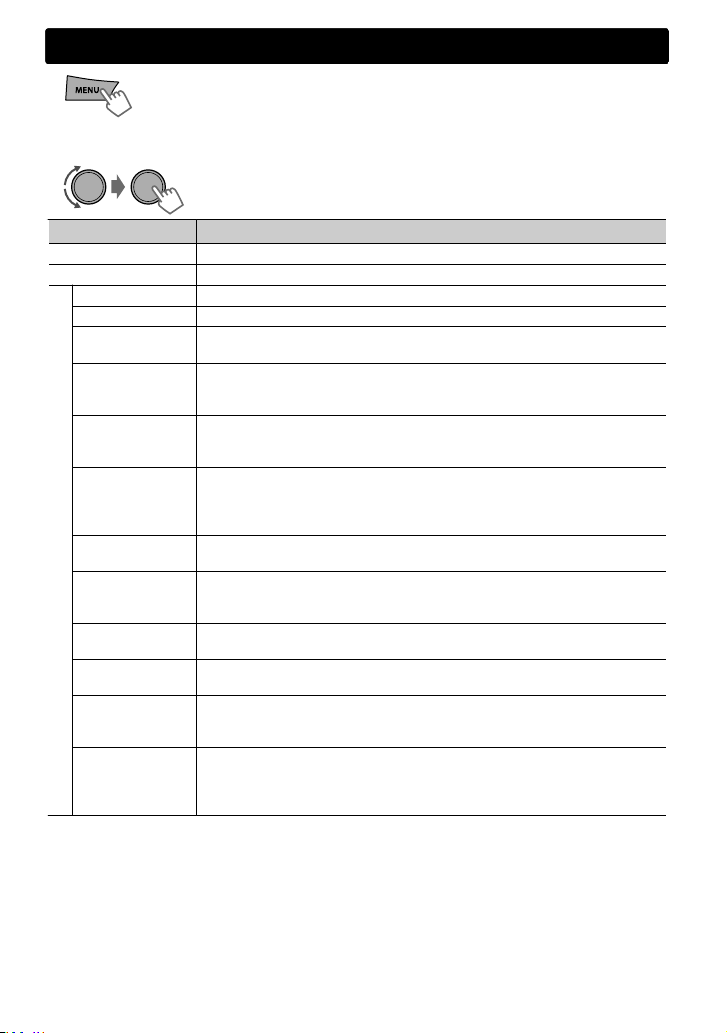

Menu operations ............................................... 11
Additional information ................................... 13
Troubleshooting ................................................ 15
Specifications ..................................................... 16

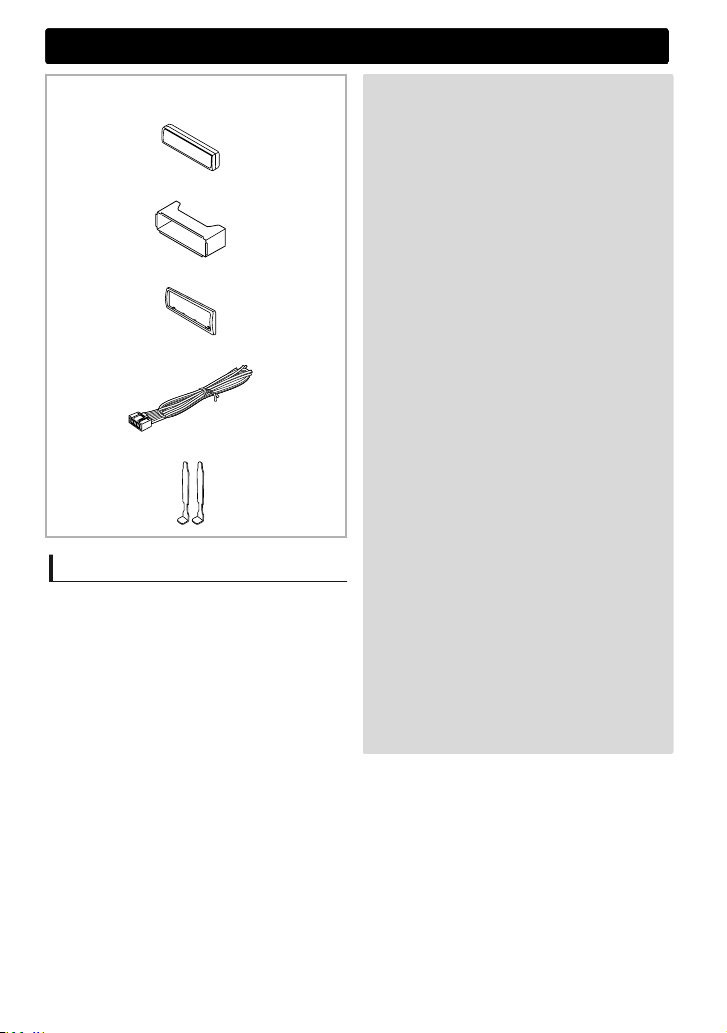

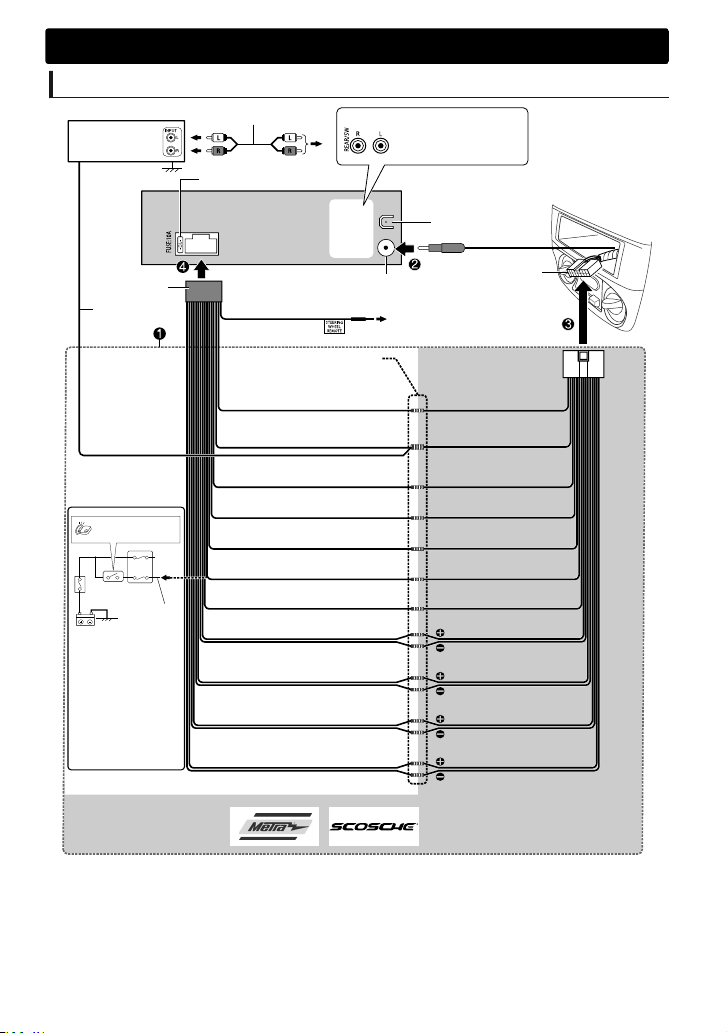

Installation/Connection .................................. 17
Preparation
Canceling the display
demonstration
The display demonstration is always turned on
unless you cancel it.
(Hold)
1
(Initial setting)
2
3Select <DEMO OFF>.
4Press MENU to exit.
Setting the clock
(Hold)
1
2Select <CLOCK>.
3Select <CLOCK SET>.
4Select the day of week.
5Adjust the hour.
6Adjust the minute.
7Press MENU to exit.
ENGLISHޓ|3
2012/12/14ޓ21:24:19KD-X200_150_100_U_EN

KD-X200 only
(KD-X200/KD-X100 only)

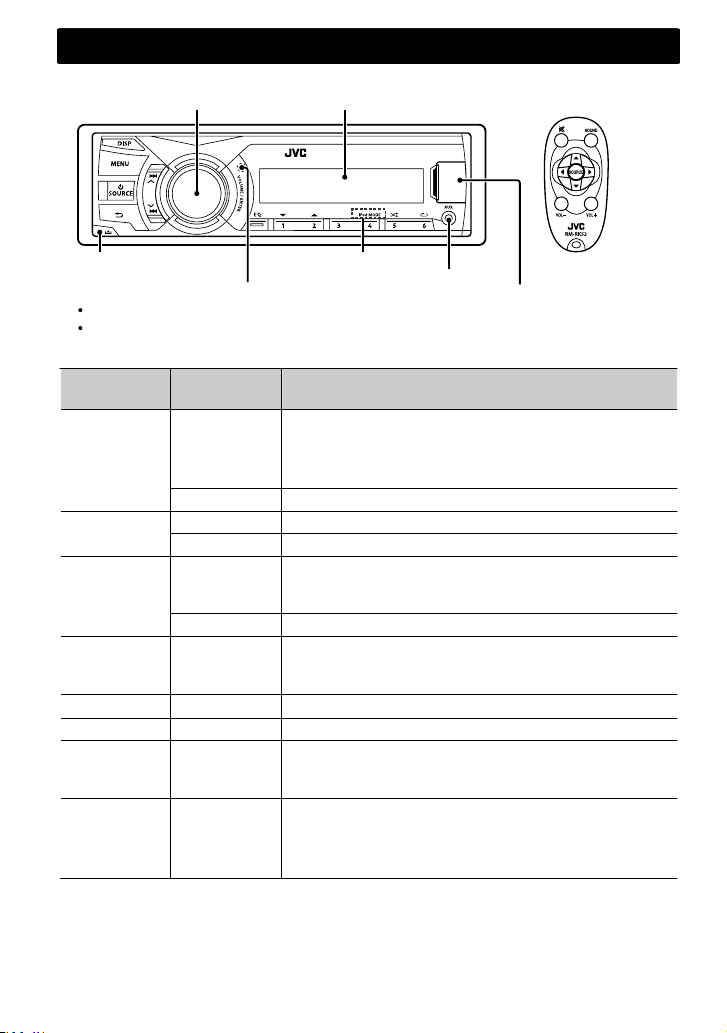

Remote control
USB input terminal
AUX input jack
DO NOT expose to bright sunlight.
Aim the remote control directly at the sensor.
Remote sensor (KD-X200/KD-X100 only)
Detaches the faceplate
Display windowVolume knob
Faceplate
When you press or hold the following button(s)...
Faceplate Remote
control General function

SOURCE
—
Turns on. (Hold)
Turns off. (Hold)
Press the SOURCE button on the faceplate and turn the
volume knob within 2 seconds to select the source.
SOURCE Press repeatedly to select the source.
Volume knob
(turn)
VOL - / + Adjusts the volume level.
— Selects items.
Volume knob
(press)
)
Mutes the sound or pauses playback.
Press the button again to cancel muting or resume
playback.
— Confirms selection.
Number
buttons
(1- 6)
—
Selects the preset stations.
Stores the current station into the selected number button.
(Hold) ('page 6)
EQ SOUND Selects the preset sound mode. ('page 10)
— Returns to the previous menu.
/ / 
Selects a preset station. (Only when using the remote
control.)
Selects MP3/WMA/WAV folder. ('page 7)
/ / 
Searches for a station automatically. ('page 6)
Searches for a station manually. (Hold)
Selects track. ('page 7, 8)
Fast-forwards or reverses track. (Hold)
Basic operations
Basic operations
4|ޓENGLISH
2012/12/14ޓ21:24:19KD-X200_150_100_U_EN

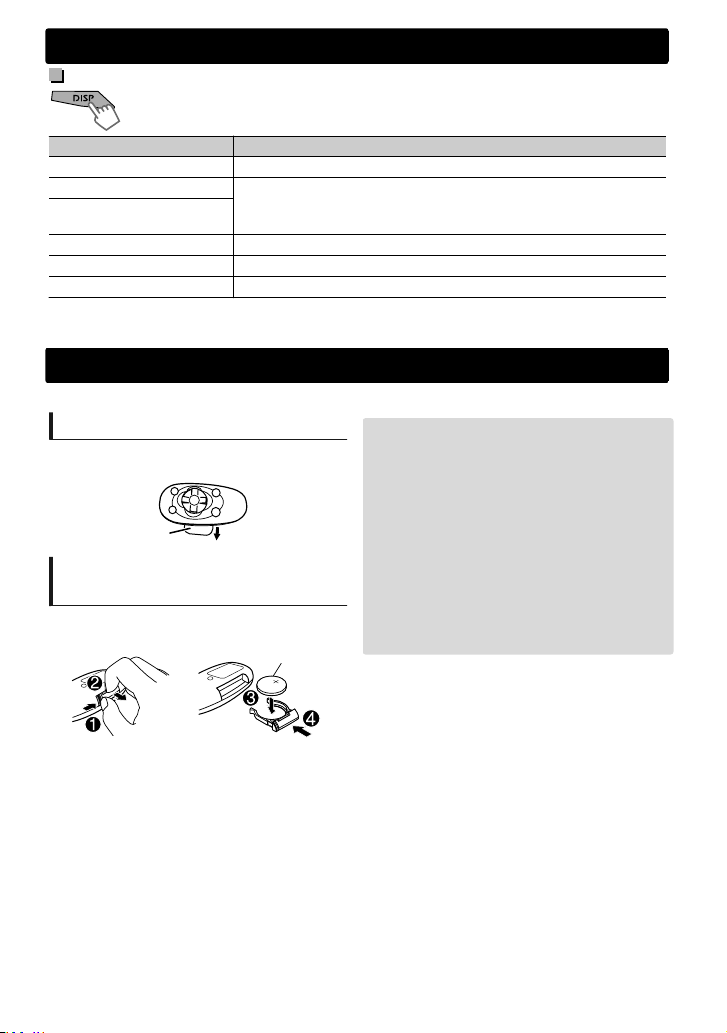

Display information
Changes the display information. (Press)
Scrolls the current display information. (Hold)
Source Display
FM/AM/SW1/SW2 Frequency )Day/Clock
USB Album title/Artist -Track title -Track no./Playing time -
Day/Clock -(back to the beginning)
USB-IPOD(HEAD MODE/
IPOD MODE) *1
USB-IPOD(EXT MODE) *1 EXT MODE)Day/Clock
AUX AUX)Day/Clock
BT AUDIO BT AUDIO)Day/Clock
*1 For KD-X200 only.
Remote control
KD-X200/KD-X100 only
Preparing
When you use the remote control for the first
time, pull out the insulation sheet.
Insulation sheet
Replacing the lithium coin
battery
If the effectiveness of the remote control
decreases, replace the battery.
CR2025
Caution
Do not leave the remote control in hot places
such as on the dashboard.
The lithium battery is in danger of explosion if
replaced incorrectly. Replace it only with the
same or equivalent type.
The battery pack or batteries shall not be
exposed to excessive heat such as sunshine, fire
or the like.
Keep battery out of reach of children and in
original package until ready to use. Dispose of
used batteries promptly. If swallowed, contact a
physician immediately.
Basic operations
ENGLISHޓ|5
2012/12/14ޓ21:24:19KD-X200_150_100_U_EN

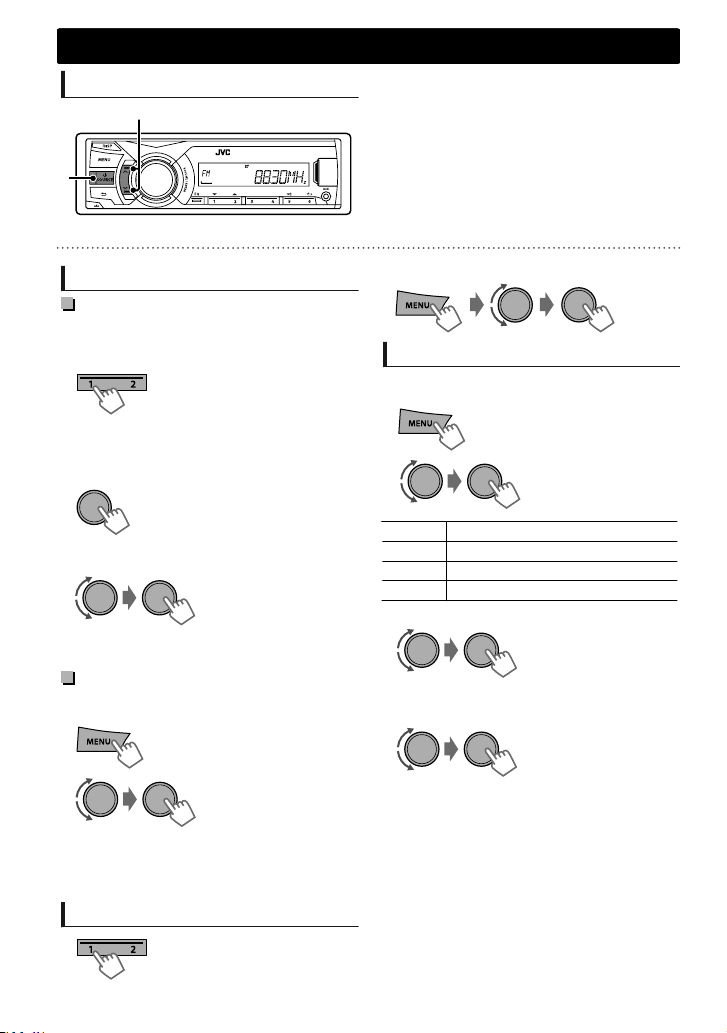

Searching for a station
A
B
Select <FM>, <AM>, <SW1> or <SW2>.
Auto search. (Press)
Manual search. (Hold)
“M”flashes, then press the button repeatedly.
“ST”lights up when receiving an FM stereo broadcast with sufficient signal strength.
Storing stations in memory
Manual presetting
You can preset up to 18 stations for FM, 6 stations
for AM, SW1 and SW2.
While listening to a station...
(Hold)
The preset number flashes and “MEMORY”
appears. The current station is stored to the
selected number button (1 - 6).
- - - - - - - - or - - - - - - - -
(Hold)
“PRESET MODE”flashes.
1
The preset number flashes and “MEMORY”
appears.
2Select preset number.
Auto presetting (FM only)
SSM (Strong-station Sequential Memory)
You can preset up to 18 stations for FM.
(Hold)
1
-<TUNER>
-<SSM>
-<SSM 01 – 06>
“SSM”flashes. When all the stations are stored,
“SSM”stops flashing.
2
To preset <SSM 07 – 12>/<SSM 13 – 18>,
repeat steps 1 and 2.
Selecting a preset station
- - - - - - - - or - - - - - - - -
Setting the Radio Timer
You can tune in to a preset station at a specific
time regardless of the current source.
(Hold)
1
-<TUNER>
-<RADIO TIMER>
-<OFF>/<ONCE>/
<DAILY>/<WEEKLY>
[OFF] Cancels Radio Timer.
ONCE Activates once.
DAILY Activates daily.
WEEKLY Activates weekly.
2
-<FM>/<AM>/<SW1>/
<SW2>
-<01>... <18>for FM/
<01>... <06>for AM/
SW1/SW2
3Select the preset station.
4Set the activation day and time.
5Press MENU to exit.
lights up after the Radio Timer has been set.
Only one timer can be set. Setting a new timer
will override the previous setting.
The Radio Timer will not activate if the unit is
turned off or if <AM>/<SW1>/<SW2>is set to
<OFF>in <SRC SELECT>after selecting an AM/
SW1/SW2 station for the timer.
Radio
Radio
6|ޓENGLISH
2012/12/14ޓ21:24:19KD-X200_150_100_U_EN

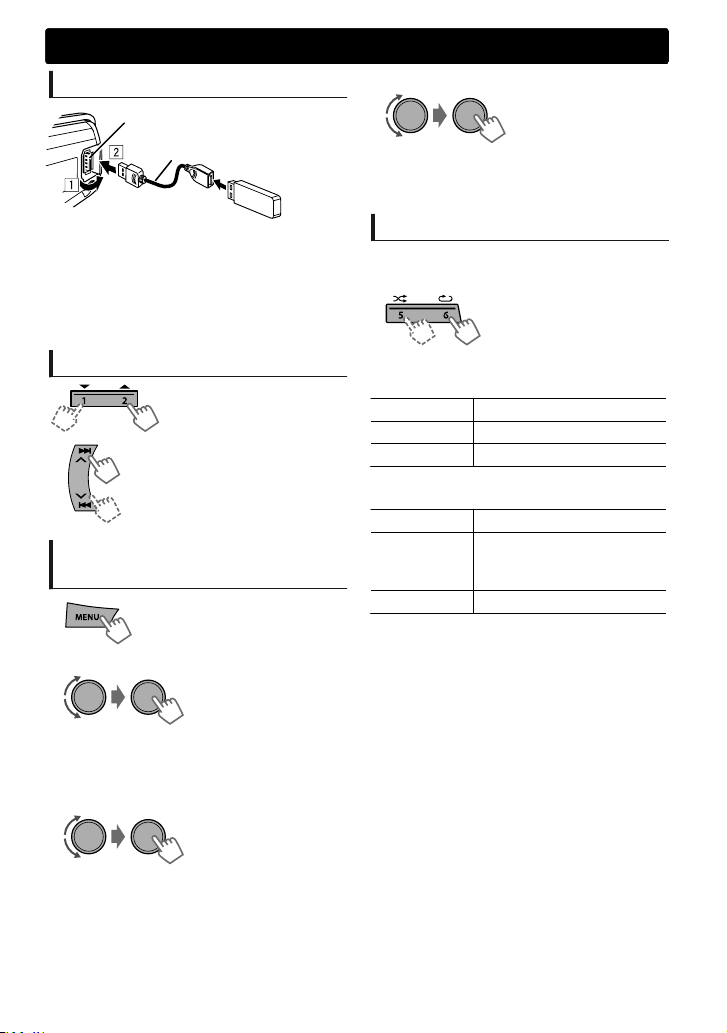

Playing a USB device
USB 2.0 cable*
(not supplied)
USB input terminal
The source changes to “USB”and playback starts.
* Do not leave the cable in the car when not in
use.
This unit can play MP3/WMA/WAV files stored
in USB mass storage device (such as a USB
memory and Digital Audio Player).
Selecting a folder/track
Selects folder.
Selects track. (Press)
Fast-forwards or reverses the
track. (Hold)
Selecting a track/folder from
the list
1
- - - - - - - - or - - - - - - - -
PLAYLISTS, ARTISTS, ALBUMS, SONGS, GENRES
Select the desired list. (For JVC Playlist
Creator (JPC) and JVC Music Control (JMC)
file) ('page 14)
2Select a folder. (For MP3/WMA/WAV)
If the USB device contains many folders or tracks,
you can fast search for the desired folder or track
by turning the volume knob quickly.
3Select a track.
Selecting the playback modes
You can select one of the following playback
modes at a time.
1
Press 6for REPEAT.
Press 5for RANDOM.
2Press the button repeatedly.
REPEAT 
RPT OFF Cancels repeat playback.
TRACK RPT Repeats current track.
FOLDER RPT Repeats current folder.
“FOLDER RPT”is not applicable for JPC/JMC file.
RANDOM 
RND OFF Cancels random playback.
FOLDER RND
Randomly plays all tracks of
current folder, then tracks of
next folders.
ALL RND Randomly plays all tracks.
USB
USB
ENGLISHޓ|7
2012/12/14ޓ21:24:19KD-X200_150_100_U_EN

iPod/iPhone
KD-X200 only
Playing an iPod/iPhone
USB 2.0 cable* (accessory
of the iPod/iPhone)
USB input terminal
The source changes to “USB”-“USB-IPOD”and
playback starts (depending on the status of the
connected device).
* Do not leave the cable in the car when not in
use.
Selecting the control mode
-<HEAD MODE>/<IPOD MODE>/
<EXT MODE>
HEAD
MODE
Controls music playback only from
this unit.
IPOD
MODE
Controls music playback from both
the unit and iPod/iPhone.
EXT
MODE
Controls music playback only from
the iPod/iPhone.
You can also change the setting using <IPOD
SWITCH>in the menu. ('page 12)
Selecting a track
Applicable under <HEAD MODE>/<IPOD MODE>
only.
Selects track/chapter. (Press)
Fast-forwards or reverses the track.
(Hold)
Selecting a track from the list
Applicable under <HEAD MODE>only.
1
PLAYLISTS)ARTISTS)ALBUMS)SONGS)
PODCASTS)GENRES)COMPOSERS)
AUDIOBOOKS)(back to the beginning)
2Select the desired list.
Repeat this step until the desired track is selected.
If the selected menu contains many tracks, you
can fast search for the desired track by turning
the volume knob quickly.
3Select the desired track.
Selecting the playback modes
Applicable under <HEAD MODE>only.
You can select one of the following playback
modes at a time.
1
Press 6for REPEAT.
Press 5for RANDOM.
.
2Press the button repeatedly.
REPEAT 
ONE RPT Functions the same as “Repeat
One”of the iPod.
ALL RPT Functions the same as “Repeat
All”of the iPod.
RANDOM 
RND OFF Cancels random playback.
SONG RND Functions the same as “Shuffle
Songs”of the iPod.
ALBUM RND Functions the same as “Shuffle
Albums”of the iPod.
“ALBUM RND”is not applicable for some iPod/
iPhone.
8|ޓENGLISH
2012/12/14ޓ21:24:19KD-X200_150_100_U_EN

You can connect an external component to the AUX (auxiliary) input jack on the faceplate.
For details, refer also to the instructions supplied with the external components.
Playing an external component
from AUX
Portable audio
player, etc.
3.5 mm stereo mini plug
with “L” shaped connector
(not supplied)
Use a 3-terminal plug head
stereo mini plug for optimum
audio output.
.
1Connect to AUX terminal on the faceplate.
2Select <AUX>.
3Turn on the connected component and
start playing the source.
Bluetooth姞
For Bluetooth operations, it is required to connect the Bluetooth adapter, KS-BTA100 (separately
purchased) to the auxiliary input jack (AUX) on the faceplate of the unit.
KS-BTA100 is not available in some countries. Please contact your dealer where you purchased this
unit.
Operations may be different depending on the connected Bluetooth device. For details, refer also to
the instructions supplied with the device.
Preparation
For details on registering and using the Bluetooth device, refer to the instructions manual supplied with
KS-BTA100.
1Register (pair) a Bluetooth device with KS-BTA100.
-<SRC SELECT>
-<AUX>
-<BT ADAPTER>
2Change the <SRC SELECT> settings of this unit.
(Hold)
3Press MENU to exit.
KS-BTA100
Brown: Tel muting
Black: Ground
Blue/white: Remote
Wiring harness of the unit
(Apage 19)
Brown
Black
Blue/white
External components
External components
ENGLISHޓ|9
2012/12/14ޓ21:24:19KD-X200_150_100_U_EN

This unit memorizes sound settings adjusted for each individual source.
Selecting the preset sound
You can select a preset sound mode, for each
individual source, suitable for the music genre.
- - - - - - - - or - - - - - - - -
Press repeatedly.
FLAT-NATURAL-DYNAMIC-
VOCAL BOOST-BASS BOOST-USER-(back to
the beginning)
Storing your own adjustments
While listening, you can adjust and store the tone
level for each individual source.
Easy Equalizer
(Hold)
1
(Initial: [XX])
SUB.W * -08 to +08 [00]
BASS LVL -06 to +06 [00]
MID LVL -06 to +06 [00]
TRE LVL -06 to +06 [00]
The adjustments are stored and <USER>is
activated.
2Adjust the level.
* Available only when <L/O MODE> is set to
<SUB.W> and <SUB.W> is set to <ON>.
('page 11) (KD-X150 only)
Pro Equalizer
(Hold)
1
-<PRO EQ>
-<BASS>/<MIDDLE>/
<TREBLE>
2
Adjust the sound elements of the selected tone.
BASS (Initial: [XX])
Frequency 60/[80]/100/200 Hz
Level LVL -06 to +06 [00]
Q[Q1.0]/Q1.25/Q1.5/Q2.0
MIDDLE
Frequency 0.5/[1.0]/1.5/2.5 kHz
Level LVL -06 to +06 [00]
Q Q0.75/Q1.0/[Q1.25]
TREBLE
Frequency [10.0]/12.5/15.0/17.5 kHz
Level LVL -06 to +06 [00]
Q[Q FIX]
3
4Repeat steps 2 and 3 to adjust other tones.
The adjustments are stored and <USER>is
activated.
5Press MENU to exit.
Sound adjustments
Sound adjustments
10 |ޓENGLISH
2012/12/14ޓ21:24:19KD-X200_150_100_U_EN
