SERVICE MANUAL
DVD AUDIO/VIDEO PLAYER
No.A0031
Jul. 2002
COPYRIGHT 2002 VICTOR COMPANY OF JAPAN, LTD.
XV-SA600BK / XV-SA602SL
XV-SA600BK / XV-SA602SL
Area Suffix
J ------------- U.S.A.
C ---------- Canada
Model
XV-SA600BK
XV-SA602SL
Body color
Black
Silver
Each difference point
STANDBY/ON
STANDBY/ON
PROGRESSIVE
PAUSEPLAYSTOP
OPEN/CLOSE SKIP
DVD AUDIO/DVD VIDEO/SUPER VCD/VCD/CD PLAYER
DVD AUDIO
TV2
2
TV1
1
TV3
3
TV5
5
TV4
4
TV6
6
TV8
8
TV7
7
TV9
9
TV0
0
TV-/--
10
MUTING
+10
TV/VIDEO
CANCEL
TITLE/
GROUP
RETURN
VFPAUDIOSUB TITLEREPEAT
ANGLEDIGEST
3D
PHONIC
ZOOM
AMP VOL
PROGRESSIVE
SCAN
fs/Rate
RM-SXV011J
REMOTE CONTROL
OPEN/
CLOSE
TV DVD
NEXTPREVIOUS
SELECT STROBECLEAR
SLOW
- SLOW+
VOL - VOL+
CH
+
CH
-
T
O
P
M
E
N
U
M
E
N
U
O
N
S
C
R
E
E
N
C
H
O
I
C
E
ENTER
STANDBY/ON
TV DVD
PAGE

XV-SA600BK/XV-SA602SL
2
TABLE OF CONTENTS
1 Important Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.1 Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.2 Warning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.3 Caution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.4 Critical parts for safety. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.5 Preventing static electricity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.6 Handling the traverse unit (optical pickup) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.7 Importance admistering point on the safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.8 Precautions for Service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2 Disassembly method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.1 Main body . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.2 Loading assembly section. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2.3 Traverse mechanism assembly section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
3 Adjustment method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
3.1 Test mode setting method. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
3.2 Initialization method. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
3.3 Method of displaying version of microcomputer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
3.4 Display of current value of laser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
3.5 Display of jitter value . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
3.6 Upgrading of firmware. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
3.7 Display of region code. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
3.8 Flap adjustment of the pick-up guide shaft . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
3.9 Attention when pick-up is exchanged . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
3.10 Confirm method of operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
3.11 Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
3.12 Check points for each error. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
4 Description of major ICs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
4.1 74LCX373MTC-X(IC512,IC513) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
4.2 BA5983FM-X (IC201) : 4CH Driver. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
4.3 AN8703FH-V (IC101) : Frontend processor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
4.4 BA6664FM-X (IC251) : 3Phase Motor Driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
4.5 K4S643232E-TC60(IC505):DRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
4.6 MM1568AJ-X (IC801) : Video driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
4.7 MN101C35DLD (IC701) : System controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
4.8 MM1565AF-X (IC951) : 500mA Regulator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
4.9 MN102L62GLH (IC401) : Unit CPU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
4.10 MN103S26EGA (IC301) : Super optical disc controller. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
4.11 MN35505-X (IC703) : DAC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
4.12 NDV8601VWA-BB(IC501):AV Decoder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
4.13 S-93C66AFJ-X (IC451,IC510) : EEPROM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
4.14 SST39VF160-7CEK (IC509) : 16M EEPROM. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
4.15 STR-G6651-F8 (IC901) : Switch regulator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
4.16 TC74HC08AF-X(IC704) : 2-input and gate. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
5 Glossary of term and abbreviations(for AV Decoder section) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

XV-SA600BK/XV-SA602SL
3
SECTION 1
Important Safety Precautions
1.1 Safety Precautions
(1) This design of this product contains special hardware and
many circuits and components specially for safety purposes.
For continued protection, no changes should be made to the
original design unless authorized in writing by the
manufacturer. Replacement parts must be identical to
those used in the original circuits. Services should be
performed by qualified personnel only.
(2) Alterations of the design or circuitry of the product should
not be made. Any design alterations of the product should
not be made. Any design alterations or additions will void
the manufacturers warranty and will further relieve the
manufacture of responsibility for personal injury or property
damage resulting therefrom.
(3) Many electrical and mechanical parts in the products have
special safety-related characteristics. These characteris-
tics are often not evident from visual inspection nor can the
protection afforded by them necessarily be obtained by
using replacement components rated for higher voltage,
wattage, etc. Replacement parts which have these special
safety characteristics are identified in the Parts List of Service
Manual. Electrical components having such features are
identified by shading on the schematics and by ( )
on the Parts List in the Service Manual. The use of a sub-
stitute replacement which does not have the same safety
characteristics as the recommended replacement parts
shown in the Parts List of Service Manual may create
shock, fire, or other hazards.
(4) The leads in the products are routed and dressed with ties,
clamps, tubings, barriers and the like to be separated from
live parts, high temperature parts, moving parts and/or
sharp edges for the prevention of electric shock and fire
hazard. When service is required, the original lead routing
and dress should be observed, and it should be confirmed
that they have been returned to normal, after reassembling.
(5) Leakage shock hazard testing)
After reassembling the product, always perform an isolation
check on the exposed metal parts of the product (antenna
terminals, knobs, metal cabinet, screw heads, headphone
jack, control shafts, etc.) to be sure the product is safe to
operate without danger of electrical shock.
Do not use a line isolation transformer during this check.
• Plug the AC line cord directly into the AC outlet. Using a
"Leakage Current Tester", measure the leakage current
from each exposed metal parts of the cabinet, particu-
larly any exposed metal part having a return path to the
chassis, to a known good earth ground. Any leakage
current must not exceed 0.5mA AC (r.m.s.).

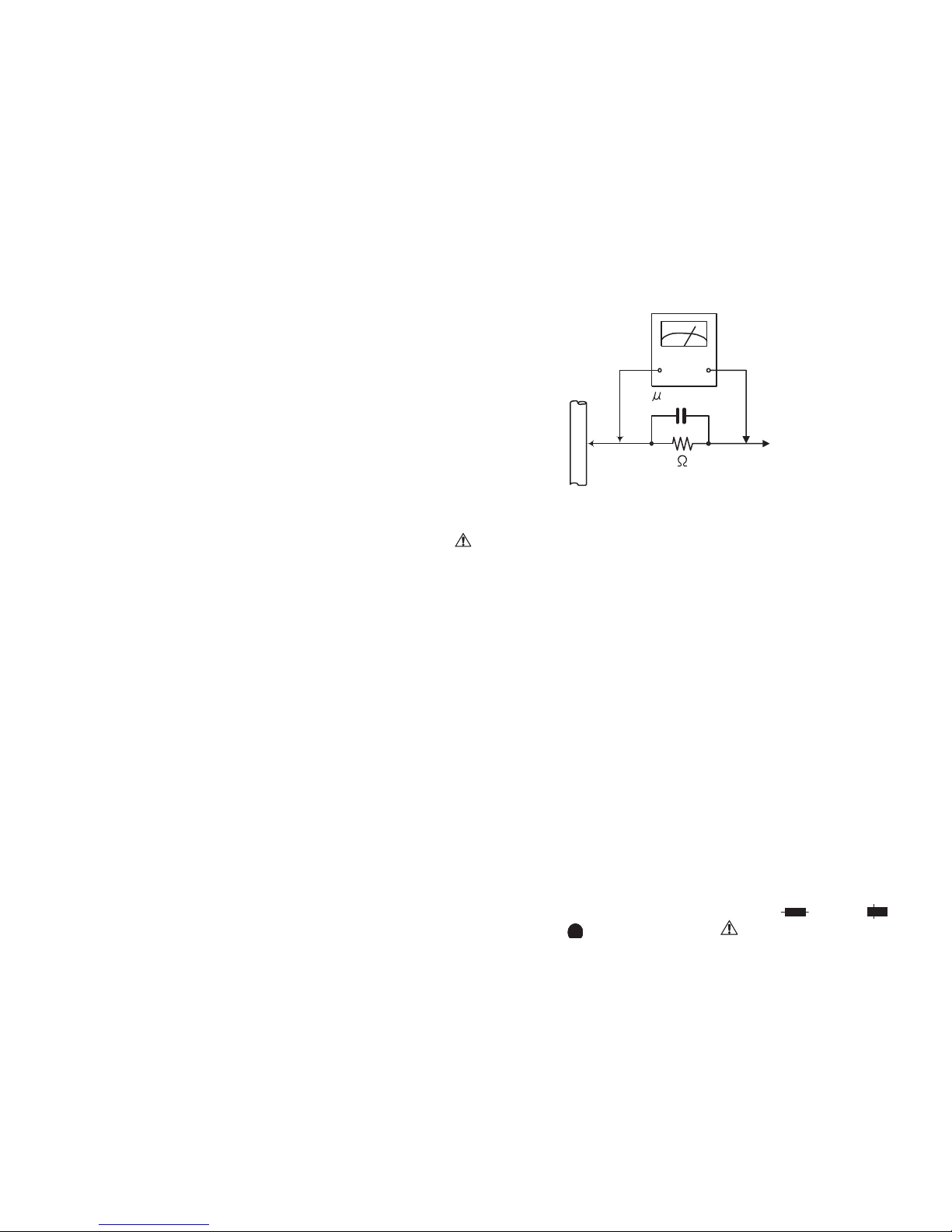

• Alternate check method
Plug the AC line cord directly into the AC outlet. Use an
AC voltmeter having, 1,000 ohms per volt or more sen-
sitivity in the following manner. Connect a 1,500 10W
resistor paralleled by a 0.15 F AC-type capacitor be-
tween an exposed metal part and a known good earth
ground.
Measure the AC voltage across the resistor with the AC
voltmeter.
Move the resistor connection to each exposed metal
part, particularly any exposed metal part having a return
path to the chassis, and measure the AC voltage across
the resistor. Now, reverse the plug in the AC outlet and
repeat each measurement. Voltage measured any must
not exceed 0.75 V AC (r.m.s.). This corresponds to 0.5
mA AC (r.m.s.).
1.2 Warning
(1) This equipment has been designed and manufactured to
meet international safety standards.
(2) It is the legal responsibility of the repairer to ensure that
these safety standards are maintained.
(3) Repairs must be made in accordance with the relevant
safety standards.
(4) It is essential that safety critical components are replaced
by approved parts.
(5) If mains voltage selector is provided, check setting for lo-
cal voltage.
1.3 Caution
Burrs formed during molding may be left over on some
parts of the chassis.
Therefore, pay attention to such burrs in the case of pre-
forming repair of this system.
1.4 Critical parts for safety
In regard with component parts appearing on the silk-screen
printed side (parts side) of the PWB diagrams, the parts that are
printed over with black such as the resistor ( ), diode ( )
and ICP ( ) or identified by the " " mark nearby are critical
for safety.
When replacing them, be sure to use the parts of the same type
and rating as specified by the manufacturer. (Except the JC version)
G
ood earth ground
Place this
probe on
each expose
d
metal part.
AC VOLTMETER
(Having 1000
ohms/volts,
or more sensitivity)
1500 10W
0.15 F AC TYPE

XV-SA600BK/XV-SA602SL
4
1.5 Preventing static electricity
Electrostatic discharge (ESD), which occurs when static electricity stored in the body, fabric, etc. is discharged,
can destroy the laser diode in the traverse unit (optical pickup). Take care to prevent this when performing repairs.
1.5.1 Grounding to prevent damage by static electricity
Static electricity in the work area can destroy the optical pickup (laser diode) in devices such as DVD players.
Be careful to use proper grounding in the area where repairs are being performed.

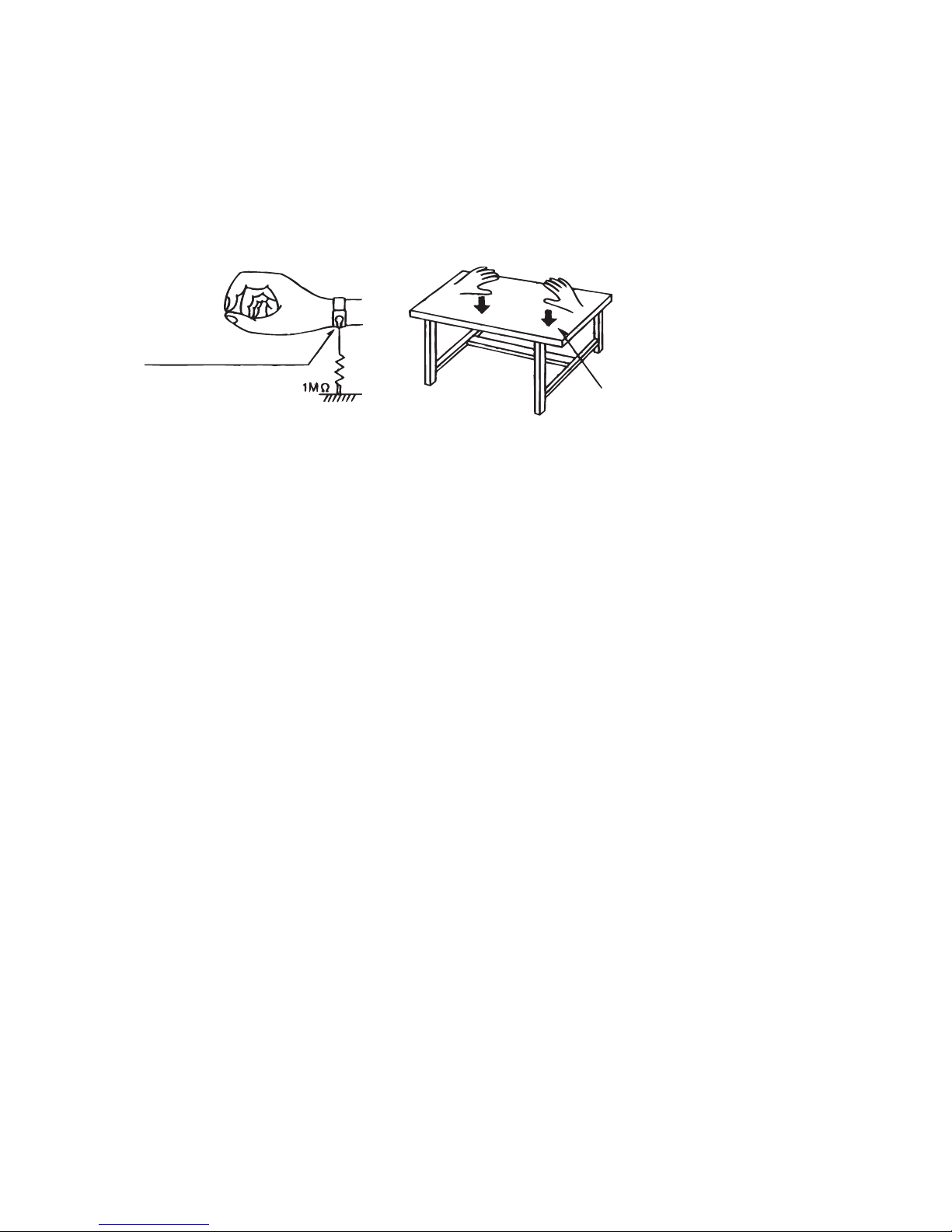

(1) Ground the workbench
Ground the workbench by laying conductive material (such as a conductive sheet) or an iron plate over it before placing the
traverse unit (optical pickup) on it.
(2) Ground yourself
Use an anti-static wrist strap to release any static electricity built up in your body.
(3) Handling the optical pickup
(1) In order to maintain quality during transport and before installation, both sides of the laser diode on the replacement op-
tical pickup are shorted. After replacement, return the shorted parts to their original condition.
(Refer to the text.)
(2) Do not use a tester to check the condition of the laser diode in the optical pickup. The tester's internal power source can
easily destroy the laser diode.
1.6 Handling the traverse unit (optical pickup)
(1) Do not subject the traverse unit (optical pickup) to strong shocks, as it is a sensitive, complex unit.
(2) Cut off the shorted part of the flexible cable using nippers, etc. after replacing the optical pickup. For specific details, refer to the
replacement procedure in the text. Remove the anti-static pin when replacing the traverse unit. Be careful not to take too
long a time when attaching it to the connector.
(3) Handle the flexible cable carefully as it may break when subjected to strong force.
(4)I t is not possible to adjust the semi-fixed resistor that adjusts the laser power. Do not turn it
Conductive material
(conductive sheet) or iron pla
te
(
caption)
A
nti-static wrist strap

XV-SA600BK/XV-SA602SL
5
1.7 Importance admistering point on the safety
N
B C D
5
3
4
2
4
Q953
D971
B4
B3
R992
EP902
B516
B13
R981
C1
C2
C5
C971
C707
C711
C714
C716
C717
C730
C731
C737
C738
C740 C741
C742
C743
C744
C745
C746
C747
C750 C751
C752
C753
C754
C755
C756
C757
C761
C762
C771
C772
C801
B399
C806
IC1100
C808
C1100
C810
C812
C813
C814
C815
C1101
C817
C818
B52
C902
C903
C905
C906
C907
C908
C909
B433
C913
C914
B157
C960
C962
C963
C965
C966
C969
C985
C978
C979
C982
C984
C987
C989
B711
C997
C1701
C1702
CN701
CN801
CP951
B319
B320
B216
B75
L1701
D901
D902
D903
D904
D908
B44
B78
C991
D951
D952
D954
D956
D957
D960
D991
DI1
EP711
EP951
FC901
FC902
C992
B89
D998
IC901
J700
J701
J702
J703
J801
J802
J804
CN802
HS952
K801
K902
L709
L710
B88
L901
L952
L955
L957
L959
PC901
B77
Q743
Q744
Q753
Q754
Q755
Q756
Q951
Q991
B308
Q21
R711
R712
R713
R715
R726
R731
R740
R741
R742
R743
R1500
R746
R748
R750
R751
R752
R753
R1501
R756
R758
R761
R762
R764
R765
R766
R767
R771
R772 R774
R775
R776
R777
R780
R781
R782
R783
R790
R791
R792
R793
R797
R818
X1
B5
R901
R903
R905
R906
R907
R908
R920
R956
R1721
RA1RA2 RA3
S801
T901
T1701
Q22
B15
B17
B18
B19
B20
B21
B12
B24
B25
B26
B27
B28
B29
B30
B31
B32
B33
B34
B35
B36
B37
B38
B39
B80
B40
D828
B42 B43
B515
B45
B46
B48
B49
B50
B55
B54
B229
B56
B57
B58
B875
B61
B62
B64
B65
B66
B67
D905
B69
B101
B102
B103
B104
B105
B106
B107
B108
B109
B110
B111
B112
B113
B114
B115
C748
B118
B119
C749
B83
B123
B125
B126
B127
B128
B129
B130
B131
B132 B133
B79
B202
B203
B204
B205
B206
B207 B208
B209
B212
B215
B218
B219
B220
B223
B224
B225
B226
B170
C994
B301
B302
B303
HS901
B81
B304
B305
B306
B307
B309
B311
B313
B314
B315
B316
B317
B318
B321
B322
B323
B324
B325 B326
B327 B328
B329
B611
C700
B402
B403
B404
B405
C703
IC701
B409
B410
B411
B412
B413
B414
B415
B416
B417
B418
B419
B420
B504
B505
B506
B507
B508
B509
B510
B511
B512
B513
B514
B602
B603
B604
B605
B606
B607
B608
B610
B601
B701
B702
B703
S802
B874
B753
B755
B757 B758
B759 B760
EP901
B852
B856
B857
B861
B864
B865
B866
B867
B871
B872
B873
R1726
B330
MARK
UL
B227
B705
B706
B422
C1800
B310
K707
K708
K709
K710
B82
K711
B254
B41
CN512 CN513
JT102
JT103
CN4
B162
B151
B152
C831
C832
B251
B431
B154
B155
B252
B253
B156
B90
B91
B92
B94
B93
B331
B95
CP952
C977
C975
L960
C976
B121
C819
P901
B261
B70
B23 B22
B165
B51
B71
B163
B161
B74
B73
B159
B160
B167
B164
B72
B59
B166
B262 B432
B211
B99
D981
B134
B124
K1721
B1721
IC952
L831
K721
B116
B168
B96
B98
B97
B85
R921
B60
2
1 1
2
26
25
1
2
17
16
1 54
1 9
2 8
2
1 21
1
[ ]
[D827]
A1
LEA10049-
F901
2
1
20
26
25
1
8
1.6A/125V
CN3
A
B
D
C
S1B
Full Fuse Replacement Making
Graphic symbol mark
(This symbol means fast blow type fuse.)
should be read as follows ;
FUSE CAUTION
FOR CONTINUED PROTECTION AGAINST RISK
OF FIRE, REPLACE ONLY WITH SAME TYPE
AND RATING OF FUSES ;
F901 : 1.6 A / 125 V
Marquage Pour Le Remplacement
Complet De Fusible
Le symbole graphique (Ce symbole signifie
fusible de type a fusion rapide.)
doit etre interprete comme suit ;
PRECAUTIONS SUR LES FUSIBLES
POUR UNE PROTECTION CONTINUE CONTRE
DES RISQUES D'INCENDIE, REMPLACER
SEULEMENT PAR UN FUSIBLE DU MEME TYPE ;
F901 : 1.6 A / 125 V

XV-SA600BK/XV-SA602SL
6
1.8 Precautions for Service
1.8.1 Handling of Traverse Unit and Laser Pickup
(1) Do not touch any peripheral element of the pickup or the actuator.
(2) The traverse unit and the pickup are precision devices and therefore must not be subjected to strong shock.
(3) Do not use a tester to examine the laser diode. (The diode can easily be destroyed by the internal power supply of the tester.)
(4) To replace the traverse unit, pull out the metal short pin for protection from charging.
(5) When replacing the pickup, after mounting a new pickup, remove the solder on the short land which is provided at the center
of the flexible wire to open the circuit.
(6) Half-fixed resistors for laser power adjustment are adjusted in pairs at shipment to match the characteristics of the optical block.
Do not change the setting of these half-fixed resistors for laser power adjustment.
1.8.2 Destruction of Traverse Unit and Laser Pickup by Static Electricity
Laser diodes are easily destroyed by static electricity charged on clothing
or the human body. Before repairing peripheral elements of the traverse unit or pickup, be sure to take the following electrostatic
protection:
(1) Wear an antistatic wrist wrap.
(2) With a conductive sheet or a steel plate on the workbench on which the traverse unit or the pick up is to be repaired, ground
the sheet or the plate.
(3) After removing the flexible wire from the connector (CN101), short-circuit the flexible wire by the metal clip.
(4) Short-circuit the laser diode by soldering the land which is provided at the center of the flexible wire for the pickup.
After completing the repair, remove the solder to open the circuit.
Please refer to "Fig.2-4" of "Disassembly
method" for details.
Servo control
board
Short circu
it
S
hort circuit
CN101

XV-SA600BK/XV-SA602SL
7
SECTION 2
Disassembly method
2.1 Main body

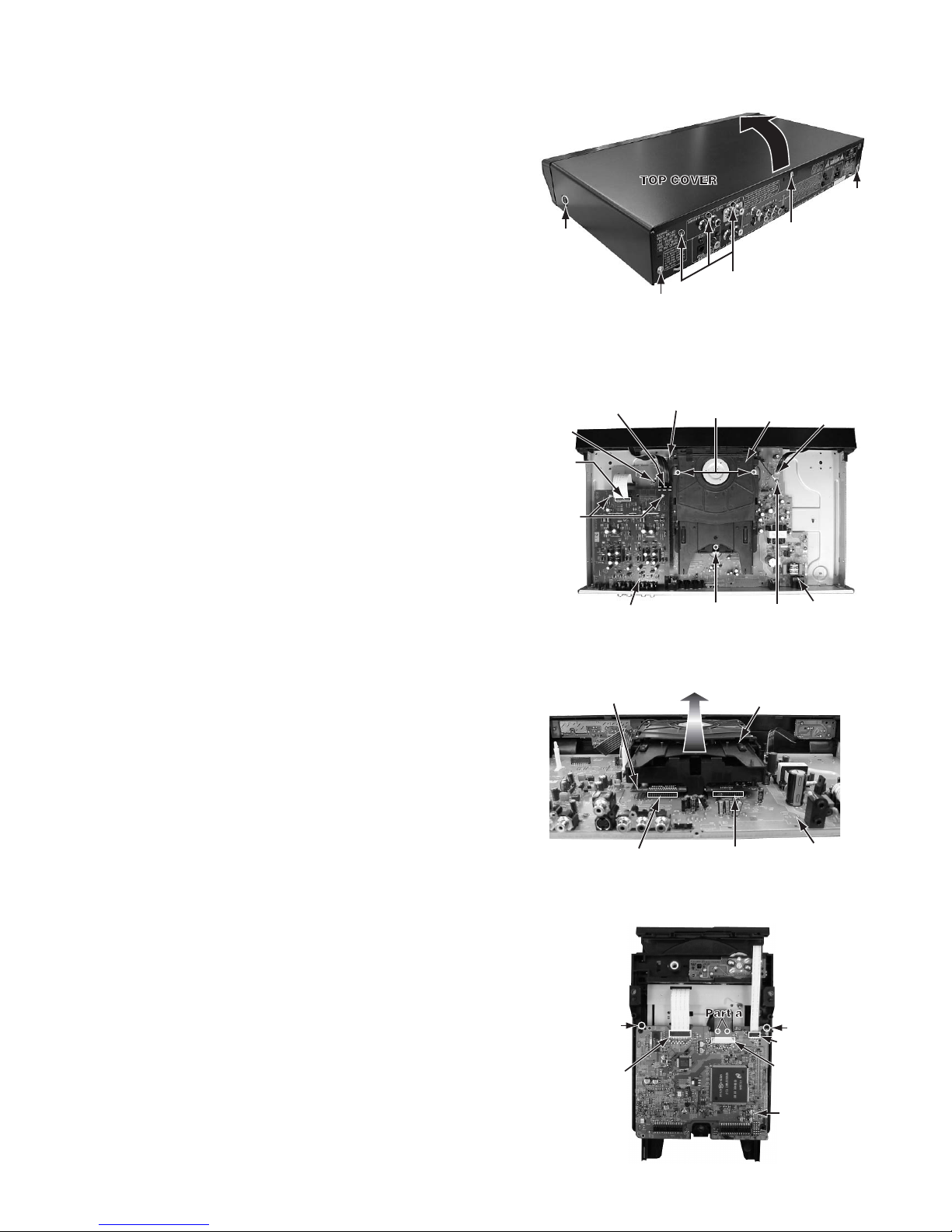

2.1.1 Removing the top cover (see Fig.2-1)
(1) Remove the two screws Aattaching the top cover
on both sides of the body.
(2) Remove the three screws B attaching the top
cover on the back of the body.
(3) Remove the top cover from the body by lifting
the rear part of the top cover.
ATTENTION:
Do not break the front panel tab fitted to the top cover. Fig.2-1
2.1.2 Removing the surround audio board (see Fig2-1,2-2)
• Prior to performing the following procedure,remove the top cover.
(1) Remove the three screws C attaching the surround audio
board on the rear panel.
(2) Disconnect the card wire from connector CN711 on the
surround audio board.
(3) The surround audio board is removed while picking up the
point of the fastener in two places.
Fig.2-2
2.1.3 Removing the mechanism assembly (see Fig2-2,2-3)
• Prior to performing the following procedure, remove the top cover.
• There is no need to remove the front panel assembly.
(1) Remove the three screws D attaching the mechanism
assembly on the bottom chassis.
(2) Remove the two screws Eattaching the lug wire and main
board on the bottom chassis.
(3) The servo control board is removed from the
connector CN512 and CN513 connected with the main
board respectively.
(4) Remove the mechanism assembly by lifting the rear part
of the mechanism assembly. Fig.2-3
2.1.4 Removing the servo control board (see Fig.2-4)
• Prior to performing the following procedure, remove the top
cover and mechanism assembly.
(1) Disconnect the card wire from connector CN201 and
CN202 on the servo control board respectively.
(2) Disconnect the flexible wire from connector CN101 on the
servo control board from pick-up.
< ATTENTION >
At this time, please extract the wire after short-circuited
of two places on the wire in part a with solder.
Please remove the solder two places of part a after
connecting the wire with CN101 when reassembling.
(3) Two places in hook b are removed, the servo control
board is lifted, and it is removed. Fig.2-4
A x 2
B
C
B
B
D
D
JT102,JT103 CN4
Main board
Lug wire Mechanism
assembly
E
E
Surround audio board
CN711
Fastener
CN513 CN512
Servo control board
Main board
Mechanism
assembly
H
ook b Hook b
Servo contr
ol
board
CN101
CN202
CN201

XV-SA600BK/XV-SA602SL
8

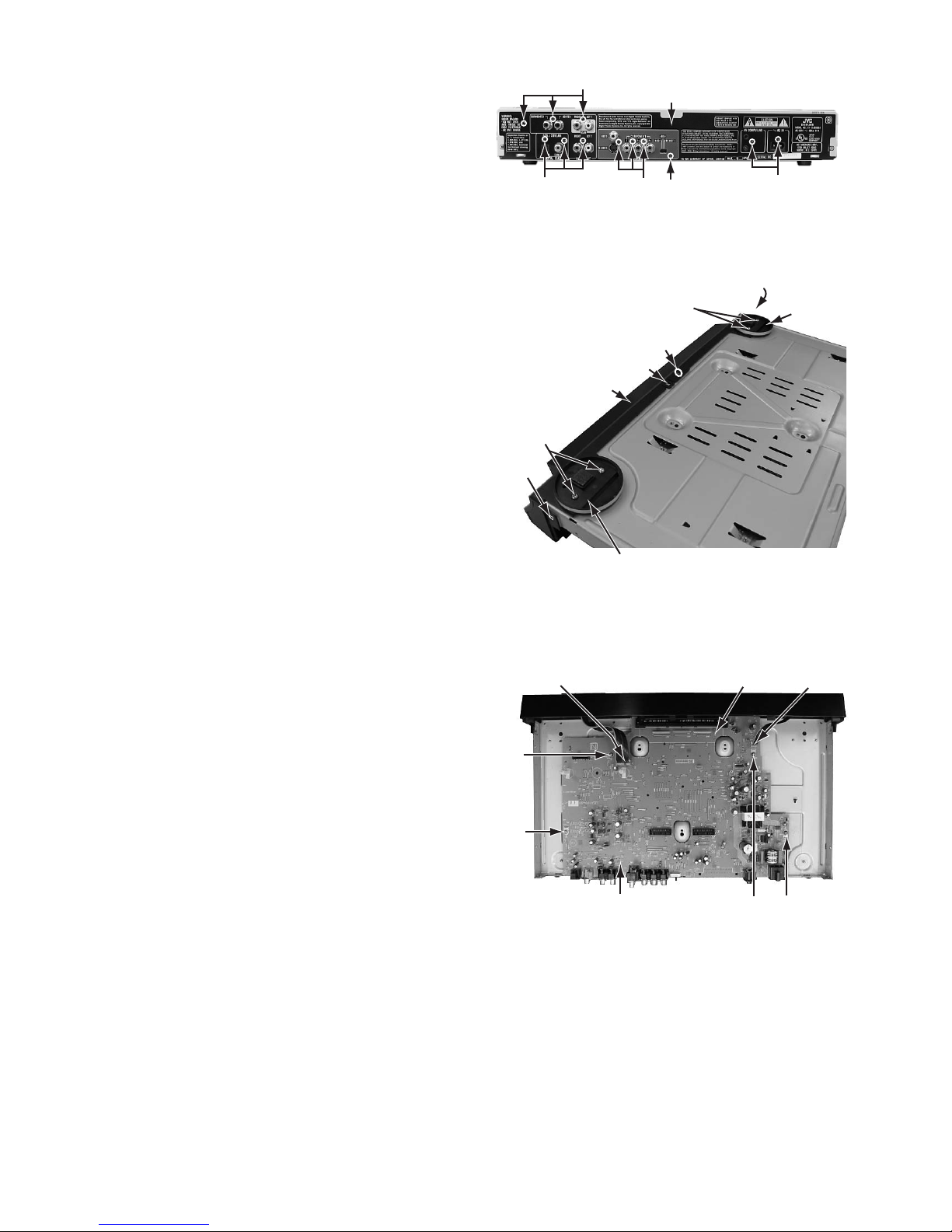

2.1.5 Removing the rear panel (see Fig.2-5)
• Prior to performing the following procedure, remove
the top cover.
(1) Remove the twelve screws F attaching the rear panel
on the back of the body.
•
Fig.2-5
2.1.6 Removing the front panel assembly
(see Fig.2-6,2-7)
• Prior to performing the following procedure, remove
the top cover.
• There is no need to remove the mechanism assembly.
(1) Disconnect the wire from JT102, JT103 and CN4 on
the main board respectively.
(2) Remove the one screw G attaching the front panel
assembly on the bottom of the body.
(3) Remove the four screws H attaching the foot on the bottom
of the body.
(4) Hook cand dare removed respectively, and the front
panel assembly is removed.
Fig.2-6
2.1.7 Removing the main board (see Fig.2-7)
• Prior to performing the following procedure, remove the top
cover, mechanism assembly,rear panel and surround audio
board.
(1) Disconnect the wire from JT102, JT103 and CN4 on the
main board respectively.
(2) Remove the four screws I attaching the main board
on the bottom chassis.
Fig.2-7
F
F
F
FF
Rear panel
G
H
H
Hook c
Hook d
Foot
Foot
Hook d
Front panel
assembly
JT102,JT103 CN4
Main board
Mechanism
assembly
I
I
II

XV-SA600BK/XV-SA602SL
9
2.2 Loading assembly section

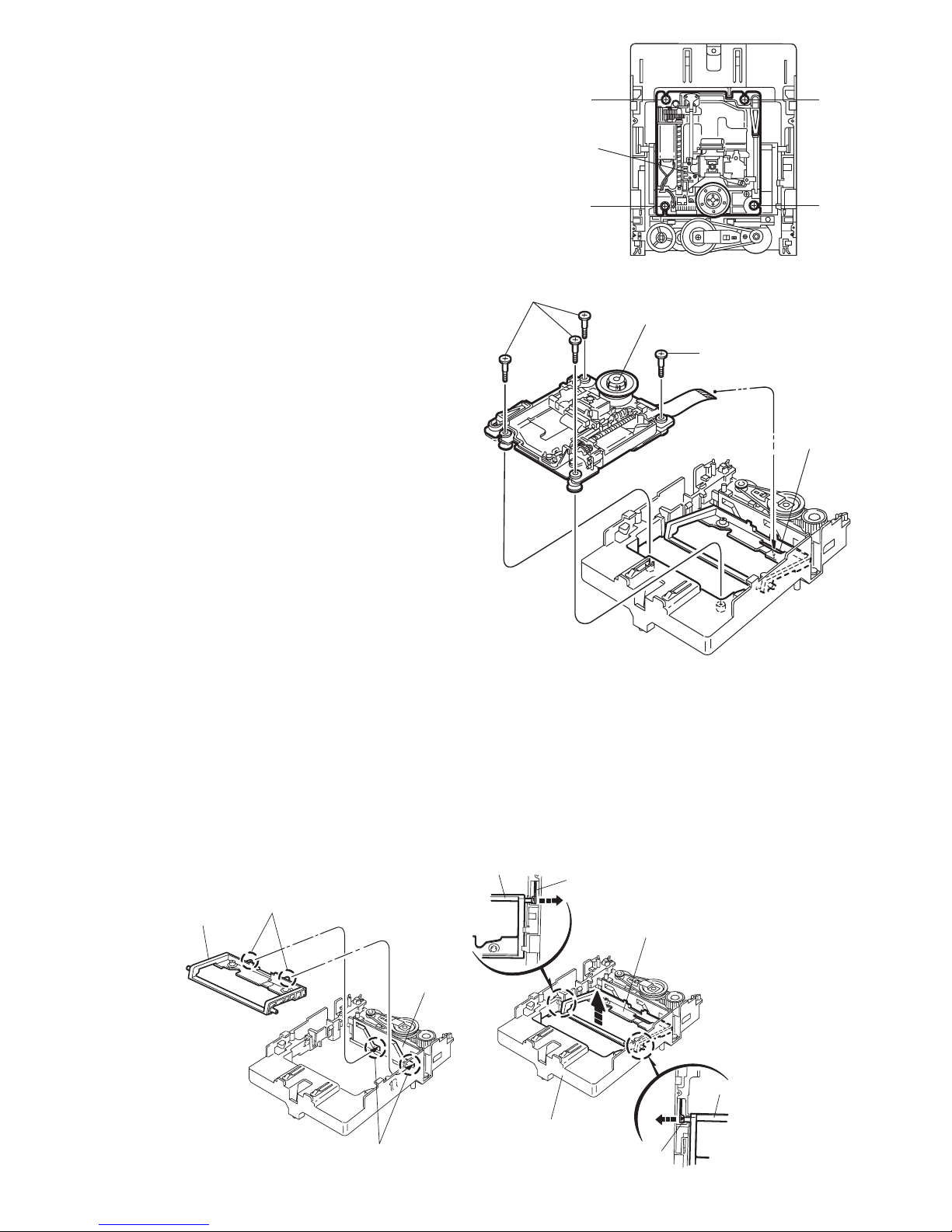

2.2.1 Removing the clamper assembly (See Fig.2-8)
(1) Remove the four screws Aattaching the clamper assembly.
(2) Move the clamper in the direction of the arrow to release
the two joints a on both sides.
ATTENTION:
When reattaching, fit the clamper to the two joints a.
Fig.2-8
2.2.2 Removing the tray (See Fig2-9. and 2-10)
• Prior to performing the following procedure, remove
the clamper assembly.
(1) Push b of the slide cam into the slot on the left side
of the loading base until it stops.
(2) Draw out the tray toward the front.
ATTENTION:
Before reattaching the tray, slide the
part c of the slide cam to the right as
shown in Fig.2-10.
Fig.2-9
Fig.2-10
Joint a
Joint a
AA
A A
Clamper
assembly
Push Tray
Loading base
b
Part
c
Slide cam

XV-SA600BK/XV-SA602SL
10

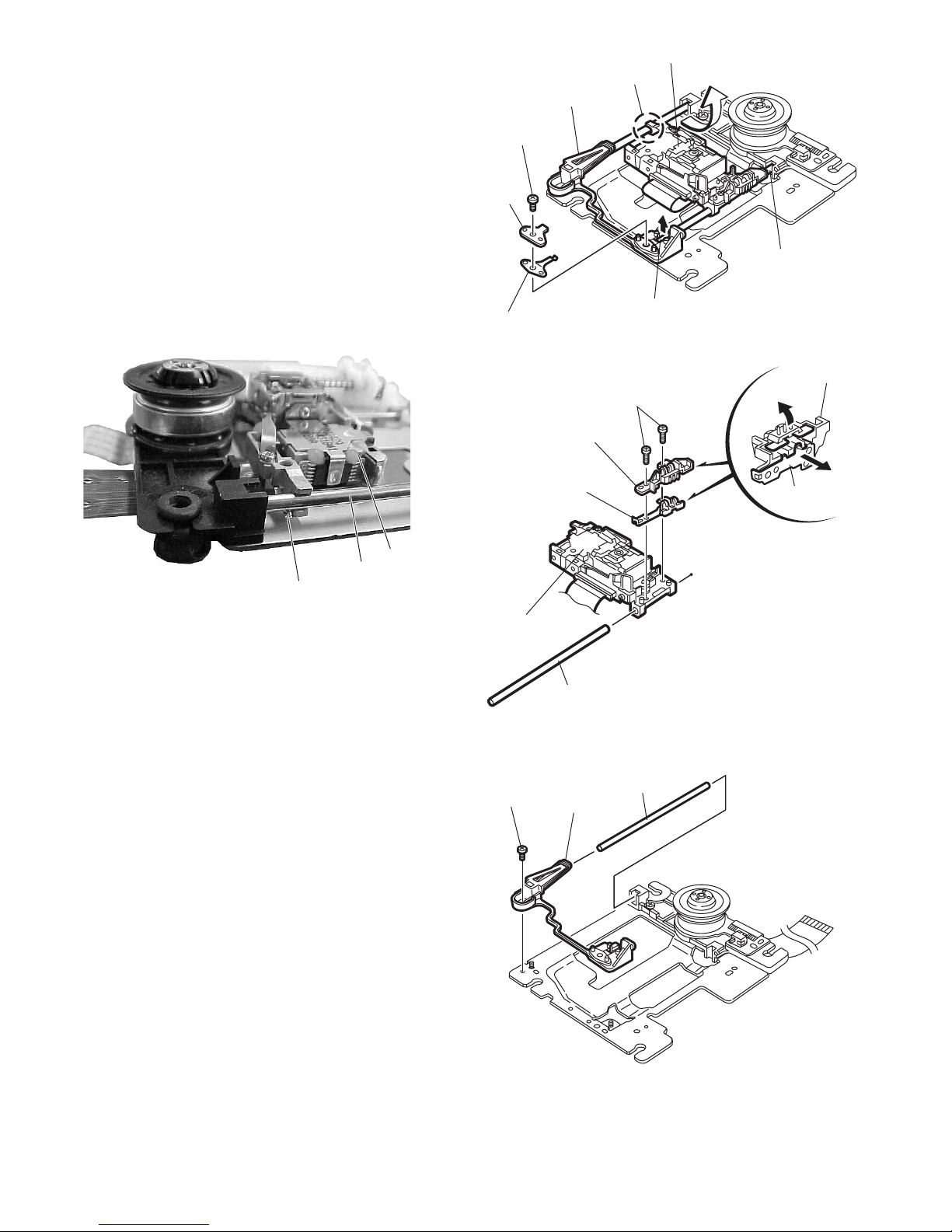

2.2.3 Removing the traverse mechanism
assembly (See Fig.2-11 and 2-12)
• Prior to performing the following procedure, remove
the clamper assembly and the tray.
(1) Remove the four screws Battaching the traverse
mechanism assembly.
ATTENTION:
Before reattaching the traverse
mechanism assembly, pass the card
wire extending from the spindle motor
board through the notch d of the elevator. Fig.2-11
Fig.2-12
2.2.4 Removing the elevator (See Fig.2-13)
• Prior to performing the following procedure, remove
the clamper assembly, the tray and the traverse
mechanism assembly.
(1) Extend each bar einside of the loading base
outward and detach the elevator shaft.
ATTENTION:
When reattaching, first fit the two shafts on the
front of the elevator to the slots f of the slide cam.
Fig.2-13
BB
B
BB
B
T
raverse mechanism
a
ssembly
B
BB
Traverse mechanism assembly
Elevato
r
Notch d
Elevator
Elevator
Elevat
or
e
e
Loading base
E
levator Shafts
Slide cam
Slots f

XV-SA600BK/XV-SA602SL
11
2.2.5 Removing the motor assembly
(See Fig.2-14 and 2-15)
• Prior to performing the following procedure, remove
the clamper assembly, the tray.the traverse mechanism
assembly and the elevator.
(1) Remove the belt from the pulley.
(2) Remove the screw C attaching the motor assembly.
(3) Turn over the body and remove the screw D
attaching the motor assembly.
(4) Release the two tabs gretaining the motor board.
Fig.2-14
Fig.2-15
C
Motor assembly
Belt
Loading base
M
otor assembly
D
Tabs g

XV-SA600BK/XV-SA602SL
12
Fig.2-16
2.2.6 Removing the Idle gear/pully gear/
middle gear/slitecam (See Fig.2-16 to 2-18)
• Prior to performing the followong procedure,remove
the clamper assembly,the tray,the traverse mechanism
assembly,the elevator and the motor assembly.
(1) Press the two tabs h inward and pull out idle gear.
(2) Remove the screw Eattaching the pulley gear bracket.
Slide the pulley gear bracket in the direction of the
arrow and pull out the pulley gear.
(3) Slide the side cam in the direction of the arrow to
release the two joins iand remove upward.
(4) Remove the middle gear. Fig.2-17
Fig.2-18
Motor assembly
Pulley gear
Pulley gear bracket
Pulley gear bracket
EIdle gear
Idle gear
Pulley ge
ar
Tads h
Pulley gear
Middle gear
Joint i Joint i
Slide cam
Slide cam Middle gear
Loading bas
e

XV-SA600BK/XV-SA602SL
13
2.3 Traverse mechanism assembly section
2.3.1 Removing the feed motor assembly
(See Fig.2-19)
(1) Unsolder the two soldering j on the spindle motor
board.
(2) Remove the four screws Fattaching the feed
motor assembly.
2.3.2 Removing the feed motor
(See Fig.2-19 to 2-21)
• Prior to performing the following procedure, remove
the feed motor assembly.
(1) Remove the screw G attaching the thrust spring.
ATTENTION:
When reattaching the thrust spring, make sure
that the thrust spring presses the feed gear (M)
and the feed gear (E) reasonably.
(2) Remove the feed gear (M).
(3) Pull out the feed gear (E) and the lead screw.
(4) Remove the two screws Hattaching the feed motor.
ATTENTION:
When reattaching, pass the two cables extending
from the feed motor through the notch k of the
feed holder as shown in Fig2-20.
Fig.2-19
Fig.2-20
Fig.2-21
F
Soldering j
Notch k
F
Feed motor assembly
Spindle motor board
Spindle motor
Picku
p
Feed gear (M)
Thrust sprin
g
G
Feed gear (E)
Lead screw
Feed motor
Feed holder
H

XV-SA600BK/XV-SA602SL
14
2.3.3 Removing the pickup (See Fig.2-23 and 2-25)
(1) Remove the screw I attaching the T spring (S) and the
shaft holder. Remove also the plate.
ATTENTION:
When reattaching,make sure that the
T spring (S) presses the shaft.
(2) Pull out the part l of the shaft upward. Move the part m in
the direction of the arrow and detach from the spindle
base.
(3) Disengage the joint n of the pickup and the shaft in the
direction of the arrow.
(4) Pull out the shaft from the pickup.
(5) Remove the two screws J attaching the actuator.
(6) Disengage the joint of the actuator and the lead spring.
Pull out the lead spring.
Fig.2-22
The spring must be under the shaft when you
install pick-up.
Fig.2-23
Fig.2-24
2.3.4 Removing the shaft holder / shaft (See Fig.2-25)
(1) Remove the screw Kattaching the shaft holder.
(2) Remove the shaft.
Fig.2-25
Shaft
Spring
Pick-u
p
T
spring (S)
Plate
Joint n
Pickup
Part m
Shaft holder
Part l
I
Shaft
P
ickup
Lead spring
Actuator
JActuat
or
Lead sprin
g
Shaft
Shaft holder
K

XV-SA600BK/XV-SA602SL
15
2.3.5 Removing the spindle motor assembly
(See Fig.2-26 to 2-28)
(1) Remove the three screws L attaching the spindle motor on
the bottom of the mechanism base.
ATTENTION:
When reattaching, pass the card wire extending
from the spindle motor board through the notch
of the spindle base.
(2) Remove the three screws M attaching the spindle base.
Fig.2-26
Fig.2-27
Fig.2-28
L
L
Spindle motor
Spindle motor assembly
Spindle base
L
M
M
Spindle bas
e
Mechanism base

XV-SA600BK/XV-SA602SL
16
SECTION 3
Adjustment method
3.1 Test mode setting method
(1) Take out the disc and close the tray.
(2) Unplug the power plug.
(3) Insert power plug into outlet while pressing both "PLAY" key and "STOP" key of the main body.
(4) The player displays " TEST " on the FL display. " " means the player version.
(5) When the power supply is turned off, test mode is released.
The mode changes as follows whenever the "CHOICE" key of remote controller is pushed in test mode.
3.2 Initialization method
Please initialize according to the following procedures when microprocessor or pick-up is exchanged and when the
up-grade is done.
(1) Makes to test mode.
(2) "PAUSE" key of the main body is pushed.
(3) A green progressive indicator lights when about a few seconds pass. Then, it is initialization completion.
*Please make scan mode test mode in the state of interlaced scan mode.
(State of progressive indicator turning off)
3.3 Method of displaying version of microcomputer
(1) Makes to test mode and initializes
(2) When "CHOICE" key of remote controller is pushed once, the figure is displayed on the FL display as follows.
Becomes test mode
Version of microcomputer
Confirmation of FL display
Device key index
Check mode
Not use mode
TEST_ _ -----------------------
_ _ ---------------------
FL display becomes all lighting ---
---------
CHECK ---------------------------------
EXPERT --------------------------------
__41_73_65__
FL Display (example)
F
L Display microcomputer (IC2)
F
ront end microcomputer (IC401) Decoder part (IC50
9)
STANDBY/ON
STANDBY/ON
PROGRESSIVE
PAUSEPLAYSTOP
OPEN/CLOSE SKIP
DVD AUDIO/DVD VIDEO/SUPER VCD/VCD/CD PLAYER
DVD AUDIO
POWER key
STOP key
(for test mode) PLAY key
(for test mode and jitter value)
PAUSE key
(for initialize)
FL Display PROGRESSIVE
Indicator
(for initialize)
TV2
2
TV1
1
TV3
3
TV5
5
TV4
4
TV6
6
TV8
8
TV7
7
TV9
9
TV0
0
TV-/--
10
MUTING
+10
TV/VIDEO
CANCEL
TITLE/
GROUP
RETURN
VFPAUDIOSUB TITLEREPEAT
ANGLEDIGEST
3D
PHONIC
ZOOM
AMP VOL
PROGRESSIVE
SCAN
fs/Rate
RM-SXV011J
REMOTE CONTROL
OPEN/
CLOSE
TV DVD
NEXTPREVIOUS
SELECT STROBECLEAR
SLOW
- SLOW+
VOL - VOL+
CH
+
CH
-
T
O
P
M
E
N
U
M
E
N
U
O
N
S
C
R
E
E
N
C
H
O
I
C
E
ENTER
STANDBY/ON
TV DVD
PAGE
CHOICE key
(switch of mode)
4 key (laser of CD)
5 key (laser of DVD)
UP key
(for firmware upgrade)
STOP key (laser OFF)

XV-SA600BK/XV-SA602SL
17

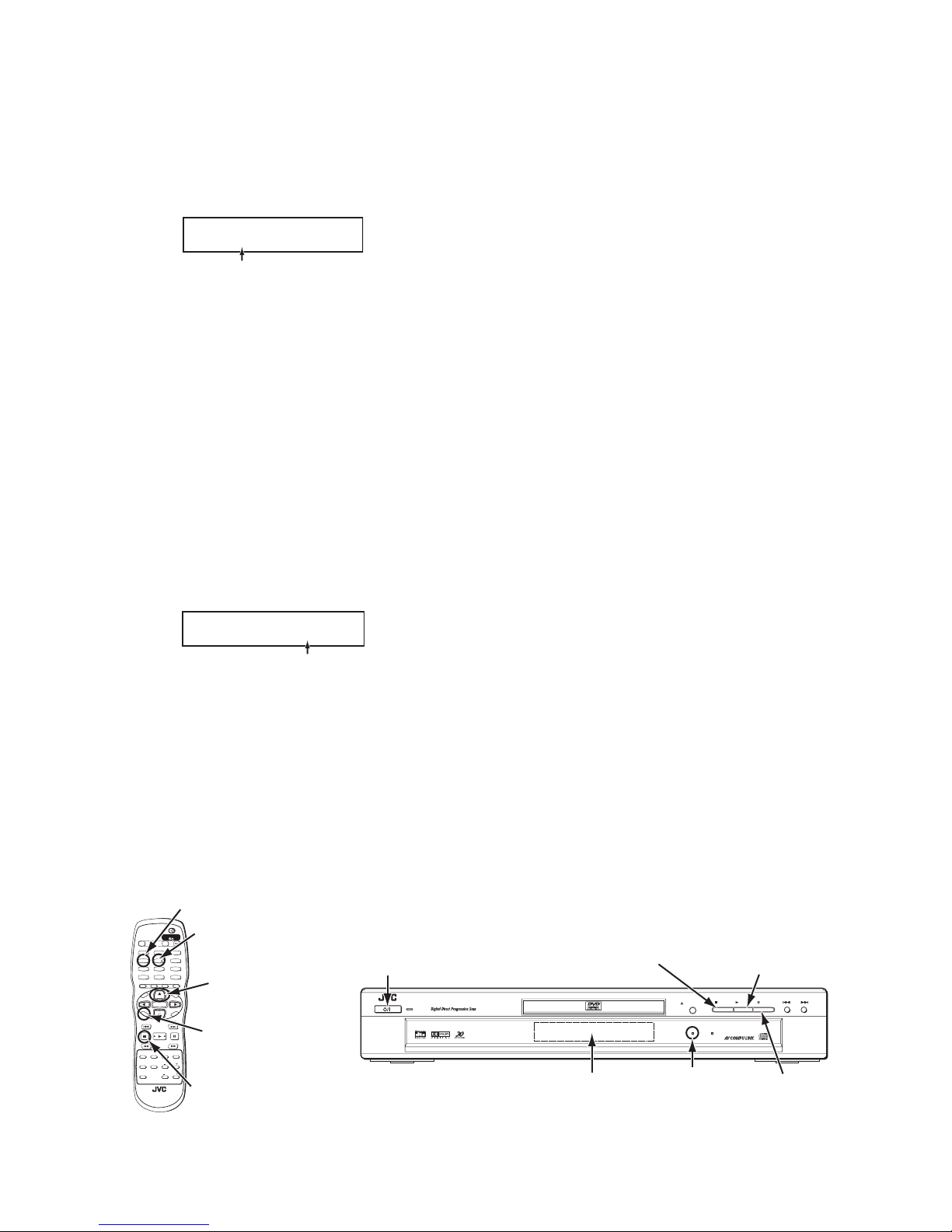

3.4 Display of current value of laser
(1) Makes to test mode and initializes.
(2) When "CHOICE" key of remote controller is pushed four times, It is displayed on the FL display, "CHECK".
(3) Afterwards, the laser current value can be switched by pushing the key to remote controller without turning on the disc.
Remote controller "4" key --- Laser of CD
Remote controller "5" key --- Laser of DVD
(4) The laser output stops if the "STOP" key to remote controller is pushed.
It can be judged it is simply good if the displayed current value of the laser is smaller than that of the undermentioned value.
Moreover, there must be a deteriorated possibility and the pick-up must exchange the pick-up more than the
undermentioned value.
Laser current value of CD ------ 49 mA or less
Laser current value of DVD ---- 64 mA or less
3.5 Display of jitter value
(1) Makes to test mode and initializes.
(2) When "CHOICE" key of remote controller is pushed four times, It is displayed on the FL display, "CHECK".
(3) The test disk (VT-501) is inserted, and the "PLAY" key to the main body is pushed.
(4) The jitter value is displayed on the FL display as follows.
In the following cases, please "Flap adjustment of the pick-up guide shaft" referring to the following page.
Before using the TEST disc VT-501, careful check it if there is neither damage nor dirt on the read surface.
< In the following cases, please adjustment >
•When you exchange the pick-up
•When you exchange the spindle motor
•When the reading accuracy of the signal is bad (There is a block noise in the screen etc..)
As for the current value of the laser, the figure displayed on
the FL display becomes a current value as it is by "mA" unit.
becomes 36 mA if displayed as 36.
Values to judge whether the jitter is allowable or not is displayed, instead of actual
jitter values.The displayed values are expressed in hexadecimal numbers.
0036 0000
FL Display (example)
Laser current value
0036 1CB4
FL Display (example)
Jitter value
STANDBY/ON
STANDBY/ON
PROGRESSIVE
PAUSEPLAYSTOP
OPEN/CLOSE SKIP
DVD AUDIO/DVD VIDEO/SUPER VCD/VCD/CD PLAYER
DVD AUDIO
POWER key
STOP key
(for test mode) PLAY key
(for test mode and jitter value)
PAUSE key
(for initialize)
FL Display PROGRESSIVE
Indicator
(for initialize)
TV2
2
TV1
1
TV3
3
TV5
5
TV4
4
TV6
6
TV8
8
TV7
7
TV9
9
TV0
0
TV-/--
10
MUTING
+10
TV/VIDEO
CANCEL
TITLE/
GROUP
RETURN
VFPAUDIOSUB TITLEREPEAT
ANGLEDIGEST
3D
PHONIC
ZOOM
AMP VOL
PROGRESSIVE
SCAN
fs/Rate
RM-SXV011J
REMOTE CONTROL
OPEN/
CLOSE
TV DVD
NEXTPREVIOUS
SELECT STROBECLEAR
SLOW
- SLOW+
VOL - VOL+
CH
+
CH
-
T
O
P
M
E
N
U
M
E
N
U
O
N
S
C
R
E
E
N
C
H
O
I
C
E
ENTER
STANDBY/ON
TV DVD
PAGE
CHOICE key
(switch of mode)
4 key (laser of CD)
5 key (laser of DVD)
UP key
(for firmware upgrade)
STOP key (laser OFF)

XV-SA600BK/XV-SA602SL
18
3.6 Upgrading of firmware
(1) The power supply is turned on pushing the "POWER" key.
(2) The up-grade disc is inserted.
(3) When FL display of the main body changes from "READING" into "UPGRADE", cursor "UP" key ( ) of remote controller
is pushed.
(4) The up-grade starts if the entire screen becomes blue and it is displayed, "Upgrade progress".
(5) The tray opens automatically, the up-grade disc is removed.
(6) The up-grade ends if the tray closes automatically, and the screen returns to the normal screen.
(7) Please confirm the version of the microcomputer after makes to test mode and initializes.
The disc for the up-grade is usually one piece. The disc becomes two pieces according to the version. In that case, please
note the undermentioned content.
*The up-grade is done by using the STEP1 disc according to "1)" and "4)" of the above-mentioned procedure.
*The tray opens automatically after a few seconds and exchange for the disc of STEP2, please.
* The tray closes automatically. There is only about five second time that the tray opens this time,
and replace the disc quickly between those, please.
ATTENTION
• When the tray shuts with the STEP1 disc left for the tray
The up-grade starts again and exchange for the STEP2 disc, please when the tray opens automatically.
• When the tray closes with there no disc in the tray
Because the tray opens automatically, the disc of STEP2 is put on the tray.
The power supply is turned off once pushing the "POWER" key.
The up-grade starts when the "POWER" key is pushed afterwards.
* After the up-grade ends, the STEP2 disc is removed because the tray opens automatically.
* Afterwards, it is the same as 6),7) of the above-mentioned procedures.
3.7 Display of region code
(1) Makes to the stand-by state.
(2) The "POWER" key is pushed while pushing the "BACK SKIP" key and the "FORWARD SKIP" key to the main body.
(3) Region code is displayed on the FL display as follows.
When up-grade is completed
Upgrade progress...
Upgrading (blue screen)After inserting the up-grade disc
F i r m w a r e upg r a d e D i sc ... p r ess U P
N O D IS C
REGION__
FL Display
= Region cod
e

XV-SA600BK/XV-SA602SL
19
3.8 Flap adjustment of the pick-up guide shaft
3.8.1 Tool list for adjustment
Stud (four pieces set)
Parts No. : JIGXVS40
Extension cord set (two cord and two board)
Parts No. : EXTXVS40CB
Hex wrench for adjustment
Off-the-shelf (1.3mm)
Test disc
VT-501 or VT-502
3.8.2 Adjustment preparation
(1) The mechanism assembly is made in the state from the main body from which is detached referring to the disassembly method.
(2) Three studs are installed in the mechanism assembly respectively.
(3) The servo control board is removed from the mechanism assembly, and puts into the state set up as shown in figure. (Each
wire connected by the servo control board this time leaves the connection maintained.)
Between shaft and hook of mechanism assembly of figure Board is put And, the board is inclined in the direction of the arrow
on figure as much as possible.
(4) The extension cord is inserted in the connector of the assistance board respectively.
The main board is connected with the servo control board as shown in figure.
3.8.3 Adjustment
(1) Puts into the state to display the jitter value on the FL display referring to "Display of the jitter value".
(2) The adjustment screw under the traverse mechanism is turned with hex wrench, and matches so that the jitter value displayed
on the FL display may become maximum value.
<POINT>
(1) Turns in the forward or the opposite direction, and makes to the position where the jitter value is good the half rotation of
adjustment screw a and b(180 degrees) respectively.
(2) Afterwards, adjustment screw b and c are turned in the same way, and makes to the best position.
XV-S40 CONTROL CONNECT
Assistance board
(
Connect to servo control board)
Assistance board
(Connect to main board)
Extension
cord
XV-S40
MAIN CONNECT
Stud
One is not used though it is on
e
set which consists of four units
.
Mechanism assembly
Stud
Stud
Servo control board
Assistance
board
Assistanc
e
board
Extension
cord
Main board
Mechanism assembl
y
Servo control board Hook
Shaft
As this value is bigger, the jitter is more allowable in this model.
Adjustment screw a Adjustment screw b
Adjustme
nt
screw c

XV-SA600BK/XV-SA602SL
20
3.9 Attention when pick-up is exchanged
(1) Flexible wire, pick-up spring, switch actuator, and lead
spring are removed from an old pick-up (broken the one).
< Guide >
Flexible wire, pick-up spring and switch actuator,lead
spring are removed without each decomposing while
assembled.
(2) The above-mentioned parts are installed in a new pick-up
(non-defective article).
(3) A flexible wire is inserted in the connector which has taken
side with the pick-up, and solder is put up to short land part
"a" two places on a flexible wire.
(4) The electrostatic breakdown protection circuit attached to
the pick-up is cut.
< ATTENTION >
Please cut the electrostatic breakdown protection cir-
cuit attached to the pick-up after solder is put up to
two places on a flexible wire short land part "a" of the
insertion of a flexible wire this time in the connector
without fail.
The procedure might be mistaken and if solder has
not surely adhered to two places on a flexible wire
short land part "a", the laser diode in the pick-up be
destroyed again.
(5) The pick-up is installed in the traverse mechanism.
(6) A flexible wire is connected with connector CN101 on the
servo control board by installing the traverse mechanism
in the loading mechanism.
(7) Solder in two places on a flexible wire in part "a" is re-
moved.
< ATTENTION >
Please remove solder in two places in part "a" after
connecting a flexible wire with connector CN101 on
the servo control board without fail this time.
When the procedure is mistaken, the laser diode in the
pick-up might be destroyed.
Please remove solder in two places in part "a" surely.
Switch actuator
Lead spring
Pick-up
Pick-up spring
Flexible wire
Flexible wire
Connector
Short lan
d
part "a"
Electrostatic breakdown
protection circuit
E
lectrostatic breakdown
protection circuit
Cutting pa
rt
CN101
Short land
part "a"
S
ervo control
board
