JVC XV-M565BK User manual

No.20845
Jun. 2000
Printed in Japan
200006(S)
No.20845
XV-M565BK/M567GDXV-M565BK/M567GD
Contents
Safety precautions
Important for laser products
Preventing static electricity
Dismantling and assembling
the traverse unit
Disassembly method
Check points for each error
Precautions for service
Troubleshooting
Adjustment method
Description of major ICs
1-2
1-3
1-4
1-5
1-6
1-21
1-24
1-25
1-31
1-34
Areas suffix
J ----------------------------- U.S.A.
C -------------------------- Canada
VICTOR COMPANY OF JAPAN, LIMITED
AUDIO & COMMUNICATION BUSINSS DIVISION
PERSONAL & MOBILE NETWORK B.U. 10-1,1Chome,Ohwatari-machi,Maebashi-city,371-8543,Japan
SERVICE MANUAL
DVD PLAYER
XV-M565BK/M567GD
COPYRIGHT 2000 VICTOR COMPANY OF JAPAN, LTD.
This service manual is printed on 100% recycled paper.

XV-M565BK/M567GD
1-2
Safety Precautions
1. This design of this product contains special hardware and many circuits and components specially
for safety purposes. For continued protection, no changes should be made to the original design
unless authorized in writing by the manufacturer. Replacement parts must be identical to those
used in the original circuits. Services should be performed by qualified personnel only.
2. Alterations of the design or circuitry of the product should not be made. Any design alterations of
the product should not be made. Any design alterations or additions will void the manufacturer`s
warranty and will further relieve the manufacture of responsibility for personal injury or property
damage resulting therefrom.
3. Many electrical and mechanical parts in the products have special safety-related characteristics.
These characteristics are often not evident from visual inspection nor can the protection afforded
by them necessarily be obtained by using replacement components rated for higher voltage,
wattage, etc. Replacement parts which have these special safety characteristics are identified in
the Parts List of Service Manual. Electrical components having such features are identified by
shading on the schematics and by ( ) on the Parts List in the Service Manual. The use of a
substitute replacement which does not have the same safety characteristics as the recommended
replacement parts shown in the Parts List of Service Manual may create shock, fire, or other
hazards.
4. The leads in the products are routed and dressed with ties, clamps, tubings, barriers and the
like to be separated from live parts, high temperature parts, moving parts and/or sharp edges
for the prevention of electric shock and fire hazard. When service is required, the original lead
routing and dress should be observed, and it should be confirmed that they have been returned
to normal, after re-assembling.
5. Leakage currnet check (Electrical shock hazard testing)
After re-assembling the product, always perform an isolation check on the exposed metal parts
of the product (antenna terminals, knobs, metal cabinet, screw heads, headphone jack, control
shafts, etc.) to be sure the product is safe to operate without danger of electrical shock.
Do not use a line isolation transformer during this check.
Plug the AC line cord directly into the AC outlet. Using a "Leakage Current Tester", measure
the leakage current from each exposed metal parts of the cabinet , particularly any exposed
metal part having a return path to the chassis, to a known good earth ground. Any leakage
current must not exceed 0.5mA AC (r.m.s.)
Alternate check method
Plug the AC line cord directly into the AC outlet. Use an AC voltmeter having, 1,000 ohms
per volt or more sensitivity in the following manner. Connect a 1,500 10W resistor paralleled by
a 0.15 F AC-type capacitor between an exposed
metal part and a known good earth ground.
Measure the AC voltage across the resistor with the
AC voltmeter.
Move the resistor connection to eachexposed metal
part, particularly any exposed metal part having a
return path to the chassis, and meausre the AC
voltage across the resistor. Now, reverse the plug in
the AC outlet and repeat each measurement. voltage
measured Any must not exceed 0.75 V AC (r.m.s.).
This corresponds to 0.5 mA AC (r.m.s.).
Warning
1. This equipment has been designed and manufactured to meet international safety standards.
2. It is the legal responsibility of the repairer to ensure that these safety standards are maintained.
3. Repairs must be made in accordance with the relevant safety standards.
4. It is essential that safety critical components are replaced by approved parts.
5. If mains voltage selector is provided, check setting for local voltage.
Good earth ground
Place this
probe on
each exposed
metal part.
AC VOLTMETER
(Having 1000
ohms/volts,
or more sensitivity)
1500 10W
0.15 F AC TYPE
!
CAUTION
Burrs formed during molding may be left over on some parts of the chassis. Therefore,
pay attention to such burrs in the case of preforming repair of this system.

XV-M565BK/M567GD
1-3
Important for Laser Products
1.CLASS 1 LASER PRODUCT
2.DANGER : Invisible laser radiation when open and inter
lock failed or defeated. Avoid direct exposure to beam.
3.CAUTION : There are no serviceable parts inside the
Laser Unit. Do not disassemble the Laser Unit. Replace
the complete Laser Unit if it malfunctions.
4.CAUTION : The compact disc player uses invisible
laserradiation and is equipped with safety switches
whichprevent emission of radiation when the drawer is
open and the safety interlocks have failed or are de
feated. It is dangerous to defeat the safety switches.
5.CAUTION : If safety switches malfunction, the laser is able
to function.
6.CAUTION : Use of controls, adjustments or performance of
procedures other than those specified herein may result in
hazardous radiation exposure.
REPRODUCTION AND POSITION OF LABELS
WARNING LABEL
!Please use enough caution not to
see the beam directly or touch it
in case of an adjustment or operation
check.
DANGER : Invisibie laser radiation
when open and interlock or
defeated.
AVOID DIRECT EXPOSURE TO
BEAM (e)
VARNING : Osynlig laserstrålning är
denna del är öppnad och spårren är
urkopplad. Betrakta ej strålen. (s)
VARO : Avattaessa ja suojalukitus
ohitettaessa olet alttiina
näkymättömälle lasersäteilylle.Älä
katso säteeseen. (d)
ADVARSEL :Usynlig laserstråling
ved åbning , når
sikkerhedsafbrydere er ude af
funktion. Undgå udsættelse for
stråling. (f)

XV-M565BK/M567GD
1-4
Preventing static electricity
Electrostatic discharge (ESD), which occurs when static electricity stored in the body, fabric, etc. is discharged,
can destroy the laser diode in the traverse unit (optical pickup). Take care to prevent this when performing repairs.
1.1. Grounding to prevent damage by static electricity
Static electricity in the work area can destroy the optical pickup (laser diode) in devices such as DVD players.
Be careful to use proper grounding in the area where repairs are being performed.
1.1.1. Ground the workbench
1. Ground the workbench by laying conductive material (such as a conductive sheet) or an iron plate over
it before placing the traverse unit (optical pickup) on it.
1.1.2. Ground yourself
1. Use an anti-static wrist strap to release any static electricity built up in your body.
1.1.3. Handling the optical pickup
1. In order to maintain quality during transport and before installation, both sides of the laser diode on the
replacement optical pickup are shorted. After replacement, return the shorted parts to their original condition.
(Refer to the text.)
2. Do not use a tester to check the condition of the laser diode in the optical pickup. The tester's internal power
source can easily destroy the laser diode.
1.2. Handling the traverse unit (optical pickup)
1. Do not subject the traverse unit (optical pickup) to strong shocks, as it is a sensitive, complex unit.
2. Cut off the shorted part of the flexible cable using nippers, etc. after replacing the optical pickup. For specific
details, refer to the replacement procedure in the text. Remove the anti-static pin when replacing the traverse
unit. Be careful not to take too long a time when attaching it to the connector.
3. Handle the flexible cable carefully as it may break when subjected to strong force.
4. It is not possible to adjust the semi-fixed resistor that adjusts the laser power. Do not turn it
Conductive material
(conductive sheet) or iron plate
(caption)
Anti-static wrist strap

XV-M565BK/M567GD
1-5
Short circuit land
Laser pick-up unit
Flexible cable
Shot with the rclip
Shorting
Dismantling and assembling the traverse unit
1. Notice regarding replacement of optical pickup
Electrostatic discharge (ESD), which occurs when static electricity stored in the body, fabric, etc. is discharged,
can destroy the laser diode in the traverse unit (optical pickup). Take care to prevent this when performing
repairs to the optical pickup or connected devices.
(Refer to the section regarding anti-static measures.)
1. Do not touch the area around the laser diode and actuator.
2. Do not check the laser diode using a tester, as the diode may easily be destroyed.
3. It is recommended that you use a grounded soldering iron when shorting or removing the laser diode.
Recommended soldering iron: HAKKO ESD-compatible product
4. Solder the land on the optical pickup's flexible cable.
Note : Short the land after shorting the terminal on the flexible cable using a clip, etc., when using an
ungrounded soldering iron.
Note : After shorting the laser diode according to the procedure above, remove the solder according
to the text explanation.

XV-M565BK/M567GD
1-6
Remove the two screws A attaching the top cover
on the back of the body.
Remove the four screws B attaching the top cover
on both sides of the body.
Pull the lower parts of the top cover sides and
remove the top cover in the direction of the arrow.
1.
2.
3.
Disassembly method
Removing the Top cover (See Fig.1)
< Main body >

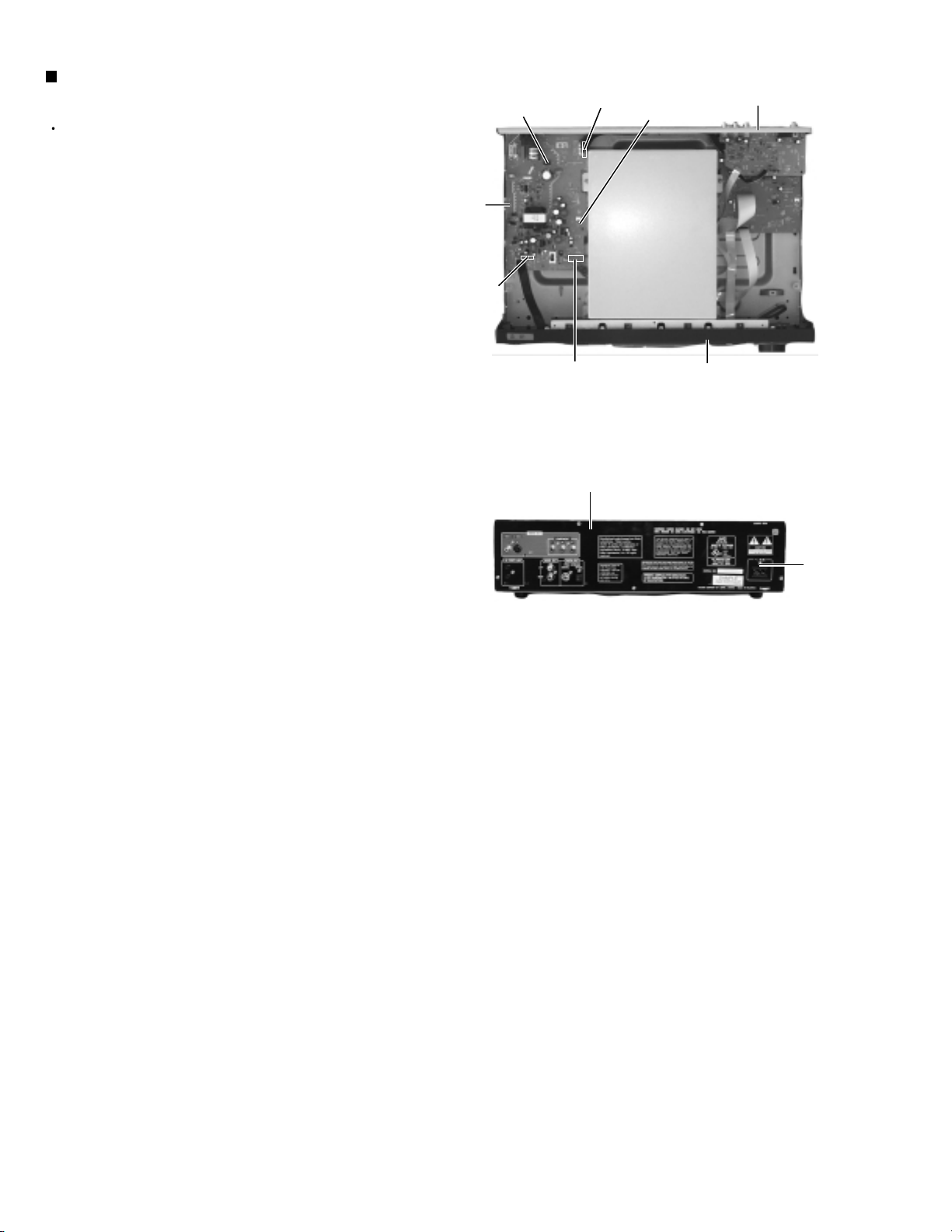

Prior to performing the following procedure, remove
the top cover.
Disconnect the harness from connector CN971 and
CN972 on the power supply board.
Disconnect the card wire from connector CN703 on
the system control board.
Remove the three screws C attaching the front
panel assembly on the bottom of the body.
Release the joint a on the bottom and the two joints
b on both sides of the body. Remove the front panel
assembly toward the front.
1.
2.
3.
4.
Removing the Front panel assembly
(See Fig.2 to 5)
Fig.1
Fig.2
Fig.3
Top cover
B 2
B 2
A
Front panel assembly
CN971
CN972
CN703
Power supply board System control board
C
C
C
Joint a
Front panel assembly

XV-M565BK/M567GD
1-7
Prior to performing the following procedure, remove
the top cover.
Remove the eleven screws D attaching the rear
panel on the back of the body and detach the rear
panel.
1.
Removing the Rear panel (See Fig.6)
Prior to performing the following procedure, remove
the top cover.
The DVD changer mechanism assembly can be
removed even if the front panel assembly is
attached.
Remove the four screws E attaching the DVD
changer mechanism assembly cover and detach the
shield case at an angle.
Disconnect the 9pin harness from connector CN961
on the power supply board.
Disconnect the card wire from connector CN601 on
the video board.
Disconnect the card wires from connector CN701
and CN702 on the system control board.
Remove the four screws F attaching the DVD
changer mechanism assembly. Pull up the DVD
changer mechanism assembly at an angle from the
front panel assembly.
1.
2.
3.
4.
5.
Removing the DVD changer mechanism assembly
(See Fig.7 and 8)
Joints b
Front panel assembly
Fig.4
Fig.6
Fig.7
Fig.8
Fig.5
D
D
D
Rear panel
EE
EE
Shield case
F
FF
F
DVD changer mechanism assembly Video board
Power supply board
System control
board
CN701
CN601
CN961
CN702

XV-M565BK/M567GD
1-8
Prior to performing the following procedure, remove
the top cover.
Disconnect the harness from connector CN971 and
CN972 on the regulator board (The harness is
extending from the front panel assembly).
Disconnect the 9pin harness from connector CN961
on the power supply board (The harness is
extending from the DVD changer mechanism
assembly).
Disconnect the harness from connector CN951 and
CN952 on the power supply board (The harness is
extending from the system control board).
Remove the screw D attaching the AC jack on the
rear panel.
Remove the two screws G attaching the power
supply board and detach the power supply board.
1.
2.
3.
4.
5.
Removing the Power supply board
(See Fig.9 and 10)
G
G
Power supply board
Front panel assembly
Rear panel
CN961
CN951
CN952
CN971
CN972
Shield case
Fig.9
Fig.10
D
Rear panel

XV-M565BK/M567GD
1-9
Prior to performing the following procedure, remove
the top cover.
Disconnect the card wire from connector CN601 on
the video board (The card wire is extending from the
DVD changer mechanism assembly).
Disconnect the harness from connector CN704 on
the system control board (The harness is extending
from the video board).
Remove the three screws D attaching the video
board on the rear panel. Pull out the video board
from the rear panel.
1.
2.
3.
Removing the Video board
(See Fig.11 and 12)
Prior to performing the following procedure, remove
the top cover.
The audio board can be removed even if the video
board is attached.
Disconnect the card wire from connector CN703 on
the system control board (The card wire is extending
from the front panel assembly).
Disconnect the card wire from connector CN701 and
CN702 on the audio board (The card wires are
extending from the DVD changer mechanism
assembly).
Disconnect the harness from connector CN704 on
the system control board (The harness is extending
from the video board).
Disconnect the harness from connector CN951 and
CN952 on the power supply board (The harness is
extending from the system control board).
Remove the screw H attaching the system control
board.
Remove the five screws D attaching the system
control board on the rear panel. Pull out the system
control board toward the front.
1.
2.
3.
4.
5.
6.
Removing the System control board
(See Fig.13 and 14)
Front panel assembly
Rear panel Video board
System
control
board
CN601
CN704
Shield case
Shield case
Fig.11
Fig.12
Fig.13
Fig.14
Rear panel
Rear panel
D
Front panel assembly
Rear panel Video board
System
control
board
CN704
CN701
CN703 CN702
H
Power supply board
CN951
CN952
D

XV-M565BK/M567GD
1-10
Remove the four screws I attaching the bracket on
the back of the front panel assembly. Remove the
bracket.
Unsolder the terminal FW802 of the harness
connecting the FL indicator board and the volume
board.
Remove the eight screws J and the FL indicator
board.
1.
2.
3.
Prior to performing the following procedure, remove
the top cover and the front panel assembly.
Removing the Front board (See Fig.15)
Pull out the shuttle knob on the front panel
assembly.
Unsolder the terminal FW802 on the back of the
front panel assembly (The harness of FW802 is
connecting the volume board and the FL indicator
board).
Remove the three screws K and the volume board.
1.
2.
3.
Removing the Volume board
(See Fig.16 and 17)
< Front panel assembly >
Fig.15
Fig.16
Fig.17
FL indicator
board
Volume board
Front panel
assembly Bracket
FW802
JJJ
J
II
Front panel assembly
Shuttle knob
FW802
Volume board
K
K

XV-M565BK/M567GD
1-11
Disconnect the card wire from connector CN101 on
the traverse mechanism control board on the bottom
of the DVD changer mechanism assembly.
Remove the screw L attaching the traverse
mechanism control board. Release the three parts e,
f and g and remove the traverse mechanism control
board.
Disconnect the card wire from connector CN102 on
the traverse mechanism control board.
1.
2.
3.
Prior to performing the following procedure, remove
the top cover and the DVD changer mechanism
assembly.
Removing the traverse mechanism
control board (See Fig.18)
The DVD tray can not be ejected when the traverse
mechanism is up.
When the DVD is set or the traverse
mechanism is up.
The motor pulley and the belt can be seen on the
front side of the changer. Turn the motor pulley
clockwise until the belt stops.
Pull the tray lock lever on the left side of the changer
and draw the DVD tray.
Draw the DVD tray 1 to 3 as above.
1.
2.
3.
Bringing down the traverse mechanism
as shown in the Fig.20
< DVD Changer Mechanism Assembly >
Ejecting the DVD (See Fig.19 and 20)
DVD traverse
mechanism
control board
CN101
CN102
L
Part e
Part f
Part g
DVD changer mechanism assembly
Fig.18
Fig.19
Fig.20
Motor pulley
Belt
Draw the DVD tray.
Tray lock lever
Tray stopper
Traverse mechanism
As the motor pulley is
turned, the traverse
mechanism lowers.

XV-M565BK/M567GD
1-12
Removing the DVD mechanism board
(See Fig.1)
1.
2.
3.
4.
5.
Remove the DVD mechanism assembly cover.
Remove the DVD changer mechanism assembly.
From bottom side the DVD changer mechanism
assembly, remove the one screw A retaining the DVD
traverse mechanism control board.
Disconnect the card wire from the connectors CN101
and CN102 on the DVD traverse mechanism control
board.
Disengage the one engagement a and two
engagements b , remove the DVD traverse mechanism
control board.
Removing the DVD tray assembly
(See Fig.2~4)
1.
2.
3.
4.
5.
6.
7.
8.
9.
Remove the front panel assembly.
Remove the DVD changer mechanism assembly.
Remove the DVD traverse mechanism control board.
Remove the screw B retaining the Disc stopper
(See Fig.3).
Remove the three screws C retaining the T.bracket
(See Fig.3).
From the clamper base section c, remove both of the
edges fixing the rod(See Fig.2 and 3).
Remove the screw D retaining the clamper assembly
(See Fig.3).
From the left side face of the chassis assembly, remove
the one screw E retaining both of the return spring and
lock lever(See Fig. 4).
By removing the pawl at the section d fixing the return
spring, dismount the return spring(See Fig.4).
Remove the three lock levers(See Fig.4).
10.
Fig.1
Fig.2
Fig.3
Fig.4
< DVD Changer Mechanism Section >
A
DVD traverse
mechanism
control baord
CN102
CN101
bb
a
c
Rod
T.Bracket
Clamper base
B
C
C
D
C
c
T.Bracket
Disc stopper
Lod stopper
(C/J version only)
Clamper ass'y
d
Lock lever
Return spring
E

XV-M565BK/M567GD
1-13
11.
12.
Check whether the lifter unit stopper has been caught
into the hole at the section e of DVD tray assembly as
shown in Fig.5.
Make sure that the driver unit elevator is positioned as
shown in Fig.6 from to the second or fifth hole on the
left side face of the DVD Traverse mechanism
assembly.
Fig.5
Fig.7Fig.6
Fig.8 Fig.9
[Caution] In case the driver unit elevator is not at above
position, set the elevator to the position as
shown in Fig.7 by manually turning the pulley
gear as shown in Fig.8.
13.
14.
15.
Manually turn the motor pulley in the clockwise
direction until the lifter unit stopper is lowered from the
section e of DVD tray assembly(See Fig.8).
Pull out all of the three stages of DVD tray assembly in
the arrow direction f until these stages stop
(See Fig.6).
At the position where the DVD tray assembly has
stoppend, pull out the DVD tray assembly while
pressing the two pawls g and g' on the back side of
DVD tray assembly(See Fig.9). In this case, it is easy
to pull out the assembly when it is pulled out first from
the stage DVD tray assembly.
DVD tray
assembly
e
Drive unit of elevator
DVD tray assembly
f
Refer to Fig.7 Pawl
Chassis assembly
Pulley gear
Motor pulley
Pawl ,
DVD tray assembly
Stopper
g
g g'

XV-M565BK/M567GD
1-14
Removing the DVD mechanism
assembly(See Fig.10)
1.
2.
While turning the cams R1 and R2 assembly in the
arrow direction h , align the shaft i of the DVD
mechanism assembly to the position shown in Fig.10.
Remove the four screw F retaining the DVD
mechanism assembly.
Removing the DVD mechanism
(See Fig.11 and 12 )
1.
2.
3.
For dismounting only the DVD machanism without
removing the DVD mechanism assembly, align the shaft
j of the DVD mechanism assembly to the position
shown Fig.11 while turning the cam R1 and R2
assembly in the arrow direction k.
Remove the two screws G raising the DVD mechanism
assembly.
Remove the DVD mechanism assembly in the arrow
direction I from the lifter unit (See Fig. 12)
Fig.10
Fig.12
Fig.11
F
Cams R1, R2 assembly
i
DVD mechanism assembly
F
h
Arrow
F
F
Lifter unit
DVD mechanism
assembly
l
Arrow
Cam R1, R2 assembly
k
Arrow
j
G

XV-M565BK/M567GD
1-15
Removing the mechanism control
board (See Fig.14, 15)
1.
2.
3.
Absord the four soldered positions m of the right and
left motors with a soldering absorber(See Fig.14).
Remove the two screws H retaining the mechanism
control board(See Fig.14).
Remove the two screws I retaining the tray select
switch board(See Fig.15).
Removing the can unit
(See Fig.15 18 )
1.
2.
3.
4.
5.
Remove the CD mechanism assembly.
While turning the cam gear L, align the pawl n position
of the drive unit to the notch position(Fig.15) on the cam
gear L.
Pull out the drive unit and cylinder gear(See Fig.17).
While turning the cam gear L, align the pawl o position
of the select lever to the notch position(Fig.18) on the
cam gear L.
Remove the four screws J retaining the cam unit(cam
gear L and cams R1/R2 assembly)(See Fig.18).
Fig.14
Fig.16
Fig.15
Fig.18
Fig.17
H
Motor L Motor R
m
m
H
Mechanism control board
Cam gear L
Drive unit
n
Chassis assembly
CD Tray
switch board
CN802
CN801
CN804
I
J
Select lever
Cams R1, R2 assembly
J
J
Cam unit
Cam gear L
Cylinder gear
Drive unit
o

XV-M565BK/M567GD
1-16
Fig.19
Fig.21
Fig.20
Fig.22
[Note] When the chassis assembly is turned over under
the conditions wherein the gear bracket and belt
have been removed, then the pulley gear as well
as the gear, etc. constituting the gear unit can
possibly be separated to pieces. In such a case,
assemble these parts by referring to the assembly
and configuration diagram in Fig. 22.
Removing the actuator motor and belt
(See Fig.19 22)
1.
2.
3.
4.
5.
Remove the two screws K retaining the gear bracket
(See Fig.19).
While pressing the pawl p fixing the gear bracket in the
arrow direction, remove the gear bracket
(See Fig.19).
From the notch q section on the chassis assembly fixing
the edge of gear bracket, remove and take out the gear
bracket(See Fig. 20).
Remove the belts respectively from the right and left
actuator motor pulleys and pulley gears(See Fig. 19).
After turning over the chassis assembly, remove the
actuator motor while spreading the four pawls r fixing
the right and left actuator motors in the arrow
direction(See Fig. 21).
K
Pulley gear
K
Belt
Motor pulley
Belt
Pulley gear
Motor pulley
Gear bracket
p
Pawl
r
Actuator motor
r
Chassis assembly
q
Gear bracket
Pulley gear
Gear B
Cylinder gear
Gross gear U
Gear C
Gross gear L
Select gear
Gear B
Gear C
Pulley gear
Assembly and Configuration Diagram

XV-M565BK/M567GD
1-17
Fig.23
[Caution] To reassemble the cylinder gear, etc.with the
cam unit (cam gear and cams
R1/R2 assembly),
gear unit and drive unit, align the position of the
pawl n on the drive unit to that of the notch on
the cam gear L. Then, make sure that the gear
unit is engaged by turning the cam gear L
(See Fig. 24).
Removing the cams R1/R2 assembly
and cam gear L (See Fig.23)
1.
2.
3.
4.
Remove the slit washer fixing the cams R1 and R2
assembly.
By removing the two pawls s fixing the cam R1,
separate R2 from R1.
Remove the slit washer fixing the cam gear L.
Pull out the cam gear L from the C.G. base assembly.
Removing the C.G. base assembly
(See Fig.23 and 24)
Remove the three screws L retaining the C.G. base
assembly.
Fig.24
L
Slit washer
Pawl
Cam R2
Slit washer
Cam gear L
Cam switch board
C.G. base assembly
Cam R1
Pawl
Cam gear L
Notch
Cylinder
gear
Gear bracket
Cam R1, R2 assembly
Gear unit
Drive unit
n
Pawl
ss

XV-M565BK/M567GD
1-18
Make sure to solder the flexible harness.(In case of
replacement with a new product, unsolder the
flexible harness after performing the following
procedure.)
Disconnect the flexible harness from connector
CN12 on the connection board.
The rack cover is attached to the feed drive shaft.
Remove the two screws A attaching the connection
board and stand the connection board. Remove the
rack cover.
Remove the screw B attaching the pickup shaft
holder. Remove the pickup shaft holder by releasing
1.
2.
3.
4.
Pull out the shaft in the direction of the arrow and
slightly lift it with the pickup unit. Then, remove the
pickup unit while pulling the rack a in the direction of
the arrow.
5.
Removing the pickup unit
(See Fig.1 to 3)
<Traverse mechanism section>
Be careful not to lose the inside spring.
ATTENTION:
Fig.1
Fig.2
Fig.3
A
A
Connection board
Connection board
Rack cover
Pickup unit
Shaft Tab
Tab
B
Pickup shaft holder
CN12
CN12
Soldering
(Short circuit round)
Flexible harness
Feed drive shaft
Rack a

XV-M565BK/M567GD
1-19
Unsolder the two parts b on the connection board.
Remove the screw C attaching the sensor holder
and detach the sensor holder from the turn table
bracket. Slacken and remove the flexible harness of
the part c as shown in Fig.6. Pull up the hook d and
remove the flexible harness from the sensor holder.
(When reattaching the sensor holder)
1.
2.
Remove the three screws D attaching the spindle
motor assembly.
Release the tab by moving the spindle motor
assembly to the tab, and remove the spindle motor
assembly.
3.
4.
Removing the Spindle Motor Assembly
(See Fig.4 to 8)
Do not lose the spring of the shaft f by
the tab.
ATTENTION:
Let the flexible harness through the part c of the
sensor holder and reattach it to the hook d
correctly (See Fig.6).
Reattach the pin e of the sensor holder to the
notch of the radial lever and reattach the sensor
holder to the turn table bracket.
*Part b - soldering Spindle motor
C
D
D
Sensor holder
Turn table bracket
Hook d
Part c
Pin e Radial lever
Sensor holder
f
Flexible harness
Tab
Fig.4
Fig.5
Fig.6
Fig.7Fig.8
It is not necessary to remove
at the spindle motor unit exchange.

XV-M565BK/M567GD
1-20
Disconnect the flexible harness from connector
CN12 and CN13 on the connection board on the
under side of the chassis.
Unsolder the two parts b (the red and black wires
extending from the spindle motor) on the connection
board.
Remove the two screws A attaching the connection
board and detach the relay board.
1.
2.
3.
Removing the connection board
(See Fig.9)
Prior to performing the following procedure, remove
the connection board.
Unsolder the flexible harness g of the feed motor.
Remove the two screws E attaching the feed motor
assembly and detach the feed motor assembly.
1.
2.
Removing the feed motor assembly
(See Fig.10)
Part b -soldering
g
CN13
CN12
Feed motor assembly
A
E
Spindle motor
Fig.9
Fig.10
