1. IMPORTANT SAFETY INSTRUCTIONS
This 32” / 37” wide active matrix TFT (thin film transistor) liquid crystal monitor is designed for
use as a stand alone TV as well as a display device for video electronic appliances and personal
computers. Please read through this section carefully and follow the instructions to maximize the
reliable operation and lifetime of your LCD display.
Important Information
Warning: To reduce the risk of fire or electric shock, do not expose this product to rain or
moisture.
Caution: To reduce the risk of electric shock, do not attempt to disassemble or modify this
device. There are no user-serviceable parts inside. Refer any service issues to
qualified service personnel.
Caution: FCC/ CSA regulations state that any unauthorized changes or modifications to this
equipment may void the user's authority to operate it.
Important: One Federal Court has held that unauthorized recording of copyrighted TV programs is
an infringement of U.S. copyright laws. Certain Canadian programs may also be copyrighted and
any unauthorized recording in whole or in part may be in violation of these rights.
WA R N IN G :
Do not leave stationary images, patterns, PIP window, or letterbox images on the screen for
prolonged periods of time as this may result in permanent damage to the LCD panel. This
type of damage is not covered under warranty. The following are examples of, but not
limited to, potentially hazardous display output: side bar images, video game patterns, closed
captioning, channel logos and letterbox black bars. To prevent this type of damage, it is
recommended to display constantly moving images that fill the screen as often as possible.
According to industrial standards for LCD display technology, there are a certain number of
allowable defective pixels. Although we produce panels with more than 99.9% active cells,
there still may be some cells that do not produce light or remain constantly lit. For further
information, please contact sales or technical support.
CAUTION
Risk of electric
shock. Do not open.

V32/37GCGI-UD1_V32/37GCJI-UD2 2006/8/3 下午 04:23
4
Safety Precautions
1. Cleaning: Unplug the power cord from the AC outlet before cleaning the product. Use a damp
cloth to clean the product. Do not use liquid cleaners or aerosol cleaners.
2. Water and moisture: Do not use the product near water or areas of high moisture content such
as swimming pools, bathtubs or wet basements.
3. Ensure that no water droplets remain on the screen. Water can cause permanent discoloration.
4. Heat sources: Keep the product away from heat sources such as radiators, heaters, stoves and
other heat-generating products (including amplifiers).
5. For added protection during a lightning storm or for extended periods of non-use, unplug the
power cord from the wall outlet and disconnect the antenna (if used). This will prevent damage
to the product due to power line surges.
6. If an outside antenna is connected to the product, make sure the antenna is properly grounded
so as to provide some protection against voltage surges and build up static charges.
7. Keep the original packaging and use it to protect the LCD display during transport or storage.
8. After transportation your LCD display please wait until it has assumed the ambient
temperature between +41°F~+95°F before connecting and switching it on. Extremely high
variations in the temperature or humidity may result in condensation forming on the inside of
the LCD display which could cause an electrical short-circuit.
Example of antenna grounding
As per national electrical code
Antenna lead in wire
Antenna discharge
unit
Grounding conductors
Ground clamps
Power service
grounding
Electrode system
Ground clamp
Electric service
equipment

V32/37GCGI-UD1_V32/37GCJI-UD2 2006/8/3 下午 04:23
5
9. Stand: Do not place the product on an unstable
cart, stand, tripod or table. Placing the product
on an unstable base can cause the product to
fall, resulting in serious personal injuries as
well as damage to the product. Use only a cart,
stand, tripod, bracket or table recommended by
the manufacturer or sold with the product. Use
only mounting hardware recommended by the
manufacturer.
10.Use care when moving the product on a rolling cart. Sudden stops, excessive force and uneven
floor surface can cause the product to fall from the cart.
11. Ventilation: The vents and other openings in the cabinet are designed for ventilation. Do not
cover or block these vents and openings as insufficient ventilation can cause overheating
and/or shorten the life of the product. Do not place the product on a bed, sofa, rug or other
similar surfaces since they can block ventilation openings. This product was not designed to
operate in an enclosed environment. Don't place the product in an enclosed space such as a
bookcase or rack, unless proper ventilation is provided or the manufacturer's instructions are
followed.
12. The LCD panel used in this product is made of glass. Therefore, it can break if the product is
dropped or struck.
13. During the LCD panel lifespan it is normal for a few pixels to become defective. Non-active
pixels may appear on the screen as fixed points of red, blue or green. Refer pixel policy
questions to the reseller for further clarification on acceptable loss.
14. An outside antenna system should not be located in the vicinity of overhead power lines or
other electrical conduits. When installing an outside antenna, use extreme caution to prevent
the antenna from coming into contact with said items, as contact with them may be fatal.

V32/37GCGI-UD1_V32/37GCJI-UD2 2006/8/3 下午 04:23
6
2. INTRODUCTION
Thank you for purchasing our LCD display. We thank you for your confidence in our products and
are pleased to greet you as a new customer.
Features
Your LCD display is designed with the latest technology and is a high-performance unit that
includes the following special features.
¾Multiple input sources including one Ant (antenna) terminal for receiving ATSC/NTSC/clear
QAM, and HDMI, D-SUB (VGA connector), Composite, S-Video, Component ports.
¾Universal remote control to control other devices such as Cable Converter, Satellite Receiver,
DVD player, Audio Amplifier, VCR etc.
¾PIP for displaying different sources at the same time on the same screen.
¾Component video input for high definition TV programming (HDTV), resolution up to 720p,
1080i.
¾High-Definition Multimedia Interface (HDMI), resolution up to 480p, 720p, 1080i.
¾Built-in 10W dual channel speakers for 32” LCD display and 15W for 37”LCD display,
Audio Out, Sub-woofer Out, and S/P DIF for DTV.
¾Built-in multi-channel sound decoder for stereo and bilingual broadcasts.
¾Automatic sleep timer control from 10 to 90 minutes in 10-minute increments.
¾Automatic power off feature after 1, 5, or 10 minutes without a signal.
¾Power off mode selection for energy save (<5 w) or normal (<35w).
¾Automatic Picture Control (APC) and Aspect Ratio Control (ARC) functions for end user
customization of viewing preferences.
¾Built-in 3D comb filter and 3D de-interlacing for best possible picture quality.
¾Connection Instruction in the on-screen menu to show the recommendations for the best
quality picture of commonly used devices.
¾TV Guide to display the list of available channels and the corresponding channel information.

V32/37GCGI-UD1_V32/37GCJI-UD2 2006/8/3 下午 04:23
7
Accessories

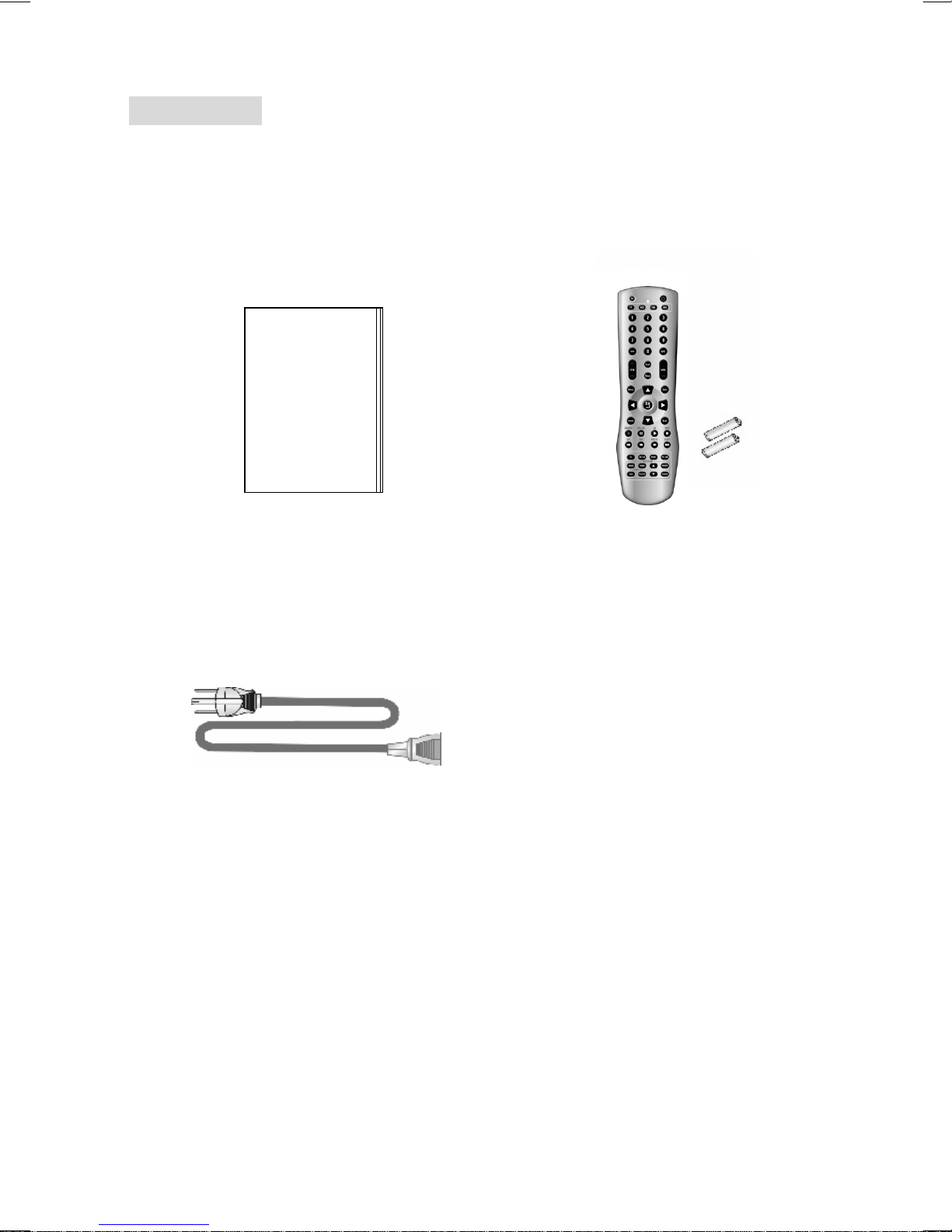

Make sure the following accessories are provided with the product.
User’smanual Remote control & Batteries (AA x2)
AC Power Cord
LCD-TV
USER’S MANUAL

V32/37GCGI-UD1_V32/37GCJI-UD2 2006/8/3 下午 04:23
8
3. CONTROLS AND LOCATION
Front and Side Views
Function Keys
These buttons control your TV’s basic features, including the on-screen menu. To use advanced
features, you must use the remote control.
POWER ：Turn the LCD-TV on or off.
SOURCE ：Display a list of all the available input sources, and select the source by
pressing SOURCE repeatedly (Air TV/Cable TV →A/V1→A/V2→
S-Video1→S-Video2→YPbPr 1→YPbPr 2→VGA→HDMI).
MENU :Press to display the on-screen menu and press again to exit the on-screen
menu.
CHANNEL ▲：Increase the channel no., or access upper items in the on-screen menu.
CHANNEL ▼：Decrease the channel no., or access lower items in the on-screen menu.
VOLUME ＋：Increase the volume, or access right items in the on-screen menu.
VOLUME －：Decrease the volume, or access left items in the on-screen menu.
ARC/EXIT ：Change the aspect ratio of the screen, or return to the previous menu.
POWER Indicato
r
ARC / EXIT
VOLUME
CHANNEL
MENU
SOURCE
POWER
+
_
Remote Control Sensor

V32/37GCGI-UD1_V32/37GCJI-UD2 2006/8/3 下午 04:23
9
Power Indicator
The colors of light indicate the following statuses.
INDICATOR POWER STATUS OPERATING
Light Off Main Power Off The MAIN POWER SWITCH is set off
No Light
→ Flashing Green Light Boot Up The MAIN POWER SWITCH and Power button are
set On. LCD-TV is booting up.
Green Light Power On ( Normal ) The MAIN POWER SWITCH and Power button are
set On.
Amber Light Power Saving
The MAIN POWER SWITCH and Power button are
set On. When DPMS mode in OSD is enabled and no
signal comes in from the selected input, the LCD-TV
will go into standby mode after 1, 5, or 10 min.
Red Light Power Off The MAIN POWER SWITCH is set On but the
Power button is set Off.
Remote Sensor Window
Use the remote control unit by pointing it towards the Remote Sensor Window on the LCD-TV.
Objects between the remote control unit and the Remote Sensor Window may prevent proper
operation. If the Remote Sensor Window on the LCD-TV is under direct sunlight or strong lighting,
the remote control unit may not work properly. In such case, change the angle of the lighting or the
LCD-TV, or operate the remote control unit closer to the Remote Sensor Window.

V32/37GCGI-UD1_V32/37GCJI-UD2 2006/8/3 下午 04:23
10

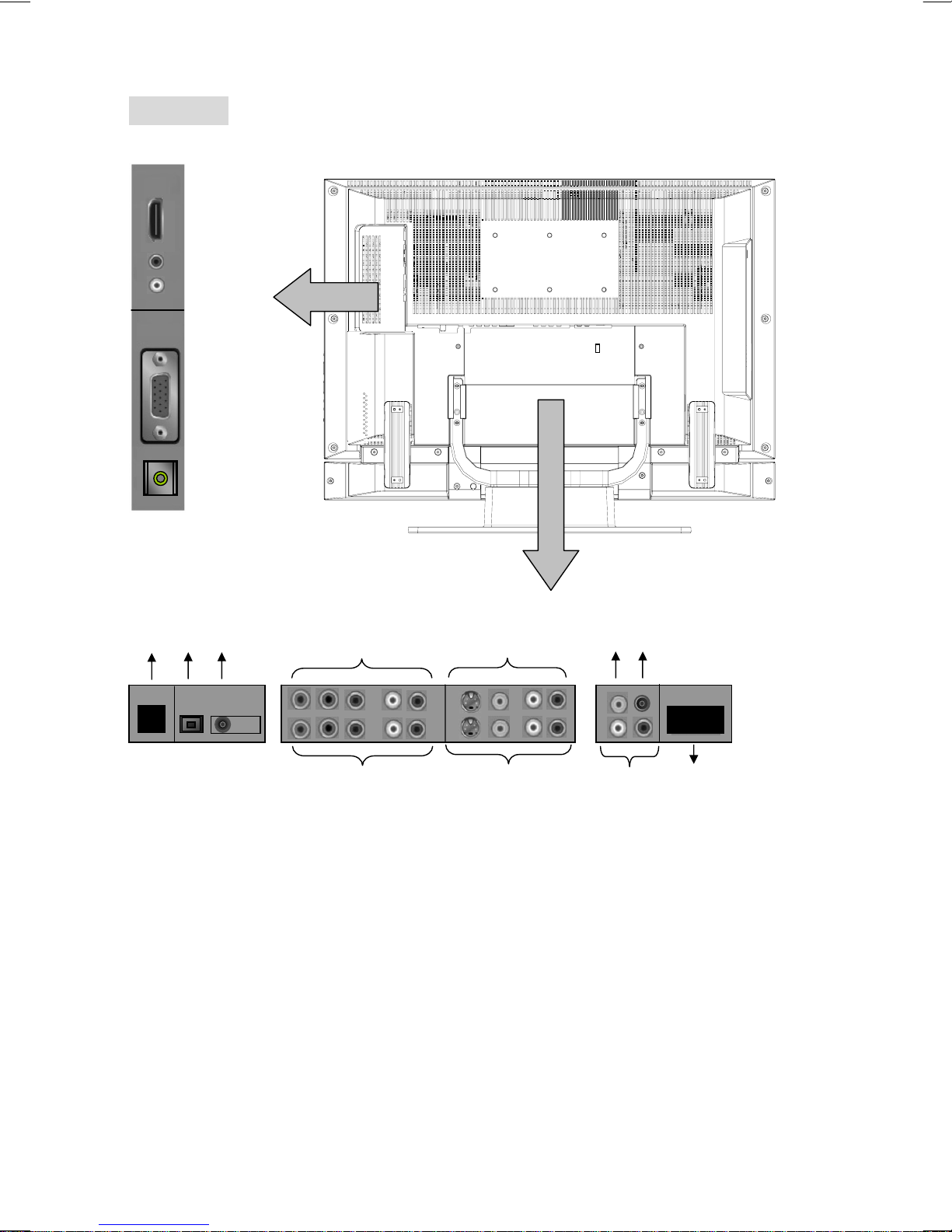

Rear View
AC Power Input
The LCD-TV is designed for AC use only and should be used with supplied AC Power cord. And,
connect AC plug into the wall outlet.
Main Power Switch
Before operating the LCD-TV or remote control, users must press MAIN POWER SWITH to
ON. The MAIN POWER SWITCH is located at the upper-left side of the LCD-TV.
A
C Power
Input
Main Power
Switch

V32/37GCGI-UD1_V32/37GCJI-UD2 2006/8/3 下午 04:23
11

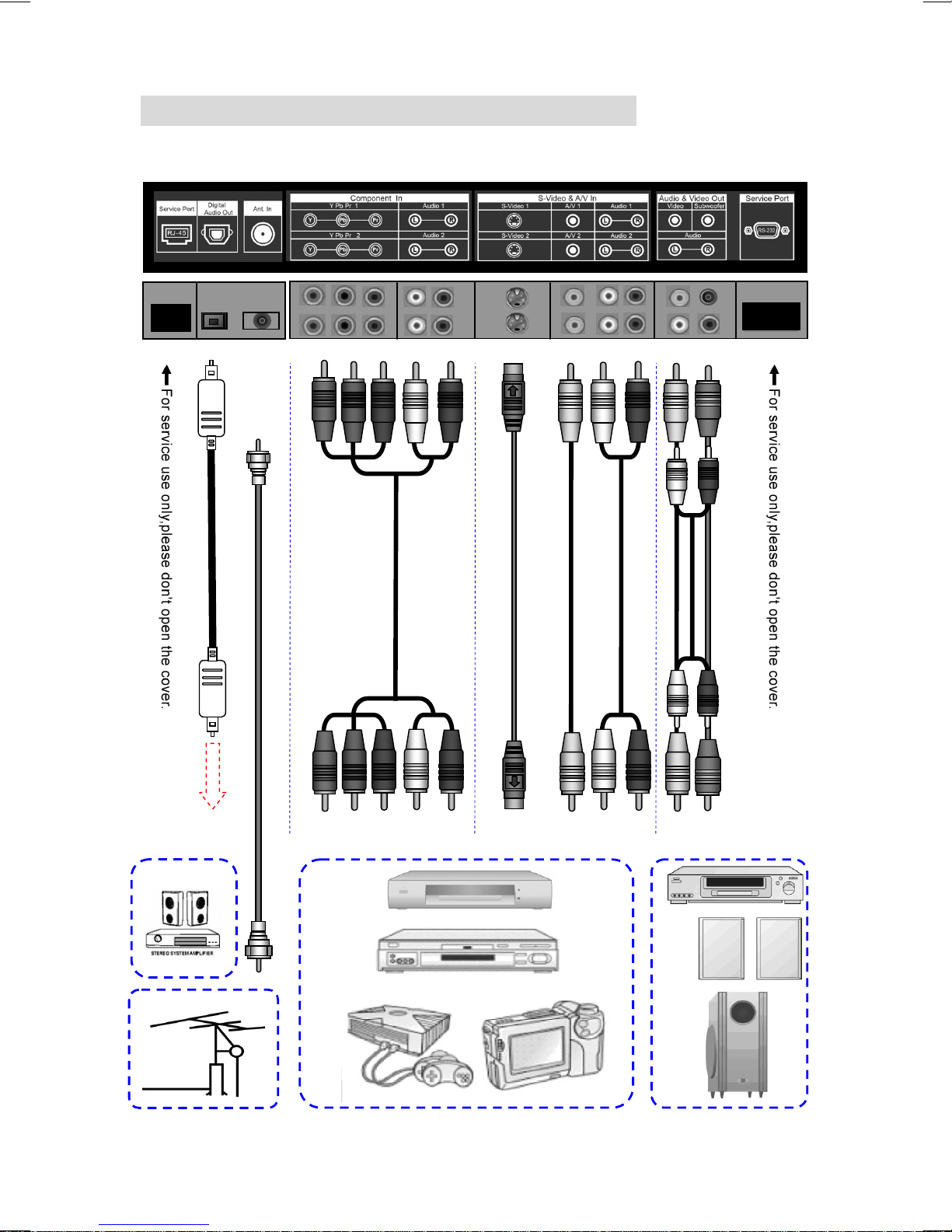

Interface
○
1Service Port : Ethernet RJ-45
○
2Digital Audio Out : S/P DIF
○
3Antenna: NTSC/ATSC/QAM Clear
○
4Y Pb Pr 1 -- Audio (Left / Right)
○
5Y Pb Pr 2 -- Audio (Left / Right)
○
6S-Video 1 / AV 1 -- Audio (Left / Right)
○
7S-Video 2 / AV 2 -- Audio (Left / Right)
○
8Composite (AV/TV) Out
○
9Subwoofer Out
○
10 Audio Out (Left / Right)
○
11 Service Port: RS-232
* ○
1and ○ 11 are only for updating software, please don’t open the cover.
○
5 CV2 ○ 7 SV 2 / AV2 ○ 10 ○ 11
○
1
○
2
○
3 ○ 4 CV1 ○ 6 SV1 / AV1 ○ 8
○
9
HDMI
DVI AUDIO
INPUT
D-SUB (VGA)
PC AUDIO
INPUT

V32/37GCGI-UD1_V32/37GCJI-UD2 2006/8/3 下午 04:23
12
V
IDEO DEVICE
(e.g.. DVD Player, Set-top Box)
4. CONNECTING EXETERNAL DEVICES
HDMI、DVI Audio In、D-SUB Connections
* Connect to Video Device with HDMI Output.
Note
1. No sound connector is needed for an HDMI to HDMI connection.
2. If no sound outputs, please enter the OSD menu (Audio) to select
Internal for HDMI audio source. (DVI R/L is for DVI audio source. )
3. HDMI does not support S/P DIF Out
* Connect to PC with D-SUB connector.
D-SUB
PC AUDIO
IN
HDMI
HDMI to HDMI Cable

V32/37GCGI-UD1_V32/37GCJI-UD2 2006/8/3 下午 04:23
13
V
IDEO DEVICE
(e.g.. DVD Player, Set-top Box)

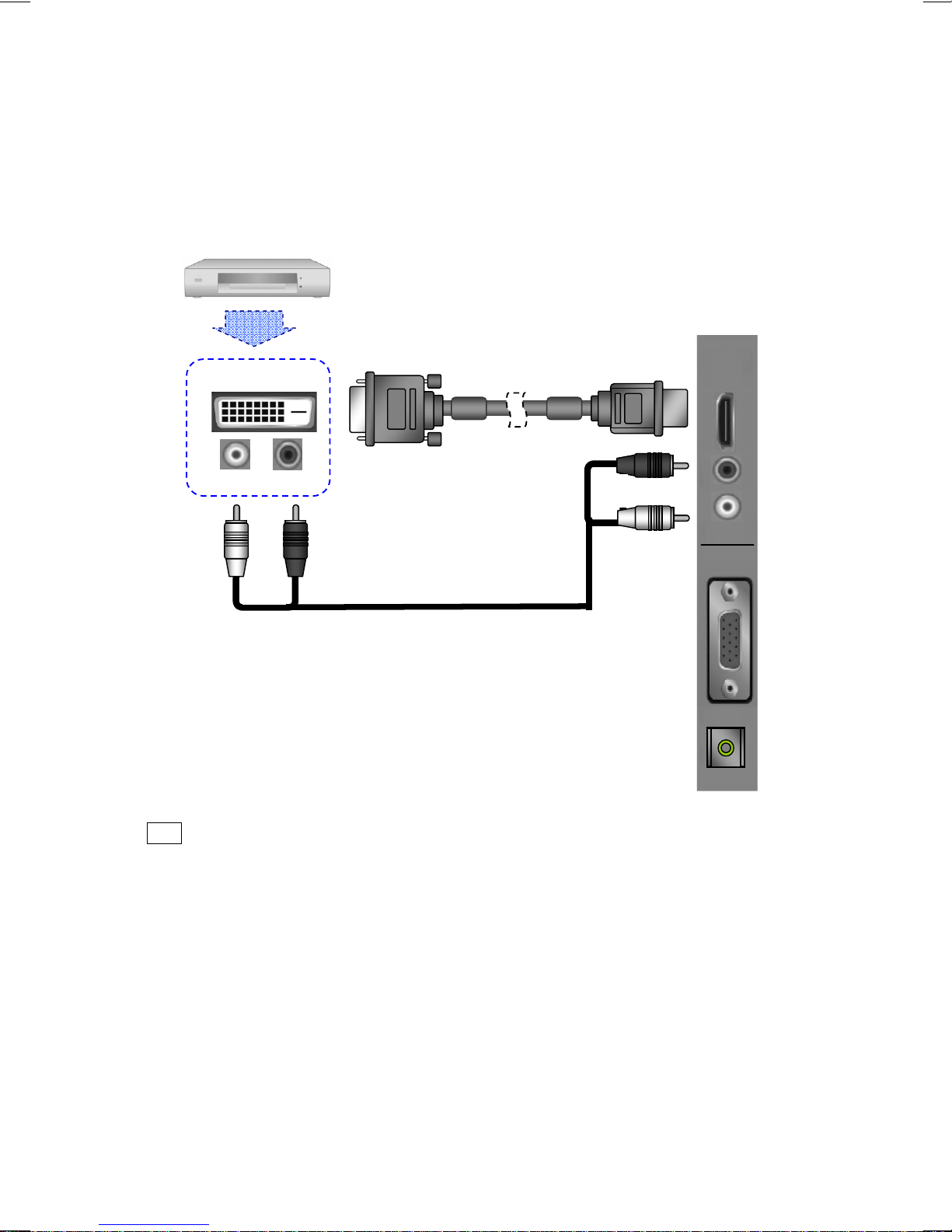

* Connect to Video Device with a DVI Output.
.
Note
1. Connect a DVI-to-HDMI cable or DVI-HDMI adapter between the external device with
DVI and HDMI on the LCD-TV.
2. Connect the audio cables between the Audio Out jacks on DVD player/ Set-top box and
Audio In jacks on the LCD-TV.
3. Enter the OSD menu (Audio) to select DVI R/L for DVI audio source.
HDMI
DVI to HDMI Cable
DVI / HDCP
L- A
ud
i
o
- R

V32/37GCGI-UD1_V32/37GCJI-UD2 2006/8/3 下午 04:23
14
RF In (Analog & Digital)、Video Connections
RF IN:
NTSC/
ATSC/
Clear
QAM
For DTV only

V32/37GCGI-UD1_V32/37GCJI-UD2 2006/8/3 下午 04:23
15
0102
03
04
06
05
07
08
0910
11 12
13
15
14
16
1718
19 20
21
22

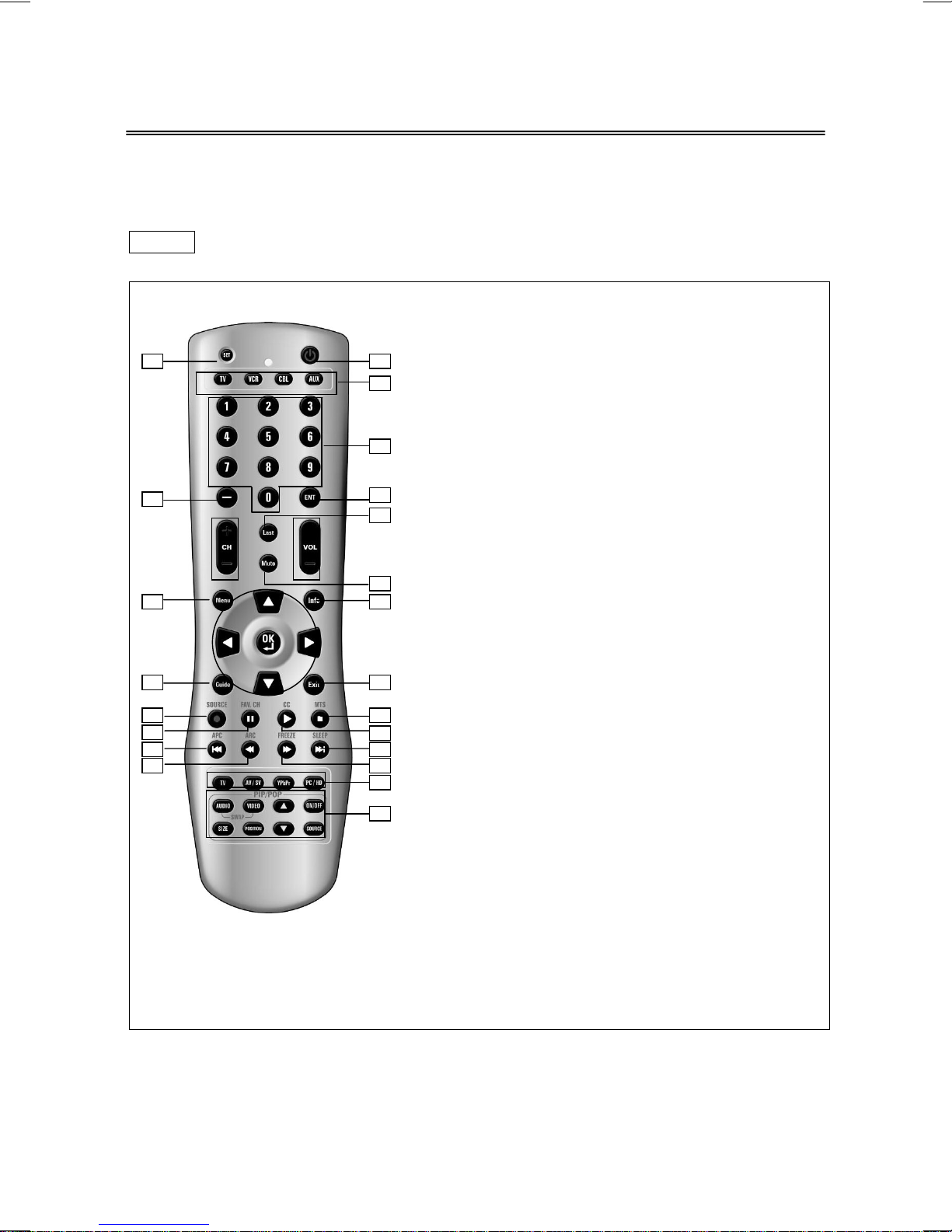

5. Remote Control
This universal remote control enables control of up to four devices. To select a device, simply
select one of the device mode controls: TV, VCR, CBL, or AUX.
NOTE To control this LCD-TV, don’t forget to press TV button(at the top-left of the corner)
once to switch back to TV mode, or the LCD-TV won’t work by using the remote control.
1 POWER
Turn the device on or off.
2 SET
Set ID code to control different brands.
(refer to page 28~33)
3TV : Control this LCD-T
V
(
default
)
.
VC
R
:Con
t
rol DVD
p
la
y
er or VCR.
CBL:Control Cable Converter or Satellite.
AUX:Control Audio Am
p
lifier.
(
refer to
p
a
g
e 26
,
27
)
4 0 – 9 NUMERIC BUTTONS
Manuall
y
select channels.
5
─
Dis
p
la
y
“
─
“ for followin
g
sub-channel numbers.
6ENT
(
ENTER
)
Press ENT to activate the channel at once.
7LAST
Return to the
p
revious viewed channel.
8MUTE
Tem
p
oraril
y
turn off the sound.
9INFO
Display or hide the program number and other
information.
10 MENU
Display the on-screen menu.
11 GUIDE
Display the on-screen electronic program guide.
12 EXIT
Dismiss main menu or return to the previous menu.
13 MTS
Press to select Stereo, Mono or SAP ( Separate
Audio Program).But sub-display (under PIP mode)
is not available.
14 SOURCE
Press to display a list of Main I/P Sources.

V32/37GCGI-UD1_V32/37GCJI-UD2 2006/8/3 下午 04:23
16
0102
03
04
06
05
07
08
0910
11 12
13
15
14
16
1718
19 20
21
22
15 CC
Display the Closed Caption text.
1 6 FAV. C H
Switch to channels list.
17 SLEEP
Press to select a preset time interval for automatic shut
off.
18 APC (Auto Picture Control)
Toggle screen luminosity between Normal, Sports,
Movies, Games and Custom modes.
19 ARC (Aspect Ratio Control)
In PC mode：Set the picture mode to Fill or Standard ..
In TV/Video mode：Toggle the picture mode between
Standard→Fill→Zoom→Subtitle→Panoramic.
20 FREEZE
Not available. The OSD appear “No function” if press
FREEZE button.
21 TV
Switch to TV mode directly.
AV / S V
Switch to AV or S-Video mode directly.
YPbPr
Switch to YPbPr mode directly.
PC/HD
Switch to PC or HDMI mode directly.
22 PIP --ON/OFF
Enable/ Disable PIP viewing window.
PIP--SOURCE
Display a list of PIP input sources.
PIP--SIZE
Not available. The OSD appear “No function” if press POSITION
button.
PIP--POSITION
Not available. The OSD appear “No function” if press SIZE
button
AUDIO SWAP
Toggle audio sources between the mian display and the
PIP window
VIDEO SWAP
Make PIP window the main display and vice versa.
▲/ ▼
Switch the pages in Main Channel List or Guide of
DTV.

V32/37GCGI-UD1_V32/37GCJI-UD2 2006/8/3 下午 04:23
17
Summary of Control Buttons
P
Po ow we er r C Co on nt tr ro ol l
POWER Turn the device on or off.
Selecting the Main Signal source
SOURCE Display a list of Main I/P Sources.
TV Switch to TV (NTSC/ATSC) mode.
AV/SV Switch to Composite( AV ) or S-Video mode.
YPbPr Switch to Component (Y/Pb/Pr) mode.
PC/HD Switch to D-SUB or HDMI mode.
Menu Settings
MENU Display the on-screen menu.
OK Confirm option setting in OSD menu.
EXIT Dismiss main menu or return to the previous menu.
UP/DOWN/LEFT/RIGHT Access menu items.
TV Channels
CH + / - Press CH+/- to change the channels.
0~9; ENT (Enter) Select channels and press ENT to activate the channel at once. Or
channel activates automatically in 3 seconds.
─Press to display “─” for following sub-channel numbers.
LAST Return to the previous viewed channel.
INFO Press to display or hide the program number and other
information.
FAV. C H Display Main Channel list.
Sound Control
VOL+ /- Increase / Decrease volume level.
MUTE Temporarily turn off audio.
MTS Press to select Stereo, Mono or SAP ( Separate Audio
Program).But sub-display (under PIP mode) is not available.
AUDIO SWAP Toggle audio sources between the primary display and the PIP
window.
PIP/POP Control
PIP--ON/OFF Enable/Disable PIP viewing window.
PIP--SOURCE Display a list of PIP Input Sources.
PIP--SIZE Not available. The OSD appear “No function” if press POSITION
button.
PIP--POSITION Not available. The OSD appear “No function” if press SIZE
button.
AUDIO SWAP Toggle audio sources between the Main display and the PIP
window.
VIDEO SWAP Make PIP window the main display and vice versa.
▲/ ▼Switch the pages in Main Channel List or Guide of DTV.

V32/37GCGI-UD1_V32/37GCJI-UD2 2006/8/3 下午 04:23
18
Other Functions
INFO Press to display or hide the program information
C.C. Enable/Disabled closed captioning.
APC (Automatic Picture Control) Toggle screen luminosity between Sports,
Movies, Games, and Custom modes.
ARC (Aspect Ratio Control)
In PC mode：Set the picture mode to Standard or
Fill.
In TV/Video mode：Toggle the picture mode
among Standard, Fill, Zoom, Subtitle, and
Panoramic.
FREEZE Not available. The OSD appear “No function” i
f
press FREEZE button.
SLEEP Select a pre-set time for automatic power down.
Other Devices Control (refer to page 28~33)
TV Control this LCD-TV (default).
VCR Control DVD player or VCR.
CBL Control Cable Converter or Satellite.
AUX Control Audio Amplifier.
SET Press to program the remote control to provide
control of other devices.
ARC (Aspect Ratio Control) function
PC Mode
˙Standard: Sets the aspect ratio to 4:3. There will be black bars to the left and right sides of
the screen.
˙Fill: Expands the width of 4:3 video sources evenly to fill the 16:9 screen. There will be
distortion as the image is stretched horizontally.
TV / Video Modes
˙Standard: Sets the aspect ratio to 4:3. There will be black bars to the left and right sides of
the screen.
˙Fill: Expands the width of 4:3 video sources evenly to fill the 16:9 screen. There will be
distortion as the image is stretched horizontally.
˙Zoom: Extends the image height to fill the screen by stretching the image vertically.
˙Subtitle: This zooms up the wide picture (16:9 aspect ratio) with subtitles to the full screen.
˙Panoramic: This mode expands the width of 4:3 video sources evenly to fill the 16:9 screen.
There will be distortion as all four edges of the image are stretched, creating less distortion at
the center of the screen.

V32/37GCGI-UD1_V32/37GCJI-UD2 2006/8/3 下午 04:23
19
6. Control & Adjustments
Viewing PC
Main
Menu Sub-menu 1 Sub-menu 2 / 3
Mode Normal, Sports, Movies, Games, Custom.
Brightness 0 ~ 100. * Adjust the black level of the display.
Contrast 0 ~ 100. * Adjust the white level of the display.
Color 0 ~ 100. * Adjust the intensity of the colors.
Hue 0 ~ 100. * Adjust the color towards red or green.
Sharpness 0 ~ 100. * Adjust the clarity of the picture.
Backlight 6.
Color Temp High, Low *Adjust the color temperature.
Video
Video Reset Press OK → Yes, No.
* Select Ye s to reset video settings back to factory default.
Input Label
HDMI, Cable, Satellite, PVR/DVR, DVD, DVD2, Game, Game2, PC, VCR.
* Change the input name of the current source to one of the
predefined labels.
Aspect Ratio Standard, Fill. * Adjust the ratio between 4:3 and widescreen format.
Display
PIP On, Off. * Display the picture in picture input source.
Auto Adjustment Press OK to automatically re-center the image to the middle of the screen.
PC
Manual Phase 0 ~ 100. * Adjust the phase control to eliminate horizontal streaking.
Volume 0 ~ 100. * Adjust to increase or decrease the volume level.
Balance 0 ~ 100. * Adjust the volume difference of the left and right speakers.
Sub-woofer 0 ~ 100. * Adjust the output level of sub-woofer connecter.
Equalizer Normal, Off, Live, Rock, POP.
Treble 0 ~ 100. * Adjust Treble, when Equalizer is Off.
Bass 0 ~ 100. * Adjust Bass, when Equalizer is Off.
Audio
MTS (Disable) SAP, Stereo, Mono.
Video Display PC Audio Power Settings
