SERVICE MANUAL
No.21033
Nov. 2001
COPYRIGHT 2001 VICTOR COMPANY OF JAPAN, LTD.
MX-K35V
MX-K35V
COMPACT COMPONENT SYSTEM
Area suffix
US ---------------------- Singapore
UX ------------------- Saudi Arabia
Contents
Safety precautions
Preventing static electricity
Important for laser products
Disassembly method
Adjustment method
Flow of functional operation
until TOC read
1-2
1-3
1-4
1-5
1-20
1-22
1-23
1-23
1-24
1-35
Maintenance of laser pickup
Replacement of laser pickup
Description of major ICs
Wiring connections
ACTIVE
BASS EX.
PHONES
REPEAT PROGRAM RANDOM /STOP REC START DUBBING
REC START
CD
CLOCK
/TIMER
TAPE
A/B
DISC SKIP
EJECT
PLAY
A
REC/PLAY
B
CD CONTROL
CD
1
CD
2
CD
3
CD-R/RW PLAYBACK
FULL - LOGIC CONTROL CD SYNCHRO RECORDING
EJECT
R
O
C
K
C
L
A
S
S
I
C
P
O
P
V
O
L
U
M
E
SOUND
MODE
MAXMIN
MIC
RM-SMXK35V REMOTE CONTROL
123
4 5 6
7 8 9
10 +10 FM MODE
FM /AM
AUX
SLEEP
STANDBY/ON
SOUND
MODE
KARAOKE
RETURN STILL
NEXT V.INTRO HIGHLIGHTPREV.
ON SCREEN
KEY CONTROL MPX
ACTIVE
BASS EX.
FADE
MUTING
ECHO
VOLUME
PROGRAM
/RANDOM REPEAT TAPE A/B
TAPE
AUX
FM/AM
CD
TAPE
1 BIT DUAL D/A
CONVERTER
COMPACT COMPONENT SYSTEM MX-K35V
STANDBY/ON
STANDBY
SELECT
VCD NUMBER
TUNING
KEY CONTROL
RETURNPBC
MIC LEVEL
CANCEL SET
PRESET
PREV
NEXT
3-CD
PLAY& EXCHANGE
NTSC/PAL
COMPATIBILITY
CD 1 CD 2 CD 3 CD
SELECT
CA-MXK35VSP-MXK35V SP-MXK35V

MX-K35V
1-2
1. This design of this product contains special hardware and many circuits and components specially for safety
purposes. For continued protection, no changes should be made to the original design unless authorized in
writing by the manufacturer. Replacement parts must be identical to those used in the original circuits. Services
should be performed by qualified personnel only.
2. Alterations of the design or circuitry of the product should not be made. Any design alterations of the product
should not be made. Any design alterations or additions will void the manufacturer`s warranty and will further
relieve the manufacture of responsibility for personal injury or property damage resulting therefrom.
3. Many electrical and mechanical parts in the products have special safety-related characteristics. These
characteristics are often not evident from visual inspection nor can the protection afforded by them necessarily
be obtained by using replacement components rated for higher voltage, wattage, etc. Replacement parts which
have these special safety characteristics are identified in the Parts List of Service Manual. Electrical
components having such features are identified by shading on the schematics and by ( ) on the Parts List in
the Service Manual. The use of a substitute replacement which does not have the same safety characteristics
as the recommended replacement parts shown in the Parts List of Service Manual may create shock, fire, or
other hazards.
4. The leads in the products are routed and dressed with ties, clamps, tubings, barriers and the like to be
separated from live parts, high temperature parts, moving parts and/or sharp edges for the prevention of
electric shock and fire hazard. When service is required, the original lead routing and dress should be
observed, and it should be confirmed that they have been returned to normal, after re-assembling.
5. Leakage currnet check (Electrical shock hazard testing)
After re-assembling the product, always perform an isolation check on the exposed metal parts of the product
(antenna terminals, knobs, metal cabinet, screw heads, headphone jack, control shafts, etc.) to be sure the
product is safe to operate without danger of electrical shock.
Do not use a line isolation transformer during this check.
Plug the AC line cord directly into the AC outlet. Using a "Leakage Current Tester", measure the leakage
current from each exposed metal parts of the cabinet, particularly any exposed metal part having a return
path to the chassis, to a known good earth ground. Any leakage current must not exceed 0.5mA AC (r.m.s.).
Alternate check method
Plug the AC line cord directly into the AC outlet. Use an AC voltmeter having, 1,000 ohms per volt or more
sensitivity in the following manner. Connect a 1,500 10W resistor paralleled by a 0.15 F AC-type capacitor
between an exposed metal part and a known good earth ground.
Measure the AC voltage across the resistor with the AC
voltmeter.
Move the resistor connection to each exposed metal part,
particularly any exposed metal part having a return path to
the chassis, and meausre the AC voltage across the resistor.
Now, reverse the plug in the AC outlet and repeat each
measurement. Voltage measured any must not exceed 0.75 V
AC (r.m.s.). This corresponds to 0.5 mA AC (r.m.s.).
1. This equipment has been designed and manufactured to meet international safety standards.
2. It is the legal responsibility of the repairer to ensure that these safety standards are maintained.
3. Repairs must be made in accordance with the relevant safety standards.
4. It is essential that safety critical components are replaced by approved parts.
5. If mains voltage selector is provided, check setting for local voltage.
Good earth ground
Place this
probe on
each exposed
metal part.
AC VOLTMETER
(Having 1000
ohms/volts,
or more sensitivity)
1500 10W
0.15 F AC TYPE
!
Burrs formed during molding may
be left over on some parts of the
chassis. Therefore, pay attention to
such burrs in the case of
preforming repair of this system.
In regard with component parts appearing on the silk-screen printed side (parts side) of the PWB diagrams, the
parts that are printed over with black such as the resistor ( ), diode ( ) and ICP ( ) or identified by the " "
mark nearby are critical for safety.
(This regulation does not correspond to J and C version.)

MX-K35V
1-3
Preventing static electricity
1. Grounding to prevent damage by static electricity
Electrostatic discharge (ESD), which occurs when static electricity stored in the body, fabric, etc. is discharged,
can destroy the laser diode in the traverse unit (optical pickup). Take care to prevent this when performing
repairs.
2. About the earth processing for the destruction prevention by static electricity
In the equipment which uses optical pick-up (laser diode), optical pick-up is destroyed by the static electricity of
the work environment.
Be careful to use proper grounding in the area where repairs are being performed.
2-1 Ground the workbench
Ground the workbench by laying conductive material (such as a conductive sheet) or an iron plate over
it before placing the traverse unit (optical pickup) on it.
2-2 Ground yourself
Use an anti-static wrist strap to release any static electricity built up in your body.
3. Handling the optical pickup
1. In order to maintain quality during transport and before installation, both sides of the laser diode on the
replacement optical pickup are shorted. After replacement, return the shorted parts to their original condition.
(Refer to the text.)
2. Do not use a tester to check the condition of the laser diode in the optical pickup. The tester's internal power
source can easily destroy the laser diode.
4. Handling the CD changer unit (optical pickup)
1. Do not subject the CD changer unit (optical pickup) to strong shocks, as it is a sensitive, complex unit.
2. Cut off the shorted part of the flexible cable using nippers, etc. after replacing the optical pickup. For specific
details, refer to the replacement procedure in the text. Remove the anti-static pin when replacing the CD
changer unit. Be careful not to take too long a time when attaching it to the connector.
3. Handle the flexible cable carefully as it may break when subjected to strong force.
4. It is not possible to adjust the semi-fixed resistor that adjusts the laser power.
Do not turn it
Attention when traverse unit is decomposed
*Please refer to "Disassembly method" in the text for pick-up and how to
detach the CD changer mechanism.
1. Remove the CD changer unit.
2. Disconnect the harness from connector on the CD motor board.
3. Solder is put up before the card wire is removed from connector CN601
on the main board as shown in Fig.1 and Fig. 2.
(When the wire is removed without putting up solder, the CD pick-up
assembly might destroy.)
4. Please remove solder after connecting the card wire with CN601 when
you install picking up in the substrate.
Fig.1
CD changer
mechanism
assembly
CD changer
unit
Fig.2
Soldering
Conductive material
(conductive sheet) or iron plate
(caption)
Anti-static wrist strap

MX-K35V
1-4
CLASS 1
LASER PRODUCT
Important for laser products
1.CLASS 1 LASER PRODUCT
2.DANGER : Invisible laser radiation when open and inter
lock failed or defeated. Avoid direct exposure to beam.
3.CAUTION : There are no serviceable parts inside the
Laser Unit. Do not disassemble the Laser Unit. Replace
the complete Laser Unit if it malfunctions.
4.CAUTION : The compact disc player uses invisible
laserradiation and is equipped with safety switches
whichprevent emission of radiation when the drawer is
open and the safety interlocks have failed or are de
feated. It is dangerous to defeat the safety switches.
5.CAUTION : If safety switches malfunction, the laser is able
to function.
6.CAUTION : Use of controls, adjustments or performance of
procedures other than those specified herein may result in
hazardous radiation exposure.
VARNING : Osynlig laserstrålning är denna del är öppnad
och spårren är urkopplad. Betrakta ej strålen.
VARO : Avattaessa ja suojalukitus ohitettaessa olet
alttiina näkymättömälle lasersäteilylle.Älä katso
säteeseen.
ADVARSEL : Usynlig laserstråling ved åbning , når
sikkerhedsafbrydere er ude af funktion. Undgå
udsættelse for stråling.
ADVARSEL : Usynlig laserstråling ved åpning,når
sikkerhetsbryteren er avslott. unngå utsettelse
for stråling.
REPRODUCTION AND POSITION OF LABELS
WARNING LABEL
!
CAUTION
Please use enough caution not to
see the beam directly or touch it
in case of an adjustment or operation
check.
ADVARSEL: Usynlig laser-
stråling ved åbning, når
sikkerhedsafbrydere er ude
af funktion. Undgåudsæt-
telse for stråling (d)
VARNING: Osynlig laser-
strålning när denna del är
öppnad och spärren är
urkopplad. Betrakta ej
strålen. (s)
DANGER: Invisible laser
radiation when open and
interlock failed or defeated.
AVOID DIRECT EXPOSURE
TO BEAM. (e)
VARO: Avattaessa ja suo-
jalukitus ohitettaessa olet
alttiina näkymättömälle
lasersäteilylle. Älä katso
säteeseen. (f)

MX-K35V
1-5
Disassembly method
Top cover 1-7
CD changer unit 1-8
Front panel assembly 1-9
Chassis unit 1-17
CD changer unit 1-8
Removing the main board 1-10
Removing the CD changer mechanism assembly 1-11
Removing the CD pickup 1-12
Replacing the loading motor and belt of the CD changer tray 1-12
Replacing the CD tray rotor belt of the CD changer, and removing the motor 1-12
Front panel assembly 1-9
Removing the cassette deck mechanism 1-13
Removing the head phone board 1-13
Removing the microphone amplifier board 1-14
Removing the control/FL board 1-14
Removing the switch board and active bass ex. switch board 1-15
Removing the cassette deck main motor, and replacing the main belts 1-16
Removing the leaf switches of the cassette deck mechanism 1-16
Removing the cassette deck heads 1-17
Chassis unit 1-17
Removing the Video & CD board 1-17
Removing the 3-pin regulator 1-18
Removing the power amplifier board, voltage selector board
and power transformer board 1-19
Commence disassembly of this set by removing the main units and then proceed to the components and
assemblies inside the units.
Replacement of the fuses and the power IC 1-6

MX-K35V
1-6
[Caution] Be sure to use fuses with the specified
ratings.
Replacing the fuses (See Fig.1)
1.
Prior to performing the following procedure, remove
the top cover.
Replace the fuses inside.
1.
2.
3.
4.
Prior to performing the following procedure, remove
the top cover.
Remove the two screws Athat attach the heat sink
cover to the rear panel.
Pull the heat sink cover outward.
Remove the two screws Bfrom the bracket that
retains the power IC.
Remove the solder fixing the power IC.
Replacing the power IC (See Fig.2 to 4)
Fig.4
Fig.1
Fig.3
Fig.2
<Disassembly of the main blocks of this set>
Replacement of the fuses and the power IC
B
A
Heat sink
Power amplifier board
Fuse (F951)
2.5A 250V
Fuse (F953)
1.25A 250V
Power transformer
board
Fuse (F952)
1.6A 250V
Chassis
Heat sink cover
Rear panel
Rear panel
Rear
Power IC
soldering part

MX-K35V
1-7
Fig.5
Removing the top cover
(See Fig.5 and 6)
1.
2.
3.
Remove the two screws Cand four screws Dthat
retain the top cover from the rear of the body.
Remove the four screws Eretain the top cover from
the two sides of the body.
Remove the top cover from the body by lifting it
toward the rear.
Fig.6
C
DD
Top cover
Front panel assembly E
E

MX-K35V
1-8
Fig.7
[Caution] Although the CD mechanism unit can be
removed without removing the CD tray
panel, it is still recommended to remove it
in order to prevent damage.
Prior to performing the following procedures,
remove the top cover.
a.
b.
c.
1.
2.
3.
4.
5.
6.
From the front panel side of this set, push in the
sections marked with arrows and pull out the CD
tray toward the front.
Remove the CD tray panel by pushing both of its
extremities upward in the direction of the arrows.
Push the CD tray deep into the set.
Disconnect the cassette head wires from the
connectors CN307 and CN308 on the main board,
which is located below the CD changer unit.
Disconnect the microphone amplifier wire from the
connector CN306 on the main board.
Disconnect the card wires from the connectors
CN301, CN302, CN305 and CN606 on the main
board.
Disconnect the parallel wires from the connectors
CN902A, CN902B and CN902C on the power
amplifier board.
From the rear of the set, remove the two screws F
retaining the CD changer unit, then remove the four
screws Gretaining the ANTENNA terminal the
AUX IN terminal and LINE OUT terminal.
Push down and disengage the two claws aholding
the CD changer unit at the bottom of its front panel
and then remove the CD changer unit.(See Fig. 10)
Removing the CD changer unit
(See Fig.7 to 10)
Fig.10
Fig.9
Fig.8
F
G
CD tray panel
AUX IN
terminal
ANTENNA
terminal
CD tray panel
CD changer
unit
Claw a

MX-K35V
1-9
Fig.11
Prior to performing the following procedures,
remove the top cover.
Also remove the CD changer unit.
1.
2.
3.
4.
Disconnect the parallel wire and card wire from the
connectors CN901 and CN903 on the power
amplifier board.
Remove the two screws Hretaining the front panel
assembly onto the bottom of the body.
Remove the screw Jretaining the cassette deck
mechanism and then remove the GND lug bthat
comes from the power amplifier board.
Disengage the claws con both sides at the bottom
of the front panel assembly and then remove the
assembly.
Removing the front panel assembly
(See Fig.11 and 12)
Fig.12
H
J
Power amplifier board
Control/FL board
Claw c
GND lug b

MX-K35V
1-10
Fig.13
Prior to performing the following procedures,
remove the top cover.
Also remove the CD changer unit.
1.
2.
3.
4.
5.
6.
Disconnect the wires from CN602 and CN603 on
the main board, which is located on the backside of
the CD changer unit.
Disconnect the card wire from connector CN604 of
the main board at the back of the CD changer unit.
The three screws Kand screw with washer Lretain
the main board should be removed.
Remove the main board by pulling it toward the
side where the CN601 is located.
Using solder, short the CD pickup to connect to
short round.
Disconnect the card wire from the connector
CN601 on the main board and then remove the
main board.
Removing the main board
(See Fig.13 and 14)
Fig.14
<Disassembly of units and assembly
inside this set>
[Caution] (See Fig.14)
After re-connecting the wires, be sure
to remove the shorting solder from the
GND connection.
Main board
CN601
CN603CN602
CN604
KK
L
Main board
Short round
[Caution]
CN601

MX-K35V
1-11
Fig.15
Prior to performing the following procedures,
remove the top cover.
Also remove the CD changer unit.
1.
2.
3.
Remove the spring dfrom the front surface of the
CD changer mechanism unit.
Turn the CD changer mechanism unit upside down,
and remove the spring econnecting the unit to the
CD changer mechanism assembly.
Remove the two screws with the washer M
retaining the CD changer mechanism assembly.
Removing the CD changer mechanism
assembly (See Fig.15 to 17)
Fig.17
Fig.16
[Caution] When replacing the CD changer
mechanism assembly, be sure not to
mistake the positions of the red and blue
dampers.
[Note] When re-assembling after the disassembly
work, apply bonding agent on the spring to
prevent it from slipping off.
[Note]
Spring d
CD changer
unit
CD changer
mechanism
assembly
[Note]
Spring e
M
Red Red
CD changer
mechanism
assembly
BlueBlue

MX-K35V
1-12
Fig.18
Prior to performing the following procedures,
remove the top cover.
Also remove the CD changer unit.
Also remove the CD changer mechanism
assembly.
1.
2.
Widen the section f.
While keeping the section fwide open, push the
section gin the direction of the arrow to remove
the shaft, and then remove the CD pickup.
Removing the CD pickup (See Fig.18)
Fig.19
Fig.20 Fig.21
Prior to performing the following procedure,
remove the top cover.
1.
2.
3.
Pull out the CD changer tray.
Remove the belt from the pulley.
Remove the two screws Nretaining the CD
changer tray loading motor.
Replacing the loading motor and belt
of the CD changer tray (See Fig.19)
Prior to performing the following procedures,
remove the top cover.
Also remove the CD changer unit.
1.
2.
3.
4.
5.
6.
Remove the two screws Pretaining the stopper
brackets on both sides of the CD changer unit.
Remove the stopper brackets from both sides of
the CD changer unit.
Pull out the CD tray from the CD changer unit, all
the way and then lift the tray upward to remove.
Turn the CD tray upside down and remove the tray
rotor belt from the pulley.
Turn the CD tray upside down and disconnect the
card wire from the connector CN605 on the CD
tray rotor motor assembly.
Remove the two screws Qretaining the CD tray
rotor motor, and then remove the CD tray rotor
motor.
Replacing the CD tray rotor belt of the
CD changer, and removing the motor
(See Fig.20 and 21)
N
Pulley
Belt
CD changer
tray
P
Stopper bracket
Q
Pulley
CN605
CD tray
rotor belt
[Caution] When pushing in the CD changer tray, be
sure to lower the CD changer mechanism
assembly by manually turning the UD
cam gear in the direction of the arrow.
Q
gf
CD pickup
Shaft
UD cam gear

MX-K35V
1-13
Prior to performing the following procedure, remove
the top cover.
Also remove the CD changer unit.
Also remove the front panel assembly.
1.Remove the five screws Rretaining the cassette
deck mechanism and then remove the wire clamp
lug hthat comes from the back of the front panel
assembly.
Removing the cassette deck mechanism
(See Fig.22)

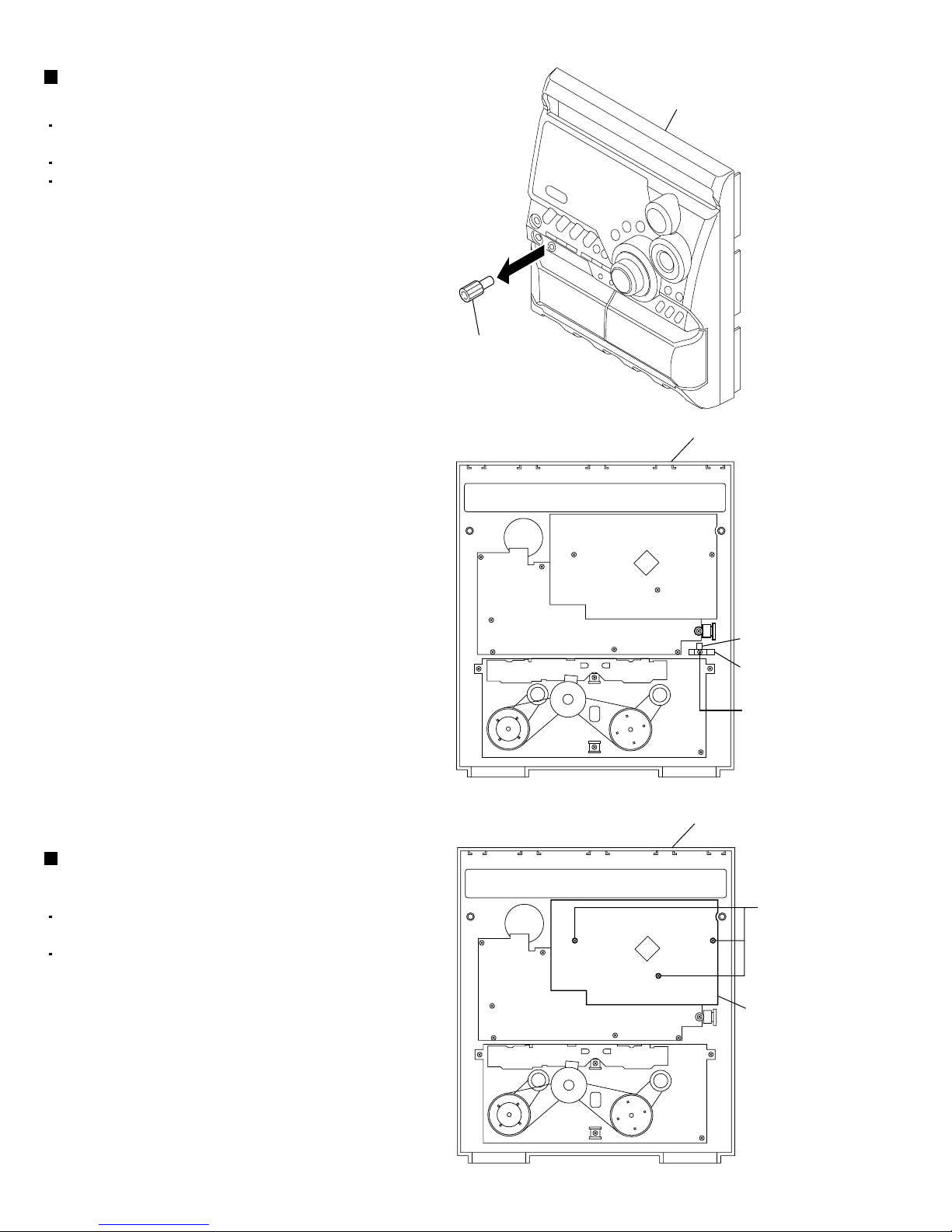

Prior to performing the following procedure, remove
the top cover
Also remove the CD changer unit.
Also remove the front panel assembly.
1.Remove the screw with the washer, Sthat retains
the head phone board from the back of the front
panel assembly.
Removing the head phone board
(See Fig.23)
R
R
Front panel
assembly
Wire clamp
lug "h"
S
Front panel
assembly
Head phone
board
Fig.22
Fig.23

MX-K35V
1-14
Prior to performing the following procedure, remove
the top cover
Also remove the CD changer unit.
Also remove the front panel assembly.
1.
2.
Pull out the mic volume knob from the front of the
front panel assembly.
Remove the screw with the washer, Tthat retains
the microphone amplifier board.
Removing the microphone amplifier
board (See Fig.24 and 25)
Prior to performing the following procedure, remove
the top cover.
Also remove the CD changer unit.
1.Remove the three screws Uthat retain the
control/FL board from the back of the front panel
assembly.
Removing the control/FL board
(See Fig.26)
Fig.24
Fig.25
Fig.26
U
Mic volume knob
Front panel assembly
Control/FL
board
Front panel
assembly
T
Front panel
assembly
Braket
Microphone
amplifier board

MX-K35V
1-15
Fig.27
Prior to performing the following procedures,
remove the top cover.
Also remove the CD changer unit.
Also remove the front panel assembly.
1.
2.
3.
4.
5.
6.
Pull out the volume control knob from the front of
the front panel assembly.
Remove the nut and washer retaining the volume
knob shaft.
Remove the three screws Uretaining the control/FL
board from the back of the front panel assembly.
Remove the control/FL board.
Remove the eleven screws Vretaining the switch
board.
Remove the two screws Wretaining the active
bass ex. switch board.
Removing the switch board and active
bass ex. switch board
(See Fig.26 to 29)
Fig.28
Fig.29
V
V
WActive bass ex. switch board
Switch board
Volume knob
Front panel assembly
Front panel
assembly
Nut
Washer
Volume
shaft

MX-K35V
1-16
Fig.30
Fig.31
Prior to performing the following procedures,
remove the top cover.
Also remove the CD changer unit.
Also remove the front panel assembly.
1.
2.
3.
4.
Remove the five screws Rretaining the cassette
deck mechanism.
Remove the cassette deck mechanism.
Remove the two screws Xretaining the main motor
from the front side of the cassette deck.
From the backside of the cassette deck, remove
the main motor and two main belts.
Removing the cassette deck main
motor, and replacing the main belts
(See Fig.22, 30 and 31)
Fig.32
[Caution]
[Caution]
After attaching the main motor, check the
orientation of the motor and the polarity of
the wires.
The lengths of the cassette A (playback
only) and cassette B (record/play) main
belts are different. When attaching the
main belts, use the longer belt for
cassette A.
Prior to performing the following procedures,
remove the top cover.
Also remove the CD changer unit.
Also remove the front panel assembly.
1.
2.
3.
4.
5.
Remove the five screws Rthat retain the cassette
deck mechanism.
Remove the cassette deck mechanism.
Turn the cassette deck mechanism upside down.
Remove the solder from around the leaf switches.
Pull out the leaf switches from the front side of the
cassette deck mechanism.
Removing the leaf switches of the
cassette deck mechanism
(See Fig.22 and 32)
Cassette deck mechanism
(Back side)
Solder side of leaf switch
X
Cassette deck mechanism
(Front side)
Cassette deck mechanism
(Back side) Cassette deck main motor
Main belt
(For A cassette)
Main belt
(For B cassette)

MX-K35V
1-17
Fig.33
Prior to performing the following procedures,
remove the top cover.
Also remove the CD changer unit.
Also remove the front panel assembly.
1.
2.
3.
4.
5.
6.
Remove the five screws Rthat retain the cassette
deck mechanism.
Remove the cassette deck mechanism and place it
so that the front side faces up.
Remove the solder from the bottom side of the
head terminal and disconnect the wire.
Remove the screw Ythat retains the head.
Loosen the screw Zthat retains the head.
Hold the head and slide it in the direction of the
arrow to remove it.
Removing the cassette deck heads
(See Fig.22 and 33)
Fig.36
Prior to performing the following procedures,
remove the top cover.
1.
2.
3.
4.
5.
Disconnect the card wire from connector CN606 on
the main board.
Remove the three screws AA and screw AB
retains the Video & CD board cover.
In order to remove the wire from the Video & CD
board, remove the solder on the power amplifier
board.
Remove the Video & CD board cover.
Remove the two screws AC retains the Video & CD
board.
Removing the Video & CD board
(See Fig.2, 34 to 36)
Fig.35
Fig.34
Cassette deck mechanism
(Front side)
ZY
PB head REC/PB head
ZY
Rear
Video & CD
board cover
CN606
Heat sink AA
AC
AB
Wire
Power amplifier board Solder
Video & CD board

MX-K35V
1-18
Fig.38
Prior to performing the following procedures,
remove the top cover.
1.
2.
3.
4.
Remove the two screws Aconnecting the heat sink
cover to the rear panel.
Pull the heat sink cover foward you.
Remove the screw AD that retains the bracket
holding the 3-pin terminal regulator.
Remove the solder fixing the 3-pin regulator.
Removing the 3-pin regulator
(See Fig.2, 37 and 38)
Power amplifier board
Rear panel
Rear
Solder on the
3-pin regulator
Fig.37
Heat sink
AD

MX-K35V
1-19
Prior to performing the following procedures,
remove the top cover.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
Remove the two screws Aconnecting the heat
sink cover to the rear panel.
Pull out the heat sink cover toward you.
Remove the two screws Bthat retain the bracket
supporting the power IC.
Remove the screw AC that retain the bracket
holding the 3-pin terminal regulator.
Remove the two screws AE that retain the
SPEAKERS terminals.
Remove the screw AF that retains the rear panel,
and then remove the rear panel.
Remove the two screws AG that retain the voltage
selector board.
Disconnect the parallel wires from the connectors
CN951A and CN951B on the power amplifier
board.
Remove the screw AH that retain the power
amplifier board and then remove the assembly.
Remove the solders jconnecting the six wires.
Remove the four screws AJ that retain the power
transformer board and then remove the assembly.
Removing the power amplifier board,
voltage selector board and power
transformer board
(See Fig.2, 3, 37, 39 to 42)
Fig.41
Chassis AH
Power amplifier board
Also remove the CD changer unit.
Fig.39
Fig.40
Fig.42
Rear panel
Speaker
terminal
AF
AE
AG
CN951B
Rear panel
Chassis
Power amplifier board
CN951A
Voltage selector
board
Voltage
selector
AJ
(Top view)
Chassis
Power transformer
board
Clamp
AC power cord
AJ
j
j

MX-K35V
1-20
Adjustment method
Measurement instruments required
for adjustment
1. Low frequency oscillator,
This oscillator should have a capacity to output 0dB
to 600ohm at an oscillation frequency of 50Hz-20kHz.
2. Attenuator impedance : 600ohm
3. Electronic voltmeter
4. Frequency counter
5. Wow flutter meter
6. Test tape
VT712 : For Tape speed and wow flutter ( 3kHz)
VT703 : For Head angle(10kHz),Play back frequency
VT724 : For reference signal test(1kHz)
VT739 : For frequency response test(63Hz,1kHz,10kHz)
7. Blank tape
TAPE : AC-225, TAPE : AC-514
8. Torque gauge : For play and back tension
Forward ; TW2111A, Reverse ; TW2121A
Fast Forward and Rewind ; TW2231A
9. Test disc
: CTS-1000(12cm),GRG-1211(8cm)
10. Jitter meter
Measurement conditions
Power supply voltage
AC110/127/220/230-240V (50Hz/60Hz) : US/UX
Measurement
output terminal : Speaker out
: TP101(Measuring for TUNER/DECK/CD)
: Dummy load 6ohm
Radio input signal
AM modulation frequency : 400Hz
Modulation factor : 30%
FM modulation frequency : 400Hz
Frequency displacement : 22.5kHz
Frequency Range
AM 522kHz~1629kHz (at 9kHz channel space)
FM 87.5MHz~108MHz
Standard measurement positions of volume
and switch
Power : Standby (Light STANDBY Indicator)
A.BUSS switch: OFF
Sound mode : OFF
Main VOL. maximum
Travers mecha set position : Disc 1
Mic MIX VOL : MAX
ECHO : OFF
Precautions for measurement
1. Apply 30pF and 33kohm to the IF sweeper output
side and 0.082 F and 100kohm in series to
the sweeper input side.
2. The IF sweeper output level should be made as
low as possible within the adjustable range.
3. Since the IF sweeper is a fixed device, there is
no need to adjust this sweeper.
4. Since a ceramic oscillator is used, there is no need
to perform any MPX adjustment.
5. Since a fixed coil is used, there is no need to adjust
the FM tracking.
6. The input and output earth systems are separated.
In case of simultaneously measuring the voltage
in both of the input and output systems with an
electronic voltmeter for two channels, therefore,
the earth should be connected particularly.
7. In the case of BTL connection amplifier, the minus
terminal of speaker is not for earthing. Therefore,
be sure not to connect any other earth terminal
to this terminal. This system is of an OTL system.
