SERVICE MANUAL
COPYRIGHT © 2006 Victor Company of Japan, Limited No.MB550
2006/7
COMPACT COMPONENT SYSTEM
MB55020067
MX-KC45E,MX-KC45EN,
MX-KC45A,MX-KC45UW,
MX-KC45UY,MX-KC45UJ
Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)
TABLE OF CONTENTS
1 PRECAUTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
2 SPECIFIC SERVICE INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
3 DISASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6
4 ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-12
5 TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-13
CA-MXKC45 SP-MXKC45SP-MXKC45

1-2 (No.MB550)
SPECIFICATION
Design and specifications are subject to change without notice.
Amplifier Output Power (IEC 268-3) 155 W per channel, min. RMS, driven into 6 Ωat 1kHz, with no
more than 10% total harmonic distortion
(DIN-3) 125 W per channel, min. RMS, driven into 6 Ωat 1kHz, with no
more than 0.9% total harmonic distortion
Input Sensitivity/
Impedance (1 kHz)
AUX IN
Speaker terminals
400 mV/50 kΩ
6 Ω- 16 Ω
Phones 32 Ω- 1 kΩ
17 mW/ch output into 32 Ω
Cassette Deck Section Frequency Response : Type I (NORMAL) 63 Hz - 12 500 Hz
Wow And Flutter 0.15% (WRMS)
CD Player CD Capacity 3 CDs
Dynamic Range 85 dB
Signal-To-Noise Ratio 85 dB
Wow And Flutter Unmeasurable
Tuner FM Tuner : Tuning Range 87.50 MHz - 108.00 MHz
87.50 MHz - 108.00 MHz (at AM9 kHz channel space)
87.5 MHz - 108.0 MHz (at AM10 kHz channel space)
AM Tuner : Tuning Range 522 kHz - 1710 kHz
522 kHz - 1 629 kHz (for Europe)
531 kHz - 1710 kHz (at AM9 kHz channel space)
530 kHz - 1710 kHz (at AM10 kHz channel space)
Unit Dimensions 270 mm ×307 mm ×492 mm (W/H/D)
Mass Approx. 9.3 kg
Speaker Specifications
(each unit)
Type 3-way bass-reflex type
Speaker Unit Woofer 16 cm cone ×1
Mid 5cm cone ×1
Tweeter 2cm dome ×1
Power Handling Capacity 160 W
Impedance 6 Ω
Frequency Range 45 Hz - 22 000 Hz
Sound pressure level 87 dB/W·m
Dimensions 220 mm ×324 mm ×238 mm (W/H/D)
Mass Approx. 3.6 kg
Power Specifications Power Requirements AC 240 V , 50 Hz (for Australia)
AC 230 V , 50 Hz (for Europe)
AC 110 V-127 V/220 V-240 V , adjustable with voltage selector,
50 Hz/60 Hz (for Asia)
Power Consumption 165 W (power on mode)
23 W (in Standby mode)
1 W (in ECO mode)

(No.MB550)1-3
SECTION 1
PRECAUTION
1.1 Safety Precautions
(1) This design of this product contains special hardware and
many circuits and components specially for safety purpos-
es. For continued protection, no changes should be made
to the original design unless authorized in writing by the
manufacturer. Replacement parts must be identical to
those used in the original circuits. Services should be per-
formed by qualified personnel only.
(2) Alterations of the design or circuitry of the product should
not be made. Any design alterations of the product should
not be made. Any design alterations or additions will void
the manufacturers warranty and will further relieve the
manufacture of responsibility for personal injury or property
damage resulting therefrom.
(3) Many electrical and mechanical parts in the products have
special safety-related characteristics. These characteris-
tics are often not evident from visual inspection nor can the
protection afforded by them necessarily be obtained by us-
ing replacement components rated for higher voltage, watt-
age, etc. Replacement parts which have these special
safety characteristics are identified in the Parts List of Ser-
vice Manual. Electrical components having such features
are identified by shading on the schematics and by ( ) on
the Parts List in the Service Manual. The use of a substitute
replacement which does not have the same safety charac-
teristics as the recommended replacement parts shown in
the Parts List of Service Manual may create shock, fire, or
other hazards.
(4) The leads in the products are routed and dressed with ties,
clamps, tubings, barriers and the like to be separated from
live parts, high temperature parts, moving parts and/or
sharp edges for the prevention of electric shock and fire
hazard. When service is required, the original lead routing
and dress should be observed, and it should be confirmed
that they have been returned to normal, after reassem-
bling.
(5) Leakage shock hazard testing
After reassembling the product, always perform an isola-
tion check on the exposed metal parts of the product (an-
tenna terminals, knobs, metal cabinet, screw heads,
headphone jack, control shafts, etc.) to be sure the product
is safe to operate without danger of electrical shock.Do not
use a line isolation transformer during this check.
• Plug the AC line cord directly into the AC outlet. Using a
"Leakage Current Tester", measure the leakage current
from each exposed metal parts of the cabinet, particular-
ly any exposed metal part having a return path to the
chassis, to a known good earth ground. Any leakage cur-
rent must not exceed 0.5mA AC (r.m.s.).
• Alternate check method
Plug the AC line cord directly into the AC outlet. Use an
AC voltmeter having, 1,000Ωper volt or more sensitivity
in the following manner. Connect a 1,500Ω10W resistor
paralleled by a 0.15µF AC-type capacitor between an ex-
posed metal part and a known good earth ground.
Measure the AC voltage across the resistor with the AC
voltmeter.
Move the resistor connection to each exposed metal
part, particularly any exposed metal part having a return
path to the chassis, and measure the AC voltage across
the resistor. Now, reverse the plug in the AC outlet and
repeat each measurement. Voltage measured any must
not exceed 0.75 V AC (r.m.s.). This corresponds to 0.5
mA AC (r.m.s.).
1.2 Warning
(1) This equipment has been designed and manufactured to
meet international safety standards.
(2) It is the legal responsibility of the repairer to ensure that
these safety standards are maintained.
(3) Repairs must be made in accordance with the relevant
safety standards.
(4) It is essential that safety critical components are replaced
by approved parts.
(5) If mains voltage selector is provided, check setting for local
voltage.
1.3 Caution
Burrs formed during molding may be left over on some parts
of the chassis.
Therefore, pay attention to such burrs in the case of pre-
forming repair of this system.
1.4 Critical parts for safety
In regard with component parts appearing on the silk-screen
printed side (parts side) of the PWB diagrams, the parts that are
printed over with black such as the resistor ( ), diode ( )
and ICP ( ) or identified by the " " mark nearby are critical
for safety. When replacing them, be sure to use the parts of the
same type and rating as specified by the manufacturer.
(This regulation dose not Except the J and C version)
Good earth ground
Place this
probe on
each exposed
metal part.
AC VOLTMETER
(Having 1000
ohms/volts,
or more sensitivity)
1500 10W
0.15 F AC TYPE

1-4 (No.MB550)
1.5 Important for laser products
1.CLASS 1 LASER PRODUCT
2.CAUTION :
(For U.S.A.) Visible and/or invisible class II laser radiation
when open. Do not stare into beam.
(Others) Visible and/or invisible class 1M laser radiation
when open. Do not view directly with optical instruments.
3.CAUTION : Visible and/or invisible laser radiation when
open and inter lock failed or defeated. Avoid direct
exposure to beam.
4.CAUTION : This laser product uses visible and/or invisible
laser radiation and is equipped with safety switches which
prevent emission of radiation when the drawer is open and
the safety interlocks have failed or are defeated. It is
dangerous to defeat the safety switches.
5.CAUTION : If safety switches malfunction, the laser is able
to function.
6.CAUTION : Use of controls, adjustments or performance of
procedures other than those specified here in may result in
hazardous radiation exposure.
REPRODUCTION AND POSITION OF LABELS and PRINT
!Please use enough caution not to
see the beam directly or touch it
in case of an adjustment or operation
check.
WARNING LABEL and PRINT

(No.MB550)1-5
SECTION 2
SPECIFIC SERVICE INSTRUCTIONS
This service manual does not describe SPECIFIC SERVICE INSTRUCTIONS.

1-6 (No.MB550)
SECTION 3
DISASSEMBLY
3.1 Main Body
3.1.1 Removing the metal cover
(See Fig.1, 2)
(1) Remove the two screws Aand four screws Battaching the
metal cover from both side of the main body. (See Fig.1)
(2) Remove the six screws Cattaching the metal cover from
back side of main body. (See Fig.2)
3.1.2 Removing the heat sink cover
(See Fig.2, 3)
(1) Disconnect the connector wire from the fan connected to
connector CN603 of the amp board. (See Fig.3)
(2) Remove the four screws Dattaching the heat sink cover.
(See Fig.2)
3.1.3 Removing the fan
(See Fig.2)
(1) Remove the four screws Eattaching the fan.
Fig.1
Fig.2
Fig.3
A
BB
(both side)
CE E C
CC
DD
DDE
CN601
CN603
a
G
G

(No.MB550)1-7

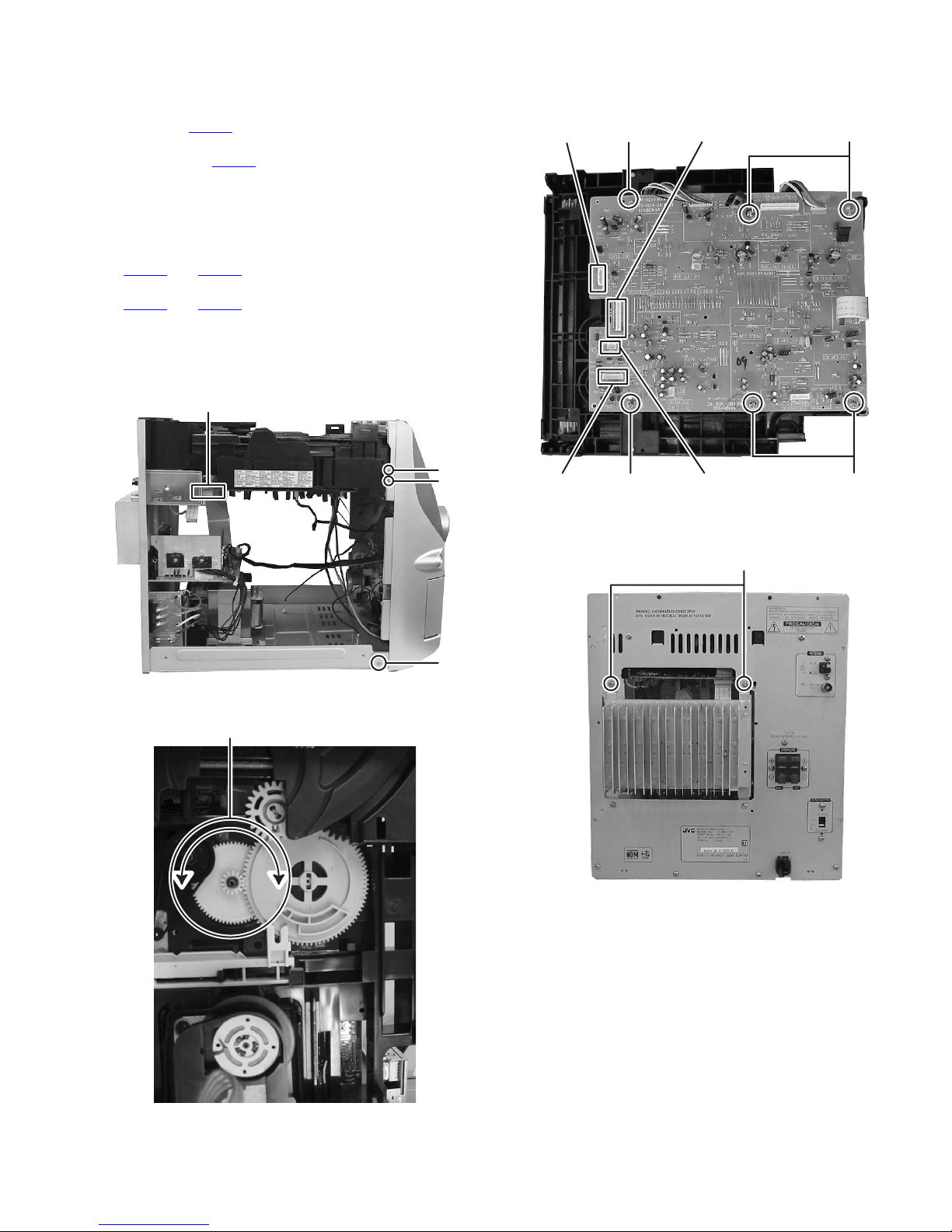

3.1.4 Removing the 3CD changer mechanism
(See Fig.3 to 7)
(1) Disconnect the card wire from amp board connected to the
connector CN601 of the main board. (See Fig.3)
(2) Disconnect the card wire from the tuner pack connected to
the connector CN306 of the main board. (See Fig.4)
(3) Open the CD tray and remove the CD door.
Caution:
If the CD tray can not open at power to ON condition, ro-
tate the gear and open the CD tray. (See Fig.5)
(4) Disconnect the card wire connected to the connector
CN201 and CN303 of the main board. (See Fig.6)
(5) Disconnect the connector wire connected to the connector
CN301 and CN302 of the main board. (See Fig.6)
(6) Remove the two screws Fattaching the 3CD changer
mechanism of back side of the main body. (See Fig.7)
(7) Remove the four screws Gattaching the 3CD changer
mechanism from both side of the main body. (See Fig.3, 4)
Fig.4
Fig.5
Fig.6
Fig.7
CN306
Q
G
GEAR (top view)
CN303
CN302 CN301
CN201
HH
HH
F

1-8 (No.MB550)

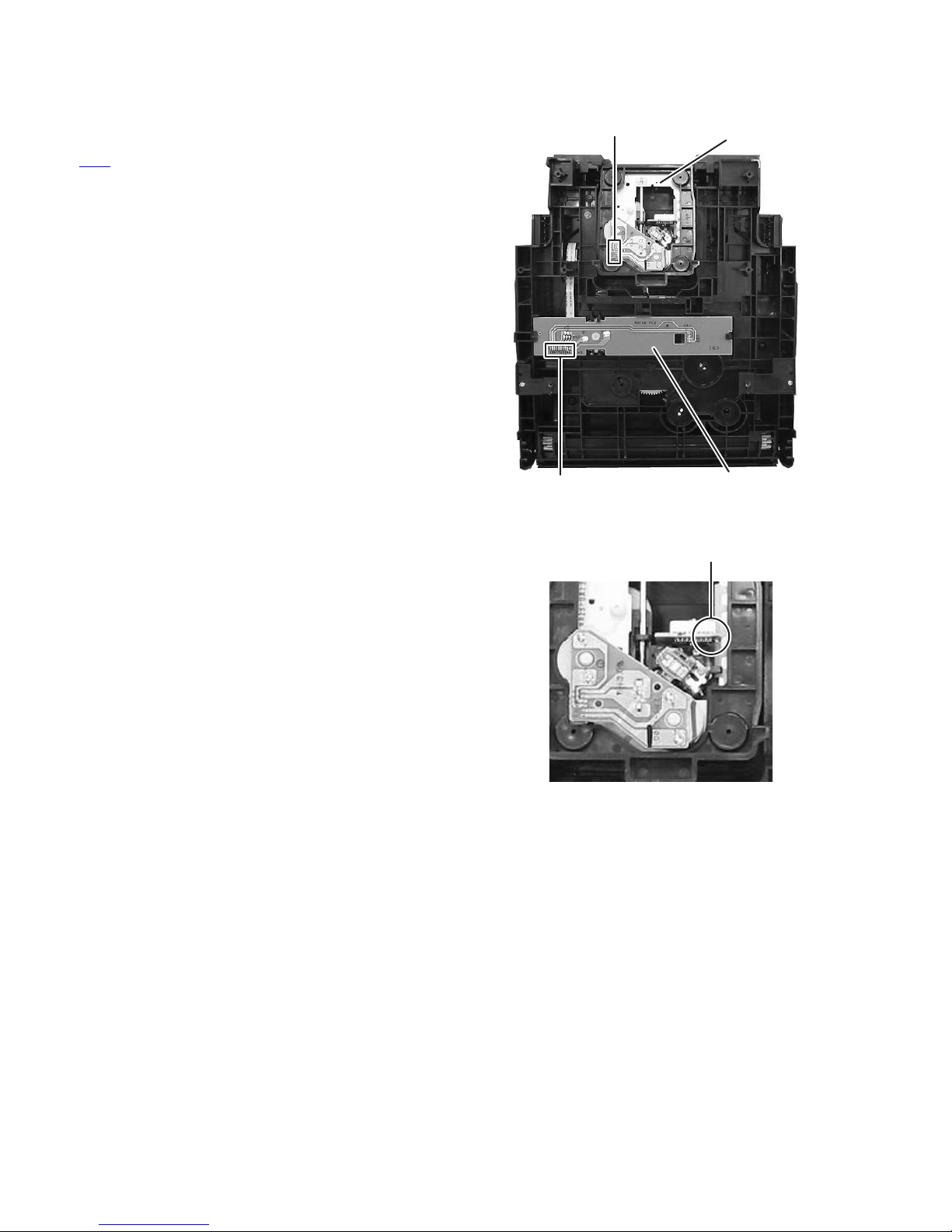

3.1.5 Removing the main board
(See Fig.6, 8, 9)
(1) Remove the six screws Hattaching the main board. (See
Fig.6)
(2) Disconnect the connector wire connected to the connector
CW3 of the motor board. (See Fig.8)
(3) Disconnect the connector wire connected to the connector
of the traverse mechanism. (See Fig.8)
(4) Solder the short land section of the CD pickup and then dis-
connected the card wire from the main board connected to
the CD pickup. (See Fig.9)
Caution:
• Solder the short land section of the CD pickup before discon-
necting the card wire from the connector on the CD pickup.
If the card wire is disconnected without attaching the sol-
ders, the pickup may be destroyed by static electricity.
• When attaching the CD pickup, be sure to remove solders
from the short land section after connecting the card wire to
the connector on the CD pickup.
Fig.8
Fig.9
connector wire
CW3
traverse mechanism
motor board
short land section

(No.MB550)1-9
3.1.6 Removing the tuner pack
(See Fig.11)
(1) Remove the two screws Jattaching the tuner pack.
3.1.7 Removing the amp board
(See Fig.10, 11)
(1) Disconnect the connector wire from the front board con-
nected to the connector CN202 of the amp board. (See
Fig.10)
(2) Disconnect the connector wires from the power transform-
er connected to the connector CN902 and CN903 of the
amp board. (See Fig.10)
(3) Remove the four screws Kattaching the amp board. (See
Fig.11)
(4) Remove the three screws Lattaching the amp board. (See
Fig.11)
3.1.8 Removing the voltage selector board
(See Fig.11)
(1) Remove the two screws Mattaching the voltage selector
board.
3.1.9 Removing the rear panel
(See Fig.11)
(1) Remove the four screws Nattaching the rear panel.
Fig.10
Fig.11
CN202 CN903CN902
K
K
K
L
L
L
M
N
J

1-10 (No.MB550)
3.1.10 Removing the front panel assembly
(See Fig.3, 4, 12, 13)
(1) Disconnect the two earth wires from the bottom plate. (See
Fig.12)
(2) Remove the one screw Pattaching the front panel assem-
bly from bottom side. (See Fig.13)
(3) Remove the two screws Qattaching the front panel assem-
bly from both side of the main body. (See Fig.4)
(4) Disengage the hook aon the both side of the front panel
assembly. (See Fig.3)
Fig.12
Fig.13
earth wire
P

(No.MB550)1-11
3.1.11 Removing the cassette mechanism assembly
(See Fig.14)
(1) Remove the six screws Rattaching the cassette mecha-
nism assembly.
3.1.12 Removing the front board
(See Fig.14, 15)
(1) Remove the seven screws Sattaching the front board.
(See Fig.14)
(2) Disconnect the connector wire from the connector CN201
of the front board. (See Fig.14)
(3) Remove the main volume knob.
(4) Remove the eighteen screws Tattaching the front board.
(See Fig.15)
(5) Remove the one screws Uattaching the front board. (See
Fig.15)
Fig.14
Fig.15
RR
R
R
SS
CN201
U
T
T
T
T

1-12 (No.MB550)
SECTION 4
ADJUSTMENT
This service manual does not describe ADJUSTMENT.

(No.MB550)1-13
SECTION 5
TROUBLESHOOTING
This service manual does not describe TROUBLESHOOTING.

(No.MB550)
Audio/Video Systems Category 10-1,1chome,Ohwatari-machi,Maebashi-city,371-8543,Japan
Victor Company of Japan, Limited
VPT
Printed in Japan

SCHEMATIC DIAGRAMS
MX-KC45E,MX-KC45EN,MX-KC45A
MX-KC45UW,MX-KC45UY,MX-KC45UJ
Contents
Block diagrams
Standard schematic diagrams
Printed circuit boards
2-1
2-2
2-17 to 21
CD-ROM No.SML200607
COMPACT COMPONENT SYSTEM
No.MB550SCH
2006/7
COPYRIGHT 2006 Victor Company of Japan, Limited.
Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)
CA-MXKC45 SP-MXKC45SP-MXKC45

In regard with component parts appearing on the silk-screen printed side (parts side) of the PWB diagrams, the
parts that are printed over with black such as the resistor ( ), diode ( ) and ICP ( ) or identified by the " "
mark nearby are critical for safety.

2-1
Block diagram
Q414 to Q419
MECHA
CONTROL
JOG KEY'S
CON1
CN205
ANT IN
DECK-A
PB-HEAD
TO
DECK-B
R/P-HEAD
TO
CASSETTE
MECHANISM
TO
CD PICKUP
TO
SPINDLE
SLEED
TO
CD MECHA
TRANSFORMER PWB
TO AMP
AC IN
TO
HEADPHONE
CW202
SPEAKER
OUT
TO
PT PWB
CW903
TO
PT PWB
CW902
AUX IN
AUX JACK
TUNER L
TUNER R
CLK,CE
DAT IN/OUT
A/B SEL
BIAS-ON
SOL-A
SOL-B
MOTOR-ON
TAPE L
TAPE R
SENCE
MLT
MRD/MDATA
MWR/MCK
CD ON
MOTOR-MUTE
IN-SW
CAM+
LD M+
LD M-
XRST
DSP-SENSE
DECINT
MDO
MADDR
MD0 to MD7
SDIN,SCLK,SENB
REMOTE,P-CNT
ENCONDER1
ENCONDER2
KEY1,KEY2,KEY3
PRE-AMP L
PRE-AMP R
L OUT
R OUT
AUX L
AUX R
CD L
CD R
VOLUME
PT901
TRANSFORMER
IC702
IC701
CD RF AMP
CN301CN302CN303CN701CN702CN703
Q434,Q435
BIAS OSC
IC601
2CH
POWER AMP.
Q611
MUTE
Q612
MUTE
CN202JK601CN903CN902
IC803
16M
SDRAM
IC804
DIGITAL
SERVO
IC301
MCU
IC202
VFD DRIVER
VFD
IC201
IR SENSOR
PT902
BACKUP PT
S901
VOLTAGE
SELECTOR
CN902 CN903
CW903CW902
MAIN
CN205
AUX
CW205
AMP
CN202
HEAD PHONE
CW202
IC401
VOLUME
Q401 to Q410
Q438
A/B DECK
EXCHANGE
Q420,Q421
VOL DATA
CN306
TUNER PARK
CN201 CN601
CW601
CW201
CW215 CW203
PHONE JACK
Used for Area suffix UW/UY/UJ

2-2
Parts are safety assurance parts.
When replacing those parts make
sure to use the specified one.

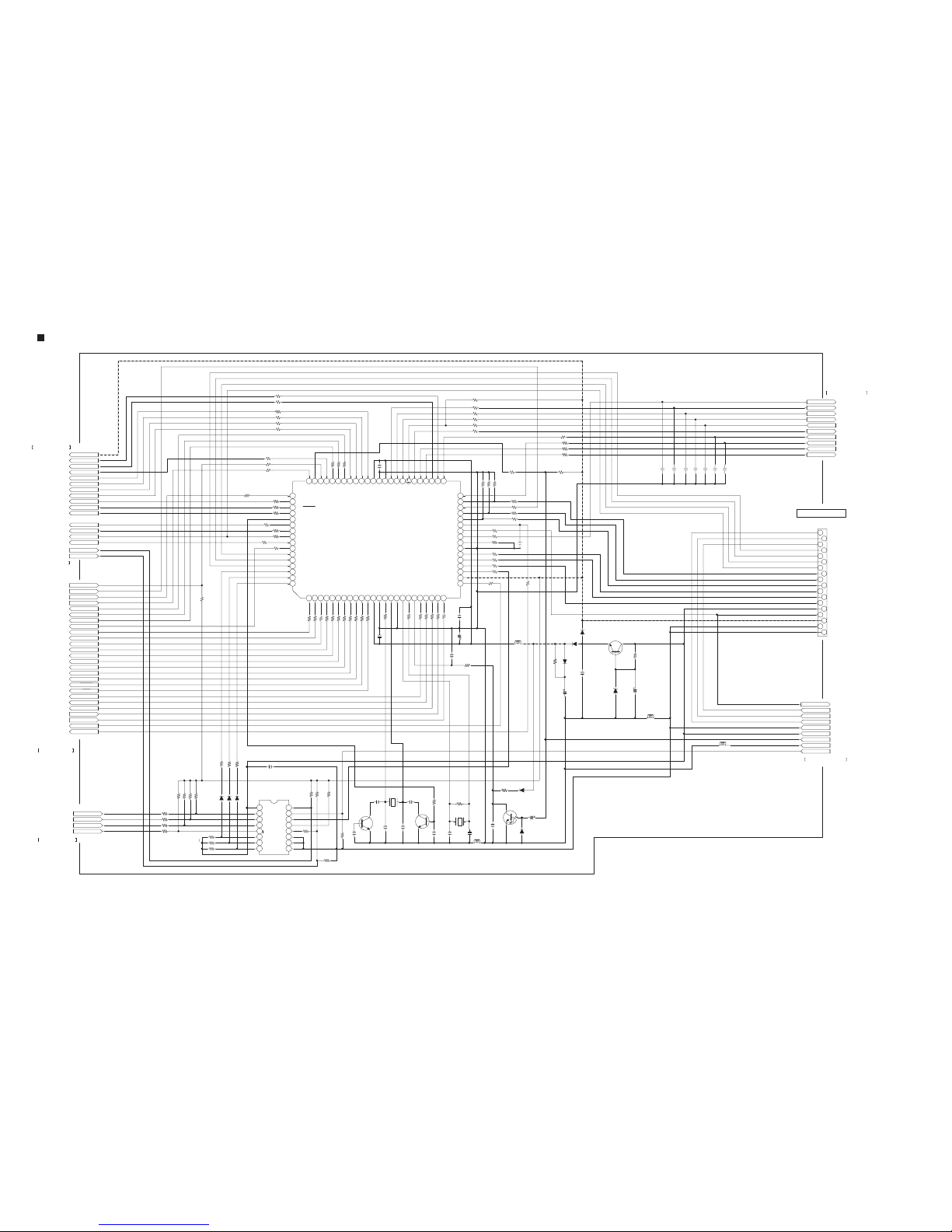

Standard schematic diagrams
S3
GND
S3
S1
S2
GND
S2
S1
8
7
6
5
4
3
2
1
CON - 2.5 - 8P
CN2
C601
C602
0.1U 0.1U
1N4003
D605
1N4003
D603
1N4003
D606
33(1 / 2W)-FR
D602
1N4003
RF601 R672
33(1 / 4W)
D601
1N4003
Q604
KTB1366Y
Q605
2SC3052
C604 0.1U
R601 4.7K
C605
C607 4700 / 25
R605 1K
100 / 25
D607
UZ12BSC
C608
0.1U C609
100 / 16 D608
NM
0.1U C603
4.7K R101
C101
1000 / 25
R103
22K R104
22K
Q101
2SC3052
C102
100 / 10
R102
2.2K
Q102
2SC3052
C610
47 / 63 R606
3.3K
D631 1SS133
Q607
KTA1273Y
R607
2.2K
C611
22 / 50
C612
0.01U
D609
UZ30BSD
D610
UZ6.2BSB
C614
10 / 25
C613 22 / 50
R671
5.6K(A)
R608
100(A)
R609
100(A)
F2
F1 [1]
47K(A)
R683
C617
682(M)
C618
682(M)
R682
33K(A)
C619
682(M)
C620
682(M)
TO POWER PCB
RF602
JW
Q608
KTB1366Y
Q609
2SC3052
R610
150K
R669
1.2K
Q610
2SC3052
R611
56K
C615
0.01U R612
D611
4.7K
UZ5.6BSB
R600
820 C616
470 / 10
D612 NM
D613
1N4003
D614
AC
AC
AC
AC
D615
RS402
R681
33K(A)
R684
47K
GBU6J
[ AMP PCB ]
C622 C621
682(M)
682(M)
C624
4700 / 50
C623
4700 / 50
C626
3300 / 71
C628
682(M)
C625
3300 / 71
C627
682(M)
R614
100(1 / 2W)
C630
562(M)
C632
100 / 100
R613
100(1 / 2W)
C629
562(M)
D616
UZ12BSC
C631
100 / 100
1.5K(1 / 2W)
R615
R616
1.5K(1 / 2W)
D617
UZ12BSC
VH+ VL+ P+VL P-VL VL- VH-
123
4567
89
SUB OUT1+ OUT1-
10 11 12 13 14 15 16 17 18
IN2 NF2 BIAS NF1 IN1 PRE+VCC PRE-VCC OUT2+ OUT2-
C635
100 / 10
C637
R617 560
3P
R618
JW
R619
33K
C633
100P
R620
33K
C636
100 / 10 R621 560
C634
100P
C638 R622
JW
3P R623
33K
R625 56K R624 56K
C639 1000P
C640 1000P
R627
4.7K
R626
4.7K
R630
R631
3.9K
C641
4.7 / 50
Q611
DTC323TK
R628
2.2K
C642
4.7 / 50
3.9K
Q612
DTC323TK
R629
2.2K
A05
D109
MC2838
33K
R120
R121 33K
C117
R123
1K 100 / 16
R124 C118
1K 100 / 16
D101 1N4003 D102
1N4003 D103 1N4003
R110
2.2
IC601
STK412 - 040
FAN DRIVE
KTA1273Y Q111
R112
470
Q112
2SC3052
C114
R116
1 / 50
R115
220K
47K
C113
100 / 10
R113
1SS133
1K
47 / 16
R114
56 D105
C115
Q114
KTA1273Y
D106
R117
470
1SS133
R118 1K
Q113
2SC3052
D107
1SS133 R119
1K
D108
1SS133
C116
100 / 16
CN603
CON - 2.5 - 3P
1
2
3
FAN+
FAN-
FAN+
FPC-1.25-24P
A06
A01
A03
A04
A02
C655 0.015U
C656
0.015U
NM NM
NM
NM
C661 C660 C659 C658
CN202
TO FRONT PCB
Q623
DTC323TK
R664
1K
R663
10K
R662 1K
Q622
DTC323TK
R661
10K
Q619
DTC114YK
R655
10K
R654
1K
1SS133 1SS133
D625 D624
R656
15(A)
Q618
2SC3052
R665
1K(2W)
R653
0
D626
1SS133
R666
1K(2W)
RY601
ME - 7C - 012 - 2H
NM
R647
470K
1 / 50
C644
D620
1SS133
470
R646
4.7 / 50
C643
10K
R645
10K
R644
L601 3UH(R)
R640
4.7(1/4W)
R641
4.7(1/4W)
L602 3UH(R)
Q613
KTA1267G
R642 1K
C645
0.1U(M)
C646
0.1U(M)
R648
4.7(1/4W)
C647
0.1U(M)
C648
0.1U(M)
R649
4.7(1/4W)
C650
47 / 16
R650 100K
R651 100K
R652
100K
R643 1K
C649
120P
Q614
KTA1267G
Q615
2SD3052
Q616
2SC3052
D623 1SS133
C652
22 / 50
Q617
2SC3052
C651
0.022U
R658
47K
D621
1SS133
R657
680K
C653
220 / 10
R659
2.2K
A05
DTA114YK
Q621
DTA114YK
Q620
C654
10 / 25
R660
3.9K
D622
1SS133
A[01:10]
A06 A04
Q624
DTC114YK
Q601
2SC3052 CN602
1
2
TH601
10K
C606
1 / 50
R602 75
ATTACH TO HEATSINK
R632
R633
R634
R635
0.15(3W)
0.15(3W)
0.15(3W)
0.15(3W)
R636
R637
1K
1K
D618
1SS133
D619
1SS133
R638 15K
15K
R639
CW902
CON - ASSY2.0 - 6P
1
2
3
4
5
6
1
2
3
4
5
6
V-ECO
INH
GND
RELAY ON
AC3.3V
AC3.3V
A03
A02
A01
CN902
CON - 2.0 - 6P
[1]
[1]
F2
F1
Q901
DTC114YS
C907
3.3 / 50
R902 D906
4.7K(A) 1SS133
C905
470 / 25
D905
C904
D904
C903
D903
C902
D902
C901
1SS133
223
1SS133
223
1SS133
223
1SS133
223
R901
10(A)
D901
1SS133
[ P / T PCB ]
PT-SUB
PT902
12
3
PRIMARY
RY901
PT-MAIN
8
3
2
4
9
10
11
12
13
6
14
15
16
17
FC901
PT901
NATURAL
LIVE
T2AL 250V
C951
0.22 / 275V
TB901
TB902
F901
AC - CORD
1
2
3
4
5
6
7
8
CW903
CON - ASSY2.5 - 8P
S1
S2
GND
S2
S1
S3
GND
S3
FC902
C908
NM
RELAY(ME-7)
FILTER-AC
L901
1
2
3
4
HP-L
GND
HP-R
HP-SW
JK601
SP-4P(PST-404)
SP-L
GND
SP-R
GND
1
2
3
4
[1]
1
2
3
FAN1
FAN DC12V
CW601
M
1
2
3
4
5
6
7
8
9
10
11
12
F1
VFP
F2
SAFTY
RELAY ON
V-ECO
S-MUTE
INH
SPK-RLY
PROTECTE
5V
5V
DGND
DGND
+12V
+12V
M-GND
M-GND
AGND
AGND
- VEE
L-IN
AGND
R-IN
13
14
15
16
17
18
19
20
21
22
23
24
TO MAIN PCB
C699
0.1U
Amplifier section For E,EN version

2-3
Main section
HEAD-PLAY
L.CH
R.CH
HEAD-PLAY
CN301
CON - 2.0 - 3P
1
2
3
1
2
3
C401
1200P
R401
39K
C402
1200P
R402
39K
Q401
2SJ460
DS
G
DS
G
100(A)
R403
R404
100
2SJ460
Q402
Q403
2SK2541 DS
G
DS
G
2SK2541
Q404
C429
C426
1200P
1200P
R421
82K
R422
82K
C463
0.1U
Q405
2SJ460
D
S
G
D
S
G
A406
2SJ460
C430
1000P
D
S
G
D
S
G
D
S
G
Q407
2SK2541
C408
470P
D401
MC2836
Q409
2SK2541
R423
220K
R425
2.2K
Q410
SPA2202S
2R
R424
22K
Q408
2SK2541
R575
100(A)
R515
R514
39K
39K
R407
NM
C405
R405
100 / 10V
150
R409
390K(A) C411
470P R413
18K
R414
18K
C412
470P
R416
47K
R415
47K
R418 1K
R420 1K
C418
2.2 / 50V
C407
2.2 / 50V D405
UZ4.7BSA
C417
220 / 10V
R411
C409
6800P 1.2K
R412
C410
6800P 1.2K
R410
390K C406R406
150 100 / 10V
R408
NM
C414
560P
C415 560P
C404
CH 47P
C403
47P CH
C413
100 / 10V
D402
UZ4.7BSA
C419
C416
3300P
3300P
R574
10K
C424 C423
0.1U 0.1U
R.CH
L.CH
HEAD-R/P
HEAD-R/P
HEAD-ERASE
CN302
8
7
6
5
4
3
2
1
8
7
6
5
4
3
2
1
CON - 2.0 - 8P
C453
R463
CH
1000P
1K
C454
1000P CH
R464
1K
R429
12K(A)
R428
12K(A)
Q438
DTC114TK
R427
2.2K
C427
180P
R431
2.2K
R433
10K
C434
180P
R557
10K
R426
2.2K
R438
2.2K
C433
2200P
R435
C435
1K
0.01U
R437
1K
C437
6800P
R439
1.8K
R430
1.8K
R436
1K
C448
6800P
C436 R434
1K
0.01U
C444
2200P
T401
COIL - REC - OSC - 6P(85KHZ)
R417
47(1/4W)
6
5
4
1
2
3
S
S
R512
2.2K(A)
R528
10K
Q433
2SC3052
C521
560P(A)
C503
6800P(M)
C440
200 / 16V
C432 0.01U
R419
8.2(1/4W)
Q434
2SC5343
R461
18K
C520
2700P
C518
2700P
Q435
2SC5343
R460
18K
C441
2700P
2
1 3
5
4
6 7 8 9
10
11
12
13
14
28
27
26 25 24
23
22
21
20
19
18 17
16
15
IC401
BD3881FV
PBIN-L
PBIP-L
PB2P-R
PB2N-R
PB2O-R
PB1O-L
VOL-IN-L
VOL-IN-R
GND
TRE1-L
TRE2-R
VDD
CONT
VEE
REC1O-L REC1N-L REC2N-R REC2O-R TU-IN-R TU-IN-L CD-IN-R CD-IN-L AUX-IN-R AUX-IN-L OUT-L BASS1-L OUT-R BASS2-R
R598
220(A)
R573
220(A)
R597
R572
470(1/4W)
4.7K(A)
R571
470(1/4W)
C421 100P
Q420
2SC3052
R570
4.7K
Q421
2SC3052
R442 3.3K
R443 3.3K
[3] [3] [3]
CD-AGND CD-LCH CD-RCH
C510 1 / 50V
C506 1 / 50V
R503
R504
22K(A)
22K(A)
[1] [1] [1] [1] [1] [1] [1]
TU-ON
TU-CE
TU-DATA
TU-CLK
TU-DIN
RDS-DA
RDS-CK
R539
2.2K
R538
2.2K
R541
4.7K
R540
4.7K
C539
1000P
R441
15K
C536
1000P
R440
15K
C547
0.1/50V
R501
15K(A)
C546
0.1/50V
R502
15K(A)
12
11
10
9
8
7
6
5
4
3
2
1
RDS 3.3V RDS CLK RDS DATA TUNED TU-D-OUT TU CLK TU-D-IN
TU CE +9V R-ch OUT A GND L-ch OUT
CN306
FPC-1.25-12P
TO TUNER UNIT
E VERSION: CN306 12P
OTHER VERSION: CN306 10P
L505
BEAD(A)
R581
3.3K
R580 100K
C535
47/16V
2SC3052
Q422
D509 1SS133
R578
Q423
KTA1267G
470(A)
L511
BEAD(A)
R579
47(A)
D517
C458
47U/16
R479
12(1/4W)
1
RDS-ON
560(A)
R582
Q521
DTA114TK
D521 UZ3.3B
C551 47/16V
DTC114TK
Q522
R505
39K
C541
100P
R457
4.7K(A)
C545
4.7 / 50
R508
4.7K(A)
R506
39K
C540
100P
C544
4.7 / 50
CN205
1
2
3
AUX-L
A-GND
AUX-R
TO AMP PCB
GAIN-CTRL [1]
[1]
S-BOOST
U - VERSION ONLY
R546
5.6K
470
R548
[1]
[1]
[1]
[1]
[1]
[1]
[1]
[1]
[1]
[1]
[1]
5V
P-CNT
AC-IN
PRT
SPK
INH
S-MUTE
AC-SW
F2
VFP
F1
R368 150K(A)
[ TO MICOM PART ]
R325 120K(A)
D506
D507 R478 2.2K(A)
Q411
KTA1267G
R432
1.5K(A)
C519
R534
10K JW
Q424
KTC3199
C502
100 / 16
R452
4.7K(A)
R454
100(A) R453
1.2K(A)
CN601
FPC - 1.25 - 24P
F1
VFP
F2
SAFTY
AC-SW
V-ECO
S-MUTE
INH
SPK-RLY
PROTECTE
5V
5V
DGND
DGND
+12V
+12V
M-GND
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18 M-GND
AGND
19
20
21
22
23
24
AGND
- VEE
L-IN
AGND
R-IN
TO AMP PCB
DGND
0.1U
C561
R566
6.8K
D508
1SS133
R567
3.3K
Q508
2SC1815GR
R484
470
C528
47U / 16
D516
UZ11BSB
D511
1SS133
1SS133
D502
[3] [3]
[1,3]
[3] [3] SW+5V
CD+5V
CD-DGND
CD-MGND
CD-12V L503
BEAD(A)
TO CDP PART
[ MAIN PCB - 2 / 3 ]
R547
5.6K
470
R549
Q425
KTC3199
R533
10K(A)
Q413
DTC114TK
R469
10K
Q412
DTC114TK
IC403
KIA78L05BP
31
2
D406
1SS133
Out In
Gnd
1SS133
D407
C431
100 / 10V
3.9K
R550
R542
10K
C460
0.22 / 50V
R480
1K
R482
47K
C462
1000P
3.9K
R537
R543
10K
R481
1K
C459
0.22 / 50V
R483 47K
C461
1000P
R586 0
R585 0
C527 22 / 25V
C501 22 / 25V
R525
100K
100K
R526
68K
R465 R509
68K
C425
0.1 / 50V
C497
0.068U
R523
2.2K
C445
0.47 / 50V
C420
0.1 / 50V
C496
0.068U
C422
0.47 / 50V
R507
2.2K
R459
2.2K
R462 47K
Q436
2SC5343 Q437
2SC3052
R511
4.7K(A)
R458
4.7K
R510
5.6K
C438
0.1U
5.6K
R513
56K
C428
220 / 16V
R577
2.2K
R576 2.2K
R521
0
R522
NM
C524
1 / 50
R519
100K
R518 100K
R520
10K
R517
1.2K
D501
1SS133 C525
4.7 / 50
1 / 50
C526
R516
330K
Q501
2SC3052
D510
1N4001 D503
1SS133 R564
JW
Q506
KTA1267G
R562
22K
Q505
DTC114TK
R560
22K Q507
DTC114TK
R563
470
D504
1SS133
100 / 10
C557
0.01U
C558
1SS133
D505
R561
22K
Q504
KTA1267G
Q509
DTC114TK
R559
47K
C560
NM
4.7K
R558
[1] [1] [1] [1] [1] [1] [1]
[1] [1] [1] [1] [1] [1]
[1] [1]
[1,3] CD-ON
SAFETY
L-METER
SCL-CTL1
SDA-CTL2
A / B-SEL
BIAS-ON
BEAT-CUT
TO MICOM
SOL-A
SOL-B
MOTOR-ON
DET-B
DET-A
REC-B
HALF-A / B
AVREF(3.3V)
L509
BEAD(A)
C446
0.01U
100 / 16
C447
Q415
KTA1273
C439
0.01U
Q414
2SC3052
D404
1SS133
3.3K(A)
R444
4.7K
R445
150
R446
Q417
KTA1273
C449
0.01U
Q416
2SC3052
Q419
KTA1273
Q418
DTC114K
D403
1SS133
4.7K
R448 R447
3.3K(A)
R449
150
3.3K
R450
4.7 / 50
C450
R451
1K
C451
100 / 16
R472
56K
R468 2.2K R467 2.2K
R471 12K
R455 47K
R456 22K
CN303
FPC - 1.25 - 9P
A-SOL
A-REEL
A-HALF
+12V
REC-SW
GND
B-HALF
B-REEL
B-SOL
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
M

2-4
Micon section
TO DECK PART
[2] AVREF(3.3V)
[2] SCL-CTL1
SDA-CTL2[2]
REC-MUTE
PB-MUTE
[2] SOL-A
[2] SOL-B
[2]
[2]
[2]
[2]
MOTOR-ON
BIAS-ON
A / B-SEL
BEAT-CUT
[2]
[2]
[2]
[2]
[2]
[2]
SPK
S-BOOST
P-CNT
S-MUTE
L-METER
SAFETY
TO AMP PART
[3]
[3]
[3]
[3]
[3]
[3]
IN-SW
EMITTER
SW2
SW1
CAM+
LD_M+
LD_M-
[3]
[3]
[2,3]
[3]
[3]
MOTOR-MUTE
CD-ON
MD0
MD1
MD2
MD3
MD4
MD5
MD6
MD7
[3]
[3]
[3]
[3]
[3]
[3]
[3]
[3]
[3]
[3]
[3]
[3]
[3]
[3]
[3]
MADDR
MCS
MWR / MCK
MRD / MDATA
DECINT
DSP-SENSE
SENSE
MLT
XRST
TO CDP PART
TO DECK PART
[2]
[2]
[2]
[2]
DET-A
HALF-A/B
REC-B
DET-B
R373
R374
R375
R376
0
0
0
0
R393
R394
R395
10K
10K
10K
R377
R378
R379
R380
2.2K 2.2K NM 2.2K
D309
D308
D307
1SS133 1SS133 1SS133
R396
R397
R398
1K 1K
1K
C308
0.1U
IC302
BU4051
16
15
14
13
12
11
10
9
1
2
3
4
5
6
7
8
VDD
DET-A
HARF-A/B
REC-B
DET-B
A
B
C
SFT
INH
VEE
VSS
G-EQ
ACIN
COM
OPTION
R385
1K
R399
22K
R381 NM
R382 10K
R384 3.3K
R371
47K
C310
NM Q301
NM
C309
NM
XT302
8MHz
C311
27P
C312
24P
C313
33P
Q302
2SC3052
R388
2.2K
C314
1000P
R389
C315
22P
C316
22P
XT301
32.768KHZ
L304
BEAD
C320
NM
R390
47K
D301
1SS133
Q303
DTC114YK
C318
1/50
D302
1SS133
R346
R347
100(A)
100(A)
R356
R357
R358
R359
100(A)
100(A)
100(A)
R355
R348
R351
1K(A)
1K(A)
R392
10K(A)
R350 1K
R360 220
R361
470
R362
470
R363 470(A)
R364
R365 100
100(A)
1K(A)
R366
R367
1K
1K
0
R354 R353 R352
0.1U
C301
64
63
62
61
60
59
58
57
56
55
54
53
52
51 50
49
48
47 46 45 44
43
42 41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
24
26
25
23
22
21
20 19
18
17 16
15
14
13
12
11
10
1
2
3 4
5
6
7
8
9
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
IC301
S3C825A
SW2
BIAS-ON
A/B-SEL
BEATCUT
CLOCK-SFT
SPK
NC(B-BOOST)
P-CNT
S-MUTE
MOTOR-MUTE
CSB
CLKB
DIN
A
B
C
SW1
INH
IN-SW
REC-MUTE
LD_M-
LD_M+
CAM+
MOTOR-ON
SOL-B SOL-A
PB-MUTE
VDD2
VSS2
VCL1
TU-CE
TU-DATAOUT
TU-CLK
CD-ON MD0 MD1 MD2 MD3 MD4 MD5 MD6 MD7 MADDR MCS VDD VSS1 XOUT XIN
TEST
XTIN
TU-DATA IN
TUNER-ON
PRT(SP)
AC-SW
SDA(VOL)
SCL(VOL)
RDS
DATA
XTOUT RESET MWR/MCK
MRD/MDATA
DECINT SCOR SENSE
RDS-CLK
REMOCON
EMITTER
ENCODER
ENCODER
XRST
GAIN CONTROL
RDS ON
SUBQ
AVS S
KEY3
KEY2
KEY1
AD-IN
AVR EF
MLT
R387
R345
R344
R343
R342
R341
10K(A)
1K(A)
220(A)
220(A)
220(A)
1K(A)
R336
R335
R334
22K
22K
22K
R331
2.2K(A)
R340
R339
470(A)
330
R338 100
R337 100
R333 1.8K(A)
R332
R349
R330
R329
2.2K
1K(A)
2.2K
2.2K(A)
R327 100(A)
R370 100(A)
0R326
(OPTION:RM)
C319
0.1U(A)
R324
R323
R322
R321
100(A)
100(A)
100(A)
100(A)
R320
100(A)
R328
100(A)
C321
100P
C322
100P
C323
100P
C324
100P
C325
100P
C326
100P
C327 100P
RDS-ON
TU-CE
TU-DATA
TU-CLK
TU-DIN
TU-ON
RDS-DA
RDS-CK
PRT
AC-SW
[2]
[2]
[2]
[2]
[2]
[2]
[2]
[2]
[2]
[2]
TO TUNER PART
TO FRONT PCB
CN201
FPC - 1.25 - 18P
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
F1
VFP
F2
SDIN
SCLK
SCNB
P-CNT
REMOTE
ENCODER1
ENCODER2
KEY3
KEY2
KEY1
5V
S-B(LED)
16
17
18
3.3V
DGND
[2]
[2]
[2]
[2]
[2]
[2]
[2]
[2,3]
[2]
GAIN-CTRL
VFP
F2
F1
DGND
5V
INH
CD-DGND
AC-IN
TO POWER PART
L303
BEAD(A)
D306
C307
C305
0.1U
D303
R391 680K
D305
D304
1SS133
1SS133
1SS133
1000 / 10
UZ4.7BSA
C306
47 / 25
R369
100
Q304
2SC1815GR
BEAD(A)
L302
10UH
L301
0.1U
C317
100 / 10
C304 C303
0.022U
R319
R318
R317
R316
R315
R313
R312
R301
470
100
100(A)
100(A)
100
100
100
100
100
100
100
100
100
C302
0.1U
100
100
100
100
100
R302
R303
R304
R305
R306
R307
R308
R309
R319
R311
1K
R314
DGND
