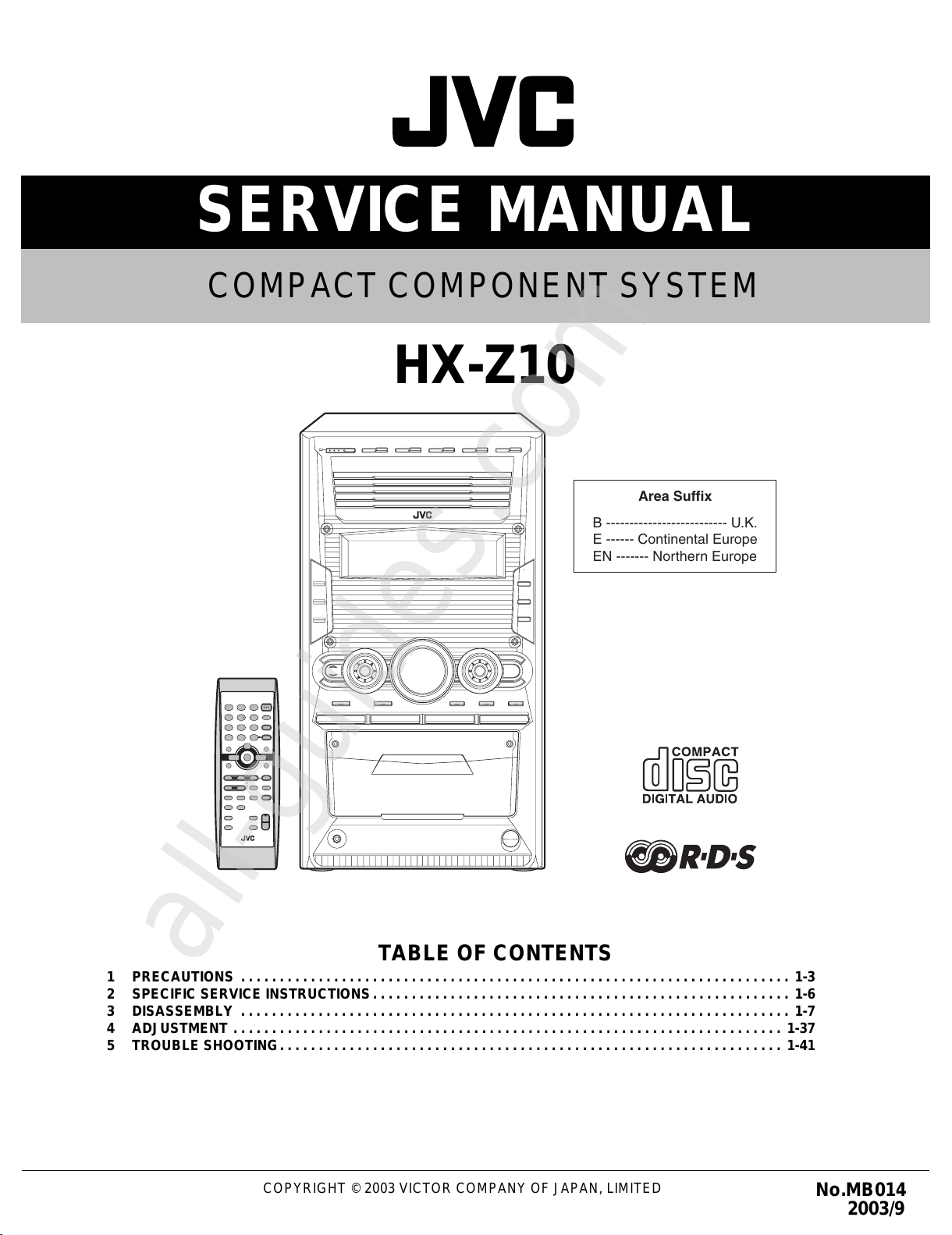

SERVICE MANUAL
COPYRIGHT © 2003 VICTOR COMPANY OF JAPAN, LIMITED No.MB014
2003/9
COMPACT COMPONENT SYSTEM
MB01420037HX-Z10
TABLE OF CONTENTS
1 PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
2 SPECIFIC SERVICE INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6
3 DISASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7
4 ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-37
5 TROUBLE SHOOTING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-41
B -------------------------- U.K.
E ------ Continental Europe
EN ------- Northern Europe
Area Suffix
All manuals and user guides at all-guides.com
all-guides.com
1-2 (No.MB014)

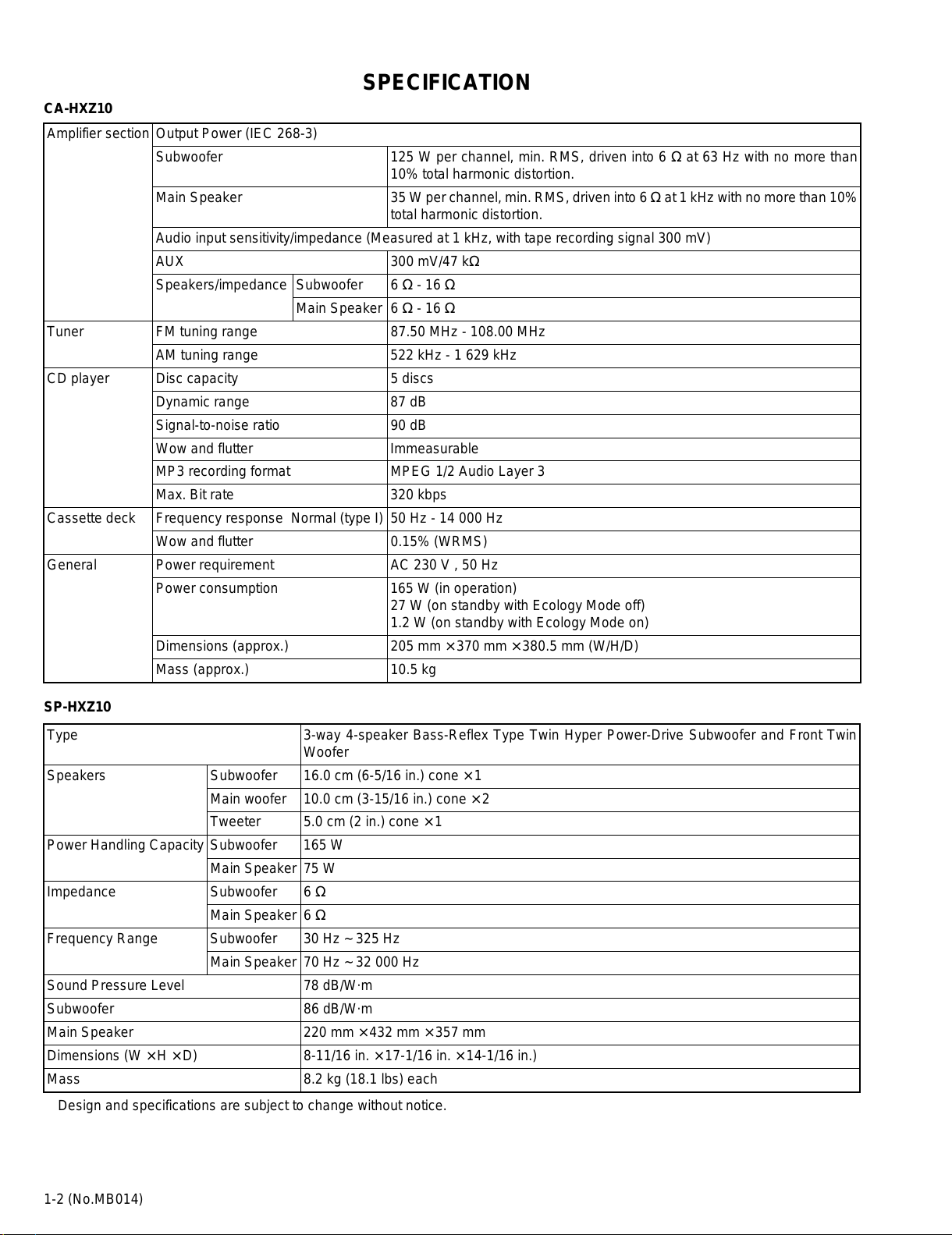

SPECIFICATION
CA-HXZ10
SP-HXZ10
Design and specifications are subject to change without notice.
Amplifier section Output Power (IEC 268-3)
Subwoofer 125 W per channel, min. RMS, driven into 6 Ωat 63 Hz with no more than
10% total harmonic distortion.
Main Speaker 35 W per channel, min. RMS, driven into 6 Ωat 1 kHz with no more than 10%
total harmonic distortion.
Audio input sensitivity/impedance (Measured at 1 kHz, with tape recording signal 300 mV)
AUX 300 mV/47 kΩ
Speakers/impedance Subwoofer 6 Ω- 16 Ω
Main Speaker 6 Ω- 16 Ω
Tuner FM tuning range 87.50 MHz - 108.00 MHz
AM tuning range 522 kHz - 1 629 kHz
CD player Disc capacity 5 discs
Dynamic range 87 dB
Signal-to-noise ratio 90 dB
Wow and flutter Immeasurable
MP3 recording format MPEG 1/2 Audio Layer 3
Max. Bit rate 320 kbps
Cassette deck Frequency response Normal (type I) 50 Hz - 14 000 Hz
Wow and flutter 0.15% (WRMS)
General Power requirement AC 230 V , 50 Hz
Power consumption 165 W (in operation)
27 W (on standby with Ecology Mode off)
1.2 W (on standby with Ecology Mode on)
Dimensions (approx.) 205 mm ×370 mm ×380.5 mm (W/H/D)
Mass (approx.) 10.5 kg
Type 3-way 4-speaker Bass-Reflex Type Twin Hyper Power-Drive Subwoofer and Front Twin
Woofer
Speakers Subwoofer 16.0 cm (6-5/16 in.) cone ×1
Main woofer 10.0 cm (3-15/16 in.) cone ×2
Tweeter 5.0 cm (2 in.) cone ×1
Power Handling Capacity Subwoofer 165 W
Main Speaker 75 W
Impedance Subwoofer 6 Ω
Main Speaker 6 Ω
Frequency Range Subwoofer 30 Hz ~ 325 Hz
Main Speaker 70 Hz ~ 32 000 Hz
Sound Pressure Level 78 dB/W·m
Subwoofer 86 dB/W·m
Main Speaker 220 mm ×432 mm ×357 mm
Dimensions (W ×H ×D) 8-11/16 in. ×17-1/16 in. ×14-1/16 in.)
Mass 8.2 kg (18.1 lbs) each
All manuals and user guides at all-guides.com
(No.MB014)1-5
1.6 Preventing static electricity
Electrostatic discharge (ESD), which occurs when static electricity stored in the body, fabric, etc. is discharged, can destroy the laser
diode in the traverse unit (optical pickup). Take care to prevent this when performing repairs.
1.6.1 Grounding to prevent damage by static electricity
Static electricity in the work area can destroy the optical pickup (laser diode) in devices such as CD players.
Be careful to use proper grounding in the area where repairs are being performed.
(1) Ground the workbench
Ground the workbench by laying conductive material (such as a conductive sheet) or an iron plate over it before placing the
traverse unit (optical pickup) on it.
(2) Ground yourself
Use an anti-static wrist strap to release any static electricity built up in your body.
(3) Handling the optical pickup
• In order to maintain quality during transport and before installation, both sides of the laser diode on the replacement optical
pickup are shorted. After replacement, return the shorted parts to their original condition.
(Refer to the text.)
• Do not use a tester to check the condition of the laser diode in the optical pickup. The tester's internal power source can easily
destroy the laser diode.
1.7 Handling the traverse unit (optical pickup)
(1) Do not subject the traverse unit (optical pickup) to strong shocks, as it is a sensitive, complex unit.
(2) Cut off the shorted part of the flexible cable using nippers, etc. after replacing the optical pickup. For specific details, refer to the
replacement procedure in the text. Remove the anti-static pin when replacing the traverse unit. Be careful not to take too long
a time when attaching it to the connector.
(3) Handle the flexible cable carefully as it may break when subjected to strong force.
(4) I t is not possible to adjust the semi-fixed resistor that adjusts the laser power. Do not turn it.
1.8 Attention when traverse unit is decomposed
*Please refer to "Disassembly method" in the text for the CD pickup unit.
• Apply solder to the short land sections before the flexible wire is disconnected from the connector CN231 on the CD servo board.
(If the flexible wire is disconnected without applying solder, the CD pickup may be destroyed by static electricity.)
• In the assembly, be sure to remove solder from the short land sections after connecting the flexible wire.
1M
Conductive material
(conductive sheet) or iron palate
(caption)
Anti-static wrist strap
Front panel assembly
Primary board
CN231
Band
a
All manuals and user guides at all-guides.com
(No.MB014)1-7
SECTION 3
DISASSEMBLY
3.1 Main body
3.1.1 Removing the metal cover
(See Fig.1~3)
(1) Remove the six screws Aon the back of the body.
(2) Remove the screw Bon each side of the body.
(3) Remove the metal cover from the body by lifting the rear
part of the cover.
CAUTION:
Do not break the front panel tab fitted to the metal cover.
Fig.1
Fig.2
Fig.3
A
AA
Metal cover
Metal cover
B
Metal cover
B
All manuals and user guides at all-guides.com
1-8 (No.MB014)
3.1.2 Removing the CD changer mechanism assembly
(See Fig.4, 5)
• Prior to performing the following procedure, remove the metal
cover.
(1) Disconnect the card wire from connector CN651 on the CD
servo control board on the right bottom of the CD changer
mechanism assembly.
(2) Remove the four screws Cattaching the CD changer
mechanism assembly on top of the body.
(3) Remove the CD changer mechanism assembly while lifting
the rear part.
CAUTION:
Do not damage the CD fitting when removing the CD changer
mechanism assembly.
Fig.4
Fig.5
CD changer mechanism assembly
CD servo control board
CN651
Front panel assemby
CD changer
mechanism assembly
CC
All manuals and user guides at all-guides.com
(No.MB014)1-9
3.1.3 Removing the front panel assembly
(See Fig.6~9)
• Prior to performing the following procedure, remove the metal
cover and the CD changer mechanism assembly.
(1) Disconnect the card wires from connector CN44 and
CN870 on the main board on the right side of the body.
(2) Disconnect the wire from connector CN701 on the bridge
board.
(3) Cut the band.
(4) Disconnect the wire from connector CN231,CN232 on the
primary board on the left side of the body and remove the
band fixing the wire.
(5) Disconnect the ground wire extending from phones board
from bottom chassis.
(6) Remove the three screws Dattaching the front panel as-
sembly at the bottom of the body.
(7) Release the two joints a on the lower left and right sides of
the front panel assembly using a screwdriver, and remove
the front panel assembly toward the front.
REFERENCE:
Front panel need to be tilt a little bit as release from bottom
chassis.
Fig.6
Fig.7
Fig.8
Fig.9
Front panel assembly
Bridge board
CN701
Main board
CN870
CN44
a
Front panel assembly
Primary board
CN231,CN232
Band
a
Ground wire
Band
Primary board
CN231,CN232
Front panel assembly
Front panel aeembly
D
All manuals and user guides at all-guides.com
all-guides.com
1-10 (No.MB014)
3.1.4 Removing the tuner pack assembly
(See Fig.10, 11)
• Prior to performing the following procedure, remove the metal
cover and the CD changer mechanism assembly.
(1) Disconnect the card wire from connector CN1 on the tuner
pack assembly on the right side of the body.
(2) Remove the two screws Eon the rear panel on the back of
the body.
Fig.10
Fig.11
Tuner pack assembly
CN1
ERear panel
All manuals and user guides at all-guides.com
(No.MB014)1-11
3.1.5 Removing the rear panel
(See Fig.10, 12~16)
• Prior to performing the following procedure, remove the metal
cover and the CD changer mechanism assembly.
(1) Remove holding board by remove a plastic rivet and then
slide out the holding board as shown in fig. 12.
(2) Disconnect the fan wire extending from the fan assembly
from connector CN206 on the bridge board.
(3) Disconnect the card wire from connector CN1 on the tuner
pack.
(4) Remove four screws Ffrom rear panel.
(5) Release joints bwhich on right bottom and left bottom of
rear panel. The joint can be release by pull outward the
side of rear panel.
REFERENCE:
Fan assembly and tuner pack will come off with rear panel.
Fig.12
Fig.13
Fig.14
Fig.15
Fig.16
Plastic rivet
Holding board
Rear panel
Bridge board
CN206
Fan assembly
FF
F
Rear panel
Rear panel
b
Rear panel
b
All manuals and user guides at all-guides.com
1-12 (No.MB014)

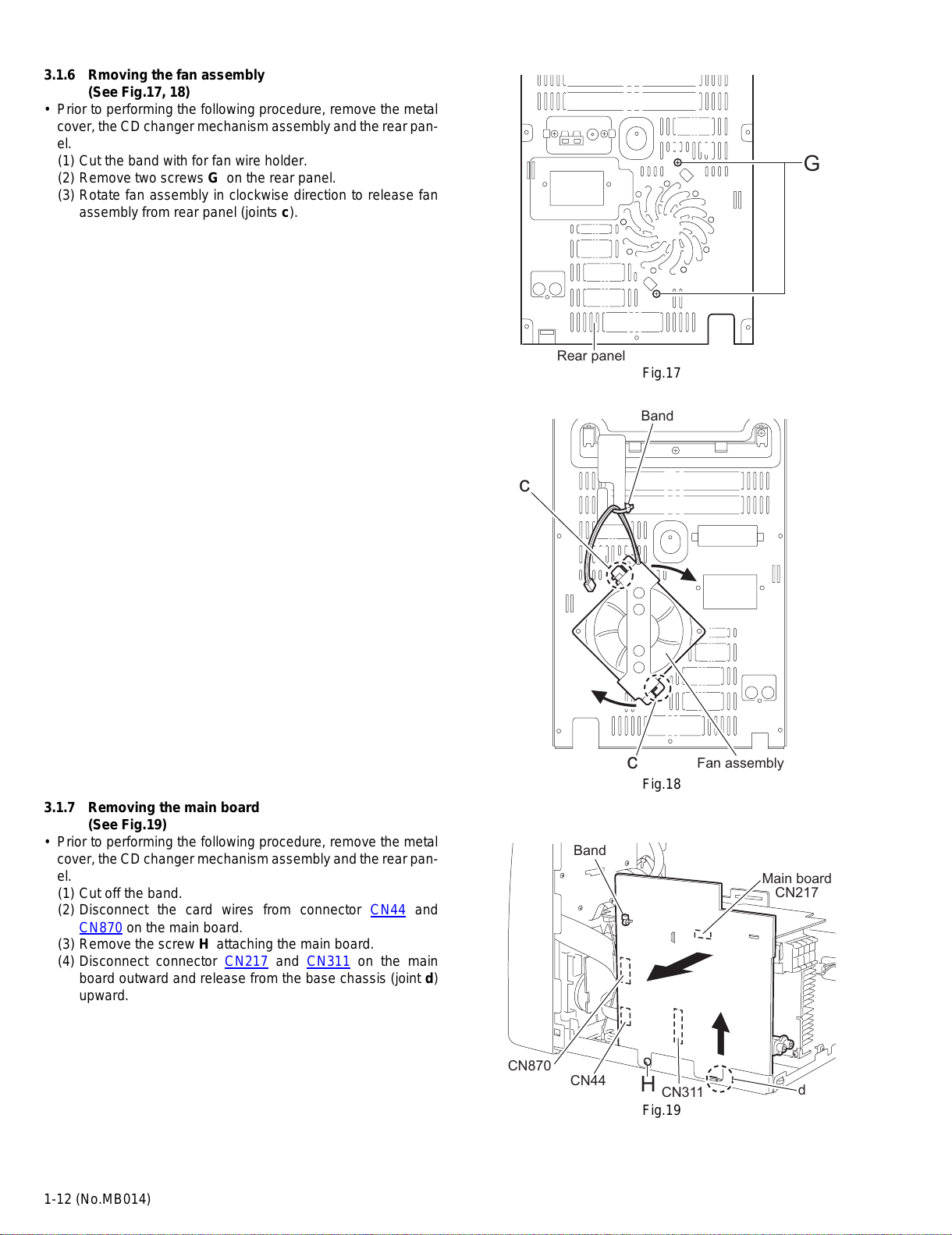

3.1.6 Rmoving the fan assembly
(See Fig.17, 18)
• Prior to performing the following procedure, remove the metal
cover, the CD changer mechanism assembly and the rear pan-
el.
(1) Cut the band with for fan wire holder.
(2) Remove two screws Gon the rear panel.
(3) Rotate fan assembly in clockwise direction to release fan
assembly from rear panel (joints c).
Fig.17
Fig.18
3.1.7 Removing the main board
(See Fig.19)
• Prior to performing the following procedure, remove the metal
cover, the CD changer mechanism assembly and the rear pan-
el.
(1) Cut off the band.
(2) Disconnect the card wires from connector CN44 and
CN870 on the main board.
(3) Remove the screw Hattaching the main board.
(4) Disconnect connector CN217 and CN311 on the main
board outward and release from the base chassis (joint d)
upward.
Fig.19
G
Rear panel
c
cFan assembly
Band
CN870
CN44 CN311
Main board
CN217
Band
Hd
All manuals and user guides at all-guides.com
(No.MB014)1-13
3.1.8 Removing the bridge board / regulator board / heat sink
(See Fig.20~23)
• Prior to performing the following procedure, remove the metal
cover, the CD changer mechanism assembly, the rear panel
and main board.
(1) Disconnect the wire from connector CN212, CN213 and
CN214 on the primary board respectively and remove the
band attaching the wires.
(2) Disconnect the wire from connector CN701 on the bridge
board.
(3) Disconnect the ground wire extending from the bridge
board from bottom chassis
(4) Remove the two screws Iattaching the heat sink bracket
and move the heat sink in the direction of the arrow to re-
lease from the base chassis. The bridge board and the reg-
ulator board come off with the heat sink.
(5) Remove the two screws Jattaching the heat sink bracket.
(6) Remove the two screws M, detach bridge board from reg-
ulator board by disconnect connector CN205.
(7) Remove the two screws Kand two screws Lto detach
regulator board from heat sink.
CAUTION:
As assembly back the regulator board and bridge board to
heat sink.
Regulator board must be assembly to heat sink first and
screws Kand Lmust be screwed before bridge board attach
to regulator board.
Fig.20
Fig.21
Fig.22
Fig.23
Band
CN212
Primary board
CN213
CN214
CN701
Bridge board
Bridge board
Ground wire
Regulator board
Heat sink
I
IHeat sink bracket
J
Heat sink
Bridge board
Regulator board
Heat sink bracket
Heat sink bracket
Heat sink
Regulator board
Bridge board
CN215
CN205
L
K
ML
All manuals and user guides at all-guides.com
