Prepare the Remote Control
When you use the remote control
for the first time, pull out the
insulation sheet.
Insulation sheet
To Replace the Battery in the Remote Control
Insert the battery into the
remote control by matching the
polarity (+ and –) correctly.
Lithium coin battery
(product number: CR2025)
1
2 4
Connections
Do not connect the AC power cord until all other connections have been made.
Basic and Common Operations
IMPORTANT or the U.K.
DO NOT cut off the mains plug from this equipment. If
the plug fitted is not suitable for the power points in your
home or the cable is too short to reach a power point,
then obtain an appropriate safety approved e tension lead
or consult your dealer.
BE SURE to replace the fuse only with an identical
approved type, as originally fitted.
If nonetheless the mains plug is cut off ensure to remove
the fuse and dispose of the plug immediately, to avoid a
possible shock hazard by inadvertent connection to the
mains supply.
If this product is not supplied fitted with a mains plug then
follow the instructions given below:
IMPORTANT:
DO NOT make any connection to the terminal which is
marked with the letter E or by the safety earth symbol or
coloured green or green-and-yellow.
The wires in the mains lead on this product are coloured in
accordance with the following code:
Blue: Neutral
Brown: Live
As these colours may not correspond with the coloured
markings identifying the terminals in your plug proceed
as follows:
The wire which is coloured blue must be connected to
the terminal which is marked with the letter N or coloured
black.
The wire which is coloured brown must be connected to
the terminal which is marked with the letter L or coloured
red.
IF IN DOUBT - CONSULT A COMPETENT ELECTRICIAN.
Warnings, Cautions and Others
Caution — button!
Disconnect the mains plug to shut the power off completely
(the STANDBY lamp goes off ). When installing the apparatus,
ensure that the plug is easily accessible. The button in
any position does not disconnect the mains line.
• When the system is on standby, the STANDBY lamp lights
red.
• When the system is turned on, the STANDBY lamp goes off.
The power can be remote controlled.
CAUTION
To reduce the risk of electrical shocks, fire, etc.:
1. Do not remove screws, covers or cabinet.
2. Do not e pose this appliance to rain or moisture.
Supplied Accessories
After unpacking, check to be sure that you have all the
following items. The number in parentheses indicates the
quantity of each piece supplied.
• Remote control ( 1)
• Lithium coin battery CR2025 ( 1) (The battery has been
installed when shipped from the factory.)
• AM loop antenna ( 1)
• FM antenna ( 1)
• Connection cable for iPod ( 1)
• Stand for iPod ( 1)
If anything is missing, consult your dealer immediately
To a wall outlet
Plug the AC power cord only after
all connections are complete
AM loop antenna
(supplied)
Turn it until the best
reception is obtained.
To assemble the AM loop antenna
To connect the AM loop antenna
To connect the speaker cords
Make sure the both speakers are connected
correctly and firmly.
• Before connecting the speaker cords, twist and
pull the insulation coat off and remove.
When connecting the speaker cords, match the
polarity of the speaker terminals: black cord with
white stripe to (+) and black cord to (–).
NOTES
• DO NOT connect more than one
speaker to each terminal.
• DO NOT allow the conductor of the
speaker cords to be in touch with
the metallic parts of the System.
NOTES
• Make sure the antenna conductors do not touch any other terminals, connecting
cords and power cord. Also, keep the antennas away from metallic parts of the
System, connecting cords, and the AC power cord. This could cause poor reception.
• If the cords are covered with vinyl, remove the vinyl to e pose the tip of the cord by
twisting the vinyl.
Basic Disc/USB Mass Storage Class Device Operations
To
Press
On the
System
On the
remote
Play back the disc • Current track number and elapsed playing time appear on the
main display.
For MP3/WMA files: Before current track number and elapsed
playing time appear, the tag information is scrolled if it is
recorded.
• During playback, press again to pause.
Play back the USB
mass storage
class device
Stop playback
• While playback is stopped, total track number and total playing
time (for MP3/WMA files, group number and track number)
appear on the main display.
Select a track
Press to select the ne t tracks.
Press to go back to the beginning of the current or previous tracks.
Select a group
(MP3/WMA only)
—Press to select the ne t groups while playback is stopped.
—Press to select the previous groups while playback is stopped.
Forward search/
Reverse search
—Press once or twice to fast-forward the track during playback.
To stop searching, press 6.
—Press once or twice to fast-reverse the track during playback.
To stop searching, press 6.
NOTES
• If no disc is inserted, “NO DISC” appears on the main display.
• If no USB mass storage class device is connected, “NO USB” appears on the main display.
• If MP3/WMA files are not recorded in the USB mass storage class device, “NO FILE” appears on the main display.
Outdoor FM antenna
(not supplied)
For better FM reception
FM antenna (supplied)
E tend it so that you can obtain the
best reception.
Getting Started Playing Back a Disc/USB Mass Storage Class Device
Disconnect the supplied FM antenna, and connect to an outdoor
FM antenna using a 75 Ω wire with coa ial type connector (IEC or
DIN45325).
CAUTION:
• Do not block the ventilation openings or holes. (If the
ventilation openings or holes are blocked by a newspaper
or cloth, etc., the heat may not be able to get out.)
• Do not place any naked flame sources, such as lighted
candles, on the apparatus.
• When discarding batteries, environmental problems
must be considered and local rules or laws governing the
disposal of these batteries must be followed strictly.
• Do not e pose this apparatus to rain, moisture, dripping
or splashing and that no objects filled with liquids, such
as vases, shall be placed on the apparatus.
IMPORTANT FOR LASER PRODUCTS
1. CLASS 1 LASER PRODUCT
2. CAUTION: Do not open the top cover. There are no user
serviceable parts inside the unit; leave all servicing to
qualified service personnel.
3. CAUTION: Visible and/or invisible class 1M laser radiation
when open. Do not view directly with optical instruments.
4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED
INSIDE THE UNIT.
NOTES
• Store the battery in a place where children cannot reach. If a child accidentally swallows the
battery, consult a doctor immediately.
• Do not recharge, short, disassemble or heat the battery or dispose of it in a fire. Doing any of
these things may cause the battery to give off heat, crack, or start a fire.
• Do not leave the battery with other metallic materials. Doing this may cause the battery to
give off heat, crack, or start a fire.
• When throwing away or saving the battery, wrap it in tape and insulate; otherwise, the
battery may start to give off heat, crack, or start a fire.
• Do not poke the battery with tweezers or similar tools. Doing this may cause the battery to
give off heat, crack, or start a fire.
• Dispose of battery in the proper manner, according to federal, state, and local regulations.
• The batteries (battery pack or batteries installed ) shall not be e posed to e cessive heat
source such as sunshine, fire or the like.
CAUTION:
Danger of e plosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
Dear Customer,
This apparatus is in conformance with the valid European
directives and standards regarding electromagnetic
compatibility and electrical safety.
European representative of Victor Company of Japan,
Limited is:
JVC Technology Centre Europe GmbH
Postfach 10 05 52
61145 Friedberg
Germany
Precautions
Notes on the power cord
• When you are away on travel or otherwise for an e tended period of time, remove the plug from the wall outlet. A small
amount of power (2.5 W) is always consumed while the power cord is connected to the wall outlet.
• When unplugging the System from the wall outlet, always pull the plug, not the power cord.
• Do not handle the power cord with wet hands.
• Disconnect the power cord before cleaning the System or moving the System.
• Do not alter, twist or pull the power cord, or put anything heavy on it, which may cause fire, electric shock, or other accidents.
• If the cord is damaged, consult a dealer and have the power cord replaced with a new one.
Avoid moisture, water, dust, and high temperatures
• Do not place the System in moist or dusty places.
• If water gets inside the System, turn off the power and remove the plug from the wall outlet, then consult your dealer. Using
the System in this state may cause a fire or electrical shock.
• Do not e pose the System to direct sunlight or place it near a heating device.
Notes on installation
• Select a place which is level, dry and neither too hot nor too cold between 5˚C and 35˚C.
• Do not install the System in a place subject to vibrations.
• Do not put heavy objects on the System.
To prevent mal unction or damage o the System
• Do not insert any metallic objects, such as wires, hairpins, coins, etc. into the System.
• Do not block the vents.
There are no user-serviceable parts inside. I anything goes wrong, unplug the power cord and consult
your dealer.
MICRO COMPONENT SYSTEM
UX-EP100
—Consists of CA-UXEP100 and SP-UXEP100
INSTRUCTIONS
GNT0076-003B[B]
1206ZZCMDWJEM
©2007 Victor Company of Japan, Limited
CAUTION: Proper Ventilation
To avoid risk of electric shock and fire, and to prevent damage, locate the apparatus as follows:
1. Front: No obstructions and open spacing.
2. Sides/Top/Back: No obstructions should be placed in the areas shown by the dimensions below.
3. Bottom: Place on the level surface. Maintain an adequate air path for ventilation by placing on a stand with a height of
10 cm or more.
Front view Side view
In ormation or Users on Disposal o Old Equipment
[European Union only]
This symbol indicates that the product with this symbol should not be disposed as general household
waste. If you want to dispose of this equipment, please do not use the ordinary dust bin! There is a separate
collection System for these products.
This System can play back...
– CD.
– CD-R/CD-RW recorded in audio CD format (CD-DA) or recorded MP3/
WMA files in ISO 9660 format.
– USB mass storage class device which contains MP3/WMA files.
• When playing back an MP3 or WMA track, MP3 or WMA indicator lights
on the display.
Loading a Disc
1On the System only
Press to open the disc tray.
2• When using an 8 cm disc, place it on
the inner circle of the disc tray.
3Press to close the disc tray.
Connecting a USB Mass Storage Class Device
You can connect a USB mass storage class device such as a USB flash
memory device, MP3 player, multimedia card reader, etc. to the System.
NOTES
• When connecting with a USB cable, use the cable whose length is less
than 1 m.
• USB mass storage class device is charged through the USB MEMORY
terminal when the System is turned on and the source is “USB.”
• You cannot connect a computer to the USB MEMORY terminal of the
System.
• Do not disconnect the USB mass storage class device when the System is
turned on. It may cause malfunction of both this System and the device.
Turning o the System Automatically
—AUTO STANDBY unction
Press and hold until the A.STBY indicator lights on the display.
• The A.STBY indicator starts flashing after playback stops.
If no operation is done for about 3 minutes, the System
turns off.
To cancel this function, press and hold again.
Prohibiting Disc Ejection
You can lock the disc tray so that no one can eject the loaded disc.
• This is possible while the System is on standby and the disc tray is closed.
On the System only
Press and hold
To cancel the prohibition, repeat the
same procedure.
3
Play mode indicators
(See page 4 )
Radio Data System indicators (See page 5 )
QPL indicator
(See page 6 )
Main Display
A STBY (Auto Standby) indicator (See page 4 )
AHB indicator (See the left table )
Using Headphones
Be sure to turn down the volume before connecting or putting on
the headphones
• Connecting the headphones will deactivate the speakers.
• Sound adjustments also affect the sound through the headphones.
• Do not put the headphone cord on “touch sensor panel.”
Operating on the Remote Control
To Press
Turn on or off
(standby) the power
The STANDBY lamp on the System turns
off/on.
Select a source*2
See “Listening to iPod” on page 6
See “Playing Back a Disc/USB Mass Storage
Class Device” on page 4
Press repeatedly to select “FM,” “AM,” or “LINE.”
• For “FM/AM,” see “Listening to FM and AM
Broadcasts” on page 5
• For “LINE,” see “Listening to Digital Audio
Player” on page 6
Adjust the volume You can adjust the volume level from level 0
(“VOL MIN”) to level 31 (“VOL MAX”).
Drop the volume in a
moment
To restore the volume, press again, or adjust
the volume level.
Reinforce the bass
sound (Active Hyper
Bass Pro function)
Press and hold until the AHB indicator lights
on the display.
To cancel this function, press and hold again.
Adjust the tone (Bass/
Treble)
• Once: for the bass level
• Twice: for the treble level
Then, press VOLUME + to increase the level or
press VOLUME – to decrease it.
• You can adjust the bass and/or treble level
from –3 to +3.
Changing the display
brightness
Press when the System is turned on.
To cancel this function, press again.
Display In ormation
To Press
Set the Save mode
Press and hold for more than 2 seconds when
the System is on standby.
• Setting the Save mode allows you to reduce
power consumption by turning the display
off while on standby.
To cancel this function, press and hold for
more than 2 seconds again.
Changing the display
information (Clock
and Source)
Press briefly (not applicable for FM mode).
For setting the clock, see “Setting the Clock
and Daily Timer” on page 7.
Turn off the System by
using the sleep timer
Press repeatedly to specify the time (in
minutes) as follows (SLEEP indicator lights on
the display):
• To check the remaining time to turn off after
setting the sleep timer, press once.
*1 You can operate the source selecting buttons on the System by simply touching,
because these buttons are “touch sensor panel.”
*2 The corresponding source indicator lights on the display (not applicable for “LINE”).
NOTE
DO NOT turn off (standby) the System with the volume set to an e tremely high level;
otherwise, the sudden blast of sound can damage your hearing, speakers and/or
headphones when you turn on the System or start playback.
RESUME indicator (See page 4 )
Source indicators (See the left table )
Timer mode indicators (See page 7 )
STANDBY lamp
SLEEP indicator (See the left table )
File type indicators (See page 4 )
Programming the Playing Order—
Program Play (not Applicable or MP3/
WMA Discs)
1Press repeatedly until the PRGM
(program) indicator lights on the
display before playback.
2or Select a track number to program.
3Press to program the selected
track.
4Repeat steps 2 and 3 to program other tracks you want
• If you try to program a 33rd track, “FULL” will appear on
the main display.
5
or
The tracks are played back in the
programmed order.
To Operate on the Program Play Mode
To Press
Check the
programmed
contents or Press while playback is stopped.
Add tracks Repeat steps 2 and 3 above while playback
is stopped.
Erase the last
track
Press while playback is stopped.
• The track and program
numbers of the new last track
appear on the main display.
Erase the
entire program Press while playback is stopped.
Exit from
program play
Press twice while playback is
stopped.
• The stored program is erased.
Playing at Random—Random Play
1Press repeatedly until the RND
(random) indicator lights on the
display before you start playback.
2
or
Playback starts in random order.
Random Play ends when all
tracks are played back.
To Operate on the Random Play Mode
To Press
Skip a track • 4 does not work.
Exit from
random play
Press once while playback is
stopped.
PHONES jack
Point at the remote sensor on the front
panel (The operating range is approx 7 m )
Canceled
iPod is a trademark of Apple Inc., registered in the U.S. and other countries.
USB cable (not supplied)
Front view
Operating on the System
To Press
Turn on or off
(standby) the power The STANDBY lamp on the System turns off/on.
Select a source*1, 2
See “Playing Back a Disc/USB Mass Storage Class
Device” on page 4
See “Listening to iPod” on page 6
Press repeatedly to select “FM,” “AM,” or “LINE.”
• For “FM” and “AM,” see “Listening to FM and AM
Broadcasts” on page 5
• For “LINE,” see “Listening to Digital Audio Player” on
page 6
Adjust the volume You can adjust the volume level from level 0
(“VOL MIN”) to level 31 (“VOL MAX”).
Stereo mini plug cord
FM reception
indicators
(See page 5 )
Source indicators (See the left table )
Playing Repeatedly—Repeat Play
1Press repeatedly before you start playback to specify the repeat mode
as follows:
REP 1 Repeats the current (or specified) track.
REP GRP Repeats all tracks in the current group (MP3/
WMA only).
ALL REP ALL Repeats all tracks.
REP OFF Normal playback
2
or
RESUME Play
When you stop the playback by one of the following operations, this System stores the
beginning of the stopped track on the disc or stores the stopped position of the file on
the USB mass storage class device.
– Pressing 7 once (The RESUME indicator lights on the display.)
– Changing the source
– Turning off the System
When you start playback again, playback starts from the stored position.
To clear the stored position, press 7 while playback is stopped.
• Opening the disc tray or disconnecting the USB mass storage class device also clears
the stored position.
NOTE
This function does not work in program play and random play (see the right tables).
NOTICE
• Do not put objects such as the
headphone cord on “touch sensor panel.”
• Do not put a fluorescent light near the
System; otherwise, “touch sensor panel”
may not work correctly.
Thank you for purchasing a JVC product.
CAUTION:
E cessive sound pressure from earphones or headphones
can cause hearing loss.

iPod is not played back from the System
\ The iPod battery charge function is deactivated.
\ The iPod is not compatible with the System. Check the
compatibility on the list on page 6.
iPod is not charged
\ The source is not “iPod.”
\ The System is in the Save mode.
\ The iPod battery charge function is deactivated.
Timer Operations
Daily Timer does not work
\ The System has been turned on when the on-time
comes. Timer starts working only when the System is
turned off.
\ The iPod battery is not charged through the iPod
terminal when “IPOD” is selected as the playback source.
To Play Back Digital Audio Player Easily
Quick Portable Link (QP Link) automatically switches the
source to LINE as the Digital Audio Player connected to the
LINE IN jack starts playback.
Press and hold for more than 2 seconds to
activate QP Link.
The QPL indicator lights on the display.
To cancel this function, press and hold for more
than 2 seconds again.
When QP Link is activated, connecting a Digital Audio Player
to the LINE IN jack and starting playback performs the
following:
– While listening to another source...
Changes the source to “LINE” automatically.
– While the System is on standby...
Turns on the System and changes the source to “LINE”
automatically (not applicable when the display is turned
off ).
NOTE
See “Learning More about This System” on page 7.
Recording on Digital Audio Player
1Start recording or standby recording on the Digital
Audio Player.
2
, , ,or
Start playing the iPod, disc, or USB mass storage class
device, or tune in to the station you want to recording.
NOTES
• Before recording on a Digital Audio Player, deactivate QP
Link or do not connect the Digital Audio Player to the LINE
IN jack; otherwise, “LINE” will be selected as the source and
the recording will stop.
• Sound adjustments (see page 3) do not affect recording on
the Digital Audio Player.
To Select the Audio Output evel
If the recorded sound on the Digital Audio Player connected
to the LINE OUT jack is too loud or too quiet, you can change
the audio output level through the LINE OUT jack (without
changing the volume level).
On the System Press to change the audio output level.
You can select one of two levels
alternately as follows:
Turn the arrow-mark
side down when
connecting the plug.
1Turn the volume to minimum.
2The iPod is turned on and the last track you have selected is played back.
• If the track is not played back automatically, press again.
3Adjust the volume level to the level you want to listen to.
NOTES
• When “iPod” is selected as the source...
– “CONNECT” appears on the main display with the iPod connected.
– “NO CONNE” appears on the main display without the iPod connected.
• The iPod battery is charged through the iPod terminal in the following cases:
– When the System is turned on and the source is “iPod.”
– When the System is turned off.
Disconnecting the iPod
• When disconnecting the iPod, make sure this System is
turned off.
• To disconnect the cable from the iPod,
press the buttons on the sides, while
pulling it out.

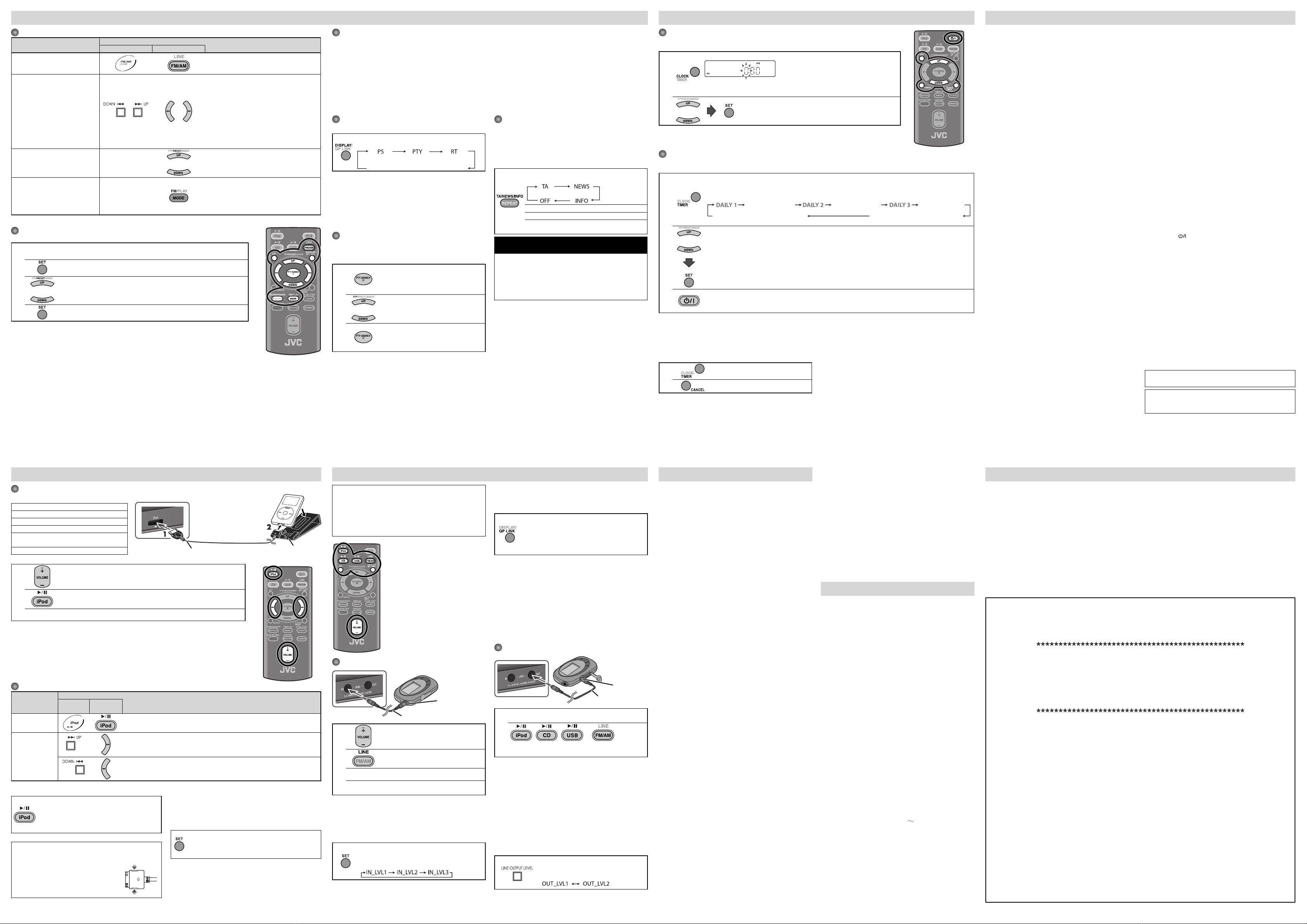

Basic Tuner Operations
To Press
On the System On the remote
Select FM or AM
Press repeatedly to select “FM” or “AM.”
• The selected frequency appear on the
main display.
Select a frequency
or
or
Press and hold for more than 2 seconds.
The System starts searching for stations and
stops when a station of sufficient signal
strength is tuned in.
• If an FM program is broadcast in stereo, the
ST (stereo) indicator lights on the display
(only when the reception is good).
• Press during searching to stop.
• Press repeatedly to change the frequency
step by step.
Tune in to a preset station —or
Press to select a preset number for the
station you store.
• For presetting stations, see below.
Change the FM reception mode
(When an FM stereo broadcast
is hard to receive or noisy)
—
Press to improve reception.
The MONO indicator lights on the display.
Reception will improve though the stereo
effect is lost.
To restore the stereo effect, press again.
5 7
6 8
Troubleshooting Maintenance
Speci ications
Receiving FM Stations with Radio Data System
Radio Data System allows FM stations to send an additional signal along with their regular program signals.
With the System, you can receive the following types of Radio Data System signals.
PS (Program Service): Shows commonly known station names.
PTY (Program Type): Shows types of broadcast programs.
RT (Radio Text): Shows te t messages the station sends.
Enhanced Other Networks: Provides the information about the types of the programs broadcast by the Radio Data System
stations of the different networks.
NOTE
If you want to know more about Radio Data System, visit <http://www.rds.org.uk>.
Listening to Digital Audio Player
1Turn the volume to minimum.
2Press repeatedly to select “LINE.”
3Start playing the Digital Audio Player connected.
4Adjust the volume level to the level you want to listen
to.
To Adjust the Audio Input evel
If the sound from the Digital Audio Player connected to the
LINE IN jack is too loud or too quiet, you can change the
audio input level through the LINE IN jack (without changing
the volume level).
Press and hold for more than 2 seconds while
“LINE” is selected as the source.
You can select one of three levels as follows:
Learning More about This System
Basic and Common Operations (see page 3)
• Pressing one of the source buttons also turns on the
System and starts playing back.
Playing Back a Disc/USB Mass Storage Class Device
(see page 4)
• This System cannot play “packet write” discs.
• For MP3/WMA playback...
– In this manual, “file” and “track” are interchangeably used
for MP3/WMA operations.
– This System can show the Tag data (Version 1).
– MP3/WMA discs are required a longer readout time than
regular CDs. (It depends on the comple ity of the group/
file configuration.)
– Some MP3/WMA files cannot be played back and will be
skipped. This result from their recording processes and
conditions.
– When making MP3/WMA discs, use ISO 9660 Level 1 or
Level 2 for the disc format.
– This System can play back MP3/WMA files with the
e tension code <.mp3> or <.wma> (regardless of the
letter case—upper/lower).
– It is recommended that you make each MP3/WMA file
at a sampling rate of 44.1 kHz and at bit rate of 128 kbps.
This System cannot play back files made at bit rate of less
than 64 kbps.
– Playback order of MP3/WMA tracks may be different from
the one you have intended while recording. If a folder
does not include MP3/WMA tracks, they are ignored.
• For the USB mass storage class device playback...
– When connecting a USB mass storage class device, also
refer to its manual.
– Connect one USB mass storage class device to the
System at a time. Do not use a USB hub.
– This System is compatible with the USB Full-Speed (not
compatible with the USB 1.1).
– You can play back MP3/WMA files in a USB mass storage
class device (ma imum data transfer rate: 2 Mbps).
– You cannot play back a file larger than 2 Gigabyte.
– This System cannot recognize a USB mass storage class
device whose rating is other than 5 V and does not
e ceed 500 mA.
– This System may not play back some USB mass storage
class devices and does not support DRM (Digital Rights
Management).
• An iPod does not play on the USB MEMORY terminal.
• This System can recognize up to 511 tracks in a disc/USB
mass storage class device. Also, the System can recognize
up to 150 tracks per group and up to 99 groups in a disc/
USB mass storage class device (for MP3/WMA).
– Playable files which do not belong to any groups are
handled as Group 1.
Listening to iPod (see page 6)
• If the iPod does not play correctly, update your iPod
Software to the latest version. For details about updating
your iPod, check on the Apple web site
<http://www.apple.com>.
• The iPod battery cannot be charged while the System is in
the Save mode.
• When the iPod is not charged through the System, the
iPod may not be turned on from the System.
• You cannot send any data to your iPod from the System.
• Sound distortion may occur when playing back audio
sources with high recording levels. When distortion occurs,
it is recommended to turn off the equalizer of the iPod. For
information on operating the iPod, see the iPod instruction
manual.
• Do not touch or hit the iPod terminal pins or connector
pins directly. It might cause damages to the connector
part.
Listening to Digital Audio Player (see page 6)
• When the sound signal from the Digital Audio Player is too
weak, QP Link may not function correctly.
In this case, turn up the volume of the Digital Audio Player
so that the System can detect the sound signal properly.
• Changing from “LINE” to another source while QP Link
works will deactivate QP Link temporarily.
In this case, the following reactivate QP Link:
– Pressing and holding QP LINK on the remote control.
– When no sound signal comes from the LINE IN jack for
about 30 seconds after the System is turned off.
• If you press button to turn the System off or if preset
Timer turns the System off while QP Link works, the
System deactivates QP Link temporarily. In such cases, the
following reactivate QP Link:
– When no sound signal comes from the LINE IN jack for
about 30 seconds after the System is turned off.
– When you turn on the power again.
Setting the Clock and Daily Timer (see page 7)
• You can set the clock and Daily Timer while the Save mode
is turned on. While setting the clock or Daily Timer, the
display is turning on.
• The clock may gain or lose 1 to 2 minutes per month. If this
happens, readjust the clock.
• When you unplug the AC power cord or if a power failure
occurs, the clock and the timer will be canceled. You need
to set the clock first, then the timer again.
Timer Priority:
• If you set the Sleep Timer after Daily Timer starts playing
the selected source, Daily Timer is canceled.
JVC bears no responsibility for any loss of data in USB mass
storage class device and/or iPod while using this System.
Microsoft and Windows Media are either registered
trademarks or trademarks of Microsoft Corporation in the
United States and/or other countries.
SAFETY INSTRUCTIONS
“SOME DOS AND DON’TS ON THE SAFE USE OF EQUIPMENT”
This equipment has been designed and manufactured to meet international safety standards but, like any electrical
equipment, care must be taken if you are to obtain the best results and safety is to be assured
Do read the operating instructions before you attempt to use the equipment
Do ensure that all electrical connections (including the mains plug, extension leads and interconnections between
pieces of equipment) are properly made and in accordance with the manufacturer’s instructions Switch off and
withdraw the mains plug when making or changing connections
Do consult your dealer if you are ever in doubt about the installation, operation or safety of your equipment
Do be careful with glass panels or doors on equipment
DON’T continue to operate the equipment if you are in any doubt about it working normally, or if it is damaged in any
way—switch off, withdraw the mains plug and consult your dealer
DON’T remove any fixed cover as this may expose dangerous voltages
DON’T leave equipment switched on when it is unattended unless it is specifically stated that it is designed for
unattended operation or has a standby mode
Switch off using the switch on the equipment and make sure that your family know how to do this
Special arrangements may need to be made for infirm or handicapped people
DON’T use equipment such as personal stereos or radios so that you are distracted from the requirements of traffic
safety It is illegal to watch television whilst driving
DON’T listen to headphones at high volume as such use can permanently damage your hearing
DON’T obstruct the ventilation of the equipment, for example with curtains or soft furnishings
Overheating will cause damage and shorten the life of the equipment
DON’T use makeshift stands and NEVER fix legs with wood screws—to ensure complete safety always fit the
manufacturer’s approved stand or legs with the fixings provided according to the instructions
DON’T allow electrical equipment to be exposed to rain or moisture
ABOVE ALL
– NEVER let anyone, especially children, push anything into holes, slots or any other opening in the case
—this could result in a fatal electrical shock ;
– NEVER guess or take chances with electrical equipment of any kind—it is better to be safe than sorry!
Listening to FM and AM Broadcasts
Listening to Digital Audio Player
Digital Audio Player
Digital Audio Player
equipped with the
audio input
To audio input
To get the best performance of the System, keep your discs
and mechanism clean.
Handling discs
• Remove the disc from its case by holding it at the edge
while pressing the center hole lightly.
• Do not touch the shiny surface of the disc, or bend the
disc.
• Put the disc back in its case after use.
• Be careful not to scratch the surface of the disc when
placing it back in its case.
• Avoid e posure to direct sunlight, temperature e tremes,
and moisture.
To clean the disc:
• Wipe the disc with a soft cloth in a straight line from center
to edge.
Changing the Radio Data System
In ormation
Each time you press the button, the main display
changes as follows:
NOTES
• If the System takes time to show the Radio Data System
information—PS, PTY, RT signals, “PS,” “PTY,” or “RT” will appear
while searching.
• If no Radio Data System signals are sent by a station, “NO PS,”
“NO PTY,” or “NO RT” appears on the main display.
Searching or Programs by PTY Codes
(PTY Search)
You can locate a particular kind of program from the preset
stations (see the left column) by specifying the PTY codes.
1Press to enter the PTY code setting
mode.
“PTY” and “SELECT” appear alternately on
the main display.
2
or Select a PTY code.
3The System searches 30 preset FM
stations, stops when it finds the one
you have selected, and tunes in to that
station.
NOTES
• To stop searching any time during search, press PTY SEARCH.
• To continue searching after it stops on an unwanted station,
press PTY SEARCH while the indications on the display are
flashing.
• If no program is found, “NOTFOUND” appears on the main
display.
Presetting Stations
You can preset 30 FM and 15 AM stations manually.
1Tune in to a station you want to preset
• You can also store the monaural reception mode for FM preset stations if selected.
2Press to activate the preset number entry mode.
• Finish the following steps while the indication on the display is flashing.
3
or Press to select a preset number for the station you store.
4Press to store the station.
NOTE
When you unplug the AC power cord or if a power failure occurs, the preset stations will be
erased in a few hours.
Switching Temporarily to a Program
o Your Choice Automatically
The Enhanced Other Networks function allows the System
to switch temporarily to a preset FM station broadcasting a
program of your choice (TA, NEWS, or INFO).
• This function works while listening to an FM station
providing the required signals.
Press repeatedly to select the program type as
follows:
TA Traffic announcement in your area.
NEWS News
INFO Program the purpose of which is
impart advice in the widest sense.
How the Enhanced Other Networks function actually
works:
When a station starts broadcasting the program of your
choice, the System automatically switches to the station.
The program type indicator starts flashing.
After the program is over, the System goes back to the
previously tuned station, but the function still remains
active (the indicator stops flashing and remains lit).
Setting the Daily Timer
Using Daily Timer, you can wake up with your favorite music.
• You can store three Daily Timer settings; however, you can activate only one of Daily Timers.
1Press repeatedly to select one of the timer setting modes you want to set—DAILY 1 ON time, DAILY 2 ON
time, or DAILY 3 ON time—as follows:
2
or
1 Adjust the hour then the minute for on-time
2 Adjust the hour then the minute for off-time
3 Select the playback source—“TUNER-FM,” “ TUNER-AM,” “DISC,” “LINE,” “USB,” or “IPOD”*
4 For “FM/AM”: Select a preset channel
For “LINE”: Make the connected device ready for playback
5 Select the volume level
• You can select the volume level (“VOLUME 0” to “VOLUME 31” and “VOLUME – –”). If you select
“VOLUME – –,” the volume is set to the last level when the System is turned off.
3Turn off the System (on standby).
• When the on-time of the daily timer comes, the System sets the volume level gradually to the preset level
after about 10 seconds.
* When “IPOD” is selected as the playback source, charge the iPod battery through the iPod terminal (see page 6); otherwise,
Daily Timer may not work.
• To e it from the timer setting, press CLOCK/TIMER as required.
• To correct a misentry during the process, press CANCEL. You can return to the previous step.
To Turn Off the Daily Timer
1Press repeatedly to select “DAILY 1,”
“DAILY 2,” or “DAILY 3.”
2
To turn on the Daily Timer again, select one of the timer
settings by pressing CLOCK/TIMER, then press SET.
Setting the Clock and Daily Timer
DAILY 1 Timer DAILY 2 Timer DAILY 3 Timer
ON (Time) ON (Time) ON (Time)
Clock setting mode
(See above )
Canceled
IMPORTANT:
It should be noted that it may be unlaw ul to re-
record pre-recorded tapes, records, or discs without
the consent o the owner o copyright in the sound
or video recording, broadcast or cable program and
in any literary, dramatic, musical, or artistic work
embodied therein.
Stereo mini plug cord
(not supplied)
Setting the Clock
Without setting the built-in clock, you cannot use Daily Timer and Sleep Timer.
• “0:00” flashes on the main display until you set the clock.
1Press to activate the clock setting mode.
• If you have already adjusted the clock before, press the button repeatedly
until the clock setting mode is selected.
2
or Adjust the hour, then the minute.
• To e it from the clock setting, press CLOCK/TIMER as required.
• To go back to the previous step, press CANCEL.
If you are having a problem with your System, check this list
for a possible solution before calling for service.
General
Power does not come on
\ Power plug is not inserted securely. Plug in securely.
Adjustments or settings are suddenly canceled before you
finish
\ There is a time limit. Repeat the procedure again.
Operations are disabled
\ The built-in microprocessor may malfunction due to
e ternal electrical interference. Unplug the AC power
cord and then plug it back in.
Unable to operate the System from the remote control
\ The path between the remote control and the remote
sensor on the System is blocked.
\ The batteries are e hausted.
No sound is heard
\ Speaker connections are incorrect or loose.
\ Headphones are connected.
Disc/USB Mass Storage Class Device Operations
The disc/USB mass storage class device does not play
\ The disc is placed upside down. Place the disc with the
label side up.
\ The disc is recorded with the “packet writing (UDF file
system).” It cannot be played. Check the files you want to
play back.
\ The USB mass storage class device is not connected
properly.
MP3/WMA groups and tracks are not played back as you
expect
\ The playing order is determined when the groups
and tracks were recorded. It depends on the writing
application.
The disc/USB mass storage class device sound is
discontinuous
\ The disc is scratched or dirty.
\ MP3/WMA files have not been properly copied into the
USB mass storage class device.
The disc tray does not open or close
\ The AC power cord is not plugged in.
\ Disc ejection is prohibited (see page 4).
Radio Operations
Hard to listen to broadcasts because of noise
\ Antennas connections are incorrect or loose.
\ The AM loop antenna is too close to the System.
\ The FM antenna is not properly e tended and positioned.
iPod Operations
iPod is not turned on
\ The iPod is not connected properly.
iPod does not play though “CONNECT” appears on the main
display
\ The battery of the iPod is empty. Leave the iPod
connected for more than ten minutes.
Ampli ier section
OUTPUT POWER:
20 W (10 W + 10 W) at 6 Ω (10% THD)
Speakers/Impedance: 6 Ω – 16 Ω
Audio input LINE IN: 500 mV/47 kΩ (at “LINE IN LVL1”)
250 mV/47 kΩ (at “LINE IN LVL2”)
125 mV/47 kΩ (at “LINE IN LVL3”)
Audio output LINE OUT: 1.0 Vrms (47 kΩ) (at “LINE OUT LVL1”)
2.0 Vrms (47 kΩ) (at “LINE OUT LVL2”)
Digital input: USB MEMORY
Tuner section
M tuning range: 87.50 MHz - 108.00 MHz
AM (MW) tuning range: 522 kHz - 1 629 kHz
CD player section
Dynamic range: 90 dB
Signal-to-noise ratio: 85 dB
Wow and flutter: Immeasurable
USB storage
USB specification: Compatible with the USB 2.0
Full-Speed
Compatible device: Mass storage class
Compatible file system: FAT16, FAT32
Bus power supply: Ma . 500 mA
Speakers
Speaker units: 8 cm cone 1
Impedance: 6 Ω
Dimensions (approx.): 100 mm 184 mm 151 mm
(W/H/D)
Mass (approx.): 0.7 kg each
General
Power requirements: AC 230 V , 50 Hz
Power supply to iPod, USB mass storage class device:
5 V/500 mA
Power consumption: 20 W (power on)
2.5 W (standby mode, without
charging iPod)
1.5 W or less (Save Mode)
Dimensions (W x H x D): 287 mm 70 mm 220 mm
Mass: 1.7 kg
Specifications and appearance are subject to change without
prior notice.
Cleaning the System
• Stains should be wiped off with a soft cloth. If the System is
heavily stained, wipe it with a cloth soaked in water-diluted
neutral detergent and wrung well, then wipe clean with a
dry cloth.
• Since the System may deteriorate in quality, become
damaged or get its paint peeled off, be careful about the
following:
– DO NOT wipe it strong.
– DO NOT wipe it with thinner or benzine.
– DO NOT apply any volatile substance such as insecticides
to it.
– DO NOT allow any rubber or plastic to remain in contact
for a long time.
Listening to iPod
Front view
Front view
Basic iPod Operations
To
Press
On the
System
On the
remote
Play back • During playback, press again to pause.
Select a track/
Forward search/
Reverse search
• Press to select the ne t track.
• Press and hold to fast-forward the track during playback.
• Press to go back to the beginning of the current or previous track.
• Press and hold to fast-reverse the track during playback.
To audio output (or
headphone out, etc )
Stereo mini plug cord (not supplied)
Listening to iPod
Connection cable for iPod (supplied)
Front view
Stand for iPod (supplied)
To Turn off the iPod
Press and hold for more than 2 seconds.
• Turning off the System* or changing “iPod” to
another source also turns off the iPod.
* Turning off the System may not turn off the
iPod depending on the current source.
Frequency
(Non-Radio Data System signal)
Compatible iPod types:
iPod nano 1GB/2GB/4GB
iPod nano (2nd Generation) 2GB/4GB/8GB
iPod mini 4GB/6GB
iPod (4th Generation) 20GB/40GB
iPod photo (4th Generation)
20GB/30GB/40GB/60GB
iPod video (5th Generation) 30GB/60GB/80GB
NOTE
If an iPod which is not on the compatible iPod types list
above is connected, the iPod may not be operated from
the System. In this case, deactivate the iPod battery charge
function so that the iPod may be operated, but the iPod
cannot be charged through the System.
To deactivate the battery charge function, change
the source to “iPod” and press and hold while no
iPod is connected.
• “P.OFF” appears on the main display.
To use the battery charge function, change the source to
“iPod” and press and hold SET until “P.ON” appears on the
main display.
