JVC AV29A10EUS User manual

No.51818
AV29A10EUS
1COPYRIGHT © 2001 VICTOR COMPANY OF JAPAN, LTD.
Sept. 2001
AV29A10EUS
CONTENTS
! SPECIFICATIONS !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! !!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!! 2
! SAFETY PRECAUTIONS !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! !!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!! 4
! FEATURES!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! !!!
!!!!!!
!!! 5
! FUNCTIONS !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! !!
!!!!
!! 6
! SPECIFIC SERVICE INSTRUCTIONS !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! !!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!! 8
! SERVICE ADJUSTMENTS !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! !!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!! 16
! PARTS IST !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! !
!!
!33
!
OPERATING INSTRUCTIONS
!
STANDARD CIRCUIT DIAGRAM !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! !!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!! 2-1
SERVICE MANUA
CO OUR TE EVISION
BASIC CHASSIS
MF

No.51818
AV29A10EUS
2
SPECIFICATIONS
Item CONTENTS
Dimensions ( W"
""
"H"
""
"D ) 32mm"585mm"509mm
Mass 46.0kg
TV RF System CCIR B/G, I, D/K, L, L’
Colour System PAL / SECAM
NTSC 3.58 / 4.43 (Play back only)
Sound System A2 (B/G, D/K), NICAM (B/G, I, D/K, L)
Teletext System Fastext(United Kingdom system), TOP(German system), WST(World standard system)
Receiving Frequency
VHF 4 MHz# 4 0MHz
UHF 4 0MHz!862MHz
French CATV 116MHz!1 2MHz / 220MHz!469MHz
Intermediate Frequency
VIF Carrier 38.9MHz(B/G, D/K, I, L), 33.95MHz(L’)
SIF Carrier 33.4MHz(5.5MHz : B/G) / 32.9MHz(6.0MHz : I)
32.4MHz(6.5MHz : D/K, L) / 40.45MHz(6.5MHz : L’)
Colour Sub Carrier
PA 4.43MHz
SECAM 4.40625MHz / 4.25MHz
NTSC 3.58MHz / 4.43MHz
Power Input AC 220V#240V , 50Hz
Power Consumption 180W(Maximum), 152W(Average), 2.8W(Standby), 152W/h
Picture Tube Visible size : 69.4cm, Measured diagonally
High Voltage 31.0kV (at zero beam current)
Speaker 4cm"16cm round"2
Audio Output Rated power output : .5W+ .5W
Input / Output terminals
EXT-1 21-pin Euro connector (SCART socket), Video, Audio L/R, RGB signal input are available
TV broadcast output (Video and Audio L/R) are available
EXT-2 21-pin Euro connector (SCART socket), S-Video, Video, Audio L/R, RGB signal input are available
AV selector (TV LINK) function is available
EXT-3 21-pin Euro connector (SCART socket), Video, Audio L/R, RGB signal input are available
EXT-4 RCA pin type, S-Video, Video, Audio L/R signal input are available
Audio output RCA pin type, Variable audio L/R and sub woofer output are available
Aerial socket 5$unbalanced, Coaxial
Headphone jack Stereo mini jack (%3.5mm )
Remote Control Unit RM-C54 (AAA/R03 dry cell battery"2)
Design & specifications are subject to change without notice.
+1kV
-1.5kV

No.51818
AV29A10EUS
3
&
&&
&21-pin Euro connector (SCART socket) : EXT-1 / EXT-2 / EXT-3
(P-P= Peak to Peak, S-W= Sync tip to white peak, B-W= Blanking to white peak)
Pin Signal Designation Matching Value EXT-1 EXT-2 EXT-3
1 AUDIO R output 500mVrms(Nominal), Low impedance '
(TV OUT)
'
(LINE OUT) NC
2 AUDIO R input 500mVrms(Nominal), High impedance '''
3 AUDIO L output 500mVrms(Nominal), Low impedance '
(TV OUT)
'
(LINE OUT) NC
4 AUDIO GND '''
5 GND (B) '''
6 AUDIO L input 500mVrms(Nominal), High impedance '''
B input 00mVB-W, 5$''
NC
8FUNCTON SW
(SLOW SW)
Low : 0-3V,
High : 8-12V, High impedance '''
9 GND (G) '''
10 SCL3 NC 'NC
11 G input 00mVB-W, 5$''
NC
12 SDA3 NC 'NC
13 GND (R) '''
14 GND (YS)'' NC
15 R / C input R : 00mVB-W, 5$
C : 300mVP-P, 5$
'
(only R) '' (only C)
16 Ys input Low : 0 - 0.4, High : 1 - 3V, 5$'' NC
1 GND(VIDEO output) '''
18 GND(VIDEO input) '''
19 VIDEO output 1VP-P(Negative going sync), 5$'
(TV)
'
(LINE OUT) NC
20 VIDEO / Y input 1VP-P(Negative going sync), 5$'
(only VIDEO input) ''
21 COMMON GND '''
[Pin assignment]

No.51818
AV29A10EUS
4
SAFETY PRECAUTIONS
1. The design of this product contains special hardware, many
circuits and components specially for safety purposes. For
continued protection, no changes should be made to the original
design unless authorized in writing by the manufacturer.
Replacement parts must be identical to those used in the original
circuits. Service should be performed by qualified personnel
only.
2. Alterations of the design or circuitry of the products should not be
made. Any design alterations or additions will void the
manufacturer's warranty and will further relieve the manufacturer
of responsibility for personal injury or property damage resulting
therefrom.
3. Many electrical and mechanical parts in the products have
special safety-related characteristics. These characteristics are
often not evident from visual inspection nor can the protection
afforded by them necessarily be obtained by using replacement
components rated for higher voltage, wattage, etc. Replacement
parts which have these special safety characteristics are
identified in the parts list of Service manual. Electrical
components having such features are identified by shading
on the schematics and by (!
!!
!) on the parts list in Service
manual. The use of a substitute replacement which does not
have the same safety characteristics as the recommended
replacement part shown in the parts list of Service manual may
cause shock, fire, or other hazards.
4. Don't short between the IVE side ground and ISO ATED
(NEUTRA ) side ground or EARTH side ground when
repairing.
Some model's power circuit is partly different in the GND. The
difference of the GND is shown by the LIVE : (") side GND, the
ISOLATED(NEUTRAL) : (#) side GND and EARTH : ($) side
GND. Don't short between the LIVE side GND and
ISOLATED(NEUTRAL) side GND or EARTH side GND and
never measure with a measuring apparatus (oscilloscope etc.)
the LIVE side GND and ISOLATED(NEUTRAL) side GND or
EARTH side GND at the same time.
If above note will not be kept, a fuse or any parts will be broken.
5. If any repair has been made to the chassis, it is recommended
that the B1 setting should be checked or adjusted (See
ADJUSTMENT OF B1 POWER SUPPLY).
6. The high voltage applied to the picture tube must conform with
that specified in Service manual. Excessive high voltage can
cause an increase in X-Ray emission, arcing and possible
component damage, therefore operation under excessive high
voltage conditions should be kept to a minimum, or should be
prevented. If severe arcing occurs, remove the AC power
immediately and determine the cause by visual inspection
(incorrect installation, cracked or melted high voltage harness,
poor soldering, etc.). To maintain the proper minimum level of
soft X-Ray emission, components in the high voltage circuitry
including the picture tube must be the exact replacements or
alternatives approved by the manufacturer of the complete
product.
. Do not check high voltage by drawing an arc. Use a high voltage
meter or a high voltage probe with a VTVM. Discharge the
picture tube before attempting meter connection, by connecting
a clip lead to the ground frame and connecting the other end of
the lead through a 10k! 2W resistor to the anode button.
8. When service is required, observe the original lead dress. Extra
precaution should be given to assure correct lead dress in the
high voltage circuit area. Where a short circuit has occurred,
those components that indicate evidence of overheating should
be replaced. Always use the manufacturer's replacement
components.
9. Isolation Check
(Safety for Electrical Shock Hazard)
After re-assembling the product, always perform an isolation
check on the exposed metal parts of the cabinet (antenna
terminals, video/audio input and output terminals, Control knobs,
metal cabinet, screwheads, earphone jack, control shafts, etc.)
to be sure the product is safe to operate without danger of
electrical shock.
(1) Dielectric Strength Test
The isolation between the AC primary circuit and all metal parts
exposed to the user, particularly any exposed metal part having a
return path to the chassis should withstand a voltage of 3000V
AC (r.m.s.) for a period of one second.
(. . . . W ithstand a voltage of 1100V AC (r.m.s.) to an appliance
rated up to 120V, and 3000V AC (r.m.s.) to an appliance rated
200V or more, for a period of one second.)
This method of test requires a test equipment not generally found
in the service trade.
(2) eakage Current Check
Plug the AC line cord directly into the AC outlet (do not use a line
isolation transformer during this check.). Using a "Leakage
Current Tester", measure the leakage current from each exposed
metal part of the cabinet, particularly any exposed metal part
having a return path to the chassis, to a known good earth
ground (water pipe, etc.). Any leakage current must not exceed
0.5mA AC (r.m.s.).
However, in tropical area, this must not exceed 0.2mA AC
(r.m.s.).
"
""
" Alternate Check Method
Plug the AC line cord directly into the AC outlet (do not use a line
isolation transformer during this check.). Use an AC voltmeter
having 1000 ohms per volt or more sensitivity in the following
manner. Connect a 1500! 10W resistor paralleled by a 0.15"F
AC-type capacitor between an exposed metal part and a known
good earth ground (water pipe, etc.). Measure the AC voltage
across the resistor with the AC voltmeter. Move the resistor
connection to each exposed metal part, particularly any exposed
metal part having a return path to the chassis, and measure the
AC voltage across the resistor. Now, reverse the plug in the AC
outlet and repeat each measurement. Any voltage measured
must not exceed 0. 5V AC (r.m.s.). This corresponds to 0.5mA
AC (r.m.s.).
However, in tropical area, this must not exceed 0.3V AC (r.m.s.).
This corresponds to 0.2mA AC (r.m.s.).
0.15
"
F AC-TYPE
1500
!
10W
GOOD EARTH GROUND
PLACE THIS PROBE
ON EACH EXPOSED
METAL PART
AC VOLTMETER
(HAVING 1000
!
/V,
OR MORE SENSITIVITY)

No.51818
AV29A10EUS
5
FEATURES
" This TV model has 100Hz vertical scanning for the screen refreshing. And pure flat CRT reproduce fine textured.
" Digi Pure pro : Auto digital pure with motion picture compensation.
" Built in dual screen system, Picture and Text screen able to displayed.
" The TELETEXT SYSTEM has a built-in FASTEXT (UK system), TOP (German system) and WST (world standard system) system.
" Because this TV unit can receive the multiplex broadcast, users can enjoy music programs and sporting events with live realism. In addition,
BILINGUAL programs can be heard in their original language.

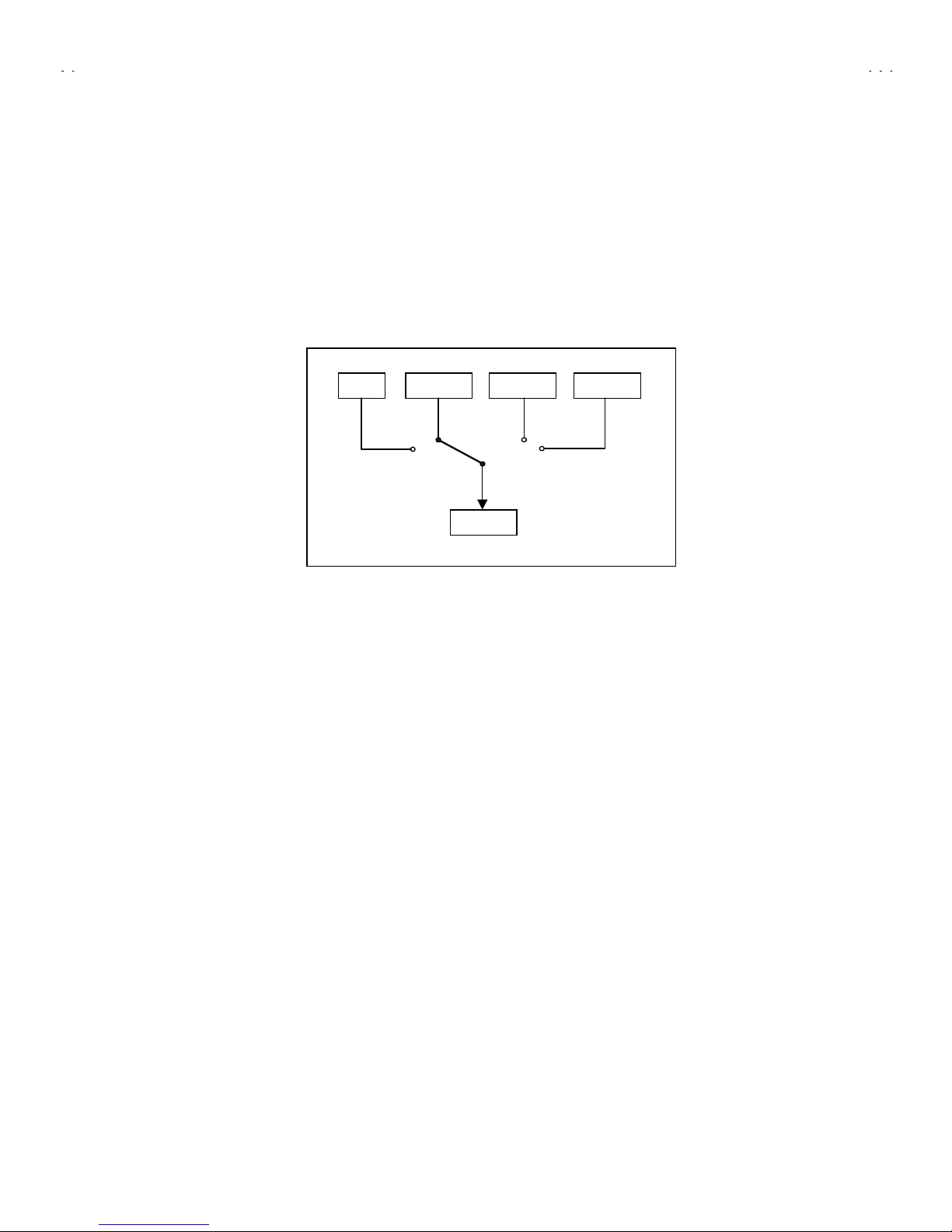

" Users can make VCR dubbing of picture and sound by controlling the AV selector to select an optional source at the EXT-2 output shown in
figure bellow.
TV EXT-1 EXT-3
EXT-2
EXT-4

No.51818
AV29A10EUS
6
&
&&

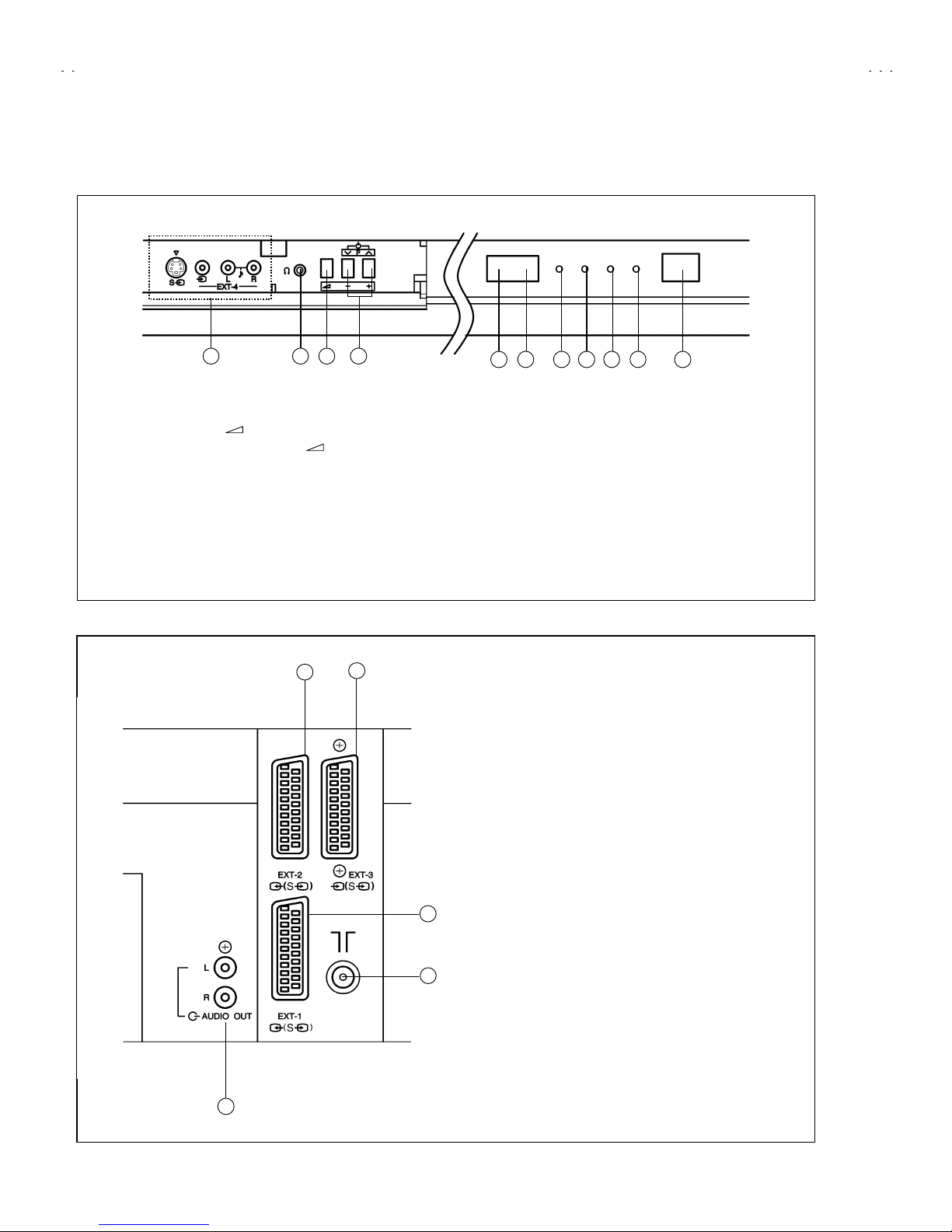

&REAR TERMINA
FUNCTIONS
&
&&
&FRONT CONTRO PANE
1 42 3 5 6 7 8 9 10 11
#
EXIT-4 terminals
$
Headphone jack (mini jack)
%
Volume Set ( ) button
&
P '/( buttons or Volume ( ) -/+ buttons
)
Remote control sensor
*
ECO sensor
+
Hyper Sound lamp
,
ECO lamp
-
Sleep timer lamp
.
Power lamp
/
Main power button
3
2
(
EXT-1(IN/OUT) Terminal
)
EXT-2(IN/OUT) Terminal
*
EXT-3(IN) Terminal
+
Audio out(L, R) Terminal
,
Aerial Socket
5
1
4

No.51818
AV29A10EUS
&
&&

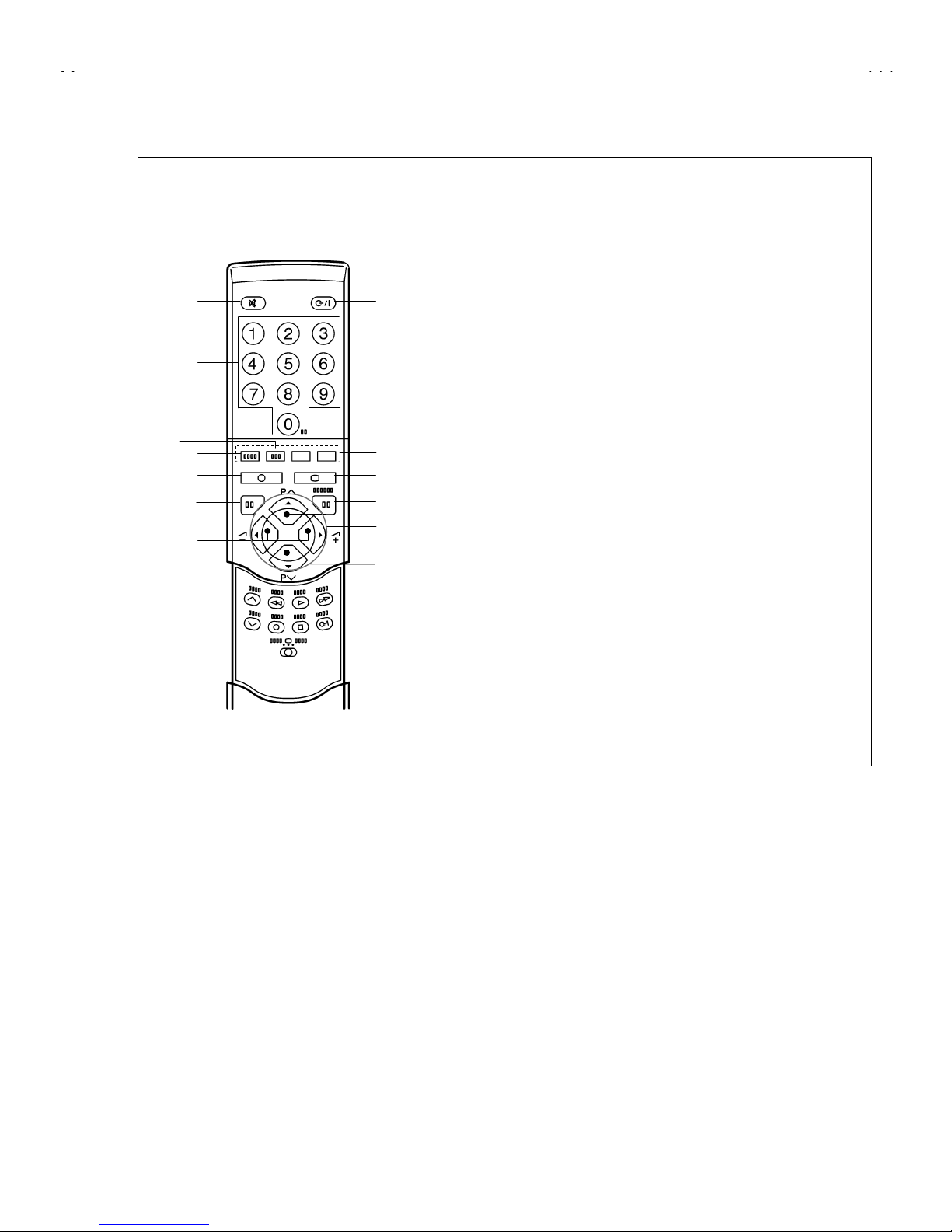

&REMOTE CONTRO UNIT
(-
.
#
Muting Key
$
Number Key
%
Hyper sound Key
&
Zoom Key
)
Information Key
*
TV Key
+
Stand-by Key
,
Colour Key
-
Text Key
.
Menu / Ok Key
/
Volume -/+ Key
0
Channel Up/Down Key
1
Pr(Program) Key
Up/Down and Left/Right
/
)
+
,
0
1
2
*3
4

No.51818
AV29A10EUS
8
SPECIFIC SERVICE INSTRUCTIONS
DISASSEMB Y PROCEDURE
REMOVING THE REAR COVER
1. Unplug the power plug.
2. As shown in the Fig. 1, remove the 14 screws marked A.
3. Withdraw the rear cover toward you.
REMOVING THE CHASSIS
" After removing the rear cover.
1. Slightly raise the both sides of the chassis by hand and remove
the 2 claws under the both sides of the chassis from the front
cabinet.
2. Withdraw the chassis backward.
(If necessary, detach the wire clamp, connectors etc.)
REMOVING THE AV TERMINA BOARD
" After removing the rear cover.

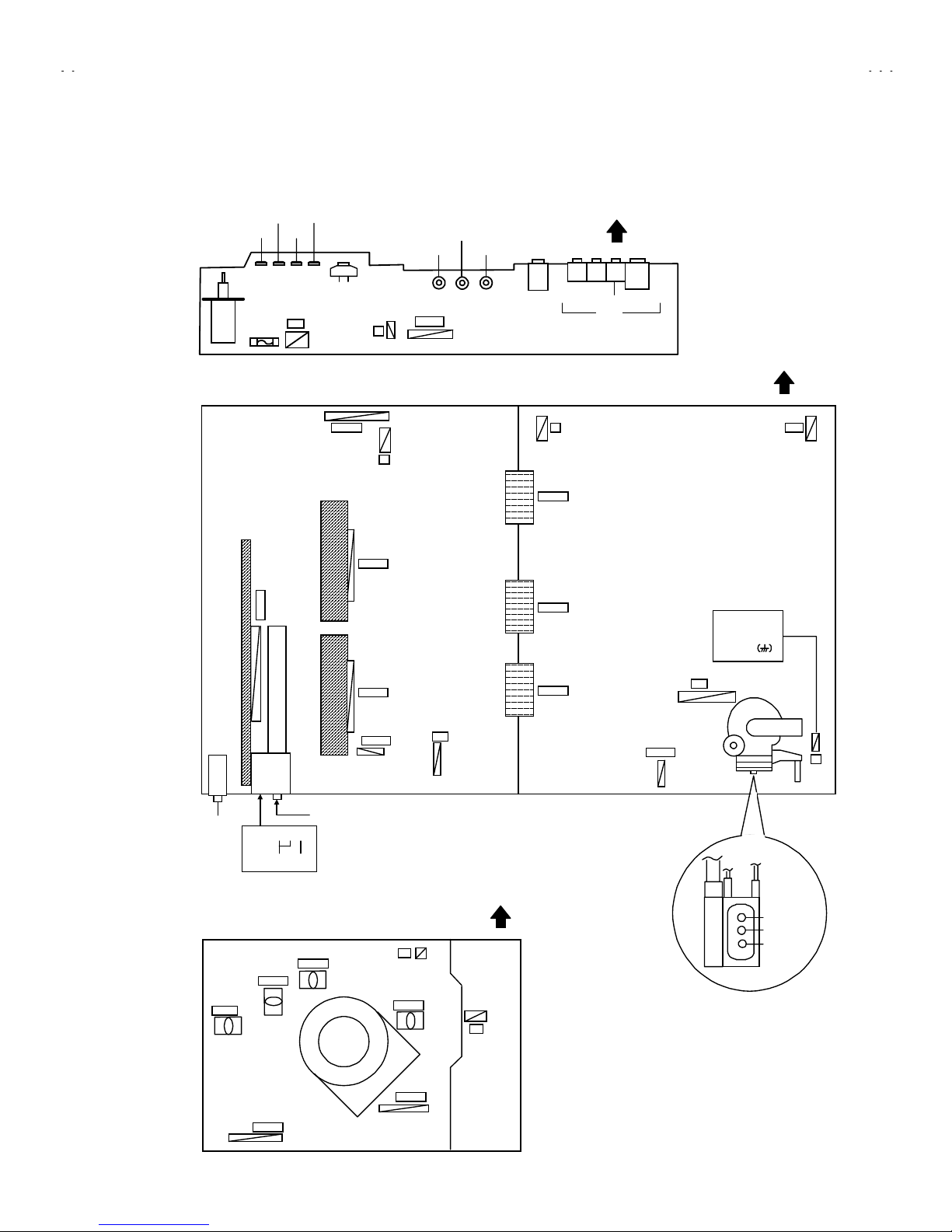

1. As shown in Fig. 1, remove the 3 screws marked B.
2. As shown in Fig. 2, remove the 2 claws marked E under the
CHASSIS.
3. As shown in Fig. 2, remove the AV TERMINAL BOARD slightly in
the direction of the arrow F.
REMOVING THE SPEAKER
" After removing the rear cover and chassis.
1. As shown in the Fig. 1, remove the 2 screws marked D.
NOTE : When removing the screws marked D of the speaker,
remove the lower side screw first. Then remove the upper
one.
2. Remove the 2 screws C attaching the speaker.
3. Follow the same steps when removing the other hand speaker.
CHECKING THE PW BOARD
To check the back side of the PW Board.
1) Pull out the chassis. (Refer to REMOVING THE CHASSIS).
2) Erect the chassis vertically so that you can easily check the back
side of the PW Board.
[CAUTION]
" When erecting the chassis, be careful so that there will be no
contacting with other PW Board.
" Before turning on power, make sure that the wire connector is
properly connected.
" When conducting a check with power supplied, be sure to confirm
that the CRT EARTH WIRE (BRAIDED ASS’Y) is connected to
the CRT SOCKET PW board.
WIRE C AMPING AND CAB E TYING
1. Be sure to clamp the wire.
2. Never remove the cable tie used for tying the wires together.
Should it be inadvertently removed, be sure to tie the wires with a
new cable tie.
AV SW PWB
C
D
AV TERMINA BOARD
Fig. 2
C

No.51818
AV29A10EUS
9
FRONT CABINET
CRT SOCKET
PWB
D
C
SPEAKER
FRONT CONTRO PWB
CONTRO BASE
MICOM
PWB
100Hz
PWB
POWER & DEF PWB
CHASSIS
HVT
AV TERMINA BOARD
AV SW PWB
MAIN PWB
D
C
SPEAKER
POWER CORD
REAR COVER
A
B

No. 51818
AV29A10EUS
10
REMOVING THE CRT
Replacement of the CRT should be performed by 2 or more persons.
After removing the rear cover, chassis and anode wires etc.

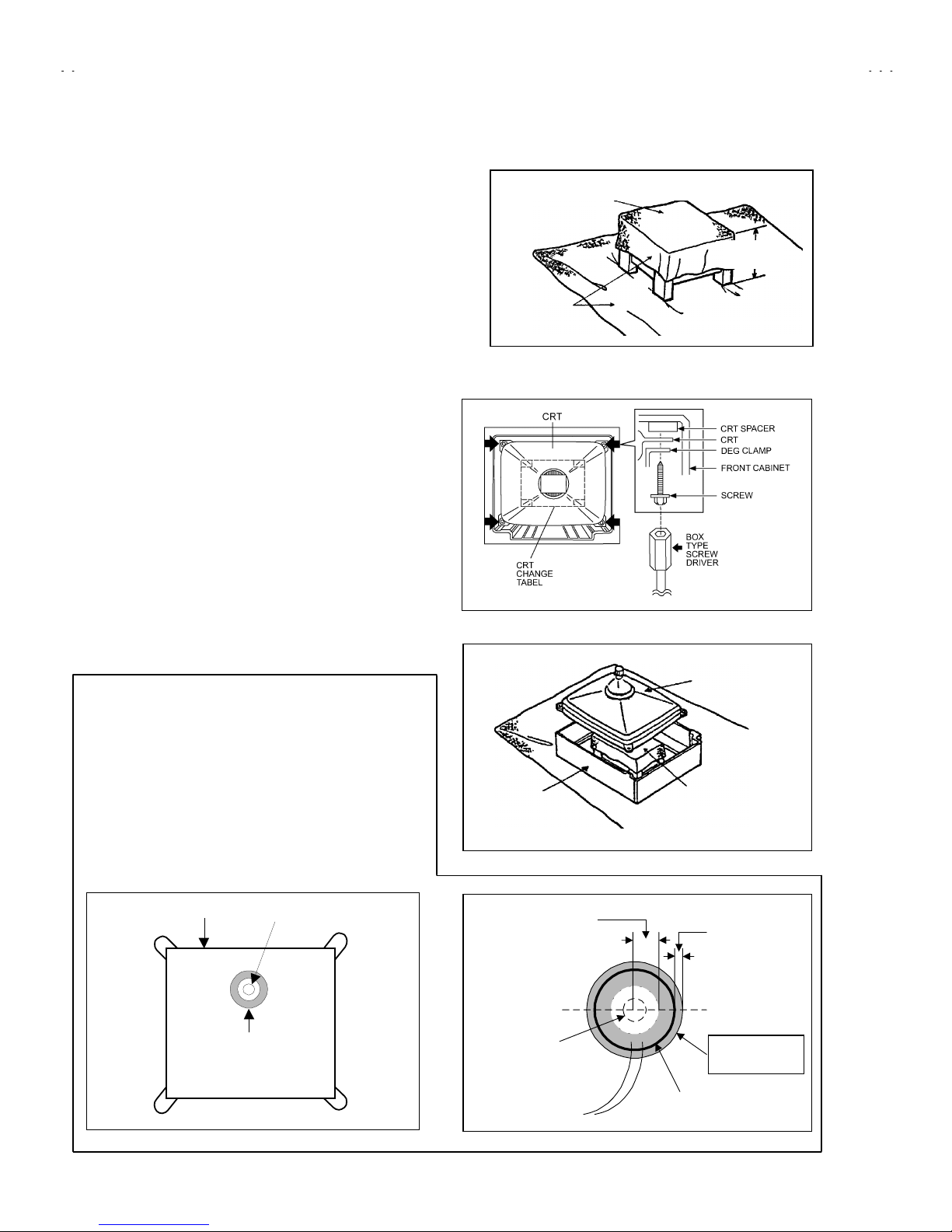

1. Prepare the CRT change table, the CRT change table should
also be covered with such soft cloth as shown in Fig.3.
The CRT change table should preferably be smaller that the CRT
surface, and its height be about 35cm.
2. While keeping the CRT down surface, mount the TV set on the
CRT change table as shown in Fig.3.
3. Remove 4 screws marked by arrows with a box type screw driver
as shown in Fig.4.
4. Since the cabinet will drop when screws have been removed, be
sure to support the cabinet with hands.
5. After 4 screws have been removed, put the cabinet slowly on
cloth. At this time, be carefully so as not to damage the front
surface of the cabinet as shown in Fig.5.
6. The CRT should be assembled according to the opposite
sequence of its disintegrated steps.
[About CRT Spacer]
An appropriate CRT spacer should be used in the corresponding
CRT in accordance with the type of the CRT.
When a CRT is replaced, special attention should be paid to this
matter.
COATING OF SI ICON GREASE FOR E ECTRICA
INSU ATION ON THE CRT ANODE CAP SECTION.
Subsequent to replacement of the CRT and HV transformer or
repair of the anode cap, etc. by dismounting them, be sure to coat
silicon grease for electrical insulation as shown in Fig.6.
Wipe around the anode button with clean and dry cloth. (Fig.6)
Coat silicon grease on the section around the anode button. At this
time, take care so that any silicon greases dose not stick to the
anode button. (Fig. )
Silicon grease product No. KS - 650N
CRT CHANGE TABLE
CLOTH
APPROX.
35cm
Fig.3
Fig. 5
CRT
CABINET CRT
CHANGE TABLE
Fig. 7
A
pprox.
20mm (Do not
coat grease on
this section
Silicon grease
should be coated
by 5mm or more
from the outside
diameter of
anode cap.
Anode button
(No sticking of
silicon grease)
Coating position
of silicon grease
Anode cap
Fig. 6
Anode button
CRT
Silicon grease
coating
Fig.4

No. 51818
AV29A10EUS
11
REP ACEMENT OF MEMORY ICs
1. Memory ICs
This TV use memory ICs. In the memory ICs, there are memorized data
for correctly operating the video and deflection circuits. When replacing
memory ICs, be sure to use ICs written with the initial values of data.
2. Procedure for replacing memory ICs
PROCEDURE
(1) Power off
Switch the power off and disconnect the power plug.
(2) Replace ICs.
Be sure to use memory ICs written with the initial data values.
(3) Power on
Connect the power plug and switch the power on.
(4) Check and set SYSTEM CONSTANT SET
It must not adjust without signal.
1) Press the INFORMATION key and the MUTING key of the
REMOTE CONTROL UNIT simultaneously.
2) The SERVICE MENU screen of Fig. 1 will be displayed.
3) While the SERVICE MENU is displayed, press the
INFORMATION key and MUTING key simultaneously, and the
SYSTEM CONSTANT SET screen of Fig. 2 will be displayed.
4) Check the setting values of the SYSTEM CONSTANT SET of
Table 1. If the value is different, select the setting item with the
FUNCTION UP/DOWN key, and set the correct value with the
FUNCTION EFT/RIGHT key.
5) Press the MENU(OK) key to memorize the setting value.
6) Press the INFORMATION key twice, and return to the normal
screen.
(5) Setting of receive channels
Set the receive channel.
For setting, refer to the OPERATING INSTRUCTIONS.
(6) Setting of SERVICE MENU
Verify the setting items of the SERVICE MENU of Table 2, and reset
where necessary.
For setting, refer to the SERVICE ADJUSTMENTS.
( ) User settings
Check the user setting values of Table 3, and if setting value is
different, set the correct value.
For setting, refer to the OPERATING INSTRUCTIONS.
Fig.1
SYSTEM CONSTANT SET
+ : STORE : EXIT
1. DESTINATION **
OK i
Fig.2
2. CRT TYPE 4 : 3
3. PURITY NO
4. PICTURE TILT NO
5. DIGIPURE PRO YES
6. PIP 1 TUNER
. PIC & TEXT NO
8. DOLBY NO
9. BBE YES
10. PROGRESSIVE YES
11. TDA91 8 YES
12. TONE IC NO
13. FLAT YES
REMOTE CONTRO UNIT KEY ASSIGNMENT
INFORMATION MENU
MUTING
FUNCTION
UP/DOWN
FUNCTION
LEFT/RIGHT

No. 51818
AV29A10EUS
12
SETTING VA UES OF SYSTEM CONSTANT SET (TAB E 1)
Setting item Setting content Setting Value
1. DESTINATION EU
2. CRT TYPE 4 : 3
3. PURITY NO
4. PICTURE TILT NO
5. DIGIPURE PRO YES
6. PIP 1 TUNER
. PIC & TEXT NO
8. DOLBY NO
9. BBE YES
10. PROGRESSIVE YES
11. TDA91 8 YES
12. TONE IC NO
13. FLAT YES
SERVICE MENU SETTING ITEMS (TAB E 2)
Setting item Setting value Setting item Setting value
1. IF 1. VCO
2. ATT ON/OFF [Do not adjust]
4. DEF. 1. V-SHIFT
2. V-SIZE
3. H-CENT
4. H-SIZE
5. TRAPEZ
6. EW-PIN
. COR-PIN
8. COR-UP
9. COR-LO
10. ANGLE
11. BOW
12. V-S.CR
13. V.LIN
2. V / C 1. RGB BLK
2. WDR R
3. WDR G
4. WDR B
5. BRIGHT
6. CONTRAST
. COLOUR
8. HUE
9. SHARP
10. VCO ADJUSTMENT
11. VIDEO AGC
12. SYNC SLICE
5. VSM PRESET
COOL
NORMAL
WARM
1. CONT.
2. BRIGHT
3. SHARP
4. COLOUR
5. HUE
6. WDR R
. WDR G
8. WDR B
3. AUDIO
(Do not adjust)
1. ERR LIMIT
2. A2 ID THR
6. STATUS
(Do not adjust)
VPS
PDC
EK EU EI
16 : 9 4 : 3
YES NO
YES NO
YES NO
YES NO
YES NO
YES NO
YES NO
YES NO
1 TUNER 2 TUNER NO
YES NO
YES NO

No. 51818
AV29A10EUS
13
USER SETTING VA UES (TAB E 3)
Setting item Setting value Setting item Setting value
SUB POWER ON VOLUME 10
SHIPPING CHANNEL PR1 DISPLAY INDICATED
PRESET CHANNEL See OPERATING
INSTRUCTIONS. ZOOM MODE REGULAR
PICTURE SETTING EXT SETTING
TINT
CONTRAST
BRIGHT
SHARP
COLOUR
ECO MODE
COOL
CENTER
CENTER
CENTER
CENTER
OFF
ID
DUBBING
BLANK
EXT-15EXT-2
PICTURE FEATURES FEATURES
DIGITAL VNR
DIGIPURE PRO
COLOUR SYSTEM
4:3 AUTO ASPECT
AUTO
AUTO
TV : According to preset CH
EXT : AUTO
PANORAMIC
SLEEP TIMER
BLUE BLACK
CHILD LOCK
DECODER (EXT-2)
OFF
ON
ID : No.0000, All CH : OFF
All CH : OFF
SOUND SETTING INSTA
BASS
TREBLE
BALANCE
TV SPEAKER
HYPER SOUND
BBE
CENTER
CENTER
CENTER
L / R
OFF
ON
LANGUAGE
EDIT
ENGLISH
PR CHANNEL ONLY
OTHERS : BLANK
DIGITA SURROUND
3D PHONIC
TV SPEAKER
SUB WOOFER
LEVEL
VOLUME
L / C / R
OFF
CENTRE
CENTRE
DOLBY DIGITAL
TV SPEAKER
REAR SPEAKER
SUB WOOFER
TEST TONE
LEFT
CENTRE
RIGHT
SURROUND
DELAY TIME
L / C / R
ON
OFF
OFF
MAX
MAX
MAX
MAX
0

No. 51818
AV29A10EUS
14
Setting item
Colour system
Setting item
Colour system
INITIA SETTING VA UE OF SERVICE MENU
1. Adjustment of the SERVICE MENU is made on the basis of the initial setting values ; however, the new setting values which set
the screen in its optimum condition may differ from the initial setting.
2. Do not change the initial Setting Values of the Setting (Adjustment) items not listed In “ADJUSTMENT”.
1.IF
SETTING ITEM INITIA SETTING VA UE
1.VCO Proper value by adjustment.
See “adjustment of VCO” contents
2.ATT Do not adjust this item.
2.VIDEO / CHROMA
Initial setting value Initial setting value
PA SECAM NTSC PA SECAM NTSC
1. RGB B K 7. CO OUR 000 000 000
2. WDR R 000 8. HUE 020
3. WDR G 000 9. SHARP +00
4. WDR B -012 10. VCO ADJUSTMENT Automatically optimized
after adjustment
5. BRIGHT 000 11. VIDEO AGC 000
6. CONTRAST 000 12. SYNC S ICE +00
3.AUDIO (Do not adjust)
Setting item Variable range Initial setting value (Fixed value)
1. ERR IMIT 00H#FFH 0AH
2. A2 ID THR 00H#FFH 19H
is adjustment not to required

No. 51818
AV29A10EUS
15
4.DEF
INITIA SETTING VA UE
REGU AR ZOOM 16 : 9
Setting item
100Hz i 60Hz p 100Hz i 60Hz p 100Hz i 120Hz i
1. V- SHIFT -2 +6 -1 0 0 0
2. V-SIZE -3 0 0 0 -15 0
3. H-CENT -21 +6 0 0 0 0
4. H-SIZE + -4 0 0 0 0
5. TRAPEZ -23 +11 -4 0 0 0
6. EW-PIN -35 -1 -2 0 0 0
7. COR-PIN 00000 0
8. COR-UP +16 + +9 0 0 0
9. COR- O +6 -1 -1 0 0 0
10. ANG E 00000 0
11. BOW 00000 0
12. V-S.CR +6 0 0 0 0 0
13. V- IN -6 +11 0 0 0 0
5.VSM PRESET
VSM preset mode
Setting item COO NORMA WARM
1. CONT. +16 0 -15
2. BRIGHT -4 0 -2
3. SHARP -8 -8 -8
4. CO OUR +2 0 +1
5. HUE 000
6. WDR R -19 0 +5
7. WDR G -10 0 +1
8. WDR B 000
is adjustment not to required

No. 51818
AV29A10EUS
16
SERVICE ADJUSTMENTS
BEFORE STARTING SERVICE ADJUSTMENT
1. There are 2 ways of adjusting this TV: One is with the
REMOTE CONTRO UNIT and the other is the conventional
method using adjustment parts and components.
2. The setting (adjustment) using the REMOTE CONTRO
UNIT is made on the basis of the initial setting values. The
setting values which adjust the screen to the optimum
condition can be different from the initial setting values.
3. Make sure that connection is correctly made to AC power
source.
4. Turn on the power of the TV and measuring instrument for
warming up for at least 30 minutes before starting adjustment.
5. If the receive or input signal is not specified, use the most
appropriate signal for adjustment.
6. Never touch parts (such as variable resistors, transformers and
condensers) not shown in the adjustment items of this service
adjustment.
. Preparation for adjustment (presetting)
Unless otherwise specified in the adjustment items, preset the
following functions with the REMOTE CONTROL UNIT
USER SETTING MENU
PICTURE MODE (VSM) NORMAL
TINT, CONTRAST, BRIGHT
SHARP, COLOUR CENTER
SLEEP TIMER OFF
BALANCE CENTER
ECO OFF
ZOOM REGULAR
MEASURING INSTRUMENT AND FIXTURES
1. DC voltmeter (or digital voltmeter)
2. Oscilloscope
3. Signal generator (Pattern generator) [PAL / SECAM / NTSC]
4. Remote control unit
ADJUSTMENT ITEMS
6
CHECKING ITEMS.
6
ADJUSTMENT OF FOCUS AND SCREEN.
6
IF CIRCUIT CHECKING.
6
VSM PRESET SETTING.
6
VIDEO / CHROMA CIRCUIT ADJUSTMENT.
6
DEFLECTION CIRCUIT ADJUSTMENT.
6
AUDIO CIRCUIT ADJUSTMENT. (DO NOT ADJUST)

No. 51818
AV29A10EUS
1
ADJUSTMENT OCATIONS
E1
TP-47R
CN014
CN013
CRT SOCKET PWB
(SOLDER SIDE)
TOP
MAIN PWB POWER&DEF PWB
CN001
AV SW PWB
TUNER
CN002 WDEG
5
1
X
FRONT CONTRO PWB
FRONT
HV
SCREEN VR
FOCUS 1 VR
TP-47G
TP-47B
CN014
CN003
FOCUS 2 VR
HVT
CN004
CN005
CN006
C2
TP-E
MICON PWB
100Hz PWB
CN007
CN013
AUDIO
OUT(L/R) EXT 1 2 3
IN-OUT IN
ANT-IN
VM
CRT VM
FRONT
W
CN002
PW
FUSE
POWER
SW
POWER
TIMER
ECO
HYPER
SOUND
ECO
SENSER VIDEO
( )(R)
EXT- 4
S-IN
HEAD
PHONE
CH
DOWN
MENU
CH
UP
1
p
in:B1
(
TP-91
)
2pin:NC
3pin:X-RAY
4pin:X-RAY
5pin:GND

No. 51818
AV29A10EUS
18
BASIC OPERATION SERVICE MENU
1. TOO OF SERVICE MENU OPERATION
Operate the SERVICE MENU with the REMOTE CONTROL UNIT.
2. SERVICE MENU ITEMS
With the SERVICE MENU, various settings (adjustments) can be made, and they are broadly classified in the following items of settings
(adjustments):
(1) 1. IF !!!!!!!!!!!!!!!!!!!!!!! This mode adjusts the setting values of the IF circuit.
(2) 2.V/C !!!!!!!!!!!!!!!!!!!!!! This mode adjusts the setting values of the VIDEO / CHROMA circuit.
(3) 3.AUDIO !!!!!!!!!!!!!!!!!!! This mode adjusts the setting values of the multiplicity SOUND circuit.
(4) 4.DEF !!!!!!!!!!!!!!!!!!!!! This mode adjusts the setting values of the DEFLECTION circuit for each aspect mode given below.
ASPECT MODE Vertical frequency and Scan mode
REGULAR 100Hz Interlace / 60Hz Progressive
ZOOM 100Hz Interlace / 60Hz Progressive
16 : 9 100Hz Interlace / 60Hz Progressive
(5) 5.VSM PRESET!!!!!!!!!!!!! This mode adjusts the initial setting values of COOL,NOMAL and WARM.
(VSM : Video Status Memory)
3. BASIC OPERATION OF SERVICE MENU
(1) How to enter SERVICE MENU
Press the INFORMATION key and the MUTING key of the
REMOTE CONTROL UNIT simultaneously (Fig.2), and the
SERVICE MENU screen (Fig. 1) will be displayed.
(2) Selection of SUB MENU SCREEN
Press one of keys 1#5 of the REMOTE CONTROL UNIT
and select the SUB MENU SCREEN (See Fig. 3), form the
SERVICE MENU.
SERVICE MENU 5 SUB MENU
1. IF
2. V / C
3. AUDIO
4. DEF.
5. VSM PRESET
6. STATUS
7. PIP
8. - - -
9. SHIPPING (OFF)
0. BUS FREE
SERVICE MENU
Fig.1
Not to work
Fig.2
REMOTE CONTRO UNIT KEY ASSIGNMENT
INFORMATION MENU
MUTING
FUNCTION
UP/DOWN
FUNCTION
LEFT / RIGHT

No. 51818
AV29A10EUS
19
COO
NORMA
WARM
1. RGB B K
2. WDR R
3. WDR G
4. WDR B
5. BRIGHT
6. CONTRAST
7. CO OUR
8. HUE
9. SHARP
10.VCO ADJUSTMENT
11. VIDEO AGC
12. SYNC S ICE
1.ERR IMIT
2. A2 ID THR
SERVICE MENU
SERVICE MENU
1. IF 2. V/C
3. AUDIO 4. DEF
5. VSM PRESET 6. STATUS
. PIP 8. ---
9. SHIPPING(ON) 0. BUS FREE
1-9 : SELECT i : EXIT
SUB MENU 5. VSM PRESET
VSM PRESET NORMA
- / + : STORE i : EXIT
OK
SUB MENU 3. AUDIO (Do not adjust)
DEF FU **
****
**Hz
1. V-SHIFT
SUB MENU 4. DEF
***
(**)
- / + : STORE i : EXIT
OK
1. V-SHIFT
2. V-SIZE
3. H-CENT
4. H-SIZE
5. TRAPEZ
6. EW-PIN
7. COR-PIN
8. COR-UP
9. COR- O
10. ANG E
11. BOW
12. V-S.CR
13. V. IN
1. CONT.
2. BRIGHT
3. SHARP
4. CO OUR
5. HUE
6. WDR R
7. WDR G
8. WDR B
IF SERVICE MENU
1. VCO
2. ATT ON/OFF
1-2 : SELECT i : EXIT
VCO (CW) **
****
**.
..
.**
****
**
MHz
MAIN
TOO HIGH
ABOVE REF
JUST REF
BELOW REF
TOO LOW
i : EXIT
SUB MENU 1.IF (VCO)
V/C
1. RGB. BLK ****
SUB MENU 2. V/C
PA
- / + : STORE i : EXIT
OK
AUDIO
1. ERR LIMIT 0AH
C AD BITS = ********
- / + : STORE i : EXIT
OK
1.CONT. ***
SUB MENU 1.IF
Do not select it.
Fig.3 SUB MENU SCREEN
1-0

No. 51818
AV29A10EUS
20
(3) Setting methods
" Method of Setting 1.IF as [VCO] : It must not adjust without signal.
(1 Key!!!!!!!!!!!!!!!!!!!!!!!!! Select 1.IF.
)1 Key !!!!!!!!!!!!!!!!!!!!!!!! Select 1. VCO (CW)
Check the arrow position from the “ABOVE REF.” to “BELOW REF.”
*INFORMATION Key !!!!!!!!!!!! Return to the SERVICE MENU screen.
" Method of setting 2.V/C, 3.AUDIO, 4.DEF and 5.VSM PRESET.
(2#5 Key!!!!!!!!!!!!!!!!!!!!!! Select one from 2. V/C, 3. AUDIO, 4. DEF and 5. VSM PRESET.
)FUNCTION UP/DOWN Key !!!!! Select setting items.
*FUNCTION LEFT/RIGHT Key!!!! Set (adjust) the setting values of the setting items.
+MENU (OK) Key !!!!!!!!!!!!!!! Memorize the setting value.
(Before storing the setting values in memory, do not press the CH, TV, POWER ON / OFF key -
if you do, the values will not be stored in memory.)
,INFORMATION Key !!!!!!!!!!!! Return to the SERVICE MENU screen.
" Do not adjust 6. STATUS, 7. PIP, 8. --- , 9. SHIPPING(ON) and 0. BUS FREE functions.
(4) Release of SERVICE MENU
1) After completing the adjustment, return to the SERVICE MENU, then again press the INFORMATION (OK) key to return to the normal
screen.
