JVC AV-21QT5BU User manual
COLOUR TELEVISION INSTRUCTIONS
ENGLISH
FRANÇAIS
PORTUGUÊS
TELEVISOR A CORES
DEUTSCH
FARBFERNSEHGERÄT BEDIENUNGSANLEITUNG
INSTRUÇÕES
TELEVISEUR COULEUR MANUEL D'INSTRUCTIONS
NEDERLANDS
KLEURENTELEVISIE GEBRUIKSAANWIJZING
CASTELLANO
TELEVISOR A COLOR MANUAL DE INSTRUCCIONES
ITALIANO
TELEVISORE A COLORI ISTRUZIONI
AV-21QT5BU
AV-21QT5SU
0406TKH-VT-VT
© 00 Victor Company f Japan, Limited6o
5008317
COLOUR TELEVISION INSTRUCTIONS
ENGLISH
FRANÇAIS
PORTUGUÊS
TELEVISOR A CORES
DEUTSCH
FARBFERNSEHGERÄT BEDIENUNGSANLEITUNG
INSTRUÇÕES
TELEVISEUR COULEUR MANUEL D'INSTRUCTIONS
NEDERLANDS
KLEURENTELEVISIE GEBRUIKSAANWIJZING
CASTELLANO
TELEVISOR A COLOR MANUAL DE INSTRUCCIONES
ITALIANO
TELEVISORE A COLORI ISTRUZIONI
AV-21QT5BU
AV-21QT5SU
0406TKH-VT-VT
© 00 Victor Company f Japan, Limited6o
5008317
D:\IB Guncel\JVC AK49\COVER PAGE-AK49-C1100UK-2129SLIM-RF-CLED-PLLCH-(AV-21QT5BU&SU)-10039923&24-50083172.cdr
06 Nisan 2006 Perşembe 16:15:12
Color profile: Disabled
Composite Default screen
- 1 -
Contents
Safety Precautions .................................................. 1
Remote Control ....................................................... 2
TV Buttons and Functions ...................................... 3
Preparation ............................................................... 4
Features .................................................................... 4
Before Switc ing on your TV ................................. 4
Power connection ........................................................... 4
Connections to the RF input socket................................ 4
How to connect other devices ......................................... 4
Inserting batteries into the remote control ....................... 4
Switc ing t e TV ON/OFF ....................................... 4
o switch the V on ........................................................ 4
o switch the V off......................................................... 4

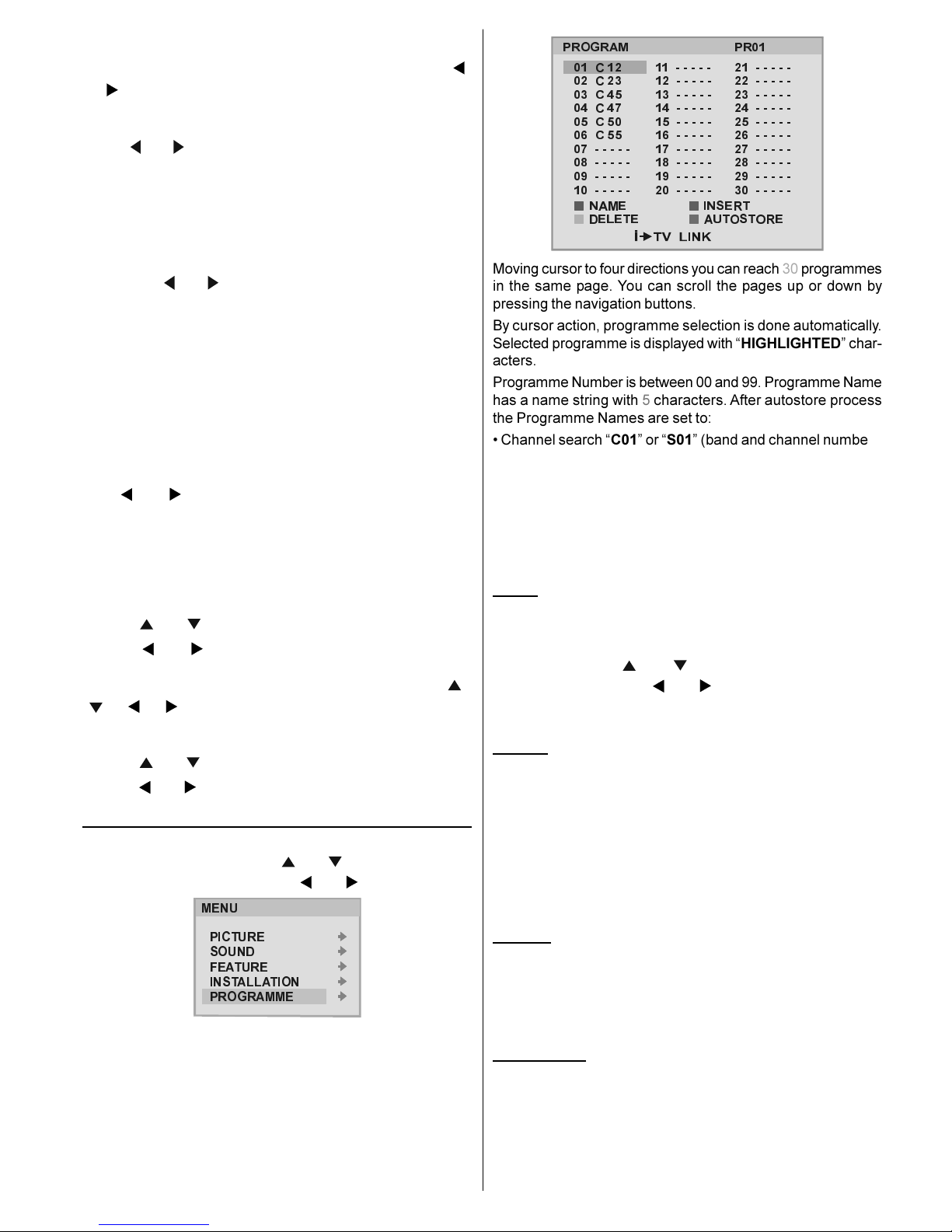

Initial Settings .......................................................... 4
-V LINK ......................................................................... 5
Basic Operations ..................................................... 6
Setting t e TV .......................................................... 6

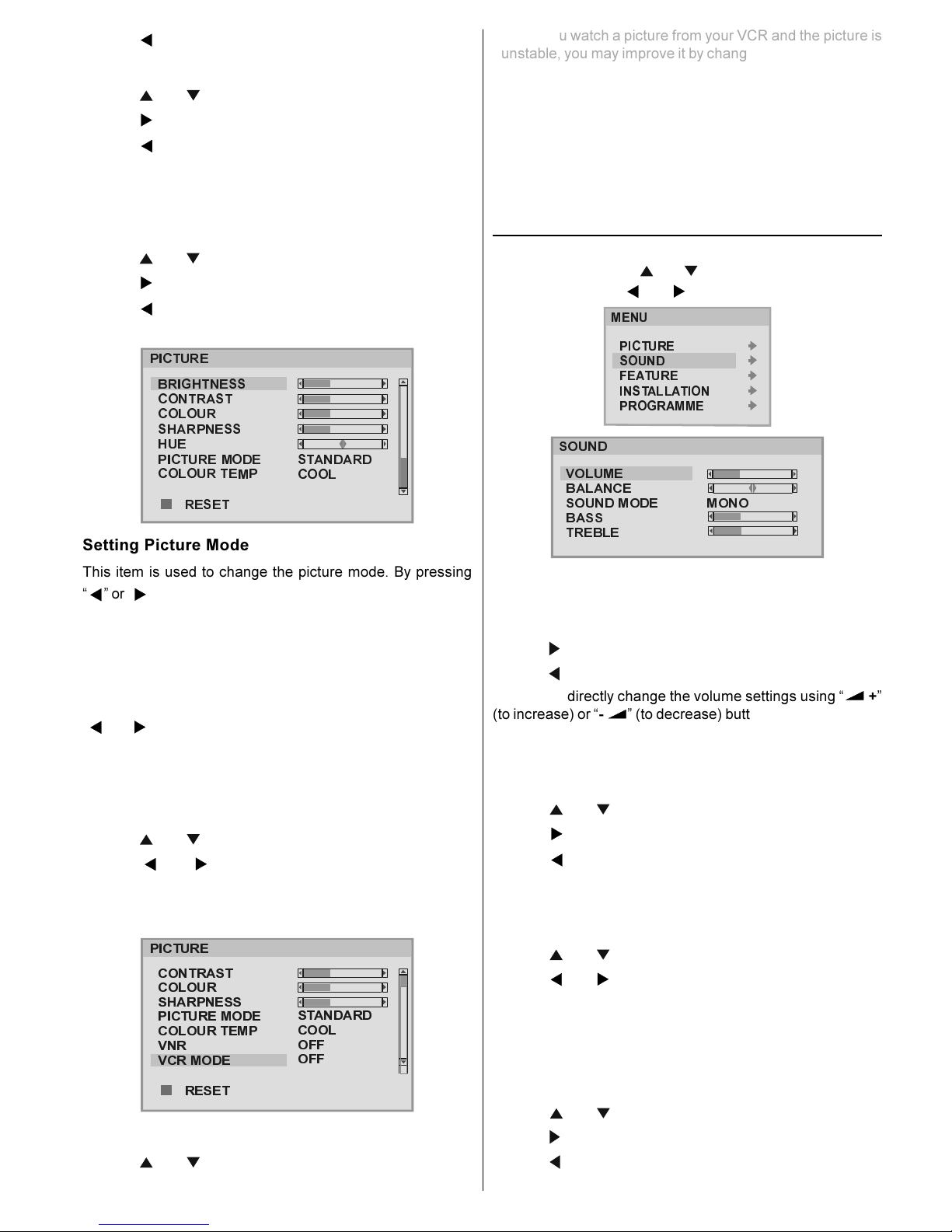

Picture Menu .................................................................. 6
Sound Menu ................................................................... 7
Feature Menu ................................................................. 8
Installation Menu ............................................................. 8
Programme Menu ........................................................... 9
Ot er Features ...................................................... 10
Teletext ................................................................... 11

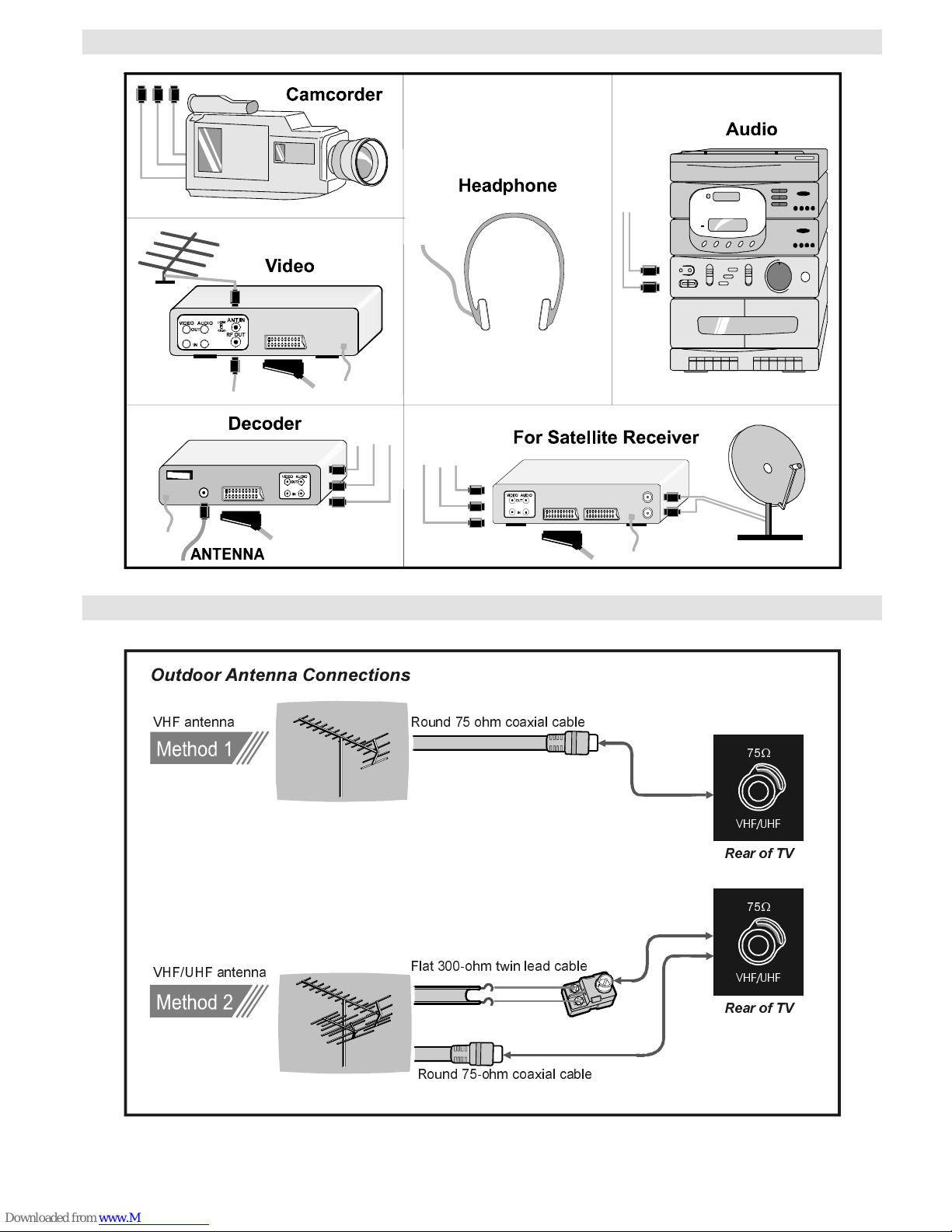

Perip eral Equipment Connections .................... 12
Antenna Connections ............................................ 13
Tips.......................................................................... 14
Specifications ........................................................ 15
Safety Precautions
1. Power Source
he receiver should be operated only from a 220-240V AC,
50 Hz. outlet. Ensure you select the correct voltage setting for
your convenience.
2. Power Cord
he power supply cord should be placed so that they are not
likely to be walked on or pinched by items placed upon them
or against them. Pay particular attention to cord where they
enter the plug, power outlet, and the point where they exit
from the receiver.
3. Moisture and Water
Do not use this equipment in a humid and damp place (avoid
the bathroom, the sink in the kitchen, and near the washing
machine). Do not expose this equipment to rain or water and
do not place objects filled with liquids on it as this may be
dangerous.
4. Cleaning
Before cleaning, unplug the receiver from the main supply out-
let. Do not use liquid or aerosol cleaners. Use with soft and
dry cloth.
5. Ventilation
he slots and openings on the receiver are intended for ventila-
tion and to ensure reliable operation. o prevent overheating,
these openings must not be blocked or covered in anyway.
6. Lightning
In case of storm and lightning or when going on holiday, dis-
connect the power cord from the wall outlet.
7. eplacement Part
When replacement parts are required, be sure the service tech-
nician has used replacement parts which are specified by the
manufacturer or have the same specifications as the original
one. Unauthorized substitutions may result in fire, electrical
shock, or other hazards.
8. Servicing
Please refer all servicing to qualified personnel. Do not remove
cover as this may result in electric shock.
9. Flame sources
Do not place naked flame sources on the apparatus.
10. Stand-By
Do not leave your V stand-by or operating condition when
you leave your house.
Warning!
Any intervention contrary to regulations, in particular, any modi-
fication of high voltage or a replacement of the picture tube
may lead to an increased concentration of x-rays. Any televi-
sion modified in this way no longer complies with license and
must not be operated.
Instructions for waste disposal:
Packaging and packaging aids are recyclable and should prin-
cipally be recycled. Packaging materials, such as foil bag,
must be kept away from children.
Batteries, including those which are heavy metal-free, should
not be disposed of with household waste. Please dispose of
used batteries in an environmentally sound manner. Find out
about the legal regulations which apply in your area.
ENG&BG-AK49-C1100UK-2129SLIM-RF-CLED-PLLCH-(AV-21QT5BUSU)-10039126-5008XXXX.p65 03.03.2006, 10:391
- 2 -
Remote Control
= Stand By / Power
0 - 9 = Direct Program
STANDARD Button (Picture Mode Change)
Colour Buttons (GREEN: Hyper Sound )
MENU = Menu Button
( ) = Cursor Up / Programme Up
( ) = Cursor Right / Volume +
eletext Control Buttons
VCR Control Buttons
( ) = Cursor Down / Programme Down
( ) = Cursor Left / Volume -
AV = AV Button
= Information Button / -V Link in Program Menu
= Mute
CAUTION
RISK OF ELECTRIC SHOCK
he lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence
of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a
risk of electric shock of persons.
he exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating
and maintenance (servicing) instructions in the literature accompanying the appliance.
ENG&BG-AK49-C1100UK-2129SLIM-RF-CLED-PLLCH-(AV-21QT5BUSU)-10039126-5008XXXX.p65 03.03.2006, 10:392
- 3 -
TV Buttons and Functions and Rear Panel
)5217$9
(;7
&21752/
3$1(/
%877216
$XGLR,QSXW
7HUPLQ O
9LGHR,QSXW
7HUPLQ O
+H GSKRQH
0HQX
3URJU P
9ROXPH
(;7
(;7
$QWHQQ 6RFNHW
(;76F UW
(;76F UW
5HPRWHFRQWURO
VHQVRU 3RZHU2Q2II
3RZHUODPS
ENG&BG-AK49-C1100UK-2129SLIM-RF-CLED-PLLCH-(AV-21QT5BUSU)-10039126-5008XXXX.p65 03.03.2006, 10:393
- 4 -
Preparation
For ventilation, leave a space of at least 10 cm free all around
the set. o prevent any fault and unsafe situations, please do
not place any objects on top of the set.
Use this apparatus in moderate climate.
Features
It is a remote controlled colour television.
100 programmes from VHF, UHF bands or cable channels
can be preset.
It can tune cable channels.
Controlling the V is very easy by its menu driven system.
It has two Euroconnector sockets for external devices (such
as computer, video, video games, audio set, etc.)
A2+NICAM Stereo sound system.
eletext (Fastext, optext).
It is possible to connect headphone.
Direct channel access.
A.P.S. (Automatic Programming System).
All programmes can be named.
Programme swapping between last watched two programmes.
Forward or backward automatic tuning.
Sleep timer.
Child Lock.
Automatic sound mute when no transmission.
When no valid signal is detected, after 5 minutes the V
switches itself automatically to stand-by mode.
N SC Playback.
S-VHS (via SCAR )
Real Flat
Before Switc ing on your TV
Power connection
IMPORTANT: he V set is designed to operate on 220-240V
AC, 50 Hz.
After unpacking, allow the V set to reach the ambient room
temperature before you connect the set to the mains.
Connections to the F input socket
Connect the aerial or cable V plug to the RF input socket
located at the back of the V and connect the cable plug
coming out from the V out socket located at the devices
(VCR, DVB etc.) to this socket as well.
How to connect other devices
IMPORTANT: Switch off the V before connecting any exter-
nal device.
Sockets for external connections are at the back and on the
V. For connection of other devices via Euroconnector refer to
the manuals of the related devices.
Inserting batteries into the remote control
Remove the battery cover located on the back of the remote
control by gently pulling downwards from the indicated part.
Insert two AA (R0 ) or equivalent type batteries inside. Place
the batteries in the right directions as seen below.
Replace the battery cover.
NOTE: emove batteries from remote control when it is not to
be used for a long period. Otherwise it can be damaged due to
any leakage of batteries.
Switc ing t e TV ON/OFF
To switch the TV on
Your V will switch on in two steps:
1- Press the power button located on the front of the V. hen
the V switches itself to standby mode and the power lamp
becomes RED located on the lower part of the V.
2- o switch on the V from stand-by mode either:
Press the
,
button on the remote control,
or,
Press a digit button on the remote control so that a programme
number is selected,
or,
Press Programme Up or Down buttons on the V or on the
remote control, so that last switched off programme is se-
lected.
he V will switch on and the power lamp will be GREEN.
To switch the TV off
Press the stand-by button on the remote control, so the V
will switch to stand-by mode and the power lamp will be-
come RED,
or,
Press the power button located on the front of the V, so the
V will switch off and the power lamp will turn off.
Initial Settings
When the V is first turned on, it goes into the initial settings
mode. Follow the instructions on the screen display to make
the initial settings.
Note: If the TV does not go into the initial settings mode this is because your TV has
already been turned on for the first time. (Perform AUTO STOR (see page 12) in the
PROGRAMM menu.)
ENG&BG-AK49-C1100UK-2129SLIM-RF-CLED-PLLCH-(AV-21QT5BUSU)-10039126-5008XXXX.p65 03.03.2006, 10:394
- 5 -
Because this is the first time that V has been used, there are
no channels stored in the memory. Analogue terrestrial broad-
casting AU OMA IC PROGRAMMING SYS EM (A.P.S.) win-
dow is displayed.
3/($6( &+(&. $17(11$ &$%/(
$8726725(
&28175<
/$1*8$*(
&217,18(
8.
(1*/,6+
$36
If you do not want to start A.P.S., you can cancel it by press-
ing the MENU button on your remote control.
First select your country by pressing or button. his
will affect the sort process in APS.
By pressing the or buttons, come to the Language
item and select the language in which the menus of the V
will appear. You can see the available languages by pressing
or button. As soon as you change the language, the
menu items will be displayed in the selected language.
o select Continue use or button. By pressing
or button start the A.P.S.
When you start A.P.S. the following window will appear on
the screen.
35&+$11(/1$0(
&&
$36,65811,1*
3/($6(:$,7
$36
After APS is finalized, a programme list will appear on the
screen. In the programme list you will see the programme
numbers and names assigned to the programmes.
If you do not accept the locations and / or the programme
names of programmes, you can change them in Program menu.
For details see PROGRAMME menu on page 12.
If you do not have a -V LINK compatible VCR, press BLUE
button to exit the menu.
If you have a -V LINK compatible VCR connected to the EX .2
terminal, press button to display -V LINK menu. hen
follow the operating procedure Downloading data to VCR in
the following -V LINK section.
T-V LINK
When a -V LINK compatible VCR is connected to the EX .2
terminal on the V, it is easier to set up the VCR and to view
videos. -V LINK uses the following features:
To use T-V LINK functions
A -V LINK compatible VCR means a JVC video cassette
recorder with the -V LINK logo, or with one of the following
logos. For details see your VCR instruction manual.
Q-LINK (A trademark of Panasonic Corporation)
Data Logic (A trademark of Metz Corporation)
Easy Link (A trademark of Philips Corporation)
Megalogic (A trademark of Grundig Corporation)
SMARTLINK (A trademark of Sony Corporation)
Downloading data to VCR:
he VCR will automatically download the registered data on
the V channels from the V. his means you do not need to
set up the programme channels on your VCR manually.
he -V LINK menu will be displayed when you press the
button while PROGRAM menu is displayed.
'2:1/2$' 79 9&5
67$57
67$1'$5'&$1&(/
79/,1.
Press button to start downloading data to VCR. RANS-
FER is displayed in the menu. ransfer bar can only be seen
after APS.
'2:1/2$' 79 9&5
75$16)(5
79/,1.
If you do not want to continue press the STANDARD button
to exit the menu.
If FEA URE NO AVAILABLE is displayed, download was
not performed correctly. Before trying to download again, check
that:
he VCR power is turned on.
he VCR is -V LINK compatible.
he VCR is connected to the EX .2.
he scart cable is fully wired.
Direct REC:
You can easily record to VCR the images that you are watch-
ing on the V. For details, read the manual for your VCR. Use
your VCR controls. VCR IS RECORDING is diplayed. You
can not carry out Direct REC using your Vs control.
When the VCR is not ready (For example when there is no
tape inserted), NO RECORDING is displayed.
When you press the following buttons (
,
, , AV, MENU,
, BACK, SUB I LE, GUIDE, ZOOM, , / ,
number buttons) during recording, a message appears asking
if you want to stop recording or not. Press or button
to stop recording or BLUE button to continue recording.
Do not turn the TV off in the following cases:
When recording images from an external device connected
to V (For example camcorder).
When recording a V channel after it has been unscrambled
on a decoder.
When recording a V channel by using the Vs output be-
cause the VCRs own tuner can not properly receive that
channel.
When recording Digital terrestrial broadcasting (DVB- ).
TV autopower on/VCR image view:
When the VCR starts playing, the V automatically turns on
and images from EX 2 appear on the screen.
his function does not happen if your Vs main power is turned
off. Set your Vs main power to on (StandBy Mode).
ENG&BG-AK49-C1100UK-2129SLIM-RF-CLED-PLLCH-(AV-21QT5BUSU)-10039126-5008XXXX.p65 03.03.2006, 10:395
- 6 -
Basic Operations
You can operate your TV using both the remote control
and onset buttons
Operation with the buttons on the TV
Volume Setting
Press - button to decrease volume or + button to
increase volume, so a volume level scale (slider) will be dis-
played at the middle of the bottom on the screen.
Programme Selection
Press P/CH + button to select the next programme or P/
CH - button to select the previous programme.
Entering Main Menu
Press MENU button to enter Main menu. In the Main menu
select sub-menu using P/CH - or P/CH + button and enter
the sub-menu using - or + button. o learn the
usage of the menus, refer to the Menu System sections.
Operation with emote Control
he remote control of your V is designed to control all the
functions of the model you selected. he functions will be de-
scribed in accordance with the menu system of your V.
Functions of the menu system are described in following sec-
tions.
Volume Setting
Press + button to increase volume. Press - button
to decrease volume. A volume level scale (slider) will be dis-
played in the middle at the bottom of the screen.
Programme Selection (Previous or next
programme)
Press button to select the previous programme.
Press button to select the next programme.
Programme Selection (direct access):
Press digit buttons on the remote control to select programmes
between 0 and 9. V will switch to the selected programme.
o select programmes between 10 - 99, press the digit but-
tons consecutively which programme you want to select (eg.
for programme 27, first press 2 and then 7). When it is late to
press second digit button only the first digit programme will be
displayed. he limit of the delay time is 3 seconds.
Example: PR6 press 6, PR12 press 1 and 2.
Press directly the programme number to reselect single digit
programmes.
Setting t e TV
Menu System
Your V has been designed with a menu system, to provide
an easy manipulation of a multi-function system. he V is
controlled by choosing the commands, which are displayed
on the screen.
MAIN MENU
Press the MENU button. he MENU will be displayed in the
middle on the screen.
0(18
3,&785(
6281'
)($785(
,167$//$7,21
352*5$00(
o select a sub-menu use or button, and press
or button or directly press OK button.
Use the MENU button to go back to the previous programme
when the menu does not appear on the screen.
Picture Menu
Press MENU button, now you are in main menu. In the Main
menu, select Picture using or button, then enter
the Picture menu by pressing or button.
67$1'$5'
&22/
2))
3,&785(
5(6(7
%5,*+71(66
&2175$67
&2/285
6+$531(66
3,&785(02'(
&2/2857(03
915
Setting Brig tness
As you enter the picture menu, Brightness will be the first
selected option.
Press button to brighten the picture.
Press button to darken the picture.
Setting Contrast
Contrast is the difference and distribution of light and dark
tones in an image.
Using or button select Contrast.
Press button to increase contrast level.
Press button to decrease contrast level.
Setting Colour
Using or button select Colour.
Press button to increase colour saturation.
ENG&BG-AK49-C1100UK-2129SLIM-RF-CLED-PLLCH-(AV-21QT5BUSU)-10039126-5008XXXX.p65 03.03.2006, 10:396
- 7 -
Press button to decrease colour saturation.
Setting S arpness
Using or button select Sharpness.
Press button to sharpen the picture.
Press button to soften the picture.
Setting Hue (In AV mode only)
(During Playback N SC system, this will appear in AV mode
only when N SC video source is applied. Otherwise, HUE
option is invisible in Picture menu.):
Using or button select Hue.
Press button to increase the green tones.
Press button to increase the red tones.
Center value is indicated with two reciprocal arrows.
67$1'$5'
&22/
3,&785(
5(6(7
%5,*+71(66
&2175$67
&2/285
6+$531(66
+8(
3,&785(02'(
&2/2857(03
Setting Picture Mode
his item is used to change the picture mode. By pressing
or button you may select one of these options: STAN-
DARD, SOFT and BRIGHT.
You can also set the Picture Mode by pressing the Blue but-
ton directly.
Setting Colour Temp
his item is used for white colour tint adjustment. By pressing
or button you may select one of these options: COOL,
NORMAL, WARM.
Setting VNR (Video Noise Reduction)
his item is used to reduce the image noise and improve the
picture quality at weak signals.
Using or button select VNR.
Press or button to set VNR level to OFF, MIN,
AUTO or MAX.
AUTO adjusts the VNR level to OFF, MIN or MAX automati-
cally according to the intensity of the noise.
67$1'$5'
&22/
2))
2))
3,&785(
5(6(7
&2175$67
&2/285
6+$531(66
3,&785(02'(
&2/2857(03
915
9&502'(
Setting VCR Mode (In AV mode only)
Using or button select VCR Mode.
When you watch a picture from your VCR and the picture is
unstable, you may improve it by changing the VCR MODE
setting from ON to OFF.
Reset
Press BLUE button to reset the picture modes to factory de-
fault settings.
To Store t e Settings
In the Picture Menu, all settings are stored automatically.
Sound Menu
Press MENU button, now you are in MENU. In the MENU,
select SOUND using or button, then enter the sound
menu by pressing or button.
0(18
3,&785(
6281'
)($785(
,167$//$7,21
352*5$00(
6281'
92/80(
%$/$1&(
6281'02'(
%$66
75(%/(
0212
Setting Volume
As you enter the sound menu, Volume will be the first se-
lected option.
Press button to increase volume.
Press button to decrease volume.
Or you can directly change the volume settings using +
(to increase) or - (to decrease) button.
Setting Balance
It allows adjusting the distribution between the left and right
speakers.
Using or button select Balance.
Press button to change balance to the right.
Press button to change balance to the left.
When balance control is in mid position, the cursor is dis-
played with two reciprocal arrows.
Selecting Sound Mode
Using or button select Sound Mode.
Press or button to change Mode.
You can select MONO, STEREO, DUAL-I or DUAL-II mode,
only if the selected channel supports that mode.
In case of bilingual broadcast (Dual Sound), you can select
original or dubbed language using mode option.
Setting Bass Level
Using or button select Bass Level.
Press button to increase bass level.
Press button to decrease bass level.
ENG&BG-AK49-C1100UK-2129SLIM-RF-CLED-PLLCH-(AV-21QT5BUSU)-10039126-5008XXXX.p65 03.03.2006, 10:397
- 8 -
Setting Treble Level
Using or button select reble
Press button to increase treble level.
Press button to decrease treble level
To Store t e Settings
In the Sound Menu, all settings are stored automatically.
Feature Menu
Press MENU button, now you are in MENU. In the MENU,
select Feature using or button. hen enter the
Feature menu by pressing or button.
0(18
3,&785(
6281'
)($785(
,167$//$7,21
352*5$00(
6/((37,0(5
&+,/'/2&.
&28175<
/$1*8$*(
(;7287387
%/8(%$&.
2))
8.
(1*/,6+
79
)($785(
Sleep Timer
As you enter the Feature menu, Sleep Timer will be the first
selected option. Use or button to change the Sleep
imer values between OFF, 10, 20, 30, ......, 110 and 120.
If sleep timer is activated, at the end of the selected time, the
V goes automatically to stand-by mode.
You can also set the Sleep imer by pressing the Yellow but-
ton directly.
C ild Lock
You can use this feature to prevent children turning the V on
or changing programs or adjustments etc. without remote con-
trol.
he Child Lock feature can be set by or button to
either ON or OFF. When OFF is selected, there will be no
difference in the operation of your V. When ON is selected,
the V can only be controlled by the remote control handset.
In this case, the front panel buttons (except the Power On/Off
button) will not work.
If Child Lock is ON, when one of the front panel buttons (ex-
cept power button) is pressed, CHILD LOCK OSD is seen
on the screen.
Selecting Country
Using or button select Country.
Press or button to select the desired country set-
tings.
Selecting Language
Menu language can be selected by pressing or but-
ton on Language item.
Ext-2 Output
Using or button select Ext-2 Output.
Press or button to select the source which will be
given. From Ext-2 output, either EXT-1, EXT-3 or TV can be
selected.
Blue Back
You can set the V to automatically change to a blue screen
if the signal is weak or absent, or when there is no input from
an external device.
he Blue Background feature can be turned on or off by press-
ing or button.
To Store Settings
In Feature menu all settings are stored automatically.
Installation Menu
Press MENU button, now you are in MENU. In the MENU,
select INSTALLATION using or button. hen enter
the Installation menu by pressing or button.
0(18
3,&785(
6281'
)($785(
,167$//$7,21
352*5$00(
,167$//$7,21
352*5$00(
%$1'
&+$11(/
67$1'$5'
&2/2856<67(0
'(&2'(5(;7
),1(781,1*
6($5&+
6725(
&
%*
3$/
Selecting Programme
o select programme number, you can use or button
or Digit Buttons.
Selecting Band
BAND, can be selected either C or S by pressing or
button.
Selecting C annel
CHANNEL can be changed by or button or Digit But-
tons.
For band C,
01 - 83, WEST EU OPE.
01 - 12, 21 - 69, EAST EU OPE .
01 - 17, 21 - 73, UK.
01 - 76, F ANCE.
04 - 09, F ANCE 2.
For band S,
01 - 41, for all channel tables.
ENG&BG-AK49-C1100UK-2129SLIM-RF-CLED-PLLCH-(AV-21QT5BUSU)-10039126-5008XXXX.p65 03.03.2006, 10:398
- 9 -
Selecting Standard
STANDARD can be selected BG, I, L or DK by pressing
or button.
Selecting Colour System
Using or button on Colour System, you can change
the colour system to PAL, SECAM or AUTO.
Note: In EX mode, you can choose N SC 3.58 and N SC
4.43 as well.
Selecting Decoder (EXT2)
You can use this mode to connect any decoder to your V.
Press the or buttons to turn it on or off.
When you turn Decoder on, EX -2 output will be chosen as V
mode only and any scrambled channels will be unscrambled
through decoder connected your V via EX -2 output.
Decoder setting should be stored separately for each
programme.
Selecting Fine Tuning
You can use the Fine uning process for fine adjustment (after
coarse adjustment), if you are not happy with the image on
the screen.
Use or button on FINE TUNING item, until getting
the best image on the screen.
In Channel option, normally the Fine uning cursor is placed
at the middle on the slider, and this is indicated with two recip-
rocal arrows.
Selecting Searc
Using or button select Search item.
Press or button in order to start channel search.
SEARCHING... is displayed during the search process.
Searching is stopped as soon as a station is found or ,
, , buttons are pressed.
To Store Settings
Using or button select Store.
Press or button to store Installation menu settings.
Programme Menu
Press MENU button, now you are in MENU. In the MENU,
select PROGRAMME using or button. hen enter
the Program menu by pressing or button.
0(18
3,&785(
6281'
)($785(
,167$//$7,21
352*5$00(
&
&
&
&
&
&
352*5$035
1$0(
'(/(7( ,16(57
$8726725(
Moving cursor to four directions you can reach 30 programmes
in the same page. You can scroll the pages up or down by
pressing the navigation buttons.
By cursor action, programme selection is done automatically.
Selected programme is displayed with HIGHLIGHTED char-
acters.
Programme Number is between 00 and 99. Programme Name
has a name string with 5 characters. After autostore process
the Programme Names are set to:
Channel search C01 or S01 (band and channel number),
as default.
At the bottom of the menu there is a programme sort functions
section. Each function is activated by a colour button. NAME,
changes the programme name. DELETE, deletes undesired
programmes. INSERT, inserts a programme into another
programmes position. By selecting AUTOSTORE, Autostore
menu will be available.
NAME:
You can change the name of a selected programme by press-
ing the RED button (NAME). First letter of the selected
programme is displayed with a highlighted character. o
change that letter or button can be used, and to
select the other letters, or button can be used.
After changing the name, press the RED button to store the
new name or press the BLUE button to cancel.
INSERT:
When the GREEN button (INSERT) is pressed, NAME,
AUTOSTORE and DELETE functions are erased and the
selected programme is displayed with green characters. Use
the navigation buttons to select another programmes posi-
tion. When the GREEN button is pressed again, the first se-
lected programme will be inserted into the position of the cur-
rent selection.
Press the BLUE button to cancel the activated INSERT pro-
cess.
DELETE:
Press the YELLOW button to select a programme that you
want to delete. When the YELLOW button is pressed again
the selected programme will be deleted.
Pressing the BLUE button cancels the activated DELETE
process.
AUTOSTORE:
(A.P.S. (Automatic Programming System))
A.P.S. searches and sorts all channels and stores them auto-
matically on your V, according to the transmission of pro-
gramme systems in your area.
o enter Autostore menu, press the BLUE button.
ENG&BG-AK49-C1100UK-2129SLIM-RF-CLED-PLLCH-(AV-21QT5BUSU)-10039126-5008XXXX.p65 03.03.2006, 10:399
- 10 -
&28175<
&217,18( 8.
:$51,1*
$//35(6725('352*5$00(6
:,//%((5$6('
If you do not want to start A.P.S., you can cancel it by press-
ing the Menu button on your remote control.
First select your country by pressing or button.
his will affect the sort process in APS.
o select Continue use or button. By pressing
or button start the A.P.S.
When you start A.P.S. the following window will appear on
the screen.
35&+$11(/1$0(
&&
$36,65811,1*
3/($6(:$,7
$36
After APS is finalized, a programme list will appear on the
screen. In the programme list you will see the programme
numbers and names assigned to the programmes.
If you do not accept the locations and / or the programme
names of programmes, you can change them in Programme
menu.
Ot er Features
TV Status
Programme Number, Programme Name (or EXT), (they
are displayed on the upper left of the screen). he sound indi-
cator is displayed with them too. hey are displayed after
programme change for 3 seconds.
Sound Indicator
he alternatives of the indicator are Mono, Stereo, Dual I and
Dual II. his indicator is displayed under the programme num-
ber indicator on the screen.
0212
In Mono broadcast or in forced-mono (for stereo broadcast).
67(5(2
In Stereo broadcast.
'8$/ ,
²
If dual broadcast detected. Dual I is selected in default and
also can be selected after Dual II by Remote Control.
'8$/ ,,
²
If Dual II is selected by Remote Control.
Mute Indicator
It is placed in the upper middle of the screen when enabled,
and it stays there until it is disabled.
o cancel mute, there are two alternatives; the first one is by
pressing the button, this volume is set to the preceding
value, and the second one is increasing or decreasing the
volume level.
No-Signal Detection (TV mode)
If no valid signal is detected, it takes 5 minutes to switch to
the Stand-By mode unless any signal detected or any Re-
mote Control command is accessed.
After a Remote Control command (if No-Signal imer is active)
the timer stops and if no signal detected again the timer is
initialized to 5 minutes and starts 3 seconds later again to
count down.
It is not valid in EX modes.
Volume Bar
It is displayed in the lower middle of the screen. When a vol-
ume command is received (pressing + or - by
Remote Control or Control panel at the right side of the V)
and no menu is active, it stays on the screen for 3 seconds,
after the last volume command or until another command is
received in between.
EXT Modes
By pressing the AV button you can switch your V to EX
modes (except being in eletext). Pressing this button con-
secutively will switch the V in one of the optional EX modes:
EXT1, EXT2, EXT2 S and EXT3
In order to quit the EX mode press any digit buttons or
/ .
ENG&BG-AK49-C1100UK-2129SLIM-RF-CLED-PLLCH-(AV-21QT5BUSU)-10039126-5008XXXX.p65 03.03.2006, 10:3910
- 11 -
Teletext
eletext is an information system that displays text on your
V screen. Using the eletext information system you can
view a page of information on a subject that is available in the
list of contents (index).
On screen display is not available in text mode.
Contrast, brightness or colour control is not available, but vol-
ume control is available in text mode.
To operate Teletext
Select a V station on which eletext is being transmitted.
Press ( ELE EX ) button. Usually the list of contents
(index) is displayed on the screen.
To select a page of Teletext
Press the appropriate digit buttons for the required eletext
page number.
he selected page number is displayed at the top left corner of
the screen. he eletext page counter searches until the se-
lected page number is located, so that the desired page is
displayed on the screen.
Press button to move the eletext screen forward one
page at a time.
Press button to move the eletext screen backward
one page at a time.
To Select Index Page
o select the page number of the index (generally page 100),
press button.
Searching for a teletext page while watching TV
In the eletext mode pressing button will switch the
screen to the V mode. In the V mode enter a page number
using digit buttons. As you enter last digit of page number,
sign will replace the page number and flash until the
entered page number is found. hen the page number will
replace sign again. Now you can display this teletext
page by pressing button.
To Select Double Height Text
Press button for the top half of the information page to
be displayed in double height text.
Press button again for the bottom half of the information
page to be displayed in double height text.
Press button once more for the full page of normal height
text.
To eveal concealed Information
Pressing button once will reveal answers on a quiz or
games page.
Pressing button again will conceal the revealed answers.
To Stop Automatic Page Change
he teletext page you have selected may contain more infor-
mation than what is on the screen; the rest of the information
will be displayed after a period of time.
Press button to stop the automatic page change.
Press button again to allow the next page to be dis-
played.
To Select a Subcode Page
Subcode pages are subsections of long eletext pages that
can only be displayed on the screen one section at a time.
Select the required eletext page.
Press button.
Select the required subcode page number by pressing four
digit buttons (e.g. 0001).
If the selected subcode page is not displayed in a short time,
press button. V programme will be displayed on the
screen.
eletext page number will be displayed on the upper left cor-
ner of the screen when the selected page is found.
Press button to display the selected eletext page.
To exit Teletext
Press button. he screen will switch to V mode.
Fastext and Toptext
Your V supports the 7 page eletext system. When the page
number of any of the 7 pages in memory is entered, the sys-
tem will not search for the requested page; instead it will dis-
play the page automatically.
Press button to move the eletext screen forward one
page at a time.
Press button to move the eletext screen backward
one page at a time.
For Fastext and Toptext
he subject-heading for the information may have a particular
colour.
Press an appropriate RED, GREEN, YELLOW or BLUE but-
ton in order to reach the relevant page quickly.
For TOPTEXT
If optext transmission is present, colour coded buttons will
appear in status row.
If optext transmission is not present, status row will not ap-
pear.
In optext mode the or commands will request
the next or previous page respectively. If optext transmission
is not available, in case of operation of these commands, wrap-
around occurs. For example page 100 appears to be one greater
than page 199.
optext has a special page called HI LIS which can be dis-
played by pressing the button. Use colour buttons on
HI LIS page to select a line which will link you to another
teletext page.
ENG&BG-AK49-C1100UK-2129SLIM-RF-CLED-PLLCH-(AV-21QT5BUSU)-10039126-5008XXXX.p65 03.03.2006, 10:3911
- 12 -
Perip eral Equipment Connections
here is a wide range of audio and video equipment that can
be connected to your V.
Connection diagrams at the end of this section show you where
the different equipment should be connected at the back side of
the V.
Via the Euroconnector
Your V set has 2 Euroconnector sockets. If you want to
connect peripherals (e.g. video, decoder, etc.) which have
Euroconnectors, to your V, use EXT.1 or EXT.2 input.
If an external device is connected via Euroconnector sockets,
V is switched to AV mode automatically. In this case if both
sockets are connected, SCART1 has the precedence.
T-V LINK compatible VC
Be sure to connect the -V LINK compatible VCR to the EXT.2
terminal. If not, the -V LINK function will not work properly.
When connecting a -V LINK compatible VCR to the EX .2
terminal, be sure to connect the decoder to the VCR. If not,
the T-V LINK function may not work properly. And then set
the Decoder(EXT2) (see page 11) function for the channel to
ON to unscramble a scrambled channel.
GB mode
If an equipment can output the RGB signals, connect it to the
EXT.1 terminal.
EXT2S Mode
If the equipment connected to your V set supports S-Video
(Y/C) output from Euroconnector, you can have a better pic-
ture quality by selecting EXT2S mode and connecting your
equipment to the EXT.2 (EXT2S) terminal of V. See your
equipments booklet to check if your equipment has such fea-
ture.
Via the CA jacks
If you have an equipment (such as a Camcorder) which has
the RCA jacks, connect it to the EXT-3 terminal with the video
and audio cables.
Via the ANT (aerial) socket
If your equipment does not have an Euroconnector or RCA
jacks, connect it to the V with an aerial cable. For details,
see the manual provided with the equipment.
o store the test signal that comes from the equipment, see
Installation Menu on page 11 and store it to the program
number 0. You can watch images from that equipment to
select the program number which you stored the test signal.
Decoder
Cable V offers you a wide choice of programmes. Some of
them are free, others are to be paid for by the viewer. his
means that you will need to subscribe to the broadcasting
organisation whose programmes you wish to receive. his
organisation will supply you a corresponding decoder unit to
allow the programmes to be unscrambled.
For further information ask your dealer. See also the booklet
supplied with your decoder.
Connect a decoder wit an aerial socket to t e TV
Connect the aerial cable.
Connect a decoder wit out an aerial socket to t e
TV
Connect the decoder to your V with a eurocable (RCA Jack
Cable) to EXTERNAL (RCA Jack). When your decoder has a
Euroconnector / RCA Jack you can obtain better picture
quality if you connect a eurocable (RCA Jack Cable) to
EXTERNAL (RCA Jack).
TV and Video ecorder (VC )
Connect the Video Recorder to the AN (antenna input) socket
of the V with the aerial cable.
Connect the Video Recorder to the EXT.1 or EXT.2 terminal
with the SCAR cable.
NTSC Playback
Connect a N SC video recorder to a terminal. hen press AV
button to select the corresponding AV mode.
NTSC 3.58/4.43 system is detected automatically in AV mode.
Camera and Camcorder
To connect to t e EXT-3 terminal
Connect your camera or camcorder to the right side of your
V.
Connect your equipment to the V via VIDEO (yellow), AU-
DIO R (red) and AUDIO L (white) inputs. You should connect
the jacks to the input in the same colour.
Connect the decoder to the video recorder
Some video recorders have a special euroconnector for de-
coder.
Connect a eurocable to the euroconnector of your decoder
and to the special euroconnector of your video recorder. See
also the handbook of your video recorder.
o connect your video recorder to the V, see V and Video
Recorder section.
If you want to connect more equipment to your V, consult
your dealer.
Connecting Headphones
Use the stereo headphone socket on the right side of your V,
to connect headphones.
ENG&BG-AK49-C1100UK-2129SLIM-RF-CLED-PLLCH-(AV-21QT5BUSU)-10039126-5008XXXX.p65 03.03.2006, 10:3912
- 13 -
Perip eral Equipments
Antenna Connections
9
+)8+)
9
+)8+)
:
:
9+)8+)DQWHQQD
9+)DQWHQQD 5RXQGRKPFRD[LDOFDEOH
5RXQGRKPFRD[LDOFDEOH
)ODWRKPWZLQOHDGFDEOH
5HDURI79
5HDURI79
2XWGRRU$QWHQQD&RQQHFWLRQV
ENG&BG-AK49-C1100UK-2129SLIM-RF-CLED-PLLCH-(AV-21QT5BUSU)-10039126-5008XXXX.p65 03.03.2006, 10:3913
- 14 -
Tips
Can not turn the TV on?
Check that V/VCR/DVD switch is set to V position.
V may go to stand-by mode when you turn the V on soon
after you turn the V off. If you can turn the V on again, it is
not a problem.
Can not turn the TV off?
Check that V/VCR/DVD switch is set to V position.
Care of the Screen
Clean the screen with a slightly damp, soft cloth. Do not use
abrasive solvents as they may damage the V screen coating
layer.
Colours of image on screen are abnormal
Have you selected the correct V system? Is your V set or
house aerial located too close to the loudspeakers, non-earthed
audio equipment or neon lights, etc. ?
Mountains or high buildings can cause double pictures or ghost
images. Sometimes you can improve the picture quality by
changing the direction of the aerial.
Is the picture or eletext unrecognisable? Check if you have
entered the correct frequency.
he picture quality may degrade when two peripherals are
connected to the V at the same time. In such a case, dis-
connect one of the peripherals.
No Image on Display Screen
Is the aerial connected properly? Are the plugs connected
tightly to the aerial socket? Is the aerial cable damaged? Are
suitable plugs used to connect the aerial? If you are in doubt,
consult your dealer.
No Image means that your V is not receiving any transmis-
sion. Have you pressed the correct buttons on the remote
control? ry once more.
Sound
You can not hear any sound. Did you perhaps interrupt the
sound, pressing button? Are external speakers connected
to the V?
Sound is coming from only one of the speakers. Is the bal-
ance set to one direction extreme? See Sound menu.
emote Control
If your V no longer responds to the remote control, perhaps
the batteries are exhausted. Replace the batteries.
Have you selected the wrong menu? Press MENU button to
return to normal screen or press BACK button to return to
the previous menu.
No solution
If the V suddenly stops responding, disconnect the power
cord of the V from the AC outlet. Connect it to the AC outlet
again to turn on the V. If the V returns to a normal state, it is
not a failure. If this does not work, switch off, remove the mains
plug and call the service personnel; never attempt to repair it
yourself.
ENG&BG-AK49-C1100UK-2129SLIM-RF-CLED-PLLCH-(AV-21QT5BUSU)-10039126-5008XXXX.p65 03.03.2006, 10:3914
- 15 -
Specifications
0RGHO
%URDGFDVWLQJ6\VWHP
&KDQQHOVDQG
)UHTXHQFLHV
6RXQG6\VWHP
3RZHU5HTXLUHPHQWV
3RZHU&RQVXPSWLRQ :6WDQG \:
3LFWXUH7X H6L]H
$XGLR2XWSXW
(;77HUPLQDO
(;77HUPLQDO
(;77HUPLQDO
+HDGSKRQHMDFN
'LPHQVLRQV:[+[' PP[PP[PP
$FFHVVRULHV 5HPRWHFRQWUROXQLW[50&
$$5GU\FHOO DWWHU\[
(XURFRQQHFWRUSLQ6&$57
9LGHR,QSXW69,'(2<&,QSXW$XGLR/5,QSXWVDUHDYDLOD OH
9LGHRDQG$XGLR/5RXWSXWVDUHDYDLOD OH
79/,1.IXQFWLRQVDUHDYDLOD OH
5&$FRQQHFWRUV[
9LGHR,QSXWDQG$XGLR,QSXWVDUHDYDLOD OH
$947%868
3$/6(&%*'..,,//
$1LFDP6WHUHR
6WHUHRPLQLMDFNPPLQGLDPHWHU
(XURFRQQHFWRUSLQ6&$57
9LGHR,QSXW$XGLR/5,QSXWVDQG5*%,QSXWVDUHDYDLOD OH
$QDORJXH79 URDGFDVWRXWSXW9LGHRDQG$XGLR/5DUHDYDLOD OH
$QDORJXH0+]0+]FKDQQHO
&D OH7966
9$&+]
[:5067+'
9LHZD OHDUHDFPPHDVXUHGGLDJRQDOO\
ENG&BG-AK49-C1100UK-2129SLIM-RF-CLED-PLLCH-(AV-21QT5BUSU)-10039126-5008XXXX.p65 03.03.2006, 10:3915
Other manuals for AV-21QT5BU
2
This manual suits for next models
1
Other JVC TV manuals
JVC
JVC I'Art Pro AV-48P775 Installation manual
JVC
JVC AV-21MT36 User manual
JVC
JVC AV-28X4SK User manual
JVC
JVC AV-20RM4SE User manual
JVC
JVC InteriArt AV-21QT4BU User manual
JVC
JVC AV-32220/G User manual
JVC
JVC I'Art AV-32F577 User manual
JVC
JVC PD-42V31BJE User manual
JVC
JVC AV-21QT5BJ User manual
JVC
JVC AV-21F1EG User manual
