JVC InteriArt AV-21QT4BU User manual
50051275
VICTOR COMPANYOF JAPAN, LIMITED
0504-JVC
©2004 VICTOR COMPANY OF JAPAN, LIMITED
COLOUR TELEVISION INSTRUCTIONS
ENGLISH
DEUTSCH
FRANÇAIS
PORTUGUÊS
NEDERLANDS
CASTELLANO
FARBFERNSEHGERÄT
TELEVISOR A CORES
BEDIENUNGSANLEITUNG
INSTRUÇÕES
TELEVISEUR COULEUR MANUEL D'INSTRUCTIONS
KLEURENTELEVISIE GEBRUIKSAANWIJZING
TELEVISOR A COLOR MANUAL DE INSTRUCCIONES
ITALIANO
TELEVISORE A COLORI ISTRUZIONI
AV-21QT4BU
AV-21QT4SU
AV-29QT4BU
AV-29QT4SU
D:\Aldus Page Maker Onemli\IB-NEW\JVC\2004 Models\AK-45\21&2929 (1512 UK)\Grup-1-(AV-21&29QT4&BU&SU)\COVER PAGE-21&2929-AK45-1512UK-16-9-(AV-21&29QT4&BU&SU)-50051275.cdr
23 Nisan 2004 Cuma 16:36:23
Color profile: Disabled
Composite Default screen
All manuals and user guides at all-guides.com
all-guides.com
ENGLISH - 1 -
Contents
Safety Precautions .................................................. 1
Remote Control Buttons ......................................... 2
Control Panel Buttons............................................. 3
Antenna Connections .............................................. 3
Preparation ............................................................... 4
Features .......................................................................... 4
Before Switching on your T ................................. 4
Power connection ............................................................. 4
Aerial Connections ........................................................... 4
How to connect the external equipments .......................... 4
Inserting batteries in the remote control handset .............. 4
Switching the T ON/OFF ....................................... 4
o switch the V on.......................................................... 4
o switch the V off .......................................................... 4
Initial Settings .......................................................... 4
-V LINK .......................................................................... 5
Operating with the onset buttons ...................................... 5
Operating with Remote Control ......................................... 6

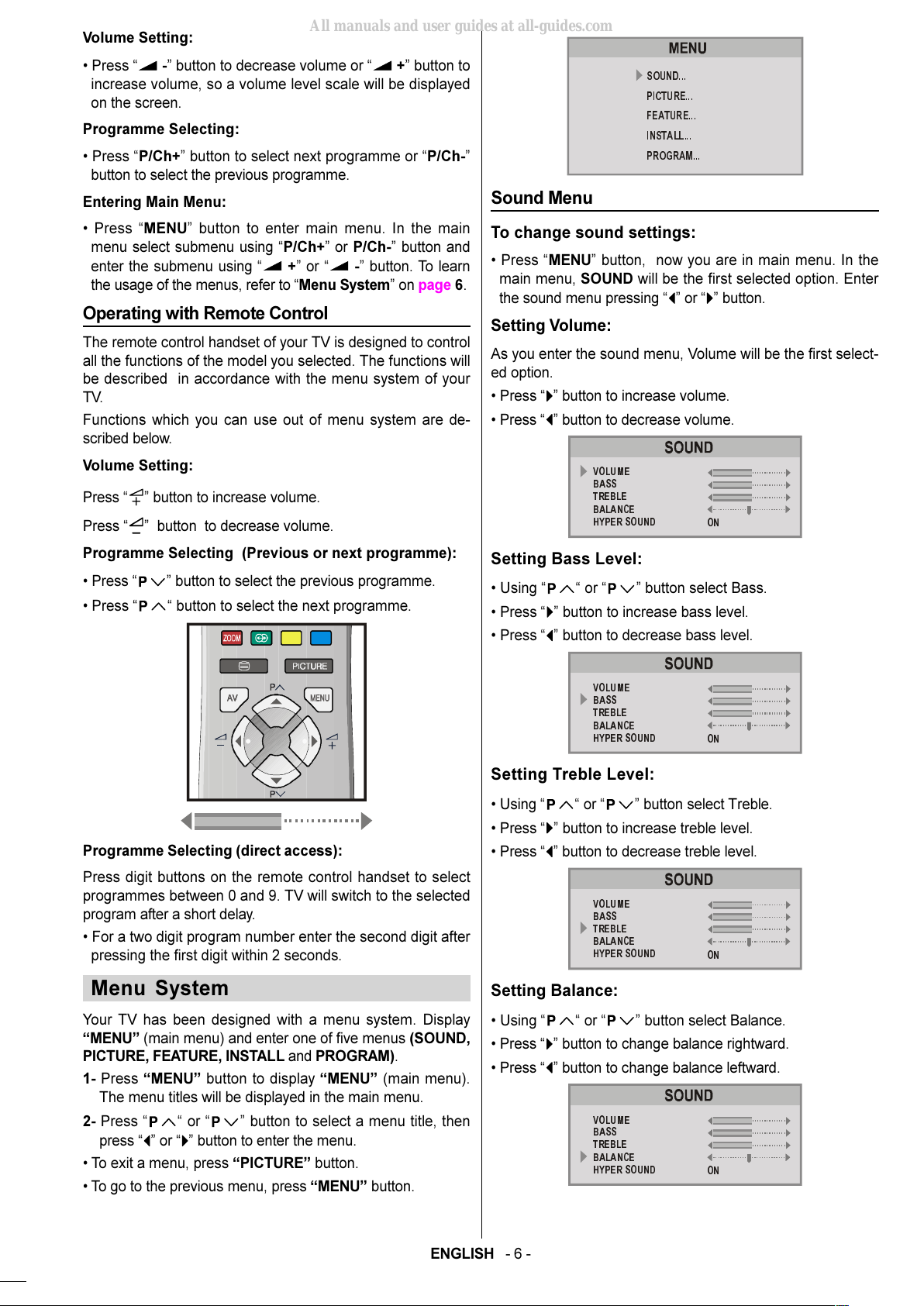

Menu System ............................................................ 6
Sound Menu ..................................................................... 6
Picture Menu ................................................................... 7
Feature Menu ................................................................... 8
Install (Installation) Menu.................................................. 9
Using the Decoder (EX -2) function ................................ 10
Program (Programming) Menu ....................................... 10
o start AU O PROGRAM (AU OS ORE) ..................... 10

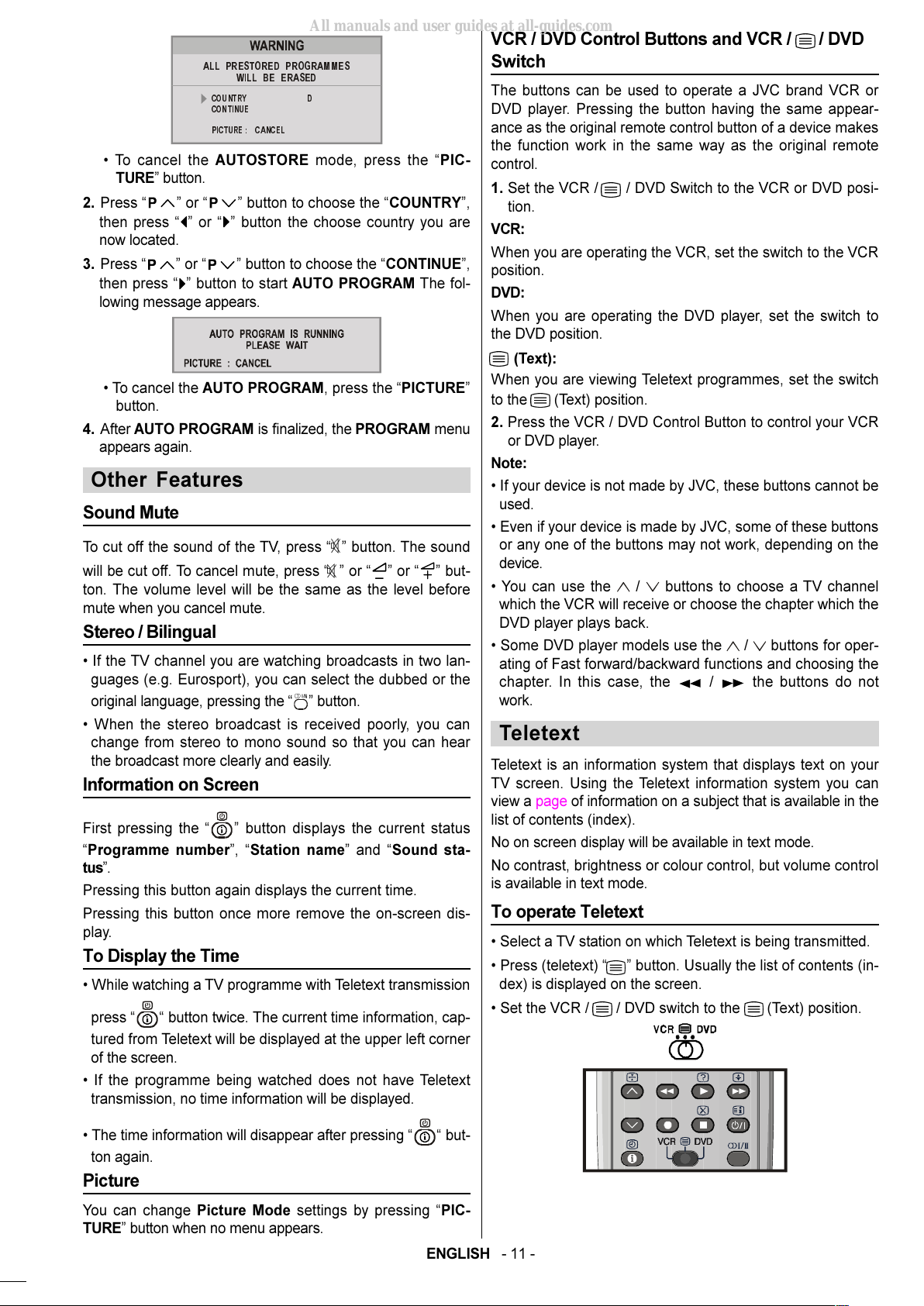

Other Features....................................................... 11
Sound Mute ................................................................... 11
Stereo / Bilingual ............................................................ 11
Information on Screen .................................................... 11
o Display the ime........................................................ 11
Picture ........................................................................... 11
VCR / DVD Control Buttons and VCR / / DVD Switch 11
Teletext ................................................................... 11
o operate eletext ......................................................... 11
o select a page of eletext ............................................ 12
o Select Index Page ..................................................... 12
Searching for a teletext page while watching V ............. 12
o Select Double Height ext ......................................... 12
o Reveal concealed Information .................................. 12
o Stop Automatic Page Change .................................... 12
o Select a Subcode Page ............................................. 12
o exit eletext ............................................................... 12
Fastext and optext ....................................................... 12

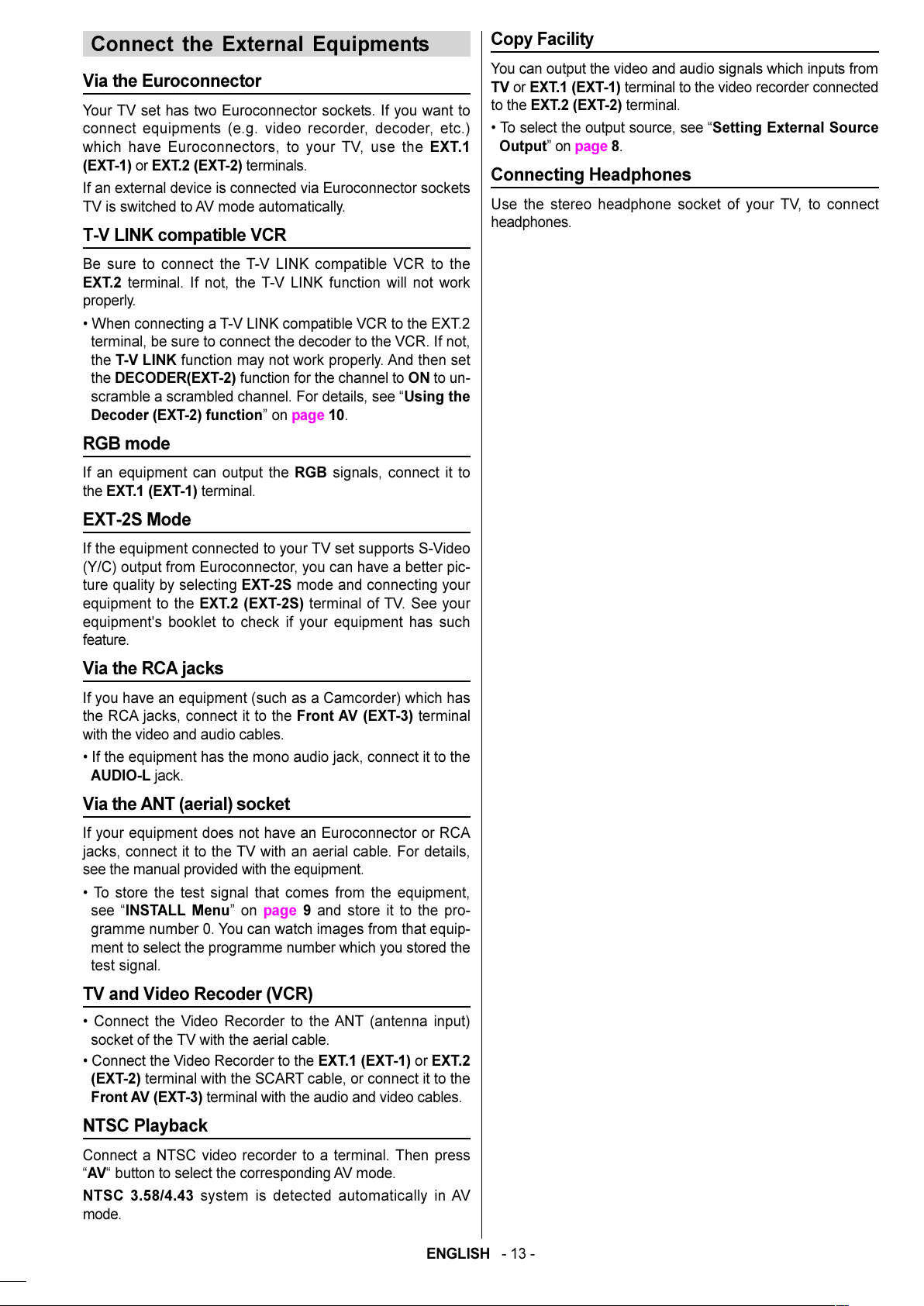

Connect the External Equipments ....................... 13
Via the Euroconnector .................................................... 13
-V LINK compatible VCR .............................................. 13
RGB mode ..................................................................... 13
EX -2S Mode ................................................................. 13
Via the RCA jacks .......................................................... 13
Via the AN (aerial) socket ............................................. 13
V and Video Recoder (VCR) ......................................... 13
N SC Playback ............................................................. 13
Copy Facility .................................................................. 13
Connecting Headphones ................................................ 13
Tips.......................................................................... 15
Specifications ......................................................... 15
Safety Precautions
1. Power Source
he receiver should be operated only from a 220-240V AC,
50 Hz. outlet. Ensure you select the correct voltage setting
for your convenience.
2. Power Cord
he power supply cord should be placed so that they are not
likely to be walked on or pinched by items placed upon them
or against them. Pay particular attention to cord where they
enter the plug, power outlet, and the point where they exit
from the receiver.
3. Moisture and Water
Do not use this equipment in a humid and damp place (avoid
the bathroom, the sink in the kitchen, and near the washing
machine). Do not expose this equipment to rain or water and
do not place objects filled with liquids on it as this may be
dangerous.
4. Cleaning
Before cleaning, unplug the receiver from the main supply
outlet. Do not use liquid or aerosol cleaners. Use with soft
and dry cloth.
5. Ventilation
he slots and openings on the receiver are intended for venti-
lation and to ensure reliable operation. o prevent overheat-
ing, these openings must not be blocked or covered in any-
way.
6. Lightning
In case of storm and lightning or when going on holiday, dis-
connect the power cord from the wall outlet.
7. eplacement Part
When replacement parts are required, be sure the service
technician has used replacement parts which are specified
by the manufacturer or have the same specifications as the
original one. Unauthorized substitutions may result in fire,
electrical shock, or other hazards.
8. Servicing
Please refer all servicing to qualified personnel. Do not re-
move cover as this may result in electric shock.
9. Flame sources
Do not place naked flame sources on the apparatus.
10. Stand-By
Do not leave your V stand-by or operating condition when you
leave your house.
Warning!
Any intervention contrary to regulations, in particular, any
modification of high voltage or a replacement of the picture
tube may lead to an increased concentration of x-rays. Any
television modified in this way no longer complies with li-
cense and must not be operated.
Instructions for waste disposal:
Packaging and packaging aids are recyclable and should
principally be recycled. Packaging materials, such as foil
bag, must be kept away from children.
Batteries, including those which are heavy metal-free, should
not be disposed of with household waste. Please dispose of
used batteries in an environmentally sound manner. Find out
about the legal regulations which apply in your area.
01-ENG-21&2929-AK45-1512UK-(AV-21&29QT4&BU&SU)-50051275.p65 22.06.2004, 11:381
All manuals and user guides at all-guides.com
ENGLISH - 2 -
Remote Control Buttons
= Stand By / Power
0 - 9 = Direct Program
Yellow Button / Factory Settings in Picture Menu
Blue Button
PICTURE = Picture Mode Change
( ) = Programme Up (Cursor Up)
MENU = Menu Button
( ) = Cursor Right / Volume +
( ) = Programme Down (Cursor Down)
eletext / VCR /DVD Control Buttons
= Stereo / Bilingual Button
= VCR / / DVD Switch
= Information Button / -V Link in Program Menu
( ) = Cursor Left / Volume -
AV = AV Button
= eletext Button
ZOOM = Zoom (Picture Size) Change / Red Button
= Hyper Sound / Green Button
= Mute
CAUTION
RISK OF ELECTRIC SHOCK
he lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of
uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk
of electric shock of persons.
he exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating
and maintenance (servicing) instructions in the literature accompanying the appliance.
01-ENG-21&2929-AK45-1512UK-(AV-21&29QT4&BU&SU)-50051275.p65 22.06.2004, 11:382
All manuals and user guides at all-guides.com
ENGLISH - 3 -
Control Panel Buttons
Antenna Connections
69+6
$947%8
$94768
$947%8
$94768
/
3&K
5
0HQX
3RZHU
3URJUDP
9ROXPH
$XGLR,QSXW
7HUPLQDO
9LGHR,QSXW
7HUPLQDO
+HDGSKRQH
)5217$9
(;7
)5217$9
(;7
&21752/
3$1(/
%877216
&21752/
3$1(/
%877216
$XGLR,QSXW
7HUPLQDO
9LGHR,QSXW
7HUPLQDO
+HDGSKRQH
0HQX
3URJUDP
9ROXPH
01-ENG-21&2929-AK45-1512UK-(AV-21&29QT4&BU&SU)-50051275.p65 22.06.2004, 11:383
All manuals and user guides at all-guides.com
ENGLISH - 4 -
Preparation
Place V on a solid surface.
For ventilation, leave a space of at least 10 cm free all around
the set. o prevent any fault and unsafe situations, please do
not place any objects on top of the set.
Use this apparatus in tropical and moderate climates.
Features
It is a remote controlled colour television.
100 programmes from VHF, UHF bands or cable channels
can be preset.
It can tune cable channels.
Controlling the V is very easy by its menu driven system.
It has two Euroconnector sockets for external devices
(such as video recorder, video games, audio set, etc.)
Front AV (EX -3) Input available.
Stereo sound systems (German+Nicam) are available.
Full function eletext (Fastext, optext).
It is possible to connect headphone.
Direct channel access.
AU O PROGRAM (Automatic Programming System).
All programmes can be named.
Forward or backward automatic tuning.
Sleep timer.
Child Lock.
Blue Background.
Comb Filter : Digital circuitry to make adjustments provid-
ing outstanding picture quality with sharp, crisp edges,
while virtually eliminating dot crawl.
C I : (Colour ransient Improvement) Improvement of hori-
zontal transitions of chrominance (colour) signals.
-V Link.
Automatic sound mute when no transmission.
When no valid signal is detected, after 5 minutes the V
switches itself automatically to stand-by mode.
WSS (Wide Screen Signaling).
N SC Playback.
Before Switching on your TV
Power connection
Imp rtant: he V set is designed to operate on 220-240 V
AC, 50 Hz.
After unpacking, allow the V set to reach the ambient
room temperature before you connect the set to the mains.
Aerial Connections
Connect the aerial plug to the aerial input socket located at
the back of the V.

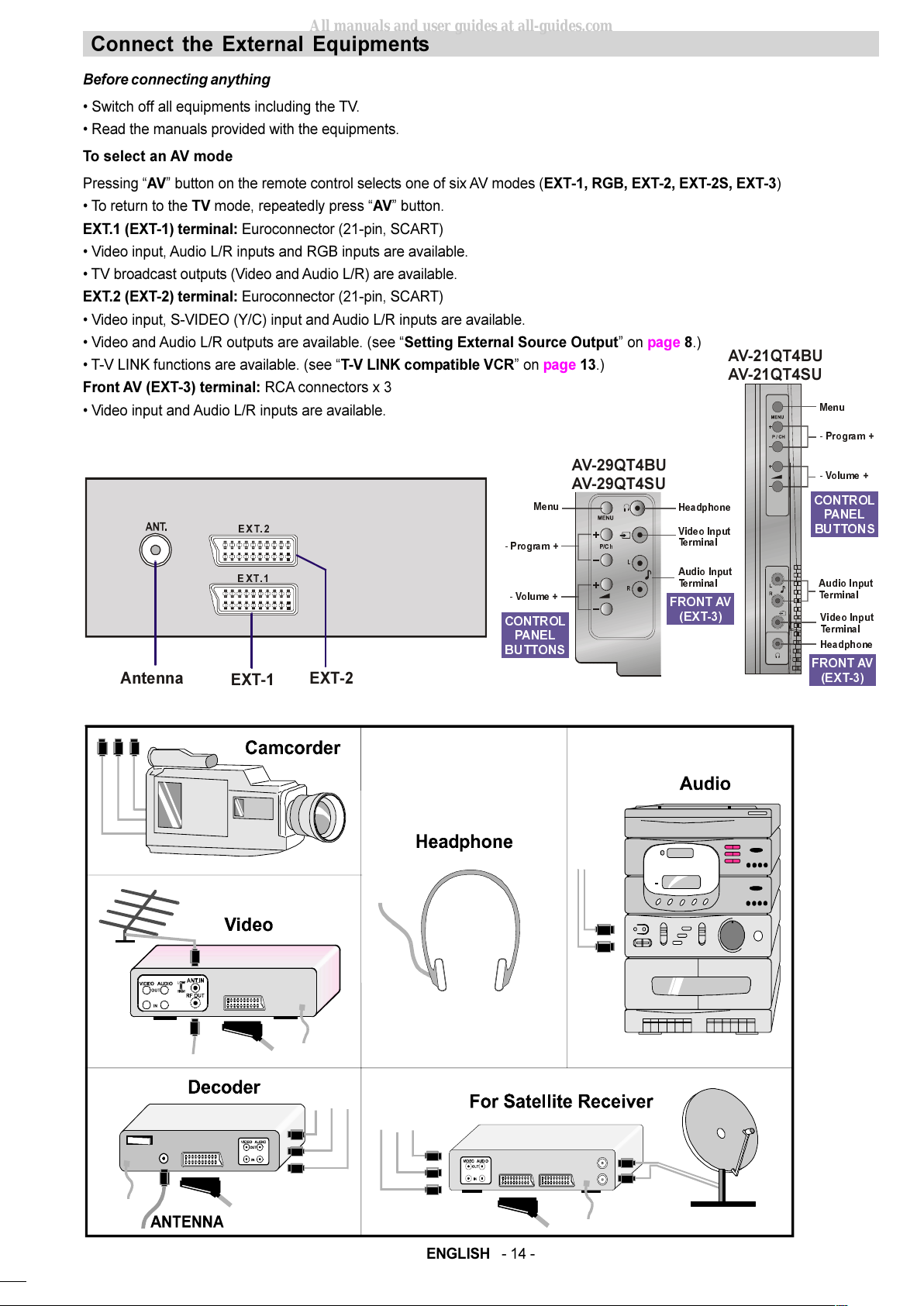

How to connect the external equipments
See C nnect the External Equipments on page 14.
See the instruction manuals provided with the external de-
vices too.
Inserting batteries in the remote control handset
Remove the battery cover located on the back of the hand-
set by gently pulling upwards from the indicated part.
Insert two AA (R6) or equivalent type batteries inside.
Replace the battery cover.
NOTE: emove batteries from remote control handset when it
is not to be used for a long period. Otherwise it can be damaged
due to any leakage of batteries.
Switching the TV ON OFF
You can operate your TV either using the remote control
handset or directly using the TV onset buttons
To switch the TV on
Your V will switch on in two steps:
1- Press the power button located on the front of the V.
hen the V switches itself to standby mode and the RED
LED located below the V turns on.
2- o switch on the V from stand-by mode either:
Press a digit button on the remote control so that a program-
me number is selected,
or,
Press Standby / Power Button or Programme Up and Down
buttons on the V or on the remote control respectively, so
the V will switch on and the RED Led will turn GREEN.
To switch the TV off
Press the stand-by button on the remote control, so the V
will switch to stand-by mode and the GREEN LED will be-
come RED, or,
Press the power button located on the front of the V.
Initial Settings
he message PLEASE CHECK ANTENNA CABLE AUTO.
PROGRAMMING SYSTEM will be displayed when you turn
on your V for the first time.
3/($6( &+(&. $17(11$ &$%/(
$872 352*5$00,1* 6<67(0
/$1*8$*(
&28175<
67$57
3,&785( &$1&(/
(1*/,6+
'
1- Select LANGUAGE with or button, then
press the or button to select a menu language.
2- Select COUNTRY with or button, then press
the or button to select the country you are now lo-
cated.
3- Select START with or button, then press the
right button to start AUTO PROGRAM
AUTO PROGRAM, (Automatic Programming System) auto-
matically programmes the received channels in your Vs
programme numbers. During AUTO PROGRAM, AUTO
PROGRAM IS RUNNING PLEASE WAIT will be displayed.
After AUTO PROGRAM is finalized, the PROGRAM menu
appears.
o cancel AUTO PROGRAM, press the PICTURE button.
01-ENG-21&2929-AK45-1512UK-(AV-21&29QT4&BU&SU)-50051275.p65 22.06.2004, 11:384
All manuals and user guides at all-guides.com
ENGLISH - 5 -
You can delete a channel, insert a channel into a programme
number, or re-start AUTO PROGRAM with the PROGRAM
menu. For details, see PROGRAM (Pr gramming) menu
on page 10.
4- If you do not have a -V LINK compatible VCR, press
PICTURE button to exit the menu.
If you have a -V LINK compatible VCR connected to the
EXT.2 terminal, press button to display T-V LINK
menu. hen follow the operating procedure D wnl ading
data t VCR in the following T-V LINK section.
If the message PLEASE CHECK ANTENNA CABLE AUTO.
PROGRAMMING SYSTEM does not appear, or if you want
to modify the settings later, you can do manually with the
FEATURE, INSTALL and PROGRAM menus.
T-V LINK
When a -V LINK compatible VCR is connected to the EXT.2
erminal on the V, it is easier to set up the VCR and to view
videos. -V LINK uses the following features:
To use T- LINK functions:
A T-V LINK c mpatible VCR means a JVC video cassette
recorder with the -V LINK logo, or with one of the following
logos. However, these VCRs may support some or all of the
features described earlier. For details, see your VCR instruc-
tion manual.
Q-LINK (a trademark of Panasonic Corporation)
Data L gic (a trademark of Metz Corporation)
Easy Link (a trademark of Phillips Corporation)
Megal gic (a trademark of Grundig Corporation)
SMARTLINK (a trademark of Sony Corporation)
Downloading data to CR:
he VCR will automatically download the registered data on
the V channels from the V. his means you do not need to
set up the programme channels on your VCR manually.
he T-V LINK menu will be displayed when you press the
button while PROGRAM menu is displayed, or when-
ever the INSTALL menu operations are performed.
Press button to start downloading data to VCR.
If you do not want to do, press the PICTURE button to
exit the menu.
When FEATURE NOT AVAILABLE... is displayed:
If FEATURE NOT AVAILABLE... is displayed, the download
was not performed correctly. Before trying to download again,
check that:
he VCR power is turned on
he VCR is -V LINK compatible
he VCR is connected to the EX .2 terminal
he SCAR cable is fully wired.
Direct Rec:
What Y u See Is What Y u Rec rd
You can easy record to VCR the images that you are watch-
ing on the V. For details, read the manual for your VCR,
Use your VCR controls. You cannot carryout Direct Rec us-
ing your Vs control.
79 /,1. 79 9&5
9&5 ,6 5(&25',1*
When the VCR is not ready (for example when there is no
tape inserted), NO RECORDING is displayed.
In the following situations, the VCR will stop recording if the
V is turned off, if the V channel or input is changed, or if
the menu is displayed on the V:
When recording images from an external device connected
to the V. (for example a camcorder)
When recording a V channel after it has been un-
scrambled on a decoder.
When recording a V channel by using the Vs output be-
cause the VCRs own tuner cannot properly receive that
channel.
T auto power on/ CR image view:
When the VCR starts playing, the V automatically turns on
and the images from EXT.2 (EXT-2) terminal appear on the
screen.
This functi n d es n t happen if y ur TVs main p wer
is turned ff. Set y ur TVs main p wer t n (standby
m de).
Operating with the onset buttons
Volume setting and programme selection can be made using
the buttons on the right side of the V.
01-ENG-21&2929-AK45-1512UK-(AV-21&29QT4&BU&SU)-50051275.p65 22.06.2004, 11:385
All manuals and user guides at all-guides.com
all-guides.com
ENGLISH - 6 -
V lume Setting:
Press - button to decrease volume or + button to
increase volume, so a volume level scale will be displayed
on the screen.
Pr gramme Selecting:
Press P/Ch+ button to select next programme or P/Ch-
button to select the previous programme.
Entering Main Menu:
Press MENU button to enter main menu. In the main
menu select submenu using P/Ch+ or P/Ch- button and
enter the submenu using + or - button. o learn
the usage of the menus, refer to Menu System on page 6.
Operating with emote Control
he remote control handset of your V is designed to control
all the functions of the model you selected. he functions will
be described in accordance with the menu system of your
V.
Functions which you can use out of menu system are de-
scribed below.
V lume Setting:
Press button to increase volume.
Press button to decrease volume.
Pr gramme Selecting (Previ us r next pr gramme):
Press button to select the previous programme.
Press button to select the next programme.
Pr gramme Selecting (direct access):
Press digit buttons on the remote control handset to select
programmes between 0 and 9. V will switch to the selected
program after a short delay.
For a two digit program number enter the second digit after
pressing the first digit within 2 seconds.
Menu System
Your V has been designed with a menu system. Display
MENU (main menu) and enter one of five menus (SOUND,
PICTURE, FEATURE, INSTALL and PROGRAM).
1- Press MENU button to display MENU (main menu).
he menu titles will be displayed in the main menu.
2- Press or button to select a menu title, then
press or button to enter the menu.
o exit a menu, press PICTURE button.
o go to the previous menu, press MENU button.
6281'
3,&785(
)($785(
,167$//
352*5$0
Sound Menu
To change sound settings:
Press MENU button, now you are in main menu. In the
main menu, SOUND will be the first selected option. Enter
the sound menu pressing or button.
Setting olume:
As you enter the sound menu, Volume will be the first select-
ed option.
Press button to increase volume.
Press button to decrease volume.
92/80(
%$66
75(%/(
%$/$1&(
+<3(56281'
21
Setting Bass Level:
Using or button select Bass.
Press button to increase bass level.
Press button to decrease bass level.
92/80(
%$66
75(%/(
%$/$1&(
+<3(56281'
21
Setting Treble Level:
Using or button select reble.
Press button to increase treble level.
Press button to decrease treble level.
92/80(
%$66
75(%/(
%$/$1&(
+<3(56281'
21
Setting Balance:
Using or button select Balance.
Press button to change balance rightward.
Press button to change balance leftward.
92/80(
%$66
75(%/(
%$/$1&(
+<3(56281'
21
01-ENG-21&2929-AK45-1512UK-(AV-21&29QT4&BU&SU)-50051275.p65 22.06.2004, 11:386
All manuals and user guides at all-guides.com
ENGLISH - 7 -
Hyper Sound:
You can use this feature to switch on or off Hyper Sound.
Pressing or button will turn on or off this feature. If the
current sound system is MONO and the Hyper Sound is set
ON, then the sound will be heard as if it is STEREO. If the
current sound system is STEREO, switching Hyper Sound
on will make the sound deeper. Switching it off will make no
change in MONO and STEREO.
92/80(
%$66
75(%/(
%$/$1&(
+<3(56281'
21
Hyper Sound can be set On or Off also by GREEN button.
Picture Menu
To change picture settings:
Press MENU button, now you are in main menu. In the
main menu, select PICTURE using or button,
then enter the picture menu pressing or button.
6281'
3,&785(
)($785(
,167$//
352*5$0
N te: When Picture Mode is not MANUAL, BRIGH NESS,
CON RAS and COLOUR options can not be reached by
or buttons.
Factory Settings:
In the Picture Menu if you press the YELLOW button the ad-
justments switches themselves to the factory settings.
Setting Brightness:
You can change Brightness only when Picture Mode is se-
lected MANUAL.
Using or button select Brightness.
Press button to increase Brightness.
Press button to decrease Brightness.
Setting Contrast:
You can change C ntrast only when Picture Mode is select-
ed MANUAL.
Using or button select Contrast.
Press button to increase Contrast level.
Press button to decrease Contrast level.
Setting Colour:
You can change C l ur only when Picture Mode is selected
MANUAL.
Using or button select Colour.
Press button to increase Colour level.
Press button to decrease Colour level.
Setting Sharpness:
Using or button select Sharpness.
Press button to increase Sharpness level.
Press button to decrease Sharpness level.
Setting Hue (In A mode only) :
Using or button select Hue.
Press button to increase Hue level.
Press button to decrease Hue level.
Hue adjust is functional only when N SC 3.58/4.43 is applied
in AV mode. It does not appear when other colour systems
used.
Setting CR Mode (In A mode only) :
Using or button select VCR MODE.
When you watch a picture from your VCR and the picture is
unstable, you may improve it by changing the "VCR MODE"
setting from "ON" to "OFF".
01-ENG-21&2929-AK45-1512UK-(AV-21&29QT4&BU&SU)-50051275.p65 22.06.2004, 11:387
All manuals and user guides at all-guides.com
ENGLISH - 8 -
Picture Mode
his item is used to change the picture mode. By pressing
or button you may choose one of these options:
BRIGHT, STANDARD, SOFT, MANUAL.
Colour Temp
his item is used to change the Colour emperature. By
pressing or button you may choose one of these op-
tions: COOL, WARM, NORMAL.
Zoom
his item is used to change the picture size. By pressing
or button you may choose one of these options: AUTO,
4:3 and 16:9.
4:3 his option forces the picture ratio to 4:3 mode.
16:9 This option forces the picture ratio to 16:9 mode.
AUTO his allows to change the picture mode automati-
cally, according to the transmission of the selected chan-
nel. For example, your V is 4:3 mode, but the transmis-
sion of that channel is in 16:9 mode. If you select the AU O
mode, the V is switched to 16:9 mode automatically. If the
V is in 4:3 mode and the picture ratio of the channel is
also 4:3, there will be no affect selecting the picture mode
to AU O mode.
WSS feature is only used in V and EX -3 modes. For the
Zoom selection in EX -1 and EX -2 the pin 8 (of Scart) value
is used. In RGB mode the Zoom can be AUTO, 4:3 and
16:9 mode.
Zoom can be set to desired mode by RED button.
Feature Menu
Press MENU button, now you are in main menu. In the
main menu, select FEATURE, using or button.
hen enter the feature menu pressing or button.
6281'
3,&785(
)($785(
,167$//
352*5$0
Sleep Timer
he sleep timer is used to turn the V off after a defined peri-
od. Press or button to choose a period of time after
selecting this item. he timer can be programmed between
Off and 120 minutes in steps of 10 minutes. (OFF, 010, 020,
030, 040, ......... ,120.)
If sleep timer is activated, at the end of the selected the time,
the V goes automatically to stand-by mode.
6/((37,0(5
&+,/'/2&.
/$1*8$*(
(;7287387
%/8(%$&.*5281'
2))
2))
(1*/,6+
79
2))
Child lock:
You can disable the control panel buttons (except the POW-
ER button) with this item.
Press or button to change the setting to On or Off after
selecting this item.
When you set this item to On, the V can be operated only
by using the remote control handset.
6/((37,0(5
&+,/'/2&.
/$1*8$*(
(;7287387
%/8(%$&.*5281'
2))
2))
(1*/,6+
79
2))
Warning: If Child Lock item is set to ON, the V can not be
operated by VCR.
Language:
Menu Language can be selected by pressing or button
on Language item.
6/((37,0(5
&+,/'/2&.
/$1*8$*(
(;7287387
%/8(%$&.*5281'
2))
2))
(1*/,6+
79
2))
Setting External Source Output
You can use this menu to select the internal or external
source that will be output at EXT.2 terminal.
In the Feature menu select EXT-2 Output using
or button. hen select the source you want to be out-
put at EXT.2 pressing or button (one of the sources:
TV, EXT-1 or EXT-3 (Fr nt AV).
6/((37,0(5
&+,/'/2&.
/$1*8$*(
(;7287387
%/8(%$&.*5281'
2))
2))
(1*/,6+
79
2))
Blue Background During No-Signal
he Blue Backgr und feature can be set by or button
to either On or Off.
01-ENG-21&2929-AK45-1512UK-(AV-21&29QT4&BU&SU)-50051275.p65 22.06.2004, 11:388
All manuals and user guides at all-guides.com
ENGLISH - 9 -
Install (Installation) Menu
You can store a channel manually, or modify the current set-
tings of a channel (for example, fine-tuning a channel).
You can also changing the colour system, or change the
DECODER(EXT-2) setting.
Press MENU button to display the main menu.
Press or button to select INSTALL item.
hen or button to display the INSTALL menu.
6281'
3,&785(
)($785(
,167$//
352*5$0
N te:
If you want to modify the current settings of a channel, se-
lect the channel of which you want to modify the setting.
hen display the main menu on screen.
In AV mode, you can change only the COLOUR SYSTEM
item.
1. PROGRAMME will be the first selected item as you enter
the INSTALL menu. Pressing or button select the
programme number where you want to the tuned channel
to be stored. (You may also type the programme number
using the digit buttons.)
N te:
Do not use PROGRAMME item when you modify the cur-
rent programme numbers setting. If you select other
programme number by mistake, the selected programme
numbers setting will be changed.
2. Press or button to select BAND. Using or
button to select the band in which you want to search
a channel.
3. Press or button to select SEARCH. Press
or button to start searching. (Press button to
search forward. Press to search backwards.)
If the found channel is not the desired one, press or
button to start searching again.
o stop searching before a channel is found, press the
reverse direction button. For example, when the V is
searching forward with button, press button to
stop searching.
If you know the channel number which you want to find,
you can find the channel directly. Follow the step 4 to
select the correct standard, then press or
to select CHANNEL again, and press or button to
select the channel number, or enter the number with the
digit buttons.
4. If the sound or picture is abnormal, change the standard
(broadcasting system) of new channel. Press or
button to select STANDARD, then press or
button to change the correct one.
he indicated number will be changed when you change
the standard.
B/G : C02-C12, C21-C73 / S01-S41 / S75-S79
D/K : 01-C12, C21-C69 / S01-S19, S22-S41
L : C01-C73 / S01-S41 / S75-S77
L : C04-C09
5. If the picture is not clear or no colour appears, change the
colour system to display the picture normally. Press
or button to select COLOUR SYSTEM, then
press or button to choose the correct one.
In V mode: PAL / SECAM
In AV mode: AUTO / PAL / SECAM / NTSC 3.58 / NTSC 4.43
6. If the channel reception is poor, fine-tune the channel.
Press or to select FINE TUNING, then press
or button to fine-tune the channel.
7. After the all settings are completed, store the new
channels setting to the programme number which you se-
lected. Press or to select STORE, then
press or button to store it. T-V LINK menu will ap-
pear after the V stores the settings.
8. If you do not have a -V LINK compatible VCR, press
PICTURE button to exit the menu.
If you have a -V LINK compatible VCR connected to the
EX -2 terminal, press button to display T-V LINK
menu. hen follow the operating procedure D wnl ading
the data t VCR on page 5 to transmit the Programme
table data to the VCR.
To change the Colour system:
If the picture is not clear or no colour appears, choose the
correct colour system to display the picture normally.
1. Press or button to select COLOUR SYS-
TEM, then press or button to choose the correct
one.
In V mode: PAL / SECAM
In AV mode: AUTO / PAL / SECAM / NTSC 3.58 / NTSC 4.43
2. Press or to select STORE, then press or
button to store it.
3. When T-V LINK menu appears, follow the step 4.
4. If you do not have a -V LINK compatible VCR, press
PICTURE button to exit the menu.
If you have a -V LINK compatible VCR connected to the
EXT.2 terminal, follow the operating procedure D wn-
l ading the data t VCR on page 5 to transmit the Pro-
gramme table data to the VCR.
01-ENG-21&2929-AK45-1512UK-(AV-21&29QT4&BU&SU)-50051275.p65 22.06.2004, 11:389
All manuals and user guides at all-guides.com
ENGLISH - 10 -
Using the Decoder (EXT-2) function
If you have a decoder connected to a -V LINK compatible
VCR, which in turn is connected to the EX .2 terminal, use
DECODER(EXT-2) to unscramble the scrambled V chan-
nels.
1. Exit the menu.
2. urn on the decoder power.
3. Display the scrambled V channel on the V. Even if the
decoder is working, a scrambled picture appears.
4. Display the INSTALL menu again.
5. Press or button to select DECODER(EXT-2),
then press or button to set to ON
6. Press or to select STORE, then press or
button to store it. T-V LINK menu will appear after the
V stores the setting.
7. Follow the operating procedure D wnl ading the data
t VCR on page 5 to transmit the revised programme
table data to the VCR.
If you do not want to transmit, press PICTURE button
to exit the menu.
N te:
You can only use this item if you have a decoder connected
to a -V LINK compatible VCR to EX .2 terminal. Setting this
item to ON by mistake causes the picture/sound of a V
channel you are currently viewing to disappear.
If this item has been set to ON but the V channel cannot
be unscrambled, check the following:
Has the decoder been connected to the VCR properly ac-
cording to the VCR and Decoder instruction manuals?
Can the V channel be unscrambled with a decoder?
Do you need to change the VCR settings in order to con-
nect the decoder? Confirm that the VCR is set properly by
rechecking the VCR instruction manual.
Program (Programming) Menu
You can use the Program (Programming) menu to delete a
channel, to change the programme number of a channel, to
give a channel name to a channel, and to start the AUTO
PROGRAM (AUTOSTORE) function.
Press MENU button to display the main menu.
Press or button to select PROGRAM item,
then or button to display the PROGRAM menu.
To choose a channel in the PROGRAM menu:
Press / / / button. he programme num-
ber that you choose is high-lighted in the PROGRAM menu
and you can view the picture of that channel.
Cauti n:
Using DELETE or INSERT function rewrite the current
channel list in the PROGRAM menu. herefore, the pro-
gramme numbers of some of channels will change.
When you complete the settings of PROGRAM
menu:
If you have a -V LINK compatible VCR, press the but-
ton to display the -V LINK menu. hen follow the operating
procedure D wnl ading the data t VCR on page 5 to
transmit the Programme table data to the VCR.
If you do not have a -V LINK compatible VCR, press PIC-
TURE button to exit the menu.
To give a channel name (NAME):
1. Choose the channel you want to give a channel name.
2. Press the RED button to enter the NAME mode.
3. Press or button to choose the position, and press
or button to choose each character of chan-
nel name.
4. Press the RED button to store the channel name.
o cancel the NAME mode, press the BLUE button.
To delete a channel (DELETE):
1. Choose the channel you want to delete.
2. Press the YELLOW button to enter the DELE E mode.
3. Press the YELLOW button to delete it.
o cancel this DELE E mode, press the BLUE button.
To change the programme number of a channel
(INSERT):
1. Choose the channel you want to change the programme
number.
2. Press the GREEN button to enter the INSER mode.
3. Press / / / button to choose new
programme number.
4. Press the GREEN button to insert the channel to the cho-
sen programme number.
o cancel this INSER mode, press the BLUE button.
To start AUTO P OG AM (AUTOSTO E)
AUTO PROGRAM Automatically programmes the received
channels in your Vs programme numbers.
1. Press the BLUE button to enter the AUTOSTORE mode.
A warning message appears.
01-ENG-21&2929-AK45-1512UK-(AV-21&29QT4&BU&SU)-50051275.p65 22.06.2004, 11:3810
All manuals and user guides at all-guides.com
all-guides.com
ENGLISH - 11 -
$// 35(6725(' 352*5$00(6
:,// %( (5$6('
&28175<
&217,18(
3,&785(&$1&(/
'
o cancel the AUTOSTORE mode, press the PIC-
TURE button.
2. Press or button to choose the COUNTRY,
then press or button the choose country you are
now located.
3. Press or button to choose the CONTINUE,
then press button to start AUTO PROGRAM he fol-
lowing message appears.
o cancel the AUTO PROGRAM, press the PICTURE
button.
4. After AUTO PROGRAM is finalized, the PROGRAM menu
appears again.
Other Features
Sound Mute
o cut off the sound of the V, press button. he sound
will be cut off. o cancel mute, press or or but-
ton. he volume level will be the same as the level before
mute when you cancel mute.
Stereo / Bilingual
If the V channel you are watching broadcasts in two lan-
guages (e.g. Eurosport), you can select the dubbed or the
original language, pressing the button.
When the stereo broadcast is received poorly, you can
change from stereo to mono sound so that you can hear
the broadcast more clearly and easily.
Information on Screen
First pressing the button displays the current status
Pr gramme number, Stati n name and S und sta-
tus.
Pressing this button again displays the current time.
Pressing this button once more remove the on-screen dis-
play.
To Display the Time
While watching a V programme with eletext transmission
press button twice. he current time information, cap-
tured from eletext will be displayed at the upper left corner
of the screen.
If the programme being watched does not have eletext
transmission, no time information will be displayed.
he time information will disappear after pressing but-
ton again.
You can change Picture M de settings by pressing PIC-
TURE button when no menu appears.
VC / DVD Control Buttons and VC / / DVD
Switch
he buttons can be used to operate a JVC brand VCR or
DVD player. Pressing the button having the same appear-
ance as the original remote control button of a device makes
the function work in the same way as the original remote
control.
1. Set the VCR / / DVD Switch to the VCR or DVD posi-
tion.
VCR:
When you are operating the VCR, set the switch to the VCR
position.
DVD:
When you are operating the DVD player, set the switch to
the DVD position.
(Text):
When you are viewing eletext programmes, set the switch
to the ( ext) position.
2. Press the VCR / DVD Control Button to control your VCR
or DVD player.
N te:
If your device is not made by JVC, these buttons cannot be
used.
Even if your device is made by JVC, some of these buttons
or any one of the buttons may not work, depending on the
device.
You can use the / buttons to choose a V channel
which the VCR will receive or choose the chapter which the
DVD player plays back.
Some DVD player models use the / buttons for oper-
ating of Fast forward/backward functions and choosing the
chapter. In this case, the / the buttons do not
work.
Teletext
eletext is an information system that displays text on your
V screen. Using the eletext information system you can
view a page of information on a subject that is available in the
list of contents (index).
No on screen display will be available in text mode.
No contrast, brightness or colour control, but volume control
is available in text mode.
To operate Teletext
Select a V station on which eletext is being transmitted.
Press (teletext) button. Usually the list of contents (in-
dex) is displayed on the screen.
Set the VCR / / DVD switch to the ( ext) position.
01-ENG-21&2929-AK45-1512UK-(AV-21&29QT4&BU&SU)-50051275.p65 22.06.2004, 11:3811
All manuals and user guides at all-guides.com
ENGLISH - 12 -
To select a page of Teletext
Press the appropriate digit buttons for the required eletext
page number.
he selected page number is displayed at the top left corner
of the screen. he eletext page counter searches until the
selected page number is located, so that the desired page is
displayed on the screen.
Press button to move the eletext screen forward
one page at a time.
Press button to move the eletext screen backward
one page at a time.
To Select Index Page
o select the page number of the index (generally page
100), press button.
Searching for a teletext page while watching TV
In the eletext mode pressing button will switch the
screen to the V mode. In the V mode enter a page num-
ber using digit buttons. As you enter last digit of page num-
ber, sign will replace the page number and flash until
the entered page number is found. hen the page number
will replace sign again. Now you can display this tele-
text page pressing button.
To Select Double Height Text
Press button for the top half of the information page to
be displayed in double height text.
Press button again for the bottom half of the informa-
tion page to be displayed in double height text.
Press button once more for the full page of normal
height text.
To eveal concealed Information
Pressing button once will reveal answers on a quiz or
games page.
Pressing button again will conceal the revealed an-
swers.
To Stop Automatic Page Change
he teletext page you have selected may contain more infor-
mation than what is on the screen; the rest of the information
will be displayed after a period of time.
Press button to stop the automatic page change.
Press button again to allow the next page to be dis-
played.
To Select a Subcode Page
Subcode pages are subsections of long eletext pages that
can only be displayed on the screen one section at a time.
Select the required eletext page.
Press button.
Select the required subcode page number by pressing four
digit buttons (e.g. 0001).
If the selected subcode page is not displayed in a short
time, press button. V programme will be displayed on
the screen.
eletext page number will be displayed on the upper left
corner of the screen when the selected page is found.
Press button to display the selected eletext page.
To exit Teletext
Press button. he screen will switch to V mode.
Fastext and Toptext
eletext mode will be selected according to transmission au-
tomatically.
Your C V supports the 7 page eletext system. When the
page number of any of the 7 pages in memory is entered, the
system will not search for the requested page; instead it will
display the page automatically.
Press button to move the eletext screen forward
one page at a time.
Press button to move the eletext screen backward
one page at a time.
For Fastext and Toptext
he subject-heading for the information may have a particular
colour or can be in a form located in a coloured box.
Press an appropriate RED, GREEN, YELLOW or BLUE but-
ton in order to reach the relevant page quickly.
For TOPTEXT
If optext transmission is present, colour coded buttons will
appear in status row.
If optext transmission is not present, status row will not ap-
pear.
In optext mode the or commands will request
the next or previous page respectively. If optext transmis-
sion is not available, in case of operation of these com-
mands, wraparound occurs. For example page 100 appears
to be one greater than page 199.
01-ENG-21&2929-AK45-1512UK-(AV-21&29QT4&BU&SU)-50051275.p65 22.06.2004, 11:3812
All manuals and user guides at all-guides.com
ENGLISH - 13 -
Connect the External Equipments
Via the Euroconnector
Your V set has two Euroconnector sockets. If you want to
connect equipments (e.g. video recorder, decoder, etc.)
which have Euroconnectors, to your V, use the EXT.1
(EXT-1) or EXT.2 (EXT-2) terminals.
If an external device is connected via Euroconnector sockets
V is switched to AV mode automatically.
T-V LINK compatible VC
Be sure to connect the -V LINK compatible VCR to the
EXT.2 terminal. If not, the -V LINK function will not work
properly.
When connecting a -V LINK compatible VCR to the EX .2
terminal, be sure to connect the decoder to the VCR. If not,
the T-V LINK function may not work properly. And then set
the DECODER(EXT-2) function for the channel to ON to un-
scramble a scrambled channel. For details, see Using the
Dec der (EXT-2) functi n on page 10.
GB mode
If an equipment can output the RGB signals, connect it to
the EXT.1 (EXT-1) terminal.
EXT-2S Mode
If the equipment connected to your V set supports S-Video
(Y/C) output from Euroconnector, you can have a better pic-
ture quality by selecting EXT-2S mode and connecting your
equipment to the EXT.2 (EXT-2S) terminal of V. See your
equipment's booklet to check if your equipment has such
feature.
Via the CA jacks
If you have an equipment (such as a Camcorder) which has
the RCA jacks, connect it to the Fr nt AV (EXT-3) terminal
with the video and audio cables.
If the equipment has the mono audio jack, connect it to the
AUDIO-L jack.
Via the ANT (aerial) socket
If your equipment does not have an Euroconnector or RCA
jacks, connect it to the V with an aerial cable. For details,
see the manual provided with the equipment.
o store the test signal that comes from the equipment,
see INSTALL Menu on page 9 and store it to the pro-
gramme number 0. You can watch images from that equip-
ment to select the programme number which you stored the
test signal.
TV and Video ecoder (VC )
Connect the Video Recorder to the AN (antenna input)
socket of the V with the aerial cable.
Connect the Video Recorder to the EXT.1 (EXT-1) or EXT.2
(EXT-2) terminal with the SCAR cable, or connect it to the
Fr nt AV (EXT-3) terminal with the audio and video cables.
NTSC Playback
Connect a N SC video recorder to a terminal. hen press
AV button to select the corresponding AV mode.
NTSC 3.58/4.43 system is detected automatically in AV
mode.
Copy Facility
You can output the video and audio signals which inputs from
TV or EXT.1 (EXT-1) terminal to the video recorder connected
to the EXT.2 (EXT-2) terminal.
o select the output source, see Setting External S urce
Output on page 8.
Connecting Headphones
Use the stereo headphone socket of your V, to connect
headphones.
01-ENG-21&2929-AK45-1512UK-(AV-21&29QT4&BU&SU)-50051275.p65 22.06.2004, 11:3813
All manuals and user guides at all-guides.com
ENGLISH - 14 -
Connect the External Equipments
Before connecting anything
Switch off all equipments including the V.
Read the manuals provided with the equipments.
T select an AV m de
Pressing AV button on the remote control selects one of six AV modes (EXT-1, RGB, EXT-2, EXT-2S, EXT-3)
o return to the TV mode, repeatedly press AV button.
EXT.1 (EXT-1) terminal: Euroconnector (21-pin, SCAR )
Video input, Audio L/R inputs and RGB inputs are available.
V broadcast outputs (Video and Audio L/R) are available.
EXT.2 (EXT-2) terminal: Euroconnector (21-pin, SCAR )
Video input, S-VIDEO (Y/C) input and Audio L/R inputs are available.
Video and Audio L/R outputs are available. (see Setting External S urce Output on page 8.)
-V LINK functions are available. (see T-V LINK c mpatible VCR on page 13.)
Fr nt AV (EXT-3) terminal: RCA connectors x 3
Video input and Audio L/R inputs are available.
(;7
(;7
$QWHQQD (;7
(;7
$947%8
$94768
)5217$9
(;7
&21752/
3$1(/
%877216
$XGLR,QSXW
7HUPLQDO
9LGHR,QSXW
7HUPLQDO
+HDGSKRQH
0HQX
3URJUDP
9ROXPH
69+6
$947%8
$94768
/
3&K
5
0HQX
3URJUDP
9ROXPH
$XGLR,QSXW
7HUPLQDO
9LGHR,QSXW
7HUPLQDO
+HDGSKRQH
)5217$9
(;7
&21752/
3$1(/
%877216
01-ENG-21&2929-AK45-1512UK-(AV-21&29QT4&BU&SU)-50051275.p65 22.06.2004, 11:3814
All manuals and user guides at all-guides.com
ENGLISH - 15 -
Tips
Care of the Screen
Clean the screen with a slightly damp, soft cloth. Do not use
abrasive solvents as they may damage the V screen coat-
ing layer.
Poor Picture
Have you selected the correct V system? Is your V set or
house aerial located too close to the loudspeakers, non-
earthed audio equipment or neon lights, etc. ?
Mountains or high buildings can cause double pictures or
ghost images. Sometimes you can improve the picture quali-
ty by changing the direction of the aerial.
he picture quality may degrade when two peripherals are
connected to the V at the same time. In such a case, dis-
connect one of the peripherals.
No Picture
Is the aerial connected properly? Are the plugs connected
tightly to the aerial socket? Is the aerial cable damaged? Are
suitable plugs used to connect the aerial? If you are in doubt,
consult your dealer.
N Picture means that your V is not receiving any trans-
mission. Have you pressed the correct keys on the remote
control? ry once more.
Sound
Sound is coming from only one of the speakers. Is the bal-
ance set to one direction extreme? See SOUND menu.
emote Control
Your V no longer responds to the remote control. Perhaps
the batteries are exhausted. If so you can still use the local
buttons at the right side of your V.
Have you selected the wrong menu? Press PICTURE but-
ton to return to V mode or press MENU button to return to
the previous menu.
No solution
Switch your V set off and on. If this does not work, call the
service personnel; never attempt to repair it yourself.
Specifications
TV BROADCASTING
PAL SECAM B/G D/K L/L
RECEIVING CHANNELS
VHF (BANDI/III)
UHF (BAND U)
HYPERBAND
CABLE- V (B/G: S01-S41 / S75-S79
D/K: S01-S19, S22-S41
L: S01-S41 / S75-S77)
NUMBER OF PRESET CHANNELS
100
CHANNEL INDICATOR
ON SCREEN DISPLAY
RF AERIAL INPUT
75 Ohm Unbalanced
OPERATING VOLTAGE
220-240V AC, 50 Hz.
SOUND-MULTIPLEX SYSTEMS
Nicam + German Stereo
AV-21QT4BU AV-29QT4BU
AV-21QT4SU AV-29QT4SU
AUDIO OUTPUT POWER (WRMS.) (%10 THD)
2 x 6,5 2 x 10
POWER CONSUMPTION (W) (max)
90 Watt 130 Watt
PICTURE TUBE
21 29
DIMENSIONS (WxHxD) (mm)
:
+
'
: HLJKWNJ
:
+
'
: HLJKWNJ
01-ENG-21&2929-AK45-1512UK-(AV-21&29QT4&BU&SU)-50051275.p65 22.06.2004, 11:3815
All manuals and user guides at all-guides.com
all-guides.com
Other manuals for InteriArt AV-21QT4BU
2
This manual suits for next models
3
Table of contents
Other JVC TV manuals
