SERVICE MANUAL
COPYRIGHT © 2006 Victor Company of Japan, Limited No.YA492
2006/11
WIDE LCD PANEL TELEVISION
YA492200611SERVICE MANUAL
LT-26A70BJ, LT-26A70BU, LT-26A70SJ,
LT-26A70SU, LT-32A70BJ, LT-32A70BU,
LT-32A70GU, LT-32A70SJ, LT-32A70SU
COPYRIGHT © 2006 Victor Company of Japan, Limited
TABLE OF CONTENTS
1 PRECAUTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
2 SPECIFIC SERVICE INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7
3 DISASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-11
4 ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-16
5 TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-21
BASIC CHASSIS
FT2

1-2 (No.YA492)
SPECIFICATION
Design & specifications are subject to change without notice.
Items
Contents
LT-26A70BJ
LT-26A70SJ
LT-26A70BU
LT-26A70SU
LT-32A70BJ
LT-32A70SJ
LT-32A70BU
LT-32A70GU
LT-32A70SU
Dimensions ( W ×H ×D ) 68.6 cm ×51.4 cm ×24.4 cm [Included stand]
68.6 cm ×47.4 cm ×12.2 cm [TV only]
82.0 cm ×58.8 cm ×24.4 cm [Included stand]
82.0 cm ×55.1 cm ×12.7 cm [TV only]
Mass 11.6 kg [Included stand]
9.6 kg [TV only]
14.6 kg [Included stand]
12.6 kg [TV only]
Power Input AC220 V - AC240 V, 50 Hz
Power Consumption 106 W (Standby: 0.7 W) 114 W (Standby: 0.7 W)
TV RF System CCIR (I) CCIR (B/G, I, D/K, L) CCIR (I) CCIR (B/G, I, D/K, L)
Colour System
PAL, NTSC 3.58/4.43 [EXT only] PAL, SECAM, NTSC 3.58/4.43 [EXT only] PAL, NTSC 3.58/4.43 [EXT only] PAL, SECAM, NTSC 3.58/4.43 [EXT only]
Stereo System NICAM (I) NICAM (B/G, I, D/K, L)
A2 (B/G, D/K)
NICAM (I) NICAM (B/G, I, D/K, L)
A2 (B/G, D/K)
Teletext System
FLOF (Fastext)
WST(World Standard system)
FLOF (Fastext)
TOP
WST(World Standard system)
FLOF (Fastext)
WST(World Standard system)
FLOF (Fastext)
TOP
WST(World Standard system)
Receiving Frequency UHF: 470MHz - 862MHz VHF: 47MHz - 470MHz
UHF: 470MHz - 862MHz
UHF: 470MHz - 862MHz VHF: 47MHz - 470MHz
UHF: 470MHz - 862MHz
Intermediate
Frequency
VIF 38.9MHz (I) 38.9MHz (B/G, I, D/K, L) 38.9MHz (I) 38.9MHz (B/G, I, D/K, L)
SIF 32.9MHz (6.0MHz :I) 33.4MHz (5.5MHz :B/G)
32.9MHz (6.0MHz :I)
32.4MHz (6.5MHz :D/K)
32.9MHz (6.0MHz :I) 33.4MHz (5.5MHz :B/G)
32.9MHz (6.0MHz :I)
32.4MHz (6.5MHz :D/K)
Colour Sub
Carrier
Frequency
PAL 4.43MHz
SECAM ---- 4.40625MHz / 4.25MHz ---- 4.40625MHz / 4.25MHz
NTSC 3.58MHz / 4.43MHz
LCD panel 26V-inch wide aspect (16 : 9) 32V-inch wide aspect (16 : 9)
Screen Size
Diagonal : 66 cm (H: 57.6 cm × V: 32.4 cm) Diagonal : 80 cm (H: 69.7 cm × V: 39.2 cm)
Display Pixels Horizontal : 1366 dots ×Vertical : 768 dots (W-XGA)
Audio Power Output 5 W + 5 W
Speaker 12 cm ×12, oval type ×2
Aerial terminal (VHF/UHF) 75 Ωunbalanced, coaxial
EXT-1 / EXT-2 (Input / Output) 21-pin Euro connector (SCART socket ) ×2
EXT-3 (Input) S-Video Mini-DIN 4 pin ×1
Y: 1 V (p-p), Positive (Negative sync provided), 75 Ω
C: 0.286 V (p-p) (Burst signal), 75 Ω
Video 1 V (p-p), Positive (Negative sync provided), 75 Ω, RCA pin jack ×1
Audio 500 mV (rms), High impedance, RCA pin jack ×2
EXT-4 (Input)
Component Video
1125i/750p
625p / 525p / 625i / 525i
RCA pin jack ×3
Y : 1 V (p-p) (Sync signal: ±0.35V(p-p), 3-value sync.), 75Ω, Pb/Pr : ±0.35V(p-p), 75 Ω
Y : 1 V (p-p), Positive (Negative sync provided), 75 Ω, Cb/Cr : 0.7V(p-p), 75 Ω
Video 1 V (p-p), Positive (Negative sync provided), 75 Ω, RCA pin jack ×1
Audio 500 mV (rms), High impedance, RCA pin jack ×2
HDMI Video HDMI 2-row 19pin connector ×1
(Digital-input terminal is not compatible with picture signals of personal computer)
Audio Digital: HDMI 2-row 19pin connector ×1
Headphone 3.5 mm stereo mini jack ×1
Remote Control Unit RM-C1816S (AA/R6 dry cell battery ×2)

(No.YA492)1-3
SECTION 1
PRECAUTION
1.1 SAFETY PRECAUTIONS [EXCEPT FOR UK]
(1) The design of this product contains special hardware,
many circuits and components specially for safety
purposes. For continued protection, no changes should be
made to the original design unless authorized in writing by
the manufacturer. Replacement parts must be identical to
those used in the original circuits. Service should be
performed by qualified personnel only.
(2) Alterations of the design or circuitry of the products should
not be made. Any design alterations or additions will void
the manufacturer's warranty and will further relieve the
manufacturer of responsibility for personal injury or
property damage resulting therefrom.
(3) Many electrical and mechanical parts in the products have
special safety-related characteristics. These
characteristics are often not evident from visual inspection
nor can the protection afforded by them necessarily be
obtained by using replacement components rated for
higher voltage, wattage, etc. Replacement parts which
have these special safety characteristics are identified in
the parts list of Service manual. Electrical components
having such features are identified by shading on the
schematics and by ( ) on the parts list in Service
manual. The use of a substitute replacement which does
not have the same safety characteristics as the
recommended replacement part shown in the parts list of
Service manual may cause shock, fire, or other hazards.
(4) Don't short between the LIVE side ground and
ISOLATED (NEUTRAL) side ground or EARTH side
ground when repairing.
Some model's power circuit is partly different in the GND.
The difference of the GND is shown by the LIVE : ( ) side
GND, the ISOLATED (NEUTRAL) : ( ) side GND and
EARTH : ( ) side GND.
Don't short between the LIVE side GND and ISOLATED
(NEUTRAL) side GND or EARTH side GND and never
measure the LIVE side GND and ISOLATED (NEUTRAL)
side GND or EARTH side GND at the same time with a
measuring apparatus (oscilloscope etc.). If above note will
not be kept, a fuse or any parts will be broken.
(5) When service is required, observe the original lead dress.
Extra precaution should be given to assure correct lead
dress in the high voltage circuit area. Where a short circuit
has occurred, those components that indicate evidence of
overheating should be replaced. Always use the
manufacturer's replacement components.
(6) Isolation Check (Safety for Electrical Shock Hazard)
After re-assembling the product, always perform an
isolation check on the exposed metal parts of the cabinet
(antenna terminals, video/audio input and output terminals,
Control knobs, metal cabinet, screw heads, earphone jack,
control shafts, etc.) to be sure the product is safe to operate
without danger of electrical shock.
a) Dielectric Strength Test
The isolation between the AC primary circuit and all metal
parts exposed to the user, particularly any exposed metal
part having a return path to the chassis should withstand a
voltage of 3000V AC (r.m.s.) for a period of one second. (.
. . . Withstand a voltage of 1100V AC (r.m.s.) to an
appliance rated up to 120V, and 3000V AC (r.m.s.) to an
appliance rated 200V or more, for a period of one second.)
This method of test requires a test equipment not generally
found in the service trade.
b) Leakage Current Check
Plug the AC line cord directly into the AC outlet (do not use
a line isolation transformer during this check.). Using a
"Leakage Current Tester", measure the leakage current
from each exposed metal part of the cabinet, particularly
any exposed metal part having a return path to the chassis,
to a known good earth ground (water pipe, etc.). Any
leakage current must not exceed 0.5mA AC (r.m.s.).
However, in tropical area, this must not exceed 0.2mA AC
(r.m.s.).
Alternate Check Method
Plug the AC line cord directly into the AC outlet (do not
use a line isolation transformer during this check.). Use
an AC voltmeter having 1000Ωper volt or more
sensitivity in the following manner. Connect a 1500Ω
10W resistor paralleled by a 0.15µF AC-type capacitor
between an exposed metal part and a known good earth
ground (water pipe, etc.). Measure the AC voltage
across the resistor with the AC voltmeter. Move the
resistor connection to each exposed metal part,
particularly any exposed metal part having a return path
to the chassis, and measure the AC voltage across the
resistor. Now, reverse the plug in the AC outlet and
repeat each measurement. Any voltage measured must
not exceed 0.75V AC (r.m.s.). This corresponds to
0.5mA AC (r.m.s.).
However, in tropical area, this must not exceed 0.3V AC
(r.m.s.). This corresponds to 0.2mA AC (r.m.s.).
AC VOLTMETER
(HAVING 1000 /V,
OR MORE SENSITIVITY)
PLACE THIS PROBE
ON EACH EXPOSED
METAL PART
1500 10W
0.15 F AC-TYPE
GOOD EARTH GROUND

1-4 (No.YA492)
1.2 SAFETY PRECAUTIONS [FOR UK]
(1) The design of this product contains special hardware and many circuits and components specially for safety purposes. For
continued protection, no changes should be made to the original design unless authorized in writing by the manufacturer.
Replacement parts must be identical to those used in the original circuits. Service should be performed by qualified personnel
only.
(2) Alterations of the design or circuitry of the product should not be made. Any design alterations or additions will void the
manufacturer's warranty and will further relieve the manufacturer of responsibility for personal injury or property damage
resulting therefrom.
(3) Many electrical and mechanical parts in the product have special safety-related characteristics. These characteristics are often
not evident from visual inspection nor can the protection afforded by them necessary be obtained by using replacement
components rated for higher voltage, wattage, etc. Replacement parts which have these special safety characteristics are
identified in the Parts List of Service Manual. Electrical components having such features are identified by shading on the
schematics and by ( ) on the Parts List in the Service Manual. The use of a substitute replacement which does not have the
same safety characteristics as the recommended replacement part shown in the Parts List of Service Manual may cause shock,
fire, or other hazards.
(4) The leads in the products are routed and dressed with ties, clamps, tubing’s, barriers and the like to be separated from live parts,
high temperature parts, moving parts and / or sharp edges for the prevention of electric shock and fire hazard. When service is
required, the original lead routing and dress should be observed, and it should be confirmed that they have been returned to
normal, after re-assembling.
WARNING
(1) The equipment has been designed and manufactured to meet international safety standards.
(2) It is the legal responsibility of the repairer to ensure that these safety standards are maintained.
(3) Repairs must be made in accordance with the relevant safety standards.
(4) It is essential that safety critical components are replaced by approved parts.
(5) If mains voltage selector is provided, check setting for local voltage.

(No.YA492)1-5
1.3 INSTALLATION
1.3.1 HEAT DISSIPATION
If the heat dissipation vent behind this unit is blocked, cooling
efficiency may deteriorate and temperature inside the unit will
rise. The temperature sensor that protects the unit will be
activated when internal temperature exceeds the pre-determined
level and power will be turned off automatically.Therefore,
please make sure pay attention not to block the heat dissipation
vent as well as the ventilation outlet behind the unit and ensure
that there is room for ventilation around it.
1.3.2 INSTALLATION REQUIREMENTS
Ensure that the minimal distance is maintained, as specified
below, between the unit with and the surrounding walls, as well
as the floor etc.Install the unit on stable flooring or stands.Take
precautionary measures to prevent the unit from tipping in order
to protect against accidents and earthquakes.
1.3.3 INSTALLATION REQUIREMENTS
To ensure safety in an emergency such as an earthquake, and
to prevent accidents, ensure that measures are taken to prevent
the TV dropping or falling over.
1.3.4 NOTES ON HANDLING
(1) WHEN TAKING UNIT OUT OF A PACKING CASE
When taking the unit out of a packing case, do not grasp
the upper part of the unit. If you take the unit out while
grasping the upper part, the LCD PANEL may be damaged
because of a pressure. Instead of grasping the upper part,
put your hands on the lower backside or sides of the unit.
(2) AS FOR PRESSING OR TOUCHING A SPEAKER
Be careful not to press the opening of the speaker in the
lower part of the unit and around them since the decorative
sheet on the surface of the openings may be deformed.
Ventilation hole
Ventilation hole
*Diagram differs from actual appearance.
*Diagram differs from actual appearance.
200 mm
150 mm 50 mm 150 mm 50 mm
It fixes in a band.
TV Stand
*Diagram differs from actual appearance.

1-6 (No.YA492)
1.4 HANDLING LCD PANEL
1.4.1 PRECAUTIONS FOR TRANSPORTATION
When transporting the unit, pressure exerted on the internal LCD
panel due to improper handling (such as tossing and dropping)
may cause damages even when the unit is carefully packed. To
prevent accidents from occurring during transportation, pay
careful attention before delivery, such as through explaining the
handling instructions to transporters.
Ensure that the following requirements are met during
transportation, as the LCD panel of this unit is made of glass and
therefore fragile:
(1) USE A SPECIAL PACKING CASE FOR THE LCD PANEL
When transporting the LCD panel of the unit, use a special
packing case (packing materials). A special packing case
is used when a LCD panel is supplied as a service spare
part.
(2) ATTACH PROTECTION SHEET TO THE FRONT
Since the front (display part) of the panel is vulnerable,
attach the protection sheet to the front of the LCD panel
before transportation. Protection sheet is used when a LCD
panel is supplied as a service spare part.
(3) AVOID VIBRATIONS AND IMPACTS
The unit may be broken if it is toppled sideways even when
properly packed. Continuous vibration may shift the gap of
the panel, and the unit may not be able to display images
properly. Ensure that the unit is carried by at least 2
persons and pay careful attention not to exert any vibration
or impact on it.
(4) DO NOT PLACE EQUIPMENT HORIZONTALLY
Ensure that it is placed upright and not horizontally during
transportation and storage as the LCD panel is very
vulnerable to lateral impacts and may break. During
transportation, ensure that the unit is loaded along the
traveling direction of the vehicle, and avoid stacking them
on one another. For storage, ensure that they are stacked
in 2 layers or less even when placed upright.
1.4.2 OPTICAL FILTER (ON THE FRONT OF THE LCD PANEL)
(1) Avoid placing the unit under direct sunlight over a
prolonged period of time. This may cause the optical filter
to deteriorate in quality and COLOUR.
(2) Clean the filter surface by wiping it softly and lightly with a
soft and lightly fuzz cloth (such as outing flannel).
(3) Do not use solvents such as benzene or thinner to wipe the
filter surface. This may cause the filter to deteriorate in
quality or the coating on the surface to come off. When
cleaning the filter, usually use the neutral detergent diluted
with water. When cleaning the dirty filter, use water-diluted
ethanol.
(4) Since the filter surface is fragile, do not scratch or hit it with
hard materials. Be careful enough not to touch the front
surface, especially when taking the unit out of the packing
case or during transportation.
1.4.3 PRECAUTIONS FOR REPLACEMENT OF EXTERIOR
PARTS
Take note of the following when replacing exterior parts (REAR
COVER, FRONT PANEL, etc.):
(1) Do not exert pressure on the front of the LCD panel (filter
surface). It may cause irregular COLOUR.
(2) Pay careful attention not to scratch or stain the front of the
LCD panel (filter surface) with hands.
(3) When replacing exterior parts, the front (LCD panel) should
be placed facing downward. Place a mat, etc. underneath
to avoid causing scratches to the front (filter surface).

(No.YA492)1-7
SECTION 2
SPECIFIC SERVICE INSTRUCTIONS
2.1 FEATURES
T-V LINK
When you have a T-V LINK compatible VCR connected to the
EXT-2 Terminal on the TV, it is easier to set up the VCR and
to view videos.
PICTURE MODE
This function can adjust the picture settings automatically.
ZOOM
This function can change the screen size according to the
picture aspect ratio.
DIGITAL VNR
This function cuts down the amount of noise in the original
picture.
2.2 MAIN DIFFERENCE LIST
Item LT-26A70BJ LT-26A70SJ LT-26A70BU LT-26A70SU
Paint Color Black Silver Black Silver
Broadcasting System I (UHF / VHF)
← B/G, D/K, I, L ←
RF System PAL ← PAL,SECAM ←
Video System PAL, NTSC ← PAL, SECAM, NTSC ←
Teletext FLOF / WST ← FLOF / TOP / WST ←
Plug Type UK Type (3 Pins) ← EU Type (2 Pins) ←
Item LT-32A70SJ LT-32A70BJ LT-32A70SU LT-32A70BU LT-32A70GU
Paint Color Black Silver Black Silver Titanium
Broadcasting System I (UHF / VHF)
← B/G, D/K, I, L ←←
RF System PAL ← PAL,SECAM ←←
Video System PAL, NTSC ← PAL, SECAM, NTSC ←←
Teletext FLOF / WST ← FLOF / TOP / WST ←←
Plug Type UK Type (3 Pins) ← EU Type (2 Pins) ←←

1-8 (No.YA492)
2.3 21-PIN EURO CONNECTOR (SCART) : EXT-1 / EXT-2
(P-P= Peak to Peak, B-W= Blanking to white peak)
Pin No. Signal designation Matching value EXT-1 EXT-2
1 AUDIO R output 500mV(rms) (Nominal), Low impedance Used (TV OUT) Used (LINE OUT)
2 AUDIO R input 500mV(rms) (Nominal), High impedance Used (R1) Used (R2)
3 AUDIO L output 500mV(rms) (Nominal), Low impedance Used (TV OUT) Used (LINE OUT)
4 AUDIO GND Used Used
5 GND (B) Used Used
6 AUDIO L input 500mV(rms) (Nominal), High impedance Used (L1) Used (L2)
7 B input 700mV(B-W), 75ΩUsed Used
8 FUNCTION SW
(SLOW SW)
Low : 0V-3V
High : 8V-12V, High impedance
Used Used
9 GND (G) Used Used
10 SCL / T-V LINK Not used Used
(SCL2 / TV-LINK)
11 G input 700mV(B-W), 75ΩUsed Used
12 SDA Not used Used (SDA2)
13 GND (R) Used Used
14 GND (YS) Used Not used
15 R / C input R : 700mV(B-W), 75Ω
C : 300mV(P-P), 75ΩUsed (R) Used (C2/R)
16 Ys input (FAST SW) Low : 0V-0.4V, High : 1V-3V, 75ΩUsed Used
17 GND (VIDEO output) Used Used
18 GND (VIDEO input) Used Used
19 VIDEO output 1V(P-P) (Negative sync), 75ΩUsed (TV OUT) Used (LINE OUT)
20 VIDEO / Y input 1V(P-P) (Negative sync), 75ΩUsed Used
21 COMMON GND Used Used
20 18 16 14 12 10 8 6 4 2
21 19 17 15 13 11 9 7 5 3 1
[Pin assignment]

(No.YA492)1-9
2.4 TECHNICAL INFORMATION
2.4.1 LCD PANEL
This unit uses the flat type panel LCD (Liquid Crystal Display) panel that occupies as little space as possible, instead of the
conventional CRT (Cathode Ray Tube), as a display unit.
Since the unit has the two polarizing filter that are at right angles to each other, the unit adopts "normally black" mode, where light
does not pass through the polarizing filter and the screen is black when no voltage is applied to the liquid crystals.
2.4.1.1 SPECIFICATIONS
The following table shows the specifications of this unit.
2.4.1.2 PIXEL FAULT
There are three pixel faults - bright fault , dark fault and flicker fault - that are respectively defined as follows.
BRIGHT FAULT
In this pixel fault, a cell that should not light originally is lighting on and off.
For checking this pixel fault, input ALL BLACK SCREEN and find out the cell that is lighting on and off.
DARK FAULT
In this pixel fault, a cell that should light originally is not lighting or lighting with the brightness twice as brighter as originally lighting.
For checking this pixel fault, input 100% of each R/G/B colour and find out the cell that is not lighting.
FLICKER FAULT
In the pixel fault, a cell that should light originally or not light originally is flashing on and off.
For checking this pixel fault, input ALL BLACK SCREEN signal or 100% of each RGB colour and find out the cell that is flashing on
and off.
Item Specifications
26V LCD PANEL UNIT 32V LCD PANEL UNIT
Maximum dimensions ( W × H × D ) 62.6 cm ×37.3 cm ×4.8 cm 76.0 cm ×45.0 cm ×4.5 cm
Weight 4.5 kg 6.9 kg
Effective screen size Diagonal: 660 mm (H: 576 mm ×V: 324 mm) Diagonal: 800 mm (H: 697 mm ×V: 392 mm)
Aspect ratio 16 : 9
Drive device / system a-Si-TFT active matrix system
Resolution Horizontally 1366 ×Vertically 768 ×RGB < W-XGA > 3147264 dots in total
Pixel pitch (pixel size) Horizontally: 0.4215 mm, Vertically: 0.4215 mm Horizontally: 0.51075 mm, Vertically: 0.51075 mm
Displayed colour 16777216 colours 256 colours for R G and B
Brightness 500cd/m2
Contrast ratio 1200 : 1
Response time (Tr) less than 8 ms
View angle (Horizontally) 176°
View angle (Vertically) 176°
Surface polarizer Anti-Glare type Low reflective coat
Colour filter Vertical stripe
Backlight Cold cathode fluorescent lamp ×6 Cold cathode fluorescent lamp ×12
Power supply voltage in LCD 5 V
Power supply voltage in inverter 24 V
Panel interface system LVDS (Low Voltage Differential Signaling)

1-10 (No.YA492)
2.4.2 MAIN CPU PIN FUNCTION [IC3 : MAIN PWB]
Pin Pin name I/O Function Pin Pin name I/O Function
1 P9_4 O PANEL_POWER_CONTROL 51 A17 O Program ROM address for CPU
2 P9_3 O POWER 52 A16 O Program ROM address for CPU
3 P9_2 O SC_RGB_CONTROL 53 A15 O Program ROM address for CPU
4 P9_1 O SOUNDAMP_POWER 54 A14 O Program ROM address for CPU
5 HP_DET I HEADPHONE_DETECT 55 A13 O Program ROM address for CPU
6 BYTE I BYTE 56 A12 O Program ROM address for CPU
7 CNVSS I CNVSS 57 A11 O Program ROM address for CPU
8 XCIN - Not used 58 A10 O Program ROM address for CPU
9 XCOUT - Not used 59 A9 O Program ROM address for CPU
10 CPU_RESET I /RESET 60 VCC2 I 3.3V
11 XOUT O XOUT 61 A8 O Program ROM address for CPU
12 VSS - VSS 62 VSS - VSS
13 XIN I XIN 63 A7 O Program ROM address for CPU
14 VCC1 I 3.3V 64 A6 O Program ROM address for CPU
15 P8_5 - Not used 65 A5 O Program ROM address for CPU
16 P8_4 - Not used 66 A4 O Program ROM address for CPU
17 /INT1 I PX_INT# 67 A3 O Program ROM address for CPU
18 /INT0 I REMOCON 68 A2 O Program ROM address for CPU
19 P8_1 - Not used 69 A1 O Program ROM address for CPU
20 P8_0 O LED_ON 70 A0 O Program ROM address for CPU
21 P7_7 O HDMI_DETECT 71 P1_7 - Not used
22 P7_6 O SOUNDAMP MUTE 72 P1_6 - Not used
23 P7_5 I DEBUG 73 P1_5 I TV_LINK_IN
24 P7_4 O BACKLIGHT_CONTROL 74 P1_4 O EDID_WP
25 P7_3 O HDMI_DAC_MUTE 75 P1_3 - Not used
26 P7_2 - Not used 76 P1_2 O TV_LINK_CONTROL
27 P7_1 I/O SCL_EEP 77 P1_1 O TV_LINK_OUT
28 P7_0 I/O SDA_EEP 78 P1_0 I HDMI_PICTURE_SIGNAL_INDICATON
29 P6_7 I/O TX 79 D7 I/O Program ROM data for CPU
30 P6_6 I/O RX 80 D6 I/O Program ROM data for CPU
31 P6_5 I/O DEBUG3 81 D5 I/O Program ROM data for CPU
32 P6_4 I/O DEBUG2 82 D4 I/O Program ROM data for CPU
33 P6_3 I/O SDA_DEVICE 83 D3 I/O Program ROM data for CPU
34 P6_2 I/O SCL_DEVICE 84 D2 I/O Program ROM data for CPU
35 P6_1 O RESET_for_PX 85 D1 I/O Program ROM data for CPU
36 P6_0 O RESET_for_MSP 86 D0 I/O Program ROM data for CPU
37 P5_7 - Not used 87 AN7 I TUNER AGC
38 ALE O PX,FLASH_ALE 88 AN6 I TUNER AFT
39 P5_5 I/O DEBUG6 89 AN5 I LOW VOLTAGE_PROTECTION
40 P5_4 - Not used 90 AN4 I HDMI_PROTECTION
41 P5_3 - Not used 91 AN3 I POWER_DET
42 /RD O PX,FLASH_RD# 92 AN2 I KEYA
43 /WRH /BHE O RY_BY 93 AN1 I KEYB
44 /WR O PX,FLASH_WR# 94 VSS - VSS
45 /CS3 - Not used 95 AN0 - Not used
46 /CS2 O PX_CHIPSELECT# 96 VREF I 3.3V
47 /CS1 - Not used 97 AVCC I 3.3V
48 /CS0 O FLASH_CHIPSELECT# 98 P9_7 O AUDIO_MUTE
49 A19 O Program ROM address for CPU 99 P9_6 O BACKLIGHT_POWER
50 A18 O Program ROM address for CPU 100 P9_5 O EEP_WP

(No.YA492)1-11
SECTION 3
DISASSEMBLY

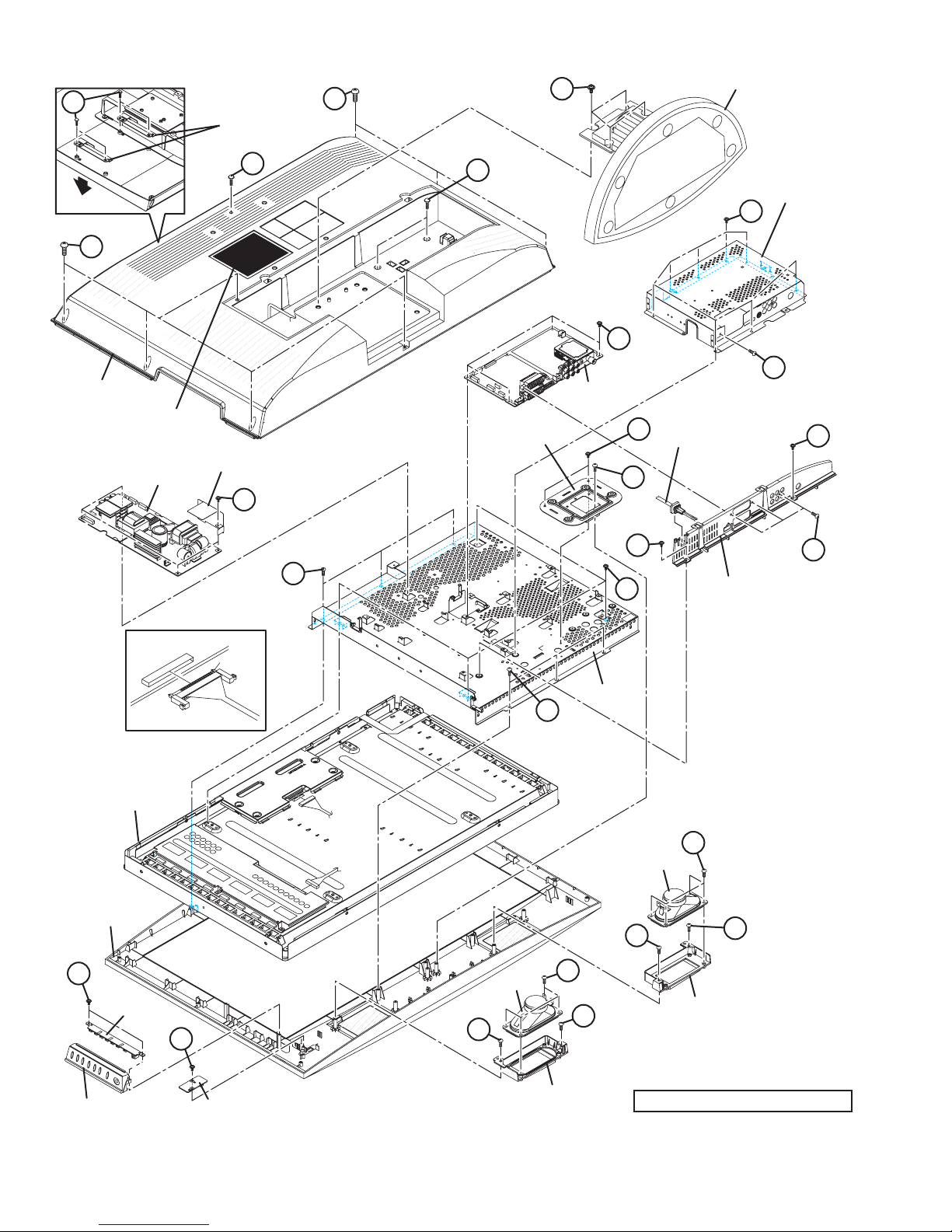

3.1 DISASSEMBLY PROCEDURE
CAUTION AT DISASSEMBLY:
• Make sure that the power cord is disconnected from the outlet.
• Pay special attention not to break or damage the parts.
• When removing each board, remove the connectors as required. Taking notes of the connecting points (connector numbers)
makes service procedure manageable.
• Make sure that there is no bent or stain on the connectors before inserting, and firmly insert the connectors.
3.1.1 REMOVING THE STAND
(1) Remove the 4 screws [A], then remove the STAND ASS'Y.
3.1.2 REMOVING THE REAR COVER AND BACK BRACKET
• Remove the STAND.
(1) Remove the 8 screws [B], 3 screw [C].
(2) Remove the REAR COVER.
(3) Remove the 4 screws [D].
(4) Remove the BACK BRACKET.
3.1.3 REMOVING THE POWER PWB
• Remove the STAND.
• Remove the REAR COVER.
• Remove the POWER CORD.
(1) Remove the 4 screws [E].
(2) Remove the POWER PWB.
3.1.4 REMOVING THE MAIN PWB
• Remove the STAND.
• Remove the REAR COVER.
(1) Remove the 3 screws [F] and 2 screws [G].
(2) Remove the TERMINAL BASE.
(3) Remove the 8 screws [H] and 1 screw [J].
(4) Remove the SHIELD COVER.
(5) Remove the 4 screws [K] .
(6) Remove the MAIN PWB.
3.1.5 REMOVING THE CONTROL KNOB ASS'Y AND
CONTROL PWB
• Remove the STAND.
• Remove the REAR COVER.
(1) Remove the 2 screws [L].
(2) Remove the CONTROL PWB with the CONTROL KNOB
ASS'Y.
(3) Remove the CONTROL PWB from the CONTROL KNOB
ASS'Y.
3.1.6 REMOVING THE IR PWB
• Remove the STAND.
• Remove the REAR COVER.
(1) Remove the 2 screws [M].
(2) Remove the IR PWB.
3.1.7 REMOVING THE SPEAKER HOLDER AND SPEAKER
• Remove the STAND.
• Remove the REAR COVER.
(1) Remove the 2 screws [P].
(2) Remove the SPEAKER with the SPEAKER HOLDER.
(3) Remove the 4 screws [N].
(4) Remove the SPEAKER.
(5) The other SPEAKER HOLDER AND SPEAKER are
removed according to similar procedure.
3.1.8 REMOVING THE LCD PANEL UNIT
• Remove the STAND.
• Remove the REAR COVER.
• Remove the TERMINAL BASE.
(1) Remove the 2 screws [Q] and 1 screw [R].
(2) Remove the STAND BRACKET.
(3) Remove the 4 screws [S].
(4) Remove the MAIN BASE.
(5) Remove the 6 screws [T].
(6) Remove the LCD PANEL UNIT.

1-12 (No.YA492)
Fig.1
This illustration is LT-32A70 series.
MAIN BASE
STNAD
BRACKET
SHIELD COVER
RATING LABEL
REAR SIDE
BA
C
D
C
B
E
F
G
G
Q
T
T
S
R
H
J
L
M
N
N
P
P
PP
K
POWER PWB
INSULATOR
MAIN PWB
TERMINAL BASE
POWER CORD
REAR COVER
LCD PANEL UNIT
FRONT BASE
SPEAKER
HOLDER
SPEAKER
HOLDER
SPEAKER
SPEAKER
CONTROL KNOB ASS'Y IR PWB
CONTROL PWB
BACK BRACKET
STAND ASS'Y
Check that connector is inserted completly.
The terminal of a connector is turned up and connected.
(Don't insert aslant)
+PUGTVCPFNQEMUWTGN[
terminal side

(No.YA492)1-13
3.2 MEMORY IC REPLACEMENT
• This model uses the memory IC.
• This memory IC stores data for proper operation of the video and drive circuits.
• When replacing, be sure to use an IC containing this (initial value) data.
3.2.1 MEMORY IC REPLACEMENT PROCEDURE
1. Power off
Switch off the power and disconnect the power plug from the AC outlet.
2. Replace the memory IC
Be sure to use the memory IC written with the initial setting values.
3. Power on
Connect the power plug to the AC outlet and switch on the power.
4. Receiving channel setting
Refer to the OPERATING INSTRUCTIONS and set the receive channels (Channels Preset) as described.
5. User setting
Check the user setting items according to the given in page later. Where these do not agree, refer to the OPERATING
INSTRUCTIONS and set the items as described.
6. SERVICE MODE setting
Verify what to set in the SERVICE MODE, and set whatever is necessary (Fig.1). Refer to the SERVICE ADJUSTMENT for setting.
3.2.2 SERVICE MODE SETTING
SERVICE MODE SCREEN
NOTE:
As self check feature is not used in this TV,
"2.SELF_CHECK" and "4.OPTION" cannot be selected
(screen display only).
Fig.1
SETTING ITEM
SERVICE MODE SCREEN
1. ADJUST
S001 5I R OF 126
S001 5I R OF 126
PAL50 FULL STD H
PAL50 FULL STD H
Not used
(Display only)
SERVICE MENU
SERVICE MENU
1.ADJUST
1.ADJUST
2.SELF_CHECK
2.SELF_CHECK
3.I2C STOP
3.I2C STOP
4.OPTION
4.OPTION
Setting
items Setting items Settings Item No.
1.ADJUST Video system setting -1 Adjust S001 - S096
Video system setting -2 Fixed D001 - D020
D031 - D099
Audio System Setting -1 Fixed A001 - A003
Audio system setting -2 Fixed SD10 - SD15
Option Setting Fixed O001 - O004

1-14 (No.YA492)
3.2.3 SETTINGS OF FACTORY SHIPMENT
3.2.3.1 BUTTON OPERATION 3.2.3.2 REMOTE CONTROL DIRECT OPERATION
3.2.3.3 REMOTE CONTROL MENU OPERATION
(1) PICTURE
(2) SOUND
(4) FEATURES
(5) SET UP
Setting item Setting position
POWER Off
CHANNEL PR1
VOLUME 10
TV/AV TV
Setting item Setting position
CHANNEL PR1
VOLUME 10
ZOOM AUTO
3D SOUND OFF
SUB POWER OFF
Setting item Setting position
PICTURE MODE BRIGHT
COLOUR TEMP. COOL
FEATURES
DIGITAL VNR AUTO (LOW)
COLOUR SYSTEM TV Depends on PR/CH
EXT AUTO
4:3 AUTO ASPECT PANORAMIC
Setting item Setting position
STEREO / I•II Stereo sound
BASS Centre
TREBLE Centre
BALANCE Centre
3D SOUND OFF
Setting item Setting position
SLEEP TIMER OFF
CHILD LOCK ID NO.0000, All CH off
APPEARANCE TYPE A
BLUE BACK ON
FAVOURITE SETTING Reset
Setting item Setting position
AUTO PROGRAM TV channel automatically set
EDIT/MANUAL PRESET CH only
LANGUAGE ENGLISH
DECODER (EXT-2) OFF
EXT SETTING
S-IN BLANK
ID BLANK
DUBBING EXT-1 →EXT-2

(No.YA492)1-15
3.3 REPLACEMENT OF CHIP COMPONENT
3.3.1 CAUTIONS
(1) Avoid heating for more than 3 seconds.
(2) Do not rub the electrodes and the resist parts of the pattern.
(3) When removing a chip part, melt the solder adequately.
(4) Do not reuse a chip part after removing it.
3.3.2 SOLDERING IRON
(1) Use a high insulation soldering iron with a thin pointed end of it.
(2) A 30w soldering iron is recommended for easily removing parts.
3.3.3 REPLACEMENT STEPS
1. How to remove Chip parts
[Resistors, capacitors, etc.]
(1) As shown in the figure, push the part with tweezers and
alternately melt the solder at each end.
(2) Shift with the tweezers and remove the chip part.
[Transistors, diodes, variable resistors, etc.]
(1) Apply extra solder to each lead.
(2) As shown in the figure, push the part with tweezers and
alternately melt the solder at each lead. Shift and remove
the chip part.
NOTE :
After removing the part, remove remaining solder from the
pattern.
2. How to install Chip parts
[Resistors, capacitors, etc.]
(1) Apply solder to the pattern as indicated in the figure.
(2) Grasp the chip part with tweezers and place it on the
solder. Then heat and melt the solder at both ends of the
chip part.
[Transistors, diodes, variable resistors, etc.]
(1) Apply solder to the pattern as indicated in the figure.
(2) Grasp the chip part with tweezers and place it on the
solder.
(3) First solder lead Aas indicated in the figure.
(4) Then solder leads Band C.
SOLDER SOLDER
A
B
C
A
B
C

1-16 (No.YA492)
SECTION 4
ADJUSTMENT
4.1 ADJUSTMENT PREPARATION
(1) The adjustment using the REMOTE CONTROL UNIT is
made on the basis of the initial setting values. The
setting values which adjust the screen to the optimum
condition can be different from the initial setting
values.
(2) Make sure that connection is correctly made AC to AC
power source.
(3) Turn on the power of the TV and measuring instruments for
warming up for at least 30 minutes before starting
adjustments.
(4) If the receive or input signal is not specified, use the most
appropriate signal for adjustment.
(5) Never touch the parts (such as variable resistors,
transformers and condensers) not shown in the adjustment
items of this service adjustment.
4.2 PRESET SETTING BEFORE ADJUSTMENTS
Unless otherwise specified in the adjustment items, preset the
following functions with the REMOTE CONTROL UNIT.
4.3 MEASURING INSTRUMENT AND FIXTURES
• Signal generator (Pattern generator)[PAL]
• Remote control unit
4.4 ADJUSTMENT ITEMS
VIDEO CIRCUIT
• WHITE BALANCE (HIGH LIGHT) adjustment
4.5 BASIC OPERATION OF SERVICE MODE
4.5.1 SERVICE MODE SELECT KEY LOCATION
4.5.2 HOW TO ENTER THE SERVICE MODE
(1) Press [INFORMATION] key and [MUTING] key on the
remote control unit simultaneously to enter the SERVICE
MODE SCREEN. (Fig.1)
Fig.1
NOTE:
• As self check feature is not used in this TV,
"2.SELF_CHECK" and "4.OPTION"cannot be selected
(screen display only).
• Before entering the SERVICE MODE, confirm that the
setting of VCR/TV/DVD switch is at the "TV" side. If the
switches have not been properly set, you cannot enter the
SERVICE MODE.”
4.5.3 HOW TO EXIT THE SERVICE MODE
Press the [MENU] key to exit the Service mode.
4.5.4 CHANGE AND MEMORY OF SETTING VALUE
SELECTION OF SETTING ITEM
• [FUNCTION /] key.
For scrolling up / down the setting items.
CHANGE OF SETTING VALUE (DATA)
•[FUNCTION /]key.
For scrolling up / down the setting values.
MEMORY OF SETTING VALUE (DATA)
Changed setting value is memorized by pressing [MUTING]
key.
4.5.5 ADJUSTMENT MODE
This mode is used to adjust the VIDEO CIRCUIT.
4.5.5.1 HOW TO ENTER THE ADJUSTMENT MODE
When the SERVICE MENU SCREEN of SERVICE MODE is
displayed, press [1] key to enter the ADJUSTMENT MODE
(Fig.2).
NOTE:
• When a number key other than the [1] key is pressed in the
SERVICE MODE SCREEN, the other relevant screen may
be displayed.
This is not used in the adjustment procedure. Press the
[MENU] key to return to the SERVICE MODE SCREEN.
Setting item Settings position
PICTURE MODE STANDARD
PICTURE adjustments Centre
COLOUR TEMP. NORMAL
FUNCTION /
NUMBER
MUTING
INFORMATION
FUNCTION /
MENU
VCR/TV/DVD
switch
SERVICE MODE SCREEN
Not used
(Display only)
SERVICE MENU
SERVICE MENU
1.ADJUST
1.ADJUST
2.SELF_CHECK
2.SELF_CHECK
3.I2C STOP
3.I2C STOP
4.OPTION
4.OPTION

(No.YA492)1-17
4.5.5.2 DESCRIPTION OF STATUS DISPLAY
(1) SIGNAL SYSTEM
The signal displayed on the screen is displayed.
(2) ZOOM MODE
State of the screen mode is displayed.
NOTE:
In ADJUSTMENT MODE, the screen mode can be set only
to "FULL". When it is entered to ADJUSTMENT MODE, it is
automatically changed to "FULL", even if the setting is in
other screen mode.
(3) PICTURE MODE
State of the picture mode is displayed.
NOTE:
In ADJUSTMENT MODE, the picture mode can be set only
to "STANDARD". When it is entered to ADJUSTMENT
MODE, it is automatically changed to "STANDARD", even
if the setting is in other picture mode.
(4) WHITE BALANCE
State of the colour temperature is displayed.
NOTE:
In ADJUSTMENT MODE, the colour temperature can be set
only to "NORMAL". When it is entered to ADJUSTMENT
MODE, it is automatically changed to "NORMAL", even if
the setting is in other colour temperature.
(5) SETTING ITEM NAME
Setting item name are displayed. The setting item numbers to
be displayed are listed below.
(6) SETTING ITEM NO.
Setting item numbers are displayed. For the setting item
names to be displayed, refer to "INITIAL SETTING VALUES
IN THE SERVICE MODE".
(7) SETTING VALUE (DATA)
The SETTING VALUE is displayed.
PAL50 : PAL50Hz
PAL60 : PAL60Hz
SECAM : SECAM
NTSC3 : NTSC3.58
NTSC4 : NTSC4.43
H525I : 525i(Component/HDMI)
H625I : 625i(Component/HDMI)
H525P : 525p(Component/HDMI)
H625P : 625p(Component/HDMI)
H750P : 750p(Component/HDMI)
H125I : 1125i(Component/HDMI)
VGA : VGA(HDMI)
SIGNAL SYSTEM ZOOM MODE PICTURE MODE
SETTING VALUE (DATA)SETTINGITEM No. SETTING ITEM
COLOUR TEMP.
S001 5I R OF 126
S001 5I R OF 126
PAL50 FULL STD H
PAL50 FULL STD H
Item No. Setting item
S001 - S043 Video system setting -1
D001 - D020
D031 - D099
Video system setting -2 [Do not adjust]
A001 - A003 Audio system setting -1 [Do not adjust]
SD10 - SD15 Audio system setting -2 [Do not adjust]
O001 - O004 Option data setting [Not used]

1-18 (No.YA492)
4.6 INITIAL SETTING VALUES IN THE SERVICE MODE
• Perform fine-tuning based on the "initial values" using the remote control when in the Service mode.
• The "initial values" serve only as an indication rough standard and therefore the values with which optimal display can be achieved
may be different from the default values. But, don't change the values that are not written in "ADJUSTMENT PROCEDURE". They
are fixed values.
4.6.1 ADJUSTMENT MODE
4.6.1.1 VIDEO SYSTEM SETTING-1
Item No. Item name Variable range Setting value
S001 CVBS R OF 0 - 255 130
S002 CVBS G OF 0 - 255 130
S003 CVBS B OF 0 - 255 129
S004 5I R OF 0 - 255 0
S005 5I G OF 0 - 255 0
S006 5I B OF 0 - 255 0
S007 5P R OF 0 - 255 0
S008 5P G OF 0 - 255 0
S009 5P B OF 0 - 255 0
S010 HD75 R OF 0 - 255 0
S011 HD75 G OF 0 - 255 0
S012 HD75 B OF 0 - 255 0
S013 HD25 R OF 0 - 255 0
S014 HD25 G OF 0 - 255 0
S015 HD25 B OF 0 - 255 0
S016 HDMI5I R OF 0 - 255 0
S017 HDMI5I G OF 0 - 255 0
S018 HDMI5I B OF 0 - 255 0
S019 HDMI5P R OF 0 - 255 0
S020 HDMI5P G OF 0 - 255 0
S021 HDMI5P B OF 0 - 255 0
S022 HDMI75 R OF 0 - 255 0
S023 HDMI75 G OF 0 - 255 0
S024 HDMI75 B OF 0 - 255 0
S025 HDMI25 R OF 0 - 255 0
S026 HDMI25 G OF 0 - 255 0
S027 HDMI25 B OF 0 - 255 0
S028 HDMIPC R OF 0 - 255 0
S029 HDMIPC G OF 0 - 255 2
S030 HDMIPC B OF 0 - 255 0
S031 CVBS R DR 0 - 255 131
S032 CVBS G DR 0 - 255 146
S033 CVBS B DR 0 - 255 127
S034 5I R DR 0 - 255 0
S035 5I G DR 0 - 255 0
S036 5I B DR 0 - 255 0
S037 5P R DR 0 - 255 0
S038 5P G DR 0 - 255 0
S039 5P B DR 0 - 255 0
S040 HD75 R DR 0 - 255 0
S041 HD75 G DR 0 - 255 0
S042 HD75 B DR 0 - 255 0
S043 HD25 R DR 0 - 255 0
S044 HD25 G DR 0 - 255 0
S045 HD25 B DR 0 - 255 0
S046 HDMI5I R DR 0 - 255 0
S047 HDMI5I G DR 0 - 255 0
S048 HDMI5I B DR 0 - 255 0
S049 HDMI5P R DR 0 - 255 0
S050 HDMI5P G DR 0 - 255 0
S051 HDMI5P B DR 0 - 255 0
S052 HDMI75 R DR 0 - 255 0
S053 HDMI75 G DR 0 - 255 0
S054 HDMI75 B DR 0 - 255 0
S055 HDMI25 R DR 0 - 255 0
S056 HDMI25 G DR 0 - 255 0
S057 HDMI25 B DR 0 - 255 0
S058 HDMIPC R DR 0 - 255 0
S059 HDMIPC G DR 0 - 255 0
S060 HDMIPC B DR 0 - 255 0
S061 CVBS CL R OF 0 - 255 0
S062 CVBS CL G OF 0 - 255 0
S063 CVBS CL B OF 0 - 255 0
S064 CVBS WM R OF 0 - 255 0
S065 CVBS WM G OF 0 - 255 0
S066 CVBS WM B OF 0 - 255 0
S067 HD CL R OF 0 - 255 0
S068 HD CL G OF 0 - 255 0
S069 HD CL B OF 0 - 255 0
S070 HD WM R OF 0 - 255 0
S071 HD WM G OF 0 - 255 0
S072 HD WM B OF 0 - 255 0
S073 HDMI CL R OF 0 - 255 0
S074 HDMI CL G OF 0 - 255 0
S075 HDMI CL B OF 0 - 255 0
S076 HDMI WM R OF 0 - 255 0
S077 HDMI WM G OF 0 - 255 0
S078 HDMI WM B OF 0 - 255 0
S079 CVBS CL R DR 0 - 255 255
S080 CVBS CL G DR 0 - 255 0
S081 CVBS CL B DR 0 - 255 3
S082 CVBS WM R DR 0 - 255 8
S083 CVBS WM G DR 0 - 255 0
S084 CVBS WM B DR 0 - 255 242
S085 HD CL R DR 0 - 255 255
S086 HD CL G DR 0 - 255 0
S087 HD CL B DR 0 - 255 3
Item No. Item name Variable range Setting value

(No.YA492)1-19
4.6.1.2 VIDEO SYSTEM SETTING-2
S088 HD WM R DR 0 - 255 6
S089 HD WM G DR 0 - 255 0
S090 HD WM B DR 0 - 255 233
S091 HDMI CL R DR 0 - 255 255
S092 HDMI CL G DR 0 - 255 0
S093 HDMI CL B DR 0 - 255 3
S094 HDMI WM R DR 0 - 255 8
S095 HDMI WM G DR 0 - 255 0
S096 HDMI WM B DR 0 - 255 242
Item No. Item name Variable range Setting value
D001 CVBS NTSC CON 0 - 255 0
D002 CVBS NTSC BRI 0 - 255 0
D003 CVBS NTSC SHA 0 - 255 0
D004 CVBS NTSC COL 0 - 255 0
D005 CVBS NTSC TIN 0 - 255 0
D006 CVBS PAL CON 0 - 255 0
D007 CVBS PAL BRI 0 - 255 0
D008 CVBS PAL SHA 0 - 255 0
D009 CVBS PAL COL 0 - 255 0
D010 CVBS PAL TIN 0 - 255 0
D011 CVBS SECAM CON 0 - 255 0
D012 CVBS SECAM BRI 0 - 255 0
D013
CVBS SECAML SHA 0 - 255 0
D014 CVBS SECAM COL 0 - 255 0
D015 CVBS SECAM TIN 0 - 255 0
D016 TV PAL CON 0 - 255 0
D017 TV PAL BRI 0 - 255 0
D018 TV PAL SHA 0 - 255 0
D019 TV PAL COL 0 - 255 0
D020 TV PAL TIN 0 - 255 0
D031 TV SECAM CON 0 - 255 0
D032 TV SECAM BRI 0 - 255 0
D033 TV SECAM SHA 0 - 255 0
D034 TV SECAM COL 0 - 255 0
D035 TV SECAM TIN 0 - 255 0
D036 5I S CON 0 - 255 0
D037 5I S BRI 0 - 255 0
D038 5I S SHA 0 - 255 0
D039 5I S COL 0 - 255 0
D040 5I S TIN 0 - 255 0
D041 5P S CON 0 - 255 0
D042 5P S BRI 0 - 255 0
D043 5P S SHA 0 - 255 0
D044 5P S COL 0 - 255 0
D045 5P S TIN 0 - 255 0
D046 HD75 S CON 0 - 255 0
D047 HD75 S BRI 0 - 255 0
Item No. Item name Variable range Setting value
D048 HD75 S SHA 0 - 255 0
D049 HD75 S COL 0 - 255 0
D050 HD75 S TIN 0 - 255 0
D051 HD25 S CON 0 - 255 0
D052 HD25 S BRI 0 - 255 0
D053 HD25 S SHA 0 - 255 0
D054 HD25 S COL 0 - 255 0
D055 HD25 S TIN 0 - 255 0
D056 HDMI5I S CON 0 - 255 0
D057 HDMI5I S BRI 0 - 255 0
D058 HDMI5I S SHA 0 - 255 0
D059 HDMI5I S COL 0 - 255 0
D060 HDMI5I S TIN 0 - 255 0
D061 HDMI5P S CON 0 - 255 0
D062 HDMI5P S BRI 0 - 255 0
D063 HDMI5P S SHA 0 - 255 0
D064 HDMI5P S COL 0 - 255 0
D065 HDMI5P S TIN 0 - 255 0
D066 HDMI75 S CON 0 - 255 0
D067 HDMI75 S BRI 0 - 255 0
D068 HDMI75 S SHA 0 - 255 0
D069 HDMI75 S COL 0 - 255 0
D070 HDMI75 S TIN 0 - 255 0
D071 HDMI25 S CON 0 - 255 0
D072 HDMI25 S BRI 0 - 255 0
D073 HDMI25 S SHA 0 - 255 0
D074 HDMI25 S COL 0 - 255 0
D075 HDMI25 S TIN 0 - 255 0
D076 HDMIPC S CON 0 - 255 0
D077 HDMIPC S BRI 0 - 255 0
D078 HDMIPC S SHA 0 - 255 0
D079 HDMIPC S COL 0 - 255 0
D080 HDMIPC S TIN 0 - 255 0
D081 STD BRI1 0 - 255 0
D082 STD CON 0 - 255 8
D083 STD BRI2 0 - 255 247
D084 STD SHA 0 - 255 20
D085 STD COL 0 - 255 245
D086 STD TIN 0 - 255 0
D087 SFT BRI1 0 - 255 245
D088 SFT CON 0 - 255 8
D089 SFT BRI2 0 - 255 249
D090 SFT SHA 0 - 255 20
D091 SFT COL 0 - 255 245
D092 SFT TIN 0 - 255 0
D093 BRI BRI1 0 - 255 10
D094 BRI CON 0 - 255 18
D095 BRI BRI2 0 - 255 249
D096 BRI SHA 0 - 255 25
D097 BRI COL 0 - 255 250
Item No. Item name Variable range Setting value

1-20 (No.YA492)
4.6.1.3 AUDIO SYSTEM SETTING-1
4.6.1.4 AUDIO SYSTEM SETTING-2
4.6.1.5 OPTION SETTING
D098 BRI TIN 0 - 255 0
D099 PWM 0 - 255 114
Item No. Item name Variable range Setting value
A001 S BASS 0 - 255 114
A002 S TRE 0 - 255 114
A003 3D LEVEL 0 - 255 114
Item No. Item name Variable range Setting value
SD10 S BASS 0 - 255 0
SD11 S TRE 0 - 255 0
SD12 3D LEVEL1 0 - 255 127
SD13 3D LEVEL2 0 - 255 53
SD14 3D LEVEL3 0 - 255 127
SD15 NICAM LEVEL 0 - 255 32
Item No. Item name Variable range Setting value
O001 G T 0 - 5 0
O002 D 0 - 2 0
O003 HPD SW 0 - 1 0
O004 HPD D 0 - 255 0
Item No. Item name Variable range Setting value
