JVC LT-43C870(A) User manual

Unpacking
Guide
LT-43C870(A)
TV
TV Stand Base
TV Stand Neck
Accessories
Pack
Instruction Book
& Quick Start Guide
✔✘
• Keep the protective bag on your TV until you have attached the
stand and positioned the TV.
• The LCD display is very fragile, and must be protected at all times
when installing and removing the base stand. Be sure that no hard
or sharp object, or anything that could scratch or damage the LCD
display, comes into contact with it. DO NOT exert pressure on the
front of the TV at any time because the screen could crack.

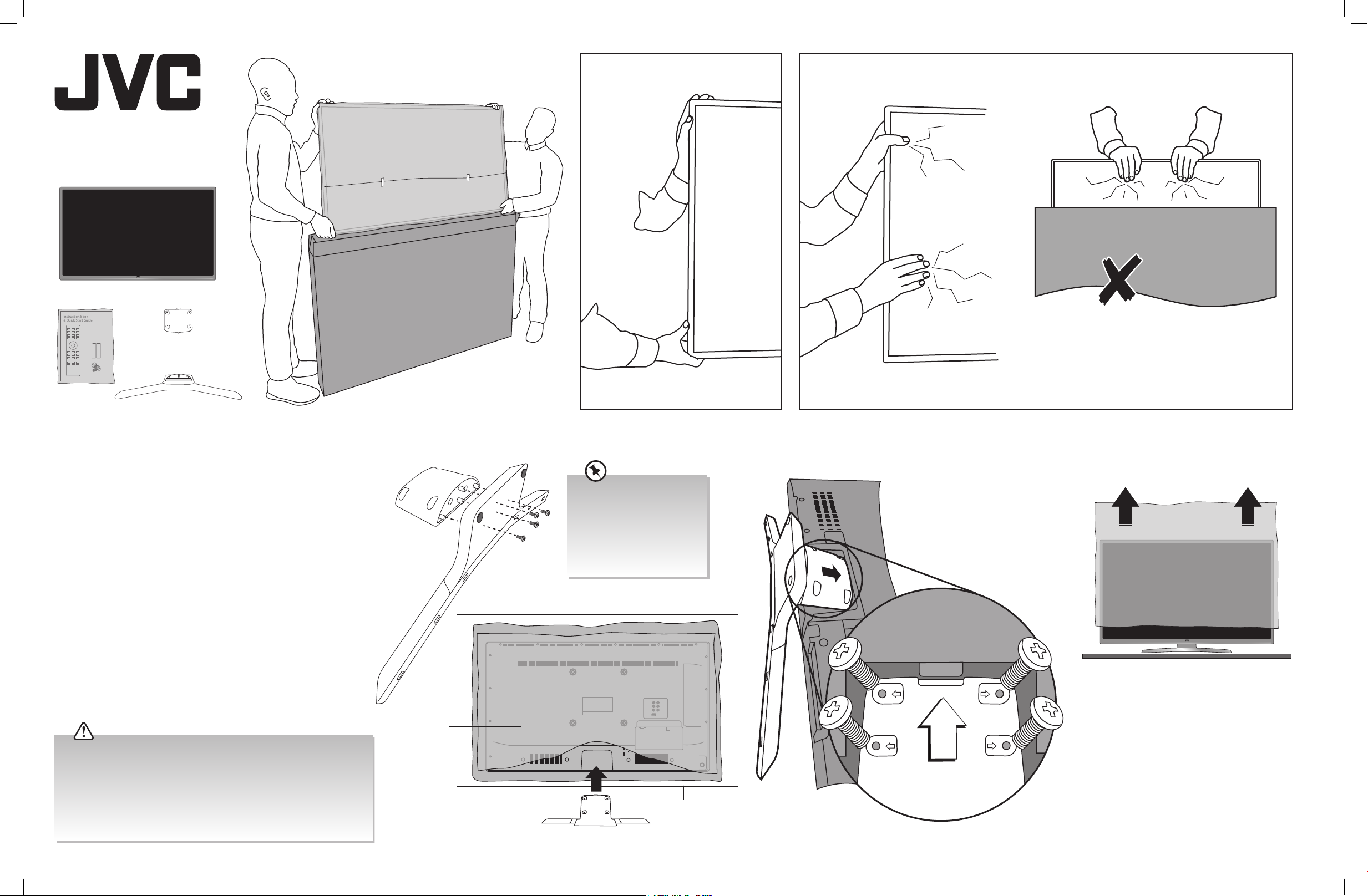

Fitting the Stand Neck and Base Together
1. Fit the neck onto the base.
2. Using 4 of the supplied screws, screw the neck to the base.
Fitting the Stand to the TV
3. Ensure the TV is switched off and not connected to the mains power
supply.
4. Keep the protective bag on your TV, it will help to protect the TV.
Lay the TV down on a flat surface ideally on the edge of a table so the
base of the TV slightly overhangs the edge of the table, with the back
side facing up. Please make sure a soft cushioned material (such as a dry
bath towel or thick piece of foam) is placed beneath the screen.
5. Slide the stand under the lip, the neck will fit snugly over the screw
holes. Then screw the stand to the TV using the 4 screws supplied.
Protective
Bag
Cushioned
material
Remove the Protective Bag
If you don't have a table
big enough, you can use
the TV box. Lie the box flat,
make sure you place the
polystyrene back in the box
first to give the box some
rigidity and strength.
2 people are required
when unpacking your TV.
Don't lift the TV from the top
Slide under
the lip
Slide under
the lip
SCART
SPDIF
Optic.OUT
VGA
ANT.
HDMI1(ARC)
HDMI2 HDMI3
LAN
Table
JVC LED Smart 4K HDR TV LT-43C870(A) Unpacking Guide.indd 1 24/01/2018 15:45

Remove the stand assembly before mounting the
TV onto the wall.
1. Remove the 4 screws from the neck of the stand
and detach the stand.
Mounting the TV to a Wall
2. This TV is designed to be wall-mounted with a
standard 200 mm x 200 mm mounting kit (sold
separately) designed for flat-panel TVs. Mount
this TV according to the instructions included in
the mounting kit. Due to space restrictions, we
recommend that you make all connections i.e
aerial/HDMI before mounting on to the wall.
Do not connect the power until all connections are
made and the TV is correctly wall mounted.
TV Weight
LT-43C870 - 9.6kg Four mounting holes
(size M6 screw)
10-13mm
M6
200mm
200mm
• If you are wall mounting your TV you may wish to buy a 90° HDMI adapter. This will help with your cable management.
• If you require additional assistance please call our Call Centre on (UK) 0344 561 1234 or (Ireland) 1 890 818 575. Our Customer Contact
Centre is open Monday-Saturday 8am-8pm or Sunday 8am-6pm.
If you don't have a table big enough, you can use
the TV box. Make sure you place the polystyrene
back in the box first to give the box some rigidity
and strength.
• 2 people are required when wall mounting large TVs.
• Make sure you hold the TV on the sides do not hold the screen, you may damage the screen.
(UG-LT-43C870(A)-180124V1)
Always check the specification of your wall mount
bracket to make sure its suitable for the weight of
your TV.
x4
