JYDELAND BOBMAN SL User manual

BOBMAN SL
INSTRUCTIONS
READ BEFORE USE!
UK 40-2011
1

INTRODUCTION
Thank you for your interest in the
Jydeland Bobman. We trust you
will gain a lot of satisfaction from
your purchase for many years and
that your Bobman will fulfil your
expectations.
Please read these instructions
before using the machine.
The primary functions, main-
tenance and safety will be cov-
ered in the following pages. This
is a product for professional use
only. Instructions in use of the
machine comply with the check-
list enclosed, which can also be
used for a service agreement.
If further training or a follow-up
visit are required, please contact
Jydeland A/S .
Enjoy!
2

3

WARNING
A Bobman can only be used outdoors or in
a well-ventilated room, as the exhaust gas
contains highly toxic CO².
The machine can only be operated by the
driver sitting in the driver’s seat with at least
one hand always on the steering wheel and
both feet resting on the foot rests or pedals.
Do not start machine if any covers are
removed or defective.
Not suitable for use on very hilly terrain due
to risk of tipping over. That risk is increased
significantly when appliances are attached.
Noise level for normal use exceeds 80db. The
use of ear protectors is recommended.
We recommend that the operator wears a
dust mask for spreading work.
The Bobman is for professional use by trained
personnel only.
Advarsel
4

WARNING SYMBOLS
There are yellow warning stickers on the
machine indicating where extra caution
must be exercised. These are instructions.
Always use the machine with care.
Caution! Always accompanied by another
pictogram.
Read in instruction book.

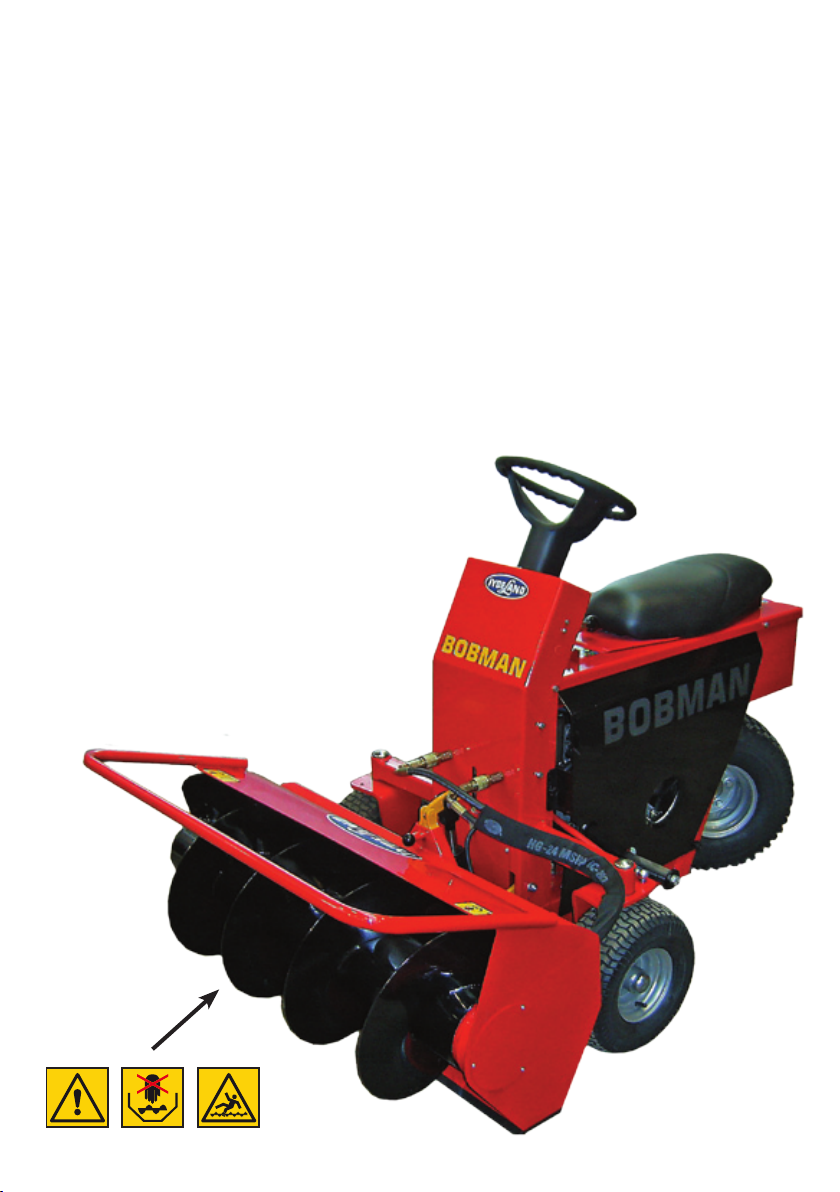

Large rotating screw conveyor. Risk of
crushing. Keep arms and legs clear. Machine
must be switched off when working on the
parts referred to by this pictogram.
Small rotating screw conveyor. Risk of trap-
ping hands. Machine must be switched off
when working on the parts referred to by
this pictogram.
Rotating blower. Machine must be switched
off when working on the parts covered by this
pictogram.
Crushing function. Risk of crushing. Keep
arms and legs clear. Exercise caution when
using this function.
Hearing protectors and goggles. Recom-
mended when operating the machine.
5

Drive
Press pedal on right
for forwards and lift
pedal for reverse.
1 WD / 3 WD
Switch between
1 and 3 wheel drive
Tipping
Handle for
unloading
hopper.
Scraper
Handle for raising, lowering
and adjustment of scraper
height.
Throttle
Engine RPM Brush
Handle for brush start and
stop. Rotation right swings at
the same time out the brush.
Rotation left makes the brush
return to transport position.
Stop in centre position.
Dosing
Handle for adjusting
the dosing of spread
material.
Operation
6

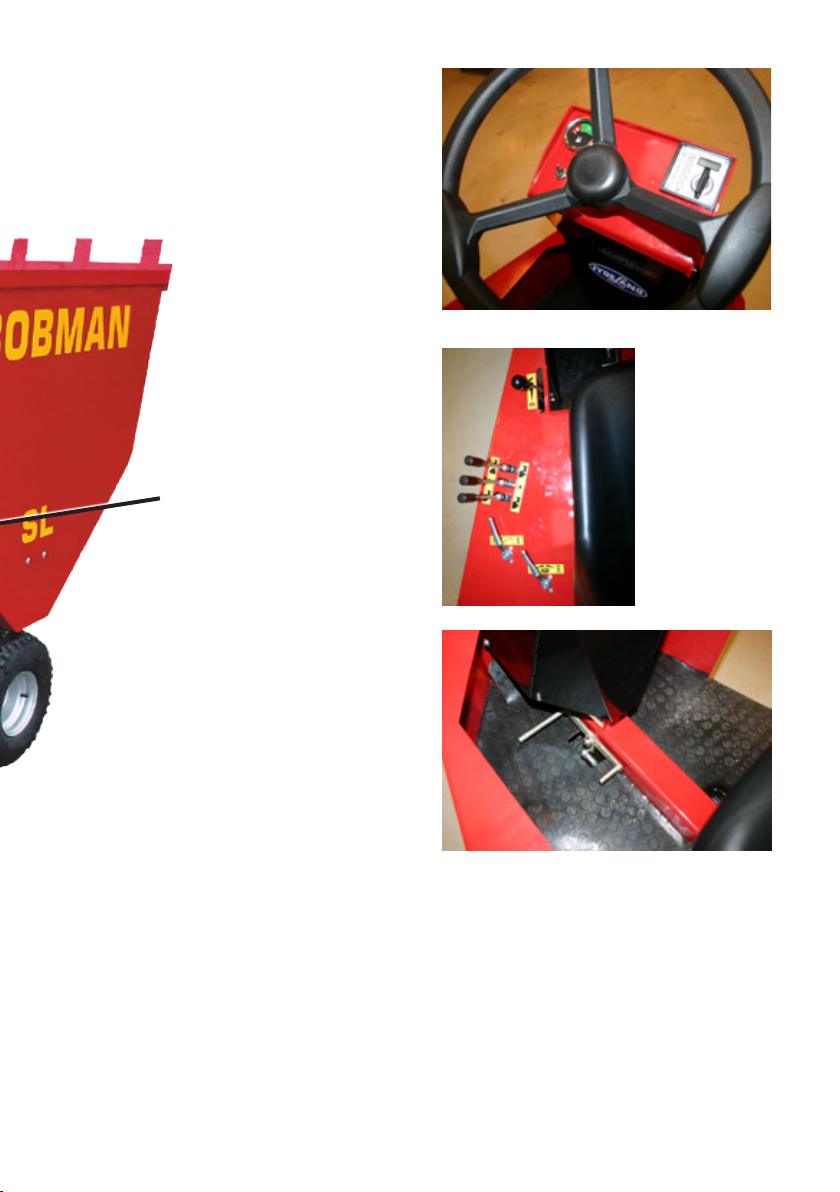

1 WD / 3 WD
Switch between
1 and 3 wheel drive
Spreadmachine
Starts and stops the
hydraulic motors for
the spreader and mixer.

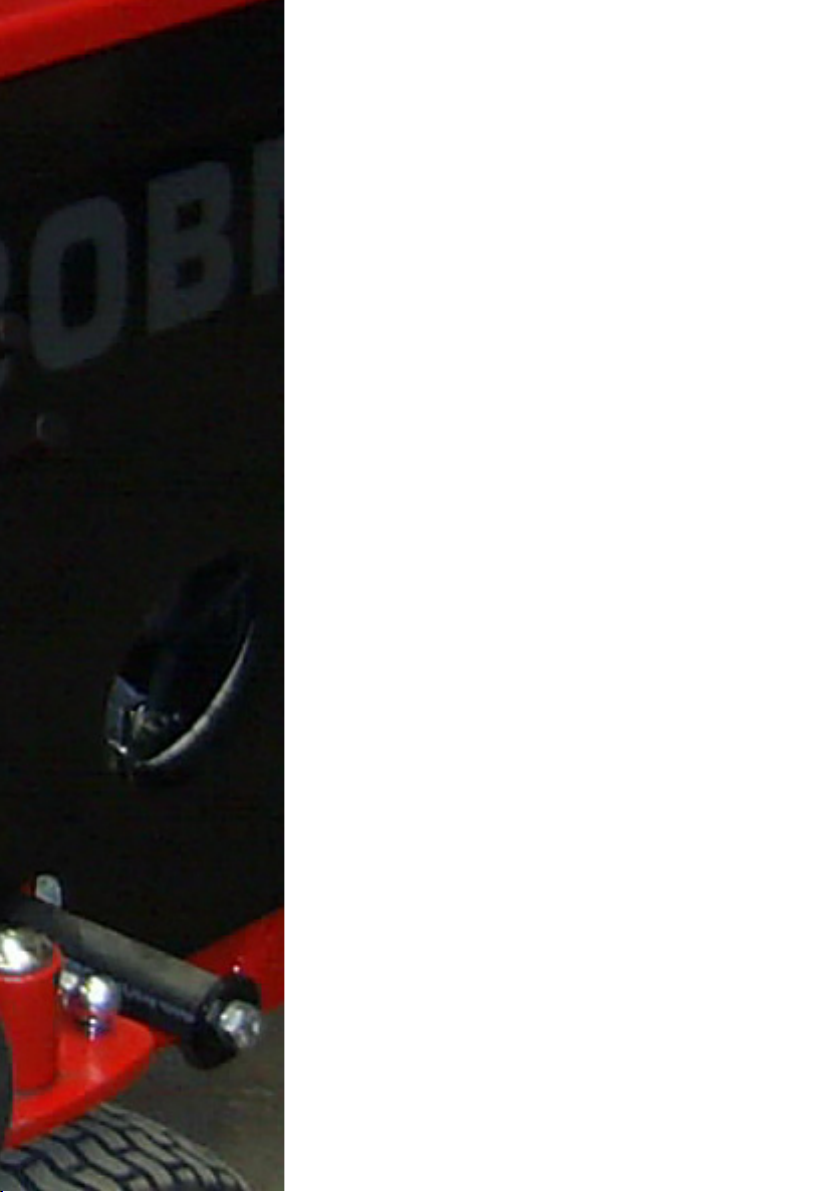

Fuel
Fuel filler cap at the left
side.
Scraper
Handle for raising, lowering
and adjustment of scraper
height.
Massive hjul
Massive silicone filled wheel
as option.
Battery
12 V sealed battery under
seat. Keep terminals clean.
7

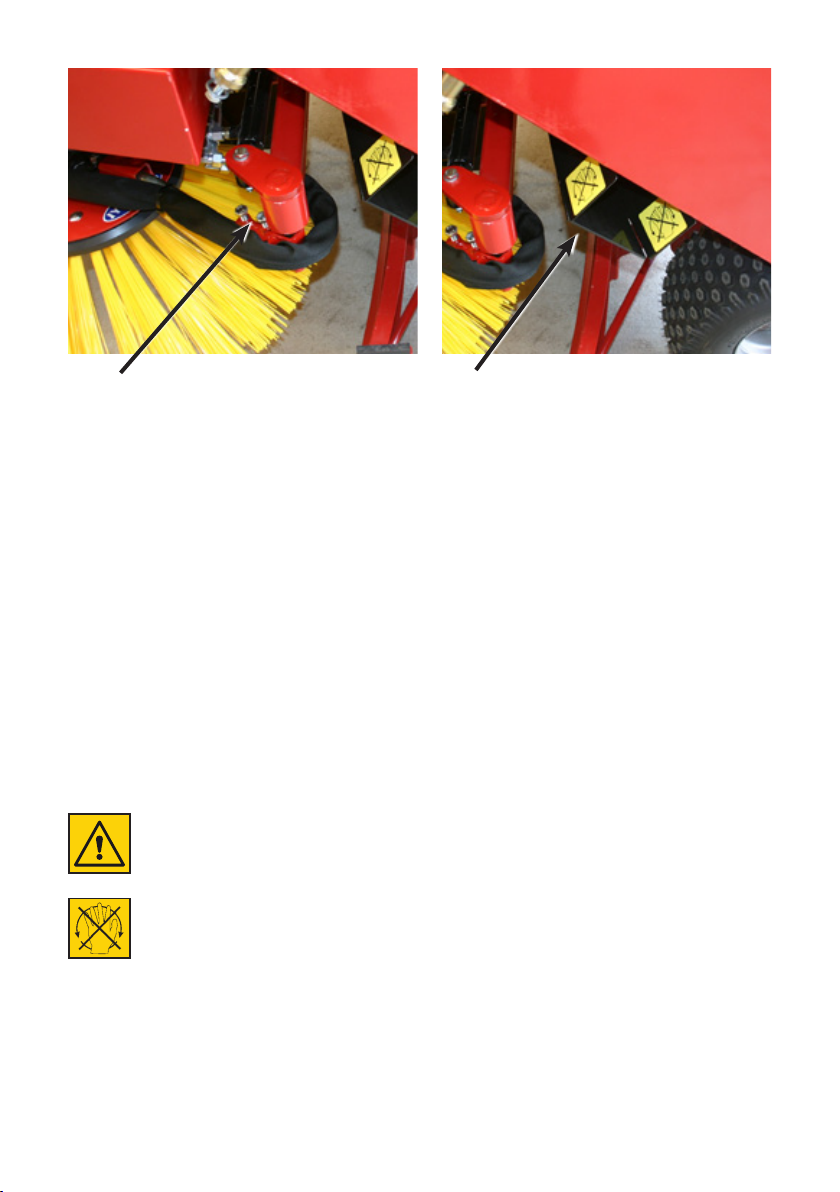

Brush
Brush weighs approx. 80 cm and can be replaced.
19 mm spanner required to adjust up and down on swing arm.
Engine arm can be turned further.
Rear of brush must be approx. 5 cm clear of ground when brushing
Accessories for different box heights can be ordered (parallelogram).
Blower
The blower nozzle can be turned downwards to direct spreading upwards or
downwards.
Baffle opening and engine RPMs determine how much material is spread!
Never put fingers, arms or objects in blower nozzle, conveyor screw and
brush if engine and hydraulics are running.
STOP machine if any foreign object blocks blower!!!
Adjusting brush Blower housing
8

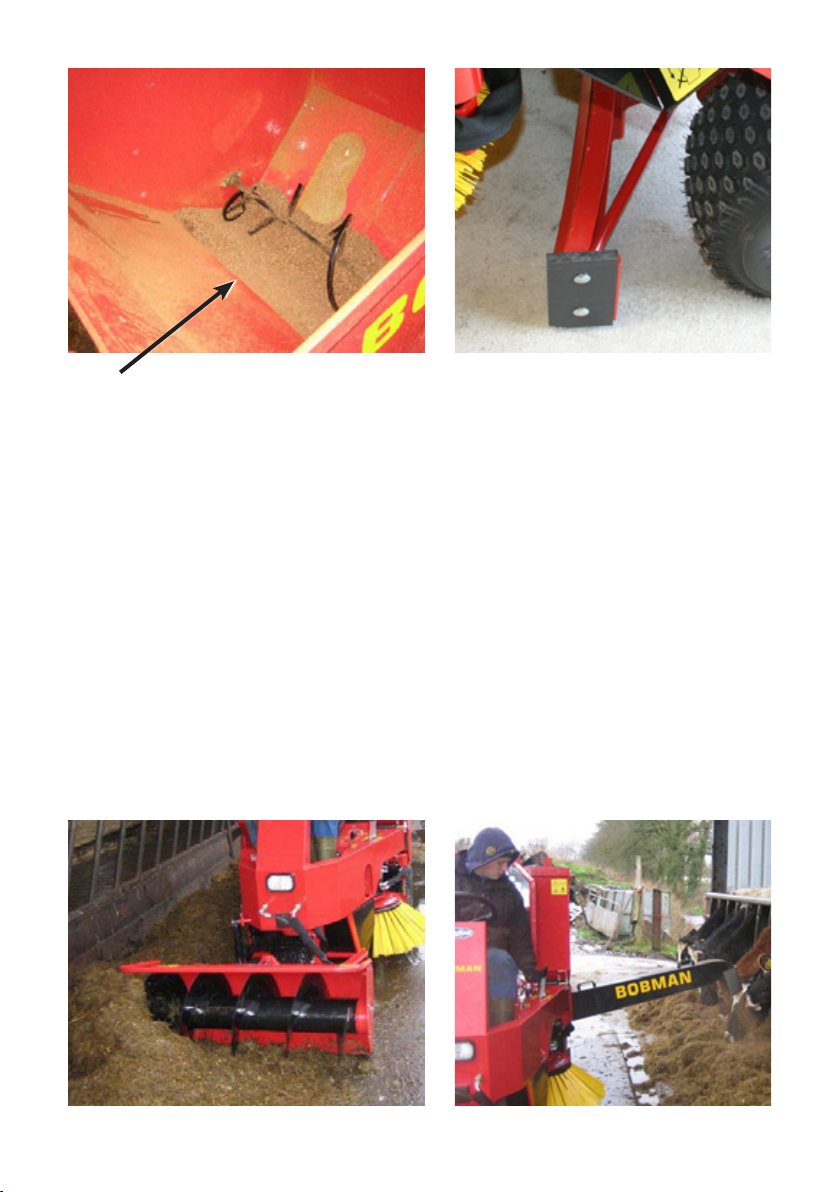

Mixer can be mounted afterwards over
snail, to prevent material not getteing
to the snail.
Rubber on scraper can be replaced.
Feedturner. Extra equipment. Detachable blower spout for ex fodder
pellets. Extra equipment.
Using the Bobman spreader
1Fill hopper with sawdust or chopped straw, 3-8 cm pieces, by lowering and
driving into sawdust/straw pile.
2Lower scraper onto ribbed floor.
3Start hydraulics with handle at the left side of seat. (on/off)
4Start brush with handle at the left of the seat
5Open baffle in hopper for quantity to be spread.
Working in barn - important!
• Floor must be scraped clean twice (or more) times daily
• Bed must be swept clean and dry
• Thin layer of sawdust or chopped straw spread over bed
9

Cleaning
Always keep engine clean - use com-
pressed air if necessary. Avoid blow-
ing directly into air filter. Replace air
filter often to avoid reducing engine
power due to dust in air. The machine
can also be cleaned by high pressure
washer, but never aim jet directly at
air filter, breather pipe for hydraulics
under seat, diesel filler cap, wiring
and electronics.
Tightening up and damage
Tightening up screws and bolts must
be done regularly.
Always repair any damage immedi-
ately after discovery.
Weekly check
Check there is sufficient oil in engine
(W15-40).
Monthly check
Check level of hydraulic oil in sight
glass on right side of machine (HV32
/ HV46).
Lubrication
Lubricate steering chain with oil
(spray-on chain oil is recommended).
Lubricate ball joints with no grease
nipple and universal joint on steering
column with oil. kugleled som ikke har
nipler smøres også med olie.
Hydraulic oil
Hydraulic oil level must be in centre
of sight glass.
Replace hydraulic oil after analysis or
2000 hours.
Fill hydraulic oil (HV32 / HV46) at
filter on right side of hydraulic oil
tank.
Hydraulic oil filter
Change hydraulic oil filter first time
after 50 hours and thereafter every
500 hours or once annually. NB: if oil
colour is milky white, there is water
in the system. Change oil.
Steering
Back wheel is turned by chains from
steering wheel passing under seat.
Remove seat and top panel to adjust.
Battery
12 V sealed battery.
Keep terminals clean.
Maintenance
10

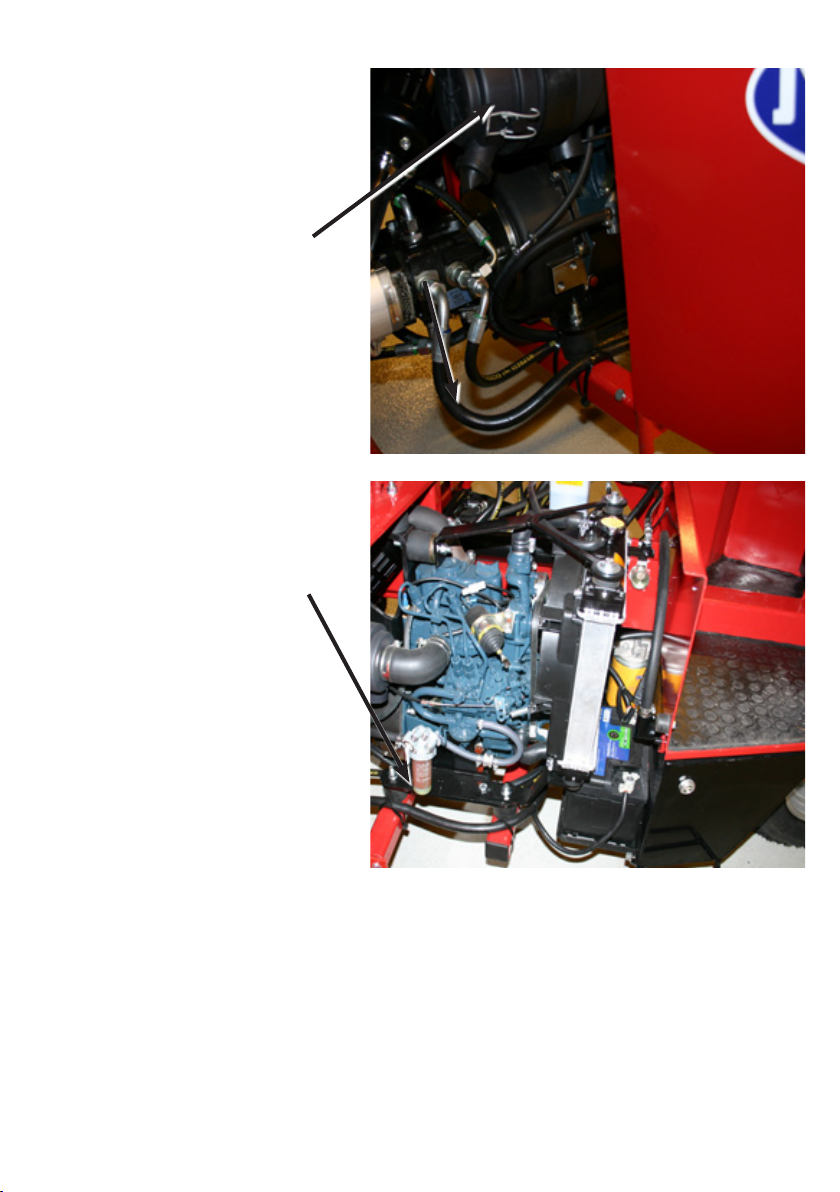

Kubota
Air filter
Change air filter if blocked.
Blow filter clean from inside
out. Engine will overheat if
filter is blocked, reducing air
intake. It will produce a lot
of smoke, traction power
will be reduced and fuel con-
sumption increase.
Fuel filter
Change fuel filter before it
becomes blocked or once
annually to avoid problems
starting. Fuel filter is in
bottom of tank via sus-
pended by a cord from the
lid.
Engine oil
Check oil level. Change
engine oil (W15-40) first
time after 50 hours and
thereafter every 200 hours
or once annually. Check
engine oil and refill on left
side of engine.
11

Bobman SL
12

Nr. Varenr Navn Engelsk
26 780027 Hyd. motor Galtech 8
27 700331 Nylonrulle med leje, Sweep H
1 791001 Bobman SL ramme Bobman Frame SL
2 791002 Dieseltank Bobman SL Dieseltank Bobman SL
3 791003 Rat for Bobman SL Steringweel for Bobman SL
4 791004 Sæde for Bobman 2 Seat for Bobman SL
5 791005 Skraber ramme for Bobman SL Schraber frame for Bobman SL
6 791006 Skrabegummi, Bobman SL Schraberober, Bobman SL
7 791007 Skinne for skrabegummi for bobman 2 Rail for schraberrober for Bobman SL
8 790108 Glideskinne 12x100x180 mm Sleiderrail 12x100x180mm plast
9 790058 Komplet forhjul til 1 WD 13x6,50-6 Komplit frontwheel for 1WD 13x6,5-6
10 791008 Hyd. motor 315 ccm Hydr. motor 315ccm
11 791009 3-vejs ventilblok for Bobman SL 3way ventilblok for Bobman SL
12 790011 Overtryksventil (Alublok) Overpresserventil (Alublok)
13 790098 3-vejshane for strøkasse 3way ventil for spreederbox
14 791010 Batteri for Bobman SL Battery for Bobman SL
15 791011 Forlygte for Bobman SL Frontligth
16 791012 Tankur for Bobman SL Tankwatch for Bobman SL
17 791013 Tændingsboks komplet for Bobman SL Turningbox komplit electie
18 791014 Hyd. filter Bobman SL Hydr. filter Bobman SL
19 791015 Oliefilter for kubota 13 hk Oilfilter for Kubota motor 13HP
20 791016 Dieselfilter Kubota 13 hk Dieselfilter for Kubota motor 13HP
21 791017 Køler til kubota 13 hk Kuler for Kubota 13HP
22 791018 Gummidæmper for Bobman SL Roberfood for Kubota 13HP
23 791019 Kubota 13 hk Diesel Kubota 13HP Diesel
24 791020 Hydrostatikpumpe Hydrostatpump
25 791021 Hyd. pumpe 4 ccm Hydr. pump 4 ccm
26 790021 Gashåndtag Spreeder
27 791022 Gaskabel 1350 mm Benzin/kubota Spreed kabel 1350 mm
28 791023 Luftfilter for kubota 13 hk Airfilter Kubota 13 hk
29 791024 Udstødningspotte for kubota 13 hk Muffel for Kubota motor
30 790085 Kost Ø750 mm Sweep Ø750mm
31 791025 Hyd. cylinder 100mm BOBMAN SL hydr. cylinder 100L
32 791026 Hyd. cylinder 650L bobman 2 Hydr. cylinder 650L
13

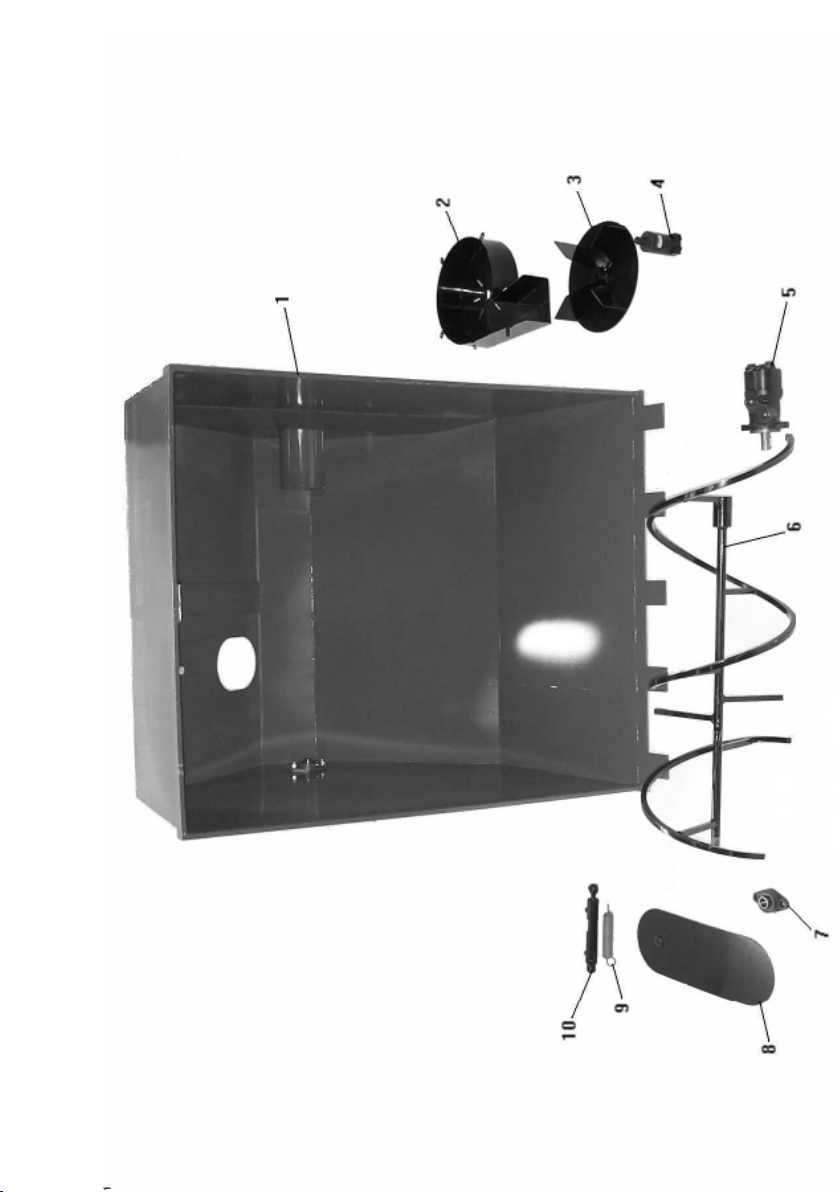

Bobman SL box
14

Nr. Varenr Navn Engelsk
33 780114 Hyd. motor 160 ccm Danfoss Hydr. engine Weit 160 ccm
1 792000 Strøkasse for bobman SL Spreedmaschine for Bobman SL
2 792001 Blæserhus for Bobman SL Blowerhause for Bobman SL
3 792002 Blæsemølle for bobman SL Blowermill for Bobman SL
4 790079 Hyd. motor 12,5 ccm Hydr. Motor 12,5ccm
5 792003 Hyd. motor 315 ccm Hydr. Motor 250 ccm
6 792004 Snegl for strøkasse bobman SL Scru for spreedmaschine Bobman SL
7 790088 Flangeleje 25 mm FL205 (UC205) Bearring 25mm FL205 (UC205)
8 792005 Spjæld for blæser bobman 2 Look for blower Bobman SL
9 792006 Tilbagetræksfjeder 4x32x210 Spring 4x32x210
15

Maintenance
Clean hydraulic snap couplings before
mounting.
Clean screw conveyor regularly to pro-
long service life.
Sealed ball bearings do not need lubrica-
tion.
Slide rail under machine is easy to
replace.
Used to push feed to one side.
User instructions
Mounted on A frame. Lock on top of A
frame MUST be engaged.
Clean hydraulic couplings before mount-
ing.
Adjust screw conveyor to run on the
replaceable plastic rail.
Can be used to push feed from left to
right.
Start and stop using handle under steer-
ing wheel on left.

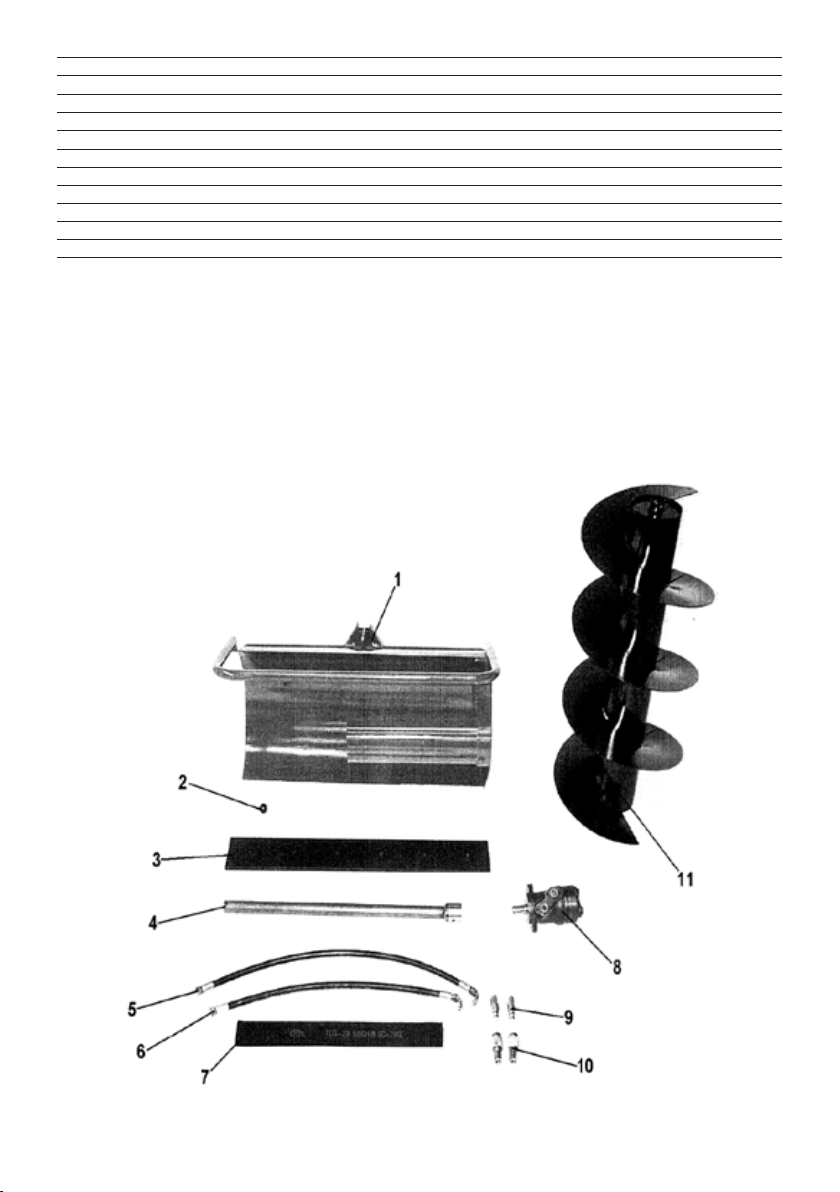

Feedturner
16

Nr. Varenr Navn Engelsk
1 780072 Feedturnerkonsol
2 780162 Plastikskinne 1050 mm
3 780073 Plastikskinne 110 cm
4 780074 Hovedaksel Ø30 f. feedturner
5 780075 Hyd. slange 3/8 950 mm"
6 780042 Hyd. slange 3/8 750 mm m. 90° bøjning"
7 780016 Slangepose 600 mm Housbak 600mm
8 780076 Hyd. motor OMR 100 ccm m. endeport
9 780019 Hyd. kobling han
10 780018 Hyd. kobling hun
17

Mini spread
Mini spreader box for disinfectant
The box can be mounted on the left side
of Bobman S and FL
Attach hydraulic hoses on return side
from screw conveyor in the bottom of
the Bobman spreader box
Obtain diagram from Jydeland.
1Fill box with lime/disinfectant
10 litres = 15 kg
2Start spreading using the ball-topped
handle on the box
3Dosing can be adjusted in the box
under the lid.
Cleaning
Do not wash the mini spreader box,
unless cleaning it 100%.
Moisture and lime will coagulate, and the
screw conveyor can sieze.
Spreader hatch
Disinfectant is spread by
rotating brush bristles
Filling
Disinfectant is poured in here. Do not
compress in the box.
Lubrication
Spay oil using a thin pipe. There are no
grease nipples.
Safety
Never put your fingers or any other
object into the screw conveyor or
blower unless the machine is stopped
The grille in front of the exhaust must
not be damaged or removed
18

Nr. Varenr Navn Engelsk
12 790090 Rystearm for strøkasse Schakerarm for spreedermachin
1 780701 MS15 Kasse
2 780702 Låg for kasse
3 780703 Snegl med blæser
4 780704 Kugleleje for snegl
5 780705 Juster spjæld
6 780706 Sikkerhedsgitter
7 780707 Beslag til kasse
8 780708 Blæsehus
9 780709 Lille sikkerhedsgitter
10 780710 Kuglehane
11 780038 Håndtag
12 780712 Spec. bolt for fodhviler
13 780713 Hydr. motor omm 8 Danfoss
19

Technical Data
Motor.............Kubota 2 cylindret diesel
Fueltank........................................15 l
Speed..................................... 12 km/t
Drive ........................................ 3 WD
Weight ................................... 450 kg
Height ................................1,7 meter
Length.................................2,7 meter
Width ..................................1,2 meter
Sweep diameter ...................0,7 meter
Scrape width .......................1,2 meter
Spread distance ............................ OK
Capacity ...................................1000 l
20
