Könighaus E Series User manual

Könighaus GmbH
Ossenbruch 5
D-46446 Emmerich am Rhein
KÖNIGHAUS
Heizsysteme
-
Original Instruction Manual

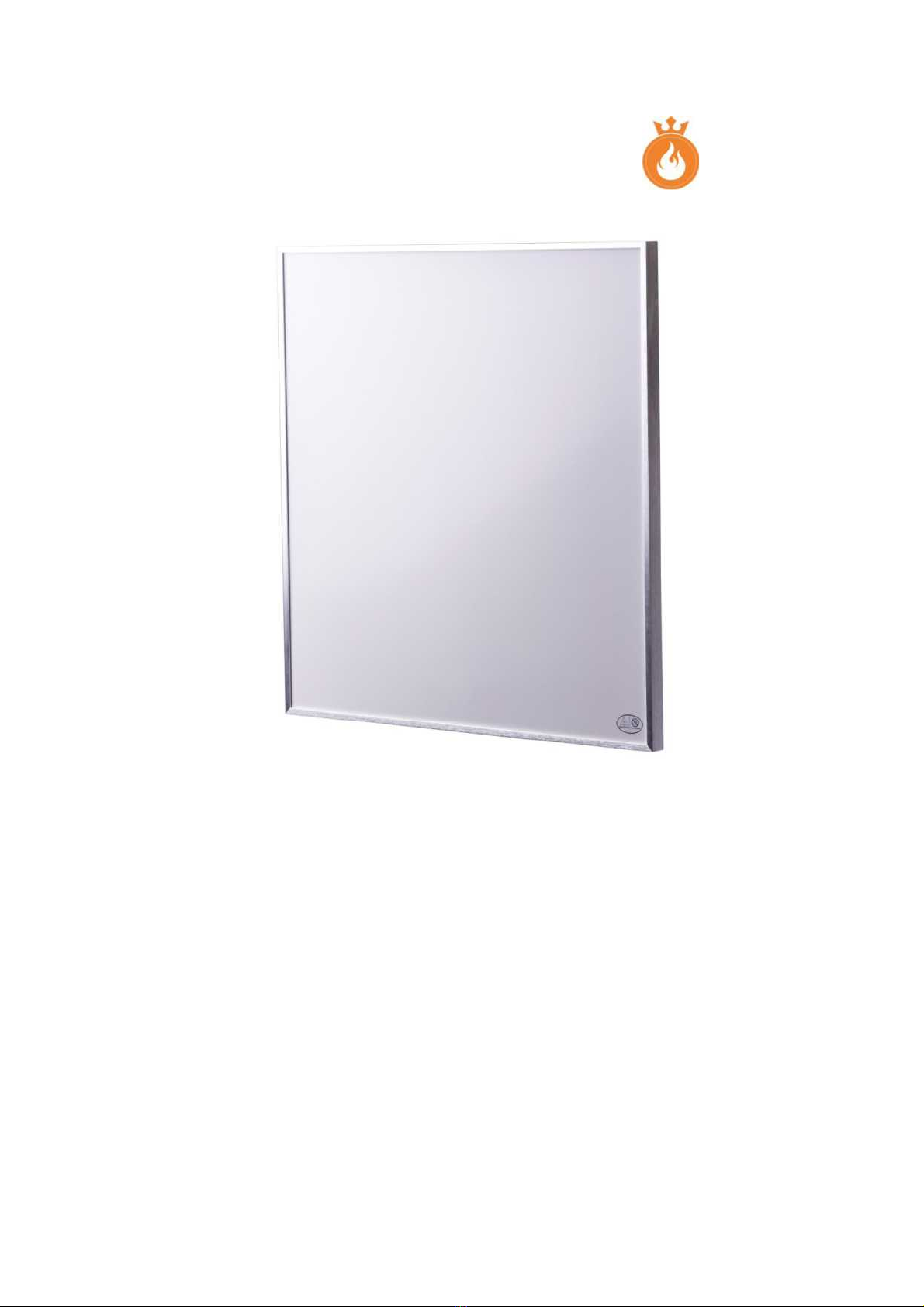

Far infrared heating
Model: Könighaus- E-, M-. P-, G and GS-Series
Important
This product is only suitable for well insulated rooms or for occasional use
suitable for use.
Read carefully before use
Keep for reference

KÖNIGHAUS
Heizsysteme
Change Index
Date
Version
Chapiter
Reason
Responsibility
9.10.2015
V0.0
All
New installation
uttc Ingenieurgesellschaft mbH
Friedrich-Heinrich-Allee 159 D-47475
Kamp-Lintfort
E-Mail:[email protected]eAuftrag 2015-1668
03.12.2015
V1.0
All
G- and GS-Series have
been added
uttc Ingenieurgesellschaft mbH Auftrag
2015-1668
03.08.2016
V 1.1
General,
Chapter 4.5,
Chapter 8
Address changed, IP
protection class added,
Declaration of conformity
adapted.
uttc Ingenieurgesellschaft mbH Auftrag
2015-1668
06.09.2016
V1.2
All
Modification according to
changed requirements
regarding marketability
certificate.
uttc Ingenieurgesellschaft mbH Auftrag
2015-1668
Chapter
1.2.1
Modifications to the
corner installation
31.08.2017
V1.3
All
E-Series changes
uttc Ingenieurgesellschaft mbH Auftrag
2017-2239
22.01.2018
V1.4
All
Adjustments pursuant to
Regulation 2015/1188
uttc Ingenieurgesellschaft mbH Auftrag
2017-2239
These operating instructions have been prepared by us to the best of our knowledge. Should you
nevertheless discover any errors or ambiguities, please let us know. Furthermore we would appreciate any
hints and suggestions. Please contact us:
Könighaus GmbH Ossenbruch 5
D-46446 Emmerich am Rhein
Tel.: [phone]
E-Mail: [e-mail]
Internet: www.koenighaus-heizsysteme.de
Ownership
This manual is a property of:
Könighaus GmbH
Ossenbruch 5
D-46446 Emmerich am Rhein
Version V1.4
Original Instruction manual
Model: E-, M-, P-, G and GS-Series
Version V1.4
2 / 26

Content
KÖNIGHAUS
Heizsysteme
© 2017
The distribution and duplication of these documents, exploitation and communication of their contents are not allowed, unless
expressly permitted. Violations oblige to compensation. All rights reserved in the event of patent grant or utility model
registration.
Content
1 Product information ............................................ 5
1.1 Far Infrared heaters ............................................................................... 5
1.2 Various mounting types ......................................................................... 6
1.2.1 Ceiling mount ......................................................................................... 6
1.2.2 Wall mount ............................................................................................. 6
1.2.3 Mobile operation with aluminium and plastic feet .................................. 6
1.2.4 Direct installation on power circuit ......................................................... 6
2 Reading references ............................................. 7
2.1 Abbreviations, Synonyms, symbols ....................................................... 7
2.2 Safety-related information ..................................................................... 7
3 Legal regulations ................................................ 9
3.1 Disclaimers ............................................................................................ 9
3.2 Applicable guidelines ............................................................................. 9
3.3 Sales within Non-European economic areas ......................................... 9
4 Safety ................................................................. 10
4.1 Intended use ........................................................................................ 10
4.2 Technical data ..................................................................................... 11
4.2.1 Notes on energy consumption ............................................................. 12
4.3 Name plate .......................................................................................... 14
4.3.1 Labelling on the machine ..................................................................... 14
4.4 Safety Instructions ............................................................................... 15
5 Mounting ............................................................ 17
5.1 General notes on mounting ................................................................. 17
5.1.1 Installation of Könighaus E- and P-Series ........................................... 18
5.1.2 Installation of Könighaus M- C- und G-Series ..................................... 20
5.1.3 Installation of GS-Series ...................................................................... 21
5.2 Positioning ........................................................................................... 22
5.2.1 Mounting and stand ............................................................................. 22
6 Commisioning ................................................... 23
6.1 Notice on handling ............................................................................... 23
7 Cleaning and maintenance ............................... 24
7.1 Cleaning .............................................................................................. 24
7.2 Repair .................................................................................................. 24
8 Troubleshooting ................................................ 25
Original Instruction Manual
Model: E-, M-, P-, G-, GS-Series
Version V1.4
3 / 26

Content
9
Original Instruction Manual
Model: E-, M-, P-, G-, GS-Series
KÖNIGHAUS
Heizsysteme
Declaration of Conformity
26
Version V1.4
4 / 26

Product Information
KÖNIGHAUS
Heizsysteme
1 Product Information
Foreword
Thank you for choosing a far infrared heating system from Könighaus Heizsysteme.
Far infrared heaters are electric heaters and work with electricity. As a result, there
is a certain risk potential. It is therefore important to read these operating
instructions carefully before starting up the heater. Furthermore, the operating
instructions should always be kept close to the device.
If you have any doubts or questions, please do not hesitate to contact us.
1.1 Far Infrared Heaters
Far infrared heaters are direct heaters that operate on the principle of heat radiation
(infrared). They do not need much energy to create a comfortable and pleasant
room climate.
Due to an energy conversion of almost 100%, the far infrared heaters are very
efficient in transmission. The surfaces of the heating panels are designed to
achieve optimum heat dissipation at wavelengths ranging from 6 to 15 gm.
The heating panels use the same principle of solar heating, whereby the heat
waves irradiate bodies and objects, which in turn emit the heat. The resulting indoor
climate corresponds to a climate generated by natural solar radiation. Furthermore,
the formation of mould is prevented because the walls store the heat much longer
and more effectively than with convection heating.
Far infrared heaters can be used for a wide variety of buildings or rooms and their
environments. Depending on the environment and type of application, different
models are recommended. Our consultants will be happy to assist you in the
selection of the individual model.
There are different installation instructions for different models. These should be
strictly observed. (see below).
If you do not feel a warm and comfortable temperature in the room immediately
after a short time, continue operating the far infrared heater until the items and
objects in the room are heated up. After the first introductory phase, the heater
should use little energy to heat the room, as objects and walls are heated.
Depending on the model, the surface will heat up to 80 to 125 °C. All our far
infrared heaters are equipped with overheating protection, which automatically
switches off the heating operation of the device in the event of overheating.
Original Instruction Manual
Model: E-, M-, P-, G and GS-Series
Version V1.4
5 / 26

Product Information
1.2
1.2.1
1.2.2
1.2.3
KÖNIGHAUS
Heizsysteme
Various mounting types
Ceiling mount
With the M series, ceiling mounting is possible. For safety reasons, this should
only be carried out by a specialist. Please note but urgently follow the instructions
for mounting.
Wall mount
Far infrared heaters are the perfect auxiliary or main heating systems for residential
areas. Due to the aesthetic aspect and the space-saving design of our far infrared
heating systems, they can be installed in almost any environment. (Please observe
the instructions for installation).
Mobile operation with aluminium, wood and plastic feet
Our far infrared heaters can be used very well with our aluminium or wood feet
which are mobile and flexibly at different places. For this, mount the feet on the
outer frame. For stability reasons, we recommend mounting on the wide side of the
heater and thus operation in horizontal format.
Direct installation on the power circuit
Our infrared heating systems without plugs are designed for direct installation on
the power supply circuit and may only be installed by a specialist. If this is not
observed, warranty claims and liability claims will not be granted and a risk may
arise.
Original Instruction Manual
Model: E-, M-, P-, G and
GS-Series
Version V1.4
6 / 26

Notice
KÖNIGHAUS
Heizsysteme
2 Reading refrences
2.1 Abbreviations, synonyms, symbols
abbreviation/
synonym
significance
EMC
Electromagnetic compatibility
Device
far infrared heating
Symbol
significance
*
Instructions for action
•
bulleted list
Italic
Name of a key, a button, a switch
2.2 Safety-related information
Symbol A. Warns you of personal injury.
These operating instructions contain safety-related information:
• Chapter 4 ^ Security,
• As warnings in individual chapters,
The safety-related information explains the dangers on the machine and how you
can avoid these dangers.
Read the safety-related information carefully. With your knowledge you can
recognize dangerous situations and protect yourself and others.
Chapter ÉS. Security
This chapter informs you about measures for your safety. The information is
intended to raise your awareness of safe behaviour.
The aim is to provide a basis for training and instruction.
Warning instructions
Several chapters of this operating manual contain warnings. A warning always
warns you of an imminent danger. It is to be understood in connection with the
situation in which the warning is given.
The aim is to avoid accidents and damage.
Original Instruction Manual
Model: E-, M-, P-, G and S-Series
Version V1.4
7 / 26

Reading references
KÖNIGHAUS
Heizsysteme
SIGNAL WORD
This warning text mentions the hazard. This warning text states
the consequences.
This instruction names the remedy.
Signal word
Risk level of the
hazard
significance
DANGER
high
Death or serious injury will occur if the hazard
is not avoided.
WARNING
medium
Death, serious injury may occur if the hazard
is not avoided.
CAUTION
low
Minor or moderate injuries may occur if the
hazard is not avoided.
Original Instruction Manual
Model: E-, M-, P-, G and S-Series
Version V1.4
8 / 26

Legal Regeulations
KÖNIGHAUS
Heizsysteme
3 Legal regulations
3.1 Disclaimers
No warranty is given for damages caused by the following reasons:
• Unauthorized or improper use of the device.
• Failure to observe the instructions in this operating manual regarding transport,
storage, installation, commissioning, operation, maintenance, servicing or other
measures on the device.
• Incorrect installation or commissioning.
• Unauthorized modifications and changes to the device.
• Natural wear and tear.
• Unsuitable operating materials and spare parts.
• Improperly performed repairs.
• Chemical, electrochemical or electrical influences.
• Disasters caused by external influence or force majeure.
• If the device is sold outside Europe, the manufacturer assumes no liability
whatsoever. The device is designed, built and documented exclusively for the
European Economic Area.
• In the event of resale of the device outside Europe, the seller has the full rights of
ownership.
• The obligation to fulfil all legal requirements of the respective economic area /
country.
The far infrared heater is to be operated exclusively in residential areas!
3.2 Applicable guidelines
^ See EC Declaration of Conformity in Chapter 0
3.3 Sales within non-European economic areas
The manufacturer accepts no liability if the far-infrared heating system is sold
outside Europe. The machine has been designed, built and documented
exclusively for the European Economic Area.
If the far-infrared heating system is resold outside Europe, then the seller is
responsible for fulfilling all legal requirements of the respective economic
area/country.
Original Instruction Manual
Model: E-, M-, P-, G and S-Series
Version V1.4
9 / 26

Safety
KÖNIGHAUS
Heizsysteme
4 Safety
4.1 Intended use
The far infrared heaters are used to heat living spaces.
The device heats objects and bodies in the wavelength range of 6 to 15 gm, which in turn
give off the heat to the air in the room.
The device can be mounted on the ceiling or wall in living rooms. Furthermore, the device
may be operated on special feet that are only permitted for the device.
The device is built according to the state of the art and the recognized safety rules.
However, inappropriate or improper use of the device may result in danger to life and
health of the user or third parties or damage to the device and other material assets.
The area of application of the device is the residential area. It is intended for connection
to a public power supply network.
The manufacturer is not liable for non-observance and for damages resulting from this.
The risk is borne by the operator.
If malfunctions occur during operation:
• Disconnect the unit from the power supply.
• Inform the manufacturer of the device.
Reasonably foreseeable misuse
Any other use than that described in these operating manual is considered as a
foreseeable misuse.
These include:
• Operation without safety guards..
• Mechanical or electrical bridging,
• The use of parts other than the original parts.
• Modifications, changes and manipulations.
• Failure to follow the instructions,
Original Instruction Manual
Model: E-, M-, P-, G-, GS-series
Version V1.4
10 / 26

Safety
KÖNIGHAUS
Heizsysteme
4.2 Technical data
The following technical information refers to the entire information heating systems
of the Könighaus Heating System. Specific information about your equipment can
be found on the identification plate on the back of your heating panel.
Type
Tension
(V)
Power
(Watt)
Frequenzy
(Hz)
Size
(mm)
Weight
(kg)
IP
protecti-
on class
E-300
220 - 240
300
50-60
500x600x18
2
44
E-350
220 - 240
350
50-60
595x595x18
2
44
E-450
220 - 240
450
50-60
500x900x18
3
44
E-600
220 - 240
600
50-60
600x1000x18
3
44
E-720
220 - 240
720
50-60
595x1195x18
4
44
E-800
220 - 240
800
50-60
780x1000x18
4
44
E-1200
220 - 240
1200
50-60
1000x1200x18
7
44
M-300
220 - 240
300
50-60
500x600x22
3
44
M-350
220 - 240
360
50-60
595x595x22
3
44
M-450
220 - 240
450
50-60
500x900x22
3
44
M -600
220 - 240
600
50-60
600x1000x22
4
44
M-720
220 - 240
720
50-60
595x1195x22
6
44
M-800
220 - 240
780
50-60
780x1000x22
6
44
M-1200
220 - 240
1200
50-60
1000x1200x22
9
44
P-130
220 - 240
130
50-60
420x520x10
1
21
P-300
220 - 240
300
50-60
500x600x10
2
21
P-450
220 - 240
450
50-60
500x900x10
4
21
P-600
220 - 240
600
50-60
600x100x10
5
21
P-800
220 - 240
600
50-60
600x100x10
5
21
P-1000
220 - 240
600
50-60
600x100x10
5
21
GSP-300
220 - 240
300
50-60
600x600x10
6
20
GSP-450
220 - 240
450
50-60
600x1000x10
9
20
G-300
220 - 240
300
50-60
595x595x5
6
20
G-450
220 - 240
450
50-60
600x1000x5
9
20
Original Instruction Handbook
Model: E-, M-, P-, G-, GS-series
Version V1.4
11 / 26

Safety
KÖNIGHAUS
- HEIZSYSTEME
4.2.1 Notes on energy consumption
Die The Ecodesign Directive (2009/25/EC) of the European Parliament regulates the
requirements of energy-related products (ErP). Since 1.1.2018, infrared heaters must
now also be labelled in accordance with Regulation 2015/1188/EU. In the following, the
required data from the regulation are presented:
The following products were selected as references:
• M-350, P-600, E-1200,
• G-300 and G-450
• GSP-300 and GSP-450.
Model identifier(s): M-350, G-300, SP-300
Specifications
Symbol
Value
Unit
Specifications
Unit
Heat supply
Only for single room electric storage heaters: Type of heat
supply control
Normal heat supply
Pnom
0,3
kW
Manual control of the heat supply with integrated
Thermostat
No
Medium heat supply
(standard value)
Pmin
0,0
kW
Manual control of heat supply with feedback
No
Maximum contineous heat
supply
Pmax,c
0,3
kW
Electronic control of the heat supply with feedback of the
room and / or outside temperature
No
Auxiliary power consumption
Heat supply with fan support
No
At normal heat supply
elmax
0,300
kW
Type of heat output/room temperature control
At minimum heat supply
elmin
0,000
kW
Single-stage heat supply, no room temperature control.
No
In standby mode
elSB
0,000
kW
Two or more manually adjustable stages with no room
temperature control.
No
Room temperature control with mechanical thermostat
No
With electronic room temperature control.
No
Electrical room temperature control and time of day
control.
No
Electrical room temperature control and weekday control
Yes
Other control options
Room temperature control with presence detection
No
Room temperature control with open window detection
Yes
With remote control options
No
With adaptive control
No
With operating time limitation
No
With black ball sensor
No
The data on the right side of the table are the same for all devices, and are
therefore listed here once.
original instruction manual
Model: E-, M-, P-, G-, GS-series
Version V1.4
12 / 26

Safety
KÖNIGHAUS
- HEIZSYSTEME
Model identifier(s): P-600
Specifications
Symbol
Value
Unit
Heat supply
Normal heat supply
Pnom
0,5
kW
Minimum heat supply
(Standard value)
Pmin
0,0
kW
Maximum continuous heat
supply
Pmax,c
0,5
kW
Auxiliary power consumption
At normal heat supply
elmax
0,500
kW
At minimum heat supply
elmin
0,000
kW
In standby mode
elSB
0,000
kW
Model identifier (s): E-1200
Specifications
Symbol
Value
Unit
Heat supply
Normal heat supply
Pnom
1,1
kW
Minimum heat supply
(Standard value)
Pmin
0,0
kW
Maximum continuous heat
supply
Pmax,c
1,1
kW
Auxiliary power consumption
At normal heat supply
elmax
1,100
kW
At minimum heat supply
elmin
0,000
kW
In standby mode
elSB
0,000
kW
Model identifier (s): G-450, SP-450
Specifications
Symbol
Value
Unit
Heat supply
Normal heat supply
Pnom
0,4
kW
Minimum heat supply
(Standard value )
Pmin
0,0
kW
Maximum continuous heat
supply
Pmax,c
0,4
kW
Auxiliary power consumption
At normal heat supply
elmax
0,400
kW
At minimum heat supply
elmin
0,000
kW
In standby mode
elSB
0,000
kW
Original Instruction Manual
Model: E-, M-, P-, G-, GS-Serie
Version V1.4
13 / 26

Safety
KÖNIGHAUS
- HEIZSYSTEME
4.3 Name plate
Far Infrared Carbon Crystal Heating Panel
Könighaus
□ M-Serie
□ G-Serie
□ E-Serie
□ P-Serie
□ S-Serie
□ SP-Serie
CE
□ GS-Serie
Power (± 5%)
220-240V 50-60Hz
□ 300 W
□600 W
□ 360 W
□ 720 W
□ 880 W
□450 W
□ 800 W
□ 1200 W
Könighaus GmbH
Ossenbruch 5
D-46446 Emmerich
[e-mail]
4.3.1 labeling on the machine
Safety-related information in the form of pictograms and / or labels is attached to
the device. They point out risks that:
• occur frequently and / or
• have serious consequences.
The following labels are attached to the device:
Significance
labeling
Warning against hot surface!
The device becomes very hot during
operation (up to 125 °C depending on
the model). Touching it can cause
severe burns
A
WARNING!
To avoid overheating of the heater,
the heater must not be covered.
Original Instruction Manual
Model: E-, M-, P-, G-, GS-Serie
Version V1.4
14 / 26

Safety
KÖNIGHAUS
- HEIZSYSTEME
4.4 Safety Instructions
WARNING!
This device is not equipped with a system for controlling the
room temperature. The heater must not be used in small rooms
inhabited by persons who cannot leave the room on their own,
unless the following conditions are met because constant
monitoring is guaranteed.
• All Könighaus far infrared heaters are exclusively suitable for use as heating
devices. Any improper use can lead to a considerable danger for humans,
animals and the environment.
• This heater is intended for use in private households only.
• For operation in commercial areas, the devices must only be installed and
tested by qualified personnel (in compliance with national regulations).
• Children under three years of age must be kept away unless they are constantly
monitored.
• Children 3 years and younger than 8 years may only switch the device on and
off if they have been supervised or instructed on the safe use of the device and
have understood the resulting dangers, provided that the device is placed or
installed in its normal operating position. Children aged 3 years and younger
than 8 years must not connect the plug to the socket, regulate the device, clean
the device and/or carry out maintenance on the device by the user.
• Caution - Some parts of the product can become very hot and cause burns.
Special care must be taken when children and people in need of protection are
present.
• The heater must be installed so that switches and other controls cannot be
touched by a person in the bathroom or shower.
• If the power cord of this device is damaged, it must be replaced by the
manufacturer or his customer service or a similarly qualified person to avoid
hazards.
• Persons with reduced physical, sensory or mental abilities or lack of experience
and knowledge may only use the device under supervision or were instructed
with regard to the dangers.
• Be careful not to expose your eyes intensively and for several hours to the far
infrared rays, as this can cause damage to the eye.
• Far-infrared heaters are not suitable for use in the rain, under water, in very wet
conditions, or for any other use other than that intended.
• Before mounting, please read the mounting instructions in chapter 5 Mounting.
• Only use in wet rooms after installation by a specialist.
Original Instruction Mamual
Model: E-, M-, P-, G-, GS-Series
Version V1.4
15 / 26

Safety
Energy
Disposal
KÖNIGHAUS
- HEIZSYSTEME
• Do not use this heater near a bathtub, shower or swimming pool.
• The device may only be put into operation after appropriate and proper
installation.
• If the device is damaged, this must be disconnected from the power supply and
repaired by a specialist. Never repair it yourself!
• The heater must not be used if the compartments are damaged.
Electrical energy
The device is operated with a supply voltage of 220 - 240 V.
• If the plug or the power cable is damaged, the heating panel must not be used.
This must be checked before each use.
• Never pull or tear the power cord.
• Do not pinch the power supply cable or run it over sharp/abrasive edges.
• Never open or repair the device yourself. This will render all warranty and
liability claims invalid.
• Repairs must be carried out by a specialist.
Overheating
• The far infrared heaters are equipped with overheating protection. If the
overheating protection switches off, the plug must be removed. After a
waiting time of approx. 10 to 15 minutes, the device will be ready for
operation again.
o The only exceptions are the P and M series, as this is intended for installation
in the power circuit.
For the sake of our environment
The device contains components or substances which, in the event of improper disposal
endanger the environment.
To avoid environmental damage, proceed as follows. Materials and components:
• Cardboard packaging material can be disposed of in the waste paper collection
or the local disposal system.
• Dispose of plastic films and packaging properly. Keep out of the reach of
children.
• Do not throw parts in the dustbin: The device must not be disposed of with
household waste. Only to collection points for electrical and electronic
equipment. The symbol of the crossed-out dustbin indicates this.
• By recycling, material recovery or other forms of recovery of old equipment, you
are making an important contribution to protecting our environment. Please ask
your local authority and the responsible disposal point for more information.
Original Instruction Manual
Model: E-, M-, P-, G-, GS-Series
Version V1.4
16 / 26

Mounting
KÖNIGHAUS
- HEIZSYSTEME
5 Mounting
Warning
Please read all instructions before operating the device
to prevent the risk of fire, electric shock or injury.
Our far-infrared heaters may only be used with the original suspension provided
and can be mounted. Warranty and liability for consequential damages are
excluded for far-infrared heating systems used without original suspension.
5.1 General notes on mounting
• Various mounting types are available for the various models. Our far infrared
heaters have certain suspension devices. These must be used for mounting.
• Our plug-less heating systems are designed for direct installation on the power
circuit. The installation must be carried out by a specialist. The far infrared
heater is intended for fixed installation on the wall.
• Remove the blue transport protection film.
• Make sure that the power plug is not plugged in or that the device is already
connected to the power circuit. The device may only be installed if it is not
switched on.
• Under no circumstances should you drill holes in the far infrared heater. If this
happens accidentally, do not operate the device under any circumstances and
contact your dealer.
• For the Könighaus E-Series, use the enclosed mounting template and follow the
mounting instructions to ensure easy and trouble-free installation.
• If the appliance is used in children's rooms or in rooms accessible to children,
please ensure that the far infrared heater is suspended 1.20 metres above the
floor.
• Distance to the rear: Our far infrared heaters only emit convection heat in the air
(no infrared radiation). However, make sure that the distance to the back of the
Könighaus M Series (with fixing rods) and Könighaus C Series (frameless)
(metal/aluminium plate) does not fall below 25 mm from the wall for ventilation.
This distance is granted if you use the enclosed mounting material for wall
mounting.
• The ceiling installation must be carried out by a specialist / electrician. The
panel is plugless (connect directly to the power circuit) and can only be used
with a thermostat to regulate the temperature. For ceiling mounting, it is
important to ensure that the distance from the aluminium bars is approx. 25 mm
so that the warm air can escape behind the panel and heat does not
accumulate. Screws must be used that are 25mm larger (not supplied). The
screws are to be selected exclusively by a specialist. With the E-Series and the
G-Series, ceiling use is only possible with the Könighaus ceiling fixing material.
You can order these from your specialist dealer or directly from us. The safety
distance of 25mm between ceiling and heating panel also applies here.
Original Instruction Manual
Model: E-, M-, P-, G-, GS-Serie
Version V1.4
17 / 26

Mounting
KÖNIGHAUS
- HEIZSYSTEME
• Distance to the front: Our far-infrared heaters emit far-infrared radiation only at
the front. Ensure that the minimum distance of approx. 50 cm to the front, 20 cm
to the side and up and down is 20 cm.
• When mounting in public areas, VDE 0108 must be observed.
• Do not install the far infrared heater near a shower, tub or swimming pool.
Direct splashing of water must be avoided. In case of mounting or use in wet
rooms, the installation must always be carried out by a specialist company and
in accordance with VDE 0100 parts 701, 702 and 703.
• When installing in wet rooms, care must be taken that the device cannot come
into contact with water (shower and bathtub). Do not use wet fingers.
• Do not mount the heating device directly below or in front of a plug socket.
• The mains plug must be accessible after installation and must be able to be
pulled out immediately if necessary.
• If the remote infrared heater is to be connected to a fixed installed electrical
installation, a disconnecting device of the overvoltage category III must be
provided for full disconnection. This connection work may only be carried out by
a qualified specialist.

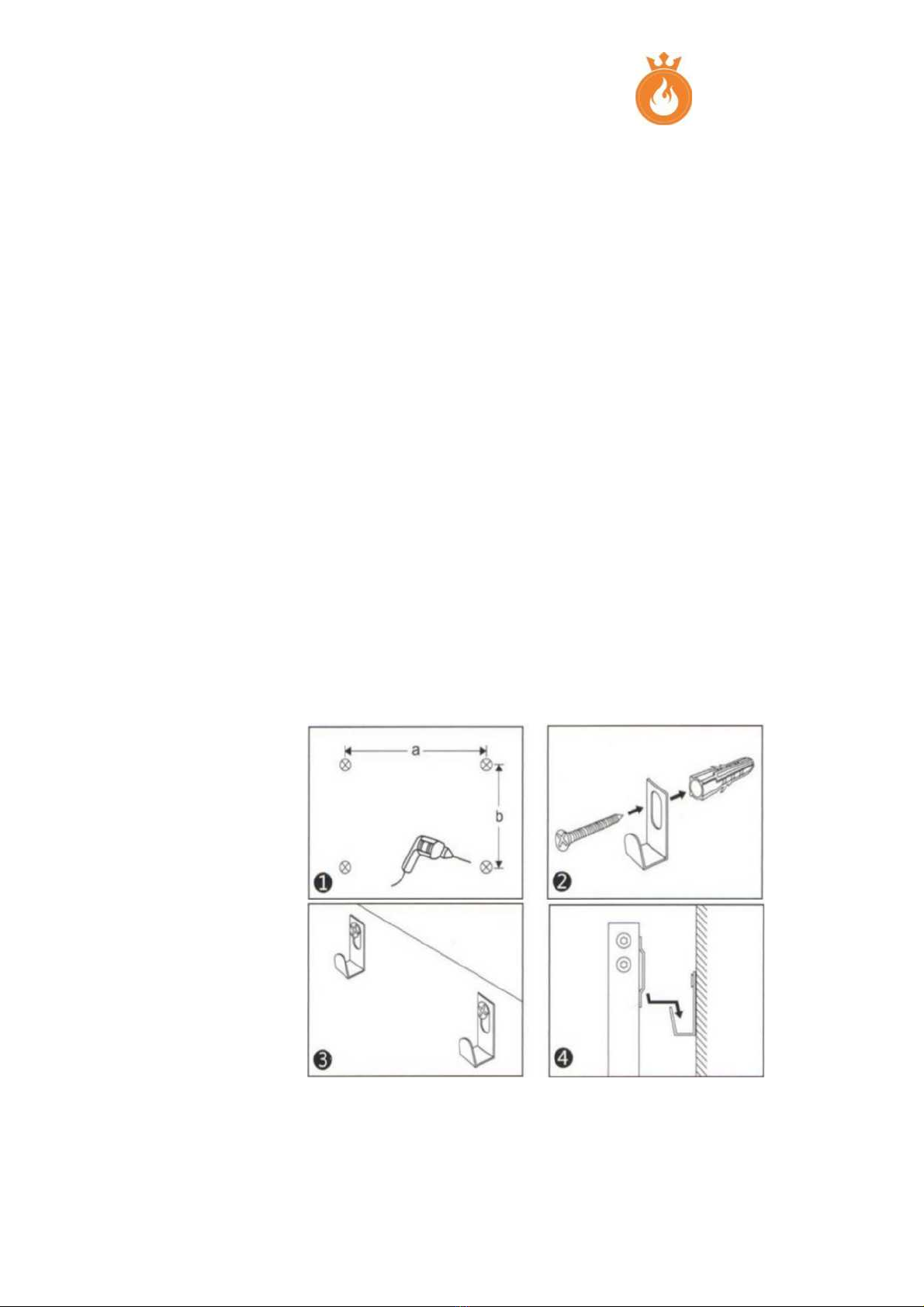

5.1.1 Installation of the Könighaus E-Series
1) Drill the four holes into the wall according to the holding devices on the back and then
insert the enclosed dowels into the holes so that they are congruent with the wall.
2) hen fasten the holders with a washer and screw (Series: Holder Washer Screw)
Original Instruction Manual
Model: E-, M-, P-, G-, GS-Series
Version V1.4
18 / 26

Mounting
KÖNIGHAUS
- HEIZSYSTEME
3) Align the brackets so that they are horizontal on the wall.
4) Place the wall-mounted panel in the holder. Make sure that the panel is firmly seated.
Warning / Notice
The E-Series is suitable for operation without mains plug. The installation may
only be carried out by qualified specialists.
For direct circuit connection, the power plug must be removed and the device installed in
accordance with national regulations. This installation must only be carried out by
qualified specialists.
Warning / Notice
If the device is not installed properly, there are considerable dangers, such as
dangers due to electric shock or fire. For this reason, operation of devices without
a power plug must only be carried out by qualified specialists.
Original Instruction Manual
Model: E-, M-, P-, G-, GS-Series
Version V1.4
19 / 26

Mounting
KÖNIGHAUS
- HEIZSYSTEME
5.1.2

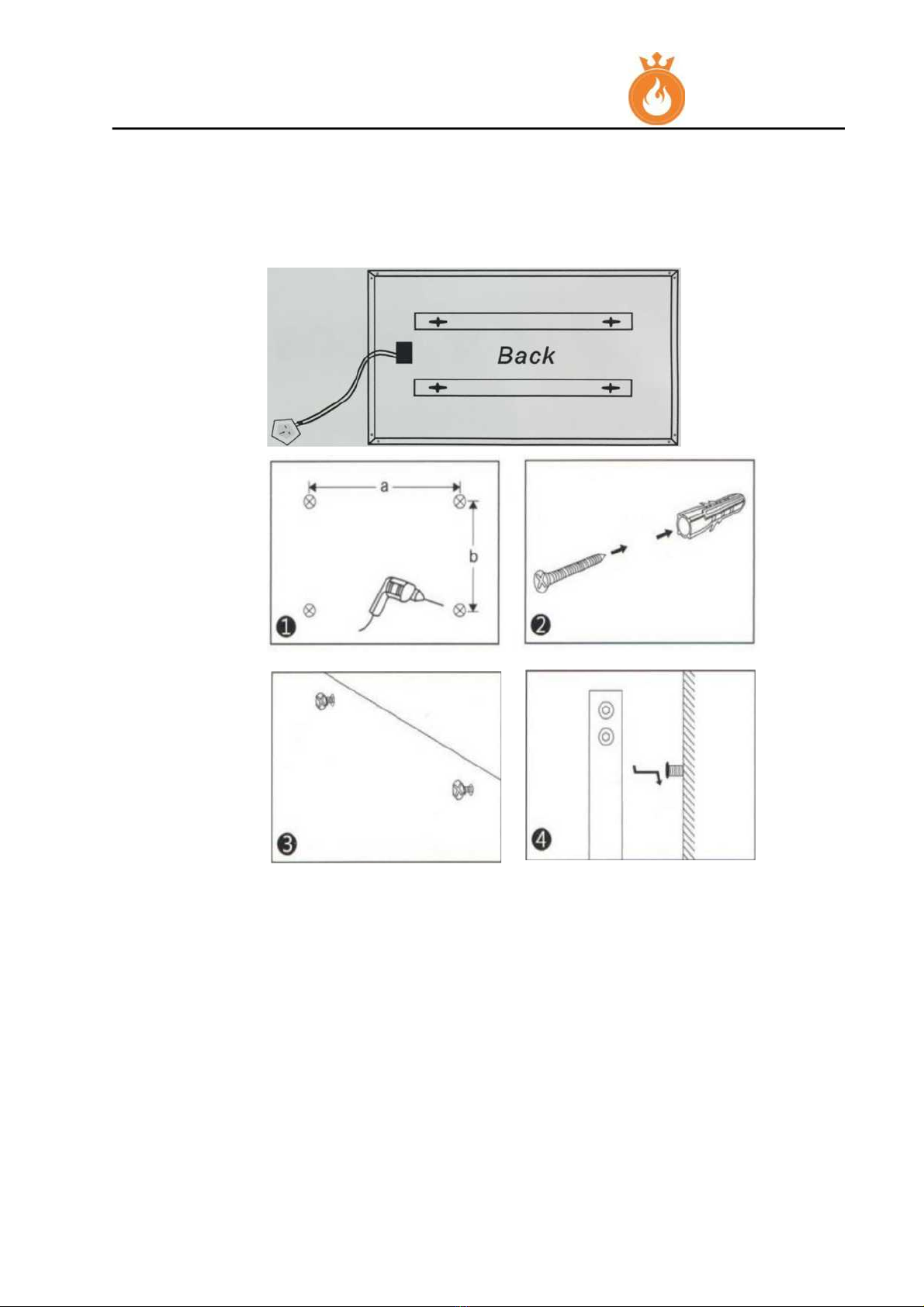

Installation of Könighaus M- C- P- and G-Series
• If the far-infrared heating system is connected to a fixed electrical supply, a
disconnection device of overvoltage category Ill shall be provided for full
disconnection. This connection work may only be carried out by a qualified
specialist.
1) Drill the four holes into the wall according to the brackets on the back and insert
the supplied dowels into the holes so that they are congruent with the wall.
2) Then screw the screws into the holes so that they are not congruent with the
wall.
3) Now hang the holders of the heating panel on the screws.
Original Instruction Manual
Model: E-, M-, P-, G-, GS-Series
Version V1.4
20 / 26
