INTRODUCTION
SAFETY INFORMATION 1
Thank you for your purchase of Könner & Söhnen products. This manual contains a brief description of
safety, use and debugging. More information can be found on the ocial manufacturer’s website in the
support section: ks-power.de/betriebsanleitungen.
You can also go to the support section and download the full version of the manual by scanning the QR
code, or on the website of the ocial importer of Könner & Söhnen products: www.ks-power.de/en.
The manufacturer reserves the right to make changes to the generators, which may not be reected in this
manual. Pictures and photos of the product may vary from its actual appearance. At the end of this manual,
you will nd contact information which you are free to use in case of any issues.
All data specied in this owner’s manual are the most up to date at the time of its publication. The current
list of service centers can be found on the website of the ocial importer: www.ks-power.de/en.
We care about the environment, therefore, we consider it expedient to saveWe care about the environment, therefore, we consider it expedient to save
paper and leave in print a short description of the most important sections.paper and leave in print a short description of the most important sections.
Be sure to read the full version of the manual before
getting started!
Failure to follow the instructions marked with this sign
may lead to serious injury or death of the operator or
third parties.
Useful information on operation of the machine.
ATTENTION – DANGER!
IMPORTANT!
Please, read this manual carefully before use!
WARNING!
PROTECTING YOURSELF AND THOSE AROUND YOU 1.1
This is a high-powered machine, with moving parts
operating with high energy. You must operate the
machine safely. Unsafe operation can create a number
of hazards for you, as well as anyone else in the nearby
area.
WARNING!
Always take the following precautions when using this machine:
• Keep in mind that the operator or user is responsible for accidents or hazards occurring to other people,
their property and themselves.
• Always wear protective goggles or safety glasses with side shields while using the log splitter to protect
your eyes from possible thrown debris.
• Avoid wearing loose clothing or jewelry, which can get caught in moving parts.
• We recommend wearing gloves while using the log splitter.
• Wear shoes with non-slip soles when using your log splitter. Do not use the machine while barefoot or
wearing open toed sandals.
• Wear long pants while operating the log splitter.
Safety symbols and description of inscriptions can be found in the full web version.Safety symbols and description of inscriptions can be found in the full web version.
www.ks-power.de/en |1

• Keep bystanders at least 50 feet away from your work area at all times. Stop the engine when another
person or pet approaches.
• Never allow children to operate the log splitter.
SAFETY WITH GASOLINE - POWERED MACHINES 1.2
Gasoline is a highly flammable liquid. Gasoline also gives
off flammable vapor that can be easily ignited and cause
a fire or explosion.
WARNING!
Always follow these precautions:
• Never run the engine in an enclosed area or without proper ventilation as engine exhaust contains carbon
monoxide, which is an odorless, tasteless, and a deadly poisonous gas.
• Replace rubber fuel lines and grommets when worn or damaged and after 5 years of use.
• Fill the fuel tank outdoors with the engine off and allow the engine to cool completely.
• Allow the engine to cool completely before storing in any enclosure. Never store a machine with gasoline
in the tank or a fuel container.
• Never make adjustments or repairs with the engine running. Shut down the engine, disconnect the spark
plug wire while keeping it away from the spark plug to prevent accidental starting, and then wait 5 minutes
before making adjustments or repairs.
• Never tamper with the engine governor setting.
• Never cover the machine while the muffler is still hot.
• Do not operate the engine with the air filter or the carburetor air intake cover removed. Removal of such
parts could create a fire hazard. Do not use flammable solutions to clean the air filter.
• The muffler and engine become very hot and can cause severe burns; do not touch them.
SPECIFICATIONS 2

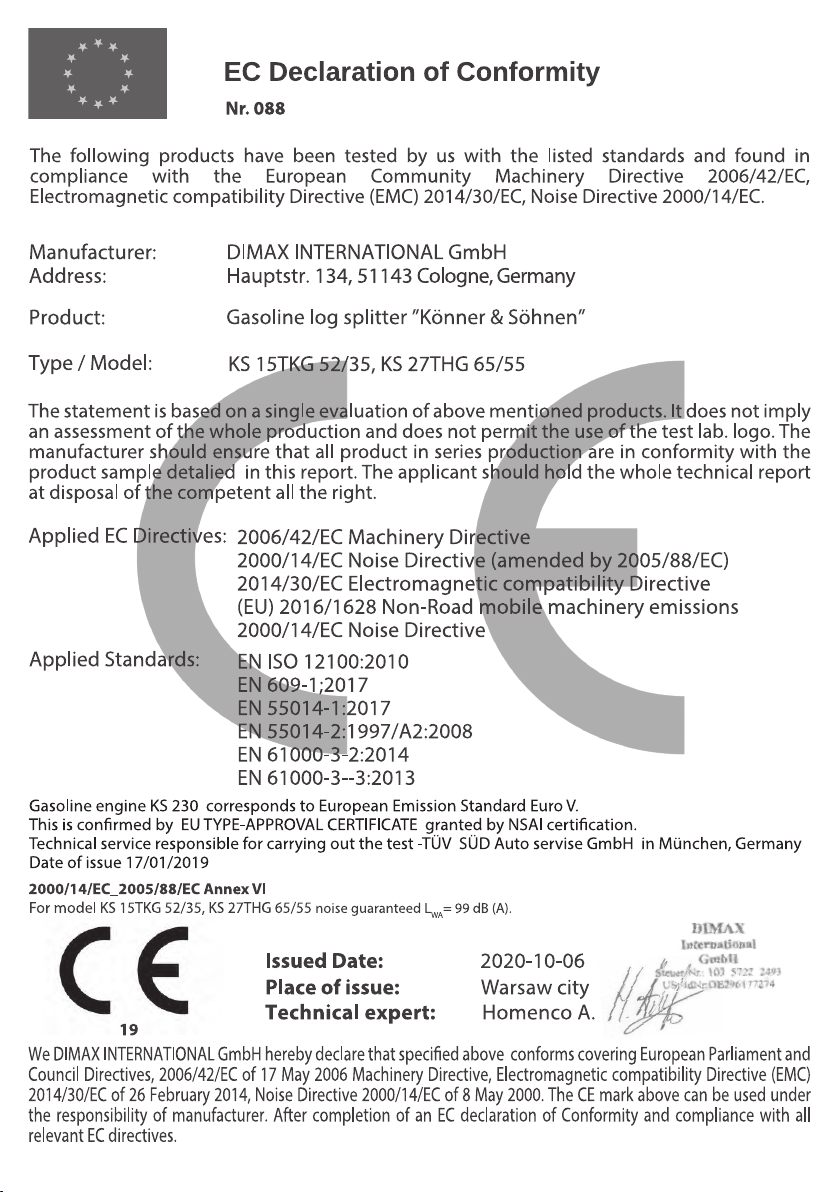

Model KS 15TKG 52/35
Engine power 6.5 HP
Splitting force 15 ton
Engine type gasoline
Engine model KS 230
Max. splitting length 520 mm
Max. splitting diameter 350 mm
Cycle time ~ 2 seс.
Operating position horizontal
Flywheel speed 450 U/min
Fuel tank volume 3.6 l
Crank case volume 0.6 l
Wheels 12’’
Gross dimensions (L*W*H) 1400x380x610 mm
Gross weight 110 kg
Protection class IP54M
The diameter listed is indicative of the maximum
suggested size. A small log can be difficult to split when
it contains knots or a particularly tough fiber.
IMPORTANT!
www.ks-power.de/en |2

LOG SPLITTER OPERATION 3
STARTING THE ENGINESTARTING THE ENGINE
Before starting the engine, make sure the switch is in the “I” (ON) position (see the pictures below). Turn
the rotary engine speed dial to MAX. Set the engine switch to the “CHOKE” position. Grasp the starter
handle and slowly pull it until resistance is felt, then pull it with a rapid movement all the way. Repeat the
operation until the engine starts. After starting the engine, allow the rope to retract without throwing the
starter handle. Put the flaps in the “RUN” position.
CHECKING THE FUEL LEVELCHECKING THE FUEL LEVEL
1. Unscrew the fuel cap and check the fuel level in the tank.
2. Fill the fuel tank to the fuel filter level.
3. Tighten the fuel cap securely.
Recommended fuel:Recommended fuel: only unleaded gasoline.
Fuel tank volume:Fuel tank volume: see specifications table.
Wipe up spilled fuel immediately with a clean, dry, soft
cloth, as the fuel may harm painted surfaces or plastic
parts.
IMPORTANT!

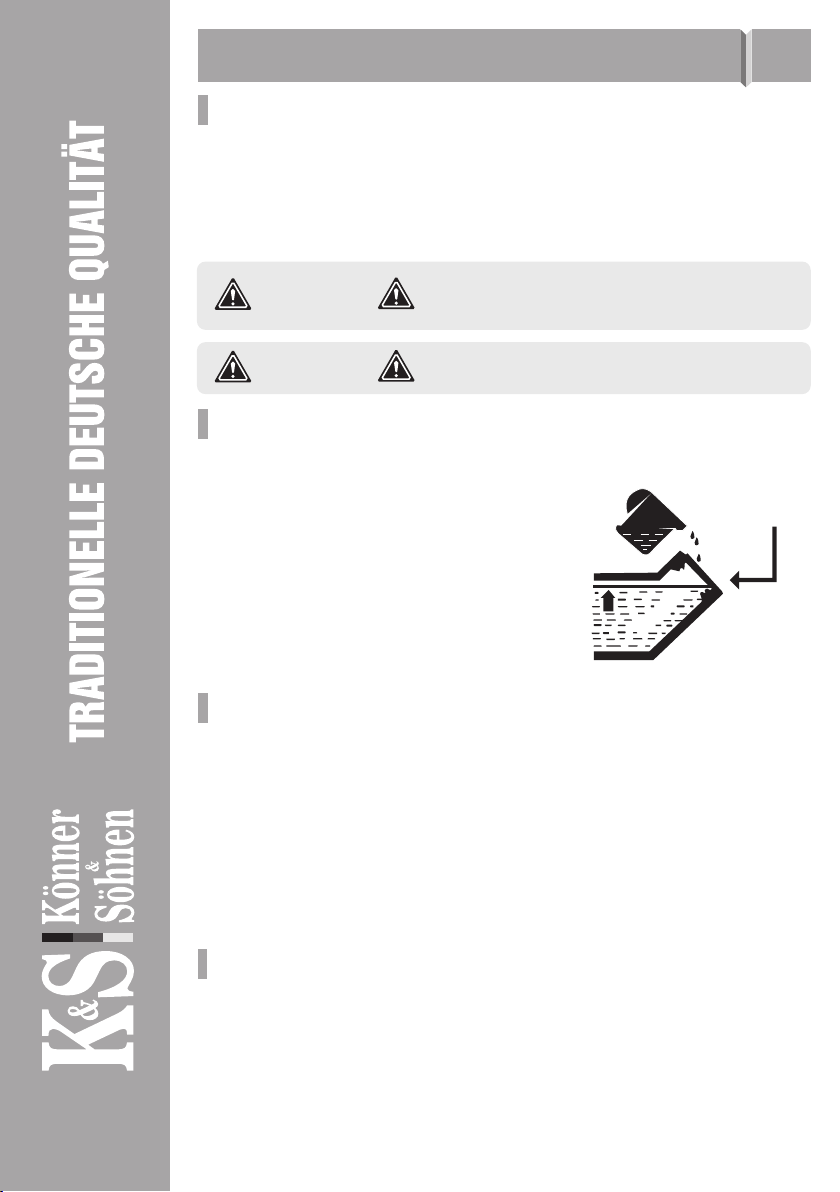

CHECKING THE OIL LEVELCHECKING THE OIL LEVEL
The log splitter is transported free of motor oil. Do not start the engine until it is filled with sufficient amount
of motor oil.
1. Unscrew the oil dipstick and wipe it out with a clean cloth.
2. Insert the dipstick without screwing it in.
3. Check the oil level by a mark on the oil dipstick.
4. Add oil if its level is below the mark on the oil dipstick.
5. Screw on the dipstick.
Recommended motor oil:Recommended motor oil: SAE 10W30, SAE 10W40.
Recommended motor oil grade:Recommended motor oil grade: API Service SG type or higher.
Motor oil quantity:Motor oil quantity: see specifications table.
FILL TO HEREFILL TO HERE
Use only unleaded gasoline. Using leaded gasoline can
cause serious damage to the inside of the engine.
IMPORTANT!
COMMISSIONINGCOMMISSIONING
1. Fill the crankcase with engine oil. The recommended amount of oil for each model is indicated in the
specification chart.
2. Check oil level with an oil dipstick. It should be between the MIN and MAX marks on the oil dipstick.
3. Check fuel level.
4. Check the air filter for correct installation
In the first 20 operating hours, the following requirements should be met:
1. After the first 20 operating hours, be sure to change the oil. It is better to drain oil while the engine is still
hot after operation to ensure quick and complete oil draining.
2. Check and clean the air filter and spark plug.
www.ks-power.de/en |3

• Do not reach or step across the beam while the log
splitter is running. This is a very UNSAFE method which
could cause personal injury or even death.
WARNING!
• Never attempt to split wood across the grain. The log
splitter was not designed for cross-grain splitting. Doing
so could damage the log splitter and may cause personal
injury.
CAUTION!
The kinetic log splitter operates differently than a
hydraulic splitter. Not operating the machine properly
will result in damage to the machine.
Always follow these notices:
• Do not be timid. A rapid movement of the engagement handle is necessary for the rack and pinion to
engage and disengage fully without damage.
• The engagement handle should never be stopped in any location between the fully forward or fully
backward positions.
• Do not hold the handle in the forward position when the ram stops moving forward. Always pull the
engagement handle RAPIDLY to the back (auto-retract) position as soon as the log is split or when the ram
is at the end of the stroke or when the ram stops moving forward due to a tough log.
1. Place the log on the log splitter. Grasp the log on the sides near the middle of the block. Center the log,
side-to-side, on the rail of the log splitter, making sure that one end is against the splitting wedge.
The engagement handle must be held fully in the split
position against the hard stop when splitting. Failure to
do so may result in kickback of the handle.
CAUTION!
NOTICE
• Make sure both ends of the log you are splitting are cut as square as possible. This will
prevent the log from sliding out of position while under pressure.

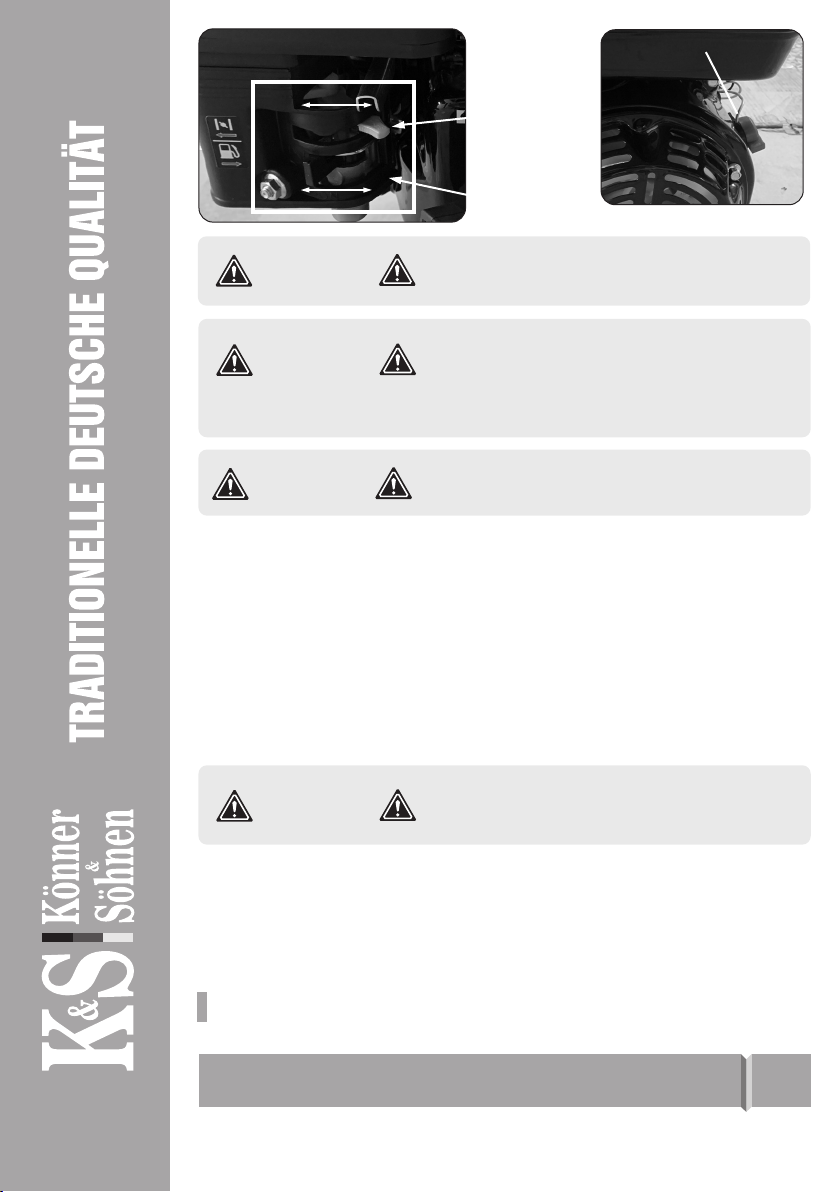

Engine switch
OFFON
air damper
fuel valve
OpenClosed
OpenClosed
2. With one hand, actuate and hold the safety lever towards you, then RAPIDLY actuate the engagement
handle fully towards the engine until it contacts the hard stop and hold firmly until the log is split.
3. IMMEDIATELY AFTER the log is split, actuate and hold the engagement handle in the auto-retract position
to allow the ram to return. If the ram stops before the end of the stroke while splitting a tough log, quickly
actuate the engagement handle back to the auto-retract position. Let the ram return and allow the flywheels
to gain momentum for another full power split.
REGULAR MAINTENANCE CHECKLIST 4
STOPPING THE ENGINESTOPPING THE ENGINE
To stop the engine, turn the switch to the “OFF” position. Turn the fuel valve to the “CLOSED” position.
Comply with the instructions in this manual! You can find an updated list of service centers on the website
of exclusive importer: www.ks-power.de/en www.ks-power.de/en |4

PROCEDURE
Every start
or 20
hours
Before each
use
Every 5
hours
Each 3
months or
after 50
working hrs
Each 6
months or
after 100
working hrs
Motor oil
Check
Replace First time 5 hours
Air lter
Check
Clean out
Replace
Check general equipment Check
Grease surface of slide rail Lubricate
Check belts Check
Grease rack and pinion Lubricate
Clean engine exterior and
cooling Clean out
Spark plug
Gap check and
control
Replace

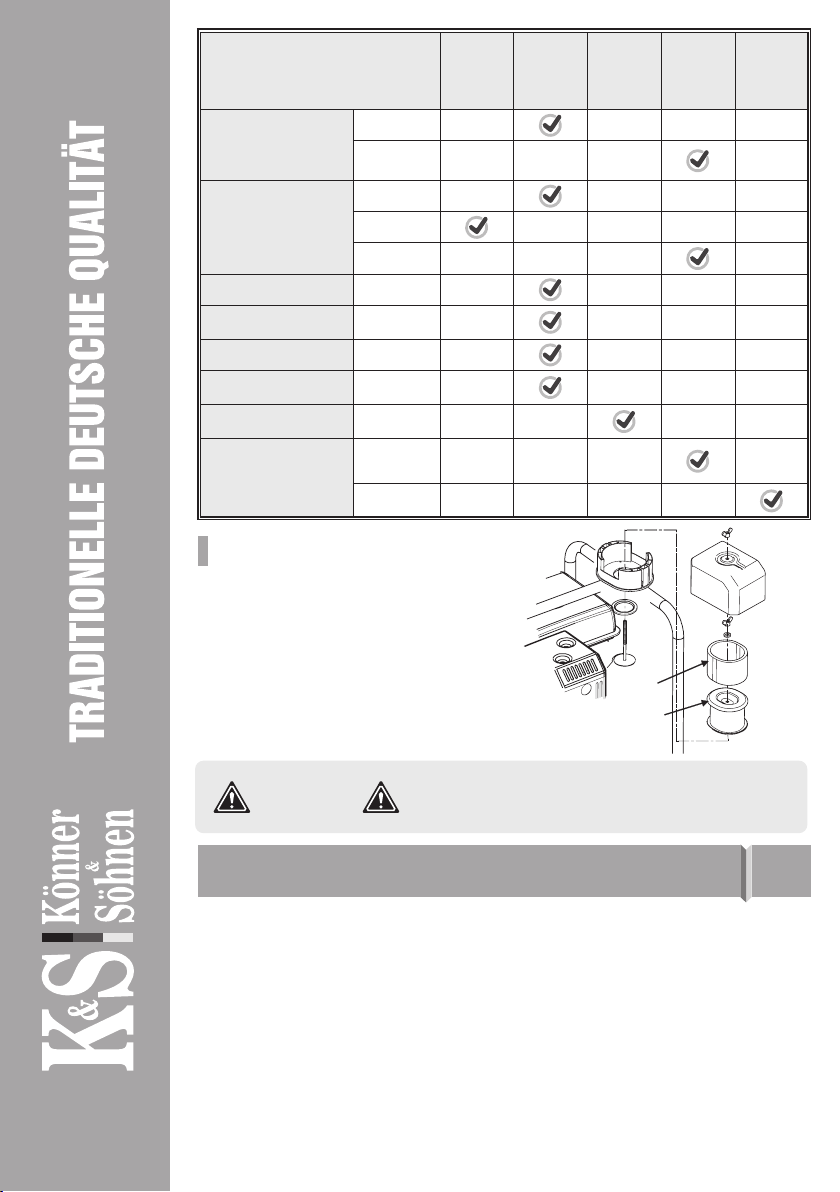

MAINTENANCE OF AIR FILTERMAINTENANCE OF AIR FILTER
A dirty air filter restricts air flow into the carburetor,
decreases engine performance and reduces log
splitter performance. Check the air filter and clean it
before every start. If the air filter is damaged, replace
it. When working in extremely dirty conditions, clean
the filter every 10 hours, otherwise replace it every 25
hours if needed.
Never operate the engine without air filter. The air filter
prevents high-speed wear of the motor pump engine.
IMPORTANT!
paper
element
rubber gasket
SPARK PLUG MAINTENANCE 5
Spark plug must be intact, free of soot deposits and must have a correct gap.
SPARK PLUG CHECK:SPARK PLUG CHECK:
1. Remove the cap from the spark plug.
2. Remove the spark plug by means of a corresponding spanner.
3. Examine the spark plug. If it is shattered, it is necessary to replace it. Recommended replacement spark
plugs – F7TC.
4. Measure the gap. It must be within a range of 0.7 – 0.8 mm.
5. In case of repeated use, the spark plug must be cleaned with a metal brush. After that set the correct gap.
6. Put the spark plug back in its place by means of a spark plug spanner.
7. Replace the spark plug cap.
www.ks-power.de/en |5

LUBRICATION 6
All bearings of your splitter are sealed units and should
be sufficiently lubricated to last the life of your machine
with normal use.
The rack and pinion should be completely greased before every use. Before performing any
maintenance procedure or inspection, stop the engine, wait five minutes to allow all parts
to cool. Disconnect the spark plug wire, keeping it away from the spark plug.
WARNING!
COMPONENTS IN THE PACKAGE 7

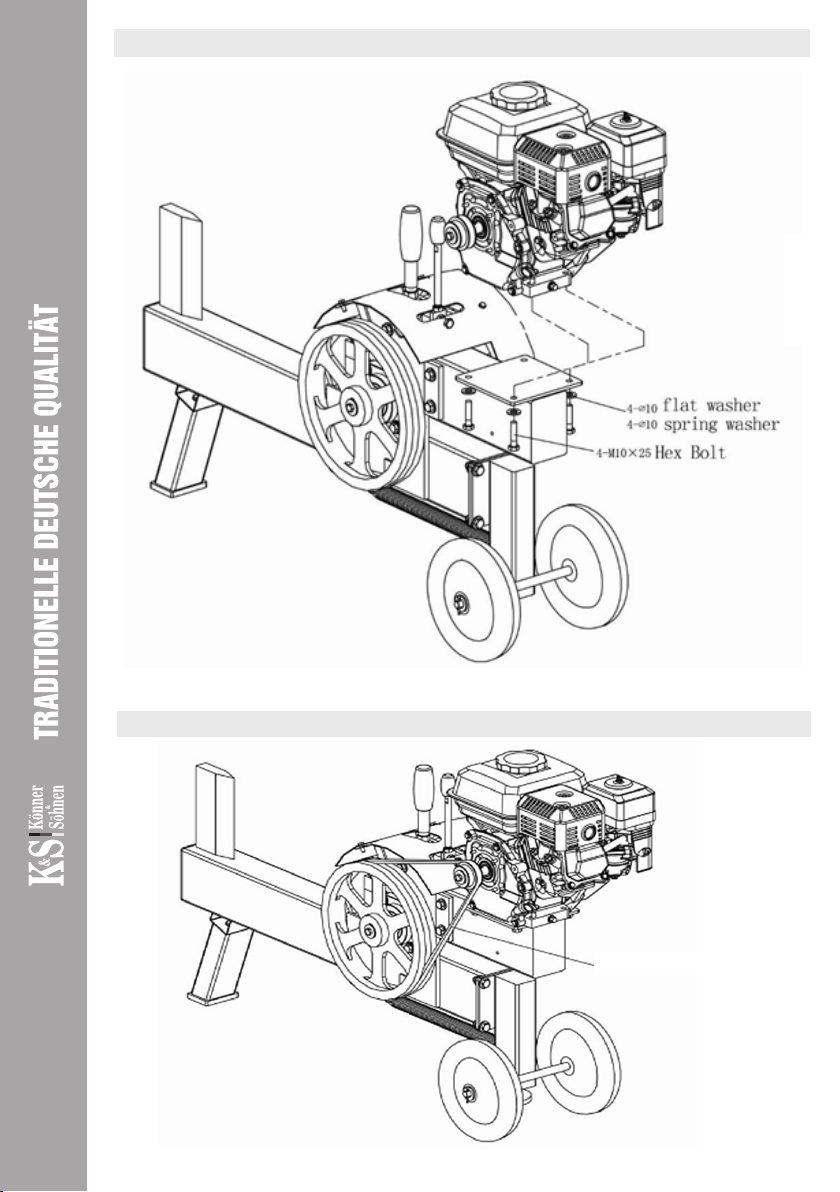

STEP 1STEP 1
ASSEMBLY 8
www.ks-power.de/en |6

STEP 2STEP 2
7
www.ks-power.de/en |
STEP 3STEP 3
Vee Belt

STEP 5STEP 5
WARRANTY SERVICE TERMS 9
The international manufacturer warranty is 1 year. The warranty period starts from the date of purchase. In cases where
a warranty period is longer than 1 year according to local legislation, please contact your local dealer. The Seller of the
product is responsible for granting the warranty. Please contact the Seller for warranty. If the product fails within the
warranty period because of defects in workmanship, it will be exchanged for the same product or repaired.
The warranty card should be kept throughout the warranty period. In case of warranty card loss, a second one will not be
provided. The Customer must provide the warranty card and proof of purchase when requesting any repair or exchange.
Otherwise, the warranty service will not be provided. The warranty card attached to the product during sale should be
correctly and fully completed by the retailer and customer, signed and stamped. In other cases, the warranty shall be
deemed invalid.
Provide clean product to the service center. Parts that must be replaced are the property of the service center.
8www.ks-power.de/en |
STEP 4STEP 4
4-M6x16
Hex bolt
4-26 Flat washer

CONTACTS
Deutschland:
DIMAX International GmbH
Deutschland, Hauptstr. 134,
51143 Köln,
www.ks-power.de
Ihre BestellungenIhre Bestellungen
[email protected]
Kundendienst, technischeKundendienst, technische
Fragen und UnterstützungFragen und Unterstützung
[email protected]
Garantie, Reparatur undGarantie, Reparatur und
ServiceService
[email protected]
SonstigesSonstiges
[email protected]
Polska:
DIMAX International
Poland Sp.z o.o.
Polen, Warczawska, 306B
05-082 Stare Babice,
www.ks-power.pl
[email protected]
Україна:
ТОВ «Техно Трейд КС», вул.
Електротехнічна 47, 02222,
м. Київ, Україна
www.ks-power.com.ua
[email protected]
Россия:
ТД «Рус Энержи К&С» 129090,
г.Москва, проспект Мира,
д.19, стр.1, эт.1, пом.1,
комн.6б, офис 99В
www.ks-power.ru
[email protected]
