BEDIENUNGSANWEISUNG
mit Montageanweisungen
Instructions for use and installation instructions
8 262 610 / 002 / 2702
EDIP 649.1

31
Your contribution towards protecting the environment. . . . . . . . . . . . . . . . . . 32
Safety instructions and warnings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Appliance specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Cleaning and maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Casing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
General
Special instructions for aluminium surfaces
Special instructions for control elements
Grease filters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Inserting / exchanging charcoal filters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Faulty lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Appliance dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Assembly equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Fitting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Installation in a top cabinet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Preparing the bar handle for mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Bar handle as a component of the kitchen furniture
Küppersbusch bar handle
Attaching the bar handle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Adjusting the cooker hood. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Fastening the cooker hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Spacer strip for the back of the appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Lamp covering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Preparing for the extraction mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Connection of the recirculation mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Connecting to the power supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Exhaust air duct . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Contents

32
Disposal of transport
packaging
The packaging protects the appliance
from becoming damaged during trans-
port. Packaging materials have been
chosen with environmental protection
and disposal aspects in mind and are
therefore recyclable.
Returning packaging material to the ma-
terials cycle cuts down on raw materials
and reduces the volume of waste. Your
retailer will take the packaging back.
Disposal of your old appliance
The material from which old appliances
are made is frequently re-usable, so
please return your old appliance to the
materials cycle, either through your re-
tailer or by means of a public collection
system.
Please ensure that your old appliance is
stored out of the reach of children prior
to being taken away. Respective infor-
mation can be obtained in the instruction
manual under the section on “safety in-
structions and warnings”.
Your contribution towards protecting the environment

33
Authorised utilisation of the
cooker hood
The appliance is intended for
household use.
The manufacturer is not liable for any
damage resulting from utilisation other
than that authorised or from any
incorrect operation of the appliance.
Technical safety
Prior to connecting the cooker hood,
it is essential that the connection
data (voltage and frequency) on the
identification plate be compared with the
current network data (see the section on
“electrical connection”).
These figures must tally in order to avoid
damage to the appliance. In case of
doubt, please contact your electrician.
The electrical safety of the cooker
hood can only be guaranteed if it is
connected to a protective conductor sys-
tem which has been installed in accord-
ance with regulations. It is absolutely es-
sential that this fundamental safety
prerequisite has been fulfilled. In case of
doubt, have your home wiring system
checked by an expert. The manufacturer
cannot be held responsible for damage
caused because there was no protective
conductor or because of a disconnected
conductor (e.g. an electric shock).
Installation, maintenance or repair
work carried out improperly may put
the user at considerable risk. Please
have installation and maintenance work
as well as repairs to electrical appliances
carried out by skilled specialists only.
Should the connecting cable of the
cooker hood be damaged, it is
essential that it be replaced by the same
type of connecting cable, available
through customer service.
This appliance has been construct-
ed in accordance with specified
safety regulations; improper utilisa-
tion, however, can result in injury to
persons and damage to property.
Please read the instructions for use
carefully prior to initial use of your
appliance. They provide important
information on safety, assembly,
use and maintenance, so you will
protect yourself and avoid damage
to your appliance.
Keep the instructions for use in a
safe place and pass them on to any
subsequent owner of the appliance.
Safety instructions and warnings

34
Installation and mounting of this ap-
pliance in non-stationary locations
(such as on ships) may only be carried
out by specialised businesses or by
trained specialists who ensure that con-
ditions for safe utilisation of the appli-
ance are fulfilled.
The cooker hood is only disconnect-
ed from the electrical power supply
when one of the following conditions has
been fulfilled:
–The connection cable to the mains
has been disconnected from the
power supply.
Do not pull on the connection cable to
the mains in order to disconnect the
appliance from the power supply. Pull
out the power supply plug.
–The safety fuse of the home wiring
system has been switched off.
–The screw-locking device of the home
wiring system has been completely
screwed out.
The appliance may not be connect-
ed to the power supply by means of
an extension cable.
Extension cables do not guarantee the
required standard of safety for the appli-
ance (e.g. risk of overheating).
Use
Never work with an open flame un-
der the cooker hood. Thus flambe-
ing and grilling on an open flame are for-
bidden. The activated cooker hood will
draw the flames into the filter. Cooking
fat which has been absorbed results in a
risk of fire.
On using a cooker hood over gas
cooking hobs it is essential that
cooking zones in operation be covered
by pots or pans.
The cooker hood may be damaged by
the heat effect of the flames.
Always switch on the cooker hood
when a cooking zone is being used.
Condensation water may collect if the
cooker hood is not switched on and this
may corrode the hood.
On cooking with cooking oils and
fats, pay attention to pots, pans and
deep fryers. Grilling with electrical
grilling appliances must also be
constantly supervised.
Overheated oils and fats may ignite
spontaneously and set the cooker hood
on fire.
Never use the cooker hood without
a grease filter, since this filter pre-
vents deposits of grease and dirt in the
appliance, which would impair its opera-
tion.
Ensure that the filters are regularly
cleaned or replaced. Filters which
become oversaturated with grease
always mean a risk of fire (see the
section “Cleaning and Maintenance”)
Never use a steam cleaner to clean
the cooker hood. The steam could
contact live parts of the hood and cause
a short circuit.
Safety instructions and warnings

35
Installation
For safety reasons the following
minimum clearances must be
observed between the cooker and the
hood:
–45 cm above an electric cooking zone,
–65 cm above a gas cooking zone,
–65 cm above an electric grill from our
range
For other cooking appliances, safety
clearances indicated in the respective
assembly and instruction manuals are to
be observed.
If various cooking appliances, for which
diverse safety clearances apply, are in
operation under the cooker hood, the
largest safety clearance indicated
applies.
The hood may not be installed
above heating devices which use
solid fuels.
Only pipes and hoses made of non-
combustible material may be used
for installing the exhaust air duct. These
pipes and hoses are available at special-
ised stores or through customer service.
The exhaust air may not be fed into
flue-gas or exhaust gas chimneys
which are in operation, nor may it be fed
into shafts which serve to ventilate
rooms installed with furnaces.
Public regulations are to be
observed if the exhaust air is fed
into a flue-gas or exhaust gas chimney
which is not in operation.
Safety instructions and warnings

36
Care must be taken when a cooker
hood is operated simultaneously
with heating devices whose operation
depends on the room air (such as gas,
oil or coal heaters, multi-point heaters,
hot water boilers, gas hobs and gas ov-
ens), since air which is required by the
heating device is removed from the in-
stallation room and from adjacent rooms
when the cooker hood sucks in air.
In addition, the suction force of the cook-
er hood may result in back currents of
exhaust gas from the flue or from the ex-
haust shaft; furnaces linked to chimneys
will be impaired.
Safe operation is possible if, on
simultaneous operation of a cooker hood
and a heating device whose operation
depends on room air, a reduced
pressure of a maximum 4Pa (0.04 mbar)
is achieved, thus avoiding a return feed
of exhaust gases from the heating
device.
This can be achieved if air required for
combustion can be replaced by means
of air flowing through non-closable
openings, such as those in doors and in
windows, or by means of air flowing
through inlet air and exhaust air built-in
wall-box frames or by means of other
technical measures, such as two-way
interlocking systems or similar
measures.
Please note: on making an assessment,
the composite action of the ventilation
system in the home must be taken into
consideration. Should you be in any
doubt, please contact the professional
chimney sweep in your area.
It is always possible to use the cooker
hood in the recirculation mode.
Disposal of old appliances
Pull the mains plug out of the socket
in the case of appliances no longer
in use, and render the connection lead to
the mains and the plug unservicable.
This will prevent any unauthorised utili-
sation of the cooker hood.
The manufacturer cannot be held
responsible for damage resulting
from non-observance of the safety
instructions and warnings.
Safety instructions and warnings

37
Appliance specification

38
Extractor socket Ø125 mm
Controls
Grease filter
Front panel
As an alternative, the front panel can
be fitted with a fold-down bar handle.
The fold-down mechanism required
is supplied with the cooker hood
(see the section under “assembly”).
The hood can therefore be fitted with
–a bar handle from your kitchen
furniture range or
–with the Küppersbusch fold-down
bar handle (available as an
accessory, number 611).
Telescopic fume canopy
Hob area lighting
Charcoal filter
(accessory, number 564)
(can be bought additionally as an
accessory for recirculation mode)
Fold-down bar handle
(Accessory, number 611)
(can be bought additionally as an
accessory)
As an alternative the front panel can
be fitted with a bar handle from your
kitchen furniture range.
On/off button for the fan
!Buttons for setting the fan power
level
"Button for the hob area lighting
Appliance specification

39
The cooker hood operates
. . . in the extraction mode:
Extracted air is cleaned in the grease
filters and diverted outside.
When the hood is switched off and the
fume canopy is retracted, the appliance
is closed and no unintended exchange
of air between the air in the room and air
outside can take place.
. . . in the recirculation mode:
(with a recirculation set as an accessory)
The extracted air is cleaned by means of
grease filters and also by means of a
charcoal filter. The air is then re-directed
into the kitchen.
Charcoal filters are available as an
accessory (see the section “Technical
Data”).
In the case of the recirculation mode
please ensure that the charcoal filter
has been installed. See the section
under “Care and Maintenance”.
Operation

40
The various hood functions can be
activated by means of extending and
retracting the fume canopy.
Switching on the lamp
The lamp for lighting the hob area can be
switched on or off independently of the
fan.
Pull the fume canopy out
approximately 1.5 cm.
If the lamp was switched on when the
fume canopy was last retracted, it will
switch on again.
If not:
press the button for the hob area
lamp.
When the light is switched on the control
lamp on the button lights up.
Switching off the lamp
Retract the fume canopy.
When the fume canopy is extended
again, the lamp will switch on.
or
Press the button for the hob area
lamp.
The control lamp will always switch off.
Switching on the fan
Pull the fume canopy out
approximately 2 cm.
The motor will switch on at power level
“II”.
The control lamp of the on/off button for
the fan and the second control lamp of
the –/+ buttons will light up.
Selecting the power level
low setting high setting
Select the required power setting with
the –/+ buttons.
The control lamps will indicate the power
setting selected.
The power settings “I”to “III”(green con-
trol lamps) are intended for standard
methods of cooking, depending on the
density of cooking fumes.
An intensive setting (yellow control
lamp) is available for temporarily dense
fumes and strong odours, for example
those which occur when searing meat.
Switching off the fan
Retract the fume canopy. When the
canopy is extended again, the fan will
re-commence operation at power
level “II”.
or
Press the on/off button of the fan.
The control lamps will always switch off.
Operation

41
Casing
General
Clean all surfaces and control elements
with a sponge/cloth, washing-up liquid
and warm water,
then dry the surfaces with a soft cloth.
Do not use
–cleaning agents containing soda, acid
or chloride,
–abrasive cleaning agents, such as
scouring powder and scouring liquid,
or abrasive sponges such as pot
scourers or sponges which had
previously been used and still contain
residual scouring agents.
Special instructions for aluminium
surfaces
Aluminium is a “living”material. The an-
gle of vision, the influence of light and
the surroundings determine the reflec-
tive effects and therefore the appear-
ance of the appliance.
On cleaning, please observe the general
instructions contained in this section.
Do not use
–stainless steel cleaning agents,
–cleaning agents for calcerous
deposits,
–dishwasher detergents or
–oven sprays.
Disconnect the cooker hood from the
mains prior to carrying out any clean-
ing or maintenance work. To do so,
either
–pull the plug of the appliance out
of the socket or
–deactivate the fuses of the home
wiring system or
–completely screw out the screw
locking of the home installation
system.
Surfaces and control elements are
sensitive to scratches and cuts. The
following cleaning instructions must
therefore be observed.
Do not use too much water when
cleaning around the control ele-
ments in order to avoid water seep-
ing into the electronics system.
Aluminium surfaces may become
discoloured or change their appear-
ance when dirt is left on the surfac-
es. It should therefore always be re-
moved immediately.
Cleaning and maintenance

42
Special instructions for control
elements
On cleaning, please observe the general
instructions contained in this section.
Grease filters
The re-usable metal grease filters in the
appliance absorb solid components in
the cooking steam (grease, dust, etc.),
thus preventing the hood from becoming
soiled.
Clean the grease filters as soon as they
look soiled or when they no longer filter
properly.
It is recommended that the filters be
cleaned every 3-4 weeks in order to
avoid grease settling on the filters.
Extend the fume canopy to remove
the grease filters.
Switch off the fan.
Press the locking device on the
grease filter towards the centre of the
filter and remove the filter with a
downward movement.
Cleaning the grease filters
–By hand: use a dishbrush and warm
water to which washing-up liquid has
been added.
–In the dishwasher: put the grease
filters into the lower basket in an
upright position.
Ensure that the spraying arm can
move freely.
Control elements may become dis-
coloured or change their appear-
ance when dirt is left on them.
It should therefore always be re-
moved immediately.
Do not use any stainless steel
cleaning agents for cleaning the
control elements.
Excessively greasy filters run the
risk of catching alight!
On removing the filter, make sure
that it does not drop onto the hob.
Depending on the detergent used,
cleaning the grease filters in a dish-
washer may result in permanent dis-
coloration of the inner filter surfaces.
This does not affect the filter func-
tion.
Cleaning and maintenance

43
After cleaning the grease filters, dry
them on an absorbent cloth.
When the filters have been removed,
clean deposits of grease off
accessible parts of the casing too.
This will prevent the occurence of fire.

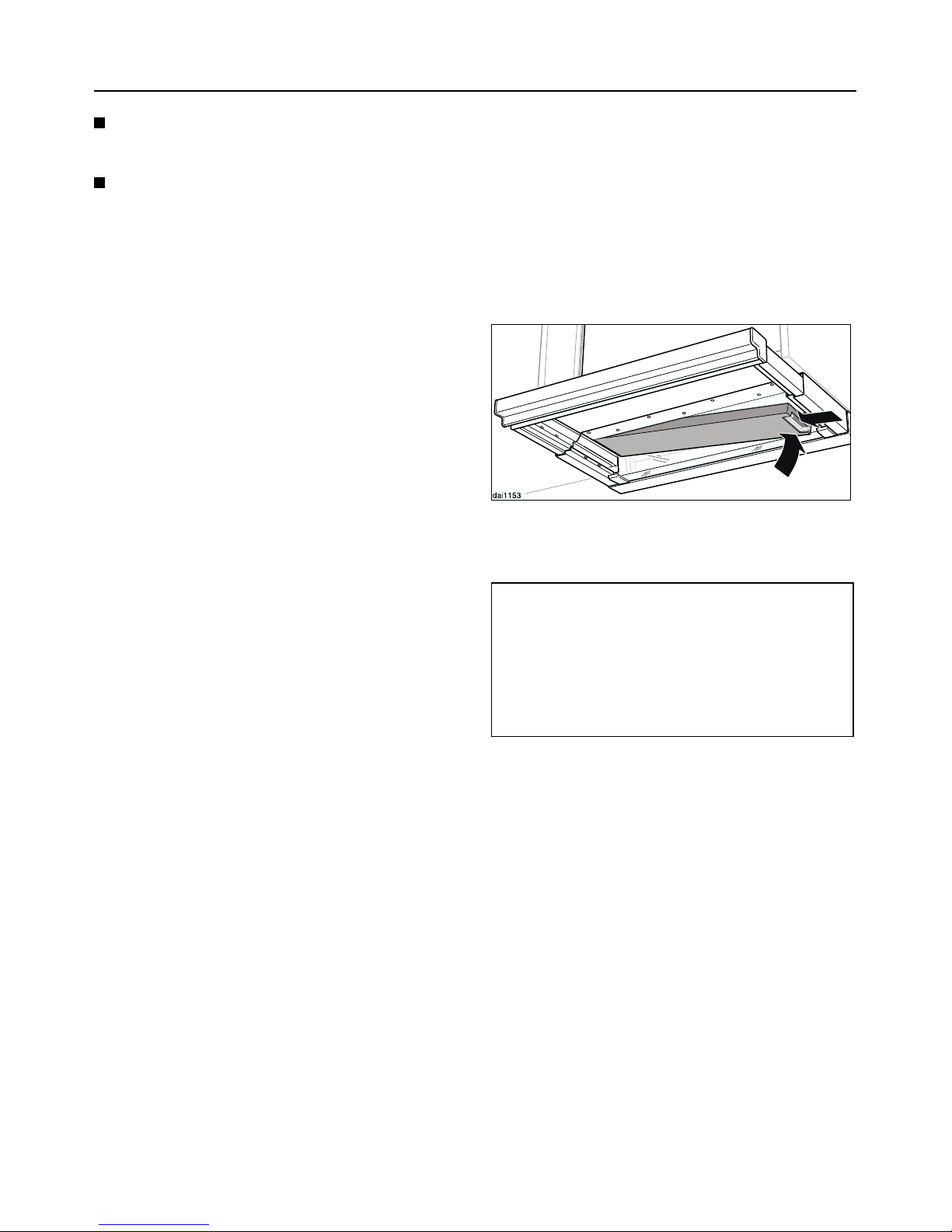

On replacing the grease filters, ensure
that the locking device points
downwards.
Should the filters have been installed
incorrectly:
Release the filter by removing it with a
small screw driver.
Inserting / exchanging
charcoal filters
Besides using grease filters, charcoal
filters must also be used for the
recirculation mode (accessory which
can be purchased separately).
The filter binds cooking odours.
The charcoal filter is installed above the
grease filter in the casing.
On installation, please observe the
instructions for assembly supplied with
the charcoal filter.
Used charcoal filters can be disposed of
as normal household waste.
Only replace a charcoal filter when
cooking odours are no longer sufficiently
absorbed. They should, however, be
replaced at least every six months.
Charcoal filters can be obtained
from a specialised retailer or
through customer service.
The filter type and the name of the
filter can be found in the section on
“Technical Data”.
Cleaning and maintenance

44
Faulty lighting
A defective fluorescent lamp or a
defective starter may be the cause of
faulty lighting.
Remove the rear grease filter from the
appliance.
Remove the screws on the left and
right of the lamp covering. On doing
so, hold the lamp covering so that it
does not drop onto the hob.
Remove the lamp covering in a
downward movement.
Replace the fluorescent lamp or the
starter.
Replace the lamp covering and fasten
it.
Re-install the grease filter.
Disconnect the hood from the mains.
In order to do so, either
–pull the plug of the appliance out
of the socket or
–deactivate the fuses of the home
wiring system or
–completely screw out the screw
locking of the home installation
Cleaning and maintenance

45
* plus depth of panel
The upper cupboard partition must be
removable.
The cooker hood may not be fitted
above heating devices which
operate with solid fuel.
For safety reasons a minimum
clearance of
–45 cm above an electric cooker,
–65 cm above a gas cooker
–65 cm above an electric grill from
our range
must be maintained between the
hob and the cooker hood.
For further instructions, please refer
to the section on “Safety Instructions
and Warnings”.
Appliance dimensions

46
Assembly equipment
Fitting

47
2 hose clips
for attaching the exhaust air duct to
the extractor socket.
2 mounting rails
for installing the appliance in the top
cabinet.
1 drill template
for drilling the mounting holes when
attaching a fold-down bar handle.
2 protective covers
(one on the right and one on the left)
for the front panel on attaching a fold-
down bar handle.
2 angle bars
for attaching a fold-down bar handle.
1 spacer strip
for covering the gap between the
back of the appliance and the wall.
1 lamp covering
2 mounting supports
(one on the right and one on the left)
for fastening the lamp covering.
14 screws, 3.5 x 16 mm
for fastening the
cooker hood in the
top cabinet and for
attaching a fold-
down bar handle.
2 knurled-head screws
for securing and
adjusting the cooker
hood.
2 self-tapping screws, 3.9 x 9.5 mm
for fastening the
lamp covering.
2 hinged bolts
for fastening the
hinge pieces on
attaching a fold-
down bar handle.
1 pin spanner
for adjusting the
movement on
attaching a fold-
down bar handle.
Fitting

48
Installation in a top cabinet
Attach the mounting rails on the left-
hand side and on the right-hand side
of the top cabinet.
If the wall thickness of the top cabinet
is 16 mm, attach the mounting rails by
the angle side with a band of 16 mm
in width.
If the wall thickness of the top cabinet
is 19 mm, turn the mounting rails and
screw them on by the angle side with
a band of 19 mm in width.
The measurement “x”depends on the
fold-down bar handle selected:
Appliance without a fold-down bar
handle.
Appliance with a fold-down bar handle
(can be bought additionally as an
accessory)
If the front of the front panel or of the
fold-down bar handle is to be flush with
the front of the cabinet door, the
thickness of the cabinet door is to be
deducted from the measurement “x”.
Fitting

49
Appliance with a fold-down bar handle
matching the kitchen furniture range.
Insert the cooker hood into the top
cabinet from the bottom and engage it
into the angle bar with the clamps.
Screw in the two knurled-head
screws.
If the cooker hood is being installed with-
out a fold-down bar handle, continue
with the step on adjusting the cooker
hood.
If the hood is being installed with a fold-
down bar handle, mount the bar handle
as follows prior to adjusting the cooker
hood.
Fitting
