K-Rain KRC 9 User manual

User
Manual
5
WARRANTY

Contents
Overview 3
Introduction 3
Main Components 4
Features 5
Programming 6
How Programming Works 6
Set Automatic Program 7
Set Current Time, Day and
Date 8
Set Start Times 9
Set Watering Days 10
Set Zone Run Times 12
Set Additional Programs 13
Run a Single Zone 14
Edit Manual Run Time 15
Run a Program 15
Other Features 16
Stop Watering 16
Stacking Start Times 16
Upload to Contractor Memory
16
Download Contractor Memory
16
Rain Sensor 17
Rain Delay 18
Pump Connection 19
Display Contrast 20
Seasonal Adjustment 20
Fuse 22
System Test 22
Looping Setup 23
Clearing the Programs 25
Program Rescue Feature 25
Installation 26
Mounting Controller 26
Power Supply Connections 26
Electrical Hook-up 27
Field Wiring Connections 27
Terminal Block Layout 28
Master Valve Installation 29
Rain Sensor Connection 29
Zone Valve Installation 31
Pump Relay Connection 32
Pump Protection 32
Pump Installation 33
Troubleshooting 34
Electrical Specifications 35
Electrical Outputs 35
Electrical Specifications 36
Overload Protection 36
Wiring 36
Power Failure 36
Servicing 37
Servicing your Controller 37
Warranty 38
All other content is Copyright©K-Rain Australia2022.

3 of 40
Overview
Introduction
The KRC9 Professional Irrigation Controller covers a
wide range of applications from residential and commercial
turf, to light agriculture and professional nursery.
®This instruction manual contains useful information on the
proper use and care of this product. Please read through all
instructions before attempting to program and use your KRC9
®Please keep this user guide handy for future use
WARNING!
KEEP NEW OR USED
BUTTON/COIN
BATTERIES OUT OF
REACH 0F CHILDREN
Swallowing or placing inside any part of the body can lead to
chemical burns, perforation of soft tissue, and death. Severe
burns can occur within 2 hours of ingestion. Seek medical
attention immediately if ingested or placed inside the body.
Contact the Australian Poisons Information Centre
for 24/7 fast, expert advice:  13 11 26
Refer to your local government guidelines on how to correctly
dispose of button/coin batteries.

4 of 40
Overview
Main Components
1. LCD display
2.
3.
4.
5.
6.
7. SENSOR switch
8. MAIN DIAL
9. Terminal cover
1
8
5
4
7
9
3
2
6

5 of 40
Overview
Features
Max no. ZONES 9
Max no. PROGRAMS 5
Max no. STARTS per PROGRAM 8
Looping PROGRAM 5; max. 99 loops
Max. RUN TIME/DELAY 12:59 hrs
(can be multiplied up to 200%)
Scheduling options (per PROGRAM) 7 Day, Interval Days (up to 15),
Odd, Even, Odd-31
SEASONAL ADJUSTMENT Per month, 10-200%
MANUAL control Per ZONE with savable run time
SYSTEM TEST Sequential for all ZONES, 2 min default
PUMP/master control ON/OFF per zone or per program
Rain sensor connectivity Optically isolated hard-wired input
Rain sensor control Master ON/OFF slide switch
Rain sensor programming Per ZONE
Rain delay Max 9 days
Shut off control Turn MAIN DIAL to ALL OFF
Contractor programming Save, recall and load memory easily
Clock and calendar RTC; month, year, date, week day, time
Memory backup power 9V battery
Power source 24VAC low energy transformer
with 30W capacity
Power spike protection M-205 fuse rated at 1A
Common 4× common cables
Fault detection Available on LCD display;
no AC power and low battery
Housing Heavy duty with lockable door and
IS54 dust and moisture protection

6 of 40
Programming
How Programming Works
This controller has been designed with 5 separate programs to allow
different landscape areas to have their own individual watering schedules
LA PROGRAM is a method of grouping zones (valves) with similar
watering requirements to water on the same days. These zones
will water in sequential order and on the days selected
LGroup the zones (valves) which are watering similar landscape areas
together. For example, turf, flower beds, gardens–these different
groups may require individual watering schedules, or PROGRAMS
LSet the current time and correct day of the week. If odd
or even day watering is going to be used, make sure the
current year, month and day of the month is correct
®If left unattended for over 1 minute, the LCD display will return to
AUTO no matter the position of the MAIN DIAL. If you were in
the process of programming this controller, turn dial to AUTO and
then back to the position you were programming to continue

7 of 40
Programming(continued)
Set Automatic Program
Set the automatic PROGRAM
for each group of zones
(valves) by completing the
following three steps:
1. Set watering START TIMES
®For each start time, all the
zones (valves) selected for
the PROGRAM will come
on in sequential order
®If two start times are
set, the zones (valves)
will come on twice
2. Set WATER DAYS
3. Set ZONE RUNTIME
(durations)
This controller has been
designed for quick intuitive
programming. Remember
these simple tips for hassle
free programming:
®One push of a button
will increment one unit
®Holding a button down will
fast scroll through units
®During the programming,
only flashing units
are able to be set
®Adjust flashing units
using or
®Press or to scroll
through settings as desired
®The MAIN DIAL is
the primary device for
selecting an operation
®Press to select different
PROGRAMS. Each push on
this button will increment
one PROGRAM number

8 of 40

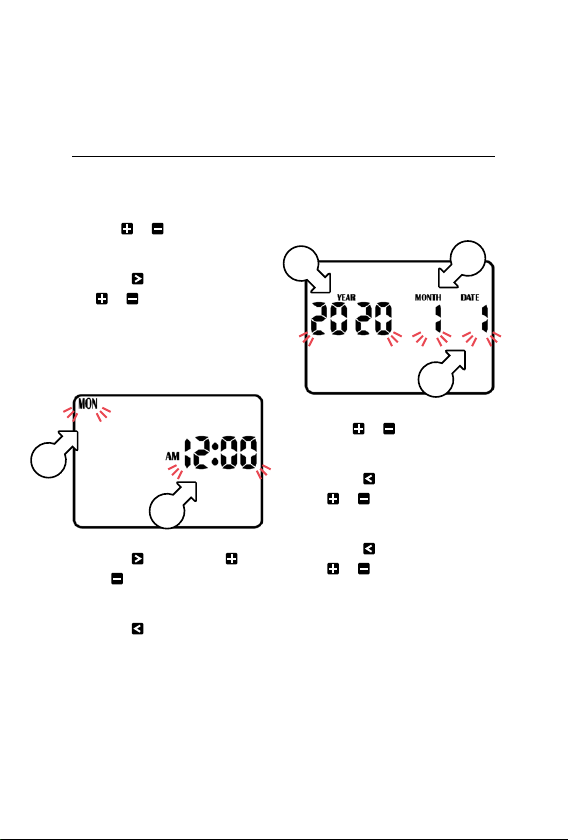

Set Current Time, Day and Date
1. Turn the MAIN DIAL to
CLOCK-CALENDAR
2. Use or to adjust the
flashing minutes [a]
3. Press and then use
or to adjust the
flashing hours [a]
®AM/PM must be
set correctly.
4. Press and then use
or to adjust the flashing
days of the week [b]
5. Press repeatedly
until the calendar date
appears on the display
with the year [c] flashing
®The calendar only needs
to be set when selecting
odd/even day watering
6. Use or to adjust
the flashing year [c]
7. Press and then use
or to adjust the
flashing month [d]
8. Press and then use
or to adjust the
flashing date [e]
®To return to the clock, turn
the dial back to AUTO
Programming(continued)
b
a
cd
e

9 of 40
Set Start Times
®All zones will run in
sequential order for
each start time
LFor this example, we
will set a START TIME
for PROG No. 1
1. Turn the dial to START
TIMES and ensure that
PROG No. 1 is showing
®If not, press to cycle
through the PROGRAMS
and select PROG No. 1
2. START No. 1 [f]
will be flashing
3. Use or to change the
START No. if required
4. Press and the hours[g]
for your selected
START No. will flash
5. Use or to
adjust if required
®Ensure AM/PM is correct
6. Press and the
minutes [g] will flash
7. Use or to
adjust if required
®Each PROGRAM can have
up to 8 START TIMES
8. To set an additional START
TIME, press and START
No. 1 [f] will flash
9. Advance to STARTNo.2
by pressing
10. Follow steps 4-7 above
to set a START TIME
for START No. 2
®To enable or disable a
START TIME, use or
to set both the hours
and minutes to zero
®To cycle through and
change PROGRAMS,
press repeatedly
Programming(continued)
f
g

10 of 40
Set Watering Days
LThis unit has individual day,
EVEN/ODD date, ODD-31
date and INTERVAL
DAYS selection

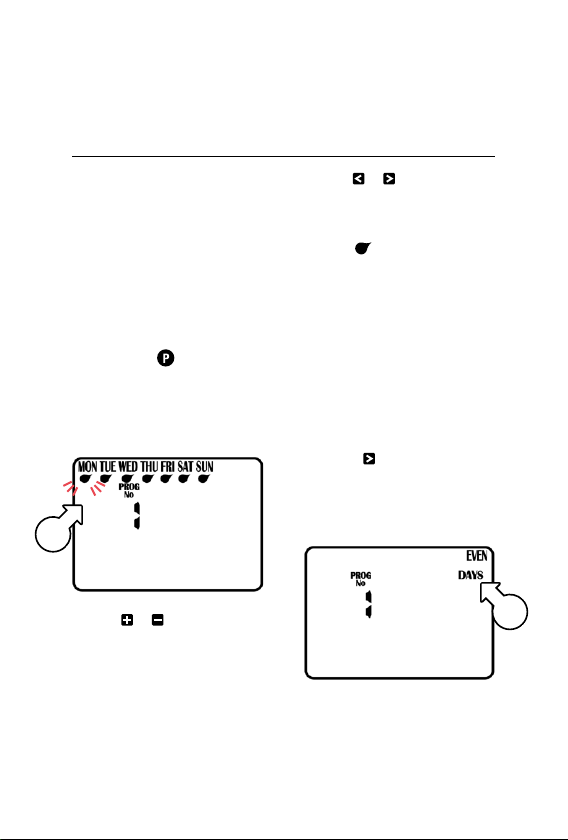

Individual Day Selection:
1. Turn dial to WATER DAYS
and PROG No. 1 will show
®If not, use to select
PROG No. 1
2. MON (Monday) [h]
will be flashing
3. Use or to enable or
disable watering for Monday
respectively
4. Use or to cycle through
the days of the week
®Active days will be shown
with underneath
ODD/EVEN Date Selection
LSome regions only allow
watering on odd dates if
the house number is odd,
or likewise for even dates
LTurn dial to WATER DAYS
and PROG No. 1 will show
5. Press repeatedly to
cycle past SUN until EVEN
DAYS [i] or ODDDAYS
is showing accordingly
Programming(continued)
h
i

11 of 40
Set Watering Days (continued)
®Press again for
ODD-31 [j] if necessary
®The 365-day calendar
must be set correctly
for this feature, (see
Set Current Time,
Day and Date)
LThis controller will take
leap years into account
Interval Day Selection
6. Turn dial to WATER DAYS
and PROG No. 1 will show
7. Press repeatedly to
cycle past SUN until
INTERVALDAYS is
showing accordingly
®INTERVAL DAYS 1
[k] will be flashing
®Use or to select from
1 to 15 day intervals
®Example:
INTERVAL DAYS 2 means
the controller will run the
program every 2 days
®The next active day is
always changed to 1,
meaning tomorrow is the
first active day to run
Programming(continued)
j
k

12 of 40
Set Zone Run Times
®ZONE RUN TIME is the
length of time each zone
(valve) is scheduled to water
on a particular PROGRAM
®Maximum watering time is
12hrs 59 min for each ZONE
®A zone can be assigned
to any or all of the
possible 5 PROGRAMS

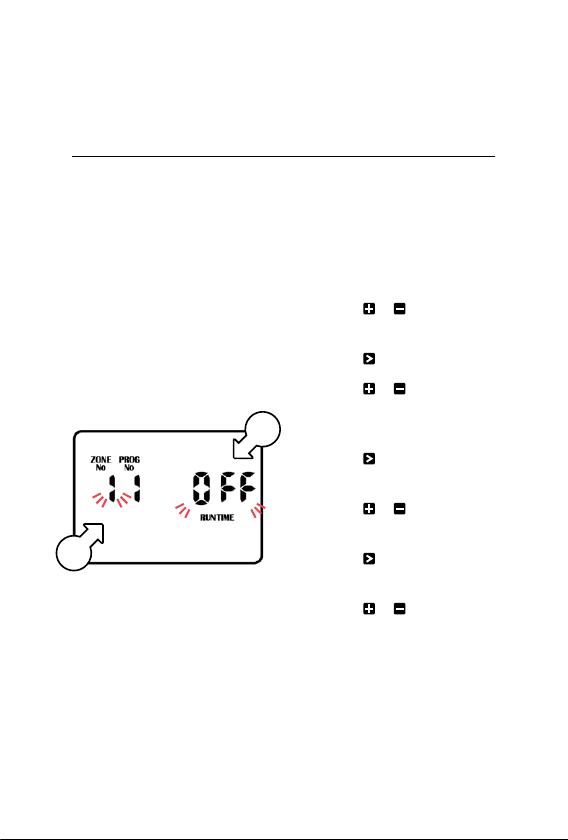

1. Turn the dial to
ZONERUN TIMES
®ZONE No. 1 [l] will be
flashing labelled as OFF,
as shown above, meaning
it has no RUN TIME
programmed in it
LThe controller has
permanent memory so if
there is a power failure, even
if the battery is not installed,
the programmed values
will be restored to the unit
2. Press or to select
a zone (valve)
3. Press and OFF will flash
4. Press or to
adjust the RUNTIME
minutes as desired
5. Press and the RUNTIME
hours will flash
6. Press or to adjust the
RUNTIME hours as desired
7. Press and the ZONENo.
will flash again
8. Press or to select
another zone (valve), and
repeat steps 2-7 above
to set a RUN TIME
Programming(continued)
l
m

Set Run Times (continued)
®To turn a ZONE OFF, set
both the hours and minutes
to 0, and the display will
flash OFF [m] as shown
LThis completes the setup
procedure for PROG No. 1
Set Additional Programs
®Set schedules for up to 5
PROGRAMS by pressing
when setting up START
TIMES, WATERINGDAYS
and ZONE RUN TIMES
as previously outlined
LAlthough the controller will
run automatic programs
with the MAIN DIAL in
any position (with the
exception of OFF), we
recommend to leaving the
main dial on AUTO position
when not programming
or running manually
13 of 40
Programming(continued)

14 of 40
Manual Operation

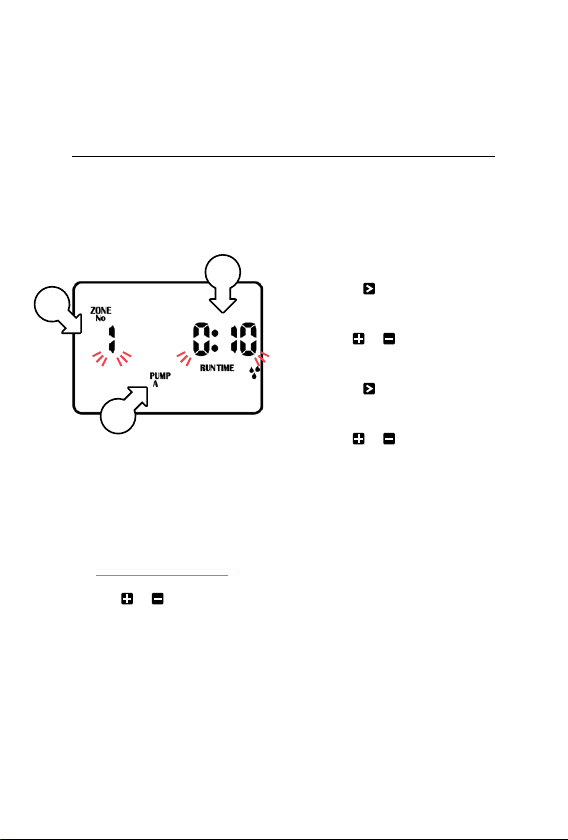

Run a Single Zone
®The maximum run time
is 12hours59minutes
1. Turn the dial to
MANUAL ZONE
®ZONE No. 1 [l]
will be flashing
®The default manual run
time[m] is 10minutes–
to edit this, see
EditManual Run Time
2. Use or to select
the desired zone
®The selected zone will start
running and the RUNTIME
will decrease accordingly
®If there is a pump or
master valve connected,
PUMPA [o] will be shown
in the display, indicating
the pump/master is active
3. Press and the RUN TIME
minutes [p] will flash
4. Use or to adjust
the minutes
5. Press and the RUN
TIME hours [p] will flash
6. Use or to
adjust the hours
®The unit will revert to AUTO
after the time has lapsed
LIf you forget to turn the dial
back to AUTO, the controller
will still run programs
7. To stop watering
immediately, turn the dial to
ALL OFF
n
p
o

Manual Operation
(continued)
Edit Manual Run Time
1. To edit default MANUAL
RUN TIME turn the dial to
MANUAL ZONE
®ZONE No. 1 [n] will flash
2. Press and the RUNTIME
minutes [p] will flash
3. Use or to adjust the
RUN TIME minutes
4. Press and the
default RUNTIME
hours [p] will flash
5. Use or to adjust
the RUN TIME hours
6. Once the desired RUN
TIME is set, press to
save this as the default
manual RUN TIME
LThe new default will now
always appear when the dial
is turned to MANUAL ZONE
Run a Program
1. To manually run a complete
program or to stack multiple
programs to run, turn the
desired PROGRAM
®OFF will flash on the display
2. To enable a PROGRAM,
press and the display will
change to ON
®If no RUN TIME has
been set for the desired
PROGRAM, the above
step will not work
3. To run the desired
PROGRAM immediately,
press

16 of 40
Other Features
Stop Watering
®To stop an automatic or
manual watering schedule,
turn the dial to ALL OFF
®For automatic watering
remember to turn the dial
back to AUTO, as ALL OFF
will stop any future watering
cycles from occurring
Stacking Start Times
®If the same STARTTIME
is set across multiple
PROGRAMS, they will run
individually in sequential
order, starting from
PROGRAM 1 through to 5
®If a START TIME runs over
another RUNTIME, it will
be delayed accordingly
Upload to Contractor Memory
1. Turn the MAIN DIAL
to ALL OFF
2. Press and at the same
time, and the display will
read LOAD UP and SAVE
CONTRACTOR MEMORY
3. Press to confirm
Download Contractor Memory
1. Turn MAIN DIAL to ALL OFF
2. Press and the display will
read LOAD and RECALL
CONTRACTOR MEMORY
3. Press to confirm

17 of 40
Rain Sensor
1. When installing a rain
sensor, first remove the
factory fitted link between
the COM and SENS
terminals as shown
2. Replace with the two
wires from the rain sensor
into these terminals,
polarity NOT required
®A Rain Sensor needs to be
connected to the terminal
correctly for this feature
(for more details, see
Zone Valve Installation)
3. Toggle the RAINSENSOR
switch to ON
4. Turn the dial to
RAINSETTINGS to
enable your rain sensor
for individual zones
®The default mode is
ON for all zones
®If a zone is labelled ON
on the display, this means
your rain sensor will be
able to control the valve
in the instance of rain
®Should you have a zone that
always needs to be watered,
(such as an enclosed
greenhouse, or plants
that are under cover) the
rain sensor can be turned
OFF to continue watering
during rainy conditions
5. To turn a zone OFF,
press to cycle through
and select the desired
zone, then press
6. To toggle a zone back
ON, press
®To disable the rain sensor
and allow all zones to water,
toggle the RAINSENSOR
switch to OFF
Other Features(continued)

18 of 40
Rain Delay
®To adjust the timing of
your rain sensor, this
controller features a
RAIN DELAY setting
LThis allows a specific delay
time to elapse after the rain
sensor has dried out before
the zone will water again.
1. Turn the dial to
RAINSETTINGS
2. Press to access the
RAINDELAY screen
®The INTERVAL DAYS [q]
value will now be flashing
3. Use or to alter the rain
delay time in increments
of 24 hours at a time
®A maximum delay of
9 days can be set
®This halts any watering and
stops all automatic programs
until the rain delay expires
Other Features(continued)
q

19 of 40
Other Features(continued)
Pump Connection
LThis unit will allow zones
to be assigned to a pump
®The default position
is that all zones are
assigned to PUMP A [r]
1. Turn the MAIN DIAL to
PUMP SETTINGS
LPUMP A will be active on
ZONE 1 [s] by default
2. Use or to scroll ZONES
3. Use to deactivate
pump when running
the selected ZONE
4. Use to activate
pump when running
the selected ZONE
5. Press again to switch to
PUMP A on PROGRAM 1 [t]
LThis allows for pump
activation to be assigned
to PROGRAMS rather
than ZONES
6. Use or to scroll
PROGRAMS
s
t
r

20 of 40
Other Features(continued)
Display Contrast
1. To adjust the LCD
contrast, turn the dial
to PUMP SETTINGS
2. Press repeatedly until
the display reads CON
®CON 3 is the default
contrast setting
3. Use or to adjust the
display contrast as desired
4. To save your setting, turn
the dial back to AUTO
Seasonal Adjustment
®Automatic ZONE
RUNTIMES can be
adjusted by percentage
as the seasons change
LWater budgeting saves
valuable water as
RUNTIMES can be
adjusted quickly to reduce
or increase water usage
®For this function, it is
important to set the
calendar correctly–
see Set Current Time,
Day and Date
1. Turn dial to SEASONAL
ADJUSTMENT–the display
will appear as follows:
LThis means the
RUNTIMES are set to a
BUDGET% of 100% [u]
u
