Kärcher BDS 51/175-300 C User manual

MODELS:
BDS 43/175 C - 1.009-091.0
BDS 51/175 C - 1.009-092.0
BDS 51/175-300 C - 1.009-094.0
WARNING:
This product and accessories may contain a chemical known to the State of California
to cause cancer and birth defects or other reproductive harm.
For more information about this regulation: www.P65Warnings.ca.gov
FLOOR POLISHE
R
Operating Instructions (ENG)
86390940-B
06/28/18

MACHINE DATA LOG/OVERVIEW
86390940 FLOOR POLISHER BDS
2
Model:
Date of Purchase:
Serial Number:
Sales Representative:
Address:
Phone Number:
Warranty Registration
Thank you for purchasing a Kärcher product. Warranty registration is quick and easy.
Your registration will allow us to serve you better over the lifetime of the product.
To register your product go to:
www.karchercommercial.com/WarrantyRegistration.aspx
For customer assistance:
1-888-805-9852

TABLE OF CONTENTS
86390940 FLOOR POLISHER BDS
3
Machine Data Log.............................2
Table of Contents..............................3
HOW TO USE THIS MANUAL
How to use this Manual.....................1-1
SAFETY
Important Safety Instructions............2-1
Hazard Intensity Level. .....................2-3
Grounding Instructions 120V. ...........2-5
Safety Label Location .......................2-6
OPERATION
Technical Specifications ...................3-1

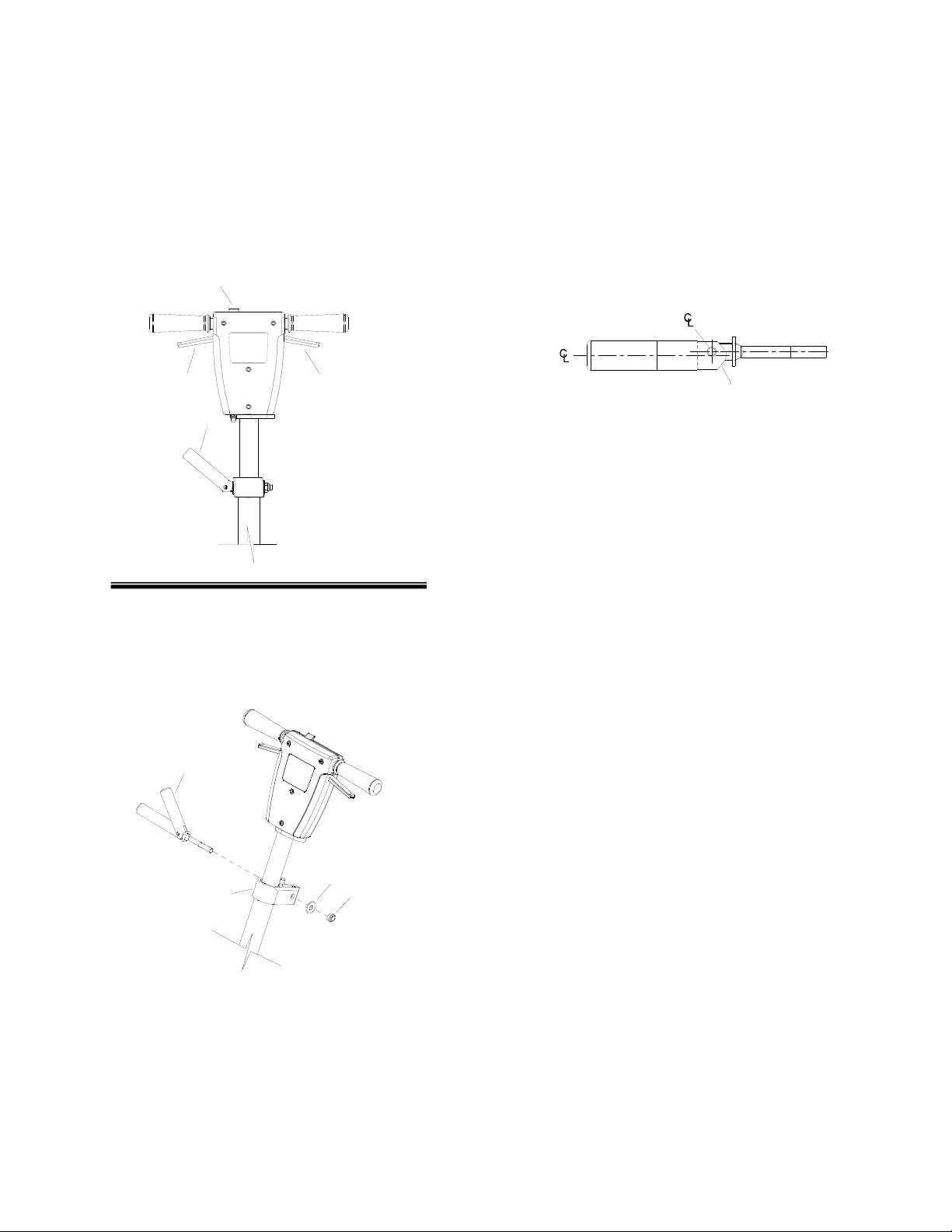

Handle Installation ............................3-2
Controls.............................................3-3
Handle Adjustment............................3-3
Machine Operation............................3-4
Pad Driver Installation.......................3-4
MAINTENANCE
Scrub Brush/Pads.............................4-1
Machine Troubleshooting..................4-2
GROUP PARTS LIST
Brush/Pad Driver Group....................5-1
Electrical – 120V...............................5-3
Deck..................................................5-5
Handle...............................................5-7
Motor.................................................5-9
Wiring-120V......................................5-11
Suggested Spare Parts.....................5-12

HOW TO USE THIS MANUAL
86390940 FLOOR POLISHER BDS
1-1
This manual contains the following sections:
-HOW TO USE THIS MANUAL
-SAFETY
-OPERATIONS
-MAINTENANCE
-PARTS LIST
The HOW TO USE THIS MANUAL section will tell
you how to find important information for ordering
correct repair parts.
Parts may be ordered from authorized dealers.
When placing an order for parts, the machine
model and machine serial number are important.
Refer to the MACHINE DATA box which is filled
out during the installation of your machine. The
MACHINE DATA box is located on the inside of
the front cover of this manual.
The SAFETY section contains important
information regarding hazard or unsafe practices
of the machine. Levels of hazards are identified
that could result in product or personal injury, or
severe injury resulting in death.
The OPERATIONS section is to familiarize the
operator with the operation and function of the
machine.
The MAINTENANCE section contains preventive
maintenance to keep the machine and its
components in good working condition. They are
listed in this general order:
The PARTS LIST section contains assembled
parts illustrations and corresponding parts list. The
parts lists include a number of columns of
information:
-REF – column refers to the reference
number on the parts illustration.
-PART NO. – column lists the part
number for the part.
-PRV NO. - Reference No.
-QTY – column lists the quantity of the
part used in that area of the machine.
-DESCRIPTION – column is a brief
description of the part.
-SERIAL NO. FROM – If this column
has an (*) and a Reference number,
see the SERIAL NUMBERS page in
the back of your manual. If column
has two asterisk (**), call manufacturer
for serial number. The serial number
indicates the first machine the part
number is applicable to. The main
illustration shows the most current
design of the machine. When a boxed
illustration is shown, it displays the
older design.
-NOTES – column for information not
noted by the other columns.
NOTE: If a service or option kit is installed on your
machine, be sure to keep the KIT INSTRUCTIONS
which came with the kit. It contains replacement
parts numbers needed for ordering future parts.
NOTE: The number on the lower left corner of the
front cover is the part number for this manual.

SAFETY
86390940 FLOOR POLISHER BDS 2-1
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic precaution
must always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE.
To reduce the risk of fire, electric shock, or injury:
Use only indoors. Do not use outdoors or expose to rain.
Use only as described in this manual. Use only manufacturer’s recommended components and attachments.
If the machine is not working properly, has been dropped, damaged, left outdoors, or dropped into water,
return it to an authorized service center.
Do not operate the machine with any openings blocked. Keep openings free of debris that may reduce
airflow.
Machine can cause a fire when operating near flammable vapors or materials. Do not operate this machine
near flammable fluids, dust or vapors.
This machine is suitable for commercial use, for example in hotels, schools, hospitals, factories,
shops and offices for more than normal housekeeping purposes.
Maintenance and repairs must be done by qualified personnel.
During operation, attention shall be paid to other persons, especially children.
The machine shall only be operated by instructed and authorized persons.
When leaving unattended, unplug the machine.
Do not handle the plug or machine with wet hands.
Do not unplug machine by pulling on cord. To unplug, grasp the plug, not the cord.
Do not use with damaged cord or plug. Follow all instructions in this manual concerning grounding the
machine.
Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or
corners.
Do not pull/run machine over cord. Keep cord away from heated surfaces.
Connect to a properly grounded outlet. See Grounding Instructions.
SAVE THESE INSTRUCTIONS

86390940 FLOOR POLISHER BDS
2-2
CONSIGNES IMPORTANTES DE SÉCURITÉ
Lors de l'utilisation d'un appareil électrique, il faut toujours observer des
précautions élémentaires,qui comprennent parmi celles-ci :
LISEZ BIEN L'ENSEMBLE DES CONSIGNES AVANT D'UTILISER CET APPAREIL.
Pour réduire les risques d'incendie, d'électrocution ou de
blessure :
Utilisez-le exclusivement dans des endroits fermés. Ne l'utilisez pas en plein air et ne le laissez pas sous la pluie.
Utilisez-le exclusivement de la manière décrite dans ce manuel. Utilisez exclusivement les composants et les fixations
recommandés par le fabricant.
Si l'appareil ne fonctionne pas correctement, s'il est tombé par terre, s'il est endommagé, s'il a été laissé dehors ou
s'il a été plongé dans l'eau, veuillez le renvoyer à un centre d'entretien agréé.
Ne faites pas fonctionner l'appareil si des ouvertures sont bouchées. Dégagez des ouvertures tous débris susceptibles
d'entraver le passage de l'air.
L'appareil peut déclencher un incendie s'il se trouve à proximité de vapeurs ou de matériaux inflammables. Ne faites
pas fonctionner cet appareil à proximité de fluides, de poussières ou de vapeurs inflammables.
Cet appareil est adapté à un usage commercial : par exemple dans les hôtels, les établissements scolaires, les
hôpitaux, les usines, les magasins et les bureaux, à des fins plus étendues qu'un simple entretien de la
maison.
Les travaux de maintenance et de réparation doivent absolument être effectués par du personnel qualifié.
Lorsque vous laissez la machine sans surveillance, débranchez-la.
Pendant le fonctionnement, il est nécessaire de faire attention aux autres personnes autour de soi, surtout aux
enfants.
L'utilisation de l'appareil est exclusivement réservé à des personnes formées et autorisées.
Ne manipulez pas la fiche ou l'appareil les mains mouillées.
Ne débranchez pas l'appareil en tirant sur le cordon. Pour le débrancher, empoignez la fiche, non pas le cordon.
N'utilisez pas l'appareil si le cordon ou la fiche est endommagé(e). Observez toutes les consignes figurant dans ce
manuel au sujet de la mise à la terre de l'appareil.
Ne tirez pas sur le cordon, ne portez pas l'appareil par le cordon, n'utilisez pas le cordon comme poignée, ne fermez
pas une porte sur le cordon, ne tirez pas sur le cordon dans des angles ou des coins pointus.
Ne faites pas passer l'appareil par-dessus le cordon. Maintenez le cordon à l'écart de surfaces chauffées.
Raccordez l'appareil à une prise adéquatement reliée à la terre. Voir les Consignes de mise à la terre.
CONSERVEZ CES CONSIGNES
!AVERTISSEMEN
T

SAFETY
86390940 FLOOR POLISHER BDS
2
-
3
The following symbols are used throughout this guide as indicated in their descriptions:
HAZARD INTENSITY LEVEL
There are three levels of hazard intensity identified by signal words – WARNING and CAUTION and
FOR SAFTEY. The level of hazard intensity is determined by the following definitions:
WARNING – Hazards or unsafe practices which COULD result in severe
personal injury or death.
CAUTION – Hazards or unsafe practices which could result in minor personal
injury or product or property damage.
FOR SAFETY: To identify actions which must be followed for safe operation of equipment.
Report machine damage or faulty operation immediately. Do not use the machine if it is not in proper
operating condition. Following is information that signals some potentially dangerous conditions to the
operator or equipment. Read this information carefully. Know when these conditions can exist. Locate
all safety devices on the devices on the machine. Please take the necessary steps to train the machine
operating personnel.
FOR SAFETY:
DO NOT OPERATE MACHINE:
Unless Trained and Authorized.
Unless Operation Guide is Read and Understood.
In Flammable or Explosive areas.
In areas with possible falling objects.
WHEN SERVICING MACHINE:
Avoid moving parts. Do not wear loose fitting clothing, jackets, shirts, or sleeves when working
on the machine. Use approved replacement parts.

DEGRÉS DE RISQUES EN CAS DE DANGER
86390940 FLOOR POLISHER BDS
2-4
Les symboles ci-dessous sont utilisés à travers ce manuel comme illustré dans leurs descriptions :
DEGRÉS DE RISQUES EN CAS DE DANGER
Il existe trois degrés de risques identifiés par les termes signalétiques –AVERTISSEMENT et
ATTENTION et POUR VOTRE SÉCURITÉ. Le degré de risque est défini de la manière suivante :
AVERTISSEMENT - Dangers ou méthodes dangereuses qui POURRAIENT provoquer de graves blessures ou
entraîner la mort.
ATTENTION - Dangers ou méthodes dangereuses qui pourraient provoquer des blessures légères ou une
détérioration du produit ou des biens immobiliers.
POUR VOTRE SÉCURITÉ : ce signe permet d’identifier les mesures de précaution à prendre pour assurer
un bon fonctionnement du matériel.
Rendre compte immédiatement d’une défaillance ou d’une détérioration de la machine. Ne pas utiliser la machine si
celle-ci ne fonctionne pas correctement. Lire soigneusement les informations ci-dessous signalant certains dangers
potentiels pour l’opérateur de la machine. L’opérateur doit être absolument au courant de ces dangers potentiels.
Localiser tous les dispositifs de sécurité sur la machine. Il est conseillé de prendre les mesures nécessaires pour
former le personnel opérateur.
POUR VOTRE SÉCURITÉ :
NE PAS MANOEUVRER LA MACHINE :
Lorsqu’on n’est pas expérimenté ou qualifié.
Lorsque le guide d’utilisation n’est pas été lu ou compris.
Dans des zones inflammables ou explosives.
Dans des zones où des objets peuvent tomber.
LORS DE L’ENTRETIEN DE LA MACHINE :
Éviter les parties amovibles. Ne pas porter de vêtements amples, tels que des vestes, des chemises ou des
vêtements avec manches lors de l’utilisation de la machine. Utiliser les pièces détachées homologuées.
! ATTENTION
! AVERTISSEMENT

SAFETY
86390940 FLOOR POLISHER BDS 2-5
GROUNDING INSTRUCTIONS 120V
THIS PRODUCT IS FOR COMMERCIAL
USE ONLY.
ELECTRICAL:
In the USA this machine operates on a 15 amp
nominal 120V, 60 hz, A.C. power circuit. The
amp, hertz, and voltage are listed on the data
label found on each machine. Using voltages
above or below those indicated on the data label
will cause serious damage to the motors.
GROUNDING INSTRUCTIONS:
This appliance must be grounded. If it should
malfunction or break down, grounding provides
a path of least resistance for electric current to
reduce the risk of electric shock. This appliance
is equipped with a cord having an equipment-
grounding conductor and grounding plug. The
plug must be inserted into an appropriate outlet
that is properly installed and grounded in
accordance with all local codes and ordinances.
This appliance is for use on a nominal 120-volt
circuit, and has a grounded plug that looks like
the plug in “Fig. A”. A temporary adaptor that
looks like the adaptor in “Fig . C” may be used
to connect this plug to a 2-pole receptacle as
shown in “Fig. B”, if a properly grounded outlet
is not available. The temporary adaptor should
be used only until a properly grounded outlet
(Fig. A) can be installed by a qualified
electrician. The green colored rigid ear, lug, or
the like extending from the adaptor must be
connected to a permanent ground such as a
properly grounded outlet box cover. Whenever
the adaptor is used, it must be held in place by a
metal screw.
USING AN ADAPTOR
GROUNDING CONNECTION
Note: Adaptors are not allowed in Canada.
Outlet
Tab for Grounding Outlet Box
FIGURE C
Grounded
FIGURE A
Adaptor
Screw FIGURE B
Adaptor
Metal Screw
Grounded
Grounding Pin
Improper connection of the equipment-
grounding conductor can result in a risk of
electric shock. Check with a qualified
electrician or service person if you are in
doubt as to whether the outlet is properly
grounded. Do not modify the plug provided
with the appliance - if it will not fit the outlet,
have a proper outlet installed by a qualified
electrician.
Le raccordement incorrect du conducteur de
terre d'équipement peut entraîner des risques
d'électrocution. Vérifiez auprès d'un électricien
qualifié ou d'un responsable de l'entretien si
vous avez quelque doute que ce soit quant au
raccordement à la terre de votre prise murale.
Ne modifiez pas la fiche fournie avec
l'appareil: si elle ne correspond pas à la prise
murale, faites installer une prise adéquate par
un électricien qualifié.

SAFETY
86390940 FLOOR POLISHER BDS
2
-
6
SAFETY LABEL LOCATION
NOTE: These drawings indicate the location of safety labels on the Machine. If, at
any time, the labels become illegible contact your authorized representative for
prompt replacement.
EMPLACEMENT DE L'ÉTIQUETTE DE SÉCURITÉ
REMARQUE : Ces dessins indiquent l'emplacement des étiquettes de sécurité sur la
machine. Si, à tout moment, les étiquettes deviennent illisibles, contactez votre
représentant autorisé pour un remplacement rapide.

NOTES:
86390940 FLOOR POLISHER BDS 2-
7

TECHNICAL SPECIFICATIONS
86390940 FLOOR POLISHER BDS
3
-
1
ITEM DIMENSION/CAPACITY/MODEL
CONSTRUCTION Heavy-duty die cast aluminum deck with heavy-
duty rubber bumper, tubular steel adjustable
handle with die cast aluminum handle housing
MOTOR
1.5HP 115V induction BDS 43/175 C, BDS 51/175 C
1.75 HP 115V 175/300RPM BDS 51/175-300C
BRUSH/PAD SPEED
175 rpm BDS 43/175 C, BDS 51/175 C
175/300 rpm BDS 51/175-300C
ELECTRICAL SYSTEM
115 volts, 60 Hz All Models
CABLE
50’ (15 m), 14/3, built in cord wrap All Models
SWITCHES Dual levers with safety lock
WHEELS Two 5” (12.7 cm) dia., 1.25” (3 cm) wide, non-
marking tread
HANDLE 1.5” (4 cm) tubular steel, adjustable, easy to use
thumb activated safety lock
DIMENSIONS (L X W X H)
17” (43 cm) model 23.0” (58 cm) x 18” (46 cm) x 47” (119 cm)
20” (51 cm) model 24.5” (62 cm) x 21” (53 cm) x 47” (119 cm)

HANDLE INSTALLATION
86390940 FLOOR POLISHER BDS 3-2
The handle must be installed by qualified personnel. Read all instructions
thoroughly. The machine is shipped with handle unassembled.
La poignée doit être installée par du personnel qualifié. Lisez toutes
les instructions attentivement. La machine est livrée avec la poignée
démontée.
The machine is shipped with handle unassembled.
Follow these steps for installation:
1. Remove handle and deck assembly from carton.
2. Attach handle assembly to base using hardware kit (86219680) (attached to handle in a plastic bag) items
1, 2, and 3.
NOTE: The spacers (items 1) are required for the correct operation of the handle. The spacers are
positioned completely inside the pivot holes in the casting, and are held in place by tightening the
bolts and washers (items 2 and 3) against the spacer.
3. Remove bolt, nut and washers (items 4, 5 and 6) from lower block on handle assembly. Attach links as
shown. Tighten bolt and nut securely, then back off 1/4 to 1/2 turn.
4. Check handle for movement up and down.
5. Plug motor cord into handle cord receptacle.
(SEE NOTE)
HOLE
PIVOT
ASSEMBLY
DECK PLUG
MOTOR
RECEPTACLE
6
MOTOR PLUG
4
5
12
3
THE CORD ASM AND CORD HOOK.
ASSEMBLY, CHECK ORIENTATION OF
WHEN INSTALLING THE HANDLE

OPERATION
86390940 FLOOR POLISHER BDS
3
-
3
CONTROLS
1. Safety Lock – Prevents unintended operation
of the machine.
2. Switch Levers – Turns machine on/off.
3. Adjustment Handle – Allows the handle to be
adjusted to a comfortable operating position.
HANDLE HEIGHT ADJUSTMENT
NOTE: The handle is in the up, locked
position from the factory.
The handle adjust bar (1) for the polishers are
individually preset at the factory for optimum
locking efficiency and minimum effort of
engaging. It should not be necessary to adjust
the handle adjust bar unless the handle
adjustment bar (1) the washer (3) and nut (2)
have been disturbed.
NOTE: It is incorrect to make it lock
opposite from the way it was assembled by
applying more force to the nut.
The pivot pin is off center in relationship to the
axis of the handle. To adjust handle, tighten
nut on handle while in the locked position. The
handle is locked when the screw is to the
outside of the machine and the flat on the
opposite side of the handle is flush to the
bracket.
1
2
3
2
1
2
3
4
LOCKING SIDE FLAT
HANDLE
PIVOT PIN

OPERATION
86390940 FLOOR POLISHER BDS 3-4
MACHINE OPERATION
For indoor use only.
Pour utilisation à l'intérieur seulement.
When using the pad, always keep the machine
moving when in contact with the floor.
Lorsque vous utilisez le coussin protecteur,
gardez toujours la machine en mouvement
lorsqu'elle est en contact avec le sol.
High starting torque. Hold machine firmly with
both hands.
Couple de démarrage élevé. Tenez la machine
fermement à deux mains.
1. Ensure that the pad driver is in good shape.
Install or change pad if necessary.
2. Plug the machine into a wall outlet as
described in the grounding instructions.
3. Lower the handle by unlocking the adjustment
handle and moving the handle into position.
Relock the handle when it is in a comfortable
position.
Insure that handle is locked in position before
starting machine.
Assurez-vous que la poignée est bloquée en
position avant de démarrer la machine.
4. Push the safety lock forward, unlocking the
switch levers.
5. With the safety lock forward, squeeze one or
both of the switch levers, turning the machine
on. (These levers can be operated
independently of each other). The safety lock
will not re-engage until both levers are
released.
6. To stop the machine, release the switch
levers.
7. Do not let machine rest on pad. When
finished with the machine, return handle to the
storage position.
NOTE: The machine is equipped with a circuit
breaker to protect the motor in the event an
overload condition occurs. The circuit breaker
is located on the handle. Push the reset button
to restart the machine. If the breaker trips
again, correct the cause of overloading before
proceeding.
DAILY MAINTENANCE
1. Inspect power cord for wear. To prevent
electrical shock replace cords with frayed or
cracked insulation immediately.
2. Place machine in the storage position.
3. Check pad condition. Change if soiled or torn.
PAD DRIVER/ BRUSH INSTALLATION
1. Lay machine back, exposing the under
side.
2. Place pad driver on the motor lug and
rotate counter-clockwise until engaged. To
remove, turn clockwise.

NOTES:
86390940 FLOOR POLISHER BDS
3-5

MAINTENANCE
86390940 FLOOR POLISHER BDS
4-1
SCRUB BRUSHES
NOTE: All original equipment brushes are
equipped with “Perform Alert”. This feature will
tell the operator when it is time to replace the
scrub brushes. “Perform Alert” brushes have
pre-trimmed bright yellow tufts to indicate the
length of a worn out brush. When the tufts in the
scrub brush wear to a length equal to the yellow
tufts, the scrub brushes should be replaced.
There are five different types of brushes available
to cover applications from cleaning heavily soiled
floors to polishing. A pad driver is also available to
take advantage of the many cleaning pads on the
market and further add to the flexibility of the
machine.
Please refer to the following to assist in selecting
the proper brush or pad for the work at hand.
UNCOATED FLOORS
Aggressive Grit is a nylon fiber impregnated with
silicone carbide grit. It grinds away stain, soil, and
removes surface material.
Mild Grit is a less aggressive silicone carbide grit
suitable for cleaning medium soil conditions.
Advantages are faster ground speed than nylon
bristles on light solid applications.
Nylon is a general-purpose scrub brush with stiff
bristles. Polypropylene works well for maintaining
concrete, wood and tile floors.
FINISHED FLOORS
Nylon Polish is the softest brush. It will gently
clean finished tile or terrazzo floors without
removing floor finish or floor material. Used for
washing highly polished or burnished floors.
Nylon bristles are used in a variety of applications
on coated or uncoated surfaces.
White Pads (Polishing) are used for dry polishing
to achieve a high-gloss appearance, or surface
washing on highly polished or burnished floors.
Red Pads (Buffing) are used for light-duty
scrubbing. When used with a mild detergent they
will provide surface cleaning without removing the
finish.
Blue Pads (Scrubbing) are used for heavy-duty
scrubbing and light stripping. The blue pads
remove less finish than brown stripping pads, yet
will remove black marks, stains and dirt.
Brown Pads (Stripping) are used for easy and
complete removal of old floor waxes/finishes.
They will quickly remove ground in dirt, black heel
marks, and spills. When used with the proper
stripper, this pad leaves the floor clean and ready
for finishing.
The scrub brushes should be checked before each
days work for wire, string, wear and damage. The
scrub brushes should be replaced if brush bristles
are missing or if yellow Perform Alert indicates
minimum brush length.
SERVICE SCHEDULE
MAINTENANCE DAILY MONTHLY
Check pad wear to prevent buildup of chemicals *
Check pad driver system for damage *
Check handles, switches, and knobs for damage *
Store with pad off the floor *
Check all bearings for noise *
Check skirt/bumpers for damage and replace as necessary *
Check overall performance of machine *

MACHINE TROUBLESHOOTING
86390940 FLOOR POLISHER BDS 4-2
PROBLEM CAUSE SOLUTION
Machine will not run Circuit breaker tripped in
building. Check and reset.
Power switch failure Test switch for continuity and
replace if necessar
y
.
Tripped circuit breaker Reset.
Faulty power cord Replace.
Fuse in motor blown
(Dual speed only) Replace CAUTION: To reduce the risk
of electrical shock, unplug the
machine before opening fuse
holder. Fuse will only open
under extreme conditions.
Investigate cause before
replacing.
Electrical shock Equipment not grounded Follow grounding instructions
exactly.
Receptacle not grounded Have an electrician inspects
building’s wiring.
Internal wiring problem Ensure that the machine wiring
matches the appropriate wiring
diagram. Replace any wires or
components that are short
circuiting.
Repeated circuit breaker
tripping Mechanical problem Higher amp draws indicate a mechanical problem. Find the
problem before using the
machine.
Faulty circuit breaker Test circuit for continuity.
Replace circuit breaker if
necessary.
Excessive vibration Pad not centered Re-center pad.
Damaged or unevenly worn
pad Replace pad. Do not rest machine on pad when not in
use.
Damaged pad driver Replace.
Pad does not turn but motor is
running Sheer coupling has failed Replace coupling.

86390940 FLOOR POLISHER BDS 5-
0
PARTS

BRUSH/PAD DRIVER
86390940 FLOOR POLISHER BDS
5
-
1
2A-2J
11A-1C
3
3
