Kärcher K Promo 16 WSK User manual

中文 . . . . . . 5
English . . . . 15
K Promo 16 WSK
59678830 (03/17)

2

3

4

中文 5
在您第一次使用您的设备前，
请先阅读并遵守本操作说明书
为日后使用或其他所有者使用
方便请妥善保管本说明书。
设备的供货范围都已绘制在包装上。因此，
打开包装时请检查产品是否齐全。
如有附件缺失或在运输过程中损坏，请联
系经销商。

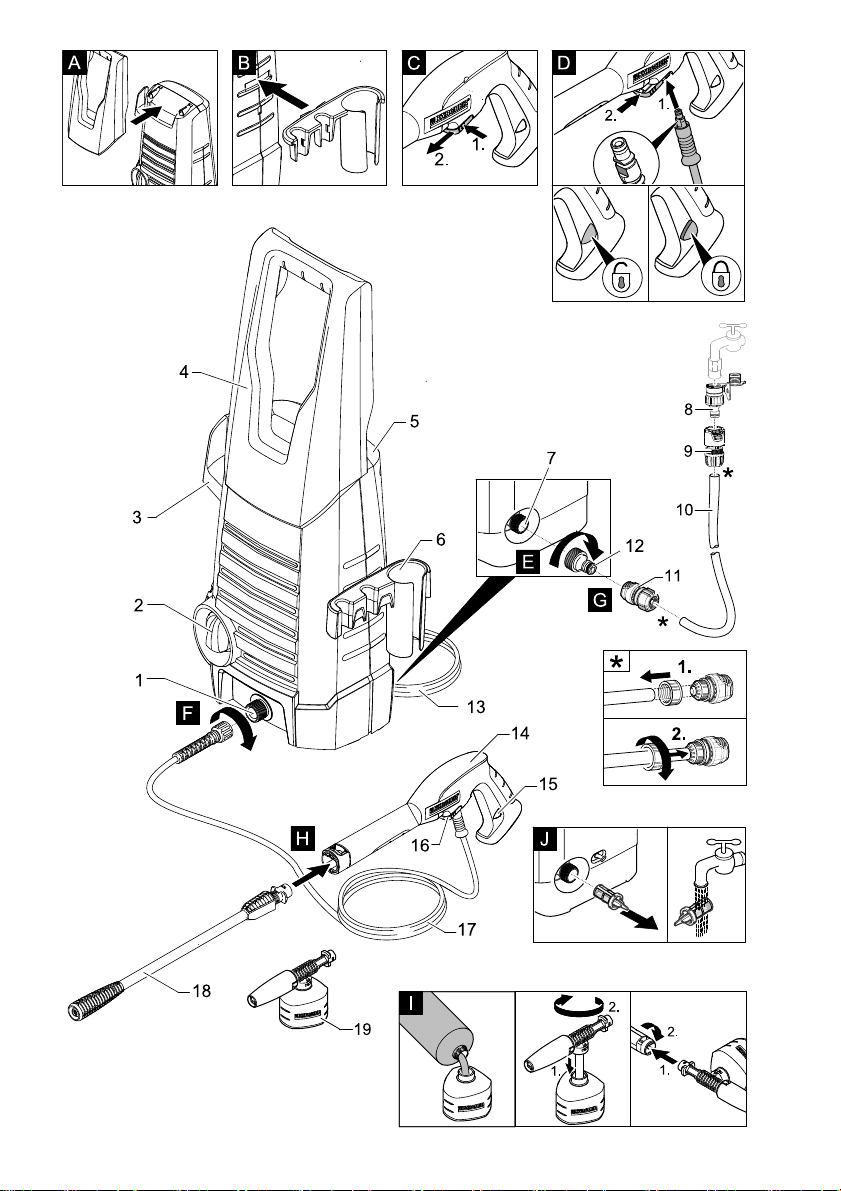

插图参见第 3 页折叠页
1 高压接口
2 产品开关 “0/OFF” /“I/ON”
3 高压软管和电源线保存钩
4手柄
5 喷头存储架
6 喷枪存储架
7 带有水过滤器的供水连接装置
8 管接头
9 软管联轴器 ( 双重防漏保护阀 )
10 进水软管
11 软管联轴器
12 管接头
13 电源线
14 手持喷枪
15 喷枪枪柄上的安全装置
16 高压软管夹
17 高压软管
18 高压喷枪杆
适用于一般的清洁任务。
19 带洗涤剂容器的泡沫喷头
从容器中抽吸洗涤剂并形成有效的洗涤
剂泡沫。
目录
供货范围 . . . . . . . . . . 5
设备说明 . . . . . . . . . . 5
合乎规定的使用 . . . . . . . 6
环境保护 . . . . . . . . . . 6
安全说明 . . . . . . . . . . 6
装配 . . . . . . . . . . . . 8
调试设备 . . . . . . . . . . 9
设备运作 . . . . . . . . . . 9
运输 . . . . . . . . . . . . 10
储存 . . . . . . . . . . . . 10
保养与维护 . . . . . . . . . 11
故障排除 . . . . . . . . . . 11
附件和备件 . . . . . . . . . 11
产品规格 / 参数 . . . . . . . 12
质量保证 . . . . . . . . . . 12
供货范围
设备说明

6 中文
本高压清洁器只限私人居家日用。
–使用高压喷水清洁机器、汽车、建筑
物、工具、墙面、露台、园林工具等
（需要时加清洁剂）。
–使用经 KÄRCHER 许可的附件、备件以及
洗涤剂。注意清洁剂随附的提示。
除了操作说明书里的提示外，还要遵守立
法的一般安全和事故防范规定。
设备上相应的警告、指示标志为无风险的
运行提供重要提示。
 危险
提示会导致人员重伤或死亡的直接威胁性
危险。
몇 警告
提示可能导致人员重伤或死亡的危险状况。
몇 小心
提示可能导致轻度伤害的危险状况。
注意
提示可能产生财产损失的危险状况。
合乎规定的使用
环境保护
包装材料可以回收利用。请按照环保
要求处理包装。
旧的设备中含有宝贵的可再利用的材
料，应加以利用。请按照环保要求清
理旧设备。
电气和电子设备通常包含使用不当或
错误处理时可能对人身健康和环境带
来潜在危险的组成部分。然而这些组
成部分是设备正常运行所必需的。使
用该符号标记的设备不得与生活垃圾
一起处理。
产生含油废水的清洗工作，如清洗发
动机和地坑，只允许在配有油分离器
的清洗场所对其进行清洗。
只允许在与排污系统相连的不渗透的
工作台上 , 使用洗涤剂执行作业。不
要将洗涤剂排放到河道或土壤中。
安全说明
危险程度
设备上的符号
本设备不允许直接连接到公共饮
用水网。
高压喷头不得指向人、动物、带
电电气设备或设备本身。
设备防寒保护。

中文 7

危险
电击危险。
 决不能用湿手触及电源插头或者插座。
 每次运行前都要测试一下带插头的电源
连接导线是否有损坏。损坏的电源连接
导线应立即让已授权的客户服务处 / 电
气专业人员进行更换。不得使用带受损
电源连接导线的设备。
 所有工作领域内的电气部件都必须防
水。
 电源插头和延长线缆的连接器必须确保
防水且不可置于水中。此外不能将连接
器置于地面。建议使用确保插座离地面
至少 60 毫米的电缆轴。
 注意电源接线或延长线缆不要受到碾
压、挤压、硬拉或类似行为而遭损伤或
损坏。防止电源线缆受热、油和尖锐棱
角的损坏。
 在进行所有维护和保养工作前关闭吸尘
器并拔下电源线。
 只允许接受过授权的客户服务人员进行
维修工作和在电气零部件上进行工作。
몇 警告
 本设备只能根据 IEC 60364 由电工连接
到电气接口。
 设备只能连接到交流电上。电压必须跟
设备型号标牌上给出的电压一致。
 出于安全原因，原则上我们建议您通过
故障电流保护开关 ( 最大 30 mA) 运行
设备。
 加长电线如不合适，将带来危险。在室
外请只使用经过许可并相应进行了标识
且具有足够横截面积的加长电线：
1
-
10 m: 1.5 mm
2
；
10
-
30 m: 2.5 mm
2
 延长线缆总是从电缆轴上完全展开。
 危险
 用户必须按规定使用该设备。同时要重
视地方现行的规定并在设备工作时照看
好场所内的人员。
 每次使用前检查重要部件，如高压软
管、手持喷枪和安全装置是否是否有
损。立即更换受损部件。不得使用带受
损部件的设备。
 高压喷枪使用不当，会带来危险。不能
对准人、动物、电器设备或者设备自身
喷射。
 高压水柱不可对准自己或他人喷射以清
洗衣服或鞋袜。
 汽车轮胎 / 轮胎阀门可能被高压水柱冲
坏并爆裂。对此损坏的首要征兆就是轮
胎变色。受损的汽车轮胎 / 轮胎阀门可
能带来生命危险。清洗时至少与水柱保
持 30 cm 距离！
몇 警告
 如射程范围内有其他人，除非他们穿上
防护服，否则不得使用本设备。
 儿童或未经指导的人员都不准操作本设
备。
 本设备不得让那些身体能力有限、感官
能力弱或理解能力差或者缺乏经验和 /
或缺乏知识的人员使用，除非他们有专
人监督或接受专人指导如何操作设备并
了解其可能产生的危险。
 儿童不得玩耍本设备。
 照看好儿童，以确保他们不用设备玩
耍。
몇 小心
 用设备或在设备上进行任何作业前要先
确保设备的稳定性，以避免因设备翻倒
而导致的事故或故障发生。
 通过高压喷嘴上喷出的水束而对手持式
喷枪产生反冲力。注意保持安全可靠的
狀态，紧握高压喷枪和喷射管。
 设备运行期间不可无人看管。
注意
 若工休时间比较长，关闭设备开关。
 温度低于 0 °C 时无法运行机器。
 危险
 禁止在有爆炸危险的区域内运行本设
备。
 不要喷射含危害健康物质 （如石棉）的
物品。
 不得喷射可燃液体。
 决不使用设备抽吸具有溶媒性质的液体
或未经稀释的酸和溶剂！此外还有汽
油、颜料稀释剂或燃油等。极度易燃、
易爆且有毒的喷雾。不使用丙酮、未经
稀释的酸和溶剂，因为它们会侵蚀设备
上使用的材料。
电气部件
安全处理
其他危险

8 中文

让儿童远离包装薄膜，否则会有窒息危
险！
몇 警告
 根据有效的使用说明规定，该设备在没
有系统分离器的情况下不能在饮用水网
上使用。请确保您的家庭供水系统上运
行高压清洁器的接口根据 EN 12729 的
规定配备了合适的 BA 型系统分离器。
 流经系統分离器的水不再视为饮用水。
 高压软管、水龙头和连接器对机器安全
十分重要。只能使用生产商推荐的高压
软管、水龙头和连接器。
 分离进水管或高压软管时，在此操作后
热水可能从接口中流出。
몇 小心
 为了避免事故和伤害，选择存放地点和
运输时要考虑到设备的重量 （参见技术
参数）。
몇 警告
 本设备只能使用制造商提供或推荐的洗
涤剂。使用其他的洗涤剂或化学试剂会
影响设备的安全性。
 错误使用洗涤剂可能会导致重伤或中
毒。
 洗涤剂应远离孩童妥善保管。
몇 小心
 请穿戴合适的防护服和防护镜，以防止
使用时从被清洁物体表面溅出的水渍或
污渍。
 使用高压清洁器期间可能产生气溶胶。
吸入气溶胶可能导致损害健康的后果。
– 根据应用情况，可以使用完全封闭的吸
嘴 （例如表面洗涤器）用于高压清洁，
将明显减少含水气溶胶的产生。
– 这种屏蔽并非适用于所有应用情况。
– 当无法使用完全封闭的吸嘴时，根据待
清洁的环境，应使用等级 FFP 2 或类似
的口罩。
몇 小心
 安全装置用于保护使用者，不得更改或
不让其发挥功能。
设备开关是为了防止设备误启动。
水枪枪柄上的安全制动装置可防止设备被
误启动。
溢流阀阻碍压力超过允许的工作压力。
当松开手持喷枪的控制杆，压力开关关闭
泵，高压喷射停止。拉上该杆，泵又被开
启。
使用设备前，请按图示将部件组装好。
插图参见第 3 页折叠页
图
固定运输手柄。
图
插入喷枪指示。
图
将高压软管的夹子从手持喷枪上取出。
图
将高压软管与喷枪连接。
卡入管夹直至稳固。拉高压软管以检查
是否安全连接。
图
将耦合单元拧到机器的水接头上。
使用清洁剂的清洗作业
个人防护装备
安全装置
设备开关
安全制动装置
带压力开关的溢流阀
装配

中文 9
将设备置放在平坦地面上。
图
将高压软管连接至设备高压软管部位。
插上电源插头。
关于连接值，请参见铭牌 / 产品参数。
请遵从与供水相关的法规。
注意
水中的污物可能损坏高压泵和附件。为此
建议使用 KÄRCHER 水过滤器 （特殊附件，
订货号 4.730-059）进行保护。
图
將进水软管插到水管接口的联轴器上。
將进水软管连接到供水管上。
完全打开水龙头。
注意
干运转 （不加润滑油）2 分钟以上会导致
高压泵损坏。设备 2 分钟内没有压力形成，
关闭设备并按照 “ 故障帮助 ” 一章内的
提示进行操作。
몇 小心
洗涂漆表面时至少与水柱保持 30 厘米距
离，以避免损坏。
图
将喷头置入喷枪后成 90° 旋转固定。
将设备设定为 “I/ON”。
释放喷枪上的安全装置。
握紧扳手启动设备。
注意：松开水枪扳手停止设备。 高压残
留于系统内。

危险
使用洗涤剂时，请注意洗涤剂制造商的安
全数据表，尤其是有关个人防护装备的提
示。
图
把洗涤剂溶解物装入泡沫喷头的洗涤剂
容器 （注意洗涤剂瓶上的剂量说明）。
将泡沫喷头与洗涤剂容器连接。
将泡沫喷头插入手持喷枪并旋转 90°
以固定。
在干燥的表面上少量喷射清洁剂，让清
洁剂在表面发生反应，但不要使之变
干。
利用高压喷射方式刷洗被溶解的杂质。
松开水枪扳手。
推上喷枪上的安全装置。
如，长时间 （5 分钟以上）运作中断
时，将设备开关设定为 “0/OFF”。
调试设备
供水
设备运作
高压运作
使用洗涤剂的运行
泡沫喷头
推荐的清洗方法
中断设备操作

10 中文
몇
小心
当系统中无可用压力，就要把高压软管从
手持喷枪或设备上拆下来。
用洗涤剂作业后：设备开动约 1 分钟直
至冲洗干净。
松开水枪扳手。
将设备设定为关闭 “0/OFF”。
电源插头从插座上拔出。
关闭水龙头。
按压水枪扳手以除去在设备系统中残留
的压力。
推上喷枪上的安全装置。
自供水处分离设备。
몇
小心
为了避免事故和伤害，搬运时要注意设备
的重量 （參見技术参数）。
握住运输手柄拖动设备。
确保设备不会滑倒和倾覆。
몇 小心
受伤和损坏危险！
存放时要注意设备的重量。
长期存放之前，如在冬季特别要注意维护
一章的提示。
设备置放在平坦地面上。
将喷枪插入附件插槽内。
维护喷射管时锁紧喷射管。
妥善保管电源线、高压软管及其它配件
等。
注意
霜冻会损坏未完全清空的清洁器和附件。
完全清空设备和附件，防止霜冻损害。
避免损害：
完全排空设备内的水：打开不带高压软
管和供水连接装置的设备 （最多 1 分
钟），等待直至无水从高压连接部位出
来时。关闭设备。
机器及所有附件应在防霜的室内保管。
结束设备操作
运输
手动搬运
车辆运输
储存
设备储存
防霜冻

中文 11

危险
电击危险。
 在对机器进行任何操作之前，请务必先
关闭设备并将插头从电源上拔下。
定期清洗水接口的滤网。
从水接口上拆下联轴器。
注意
不允许损坏滤网。
图
用平嘴钳取出滤网。
把滤网放在自来水下清洗。
重新将滤网装入水接口。
该设备免维护。
通过下面的简介，您可以纠正小的故障。
如有疑问，请联系 KÄRCHER 公司授权的客
户服务中心。

危险
电击危险。
 在对机器进行任何操作之前，请务必先
关闭设备并将插头从电源上拔下。
拉动手持喷枪的控制杆，设备接通。
检查电源电压必须跟型号标识上给出的
电压一致。
检查电源线是否损伤。
检查供水管输送量是否充足。
用尖嘴钳取下水接头中的滤网并用流动
的自来水清洗。
设备排气 : 拆开高压软管，打开设备让
其运行 ( 最多 2 分钟 )，直至流出高压
接口的水没有气泡产生。关闭设备并重
新连接上高压软管。
高压清洗：用针除去喷头孔处的杂物，
再用水清洗。
检查供水连接系统。
在技术方面可能存在高压泵少许漏水的
情况。漏水量较大时请联系本公司认可
的客户服务中心。
只使用原厂配件和备件，它们能保证设备
的安全和无故障运行。
有关配件和备件的信息请登录
www.kaercher.com。
保养与维护
清洗水接口的滤网
维护
故障排除
设备不运作
设备压力不足
巨大的压力变化
设备漏水
附件和备件

12 中文
技术参数可能会有变化。
我们的质量保证条款适用于全球各分公司。
在质量保证期内，如果您的产品发生了任
何故障，我们都将为您提供免费维修，但
是这种故障应当是由于机身材料或制造上
的缺陷造成的。请您向经销商或者与您距
离最近的经过授权的客户服务处联系，提
出保修请求，并提供相应的产品购买证明
文件。
地址可在如下连接中查找：
www.kaercher.com/dealersearch
产品规格 / 参数
电源连接
电压 220-240
1~50-60
V
Hz
消耗电流 6 A
保护程度 IP X5
保护等级 II
保险丝 （慢断型） 10 A
供水
供水 （最大） 1,2 MPa
进水温度 （最高） 40 °C
流量 （最小） 8 升 /
分
功率参数
工作压力 7,4 MPa
最大允许压力 10 MPa
水流消耗 5,5 升 /
分
最大流速 5,7 升 /
分
清洁剂剂消耗 0,2 升 /
分
后挫力 11 N
尺寸和重量
长度 240 毫米
宽度 170 毫米
高度 601 毫米
重量 5,9 千克
质量保证

中文 13

14 中文

English 15
Before using your appliance
for the first time, read these
original operating instructions,
act in compliance with them,
and keep them for later use or for subse-
quent owners.
The scope of delivery of your appliance is il-
lustrated on the packaging. Check the con-
tents of the appliance for completeness
when unpacking.
In the event of missing accessories or any
transport damage, please contact your
dealer.
See fold-out page 3 for illustrations
1 High pressure connection
2 Appliance switch „0/OFF“ / „I/ON“
3 Storage hook for high pressure hose
and mains connection cable
4 Carrying handle
5 Storage for spray lance
6 Storage for trigger gun
7 Water connection with integrated sieve
8 Coupling element for water connection
9 Hose coupling (Aquastop)
10 Water supply hose
11 Hose coupling
12 Coupling element for water connection
13 Mains cable with mains plug
14 Trigger gun
15 Lock trigger gun
16 Clamp for high pressure hose
17 High pressure hose
18 Spray lance with high pressure nozzle
For normal cleaning tasks.
19 Foam nozzle with detergent container
With powerful foam for effortless clean-
ing.
Contents
Scope of delivery . . . . . . . . . . . . 15
Description of the Appliance . . . . 15
Proper use . . . . . . . . . . . . . . . . . 16
Environmental protection . . . . . . 16
Safety instructions. . . . . . . . . . . . 16
Assembly . . . . . . . . . . . . . . . . . . 19
Start up . . . . . . . . . . . . . . . . . . . . 19
Operation . . . . . . . . . . . . . . . . . . 20
Transport. . . . . . . . . . . . . . . . . . . 20
Storage . . . . . . . . . . . . . . . . . . . . 21
Care and maintenance . . . . . . . . 21
Troubleshooting . . . . . . . . . . . . . 21
Accessories and Spare Parts . . . 22
Technical specifications . . . . . . . 22
Warranty . . . . . . . . . . . . . . . . . . . 22
Scope of delivery
Description of the Appliance

16 English
This high pressure cleaner is designed for
domestic use only.
– for cleaning machines, vehicles, build-
ings, tools, facades, terraces, garden-
ing tools, etc. by means of a high-pres-
sure water jet (if necessary, with addi-
tional cleaning agents).
– with accessories, replacement parts
and cleaning agents approved by
KÄRCHER. Please observe the infor-
mation accompanying the cleaning
agents.
Apart from the notes contained herein the
general safety provisions and rules for the
prevention of accidents of the legislator
must be observed.
Warnings and notes that are attached on
the appliance provide important notes for
the safe operation.
DANGER
Pointer to immediate danger, which leads
to severe injuries or death.
몇WARNING
Pointer to a possibly dangerous situation,
which can lead to severe injuries or death.
몇CAUTION
Pointer to a possibly dangerous situation,
which can lead to minor injuries.
ATTENTION
Pointer to a possibly dangerous situation,
which can lead to property damage.
Proper use
Environmental protection
The packaging material can be recy-
cled. Please arrange for the environ-
mentally appropriate disposal of the
packaging.
Old appliances contain valuable recy-
clable materials that should be recy-
cled properly. Please arrange for the
environmentally appropriate disposal
of the old devices.
Electrical and electronic devices of-
ten contain components which could
potentially pose a danger to human
health and the environment if handled
or disposed of incorrectly. However,
these components are necessary for
the proper operation of the device.
Devices marked with this symbol
must not be disposed of with regular
household rubbish.
Cleaning operations which produce
oily waste water, e.g. engine washes,
underbody washes, may only be car-
ried out using washing stations
equipped with an oil separator.
Work with detergents must only be
performed on liquid-tight work surfac-
es with a connection to the sewer
system. Do not let release detergent
into waters or earth.
Safety instructions
Hazard levels

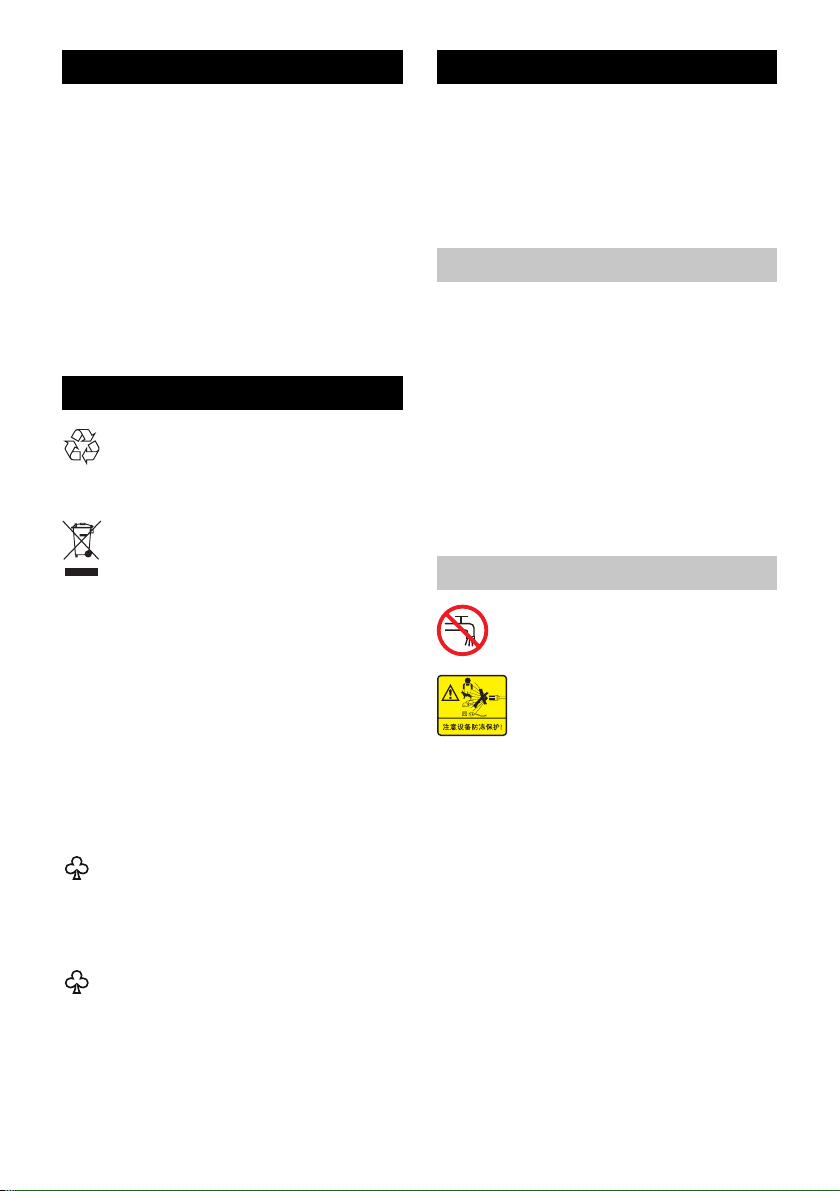

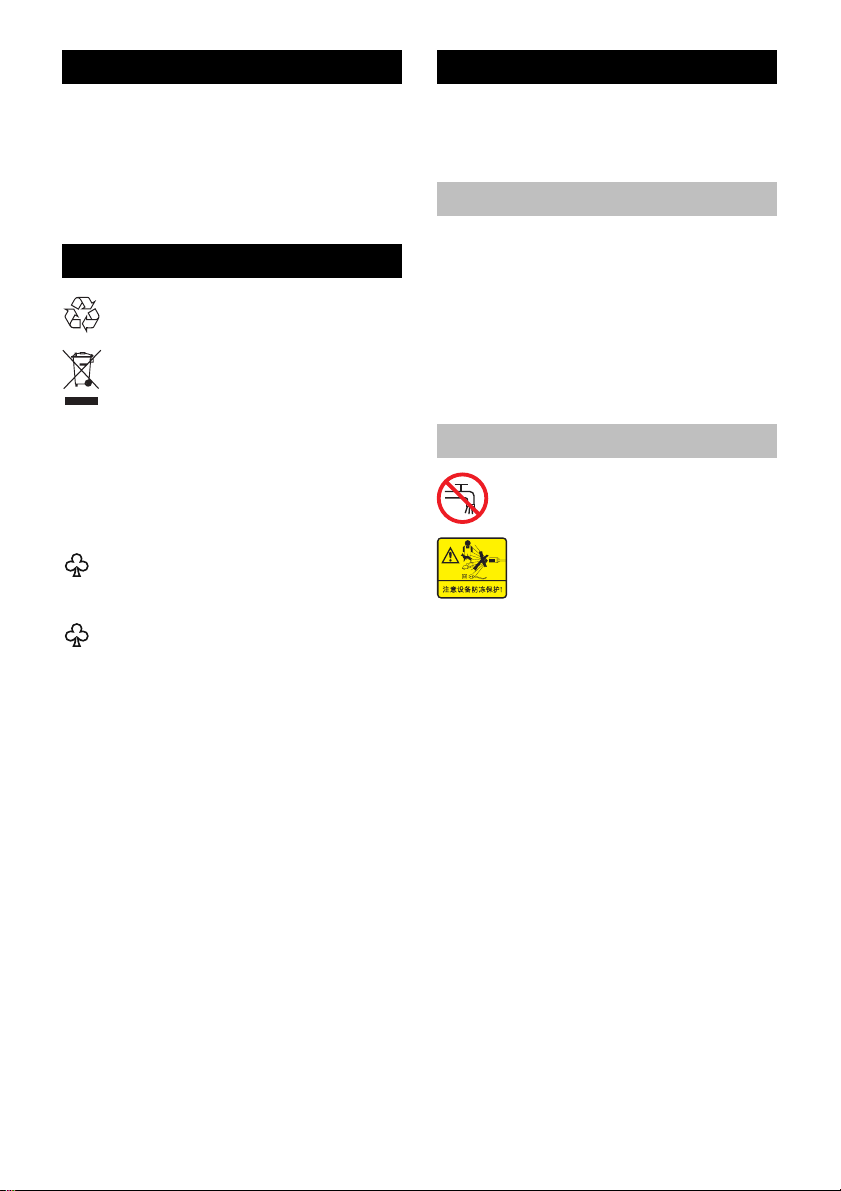

Symbols on the machine
The appliance must not be direct-
ly connected to the public drink-
ing water network.
The high pressure jet must not be
directed at persons, animals, live
electrical equipment or at the ap-
pliance itself.
Protect the appliance against
frost.

English 17
DANGER
Risk of electric shock.
Never touch the mains plug and the
socket with wet hands.
Check the power cord with mains plug
for damage prior to every use. Immedi-
ately have damaged power cord re-
placed by an authorised customer ser-
vice / electrician. Do not operate an ap-
pliance if the power cord is damaged.
All current-conducting parts in the work-
ing area must be protected against jet
water.
The mains plug and the coupling of an
extension cable must be watertight and
must never lie in water. Moreover, the
coupling may never lie on the ground.
The use of cable reels that ensure that
the sockets are at least 60 mm above
the ground is recommended.
Make sure that the power cord or exten-
sion cable is not damaged by running
over, pinching, dragging or the like. Pro-
tect the power cords from heat, oil, and
sharp edges.
Turn off the appliance and remove the
mains plug prior to any care and main-
tenance works.
Repair work and work on the electrical
components may only be performed by
an authorised customer service.
몇WARNING
The appliance may only be connected
to an electric supply that has been in-
stalled by an electrician in accordance
with IEC 60364.
The appliance may only be connected
to alternating current. The voltage must
correspond with the type plate of the
appliance.
For safety reasons, we recommend that
you operate the appliance only via a re-
sidual current device (max. 30 mA).
An unsuitable electrical extension cable
can be hazardous. Only use an electri-
cal extension cable which has been ap-
proved and labelled for this purpose
and has an adequate cable cross-sec-
tion outdoors: 1 - 10 m: 1.5 mm2;
10 - 30 m: 2.5 mm2
Always fully unreel the extension cable
from the cable drum.
DANGER
The user must use the appliance as in-
tended. The person must consider the
local conditions and must pay attention
to other persons in the vicinity when
working with the appliance.
Check important components, such as
high-pressure hose, hand spray gun
and safety installations, for damage pri-
or to every operation. Immediately re-
place damaged components. Do not
operate appliance with damaged com-
ponents.
High-pressure jets can be dangerous if
improperly used. The jet may not be di-
rected at persons, animals, live electri-
cal equipment or at the appliance itself.
The high-pressure jet must not be di-
rected at other persons or the user him-
/herself to clean clothing or footwear.
Vehicle tyres/tyre valves are suscepti-
ble to damage from the high-pressure
jet and may burst. The first indication for
this is a discolouration of the tyre. Dam-
aged vehicle tyres/tyre valves are peril-
ous. Keep a minimum jet distance of
30 cm during cleaning!
몇WARNING
Do not use the appliance when there
are other persons around unless they
are also wearing protective clothing.
The appliance must not be operated by
children or persons who have not been
instructed accordingly.
This appliance is not intended for use
by persons with limited physical, senso-
ry or mental capacities or lacking expe-
rience and/or skills, unless such per-
sons are accompanied and supervised
by a person in charge of their safety or
they have received precise instructions
Electric components
Safe handling

18 English
on the use of this appliance and have
understood the resulting risks.
Children must not play with this appli-
ance.
Supervise children to prevent them
from playing with the appliance.
몇CAUTION
Create stability for the appliance prior to
any work on or with the appliance to
prevent accidents or damage.
The water jet that is emitted from the
high-pressure nozzle results in a repul-
sion power acting on the hand spray
gun. Make sure that you have a firm
footing and are also holding the hand
spray gun and spray lance firmly.
Never leave the appliance unattended
as long as it is in operation.
ATTENTION
In case of extended breaks, switch off
the appliance at the appliance switch.
Do not operate the appliance at temper-
atures below 0 °C.
DANGER
The appliance may not be operated in
explosive atmospheres.
Never use the appliance to clean ob-
jects containing hazardous substances
(e.g. asbestos).
Do not spray flammable liquids.
Never draw in fluids containing solvents
or undiluted acids and solvents! This in-
cludes petrol, paint thinner and heating
oil. The spray mist is highly inflamma-
ble, explosive and poisonous. Do not
use acetone, undiluted acids and sol-
vents, as they corrode the materials
used on the appliance.
Keep packaging films away from chil-
dren, there is a risk of suffocation!
몇WARNING
According to applicable regulations, the
appliance must never be used on the
drinking water net without a system
separator. Ensure that the connection
of your building water installation on
which the high-pressure cleaner is op-
erated is equipped with a system sepa-
rator pursuant to EN 12729 Type BA.
Water that has flown through a system
separator is no longer classified as
drinking water.
High-pressure hoses, fixtures and cou-
plings are important for the safety of the
appliance. Only use high-pressure hos-
es, fixtures and couplings recommend-
ed by the manufacturer.
When disconnecting the supply or high
pressure hose, hot water may leak from
the connections after operation.
몇CAUTION
Mind the weight of the appliance when
selecting the storage location and dur-
ing transport (see technical data) to pre-
vent accidents or injuries.
몇WARNING
This appliance was designed to be
used with detergents which are sup-
plied or recommended by the manufac-
turer. The use of other detergents or
chemicals may compromise the safety
of the appliance.
The improper use of detergents can
cause severe injuries or toxication.
Store detergents away from the reach
of children.
Other risks
Working with detergent

English 19
몇CAUTION
Wear protective clothing and safety
goggles to protect against splash back
containing water or dirt.
During the use of high-pressure clean-
ers aerosols can develop. Inhaling aer-
osols can cause health damage.
–Depending on the application, com-
pletely shielded nozzles (e.g. surface
cleaner) that significantly reduce the
emission of aqueous aerosols can be
used for high-pressure cleaning.
–The use of such shielding is not possi-
ble with all applications.
–If the use of a completely shielded noz-
zle is not possible, a respirator of the
category FFP 2 or the like should be
used, depending on the environment to
be cleaned.
몇CAUTION
Safety installations serve the protection
of the user and may not be modified or
bypassed.
The appliance switch prevents unintention-
al operation of the appliance.
This lock locks the lever of the trigger gun
and prevents the inadvertent start of the ap-
pliance.
The overflow valve prevents the permissi-
ble working pressure from being exceeded.
If the lever on the trigger gun is released
the pressure switch turns off the pump, the
high pressure jet is stopped. If the lever is
pulled the pump is turned on again.
Mount loose parts delivered with appliance
prior to start-up.
See fold-out page 3 for illustrations
Illustration
Attach the transport handle.
Illustration
Insert holder for trigger gun.
Illustration
Pull out the clamp for the high pressure
hose from the trigger gun.
Illustration
Connect high pressure hose to trigger
gun.
Push the clamp in until it locks. Check
the secure connection by pulling on the
high-pressure hose.
Illustration
Screw the coupling element to the wa-
ter connection on the appliance.
Park the appliance on an even surface.
Illustration
Connect the high pressure hose to the
high pressure connection of the appli-
ance.
Insert the mains plug into the socket.
For connection values, see type plate/tech-
nical data.
Observe regulations of water supplier.
ATTENTION
Impurities in the water can damage the
high-pressure pump and the accessories.
For protection, the use of the KÄRCHER
water filter (optional accessory, order no.
4.730-059) is recommended.
Illustration
Attach the water supply hose to the
coupling on the water connection.
Connect the water supply hose to the
water supply.
Completely open the water tap.
Personal protective equipment
Safety Devices
Appliance switch
Lock trigger gun
Overflow valve with pressure switch
Assembly
Start up
Water supply

20 English
ATTENTION
Dry running of more than 2 minutes leads to
damage of the high-pressure pump. If the
appliance does not build up pressure within
2 minutes, switch the appliance off and pro-
ceed in accordance with the instructions in
Chapter "Troubleshooting".
몇CAUTION
Keep a distance of at least 30 cm when us-
ing the jet for cleaning painted surfaces to
avoid damage.
Illustration
Push the spray lance into the trigger
gun and fasten it by turning it through
90°.
Turn on the appliance “I/ON”.
Unlock the lever on the trigger gun.
Pull on the lever of the trigger gun; the
device will switch on.
Note: Release the lever of the trigger
gun; the device will switch off again.
High pressure remains in the system.
DANGER
When using detergents, the material data
safety sheet issued by the detergent manu-
facturer must be adhered to, especially the
instructions regarding personal protective
equipment.
Illustration
Fill the detergent solution in the deter-
gent tank of the foam nozzle (observe
dosage instructions on the packaging of
the detergent).
Connect the detergent tank to the foam
nozzle.
Connect the foam nozzle to the trigger
gun.
Spray the detergent sparingly on the
dry surface and allow it to react, but not
to dry.
Spray off loosened dirt with the high
pressure jet.
Release the lever on the trigger gun.
Lock the lever on the trigger gun.
During longer breaks (more than 5 min-
utes), also turn the appliance off using
the "0/OFF" switch.
몇CAUTION
Only separate the high-pressure hose from
the trigger gun or the appliance when there
is no pressure in the system.
After operation with detergent: Run the
machine for approximately 1 minute for
a clear rinse.
Release the lever on the trigger gun.
Turn off the appliance "0/OFF".
Disconnect the mains plug from the
socket.
Turn off tap.
Press the lever on the trigger gun to re-
lease any remaining pressure in the
system.
Lock the lever on the trigger gun.
Detach the appliance from the water
supply.
몇CAUTION
In order to prevent accidents or injuries,
mind the weight of the appliance during
transport (see technical data).
Pull the appliance by its transport han-
dle.
Secure the appliance against shifting
and tipping over.
Operation
High pressure operation
Operation with detergent
Foam nozzle
Recommended cleaning method
Interrupting operation
Finish operation
Transport
When transporting by hand
When transporting in vehicles
