K2 Pumps Primary Series User manual

OWNER’S MANUAL
COMPACT PRIMARYAND BACKUP PUMP SYSTEM
Questions, problems, missing parts? Before returning to the store call K2 Customer
Service 8 a.m. - 6 p.m., EST, Monday-Friday
1-844-242-2475 © 2019 Copyright GP Enterprises Co., Ltd.
Rev. 11/6/19
Model: SPC03301K

2 For Professional Technical Support call 1-844-242-2475
PERFORMANCE
Performance - PSP
GPH at total feet of lift
GPH at total feet of lift
Series
HP
0
5
10
15
20
MAX LIFT
Primary Pump
1/3
4000
3700
3300
2800
1860
25
Performance - BSP
GPH at total feet of lift
Series
HP
0
5
10
15
MAX LIFT
Backup Pump
1/16
2100
1500
1000
450
16
Electrical & Switch Specifications
Series
HP
Motor Full Load
Amps
Branch Circuit Req.
(Amps)
Primary Pump
1/3
6.1
15
Backup Pump
1/16
NA
SAFETY INSTRUCTIONS
1. Do not pump flammable or explosive liquids such as oil, gasoline, kerosene, ethanol, etc. Do not use in the
presence of flammable or explosive vapors. Using this pump with or near flammable liquids can cause an
explosion or fire, resulting in property damage, serious personal injury, and/or death.
2. ALWAYS disconnect the power to the pump before servicing.
3. Do not touch the motor housing during operation. The motor is designed to operate at high temperatures. Do not
disassemble the motor housing.
4. Do not handle the pump or pump motor with wet hands or when standing on a wet or damp surface, or in water
before disconnect the power.
5. Release all pressure and drain all water from the system before servicing any component.
6. Secure the discharge line before starting the pump. An unsecured discharge line will whip, possibly causing
personal injury, and/or property damage.
7. Extension cords may not deliver sufficient voltage to the pump motor. Extension cords present a life threatening
safety hazard if the insulation becomes damaged or the connection ends fall into water. The use of an extension
cord to power this pump is not permitted.
8. Wear safety goggles at all times when working with pumps.
9. This unit is designed only for use on 115 volts (single phase), 60 Hz, and is equipped with an approved
3-conductor cord and 3-prong grounded plug. Do not remove the ground pin under any circumstances. The
3-prong plug must be directly inserted into a properly installed and grounded 3-prong, grounding-type receptacle.
Do not use this pump with a 2-prong wall outlet. Replace the 2-prong outlet with a properly grounded 3-prong
receptacle (a GFCI outlet) installed in accordance with the National Electrical Code and local codes and
ordinances. All wiring should be performed by a qualified electrician.
10. Protect the electrical cord from sharp objects, hot surfaces, oil, and chemicals. Avoid kinking the cord. Do not use
damaged or worn cords.
11. Failure to comply with the instruction and designed operation of this unit may void the warranty. ATTEMPTING TO
USE ADAMAGED PUMP can result in property damage, serious personal injury, and/or death.

For Professional Technical Support call 1-844-242-2475 3
12. Ensure that the electrical circuit to the pump is protected by a 15 Amp fuse or circuit breaker.
13. Do not lift the pump by the power cord.
14. Know the pump and its applications, limitations, and potential hazards.
15. Secure the pump to a solid base. This will aid in keeping the pump in a vertical orientation. This is critical in
keeping the pump operating at maximum efficiency. It will also help prevent the pump from clogging resulting in
premature failure.
16. Periodically inspect the pump and system components to ensure the pump suction screen is free of mud, sand,
and debris. Disconnect the pump from the power supply before inspecting.
17. Follow all local electrical and safety codes, along with the National Electrical Code (NEC). In addition, all
Occupational Safety and Health Administration (OSHA) guidelines must be followed.
18. The motor of this pump has a thermal protector that will trip if the motor becomes too hot. The protector will reset
itself once the motor cools down and an acceptable temperature has been reached. The pump may start
unexpectedly if it is plugged in.
19. Ensure the electrical power source is adequate for the requirements of the pump.
20. This pump is made of high-strength, corrosion-resistant materials. It will provide trouble-free service for a long time
when properly installed, maintained, and used. However, inadequate electrical power to the pump, dirt, or debris
may cause the pump to fail. Please carefully read the manual and follow the instructions regarding common pump
problems and remedies.
PRE-INSTALLATION
GENERAL INFORMATION
The Battery Backup Combo Kit is pre-plumbed up to the hose and clamp assembly. The system includes the primary
sump pump (PSP), backup sump pump (BSP) assembly, and vertical float switch. The unit is equipped with two check
valves - one for the primary pump and one for the backup pump.
The battery backup pump is not a substitute for your primary sump pump. It is designed to temporarily backup your
primary sump pump during a power outage or other problem which prevents normal operation of the primary pump. Do
not use this system to pump flammable liquids or chemicals. Pump clear sump water only with this pump. For
residential use only.
Keep the battery charger dry and protected from damage. This system is designed to work with either a sealed
lead-acid AGM battery or a flooded lead-acid battery. Use of a true Gel Cell (often confused for AGM) or a standard
automotive battery with this charger is not recommended. An automotive battery may require charging after only 1-2
hours of continuous use, and the repeated charging cycles may cause early plate failure in the battery.
Specifications
Maximum vertical pumping distance
13.35 feet (3.4M)
Power supply required
Primary Sump Pump
115V, 60 HZ
Backup Sump Pump
12V DC Battery
Liquid Temp. Range
32°F to 90°F
Individual Branch Circuit Required (min.)
15 Amps
Discharge:
Hose & Clamp Assembly
1-1/2”Slip
Minimum pit diameter
10”
Minimum depth
14”

4 For Professional Technical Support call 1-844-242-2475
NOTICE: Do not reduce size of discharge pipe or hose below 1-1/2” diameter. If discharge is too small, pump will
overheat and fail prematurely.
NOTICE: If a Carbon Monoxide (CO) sensor is installed, it must be at least 15 feet away from battery charger in order
to avoid nuisance CO alarms. Please refer to your CO detector’s installation guidelines for more information.
PRE-INSTALLATION
APPLICATION
This compact primary and backup pump system is designed for home sump applications. Use this pump only for
pumping water.
This unit is not designed as a waterfall or fountain pump, or for applications involving salt water or brine! Use with
waterfalls, fountains, salt water or brine will void warranty.
Do not use where water recirculates.
Not designed for use as a swimming pool drainer.
TOOLS REQUIRED
MATERIALS REQUIRED (NOT INCLUDED)
NOTE: Parts shown below not to scale.
1-1/2’’ ABS or
PVC Pipe
Thread Tape
1-1/2”
Coupling
ABS or PVC
Cement
(to match the
pipe)
1-1/2” 90°
Elbow
Phillips
Screwdriver
Flathead
Screwdriver
Safety
goggles
Tape
Measure
Channel
Locks
Pipe wrench
Cable
Ties
Hacksaw

For Professional Technical Support call 1-844-242-2475 5
PACKAGE CONTENTS
NOTE:Do not reduce size of discharge pipe or hose below 1-1/2 in. diameter. If discharge is too small, pump
will overheat and fail prematurely. This pump is designed for use in a residential sump only. Only pump water
with this pump.
INSTALLATION
1. Drain the sump pit as far as possible without running the pump dry. Do this by:
A. Piggyback switch: Unplug the pump and switch from the outlet, then unplug the pump from the piggyback switch.
Reset the circuit breaker or reinstall the fuse and plug the pump directly into the outlet. The pump will start. Drain the
pit and unplug the pump. OR
B. No piggyback switch: Reset the circuit breaker or reinstall the fuse and use a non-conducting broom handle or
stick to raise the float switch; the pump should start. Drain the pit and then release the switch. When the pit has
drained, turn off (open) the circuit breaker or remove the fuse again to avoid electrical shock while working on the
installation. Unplug existing sump pump and place power cord and piggyback switch out of the way of work and
water.

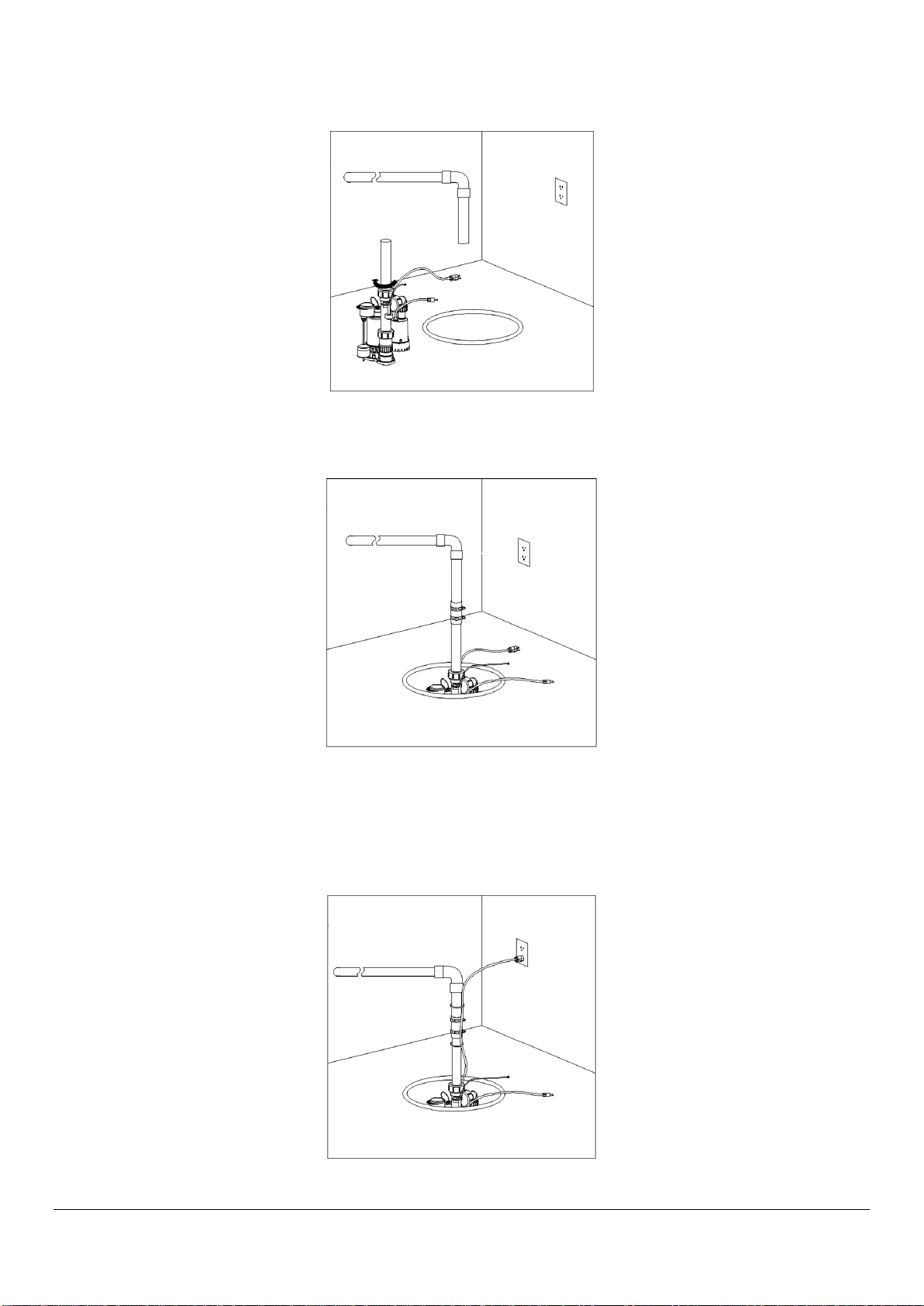

2. Measure height from base to top of quick connector assembly, Make sure to leave enough water outlets.
3. Use hacksaw to cut horizontally along cut line completely through pipe.
NOTICE: Depending on where your current check valve is located, there may be excess water. Let the water
drain/drip into the sump pit.
4. Remove old sump from sump pit.
Part
Description
A
Pump
B
Battery box
C
adaptor

6 For Professional Technical Support call 1-844-242-2475
NOTICE: Remove all sand, clay, and gravel before installing.
5. Install the outlet pipe on the quick connector.
NOTICE: The quick connector must be tightened.
6. Place Combo Kit into sump pit. Make sure vertical float switches can operate freely inside sump pit, once the
Combo Kit is firmly seated in the base of the pit, then connect the pump outlet pipe to the top outlet pipe with a
hose clamp assembly.
7. Secure power cord around pipe with a cable tie. Plug the primary pump into a standard household 15 amp
outlet.
NOTICE: The circuit should be dedicated to the sump pump exclusively.
Remember: Do not handle the pump while it is plugged in; whether it is running or not.

For Professional Technical Support call 1-844-242-2475 7
8. Place the battery (sold separately) into the control box. Connect the leads from controller: Red+ to battery
Red+; Black- to battery Black-. Note: Be sure the battery box ventilation holes are unobstructed. Battery control
box must be set up in a well-ventilated area. Smoking and open flames are prohibited.
NOTICE: If the leads are reversed, the pump will run backward and not pump water.
9. Battery and control box wiring and set-up
1.Plug the pump wire male terminal into the female terminal “PUMP” on the control box
2. Plug the float switch male terminal into the female terminal “FLOAT” on the control box.
3. Plug the 12 V adaptor outlet plug into the power connector “POWER” on the control box.
Plug the adaptor into a 115 V GFCI power outlet. The LED indicators on the control box screen should be on.
4. Follow the on-screen instructions. Test the pump operation by lifting and holding the float.
The “Pump Status” LED will continuously light and the buzzer will beep steadily. The pump should start. If the
pump does not run, check all the connections and reconnect them as necessary.

8 For Professional Technical Support call 1-844-242-2475

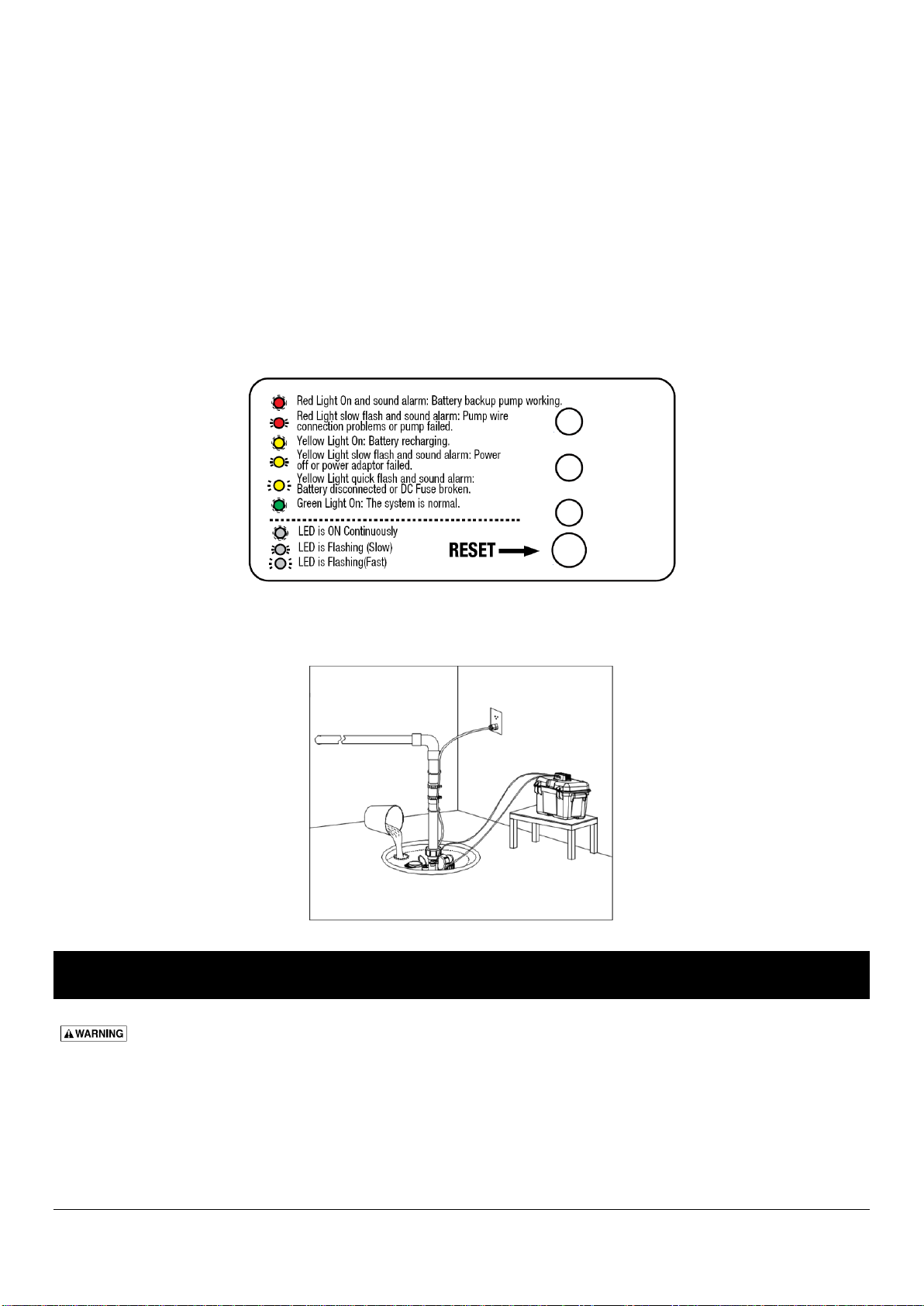

10. Battery backup system testing
To verify the system is operational, press “RESET” button 1–4 seconds. The system will complete a self-testing
diagnostic. The DC pump will run for 3 seconds.
Green light is on: The system is normal.
Yellow light quickly flashes and alarm sounds: Battery disconnected or DC fuse blown. Connect the battery or
replace the fuse.
Yellow light slowly flashes and alarm sounds: Power off or power adaptor failed.
Yellow light is on: Battery recharging.
Red light is on and the alarm sounds: Battery backup pump working.
Red light slowly flashes and alarm sounds: Pump wire connection problems or pump failed.
NOTE: Do not reduce size of discharge pipe or hose below 1 1/4” (3.2 cm) diameter. If discharge is too small,
pump will overheat and fail prematurely. This pump is designed for use as a residential sump only. Only pump
water with this pump.
11. Once all wiring is complete, fill your pit with water and verify that the PSP removes the water and the BSP
doesn't run. Then, unplug your PSP and refill your pit with water. Verify that the BSP removes the water.
OPERATION
Risk of electric shock. Can shock, burn or kill. Do not handle a pump or pump motor with wet hands
or when standing on wet or damp surface, or in water.
1. Shaft seal depends on water for lubrication. Do not operate pump unless it is submerged in water as seal may
be damaged if allowed to run dry.
2. Motor is equipped with automatic reset thermal protector. If temperature in motor should rise, switch will cut off
all power before damage can be done to motor. When motor has cooled, switch will reset automatically and
restart motor. If protector trips repeatedly, pump should be removed and checked. Low voltage, long extension

For Professional Technical Support call 1-844-242-2475 9
cords, clogged impeller, very low head or lift, or a plugged or frozen discharge pipe, etc., could cause cycling.
3. Pump will not remove all water. If operating a pump manually and suddenly no water comes out of the
discharge hose, shut off the unit immediately. The unit has broken prime due to a very low water level.
Risk of electric shock. Can shock, burn or kill. Before attempting to check why unit has stopped
operating, disconnect power from unit.
SPECIFICATIONS
• Water-cooled, high-efficiency motor for extended operation during power outages.
• Use a deep-cycle marine battery for maximum performance.
• High-quality surface finish and corrosion-resistant thermoplastic structure for long life with minimum
maintenance.
• Reliable reed-sensor water detection for automatic operation.
• Includes controller, charger, float switch, pump, and battery box.
• Easy installation without any major plumbing changes.
CARE AND MAINTENANCE
To prevent serious injury from accidental operation, unplug the pump from its electrical outlet before performing
any inspection, maintenance, or cleaning procedures. To prevent serious injury from pump failure, do not use
damaged equipment. If abnormal noise or vibration occurs, have the problem corrected before further use.
BATTERY MAINTENANCE
To protect the battery case from chipping and gouging, do not let the battery sit on a concrete floor. Install the
battery on a shelf or protective pad such as plywood. Always install the battery in a dry location that is protected
from flooding. Follow the battery manufacturer’s recommendations for maintenance and safe use of the battery.

10 For Professional Technical Support call 1-844-242-2475
PRIMARY PUMP TROUBLESHOOTING
Symptom
Possible Cause(s)
Corrective Action
Pump won’t start or run
No power.
Reset GFCI switch/Reset the
breaker/Secure the plug/Clean the
plug prongs.
The impeller is blocked.
Remove the debris around the
impeller.
The float switch failed.
Replace the float switch.
The motor failed.
Replace the pump.
Float obstructed
Remove obstruction.
Pump starts and stops too often
Faulty float switch
Replace float switch.
Pump won’t shut off
Defective float switch
Replace float switch.
Restricted discharge
(obstacle or ice in piping)
Remove pump and clean pump and
piping.
Float obstructed
Remove obstruction.
Restricted intake screen
Remove the pump and clean the
intake screen and the impeller.
Pump operates but
delivers little or no water
Low line voltage
If voltage under recommended
minimum, check size of wiring from
main switch on property. If OK,
contact power company or hydro
authority.
Something caught in
impeller
Remove the pump and clean out
the impeller.
Worn or defective parts or
plugged impeller
Clean impeller if plugged; otherwise
replace pump.
BATTERY BACKUP SYSTEM TROUBLESHOOTING
Pump will not start
or run
Check all the wiring connections.
Check for a low or defective battery.
Check that the float switch is free to move
up and down.
Press the circuit breaker reset button on the control panel.
Motor hums but pump won’t run
Check for low or defective battery.
Pump runs but pumps very little or
no water
The Positive (+) and negative (–) pump wires are reversed.
Disconnect them and reconnect correctly.
Check for a low or defective battery.
Check for an obstruction in the discharge pipe.

For Professional Technical Support call 1-844-242-2475
11

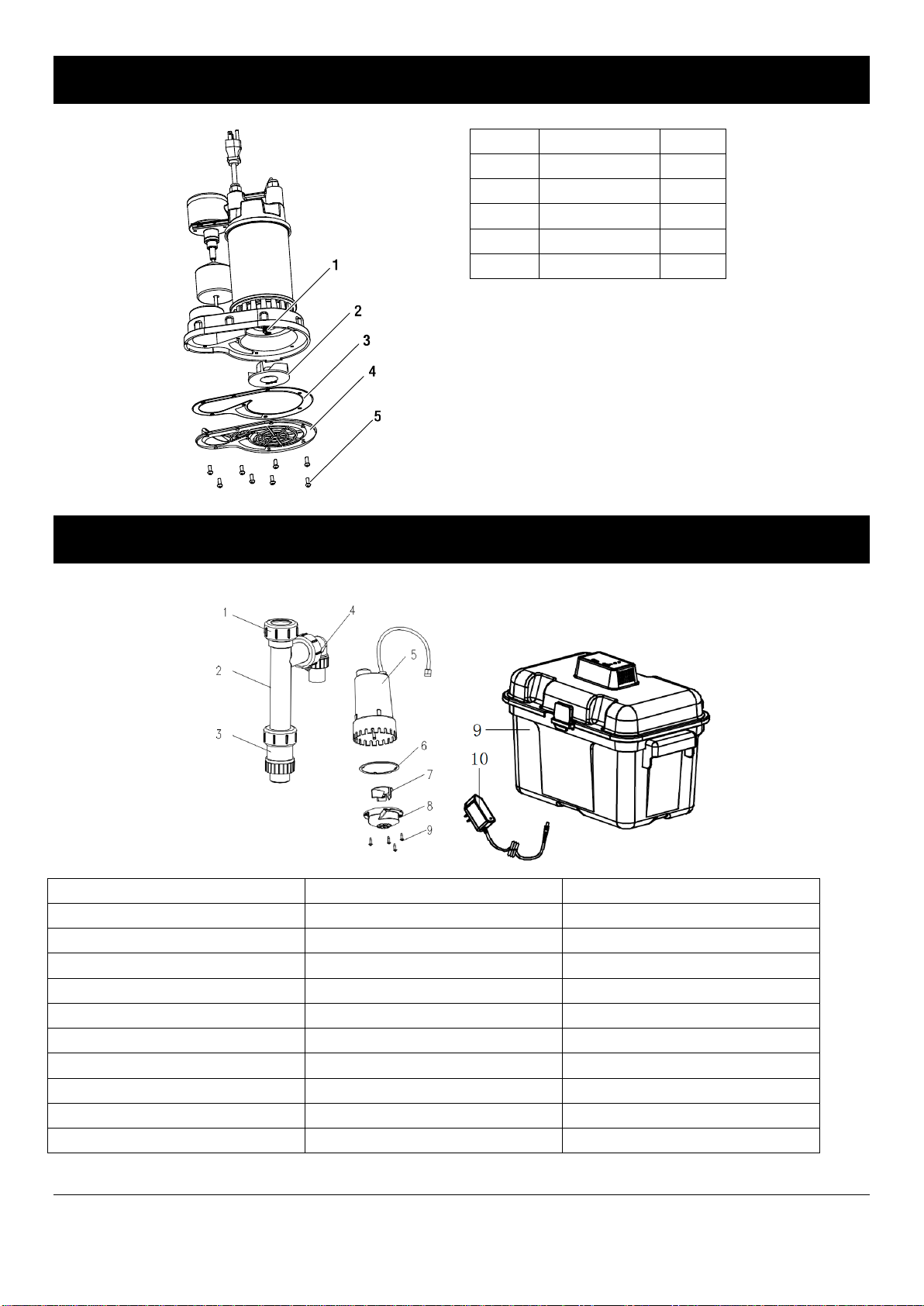

REPAIR PARTS-PRIMARY PUMP
Ref
Description
Qty
1
shaft
1
2
impeller
1
3
Gasket
1
4
Bottom plate
1
5
screws
8
REPAIR PARTS-BATTERY BACKUP UNIT
Ref
Description
Qty
1
quick connector
1
2
Combo Plumbing
1
3
Primary Pump check valve
1
4
Backup pump check valve
1
5
DC Backup pump
1
6
Gasket
1
7
impeller
1
8
volute
1
9
Battery box
1
10
adaptor
1

12 For Professional Technical Support call 1-844-242-2475
WARRANTY
Limited Warranty
WHAT THIS WARRANTY COVERS
When used and maintained in normal use and in accordance with the Owner’s Manual, your K2 product is warranted
against original defects in material and workmanship for at least one year (warranty varies depending on model; see
box for specific warranty information) from the date of purchase (the “Warranty Period”). During the Warranty Period,
K2 will repair or replace at no cost to you, to correct any such defect in products founds upon examination by K2 to be
defective in materials or workmanship.
Your dated receipt of purchase is required to make a warranty claim.
WHAT THIS WARRANTY DOES NOT COVER
This Warranty does not cover:
Use of the product in a non-residential application, improper installation and/or maintenance of the product, damage
due to misuse, acts of God, vandalism or other acts beyond control of K2, owner’s acts or omissions, use outside the
country in which the product was initially purchased and resale of the product by the original owner. This warranty
does not cover pick up, delivery, transportation or house calls. However, if you mail your product to a K2 Sales and
Service Center for warranty service, cost of shipping will be paid one way. This warranty does not apply to products
purchased outside of the United States, including its territories and possessions, outside of U.S. Military Exchange and
outside of Canada. This warranty does not cover products purchased from a party that is not an authorized retailer,
dealer or distributor of K2 products.
OTHER IMPORTANT TERMS
This warranty is not transferable and may not be assigned. This Warranty shall be governed and construed under laws
of the state of Michigan. The Warranty Period will not be extended by any replacement or repair performed under this
Warranty. THIS WARRANTY IS THE EXCLUSIVE WARRANTY AND REMEDY PROVIDED BY K2. ALL OTHER
WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING WARRANTIES OR MERCHANTABILITY OR FITNESS FOR
PARTICULAR PURPOSE, ARE DISCLAIMED. IN NO EVENT WILL K2 BE LIABLE FOR ANY SPECIAL, INDRECT,
INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY KIND OR NATURE TO OWNER OR ANY PARTY
CLAIMING THROUGH OWNER WHETHER BASED IN CONTRACT, NEGLIGENCE, TORT, OR STRICT PRODUCTS
LIABLITY OR ARISING FROM ANY CAUSE WHATSOEVER. Some states do not allow for the exclusion of
consequential damages, so the above exclusion may not apply to you. This warranty gives you specific rights. You
may also have others that vary from state to state.
Thank you for choosing a K2 product!
