K2 Pumps WPS05003K User manual

Model: WPS05003K/WPS07503K
WPS05002TK
OWNER’S MANUAL
SHALLOW WELL JET PUMP
Questions, problems, missing parts? Before returning to the store call
K2 Customer Service 8 a.m. - 6 p.m., EST, Monday-Friday
1-844-242-2475
www.K2pumps.com
Copyright © 2020, GP Enterprises Co., Ltd. K2Man-01 (Rev. 3/24/20)
WPS05003K,
WPS07503K
WPS05002TK

2 For Professional Technical Support call 1-844-242-2475
PERFORMANCE
SKU
HP
GPM of Water @ Total Discharge Pressure of 40 PSI
Max. pressure
0 ft.
5 ft.
10 ft.
15 ft.
20 ft.
25 ft.
WPS05003K/
WPS05002TK
1/2
7.2
6.5
6.0
5.5
5.0
4.5
66 PSI
WPS07503K
3/4
9.2
9.0
8.1
7.4
6.8
5.8
67 PSI
SAFETY INSTRUCTIONS
1. Pump clear water ONLY with this pump. Do not pump flammable or explosive liquids such as oil, gasoline,
kerosene, ethanol, etc. Do not use in the presence of flammable or explosive vapors. Using this pump with or
near flammable liquids can cause an explosion or fire, resulting in property damage, serious personal injury,
and/or death.
2. ALWAYS disconnect the power to the pump before servicing.
3. Do not touch the motor housing during operation. The motor is designed to operate at high temperatures. Do not
disassemble the motor housing.
4. Do not handle the pump or pump motor with wet hands or when standing on a wet or damp surface, or in water.
5. Wear safety goggles at all times when working with pumps.
6. This is a dual voltage 115/230V pump. VOLTAGE SELECTOR INSIDE PRESET TO 230V.To change voltage to
115V, please open the terminal cover and set the switch to the proper voltage.
7. Protect the electrical cord from sharp objects, hot surfaces, oil, and chemicals. Avoid kinking the cord. Do not use
damaged or worn cords.
8. Ensure the electrical power supply is adequate for the requirements of the pump.
9. Failure to comply with the instruction and designed operation of this unit may void the warranty. ATTEMPTING
TO USE A DAMAGED PUMP can result in property damage, serious personal injury, and/or death.
10. The pump should be connected to a grounded circuit equipped with a grounded fault interrupter device (GFCI).
11. Know the pump and its applications, limitations, and potential hazards.
12. Secure the pump to a solid base.
13. Periodically inspect the pump and system components. Disconnect the pump from the power supply before
inspecting.
14. Follow all local electrical and safety codes, along with the National Electrical Code (NEC). In addition, all
Occupational Safety and Health Administration (OSHA) guidelines must be followed.
15. The motor of this pump has a thermal protector that will trip if the motor becomes too hot. The protector will reset
itself once the motor cools down and an acceptable temperature has been reached. The pump may start
unexpectedly if it is plugged in.
16. This pump is made of high-strength, corrosion-resistant materials. It will provide trouble-free service for a long
time when properly installed, maintained, and used. However, inadequate electrical power to the pump, dirt, or
debris may cause the pump to fail. Please carefully read the manual and follow the instructions regarding
common pump problems and remedies.
17. Keep fingers and foreign objects away from ventilation and other openings. Do NOT insert any objects
into the motor.
CAUTION: Do not touch an operating motor. Modern motors are designed to operate at high temperatures. To
avoid burns when servicing the pump, allow it to cool for 20 minutes after shut-down before handling.
Do not allow pump or any system component to freeze. To do so will void warranty.
Periodically inspect the pump and system components.
Keep the work area clean, uncluttered and properly lighted; store properly all unused tools and equipment.
Keep visitors at a safe distance from the work areas.

For Professional Technical Support call 1-844-242-2475 3
WARNING: This pump is designed for indoor installation only. Failure to install indoors will significantly increase the
risk of injury or death from electrical shock.
PRE-INSTALLATION
APPLICATION
This unit is a single stage jet pump designed for shallow well applications, where the water level is less than 25 ft.
deep. If the water level to the pump is deeper than 25 ft., a convertible jet pump or a deep well submersible pump
should be used. A pressure switch pre-set at 30 PSI “on”, 50 PSI “off” has been installed on the pump. The pressure
switch will automatically turn the pump on and off based on the system pressure.
TOOLS REQUIRED
WARNING: All joints and connections must be AIRTIGHT. A single leak will prevent the proper operation of the pump.
Wrap thread tape clockwise on all threaded connections. For all non-threaded connections, you must use PVC Purple
Primer and PVC Cement to ensure airtight seals. Measure all pipe lengths before attaching.
NOTE: A foot valve is a check valve that is used to keep the water from running back into the well from the pump and
maintain hydraulic pressure when the pump is not running. If the foot valve does not hold the water the pump will lose
it’s prime and will not pump water. If the foot valve open pressure is too high (the spring is too stiff), or the flow area is
too small, the pump suction head and flow rate will significantly drop.
NOTE: For SKU # WPS05003K, SKU #WPS07503K, the suction pipe size should not be less than 1-1/4 in. the
suction size of this pump is 1-1/4 in. FNPT. For SKU # WPS05002TK, the suction pipe size should not be less than 1
in. the suction size of this pump is 1 in. FNPT.
PACKAGE CONTENTS
Phillips
Screwdriver
Flathead
Screwdriver
Thread Tape
Tape Measure
Safety goggles
Wrench
A

4 For Professional Technical Support call 1-844-242-2475
Model # WPS05002TK
Part
Description
A
Pump
B
Pressure tank
Model # WPS05003K SKU # WPS07503K
Part
Description
A
Pump
SPECIFICATIONS
Power supply
115V/230V, 60 HZ., 20/10Amp circuit
Liquid temp. range
32°F to 95°F(0°- 35°C)
Discharge size
1 in. FNPT
Suction size
Model # WPS05002TK: 1 in. FNPT
Model # WPS05003K, Model # WPS07503K:
1-1/4 in. FNPT
Water level
25 ft.
DETERMINE THE DEPTH OF YOUR WELL
Tie a small but heavy weight such as a fishing weight to the end of a piece of cotton string. Lower the weight into the
well until it reaches the bottom of the well. Make a mark on the string at ground level. Pull the weight out of the well
and measure from the bottom of the weight to the ground level mark. This is the depth of your well. Subtract 5 ft. from
the depth of your well. If this number is less than 25 ft., shallow well installation should be taken. If this number is more
than 25 ft. and less than 70 ft., deep well installation should be taken. If this number is more than 70 ft., a deep well
submersible pump should be selected. Measure the ground level mark to the mark where the cotton string is wetted.
This number is your well’s water level. It should also be at least 10 ft. below the well’s water level while the pump is
running in order to prevent the pump from sucking air due to water level drawdown.
LOCATION OF THE PUMP
Decide on the area for the pump installation. Select a pump location with adequate space for future pump
maintenance. It can be located in the basement or utility room of the house, at the well, or between the house and the
well. If installed outside of the house, it should be protected by a pump house with auxiliary heat to prevent possible
freezing. Protect the pump against flooding and excess moisture. The well also should be protected for sanitary
reasons. Mount the pump as close to the well as possible.
TANKS - PRE-CHARGED STORAGE
For best performance of the pump, it is recommended that you use a diaphragm pressure tank (sold separately). It is
best to have this in place before installing the pump. A pre-charged storage tank has a flexible bladder or diaphragm
that acts as a barrier between the compressed air and water. This barrier prevents the air from being absorbed into
the water and allows the water to be acted on by compressed air at initially higher than atmospheric pressures (pre-
charged). More usable water is provided than with a conventional type tank.
The pump has a 30/50 PSI pressure switch, which means the "cut-in" is 30 PSI; therefore, the tank needs to be set to
28 PSI. To check the pressure in the tank, use a tire pressure gauge (not included). If the tank pre-charged less than
28 PSI, re-charge air to the tank to 28 PSI with a tire pump or air compressor. If the tank pre-charged over 28 PSI,
bleed out some air to 28 PSI.
NOTE: For AUTO series tank is included and the tank was pre-charged at 28 PSI.
WARNING: ELECTRICAL SAFETY Capacitor voltage may be hazardous. To discharge the motor capacitor, hold the
insulated handle screwdriver BY THE HANDLE and short capacitor terminals together. Do not touch the metal
screwdriver blade or capacitor terminals. If in doubt, consult a qualified electrician.
CAUTION: Do not touch an operating motor. Modern motors are designed to operate at high temperatures. To

For Professional Technical Support call 1-844-242-2475 5
avoid burns when servicing the pump, allow it to cool for 20 minutes after shut-down before handling.
Do not allow pump or any system component to freeze.
To do so will void warranty.
Pump water only with this pump.
Periodically inspect the pump and system components.
Wear safety glasses at all times when working on pumps.
Keep the work area clean, uncluttered and properly lighted; store properly all unused tools and equipment.
Keep visitors at a safe distance from the work areas.
WARNING: The pump body may explode if used as a booster pump unless a relief valve capable of passing full pump
flow at 75 PSI is installed.
INSTALLING WELL APPLICATION
Shallow well systems are identified by one pipe going to the well, lake or river.
1. CASED WELL APPLICATION, 4” OR LARGER CASING (Fig.1)
A hole bored into the earth with machinery. Depths range
from a few feet to 25 feet. Common well diameters are 4",
5", 6" and 8" for domestic water wells.
Parts you may need for this application
ITEM
DESCRIPITON
QTY
ITEM
DESCRIPITON
QTY
1
1-1/4in. Brass Foot Valve
1
10
3/4in. PVC MPT x S Male Adapter
2
2
1-1/4in. PVC MPT x S Male Adapter
4
11
3/4in. PVC Slip x Slip Union
1
3
Well Seal
1
12
1-1/4in. Galvanized Plug
1
4
1-1/4in. PVC TEE FPT x FPT x FPT
1
13
1-1/4in. PVC rigid Pipe
some
5
1-1/4in. PVC Slip x Slip Union
1
14
1in. PVC rigid Pipe
some
6
3/4in. CPVC CTC Socket Tee Fitting
1
15
3/4in. PVC rigid Pipe
some
7
3/4in. PVC 90-Degress S x S Elbow
1
16
1in. Discharge Priming Tee
1
8
1in. PVC 90-Degress S x S Elbow
1
17
1in. MIP x 3/4in. FIP PVC Bushing
Fitting
1
9
1in. x 3/4in. PVC Reducing Male
Adapter
1
18
20 Gal. or larger Tank
1

6 For Professional Technical Support call 1-844-242-2475
2. WELL POINT (DRIVEN POINT) APPLICATION (Fig.2)
Pipe with a pointed screen is driven into the ground below the
water table. The depth is usually less than 25 feet. Available
diameters are 1" through 2.
Parts you may need for this application
ITEM
DESCRIPITON
QTY
ITEM
DESCRIPITON
QTY
1
1-1/4in. Galv. Steel Pipe
some
11
1in. x 3/4in. PVC Reducing Male Adapter
2
2
1-1/4in. Drive Coupling
some
12
3/4in. PVC MPT x S Male Adapter
1
3
1-1/4in. Brass Check Valve
1
13
3/4in. PVC Slip x Slip Union
1
4
1-1/4in. PVC MPT x S Male Adapter
2
14
1-1/4in. Galvanized Plug
1
5
Well Point
1
15
1-1/4in. PVC rigid Pipe
some
6
1-1/4in. PVC TEE FPT x FPT x FPT
1
16
1in. PVC rigid Pipe
some
7
1-1/4in. PVC Slip x Slip Union
1
17
3/4in. PVC rigid Pipe
some
8
3/4in. CPVC CTC Socket Tee Fitting
1
18
1in. Discharge Priming Tee
1
9
3/4in. PVC 90-Degress S x S Elbow
1
19
1in. MIP x 3/4in. FIP PVC Bushing Fitting
1
10
1in. PVC 90-Degress S x S Elbow
1
20
20 Gal. or larger Tank
1

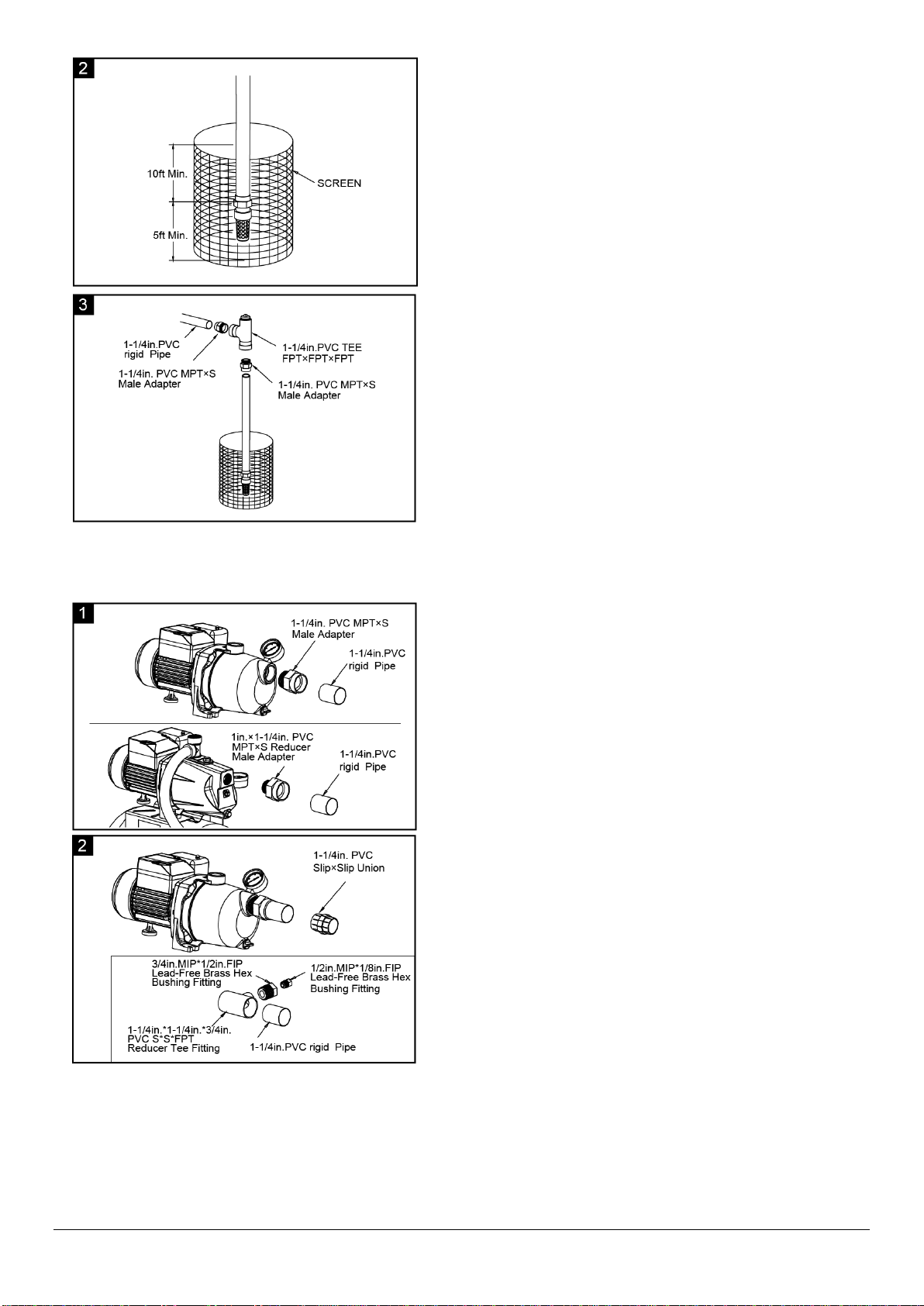

3. APPLICATION FOR SURFACE WATER (Fig.3)
One pipe goes into lake, river, cistern or ponds, suction lift is
less than 25'.Install a screen around the inlet pipe to prevent
the entrapment of swimmers, wildlife and debris.
CAUTION: Possible contamination. Do not use surface water
for drinking. The installation shown could be used for sprinkler
applications.

For Professional Technical Support call 1-844-242-2475 7
Parts you may need for this application
ITEM
DESCRIPITON
QTY
ITEM
DESCRIPITON
QTY
1
1-1/4in. Brass Foot Valve
1
10
3/4in. PVC MPT x S Male Adapter
2
2
1-1/4in. PVC MPT x S Male Adapter
4
11
3/4in. PVC Slip x Slip Union
1
3
Screen
1
12
1-1/4in. Galvanized Plug
1
4
1-1/4in. PVC TEE FPT x FPT x FPT
1
13
1-1/4in. PVC rigid Pipe
some
5
1-1/4in. PVC Slip x Slip Union
1
14
1in. PVC rigid Pipe
some
6
3/4in. CPVC CTC Socket Tee Fitting
1
15
3/4in. PVC rigid Pipe
some
7
3/4in. PVC 90-Degress S x S Elbow
1
16
1in. Discharge Priming Tee
1
8
1in. PVC 90-Degress S x S Elbow
1
17
1in. MIP x 3/4in. FIP PVC Bushing Fitting
1
9
1in. x 3/4in. PVC Reducing Male Adapter
1
18
20 Gal. or larger Tank
1
NOTE: Parts you may need for installing standard tank refer to section of Standard TanK (CONVENTIONAL
TYPE) Connection

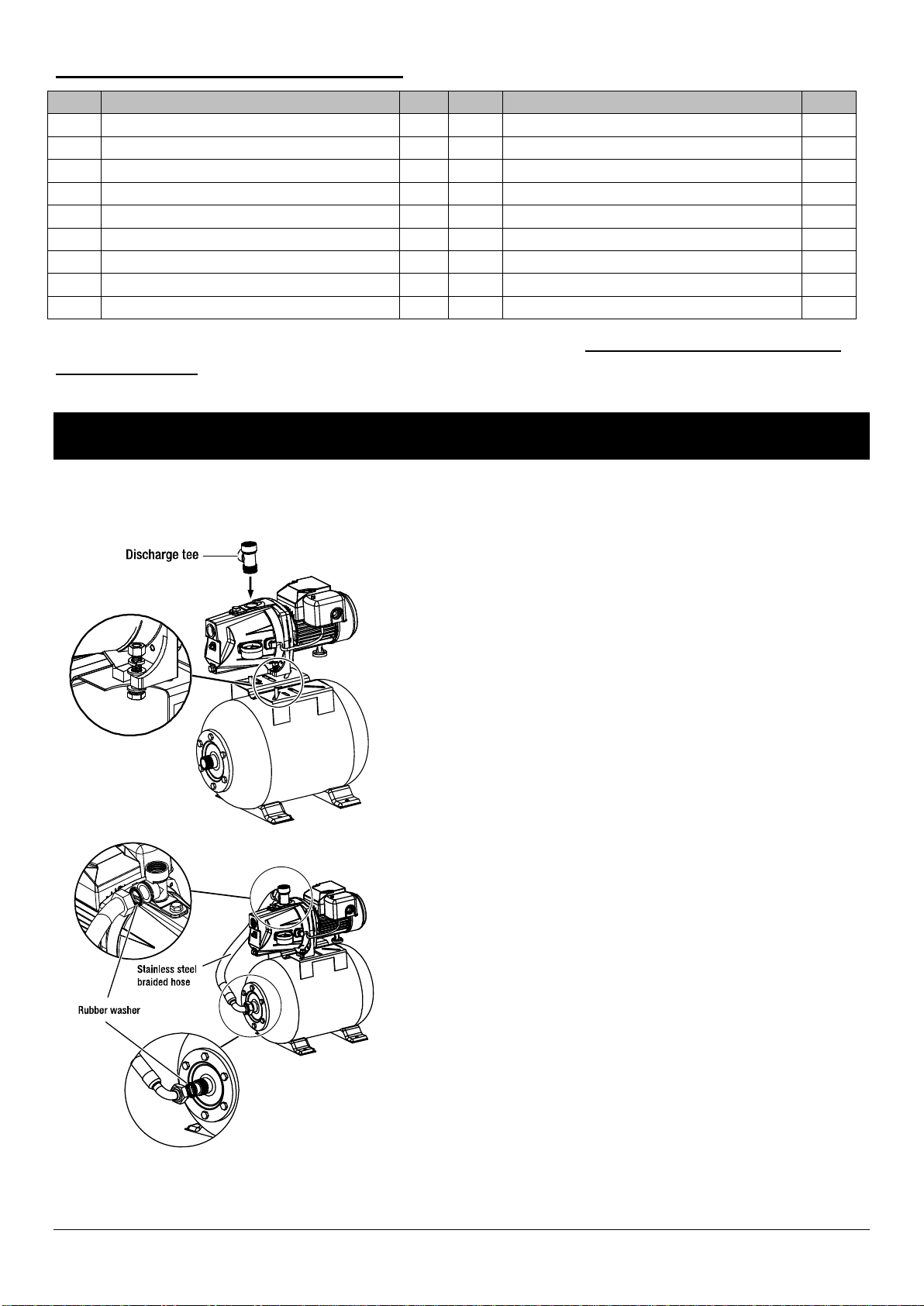

Pre-INSTALLATION
Only for model# WPS05002TK
1. Connect pump to pressure tank
Wrap discharge tee with thread tape (sold separately)
and thread it into pump outlet.
Thread flat washer onto bolt and attach pump to tank.
Secure bolt with another flat washer, spring washer, and
nut. Repeat this on the other side of the pump.
2. Connect braided hose to pump
Insert one of rubber washer into open end of the nut,
thread the nut into discharge tee. Hand tighten, and then
tighten with wrench 1/2 turn.
Insert rubber washer into another open end of the
stainless steel braided hose, thread hose into front of
tank. Hand tighten, and then tighten with wrench 1/2 turn.

8 For Professional Technical Support call 1-844-242-2475
INSTALLATION
Flexible pipe is prohibited on suction pipe (inlet pipe).Unions or hose couplings can be installed near pump to facilitate
removal for servicing or storage. A rubber hose installed between the water system and the house piping will reduce
the noise transmitted to the house.
1. Installing Piping In Well
CAUTION: Dry-fit entire assembly to ensure proper fit before gluing or taping parts. Follow all proper gluing
procedures as specified by the glue manufacturer. Always glue in a vertical direction whenever possible to prevent
glue from dripping inside pipe or fittings Use pipe tape and pipe paste compound on all male threads. Tighten with
wrench to a snug fit and add another 1/4 turn to ensure proper seal.
For Cased well Installation
1. Connect 1-1/4in.Brass Foot Valve to 1-1/4in. PVC MPT×S
Male Adapter. Cement adapter to 1-1/4 in. PVC rigid Pipe.
All connections must be air- and water-tight for pump to
operate correctly. (Fig 1)
2. Install well seal over 1-1/4 in. PVC rigid Pipe and into well
casing. Position the foot valve 5 feet above bottom of well and
at least 10 feet below the well’s water level. (Fig 2)
3. Cement 1-1/4in. PVC MPT×S Male Adapter at the top of
the Pipe .Install 1-1/4in. PVC TEE FPT×FPT×FPT to the
adapter. One end of port install another 1-1/4in. PVC MPT×S
Male Adapter. Add sections of pipe to reach the adapter.
(Fig 3)

For Professional Technical Support call 1-844-242-2475 9
For Well Point Installation
Drive the well, using “drive couplings” and a “drive cap”. “Drive fittings” are threaded all the way through
and allow the pipe ends to butt against each other so that the driving force of the maul is carried by the pipe
and not by the threads. The ordinary fittings found in hardware stores are not threaded all the way through
the fitting and can collapse under impact. “Drive fittings” are also smoother than standard plumbing fittings,
making ground penetration easier.
1. Connect 1-1/4in. Drive Coupling to well point.Thread 1-
1/4in. Galv. Steel Pipe into Drive Coupling. (Fig. 1)
2. Thread 1-1/4 in. Lead Free Brass Check Valve into
Steel nipple .Install 1-1/4in.×3in. Galv. Steel Nipple into
the check valve. (For easy priming connect the check
valve as close to the well as possible). (Fig. 2)
3. Install 1-1/4in.PVC TEE FPT×FPT×FPT to the nipple.
One end of horizontal port install another 1-1/4in. PVC
MPT×S Male Adapter and 1-1/4 in. PVC rigid Pipe. Add
sections of pipes to reach the 1-1/4in. PVC Slip ×Slip
Union (optional). (Fig. 3)
For Surface water Installation
1. Connect 1-1/4in.Brass Foot Valve to 1-1/4in. PVC MPT×S
Male Adapter. Cement adapter to 1-1/4 in. PVC rigid Pipe.
All connections must be air- and water-tight for pump to
operate correctly. (Fig 1)

10 For Professional Technical Support call 1-844-242-2475
2. Install screen surround the foot valve, protect the foot valve
assembly from fish, trash, etc. Position the foot valve 5 feet
above bottom of well and It should also be at least 10 feet
below the water level in order to prevent the pump from
sucking air. (Fig 2)
3. Cement 1-1/4in. PVC MPT×S Male Adapter into 1-1/4 in.
PVC rigid Pipe. Install 1-1/4in.PVC TEE FPT×FPT×FPT to
adapter. One end of horizontal port install another 1-1/4in.
PVC MPT×S Male Adapter and 1-1/4 in. PVC rigid Pipe.
Add sections of pipes to reach the 1-1/4in. PVC Slip ×Slip
Union (optional). (Fig. 3)
2. Well To Pump Connection
1. Thread 1-1/4in. PVC MPT×S Male Adapter into pump.
Cement a short horizontal 1-1/4 in. PVC rigid Pipe into
adapter. (Fig.1) (For model WPS05003K/WPS07503K)
Or thread 1in. ×1-1/4in. PVC MPT×S Reducer Male
Adapter into pump. Cement a short horizontal 1-1/4 in. PVC
rigid Pipe into adapter. (For Model WPS05002TK)
2. For pre-charged tank connection.Cement a 1-1/4in.
PVC Slip×Slip Union into a short horizontal 1-1/4 in. PVC
rigid Pipe. Slopes all inlet piping slightly upward from well to
the pump to prevent trapping air.(Fig.2)
For standard tank connection. Cement 1-1/4in. ×1-1/4in.
×3/4in. PVC S×S×FPT Reducer Tee Fitting into a short
horizontal 1-1/4 in. PVC rigid Pipe and cement another a
short horizontal 1-1/4 into the side of the tee fitting, then
install3/4in. MIP×1/2in.FIP Lead-Free Brass Hex Bushing
Fitting to the port of 3/4in, thread and another 1/2in.
MIP×1/8in.FIP Lead-Free Brass Hex Bushing Fitting to
the bushing fitting.

For Professional Technical Support call 1-844-242-2475 11
3. Completed installation is shown Fig. 3a.3b.3c.
3. Pump To Pressure Tank And To House Connection
Notes: The pump must be within 4’ of the tank to prevent switch chatter. check the tank precharge on a
yearly basis
Pre-Charge Tank Connection
1. Most pressure tanks will have a 1in. inlet elbow on the
bottom. Connect to this elbow with a 1in. PVC MPT×S
Male Adapter and a short piece of 1in.PVC rigid Pipe.
(Fig. 1)
2. Cement a 1in.PVC 90-Degress S×S Elbow. (Fig. 2)
3. Cement a 1in.PVC rigid Pipe into elbow then cement a
1in.×3/4in.PVC Reducing Male Adapter. (Fig. 3)

12 For Professional Technical Support call 1-844-242-2475
4. Cement a 3/4in.PVC rigid Pipe into a 3/4in.CPVC CTC
Socket Tee Fitting. Cement 3/4in. PVC MPT×S Male
Adapter into 3/4in.PVC rigid Pipe that connect with a
3/4in. PVC FPT×FPT Union .(Fig. 4)
5. Make the connection to the house plumbing. From the
tee, install pipe and 3/4in. Slip×Slip Ball Valve (optional).
(Fig. 5)
6. Install 1in. Discharge Priming Tee to the outlet port of
the pump then Install 1in. MIP×3/4in. FIP PVC Bushing
Fitting to the outlet port of the priming Tee. Install a
3/4in. MPT×S Male Adapter to the bushing fitting. Install a
short 3/4in.PVC rigid Pipe (Fig. 6a,6b)
NOTE: Fig 6a suit Model # WPS05003K, Model
#WPS07503K
Fig 6b suit Model # WPS05002TK
7.Completed installation with piping and tank is shown (Fig.
7a,7b)
NOTE: Fig 7a: suit Model # WPS05003K, Model
#WPS07503K
Fig 7b: suit Model # WPS05002TK

For Professional Technical Support call 1-844-242-2475 13
Standard Tank（CONVENTIONAL TYPE）Connection
From step 1 to 3 is the same as Pre-Charge Tank Connection from step 1-3 .
4. Cement 3/4in.PVC rigid Pipe into 3/4in. PVC 90-Degress
S×S Elbow. Cement 3/4in. PVC MPT×S Male Adapter into
3/4in.PVC rigid Pipe that connect with a 3/4in. PVC FPT×FPT
Union .(Fig. 4)
Step 5 is the same as Pre-Charge Tank Connection step 6a.
6. Completed installation with piping and tank is shown (Fig.
6)
7. Install a tee, the reducing bushings and the barbed fitting in
the suction line. (Please see page 10~11), well to pump
connection for standard tank connection). Install the AVC
tube between the barbed fitting and the port on AVC (which is
mounted on the tank)
PUMP ELECTRICAL CONNECTIONS
WARNING: It is recommended all electrical work be performed by a licensed electrician.
WARNING: When wiring from the power source to the pressure switch, it is recommended that you use either a 14-
gauge or 12-gauge cord.
WARNING: Before wiring the pressure switch, turn off the power source to which you are connecting to avoid
potentially life threatening electrical shock.

14 For Professional Technical Support call 1-844-242-2475
Wiring The Pressure Switch
To complete the installation, you must connect the
power source to the pressure switch. A 30/50 PSI
pressure switch has been installed on the pump. The
pressure switch allows for automatic operation; the
pump starts when pressure drops to the “cut-in” setting
(30 PSI pre-set).
To wire the pressure switch:
Remove the pressure switch cover on the pump to
expose the wiring terminals.
Connect the green ground wire of the power supply
to the switch ground terminal.
Connect the power supply wires to the two outside
terminals marked “LINE” and replace the switch
cover.
230 Volt: Connect 2 hot wires (black and red) to the two outside terminals on the pressure switch and cap the white
(neutral) wire. It does not matter which wire goes to which terminal.
115 Volt: Connect one hot wire (black or red) to one of the outside terminals on the pressure switch (it doesn't matter
which one). Connect the white (neutral) wire to the other terminal. Cap any remaining black or red wires.
CAUTION: Do NOT use a pressure switch set at a pressure greater than 50 psi. The pump will not create pressures
greater than 50 psi, if so the pump will never shut off, resulting in damage to the pump and voiding the warranty.
To change from 230V to 115V
This pump is pre-wired at 230 volts.
If the power source is 115 volts, remove the electrical housing cover.
Flip the switch to 115 volts. Replace the cover.
NOTE: All electrical work should be performed by a licensed electrician.
PUMP PRIMING&STARTUP
CAUTION: Risk of burns. Never run pump dry. Running pump without water may cause pump to overheat, damaging
seal and possibly causing burns to persons handling pump. Fill pump with water before starting.
WARNING: Risk of explosion and scalding. Never run pump against closed discharge. To do so can boil water
inside pump, causing hazardous pressure in unit, risk of explosion and possibly scalding persons handling pump.
1. Remove the priming plug from the pump and fill the pump, fill all piping between the pump and the well, and make
sure that all piping in the well is full. If you have also installed a priming tee in the suction piping, remove the plug
from the tee and fill the suction piping.

For Professional Technical Support call 1-844-242-2475 15
2. Open the faucet closest to the pump/tank a small amount to allow air to escape the system.
3. Power on! Start the pump.
4. If you don’t have water, stop the pump and remove the fill plugs. Refill the pump and piping. You may have to
repeat this two or three times in order to get all the trapped air out of the piping.
5. After the pump has built up pressure in the system and shut off, check the pressure switch operation by opening a
faucet or two and running enough water out to bleed off pressure until the pump starts. The pump should start
when pressure drops to 30 PSI and stop when pressure reaches 50 PSI. Run the pump through one or two
complete cycles to verify correct operation. This will also help clean the system of dirt and scale dislodged during
installation.
Congratulations on a successful installation.
If you were unsuccessful, please refer to Troubleshooting or call our customer service technical staff.
CARE AND MAINTENANCE
WARNING: Disconnect power and release all pressure from the system before attempting to install, service, relocate
or perform any maintenance.
Winterizing
CAUTION: Drain the entire system if there is danger of
freezing. A drain plug is provided at the bottom of the pump
case for this purpose.
Drain openings are provided on all models to drain the
pump:
Unplug the pump from power supply outlet.
Remove drain plug close to the inlet hole.
Drain all piping to a point below the freeze line. This will
drain the pump.
NOTE: While this will drain the pump, it will not necessarily drain all the unprotected parts of the piping system. To
drain tank, disconnect the piping at the tank outlet.
SEAL ASSEMBLY REPLACEMENT
CAUTION: Make certain that the power supply is disconnected before attempting to service the unit! The
rotary seal assembly must be handled carefully to avoid damaging the precision lapped faces of the sealing
components.

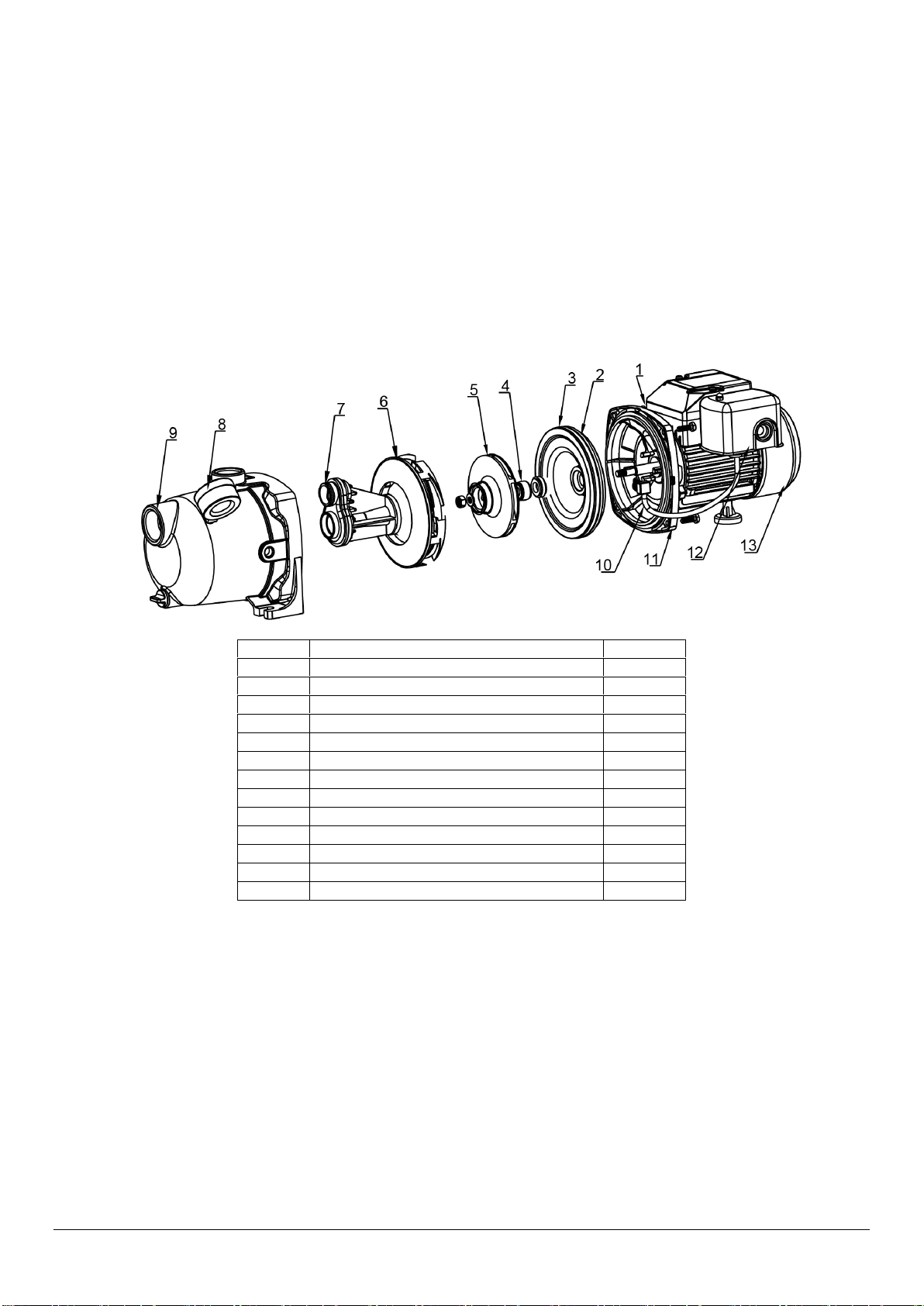

1. Disengage pump body (Ref. No. 9) from motor mounting ring (Ref. No. 11).
2. Remove diffuser (Ref. No. 6).
3. Remove the rear cover(Ref. No. 13) .Remove the impeller(Ref. No. 5) use a 9/16" open end wrench to hold the
motor shaft.

16 For Professional Technical Support call 1-844-242-2475
4. The rotary seal (Ref. No. 4) will come loose at this time. Use a screwdriver (or similar instrument) to pry the silicon
carbide seal from the recess of the Seal plate (Ref. No. 2). Be careful not to damage the motor shaft or recess
surface.
5. Clean the recess and motor shaft thoroughly.
6. Install the new seal assembly.
a. Insert the silicon carbide seal and the rubber gasket into the recess of the Seal plate.
NOTE: To help facilitate installation, apply a drop of liquid soap to the outside diameter of the rubber gasket. Make
certain that the polished surface of mechanical seal and motor shaft are kept clean and free of dirt and/or oil.
b. Slip the remaining parts of the rotary seal assembly onto the motor shaft.
NOTE: Apply a drop of liquid soap to the inside diameter of the rubber drive ring.
7. Replace the impeller and diffuser removed in Steps 2 & 3.
8. Reassemble the pump body to the motor and mounting bracket.
ITEM
DESCRIPTION
QTY.
1
Motor
1
2
Seal Plate
1
3
O -ring
1
4
Mechanical Seal Assembled,M301-12
1
5
Impeller
1
6
Diffuser
1
7
Diffuser Ring
1
8
Pressure Gauge
1
9
Pump Body
1
10
Pressure Tube
1
11
Mounting Ring
1
12
Pressure Switch
1
13
Rear cover
1

For Professional Technical Support call 1-844-242-2475 17
TROUBLESHOOTING
Problem
Possible Cause
Corrective Action
Pump does not start or
run.
1. The switch is off.
2. There is a blown fuse or
tripped breaker.
3. The pressure switch
contacts are dirty.
4. The wires at the motor are
loose or wired incorrectly.
1. Turn the power switch on.
2. Replace the fuse or reset the circuit breaker.
3. DISCONNET THE POWER. File or clean the
switch contacts.
4. DISCONNECT THE POWER.
Follow the wiring instructions to check and tighten
the wires.
Pump will not prime.
1. The pump was primed
improperly or air is trapped
in the pipe.
2. There is an air leak.
3. The foot valve is plugged or
leaks.
1. DISCONNECT THE POWER. Adjust pump height
and make the pipe slope down to the well.
Remove the discharge tee and re-prime.
2. Check all connections and fix the leakage.
3. Clean or replace the foot valve.
Pump operates but
pumps little or no
water.
1. The foot valve is buried in
sand or mud.
2. The ejector or impeller is
plugged.
3. The foot valve or inlet
strainer is clogged.
4. The voltage is not correct.
1. Lift the suction pipe.
2. Clean the ejector or impeller.
3. Clean or replace as necessary.
4. Check the voltage switch.
Pump starts and stops
too often.
1. The tank was pre-charged
incorrectly.
2. There is a ruptured
diaphragm/bladder (pre-
charged tank)/or has no air
cushion.
3. The pipes are leaking.
4. The foot valve leaks.
5. The pressure switch is not
adjusted correctly.
6. The air charge is too low in
the
pre-charged tank.
7. Standard pressure tank
( Conventional Type) is
waterlogged ,and has no air
cushion.
1. Add or release air as needed.
2. Replace the tank/refill the air.
Test the tank by depressing the air valve. The air
valve will expel water if the bladder is broken.
3. Repair the pipe connections or replace the pipes.
4. Repair or replace the foot valve.
5. Closely look at the pressure gauge to see the
pump On/Off points are around
30 psi/50 psi. If not, adjust or replace the pressure
switch.
6. DISCONNECT POWER and open faucets until all
pressure is relieved. Using tire pressure gauge,
check air pressure in the tank at the valve stem
located on the tank. If less than pressure switch
cut-in setting (30 psi), pump air into the tank from
an outside source until air pressure is 2 psi less
than the cut-in setting of the switch. Check the air
valve for leaks (use soapy solution) and replace
core if necessary.
7. Drain tank to air volume control port, check AVC
for defects.
Pump does not shut
off.
1. The pipes leak.
2. The pressure switch is not
set correctly.
3. Venturi, nozzle or impeller is
clogged.
1. Locate and repair the leak or reconnect.
2. Reset or replace the pressure switch.
3. Remove the pump body and seal plate, observe it.

18 For Professional Technical Support call 1-844-242-2475
WARRANTY
Limited Warranty
WHAT THIS WARRANTY COVERS
When used and maintained in normal use and in accordance with the Owner’s Manual, your K2 product is warranted
against original defects in material and workmanship for at least one year (warranty varies depending on model; see
box for specific warranty information) from the date of purchase (the “Warranty Period”). During the Warranty Period,
K2 will repair or replace at no cost to you, to correct any such defect in products founds upon examination by K2 to be
defective in materials or workmanship.
Your dated receipt of purchase is required to make a warranty claim.
WHAT THIS WARRANTY DOES NOT COVER
This Warranty does not cover:
Use of the product in a non-residential application, improper installation and/or maintenance of the product, damage
due to misuse, acts of God, nature vandalism or other acts beyond control of K2, owner’s acts or omissions, use
outside the country in which the product was initially purchased and resale of the product by the original owner. This
warranty does not cover pick up, delivery, transportation or house calls. However, if you mail your product to a K2
Sales and Service Center for warranty service, cost of shipping will be paid one way. This warranty does not apply to
products purchased outside of the United States, including its territories and possessions, outside of U.S. Military
Exchange and outside of Canada. This warranty does not cover products purchased from a party that is not an
authorized retailer, dealer or distributor of K2 products.
OTHER IMPORTANT TERMS
This warranty is not transferable and may not be assigned. This Warranty shall be governed and construed under
laws of the state of Michigan. The Warranty Period will not be extended by any replacement or repair performed
under this Warranty. THIS WARRANTY IS THE EXCLUSIVE WARRANTY AND REMEDY PROVIDED BY K2. ALL
OTHER WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING WARRANTIES OR MERCHANTABILITY OR
FITNESS FOR PARTICULAR PURPOSE, ARE DISCLAIMED. IN NO EVENT WILL K2 BE LIABLE FOR ANY
SPECIAL, INDRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY KIND OR NATURE TO OWNER OR
ANY PARTY CLAIMING THROUGH OWNER WHETHER BASED IN CONTRACT, NEGLIGENCE, TORT, OR
STRICT PRODUCTS LIABLITY OR ARISING FROM ANY CAUSE WHATSOEVER. Some states do not allow for the
exclusion of consequential damages, so the above exclusion may not apply to you. This warranty gives you specific
rights. You may also have others that vary from state to state.
Thank you for choosing a K2 product!

Modèle: WPS05003K/WPS07503K
WPS05002TK
NOTICE D’UTILISATION
POMPE À JET POUR PUITS PEU PROFOND
Questions, problèmes, pièces manquantes? Avant de retourner au magasin,
appelezle Service àla clientèle K2 du lundi au vendredi, de 8 h à18 h, heure
normale de l’Est
1-844-242-2475
www.K2pumps.com
Copyright © 2020, GP Enterprises Co., Ltd. K2Man-01 (Rev. 3/24/20)
WPS05003K,
WPS07503K
WPS05002TK

2Pour une assistance technique professionnelle appelez 1-844242-2475
PERFORMANCE
Modèle
CV
Débit d’eau en LPM selon une pression totale de refoulement
de 40 lb/po2
Arrêt de pression
maximale
0 pi.
5 pi.
10 pi.
15 pi.
20 pi.
25 pi.
WPS05003K/
WPS05002TK
1/2
27.3
24.6
22.7
20.8
18.9
17.0
66 PSI
WPS07503K
3/4
34.8
34.1
30.7
28.0
25.8
22.0
67 PSI
CONSIGNES DE SÉCURITÉ
1. Pompez de l'eau claire UNIQUEMENT avec cette pompe. Ne pas pomper de liquides explosifs ou inflammables
tels que de l’huile, de l’essence, du kérosène, de l’éthanol, etc. Ne pas utiliser en présence de vapeurs
inflammables ou explosives. Le fait d’utiliser cette pompe avec ou à proximité de liquides inflammables est
susceptible de provoquer une explosion ou un incendie, d’où un risque d’accident corporel et/ou de décès.
2. TOUJOURS débrancher l’alimentation de la pompe avant toute intervention.
3. Ne pas toucher le boîtier d’un moteur en marche. Le moteur est conçu pour fonctionner àdes températures
élevées. De plus, ne pas démonter le boîtier du moteur.
4. Ne pas manipuler la pompe ni le moteur de la pompe avec des mains humides ou en se tenant dans l’eau ou sur
une surface humide ou moite.
5. Porter des lunettes de protection lors de tous travaux avec des pompes.
6. Ceci est une pompe double tension 115/230V. VOLTAGE SELECTOR INSIDE PRESET 230V.Pour la sélection
115V, se il vous plaît ouvrez le couvercle et réglez le commutateur sur la tension appropriée. Tout le câblage doit
être effectuépar un électricien qualifié.
7. Protéger le cordon électrique des objets tranchants, des surfaces chaudes, des huiles et des produits chimiques.
éviter d’entortiller le cordon. Ne pas utiliser de cordons endommagés ou usés.
8. Vérifier que l'alimentation électrique correspond bien aux spécifications de la pompe.
9. Tout manquement à respecter cette notice et l’utilisation prévue de cette unité est susceptible d’invalider la
garantie. Toute tentative pour utiliser une pompe endommagée risque d’entraîner un dommage matériel, un
accident corporel grave, et/ou un risque de décès.
10. La pompe doit être connectée àun circuit mis àla terre équipéd'un disjoncteur de fuite àla terre (DDFT).
11. Connaître les applications, limitations et dangers éventuels de la pompe.
12. Fixer la pompe sur une base solide.
13. Inspecter périodiquement la pompe et les composants du système afin de vérifier que les amenées de la pompe
sont dépourvues de boue, de sable et de débris. avant de procéder àune inspection, débrancher la pompe de
l’alimentation électrique.
14. Respecter l’ensemble de la réglementation électrique et de sécuritélocale, ainsi que le Code national de
l’électricité. Il est en outre impératif de respecter l’ensemble des directives de l’administration américaine en
charge de l’hygiène et de la sécurité du travail (Occupational Safety and Health Administration, OSHA).
15. Le moteur de cette pompe est équipé d’un protecteur thermique qui se déclenche si la température du moteur
devient trop élevée. Ce protecteur se réenclenche une fois le moteur refroidi et une température acceptable
atteinte. La pompe peut redémarrer de manière inattendue si elle est branchée.
16. Cette pompe est composée de matériaux anticorrosion hautement résistants. Correctement installée, entretenue
et utilisée, elle offre un fonctionnement sans failles sur une longue durée. Cependant, une alimentation électrique
inadéquate de la pompe, la présence de salissures ou de débris peuvent provoquer une panne de la pompe. Lire
attentivement le manuel et suivre les instructions relatives aux problèmes courants liés àcette pompe, ainsi que
les mesures àprendre pour y remédier.
17. Gardez les doigts et les objets étrangers àl'écart de la ventilation et des autres ouvertures. N'insérez AUCUN
objet dans le moteur.
