KAASPEED K1 User manual
Electric Scooter Instruction Manual
11
9
8
10
5、6、7
4
2、3
1
Welcome to KAASPEED!
Table of Contents
Thank you for choosing the electric recreational scooter (hereinafter referred to as the electric scooter), the electric scooter is a
fashionable sports entertainment equipment.
1.Products and Accessories -------------------------------------------------------------------------------------
2.Scooter Diagram ---------------------------------------------------------------------------------------------
3.Body Assembly and Charger Connection ------------------------------------------------------------------------
4.Safety Notice -------------------------------------------------------------------------------------------
5.Driving Precautions ------------------------------------------------------------------------------------------
6.Maintenance -------------------------------------------------------------------------------------------------
7.Technical Specifications --------------------------------------------------------------------------------------
8.Trademark and Legal Declaration -------------------------------------------------------------------------------

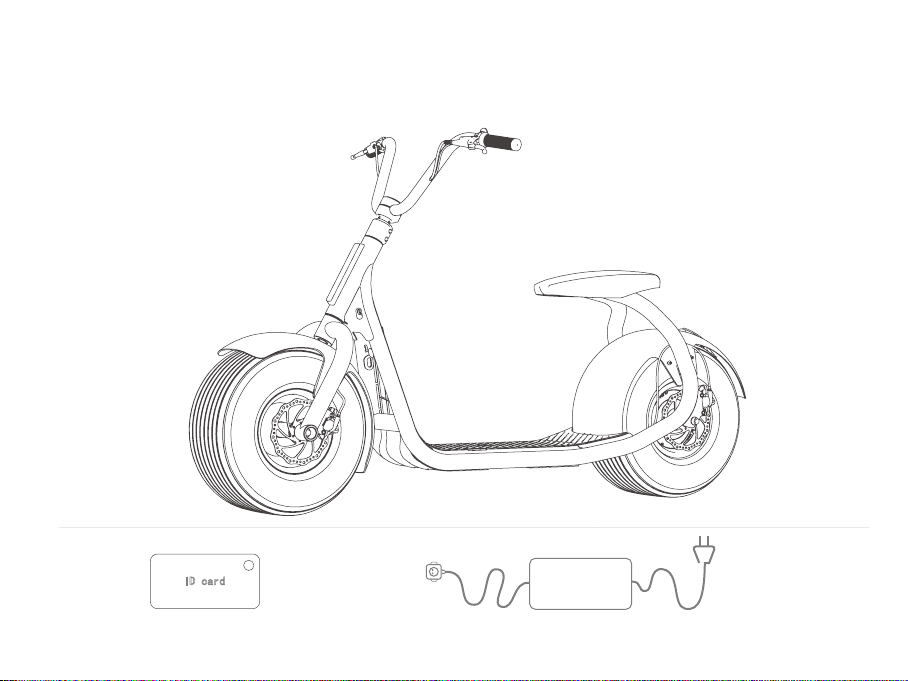

1 Products and Accessories
Whole vehicle
1
Parts
smart ID card charging adapter
Please check carefully whether the items in the packing box are complete. If there are any defects or breakages, please visit the
www.kaaspeed.com or call Xiaoka customer service phone 400-9606-520 for consultation.
ID card
X 2
X 1
X 1
2
2 Scooter Diagram
Due to the continuous improvement of product function and design changes, model may vary by generation.
Please take the actual product as the standard.
LED daytime running light
Charging socket
Lock
Brake handle
Brake handle
LED Tail Light
Hub motor
Digital display
Throttle
Hydraulic
disc brake Hydraulic
disc brake
Digital Display and Function
20mph
20％
speed Speed Gear
Button
Single click to switch between speed,
battery life and remaining mileage
Double click button
to switch gear
Press two seconds to turn on
or turn off
SPEED
Button
Single click to switch between speed,
battery life and remaining mileage
Double click button
to switch gear
Press two seconds to turn on
or turn off
--:42km/h (26mph)
- :24km/h (15mph)
Button
LOCKED
long press two seconds to turn on
Use smart ID card to unlock vehicles
by holding ID card against lock screen.
20
Remaining
Mileage
mi
Speed Gear
Button
Single click to switch between speed,
battery life and remaining mileage
Double click button
to switch gear
Press two seconds to turn on
or turn off
TO GO --:42km/h (26mph)
- :24km/h (15mph)
Battery
Life
Speed Gear
--:42km/h (26mph)
- :24km/h (15mph)
3
3 Body Assembly
Charger Connection
Open the rubber plug Plug in Close the rubber plug
after charing
4
Pay attention to avoid safety hidden danger
4 Safety Notice
Avoid driving in the rain
Please dodge obstacles when riding Do not speed up on the downhill
Do not ride at high speed when passing through very uneven roads such as deceleration
strip/elevator threshold/pitted road surface. Keep low speed on rough roads (3-6mph).
5
Do not try dangerous actions
Caution. Follow local traffic rules. Do not
ride scooters on highway
Do not ride electric scooter up and down stairs or
jumping obstacle
Don't turn throttle handle when walking
along electric scooter
Do not drive over water puddle over 0.8 inch deep
6
Safety Tips
The electric scooter is designed for sports entertainment use. If you drive into a public road or area, there exists the risks similar
to other vehicles may exist. You must abide your local traffic laws and follow guidance provided in this manual.
Do not lend electric scooters to people who are unfamiliar with riding to avoid injuries. If you decide to lend electric scooter to your
friends, you are responsible to their safety and training.
Give your electric scooter a pre-riding inspection before each use. Do not operate if there are visible loose parts, the tire pressure
appears low or tire overworn, and abnormal noise when turning. Check with local bike shop or contact [email protected]
for assistance.
Driving into public roads or areas, you may encounter in road traffic injury risk due to improper driving/operations caused by others
even you follow this safe driving guide completely. Just like the exposures pedestrians and bicyclists have shared the roads. As with
all vehicles, the faster you drive, the longer it takes for your vehicle to stop. Hard, sudden brake may cause skidding to lose balance
or even fall. Therefore, it is important to be aware of your surroundings, be vigilant at all times, drive under proper speed, and keep
reasonable safe distance from others to give yourself enough distance to stop. Especially when you drive into an unfamiliar area,
stay alert and drive slowly.
For new riders, it is strongly recommended to start with low speed setting and practice in a safe area to get yourself familiar with
controlling the scooter.
Please respect the pedestrians right of way when driving. Stay clear of pedestrians at all times and stay off walkways.
7
5 Driving Precautions

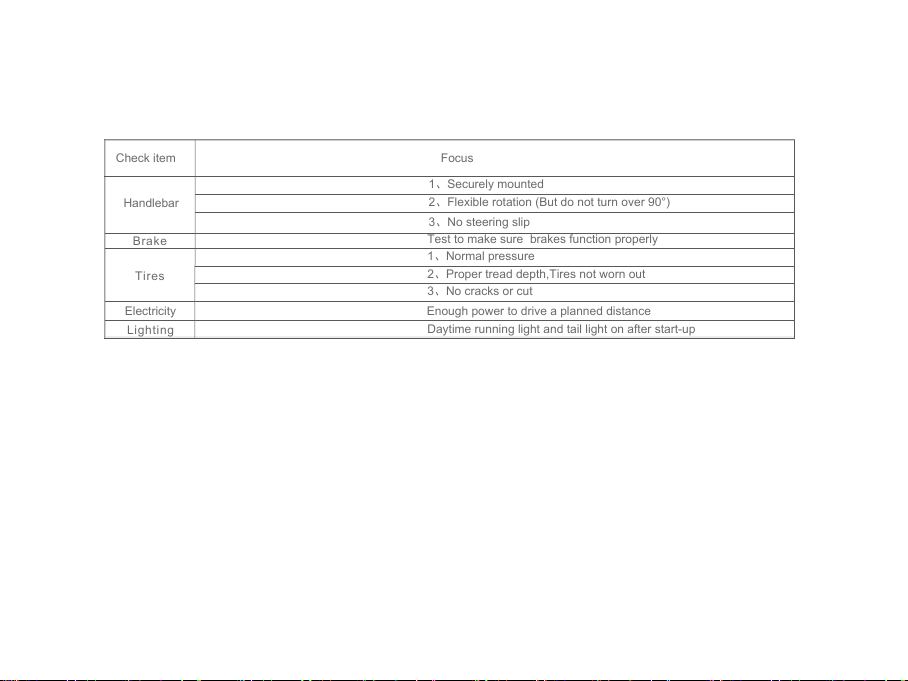

Check item Focus
Handlebar
1、Securely mounted
1、Normal pressure
2、Proper tread depth,Tires not worn out
3、No cracks or cut
Enough power to drive a planned distance
Daytime running light and tail light on after start-up
Test to make sure brakes function properly
2、Flexible rotation (But do not turn over 90°)
3、No steering slip
Brake
Tires
Electricity
Lighting
Pre-driving inspection
Braking Use
Check before riding your scooter. Don’t ignore the importance of inspections.
1、Before braking, keep your body upright.
2、Tires may be locked and lose turning capability if too much force is applied to the brakes. In this case,
release the brake handle to unlock the tires.
3、Apply front and rear brakes evenly as much as possible.
4、The products have a certain degree of water resistance, but not completely water proof.
Do not let water go beyond the bottom of battery compartment.
Notice: Using only one brake will cause excessive brake pad wear and increase braking distance.
Warning: It is dangerous to use only the front or rear brake which may cause skidding or loss of control. Especially on slippery or curved roads,
you must slow down and use brake properly.
8
6 Maintenance
Safety notice
Maintenance of battery for electric scooter
If there appears stain on the surface of electric scooter body, use a damp soft cloth to wipe it. For tough stains, use gentle non
-corrosive cleaning materials.
Tip: Avoid cleaning using alcohol, gasoline, kerosene or other corrosive or flammable volatile chemical solvents.
They cause damage to body appearance and internal structures. It is prohibited to use pressure water gun spray to clean.
Before cleaning, ensure that the electric scooter is shut down, cable unplugged and the rubber cover of the electric port closed
to avoid serious damage or failure to the scooter.
When not in use, try to store electric scooters in dry and shady places indoors, so as to avoid prolonged storage in the open air.
Outdoor environments such as sunlight exposure / superheating / overheating accelerate the appearance of electric scooter and
tire aging and reduce the service life of electric scooters and battery packs.
1.Do not use other models or brands of battery pack, otherwise there may be safety risk.
2.It is forbidden to touch battery contacts and dismantle or pierce the shell. Avoid metal objects touching battery contacts causing
short circuits. Otherwise, it may cause damage to the battery or casualties.
3.Only use original charger provided.
4.Improper disposal of waste batteries may seriously pollute environment. Dispose batteries according to your national or local
regulation. Protect natural environment together.
5.After each use, please fully charge battery again to extend the battery life.
Don’t place batteries at temperature above 123°F or below -4°F, for example, do not put the electric scooter or its battery inside
cars exposed to summer sun. Prohibit to put batteries into fire, otherwise it may cause battery failure, overheating and even fire risk.
If you do not use battery for more than 30 days, charge batteries to full power first. Store the batteries in a cool dry place and
recharge every 60 days. Otherwise, the battery may be damaged.
Tip: Fully charged electric scooter runs out of battery life completely around 120 days after standby. There is intelligent chip inside the
battery to record battery charge and discharge. Damage caused by long time no charge will limit the battery capability to be recharged.
This damage is not reversible or recoverable.
Note: Non-professional is prohibited from disassembly of battery packs arbitrarily. Improper disassembly may cause safety accidents
or damage to the battery.
9
Range：Under full power, 165lb load, 77°F and flat pavement without wind environment, Actual range may vary due to load, weather,
road conditions, operation habit or other factors.
Tip:The data and parameters vary with different models.If there are any changes, no notice shall be notified.
All technical information is based on the actual product performance, and Xiaoka Intelligent Technology (Taicang) Co., Ltd. reserves
final interpretation.

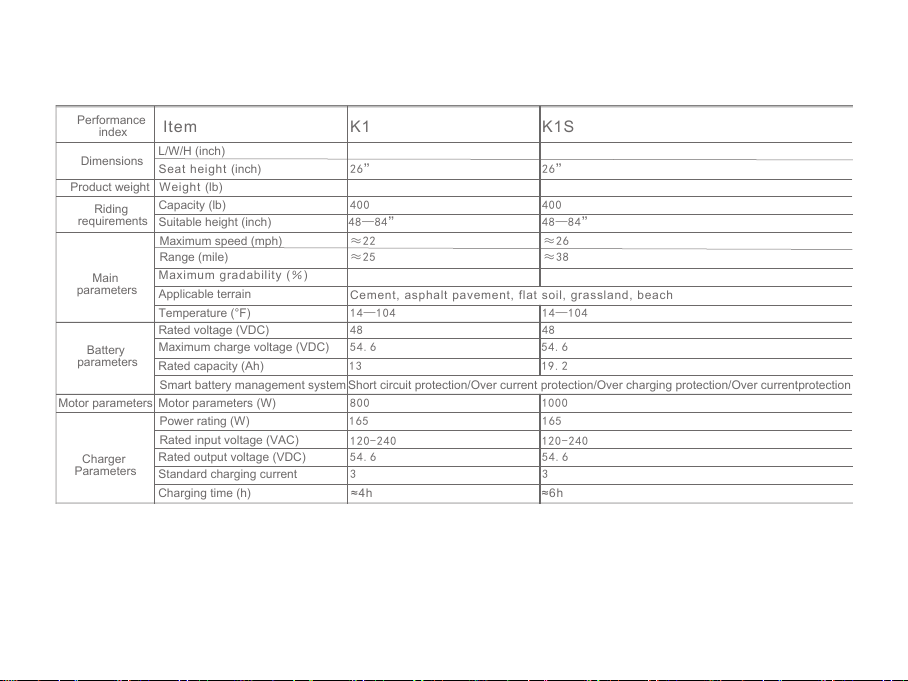

7 Technical Specification
Performance
index Item K1
Dimensions
Product weight
Riding
requirements
Main
parameters
Battery
parameters
Motor parameters
Charger
Parameters
L/W/H (inch)
Seat height (inch) 26” 26”
Weight (lb)
400 400
48—84” 48—84”
≈22 ≈26
≈25 ≈38
Cement, asphalt pavement, flat soil, grassland, beach
14—104 14—104
48
13 19.2
54.6 54.6
48
Short circuit protection/Over current protection/Over charging protection/Over currentprotection
800
165
120-240
54.6
33
54.6
120-240
165
1000
≈4h ≈6h
Capacity (lb)
Suitable height (inch)
Maximum speed (mph)
Range (mile)
Maximum gradability (％)
Applicable terrain
Temperature (°F)
Rated voltage (VDC)
Maximum charge voltage (VDC)
Rated capacity (Ah)
Smart battery management system
Motor parameters (W)
Power rating (W)
Rated input voltage (VAC)
Rated output voltage (VDC)
Standard charging current
Charging time (h)
K1S
69x31x41”
69x31x41”
≈95 ≈105
22 22
10
is a registered trademark of Xiaoka Intelligent Technology Nantong Co., Ltd. (hereinafter referred to as Xiaoka). Xiaoka reserves all rights
to trademarks.
www.kaaspeed.com
8 Trademark and legal declaration
Actual product functions may not match instructions due to technical upgrades and firmware updates. To get updated features and guidelines for safe
usage please visit website www.kaaspeed.com
Service phone：400-9606-520
This manual is made and owned by Xiaoka Intelligent Technology Nantong Co., Ltd. and has the copyright. Any unit or individual shall not use, copy,
modify, disseminate or sell any part of this manual without the written permission of Xiaoka.
This manual has included functions and instructions as much as possible.However, due to the continuous improvement of product functions and design
changes, there may still be discrepancies with the products you purchased. Due to product renewal, this manual may deviate from actual product color
appearance etc. Please take actual product as reference.
Client: Xiaoka Intelligent Technology (Taicang) Co., Ltd.
Manufacturer: Xiaoka Intelligent Technology Nantong Co., Ltd.
Address: Building 3, No.18, Lujia North Road, Taicang City, Jiangsu Province, China
Note:Xiaoka Intelligent Technology (Taicang) Co., Ltd. is a wholly owned subsidiary of Xiaoka Intelligent Technology Nantong Co., Ltd.
11
Kaaspeed-USA, Inc.
Service phone：1-833-KAASFUN (1-833-5227386)
Xiaoka and its affiliated companies will not bear any direct and joint liability for the property damage, personal loss, accident, legal dispute and all
other adverse events resulting from the violations of the use of actions indicated in this Manual.
This manual suits for next models
