Technical Guidebook

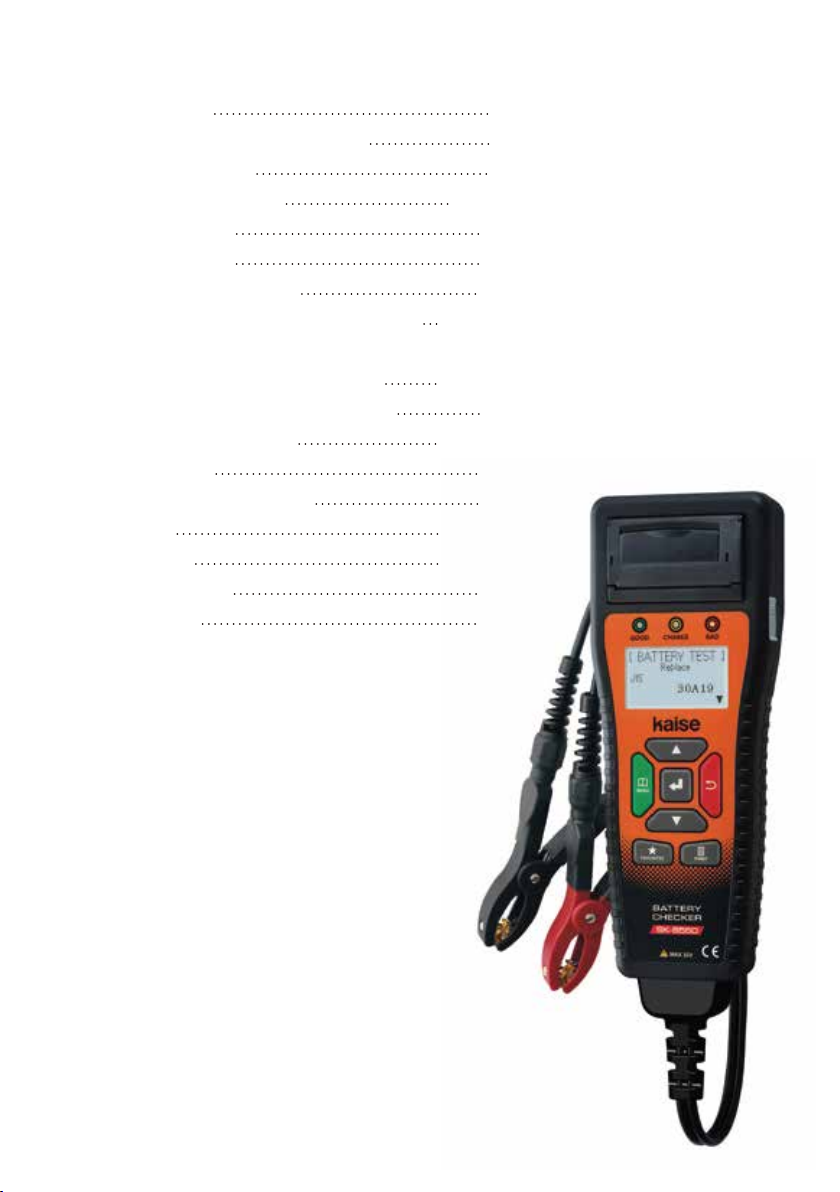

SK-8550 BATTERY CHECKER

1
Lead battery equipped with the vehicles is a kind of consumables which could be
exhausted accidentally or suddenly, especially in case of the weak maintenance condition.
Battery trouble is increasing in recent years by reason of a lot of car electrical devices, or
fuel-efficient systems such as start-stop system or braking energy recovery system that
could put an excessive burden on the battery.
Accurate and periodical battery check comes to be more important to prevent battery
trouble and to maintain the battery in good condition.
The most major roadside assistance is,
Battery Trouble！
*1
MARKET DEMAND
Battery trouble
Tire change
Auto lockout
Tire trouble
From Apr. 2014 to March 2015
Traffic accident
Fuel delivery
Alternator trouble
Starter motor
Steering lock
Other reasons
Battery trouble
38.6%
Battery trouble :
Signicant percentage at 38.6％!
*1 According to the survey by Japan Automobile Federation.
*2 Braking energy recovery system : Fuel reducing system to stop generating from alternator when accelerating, and to regenerate and
recharge the battery when braking.
*3 Start-stop system : automatically shuts down and restarts the automobile engine to reduce the engine-idling time.

2
UPGRADED FUNCTIONS FOR SK-8550
No need of complicated operation for printing. Just
pressing this key in the Test Result screen, you can
print out the result immediately.
④Direct Print Key
Easy-to-read white LCD with backlight.
②Blighter LCD
Toughly-improved connector prevents cable disconnection
under battery checking.
⑦Tough Cable Connector
You can see the test count history stored in the internal
memory. This function is useful to check the sales rate of
the tested batteries.
⑤Test Count Display

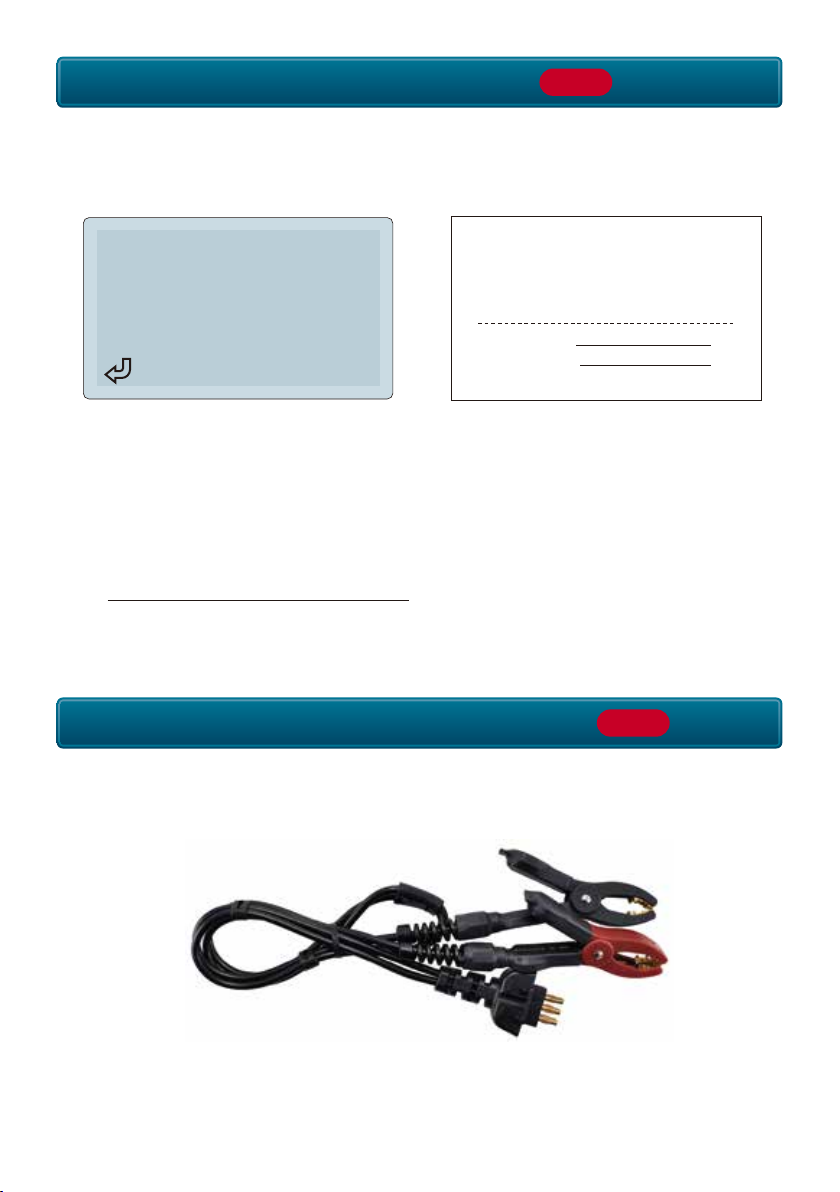

Unfortunately, battery cable tends to be damaged under
tough battery checking. For SK-8550, you can replace the
cable easily at your side.
⑥Detachable Battery Cable
You can print a store name or sales coupon on the printing
paper as “Header”and “Footer”. Favorite image and words
can be added by downloading “Head/Footer Editor
Application”from KAISE website.
*1：As image printing and Japanese input software (as of Feb. 2016)
①Header/Footer Function See page 4
New &1st
*1
New &1st
*2
You can bookmark the frequently-test battery as
“Favorites”. This function allows easy battery setting when
testing.
※Also effective for CCA／mΩinput batteries.
※2：as of February, 2016
③Bookmark the
Battery as Favorite See Page 12
See Page 13
See Page 13

3
FEATURES OF SK-8550
①Supported with the newest JIS standards. EN/DIN and SAE/BCI applicable.
②5-grades testing results.
③Double Differential Pulse Measurement for accurate measurement
④The newest data base and software program for testing the batteries
corresponding to start-stop system and braking energy recovery system.
⑤Auxiliary battery checking for hybrid vehicles.
⑥Start performance test and charging system test for 12V & 24V batteries.
⑦Easy-to-read printing paper from built-in printer.
⑧Header/Footer Function enables to print store name or sales coupon.
※Internet access is required to use this Header/Footer function.
⑨Detachable battery cable which allows easy cable replacing.
⑩Unused battery test mode to check the in-stock battery conditions.
⑪Industrial battery (deep cycle battery) testing.
⑫Test Count Display that can store the test count history in the internal memory
(resettable).
⑬Capable of saving up to 359 test results data in the internal memory.
⑭PC output of the saved test results as text data.
⑮Temperature sensor embedded in the battery clip performs temperature
adjustment for more accurate testing.
⑯Free software upgrading through KAISE website.
※Internet access is required.
High Valued
Professional Battery Checker!

4
See page 32 of instruction manual for more details of Header/Footer Editor Application
and for free image templates download.
You can print a store name or sales coupon on the printing paper as “Header”and “Footer”.
Favorite images and texts can be added by downloading “Head/Footer Editor Application”
from KAISE website.
In addition to make the original images, free image templates are also available in the KAISE
website. Just downloading these images, you can make the attractive printing paper easily.

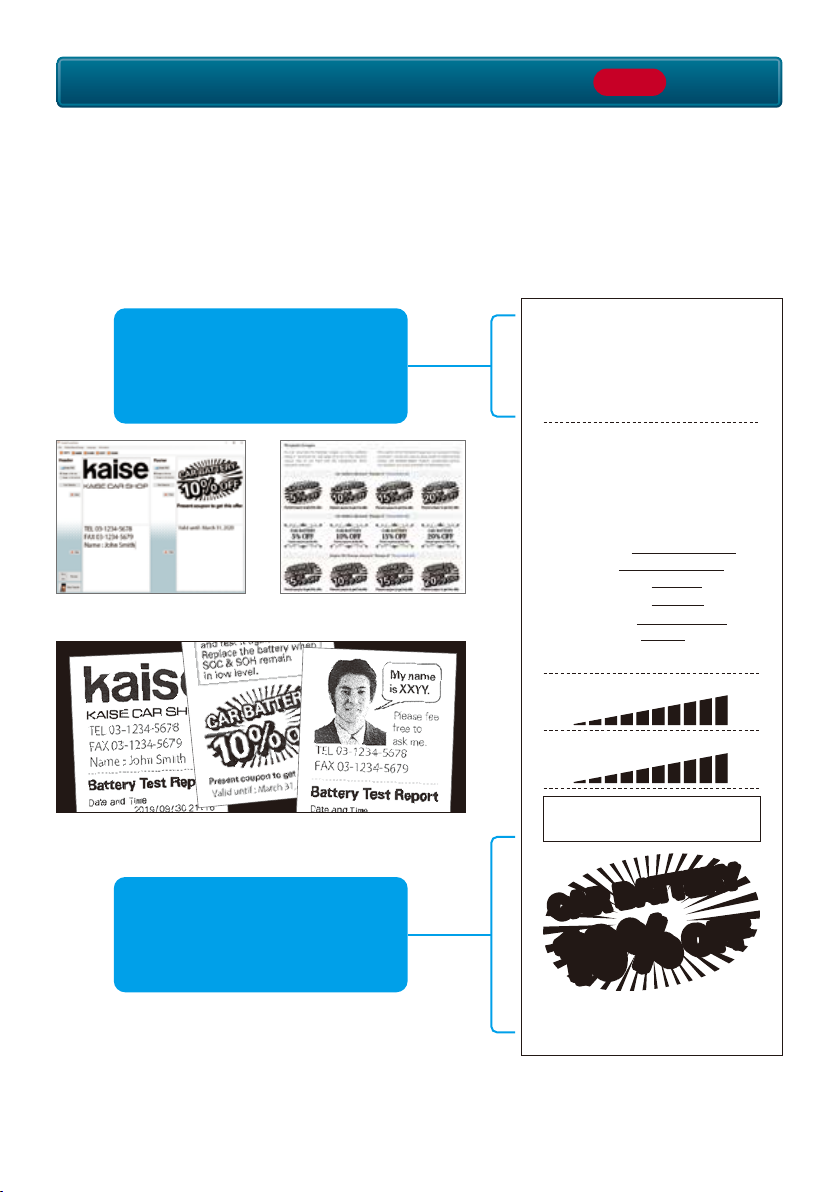

HEADER / FOOTER FUNCTION
Free image templates download!
NEW!
Free image templates are available
in KAISE website.
HEADER
Store name, etc.
(up to 5 data can be saved.)
FOOTER
Sales promotion coupon
or advertisement
Header/Footer editor application
Company logo or pictures can be added by using the original images.
※Image editor software is required to save the original images.
Test Result : Good
Date and Time
2018/03/15 15：00
(Aging Test Mode)
Battery Test Report
Periodical test is
recommended.
SOC (State of Charge)
: 100
％
SOH (State of Health) : 100 ％
Battery Type
Model No.
Measured CCA
Battery Voltage
Temperature
Testing Mode
JIS
Q-85
615CCA
12.780V
24℃
Charge controller / Idle Reduction
10％
10％ 10％
CAR BATTERY
CAR BATTERYCAR BATTERY
OFF
OFFOFF
Valid until : March 31, 2020
Present coupon to get this offer.
ABC CAR SHOP
TEL [phone]
FAX [phone]
Name : John Smith

5
HEADER / FOOTER FUNCTION NEW!

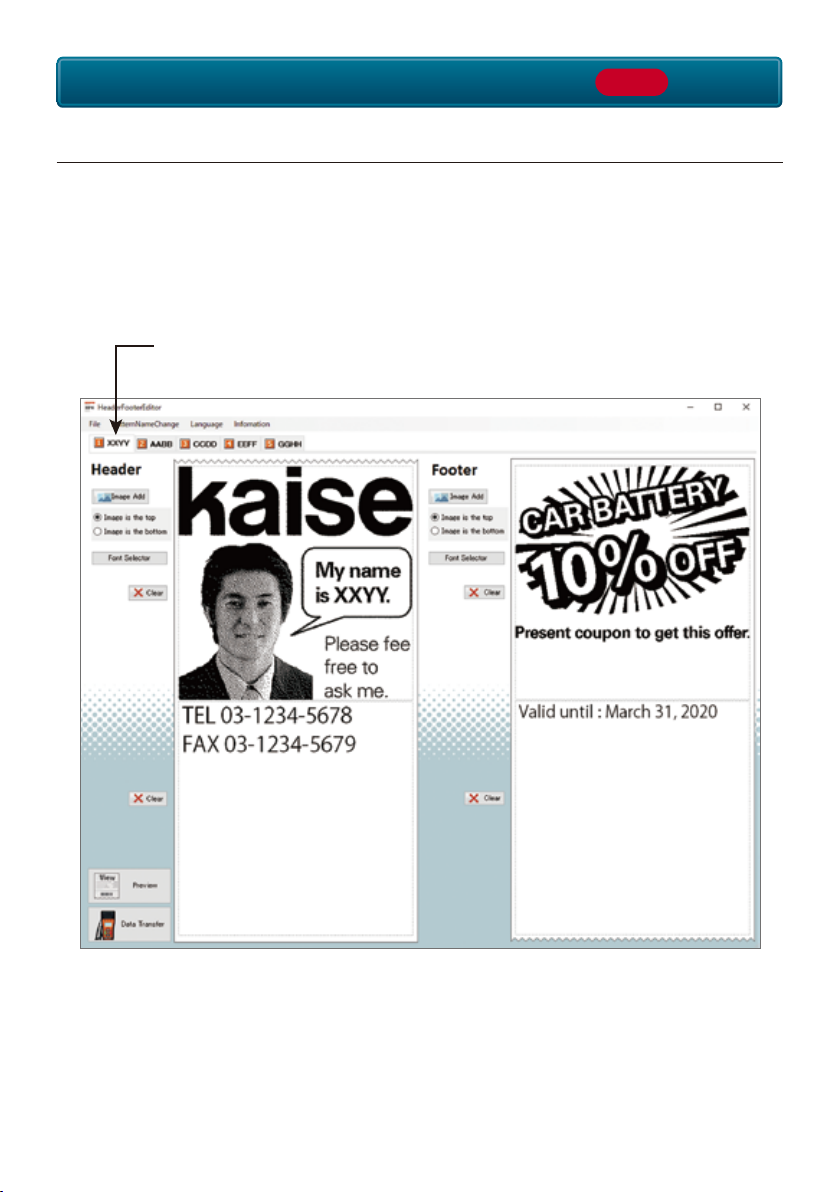

①Paste company logo or picture data on the Paint App. Add text balloon, and the adjust
the image layout.
※See “HELP”to get help on using “Paint”.
Printing company logo or pictures on the Header is recommended to make the attractive
test report. Try to make the original image by using “Paint”, the pre-installed image editor
App for Windows PC.
Make the Original Image with an Image Editor Software!
Text balloon Help
Past the image
Insert text
Header : Making the Original Image

6
HEADER / FOOTER FUNCTION NEW!
②Crop the image without any blank spaces.
Crop Crop the image to be like this.
TIPS！
High-contrast picture is recommended
to get beautiful print out.

7
HEADER / FOOTER FUNCTION
③Click “Resize”. Choose “Pixels, and type ”380”in Horizontal.
NEW!
Resize Choose “Pixels”
Type “380”in Horizontal
TIPS！
The maximum Header/Footer image size is 380×380 pixels. Making the
image with this pixels is recommended to get beautiful print-out.
The image less than 380×380 is printed in the center of the paper width. The
image more than 380×380 is automatically shrunk.
The maximum Header/Footer image size is
380×380 pixels！
Make the image with this pixels！

8
HEADER / FOOTER FUNCTION
④Save the image as BMP picture.
⑤Set “Save as type”to “24-bit
Bitmap”, and save the image
into the Image folder of the
Header/Footer Editor Application.
※See page 31 of instruction
manual how to download the
Header/Footer Editor Application.
NEW!
⑥Making original image is done. See page 36 of instruction manual how to use this
image.
24-bit Bitmap

9
HEADER / FOOTER FUNCTION NEW!
You can save up to 5 image patterns in the Header/Footer Editor Application.
Pattern name can be changed freely such s mechanicʼs name, etc.
Change the Image Pattern Name to be More Useful
You can change the pattern name here.
(In this example change to the mechanicʼs name.)
Changing the Pattern Name

10
HEADER / FOOTER FUNCTION NEW!
When printing the coupon on the footer, changing the contents depending on the test results is
recommended for more effective sales promotion. Refer to the following examples. (for details,
see page 41 of instruction manual.)

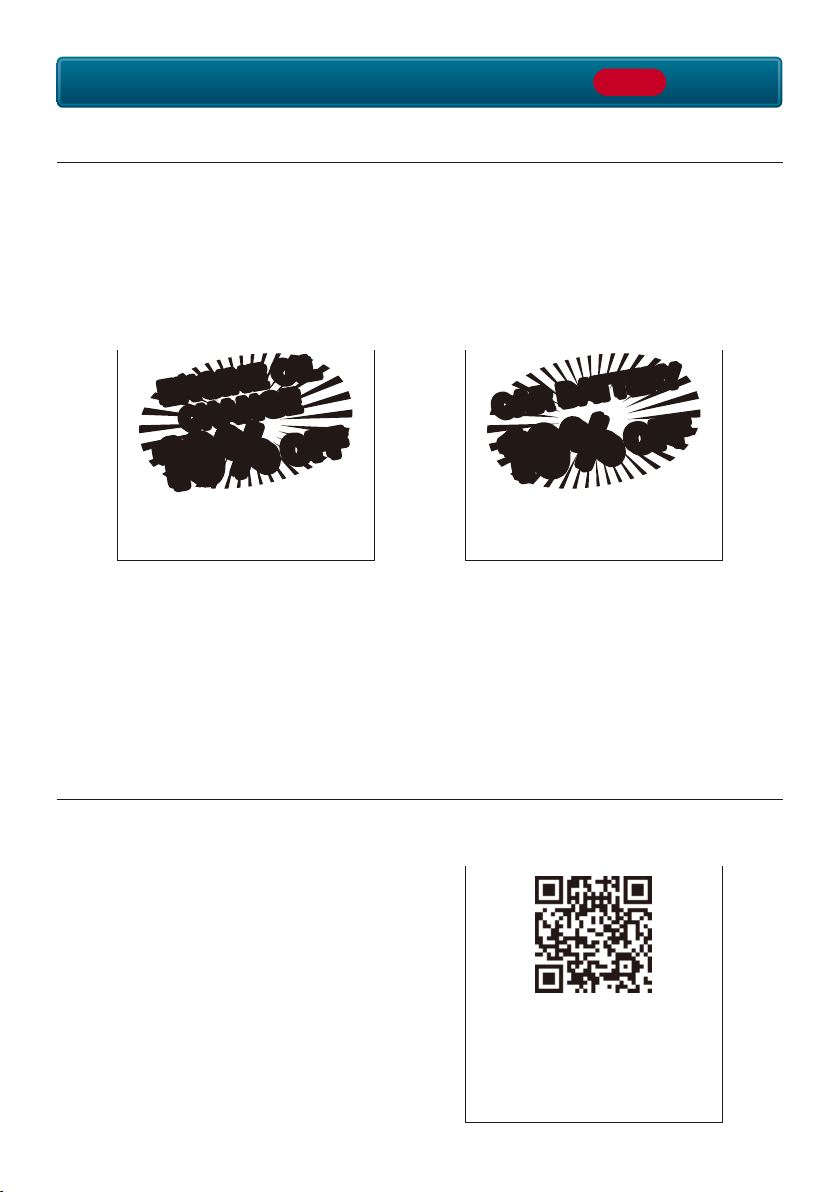

Print the Individual Footers for EachTest Result!
You can print QR code on the footer by
saving its image in the Header/Footer Editor
Application.
This is useful to guide the customers to your
website to get mode detailed information or
sales campaigns.
※You cannot create QR code in the
Header/Footer Editor Application.
Print QR Code on the Footer!
You can print the individual footers
depending on the test results!
Test result : Good or Good/Change Test result : Attention or Replace
Footer : Making Individual Footer
www.kaise.com
Footer : More Practical Example
※QR code is registered trademark of Denso Wave Incorporated.
10％
10％ 10％
CAR BATTERY
CAR BATTERYCAR BATTERY
OFF
OFFOFF
Valid until : March 31, 2020
Present coupon to get this offer.
Valid until : March 31, 2020
Present coupon to get this offer.
10％
10％ 10％OFF
OFFOFF
ENGINE OIL
CHANGE
ENGINE OIL
CHANGE
ENGINE OIL
CHANGE
Visit our website
for campaign details.

11
HEADER / FOOTER FUNCTION NEW!

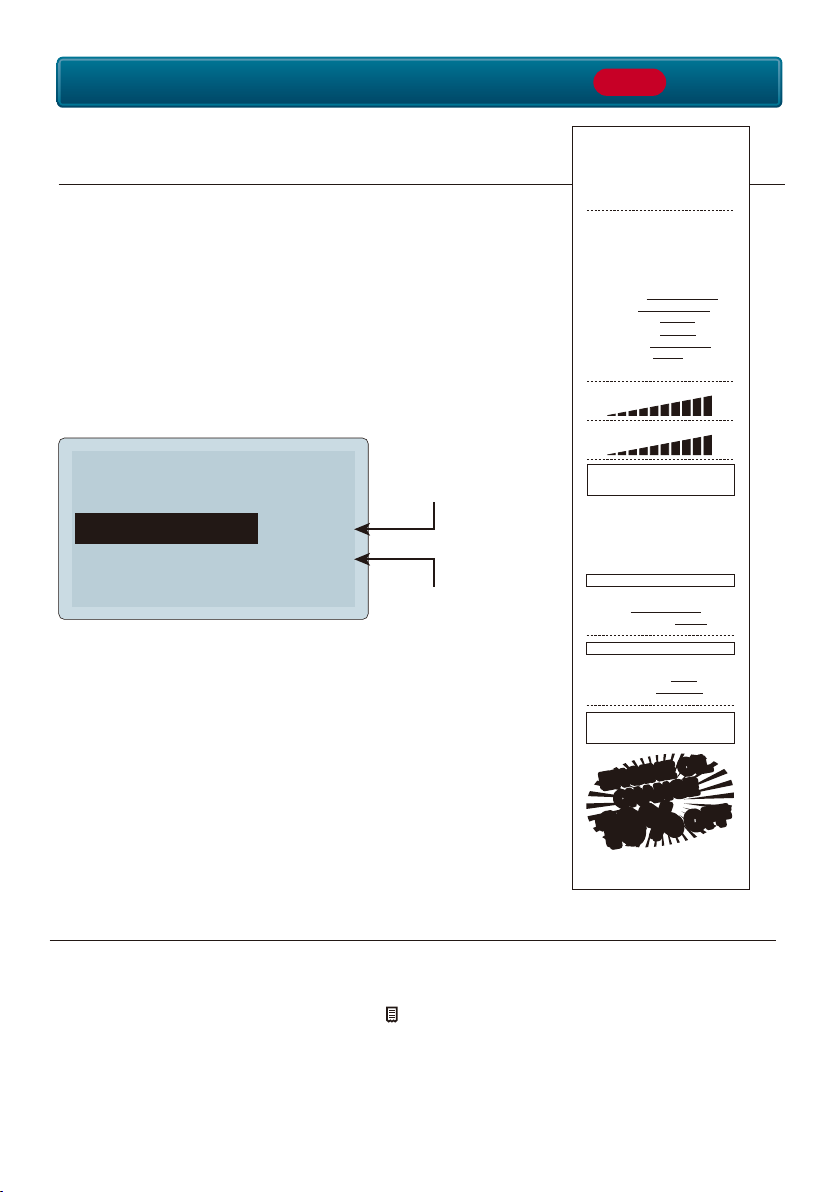

Set No-Footer for Battery Test,
No-Header for System Test!
To print the results of Battery Test and System Test
in one paper, set Battery Test as “No Footer”and
System Test as “No Header”. See page 39 of
instruction manual for details.
How to set Header / Footer When Printing
Battery Test and System Test Results in One Paper
Header/Footer Setting
Battery Test １No
System Test No １
PRINT Key : Test
No Footer
printing
No Header
printing
Use Test-Print Function to Check Header/Footer!
Check Header / Footer Design
You can print test-print paper by pressing PRINT Key in the above Header/Footer Setting
screen. This function is useful to check Header/Footer design.
Test Result : Good
Date and Time
2018/03/15 15：00
(Aging Test Mode)
Battery Test Report
Periodical test is
recommended.
SOC
(State of Charge)
: 100 ％
SOH
(State of Health)
: 100 ％
Battery Type
Model No.
Measured CCA
Battery Voltage
Temperature
Testing Mode
JIS
Q-85
615CCA
12.780V
24℃
Charge controller / Idle Reduction
Valid until : March 31, 2020
Present coupon to get this offer.
ABC CAR SHOP
TEL [phone]
FAX [phone]
Name : John Smith
10％
10％ 10％OFF
OFFOFF
ENGINE OIL
CHANGE
ENGINE OIL
CHANGE
ENGINE OIL
CHANGE
System Test Report
Date and Time
2018/03/15 15：00
(12V System)
Test Result : Good
Test Result : Good
Periodical test is
recommended.
START PERFORMANCE TEST
CHARGING SYSTEM TEST
Cranking
Start Performance
8.619V
100％
Charging Voltage
Ripple Voltage
14.523V
0.110V

12
FAVORITES FUNCTION NEW!
★FAVORITES ▲▼
01/M-42
02/60B24
03/55D26
04/S46B24
★FAVORITES ▲▼
01/Forklift 001-015
02/Forklift 016-022
03/Forklift 023-030
04/Forklift 031-038
You can bookmark the frequently-testing batteries
as “Favorites”. This function is useful for easy
battery setting when testing.
■
Favorites List
You can rename the battery when or after saving
to the favorites list.
（in alphabet / numeral / symbol / digit）
■
Renaming the Battery
You can save mΩvalue of industrial batteries to
favorites list. Renaming it to the practical name
like left figure is useful for quick testing.
■
Saving Industrial Battery
You can save CCA rating of EN(DIN) and SAE(BCI)
batteries to favorites list. Renaming it to the
battery model name like left figure is useful for
quick testing.
■
Saving the CCA Rating to
Favorites List
★FAVORITES ▲▼
01/20-72（AC Delco）
02/SL-6C（BOSCH）
03/572-20（ATLAS）
04/1050S（OPTIMA）
Q-85
▲▼：Select ：Enter
MENU：space
★：Input(Upper Case)
：Delete PRINT：Exit

13
You can see the test count history stored in the internal memory, just choosing “View Test
Count”in the MENU screen.
This function is useful to calculate the sales rate of the tested batteries as below formula
(monthly sales rate, etc.).
Battery cable tends to be damaged under tough battery checking. For SK-8550, you can
replace the cable easily at your side even if it is damaged.
TEST COUNT DISPLAY NEW!
DETACHABLE BATTERY CABLE NEW!
View Test Count
Battery Test 285
Syetem Test 192
Press Hold : Reset
Testing times
Battery sales quantity ×100 ＝Sales rate（％）
Printing out is possibleTest Count Screen
■Battery Cable
Model No.：800
Test Count Report
Date and Time
2018/03/15 15：00
Battery Test
System Test
52
37

14
Vehicle battery has two types of internal resistances. One is "Rohm", the internal resistance
which contained in each battery. Another one is “Ret”, the charge-transfer resistance that
increases in direct proportion to discharge time of the battery current. For the weak
battery, "Ret" becomes higher and that makes the battery discharging time shorter.
Double Differential Pulse Measurement is specified to test the battery twice and input the
calculated "Ret" in the internal CCA calculation. By this method, SK-8550 can assure more
accurate testing than other CCA testers.
■What is CCA?
CCA stands for Cold Cranking Amperes. It is defined as the current a battery at 0°F
(-18°C) can discharge for 30 seconds and maintain at least 7.2V (for JIS, SAE and BCI).
And it is defined as the current a battery at 0°F (-18°C) can discharge for 10 seconds
and maintain at least 7.5V (for EN and DIN). The battery which has the bigger CCA, the
higher ability to start an engine, CCA is one of the criterion for selection of the battery.
Rohm
Charge-transfer
resistance
（Ret）
Discharge Time (T)
Diffusion resistance
Activation reaction resistance
Ohmic resistance
1st measure
“Ret”high (aging)
2nd measure
DOUBLE DIFFERENTIAL PULSE MEASUREMENT
■
What is Double Differential Pulse Measurement?
Increase by
battery
weakness
Battery Internal Resistance(R)

15
■Temperature Sensor
Battery discharging characteristic should be varied according to the battery temperature.
For SK-8550, temperature sensor is embedded in the battery clip enabling to adjust the
battery test data to be under -18℃condition.
In-vehicle batteries are not always in full-charged due to the effects of driving condition or
fuel saving systems. If its charging level is weak, dischargeable CCA value becomes also
lower.
For SK-8550, CCA value corresponds to the charging level of the testing battery.
For testing the battery with low charging level and with low voltage, CCA test result also
becomes low as shown in the chart in the next page.
In another chart comparing measurement characteristics between new and weak batteries,
you can see the charging capacity goes down for the weak battery, and its CCA% value
becomes lower than the new battery.
■For lead-acid batteries, sulfation occurs when they are subjected to insufficient charging
during normal operation. The sulfation clung to the electrode plate can be the resistance
which decreases the battery power.
※What is “Sulfation”? : Crystallization of lead sulfate which occurs when discharging.
DOUBLE DIFFERENTIAL PULSE MEASUREMENT
■
CCA Value Characteristics for SK-8550

16

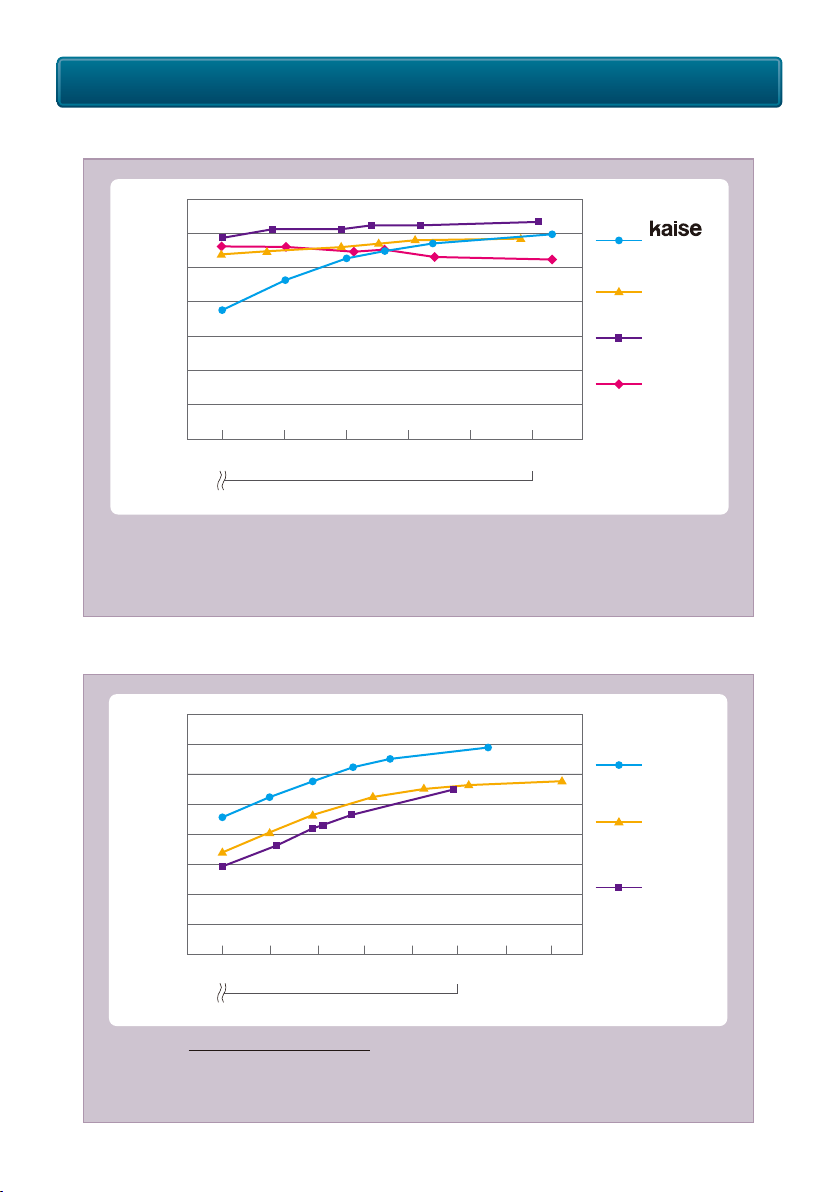

■Measurement characteristics for new and weak batteries (by SK-8550)
Weak battery
（3 years-old）
Weak battery
（5 years-old）
■CCA value comparison : SK-8550 vs. other models
※Measured with the same calcium battery
(as of June, 2013 / our own research)
※Measured under Aging Test mode
※SOC[％] : measured value by SK-8550
※Test result with new calcium battery 135D31, in approx. 25℃
(as of June, 2013 / our own research)
※Comparison with other manufacturerʼs products in similar price level
※SK-8550 : CCA test value in aging test mode
120
105
90
75
60
45
30
15
0
CCA％CCA
12.4 12.512.3 12.6 12.7 12.8 12.9 13.0V Battery voltage [V]
Charge [SOC％]
Charge [SOC％]
900
800
700
600
500
400
300
200
12.3 12.4 12.5 12.6 12.7 12.8 Battery voltage [V]
※CCA％＝ CCA rating value
CCA measurement value
New battery
SK-8550
Model A
Model B
Model C
50 75 100％
50 75 100％
DOUBLE DIFFERENTIAL PULSE MEASUREMENT
※SOC[％] : measured value by SK-8550

17
Start-stop and braking energy recovery systems are essential for the recent vehicles
to improve fuel efficiency and to meet emissions regulations.
These fuel-efficient technologies tend to put a load on battery such as to use under low
charging condition（P-SOC※）, or to take frequent discharging under engine ON and OFF.
Therefore, the battery with high-durability, high-power, and high-charging ability (quick
charging ability) are required for the vehicles with these systems.
Using normal battery for the vehicles with braking energy recovery system should
accelerate the battery weakness and could cause the battery-dead in a short period. For the
vehicles with start-stop system, normal battery cannot be used. Using the specified battery
to cope with the each battery model is required.
SK-8550 can test these special batteries accurately by using their own testing programs.
For start-stop system batteries, model database is available in the SK-8550. You can select
the battery model easily from the battery list displayed on the screen.
※P-SOC (Partial-State of Charge) : Using the battery under low charging condition.
START-STOP & BRAKING ENERGY RECOVERY SYSTEMS
■Charge/Discharge image for the vehicle with start-stop system
Engine
ON
Engine
ON
Engine
OFF
Driving
Charge while driving.
Discharge while engine stopped.
Engine startEngine start
■Charge/Discharge image for the vehicle with braking energy recovery system
Start
Slow down
Stop
DrivingSpeed-up
Charge while driving. Deeply charged under
lower loading status.
Stop charging under
higher loading status.
Stop charging when
fulfill stable capacity.
Discharge
Charge
Discharge
Charge

18
■Batteries for the vehicles with start-stop and braking energy recovery systems
Current sensor
Battery Model Classication by Dimensions
Normal
Battery
B17
B19
B20
B24
D20
D23
J
K
M
N
P
Q
D26
D31
E41
F51
G51
H52
S
T
U
V
W
X
Start-Stop
Battery
Normal
Battery
Start-Stop
Battery
■Model classication
Check the specified model codes as below.
(Example for JIS) 55B24L →N-55 55D23L →Q-55
START-STOP & BRAKING ENERGY RECOVERY SYSTEMS
（SBA S 0101：2006, Battery Association of Japan, for start-stop battery）
Current sensor is attached to the batteries suitable for the vehicles with such
fuel-efficient systems.
eco
Battery
Start-Stop
Battery
