Kalamera KRC-24SS-FR Instruction Manual

Model: KRC-24SS-FR 68L capacity Model: KRC-28ASSE-FR
86L capacity
Instruction Manual & Operation Guide
Compressor Wine Cooler
Please read carefully and follow all safety rules and operating instructions.

2
Contents
I.
IMPORTANT SAFETY INSTRUCTIONS
2
II.
PARTS DIAGRAM
4
LINSTALLING THE STAINLESS STEEL
HANDLE
4
Ill
TEMPERATURE CONTRO
5
IV.
ELECTRIC DIAGRAM
7
V.
INSTRUCTION
7
VI.
VENTILATION
8
VII.
CLEANING
8
VIII.
TROUBLE SHOOTING
8
IX.
CORRECT DISPOSAL OF THIS PRODUCT
9
Please read all instructions carefully and follow all guidelines and rules for
optimum performance and proper appliance usage.
I. IMPORTANT SAFETY INSTRUCTIONS
WARNING
To reduce the risk of fire, electrical shock, or injury when using your appliance, follow these basic
precautions
●Read all instructions before using the Cooler.
●DANGER or WARNING: Risk of child entrapment.
Child entrapment and suffocation are not problems of the past. Junked or abandoned appliances
are still dangerous ... even if they will "just sit in the garage a few days".
●Before you throw away your old Cooler: Take off the door. Leave the shelves in place so that
children may not easily climb inside.
●Never allow children to operate, play with, or crawl inside the appliance.
●Never clean appliance parts with flammable fluids. The fumes can create a fire hazard or
explosion.
●Do not store or use gasoline or any other flammable vapors and liquids in the vicinity of this or
any other appliance. The fumes can create a fire hazard or explosion.
●Do not repair or replace any part of the Cooler or attempt any servicing unless specifically
recommended in the user-maintenance instructions or in published user-repair instructions.

3
Replace the fuse with the same type.
-Save these instructions-
WINE COOLER SAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual for your wine Cooler. Always read and obey all safety
messages.
This is the Safety Alert Symbol. This symbol alerts you to potential hazards that can kill or injure you
and others. All safety messages will follow the Safety Alert Symbol and either the words”
DANGER；’WARNING” or "CAUTION”.
Danger means that failure to heed this safety statement may result in
severe personal injury or death.
Warning means that failure to heed this safety statement may result in
extensive product damage, serious personal injury, or death.
Caution means that failure to heed this safety statement may result in
Iminor or moderate personal injury, property or equipment damage.
All safety messages will alert you to know what potential hazard is, tell you how to reduce the chance of injury, and let you know
what can happen if the instructions are not followed.
FLAMMABLE REFRIGERANT GAS
DANGER - Risk of fire or explosion. Flammable refrigerant used.
DO NOT use mechanical devices to defrost wine Cooler. DO NOT puncture refrigerant tubing.
DANGER - Risk of fire or explosion. Flammable refrigerant used. To be repaired only by trained service personnel.
DO NOT puncture refrigerant tubing.
CAUTION - Risk of fire or explosion. Flammable refrigerant used. Consult repair manual / owner's guide before attempting
CAUTION

4
to service this product. All safety precautions must be followed.
CAUTION- Risk of fire or explosion.Dispose of property in accordance with federal or local regulations.
Flammable refrigerant Used.
CAUTION- Risk of fire or explosion due to puncture of refrigerant tubing. Follow handling instructions carefully.
Flammable refrigerant used.
CAUTION- To prevent a child from being entrapped, keep out of reach of children and not in the vicinity of the Cooler.
II. PARTS DIAGRAM

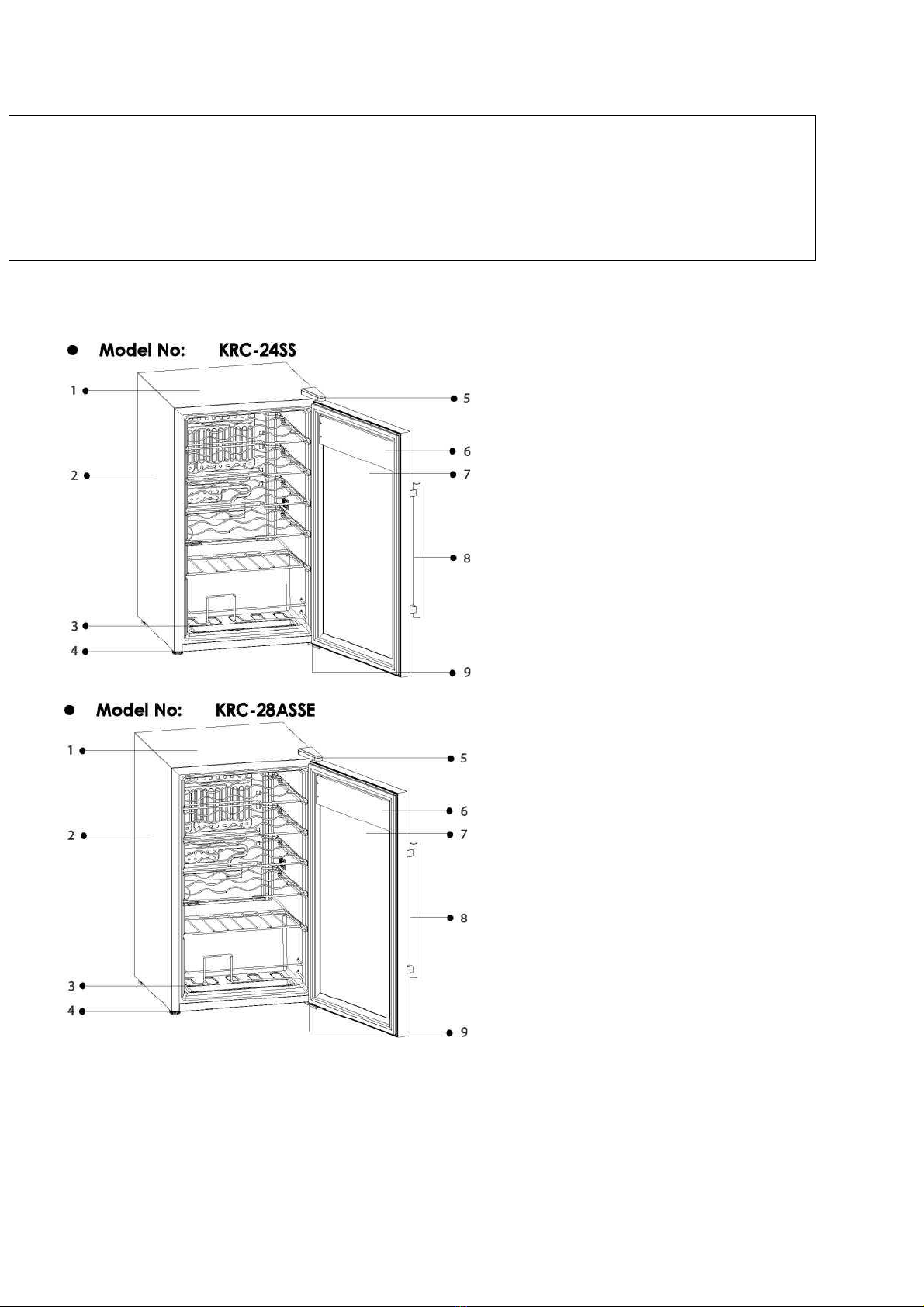

1. Cabinet
2. Shelf
3. Retainer Bar
4. Foot
5. Upper Door Hinge with Cover
6. Control Panel (Exterior Door)
7. Glass Door
8. Stainless steel handle
9. Bottom Hinge
1. Cabinet
2. Shelf
3. Retainer Bar
4. Foot
5. Upper Door Hinge with Cover
6. Control Panel (Exterior Door)
7. Glass Door
8. Stainless steel handle
9. Bottom Hinge

5
»INSTALLING THE STAINLESS STEEL HANDLE
This wine Cooler includes a stainless steel handle.To install the handle please follow the below
instructions:

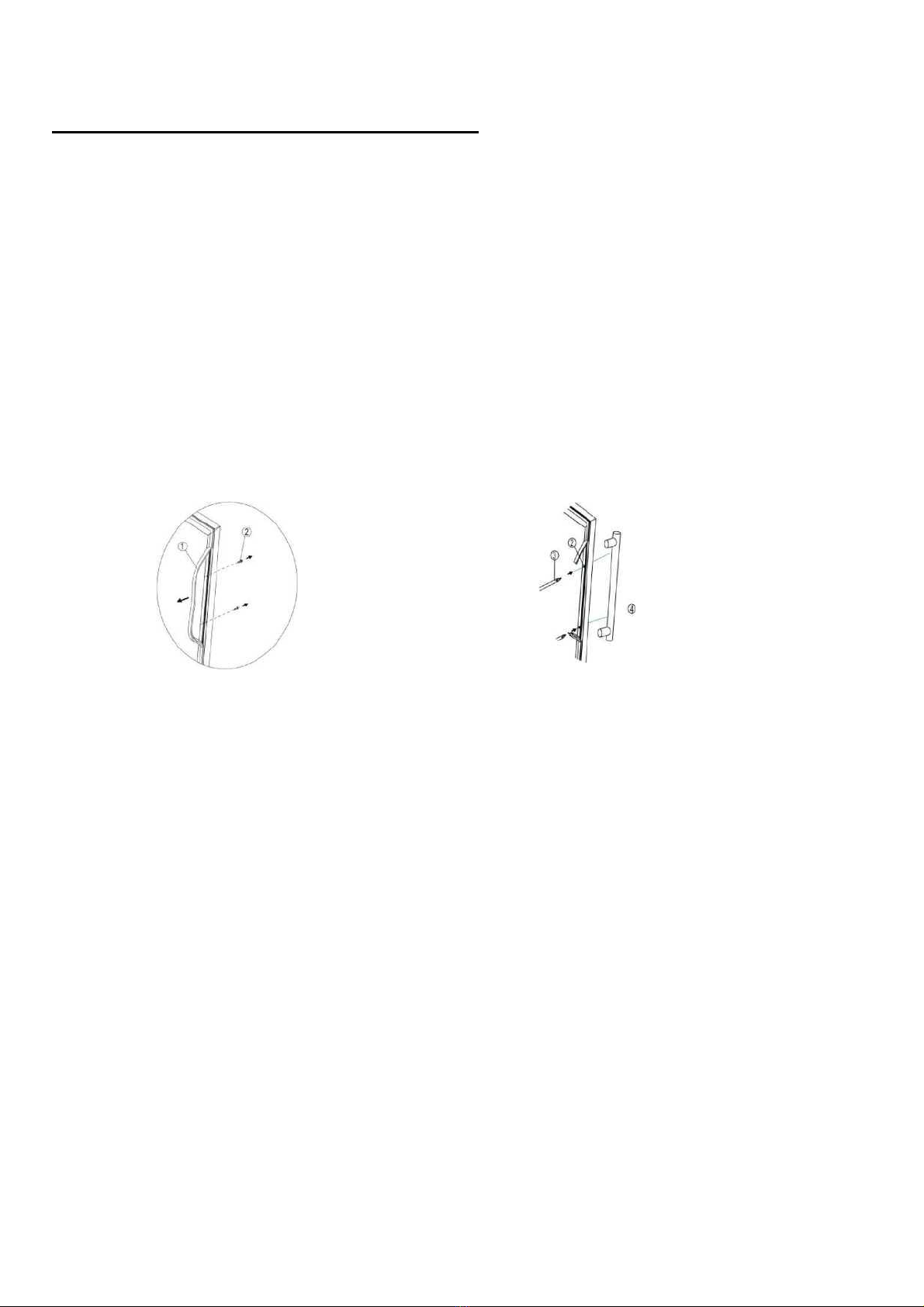

▼Pull away the door gasket in the area where the handle is to be installed on the left side as shown below in
illustration 1. The gasket is easily displaced by hand, no tools are necessary.
▼Align the handle with the screws installed.Tighten the screws using a Phillips head screwdriver until the
handle sets both flush and secured tightly against the door frame. (DO NOT over tighten as this will casue
damage to the handle assembly).
▼Replace the door gasket to its original position.
▼When you use the Cooler for the first time or restart the Cooler after having been shut off for a long time,
there could be a few degrees variance between the temperature you select and the one indicated on the LED
readout. This is normal and it is due to the length of the activation time. Once the Cooler is running for a few
hours everything will be back to normal.

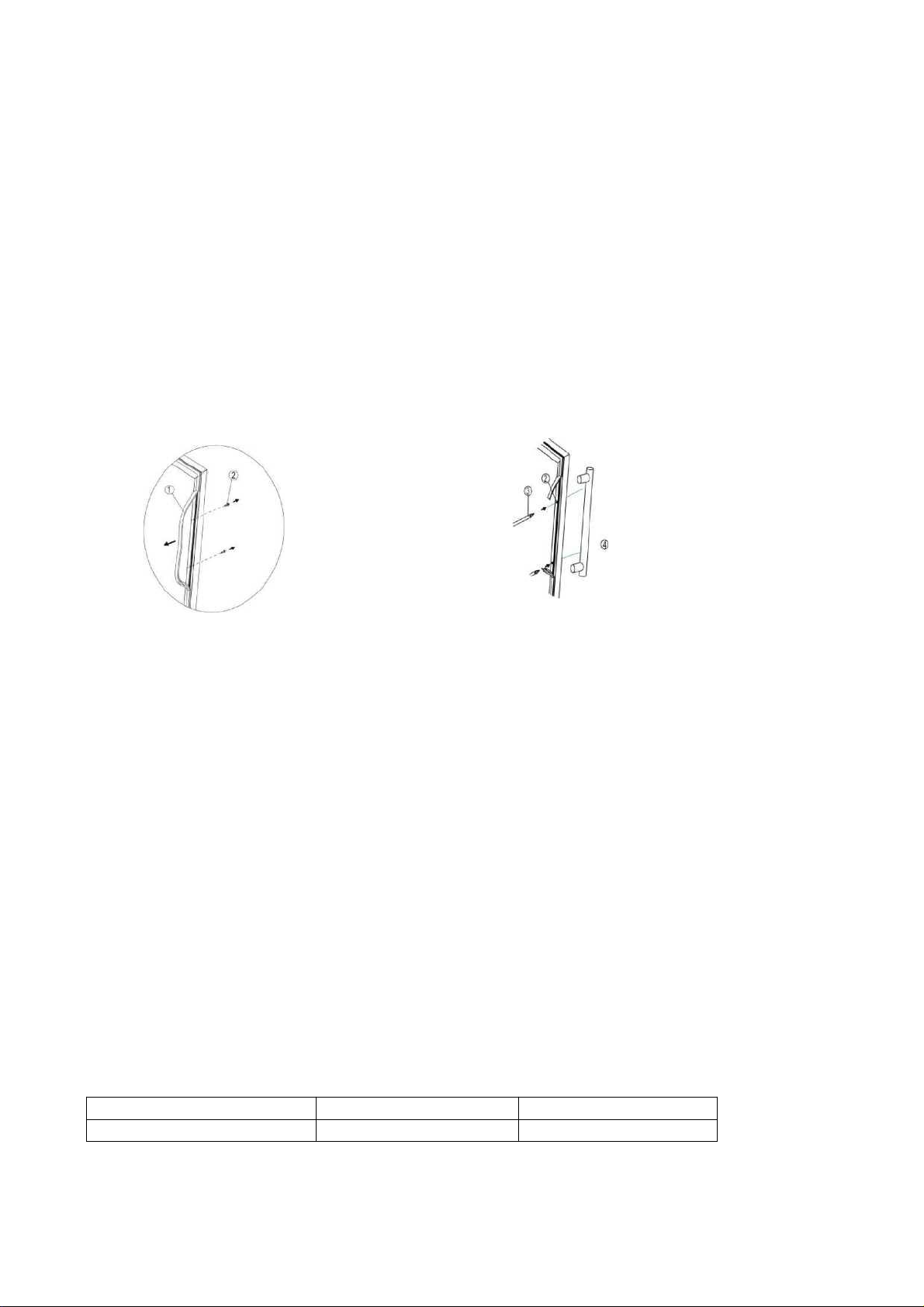

1 .Gasket
3.Phillips Head Screw
2.Phillips Head Screw Driver
4.Handle

6
III. TEMPERATURE CONTROL
• It is recommended that the wine Cooler be installed in an area where the ambient temperature is between
5-32°C (41-90°F).
Temperature Ranges for your Wine Cooler
KRC-24SS-FR
5-18 °C
41-64°F
KRC-28ASSE-FR
5-18 °C
41-64°F
●CONTROL PANEL
▼You can select temperature display between Fahrenheit and Celsius by pushing this button
for 3 seconds.
●SETTING THE TEMPERATURE CONTROL
▼You can manually adjust the temperature inside Cooler by pressing the button on the control board ,
Press the button ▲and ▼can increase or reduce 1°C or 1°F each time .
▼You can turn the interior light on or off by short pressing the button .
The light will be turned off automatically if it remains ON for 10 minutes. You have to push the
"Light" button again to turn it back on.
▼If the unit is plugged on with no button operation on the control panel over 30s, it will be locked
automatically .You can unlock the unit by pressing the Fahrenheit and Celsius button .
• Note:
▼If the unit is unplugged, the power is lost or turned off, you must wait 3 to 5 minutes before restarting
the unit if you attempt to restart before this time delay, the Cooler will not start.

7

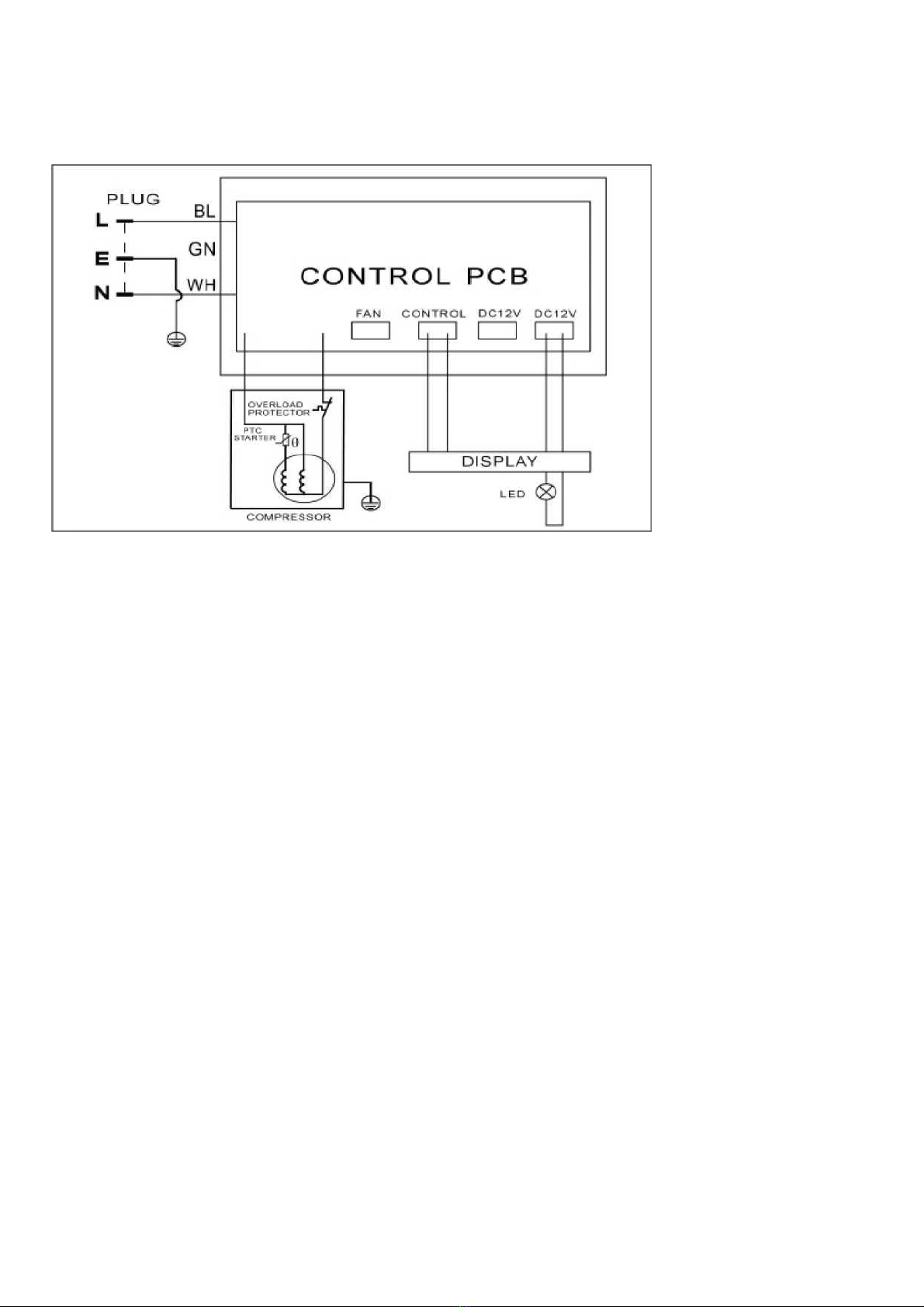

IV. ELECTRIC DIAGRAM
V.INSTRUCTION
•Note:
■ Position your Cooler so that the plug is accessible.
■ Keep your Cooler out of direct sunlight.
■ Do not place next to heat generating appliance.
■ Place the Cooler on a leveled surface that is strong enough to support the unit when it is fully loaded.
To level your Cooler, adjust the front feet located at the bottom of theunit.
•Important:
■ Before connecting the unit to a power source, allow it stand upright for approximately 3 hours. This
will reduce the possibility of any system malfunctions which may have occurred from handing
during transportation.
■ When positioning the Cooler, 5cm of space at the back and 5cm of space both sides are suggested.
Do not put any objects on top of the unit which may block the aircirculation.
•Power Connection:
■ This Cooler should be properly grounded for your safety and in order to minimize the possibility of
electrical shock, the power cord of this unit is equipped with a 3-pin plug which fits with 3-pin wall outlets.
■ Never cut or remove the ground wire from the supplied power cord.
■ The use of extension cords is not recommended.
This unit requires a standard 220-240- 50/60Hz electrical outlet with a 3-pin plug.
■ The cord should be secured behind the Cooler. Also, to prevent accidental injury, do not expose or
dangle the cord.

8
VI. VENTILATION
• Do not install the Cooler in a closed cabinet without proper ventilation.
• Please leave at least 5cm distance between the wall and the Cooler.
• Do not remove the feet of the Cooler. Keep at least 50mm of ground clearance.
VII. CLEANING
• UNPLUG the Appliance, and remove all items including shelves.
• Wash the inside surfaces with a warm water and baking soda solution. The solution should be about 2
table spoons of baking soda to a quart of water.
• Wash the shelves with a mild detergent solution.
• Wash the outside cabinet with warm water and mild detergent. Rinse well and wipe dry with a clean soft
cloth.
VIII. TROUBLE SHOOTING
PROBLEM
POSSIBLE CAUSES
Appliance does not operate
•The unit may be plugged in using a different voltage.
•The circuit breaker may be tripped or there is a blown fuse.
The Cooler is not cold enough.
•Check the temperature control settings, as the external
environment may be too hot.
•The door may be opened too frequently.
•The door is not closed completely.
•The door seal does not seal properly.
•The Cooler does not have sufficient clearance.
The Cooler vibrates while operating.
• Check to assure that the appliance is level.
The Cooler seems to make too much noise.
•The unit may not be leveled.
• Check the fan.

9
The Cooler will not close properly.
•The unit may not be leveled.
•The rattling noise may come from the flow of the refrigerant,
which is normal.
•As each cycle ends, you may hear gurgling sounds caused by
the flow of refrigerant in your unit •Contraction and expansion
of the inside walls may cause popping and cracking noise.
•The unit is not level.
The LED display does not work.
•There may be a problem with the main control board. •There is
a problem with the plug.
There is an LED display error.
•There is a PCB problem.
The buttons do not function.
•The temperature control panel may be damaged.
The door will not close properly.
•The unit is not level.
•The door was reversed and not properly installed.
•The gasket is dirty or bent.
•The shelves, bins, or baskets are out of position.
IX.
CORRECT DISPOSAL OF THIS PRODUCT
This symbol on the product, or in its packaging, indicates
that this product may not be treated as household waste.
Instead, it should be taken to the appropriate waste
collection point for the recycling of electrical and electronic
equipment. By ensuring this product is disposed of
correctly, you will help prevent potential negative
consequences for the environment and human health,
which could otherwise be caused
by the inappropriate waste handling of this product. For
more detailed information about the recycling of this
product, please contact your local council, your household
waste disposal service, or the shop where you purchased
the product.

10
This product contains a LED light source of energy efficiency class "G"
To obtain service or information, please send email to [email protected]m
or call after sale hotline at [phone]
Product contents and specifications may change without notice.
Copyright © 2021 Kalamera Products
www.kalamera.com
------------------------------------------------------------------------------------------------------
EU Representative:
Hichain Logistics (Germany) GmbH
Rudolf-Diesel-Straße 26
22941 Bargteheide
Tel: [phone]

Product Information Sheet
COMMISSION DELEGATED REGULATION (EU) 2019/2016 with regard to energy labelling of refrigerating
appliances
Supplier's name or trade mark: Kalamera
Supplier's address: Minea Electrical Appliance Co., Ltd, Rudolf-Diesel-Straße 26
Model identifier: KRC-24SS-FR
Type of refrigerating appliance:
Low-noise appliance: No Design type: freestanding
Wine storage appliance: Yes Other refrigerating
appliance: No
General product parameters:
Parameter Value Parameter Value
Height 746
Width 440
Overal dimensions
(millimetre) Depth 445
Total volume (dm³ or l) 68
EEI 119 Energy efficiency class G
Airborne acoustical noise
emissions (dB(A) re 1 pW) 42 Airborne acoustical noise emission class D
Annual energy consumption
(kWh/a) 115 Climate class: extended temperate, temperate
Minimum ambient
temperature (ºC), for which
the refrigerating appliance is
suitable
10
Maximum ambient
temperature (ºC), for
which the refrigerating
appliance is suitable
32
Winter setting No
Compartment Parameters:
Compartment parameters and values
Compartment type Compartment
Volume (dm³ or l)
Recommended
temperature
setting for
optimised
food
storage (ºC)
These
sengs
shall not
contradict
the storage
condions
set out in
Annex IV,
Table 3
Freezing
capacity
(kg/24h)
Defrosting type
(auto-defrost=A,
manual defrost=M)
Pantry No - - - -
Wine storage Yes 68,0 12 - M
Page 1 / 2

Cellar No - - - -
Fresh food No - - - -
Chill No - - - -
0-star or ice-making No - - - -
1-star No - - - -
2-star No - - - -
3-star No - - - -
4-star No - - - -
2-star section No - - - -
Variable temperature
compartment - - - - -
For wine storage appliances
Number of standard wine bottles 24
Light source parameters:
Type of light source -
Energy efficiency class -
Minimum duration of the guarantee offered by the manufacturer: 24 months
Additional information:
Weblink to the manufacturer's website, where the information in point4(a) Annex of Commission Regulation (EU)
2019/2019 is found: -
Page 2 / 2

Product Information Sheet
COMMISSION DELEGATED REGULATION (EU) 2019/2016 with regard to energy labelling of refrigerating
appliances
Supplier's name or trade mark: Kalamera
Supplier's address: Minea Electrical Appliance Co., Ltd, Rudolf-Diesel-Straße 26, 22941 Bargteheide, DE
Model identifier: KRC-28ASSE-FR
Type of refrigerating appliance:
Low-noise appliance: No Design type: freestanding
Wine storage appliance: Yes Other refrigerating
appliance: Yes
General product parameters:
Parameter Value Parameter Value
Height 860
Width 440
Overal dimensions
(millimetre) Depth 465
Total volume (dm³ or l) 86
EEI 119 Energy efficiency class F
Airborne acoustical noise
emissions (dB(A) re 1 pW) 40 Airborne acoustical noise emission class C
Annual energy consumption
(kWh/a) 97 Climate class: extended temperate, temperate
Minimum ambient
temperature (ºC), for which
the refrigerating appliance is
suitable
10
Maximum ambient
temperature (ºC), for
which the refrigerating
appliance is suitable
32
Winter setting No
Compartment Parameters:
Compartment parameters and values
Compartment type Compartment
Volume (dm³ or l)
Recommended
temperature
setting for
optimised
food
storage (ºC)
These
sengs
shall not
contradict
the storage
condions
set out in
Annex IV,
Table 3
Freezing
capacity
(kg/24h)
Defrosting type
(auto-defrost=A,
manual defrost=M)
Pantry No -
86,0
- - -
Wine storage Yes 12 - M
Page 1 / 2

Cellar No - - - -
Fresh food No - - - -
Chill No - - - -
0-star or ice-making No - - - -
1-star No - - - -
2-star No - - - -
3-star No - - - -
4-star No - - - -
2-star section No - - - -
Variable temperature
compartment - - - - -
For wine storage appliances
Number of standard wine bottles 28
Light source parameters:
Type of light source -
Energy efficiency class -
Minimum duration of the guarantee offered by the manufacturer: 2 4 months
Additional information:
Weblink to the manufacturer's website, where the information in point4(a) Annex of Commission Regulation (EU)
2019/2019 is found: -
Page 2 / 2

Modele: KRC-24SS-FR 68L Capacité Modele: KRC-28ASSE-FR 86L Capacité
Manuel dinstructions et guide dfutilisation
Refroidisseur a vin a compresseur
Veuillez lire attentivement et suivre toutes les regies de securite et les instructions d'utilisation.

12
Contenu
I.
CONSIGNES DE SECURITE IMPORTANTES
12
II.
DIAGRAMME DES PIECES
14
INSTALLATION DE LA POIGNEE EN ACIER INOXYDABLE
15
Ill
CONTRdLE DE LA TEMPERATURE
16
IV.
SCHEMA ELECTRIQUE
17
V.
INSTRUCTION
17
VI.
VENTILATION
18
VII.
NETOYAGE
18
VIII.
DEPANNAGE
19
IX.
ÉLIMINATION CORRECTE DE CE PRODUIT
20
Veuillez lire attentivement toutes les instructions et suivre toutes les directives et regies pour des
performances optimales et une utilisation correct© de I'appareiL
I. CONSIGNES DE SECURITE IMPORTANTES
ATTENTION
Pour reduire le risque d'incendie, d'electrocution ou de blessure lors de I'utilisation de votre appareil,
suivez ces instructions de base
precautions
• Lisez toutes les instructions avant d'utiliser le refroidisseur.
• DANGER ou AVERTISSEMENT: Risque de piegeage des enfants.
• Le piegeage et la suffocation des enfants ne sont pas des problemes du passe. Les appareils menagers
abandonnes ou abandonnes sont toujours dangereux. . . meme s'ils «resteront dans le garage quelques
jours».
• Avant de jeter votre ancienne glaciere: retirez la porte. Laissez les etageres en place afin que les enfants ne
puissent pas facilementy penetrer.
• Ne laissez jamais les enfants utilises jouer avec ou ram per a I'interieur de I'appareiL
• Ne neoyez jamais les pieces de I'appareil avec des liquides inflammables. Les fumees peuvent creer un
risque d'incendie ou d'explosion.
• Ne stockez pas et n'utilisez pas d'essence ou d'autres vapeurs et liquides inflammables a proximite de cet
appareil ou de tout autre appareil. Les fumees peuvent creer un risque d'incendie ou d'explosion.
• Ne reparez ou ne remplacez aucune piece du refroidisseur et n'essayez pas de proceder a un entretien a
moins que cela ne soit specifiquement recommande dans les instructions de maintenance utilisateur ou
dans les instructions de reparation utilisateur publiees. Remplacez le fusible par le meme type.
-Conservez ces instructions-

13
SECURITE DES REFROIDISSEURS A VIN
Votre securite et celle des autres sont tres importantes.
Nous avons fourni de nombreux messages de securite importants dans ce manuel pour votre cave a vin. Lisez et respectez toujours tous
les messages de securite.
C'est le symbole d'alerte de sécurité. Ce symbole vous avertit des dangers potentiels qui peuvent vous tuer ou
blesser d'autres personnes. Tous les messages de sécurité suivront le symbole d'alerte de sécurité et les mots
« DANGER；AVERTISSEMENT » ou « ATTENTION ».
Danger signifie que le non-respect de cette déclaration de sécurité peut entraîner des blessures corporelles
graves ou la mort.
Avertissement signifie que le non-respect de cette déclaration de sécurité peut entraîner des
dommages
importants au
produit, des blessures corporelles graves ou la mort.
Attention signifie que le non-respect de cette déclaration de sécurité peut entraîner des blessures
corporelles mineures ou modérées, des dommages matériels ou matériels.
Tous les messages de sécurité vous avertiront du danger potentiel, vous indiqueront comment réduire les risques de blessure et vous
indiqueront ce qui peut arriver si les instructions ne sont pas suivies.
GAZ RÉFRIGÉRANT INFLAMMABLE
DANGER - Risque d'incendie ou d'explosion. Réfrigérant inflammable utilisé.
NE PAS utiliser de dispositifs mécaniques pour dégivrer le refroidisseur à vin. NE PAS percer la tubulure de réfrigérant.
DANGER - Risque d'incendie ou d'explosion. Réfrigérant inflammable utilisé. Ne doit être réparé que par du personnel de service
qualifié. NE PAS percer la tubulure de réfrigérant.
ATTENTION - Risque d'incendie ou d'explosion. Réfrigérant inflammable utilisé. Consultez le manuel de réparation/le guide du
propriétaire avant d'essayer de réparer ce produit. Toutes les précautions de sécurité doivent être suivies.
ATTENTION - Risque d'incendie ou d'explosion. Éliminer les biens conformément aux réglementations fédérales ou locales.
Réfrigérant inflammable Utilisé.
ATTENTION - Risque d'incendie ou d'explosion dû à la perforation du tube de réfrigérant. Suivez attentivement les instructions
de manipulation. Inflammable réfrigérant utilisé.
ATTENTION - Pour éviter qu'un enfant ne soit piégé, gardez-le hors de portée des enfants et pas à proximité de la glacière.

14
II. SCHÉMA DES PIÈCES
»INSTALLATION DE LA POIGNEEEN ACIERINOXYDABLE
Ce refroidisseur a vin comprend une poignee en acier inoxydable.Pour installer la poignee, veuillez suivre les
instructions ci-dessous:
1.Cabinet
2. étagère
3.Barre de retenue
4. pied
5. Charnière de porte supérieure avec
couvercle
6.Panneau de commande (porte
extérieure)
7. porte en verre
8. poignée en acier inoxydable
9. Charnière inférieure
1.Cabinet
2. étagère
3.Barre de retenue
4. pied
5. Charnière de porte supérieure avec
couvercle
6.Panneau de commande (porte
extérieure)
7. porte en verre
8. poignée en acier inoxydable
9. Charnière inférieure

15
▼Retirez le joint de la porte dans la zone ou la poignee doit etre installee sur le cote gauche, comme
indique ci-dessous dans I'illustration 1 Le joint est facilement deplace a la main, aucun outil n'est
necessaire.
▼Alignez la poignee avec les vis installees. Serrez les vis a I'aide d'un tournevis cruciforme jusqu'a
ce que la poignee soit a la fois affleurante et solidement fixee contre le cadre de la porte (NE serrez
PAS trop car cela endommagerait I'ensemble de la poignee).
▼Remettez le joint de la porte dans sa position d'origine.
1 .Joint
3. Vis a tete Phillips
III. CONTRÔLE DE LA TEMPÉRATURE
• Il est recommandé d'installer le refroidisseur à vin dans un endroit où la température ambiante se situe entre 5-32°C (41-90°F).
Plages de température pour votre refroidisseur à vin
KRC-24SS-FR
5-18 °C
41-64°F
KRC-28ASSE-FR
5-18 °C
41-64°F
2. Tournevis à tête Phillips
4. poignée

16
• PANNEAU DE CONTROLE
Vous pouvez sélectionner l'affichage de la température entre Fahrenheit et Celsius en appuyant sur ce bouton
pendant 3 secondes.
●REGLAGE DU CONTROLE DE TEMPERATURE
▼Vous pouvez régler manuellement la température à l'intérieur du refroidisseur en appuyant sur le bouton
du tableau de commande. Appuyez sur le bouton ▲ et ▼ pour augmenter ou réduire de 1°C ou 1°F à
chaque fois.
▼ Vous pouvez allumer ou éteindre l'éclairage intérieur en appuyant brièvement sur le bouton .
La lumière s'éteindra automatiquement si elle reste allumée pendant 10 minutes. Vous devez appuyer à
nouveau sur le bouton "Light" pour le rallumer.
▼ Si l'appareil est branché sans action sur les boutons du panneau de commande pendant plus de 30 s, il
sera automatiquement verrouillé. Vous pouvez déverrouiller l'appareil en appuyant sur les boutons
Fahrenheit et Celsius . .
• Noter:
▼Si l'unité est débranchée, l'alimentation est coupée ou coupée, vous devez attendre 3 à 5 minutes avant
de redémarrer l'unité si vous essayez de redémarrer avant ce délai, le refroidisseur ne démarrera pas.
