Kalibr EKO 500 User manual

1
Instruction Manual
For Electric Convection Heater
Please read it carefully before use and save these important safeguards
Features:
l. Comfortable and noiseless.
2. Smooth appearance, safe for family use.
3. Unique appearance, novel style.
4. With thermostat, convenient for controlling the room temperature.
5. With thermal cut-off to avoid over-heating.

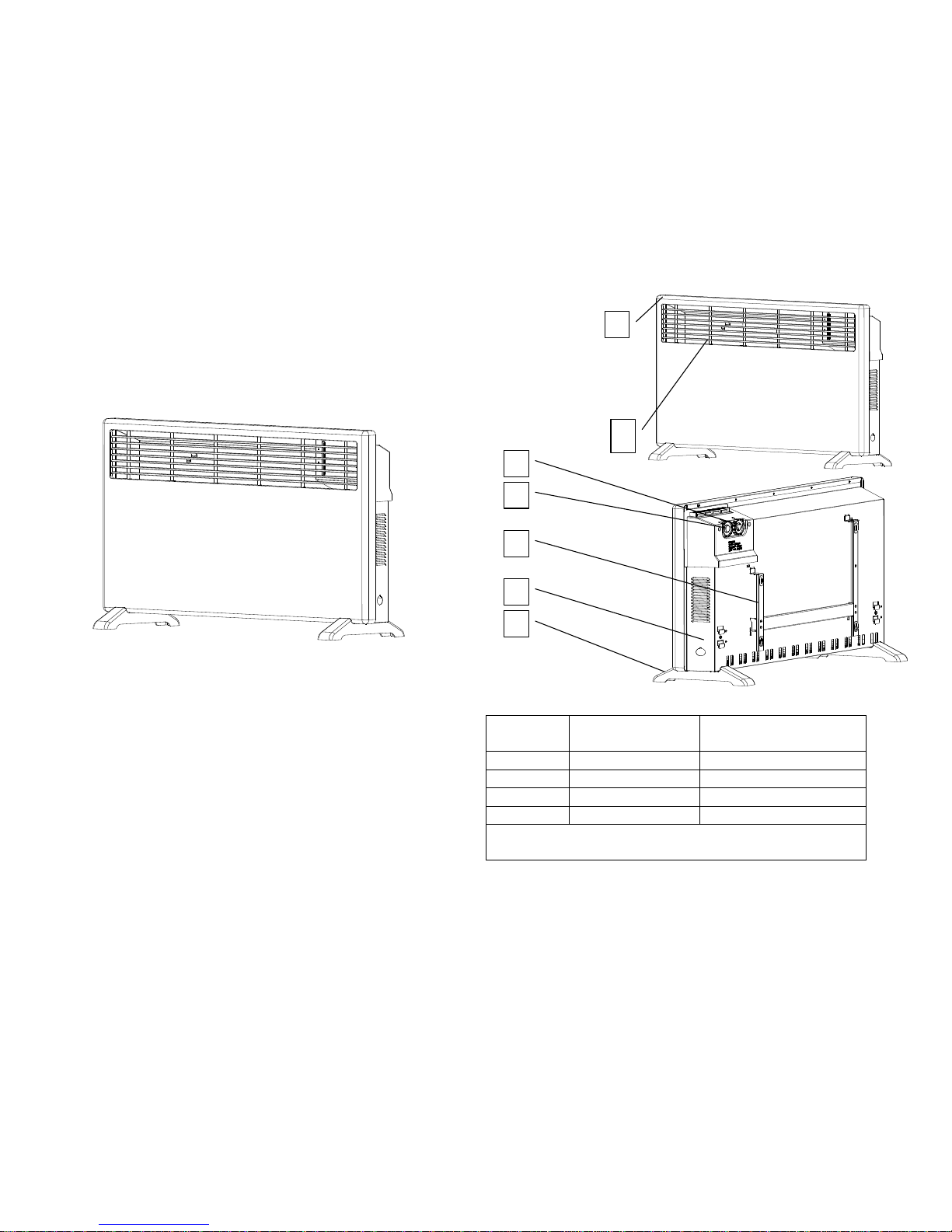

Views of the appliance and part name:
1. Front cover
2. Grille
3.Temperature regulator
4. Power switch
5. Wall mounted bracket
6. Rear cover
7. Foot
..
.
Models of the appliance and main technology specifications:
Model
Power Regulation
Range (W)
Suitable Area (m2)
EKO 500
230V~500
12-14
EKO 1000
230V~1000
15-18
EKO 1500
230V~1500
18-22
EKO 2000
230V~2000
22-26
Remarks: 1. Refer to the label on the appliance for the power supply.
2. The suitable area is only for your reference.
Floor standing:
1
2
3
4
6
5
7

2
1. Put the heater upside down, fix the foot the bottom of the heater, make sure
the screw holes are matched correctly, then tighten up the screw.
2. Stand up the heater.
Mounting on the wall:
1. Fix bracket(c) to the wall using the plugs and screws provided.
2. Position to allow a minimum of 50cm clearance from the base of the
produce to the floor and 50cm clearance from the top of product to the
ceiling，ensure that it is positioned at least 1m from soft furnishings and
curtains. According to the holes position on the bracket, Mark the holes
position where the bracket will be fixed on the wall. Drill the holes on your
wall according to you marked, make sure the diameter of the holes is
suitable for screw. Insert the screw and fix the bracket, Place the heater on
the bracket and lock it via the locking sheet. Fix the locking sheet and
bracket with the M4×8 screw between.
B
A
DC
>50cm
>50cm
Lock sheet
M4×8 Screw
Instruction:
1. The thermostat switch On the thermostat switch there is “L”(low )
H” (high) printing, rotate the
switch, as arrow pointed
①”Low” The lowest setting temperature(Remark :when surroundings
temperature is not below 0℃,the thermostat is disconnect condition.)
②:High”: The highest setting temperature.
Remark: With this switch you rotate the thermostat switch from “L” to “H”,
the thermostat operate once heard a sound like “click” ,turn the switch to
your desired temperature control condition.
2. The power switching knob on the power switching knob , there are printed
0
, rotate the switch, as arrow pointed
a “ ” : the device is turned off
b " ” : anti-frozen mode
c “”: economical mode

3
d “ ” : comfortable mode
e“ ” : control via external control box mode
3. Turn on/off the heater
Insert the plug into the suitable socket for the appliance, revolve the
temperature regulator to the highest temperature, and then turn on the power
switch, then the electric heater begins to work.
4 Rotate the power switching knob to “0” and rotate the thermostat switch
to “L”. Pluck of the plug, after the device cool off, put away the heater.
Maintenance:
1. Always pull out the plug before cleaning or repairing any appliance.
2. Do not knock against or rub the appliance so as to avoid damaging the
coating and rusting It.
3. When the appliance will not be used for a long time, please clean it and
put it into a dry packing box.
4. Never immerse the appliance in water for cleaning.
Safety Notices:
1. It is absolutely wrong to overturn the appliance to use.
2. The appliance can only be used indoor. It cannot be used in the places full
of vapor, ash or in inflammable, explosive air.
3. When using the appliance. Put it more than 20 centimeters away from the
walls around it. Do not put any obstructions within one meter above it and
it must be far from furniture, the things that are easy to be out of shape or
change color after being heated. Do not hang any unstable object over the
heater.
4. Do not use the appliance on the same socket or electric circuit with other
electrical appliances so as to prevent the circuit from being overloaded,
which will cause fire. Please do not prolong the power cords by your self or
use movable socket.
5. Do not let children insert hands, sticks and so on into the holes, and slots
of the appliance so as to avoid accidents.
6. Do not put clothes, towels and other things on the appliance directly to be
dried or drop water into the appliance.
7. When cleaning the appliance, please turn it off and pull out the plug.
8. When the appliance is working, please do not put the power cord on the
top of the heated appliance, never let power cord knotted.
9. Avoid pressing the power cords with heavy things.
10.If the appliance is broken down, never attempt to use it and do not
disassemble or repair it by yourself, it should be sent to a appointed repair
stations in time to be repaired by specialized personnel.
11. While the appliance is working, do not often open the doors or windows,
otherwise. It will affect the warming effect.
12. If the supply cord of this appliance is damaged, it must only be replaced
by the manufacturer, its service agent or similarly qualified persons in
order to avoid a hazard.
13. If the appliance is covered, there is a fire risk.
14. Do not use this heater in the immediate surroundings of a bath, a
shower or a swimming pool or use outdoor..
15. Connect the appliance only to properly wired outlet.
16. Handle power cord carefully, do not bend or pull the power cord and
always unplug from outlet when not in use.
17. Closed supervision is necessary when any appliance used by or near
children. Never leave appliance unattended.
18. The use of accessory attachment not recommended by the appliance
manufacture may cause hazard.
19. Do not use appliance for other than intended use.
20. Maintenance other than cleaning should be performed at an authorized
serviced facility.
21. If your AC wall outlet becomes loose, it may overheat. Should this
happen, consult a qualified electrician.

4
22. Smoke or smell will be emitted while in use for the first time. Continue
heating the appliance until the smoke stop emitting.
23. WARNING: In order to avoid overheating, do not cover the heater.
24. The heater must not be located immediately below a socket-outlet.
IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE
PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2002/96/EC
At the end of its working life, the product must not be disposed
of as urban waste.
It must be taken to a special local authority differentiated waste
collection centre or to a dealer providing this service.
Disposing of a household appliance separately avoids possible
negative consequences for the environment and health deriving
from inappropriate disposal and enables the constituent materials to be
recovered to obtain significant savings in energy and resources. As a
reminder of the need to dispose of household appliance separately, the
product is marked with a crossed-out wheeled dustbin.
