Kalorik GR 45386 User manual

www.KALORIK.com
1
GR 45386 –191217
120V~60Hz 1500W (12.5A)
INDOOR SMOKELESS GRILL
PARRILLA SIN HUMO PARA INTERIORES
GR 45386
EN……....2
ES……...15
FR……...29
GRILL D'INTÉRIEUR SANS FUMÉE

www.KALORIK.com
2
GR 45386 –191217

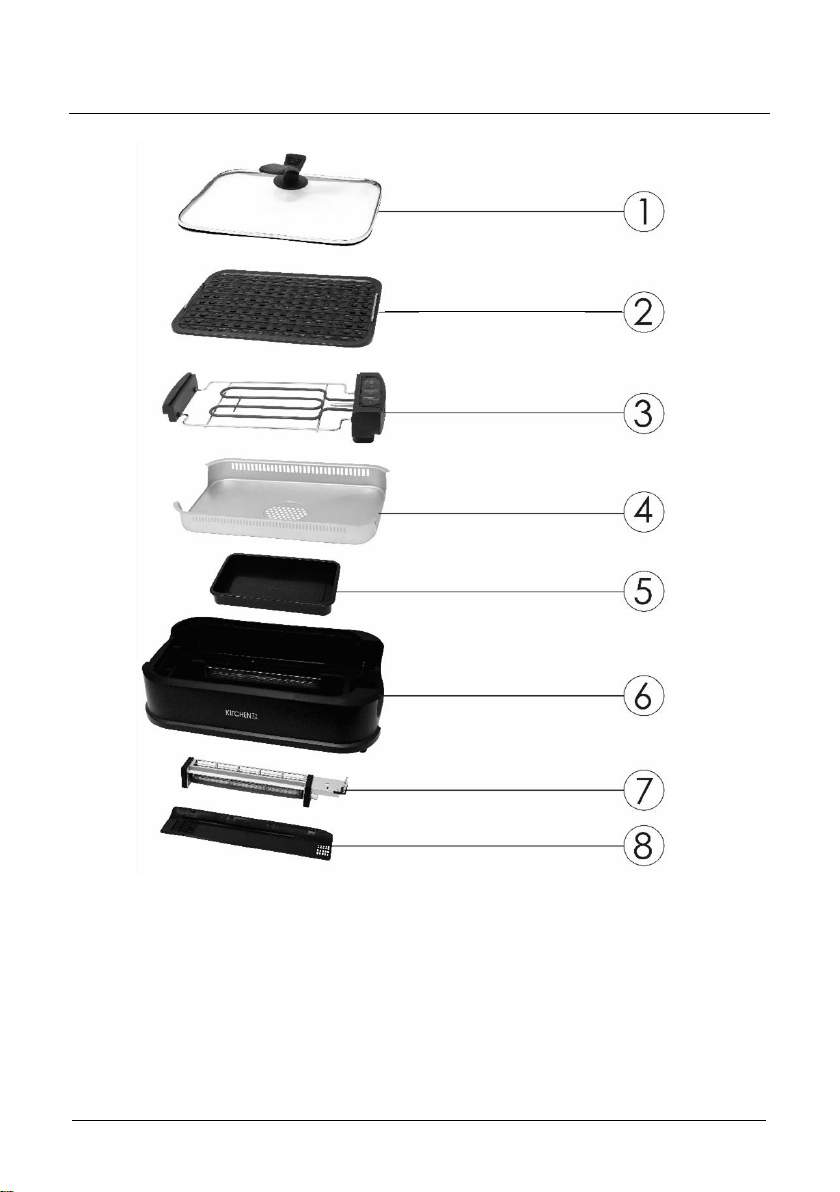

PARTS & ACCESSORIES
1. Glass lid
2. Nonstick grill plate
3. Heating element with
detachable cord
4. Drip tray
5. Collection pan / water tray
6. Base unit
7. Electric fan (removable)
8. Snap-off fan cover

www.KALORIK.com
3
GR 45386 –191217
LID HANDLE ASSEMBLY
A. Handle
B. Handle base
C. Silicone gasket
D. Glass lid
E. Plastic washer
F. Spring washer
G. Metal washer
H. Screw
1. Attach the Silicone Gasket under the Handle Base, as shown below.
A
B
C
D
E
F
G
H

www.KALORIK.com
4
GR 45386 –191217
2. Insert the Screw through the Metal Washer. Place the Spring Washer
over the Metal Washer, then place the Plastic Washer over the
Spring Washer.
3. Insert the Screw and the washers through the bottom of the Glass
Lid.
4. Place the Handle Base on top of the Glass Lid. The Screw should go
through the center of the Handle Base and the Silicon Gasket
should be aligned to fit through the other hole on the lid.
5. Thread the Handle onto the Screw and tighten using a Phillips-head
screwdriver.
IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions should
always be followed, including the following:
1. READ ALL INSTRUCTIONS BEFORE USE.
2. Never immerse the main unit housing, which contains electrical
components and heating elements, in water. Do not rinse under the
tap.
3. To avoid electrical shock, do not put liquid of any kind into the main
unit housing containing the electrical components.
4. This appliance has a three-prong plug. This plug is intended to fit into a
polarized outlet only one way. Do not attempt to modify the plug in
any way.
5. Make sure the appliance is plugged into a wall socket.
6. While cooking, the internal temperature of the appliance reaches
several hundred degrees Fahrenheit. To avoid personal injury, never
place hands inside the appliance unless it is thoroughly cooled.
7. This appliance is not intended for use by persons with reduced physical,
sensory, or mental capabilities or a lack of experience and knowledge
unless they are under the supervision of a responsible person or have
been given proper instruction in using the appliance. This appliance is
not intended for use by children.
8. When cooking, do not place the appliance against a wall or against
other appliances. Leave at least 5 inches free space on the back, sides
and above the smokeless grill. Do not place anything on top of the
appliance.

www.KALORIK.com
5
GR 45386 –191217
9. Do not use this appliance if the plug, the power cable, or the
appliance itself is damaged in any way.
10. If the power cord is damaged, you must have it replaced by the
manufacturer, its service agent, or a similarly qualified person in order
to avoid hazard.
11. Do not place the appliance on stove top surfaces.
12. Do not use outdoors.
13. Keep the appliance and its power cable out of the reach of children
when it is in operation or in the cooling process.
14. Keep the power cord away from hot surfaces. Do not plug in the power
cable or operate the appliance controls with wet hands.
15. Never connect this appliance to an external timer switch or separate
remote-control system.
16. Do not operate the appliance on or near combustible materials, such
as tablecloths and curtains.
17. Do not use the smokeless grill for any purpose other than described in
this manual.
18. Never leave the appliance unattended while operating.
19. WEAR OVEN MITTS when handling hot components or touching hot
surfaces.
20. Should the appliance emit black smoke, UNPLUG IMMEDIATELY and
wait for smoking to stop before removing oven contents.
21. Always operate the appliance on a horizontal surface that is level,
stable, and noncombustible.
22. This appliance is intended for normal household use only. It is not
intended for use in commercial or retail environments.
23. If the Smokeless Grill is used improperly or for professional or
semiprofessional purposes or if it is not used according to the
instructions in the user manual, the warranty becomes invalid and the
manufacturer will not be held liable for damages.
24. Always unplug the appliance after use.
25. Let the appliance cool for approximately 30 mins. before handling,
cleaning, or storing.
26. The glass lid and handle get very hot. Always use oven mitts.
NOTE: This unit has been designed and engineered to reduce the
smoke and visible vapors usually associated with grilling to a minimum.
Delivers outdoor results indoors.
SAVE THESE INSTRUCTIONS

www.KALORIK.com
6
GR 45386 –191217
HOUSEHOLD USE ONLY
3-PRONG PLUG INSTRUCTIONS
For your personal safety, this appliance must be grounded. This
appliance is equipped with a power supply cord having a 3-prong
grounding plug. To minimize possible shock hazard, the cord must be
plugged into a mating 3-prong, grounding type wall receptacle,
grounded in accordance with the National Electrical Code ANSI/NFPA
70 latest edition and all local codes and ordinances. If a mating wall
receptacle is not available, it is the personal responsibility and
obligation of the customer to have a properly grounded, 3-prong, wall
receptacle installed by a qualified electrician. Do not attempt to modify
the plug in any way.
SHORT CORD INSTRUCTIONS
A short power supply cord is provided to reduce the hazards resulting
from becoming entangled in or tripping over a longer cord.
KNOW YOUR SMOKELESS GRILL
Grill your favorite foods without any smoke with your new Smokeless
Grill. Functioning as a traditional grill but designed with a built-in fan
and a silicone-sealed lid, this unit reduces smoke and visible vapors
usually associated with grilling to a minimum. The non-stick coated grill
quickly heats up to a maximum temperature of 460°F, while the
removable drip tray collects excess grease for healthier grilling. The
removable parts allow for easy cleaning: simply place the grill plate,
drip tray, collection plate or glass lid in the dishwasher!

www.KALORIK.com
7
GR 45386 –191217
USING THE CONTROL PANEL
1. Plug the power cord into an outlet. Blue LED Light (A) will blink on
and off and one audible tone/beep is heard.
2. Select Power Button (B), and LED (A) will continue to blink until a
temperature selection is made.
3. Select Fan Button (C). Fan will run and blue Fan LED (D) will light up
and one audible tone/beep is heard.
NOTE: Fan should be kept running throughout the grilling process to
prevent smoke.
4. Use Temperature buttons + and - (E) to adjust cooking temperature
from 180°F to 460°F.
NOTE: You may raise or lower the cooking temperature at any time
during the cooking process. To keep food warm, set the
temperature between 220°F and 250°F.
5. Once the temperature is reached, the LED light below the Power
button becomes a solid red.
6. When you are finished grilling, press the Power and Fan Buttons to
shut down the Unit. Unplug the Power

www.KALORIK.com
8
GR 45386 –191217
7. Cord and allow unit to cool fully before disassembling for cleaning.
BEFORE THE FIRST USE
•Remove all packing materials, labels stickers and literature.
•Wipe the appliance with a damp cloth. Make sure to clean the grill
plate, drip tray, and the collection pan/water tray before use (see
“Cleaning and Maintenance”).
•Do not wash or submerge heating element, electric fan, or
appliance base in water or any other liquid.
•It is recommended to heat the grill for about 10 minutes without
anything on its surfaces. This helps to eliminate any grease that may
have adhered during manufacturing and to eliminate the "new"
appliance smell.
•Ventilate the room during this period. When your grill is heated for
the first time, it may emit slight smoke or odor. This is normal with
many heating appliances. This does not affect the safety of your
appliance.
OPERATING INSTRUCTIONS
1. Place the appliance on a stable, heat-resistant surface. Keep away
from flammable objects.
2. Assemble the unit. Refer to the Parts & Accessories section to see
the order of the items as they are assembled.
3. Add about 2 cups water to the collection pan.
4. Ensure that the drip tray is slid into the base of the appliance.
5. Leave ample air space on all sides of the appliance to facilitate air
flow.
6. Plug the power cord into a dedicated outlet.
7. If you are starting with a cold grill, you may preheat the grill using a
medium or high heat setting for 4–6 mins.
8. Prepare and season your food according to your favorite recipe.
You may spray or wipe the grill plate’s cooking surface with cooking
oil.
9. Select the cooking temperature using the +and -buttons, add the
food, put the lid in place, and grill to your personal taste. Turn the
food as needed.
Note: Cooking with the lid on the smokeless grill is recommended
because it maintains the cooking temperature, seals in flavor, and
prevents splatter.

www.KALORIK.com
9
GR 45386 –191217
10. When done grilling, switch off the appliance and remove the plug
from the wall outlet.
Caution! Never immerse or wash heating element, electric fan or base
in water or any other liquids.
Caution! The glass lid and handle get very hot. Always handle hot
components with oven mitts while cooking.
Caution! Wait for all components to cool thoroughly after use before
disassembling.
REMOVING THE ELECTRIC FAN:
When you are thoroughly cleaning the base unit with water and
detergents, always remove the electric fan. Turn over the base unit,
slide and remove the fan cover by pulling away from the base. Lift the
fan out of the base unit slowly and disconnect the two-prong
connection into the base of the smokeless grill. When returning the fan
to the base, make sure to insert the two-prong connection into the
receptacle.
CAUTION: Unplug appliance before removing fan.

www.KALORIK.com
10
GR 45386 –191217
TIPS FOR USE
Electric Power
If the electrical circuit is overloaded with other appliances, your new
unit may not operate properly. This unit should be operated on a
dedicated electrical circuit.
Shut-Off
You can manually shut off the appliance by pressing the Power Button
at any time during cooking.
•Be careful not to transfer germs from raw meat to cooked meat.
Use separate utensils and platters for raw and cooked meat.
•Always marinade in a tightly covered nonmetal dish and turn the
food occasionally. Be sure to refrigerate all meats while marinating.
•If leftover wet marinade is to be used as a sauce with the cooked
food, be sure to place it in a small pan and heat to a rolling boil
before serving to eliminate bacterial growth.
•Similar to a stove top frying pan, grease from high-fat foods, such as
bacon or sausage, may splatter on the countertop. Protect the
countertop as necessary.
•To prevent scratching the coating, use only nonmetallic utensils. Do
not cut food on the grill plate using sharp utensils, such as forks or
knives, that can scratch the cooking surface.
•Do not use steel wool or other metal pads. They could leave coarse
scratches. Always rinse thoroughly and dry immediately with a soft
towel.
GRILLING SUGGESTIONS
The table below shows some food that can be cooked on the grill
along with suggested cooking times for each. Keep in mind that grilling
times may vary depending on the type of food used, its size, thickness
and current temperature, as well as personal preference.
Food
Time
Food
Time
Vegetables
8 -15 min
Fish Fillet
12 -18 min
Corn on the
Cob
14 -16 min
Whole Fish
15 -16 min

www.KALORIK.com
11
GR 45386 –191217
Vegetable
Kebab
5 -15 min
Chicken
22 - 26 min
Meat Kebab
16 -18 min
Pork (Bone-in)
14 -16 min
Hot Dogs
12 -16 min
Pork (Boneless)
12 -15 min
Sausages
16 -18 min
Beef (Bone-in)
12 -16 min
Shrimp
12 -14 min
Beef (Boneless)
8 -15 min
Caution: Consuming raw or undercooked meats, poultry, seafood,
shellfish or eggs may increase your risk of foodborne illness.
TIPS
•Thaw food prior to grilling. For best results, do not attempt to grill
frozen food and make sure any meat prepared is not too thick
(approx. 0.5 in. / 1.5cm). This helps to keep the meat juicy.
•Tender meat is best suited for grilling. Meat will be more tender if
marinated overnight.
•When basting food with marinade, use only a little oil and brush the
marinade lightly onto the food to avoid excess smoke.
•Sausages tend to burst when grilled. To prevent this, cut the skin a
few times lengthwise.
•When preparing kebabs, soak bamboo or wooden skewers in water
to prevent them from getting scorched during grilling. Do not use
metal skewers.
CLEANING AND MAINTENANCE
CAUTION! Wait for all components to cool thoroughly after use before
disassembling. Always handle hot components with oven mitts while
cooking or hot.
•Before cleaning, be sure to unplug the cord from the outlet. If
necessary, wipe the cord with a damp cloth.
•Allow the appliance to cool completely before cleaning. The grill
plate, drip tray, collection pan, and glass lid can be placed in the
bottom rack of the dishwasher or washed by hand. The base unit
can be cleaned by hand with a warm, damp cloth and mild liquid
soap. For more thorough cleaning of the base unit, remove the
electric fan.
•Always be sure to wash the smokeless grill surface after each use to
remove any grease that may have accumulated. To keep grease

www.KALORIK.com
12
GR 45386 –191217
from dripping outside of the base, always ensure that you are using
your smokeless grill on a level surface and that the drip tray is
completely clear of food particles.
•Use a damp cloth to clean the base. Do not use scouring pads or
harsh cleaners on this unit. If necessary, use a nylon bristle brush or
plastic scrubbing pad.
•If necessary, clean the glass sides with a cloth or paper towel using
a vinegar solution (4-parts water, 1-part vinegar). Stubborn, caked-
on food residue can be removed using a ceramic scraper on the
glass surface.
•Reassemble the appliance.
NOTE: Any other servicing should be performed by an authorized
service representative.
TROUBLESHOOTING
If your appliance is not working properly:
Problem
Possible cause
Solution
Appliance is not
turning on.
There is no power
going into the
appliance
•Make sure the power cord is
properly connected to the
heating element.
•Make sure the power cord is
plugged into an electrical
socket.
Appliance is
taking too long
to heat or not
heating enough.
The appliance may
not be able to draw
enough operating
power from the
outlet.
•Switch the power cord to an
outlet that has no other
appliances attached to it.
Food is
undercooked or
overcooked
Temperature and
time setting may
need to be adjusted
•Change the cooking time and
temperature accordingly.
Electric fan is not
working
Assembly may not be
fully connected
•Disassemble the appliance and
reattach the fan component.
Follow instructions in the
removing the electric fan
section.

www.KALORIK.com
13
GR 45386 –191217
WARRANTY
We suggest that you complete and return the enclosed Product
Registration Card promptly to facilitate verification of the date of
original purchase. However, return of the Product Registration Card is
not a condition of these warranties. You can also fill out this warranty
card online, at the following address: www.KALORIK.com
This KALORIK product is warranted in the U.S.A. and in Canada for 1
year from the date of purchase against defects in material and
workmanship. This warranty is not transferable. Keep the original sales
receipt. Proof of purchase is required to obtain warranty performance.
During this period, if the KALORIK product, upon inspection by KALORIK,
is proven defective, it will be repaired or replaced, at Kalorik’s option,
without charge to the customer. If a replacement product is sent, it will
carry the remaining warranty of the original product.
This warranty does not apply to any defect arising from a buyer's or
user's misuse of the product, negligence, failure to follow KALORIK
instructions noted in the user’s manual, use on current or voltage other
than that stamped on the product, wear and tear, alteration or repair
not authorized by KALORIK, or use for commercial purposes. There is no
warranty for glass parts, glass containers, filter basket, blades and
agitators, and accessories in general. There is also no warranty for parts
lost by the user.
ANY WARRANTY OF MERCHANTABILITY OR FITNESS WITH RESPECT TO THIS
PRODUCT IS ALSO LIMITED TO THE ONE YEAR LIMITED WARRANTY
PERIOD.
Some states do not allow limitation on how long an implied warranty
lasts or do not allow the exclusion of incidental or consequential
damages, so the above limitations may not apply to you. This warranty
gives you specific legal rights, and you may also have other rights
which vary from state to state.
If the appliance should become defective within the warranty period
and more than 30 days after date of purchase, do not return the
appliance to the store: often, our Customer Service Representatives
can help solve the problem without having the product serviced. If
servicing is needed, a Representative can confirm whether the product
is under warranty and direct you to the nearest service location.

www.KALORIK.com
14
GR 45386 –191217
If this is the case, bring the product, or send it, postage prepaid by the
user (all Kalorik customers are responsible for the initial shipment back
to the warranty center), along with proof of purchase and a return
authorization number indicated on the outer package, given by our
Customer Service Representatives. Send to the authorized KALORIK
Service Center (please visit our website at www.KALORIK.com or call
our Customer Service Department for the address of our authorized
KALORIK Service Center).
When sending the product, please include a letter explaining the
nature of the claimed defect.
If you have additional questions, please call our Customer Service
Department (please see below for complete contact information),
Monday through Thursday from 9:00am - 5:00pm (EST) and Friday from
9:00am - 4:00pm (EST). Please note hours are subject to change.
If you would like to write, please send your letter to:
KALORIK Customer Service Department
Team International Group of America Inc.
16175 NW 49th Avenue
Miami Gardens, FL 33014 USA
Or call:
Toll Free: +1 888-521-TEAM / +1 888-KALORIK
Only letters can be accepted at this address above. Shipments and
packages that do not have a return authorization number will be
refused.
Extended warranty may be available on your product, please contact
Customer Service for more information.

www.KALORIK.com
15
GR 45386 –191217
PARTES Y ACCESORIOS
1. Tapa de vidrio
2. Placa antiadherente de la
parrilla
3. Elemento calentador con
cable de alimentación
desmontable
4. Bandeja de goteo
5. Recipiente
colector/bandeja para
agua
6. Base de la unidad
7. Ventilador eléctrico
(extraíble)
8. Cubierta del ventilator
extraíble

www.KALORIK.com
16
GR 45386 –191217
MONTAJE DE ASA DE LA TAPA
A. Manija
B. Base de la manija
C. Junta de silicona
D. Tapa de vidrio
E. Arandela de plástico
F. Arandela de resorte
G. Arandela de metal
H. Tornillo
1. Coloque la junta de silicona debajo de la base del mango, como
se muestra a continuación.
A
B
C
D
E
F
G
H

www.KALORIK.com
17
GR 45386 –191217
2. Inserte el tornillo a través de la arandela de metal. Coloque la
arandela de resorte sobre la arandela de metal, luego coloque la
arandela de plástico sobre la arandela de resorte.
3. Inserte el tornillo y las arandelas a través de la parte inferior de la
tapa de vidrio.
4. Coloque la base de la manija sobre la tapa de vidrio. El tornillo
debe pasar por el centro de la base del mango y la junta de
silicona debe estar alineada para pasar por el otro orificio de la
tapa.
5. Enrosque la manija en el tornillo y apriete con un destornillador
Phillips.
SALVAGUARDIAS IMPORTANTES
Cuando utilice aparatos eléctricos, siempre debe seguir las
precauciones básicas de seguridad, incluyendo las siguientes:
1. LEA TODAS LAS INSTRUCCIONES ANTES DE USAR.
2. Nunca sumerja la carcasa de la unidad principal en agua, ya que
contiene componentes eléctricos y elementos calefactores. No
enjuague bajo el grifo.
3. A fin de evitar descargas eléctricas, no deje que entre ningún tipo de
líquido en la carcasa de la unidad principal ya que contiene los
componentes eléctricos.
4. Este aparato tiene un enchufe de tres clavijas. Dicho enchufe está
diseñado para enchufar en una toma de corriente polarizada de una
sola manera. No intente modificar el enchufe de ninguna manera.
5. Asegúrese de que el aparato esté enchufado a una toma de
corriente.
6. Durante la cocción, la temperatura interna del aparato alcanza varios
cientos de grados Fahrenheit. Para evitar lesiones personales, nunca
coloque las manos dentro del aparato a menos que se haya enfriado
por completo.
7. A menos que estén bajo la supervisión de una persona responsable o
hayan recibido las instrucciones adecuadas para usar el dispositivo,
este dispositivo no está diseñado para ser utilizado por personas con
capacidades físicas, sensoriales o mentales reducidas o sin experiencia
ni conocimiento. Los niños no deben utilizar este aparato.
8. Al cocinar, no coloque el aparato contra una pared o contra otros
aparatos. Deje al menos 5 pulgadas de espacio libre en la parte

www.KALORIK.com
18
GR 45386 –191217
posterior, los lados y por encima de la Parrilla Sin Humo. No coloque
nada encima del aparato.
9. No utilice este aparato si el enchufe, el cable de alimentación o el
propio aparato están dañados de cualquier manera.
10. Si el cable de alimentación está dañado, debe ser reemplazado por el
fabricante, su agente de servicio o por personal cualificado para
evitar riesgos.
11. No coloque el aparato sobre una estufa.
12. No lo use al aire libre.
13. Mantenga el aparato y su cable de alimentación fuera del alcance
de los niños cuando esté funcionando o enfriándose.
14. Mantenga el cable de alimentación alejado de superficies calientes.
No enchufe el cable de alimentación ni manipule los controles del
aparato con las manos mojadas.
15. Este artefacto no está diseñado para funcionar a través de un
temporizador externo o con un sistema de control remoto
independiente.
16. No haga funcionar el aparato sobre o cerca de materiales
combustibles, como manteles y cortinas.
17. No utilice la Parrilla Sin Humo para ningún otro propósito que no sea el
descrito en este manual.
18. Nunca deje el aparato en funcionamiento desatendido.
19. UTILICE LOS GUANTES PARA HORNO cuando manipule componentes
calientes o toque superficies calientes.
20. Si el aparato echa humo negro, DESCONECTE INMEDIATAMENTE y
espere a que el humo se detenga antes de retirar el contenido del
horno.
21. Siempre opere el aparato sobre una superficie horizontal que esté
nivelada, sea estable y no sea combustible.
22. Este aparato es solo para uso doméstico normal. No está diseñado
para utilizar en entornos comerciales o minoristas.
23. La garantía será inválida si la Parrilla Sin Humo se usa de manera
inadecuada, con fines profesionales o semiprofesionales o si no se usa
de acuerdo con las instrucciones del manual del usuario. Además, el
fabricante no será responsable de los daños.
24. Siempre desenchufe el aparato después de usarlo.
25. Antes de manipular, limpiar o almacenar, deje enfriar el aparato
durante aproximadamente 30 minutos.
26. La tapa de vidrio y el mango se calientan mucho. Siempre use guantes
para horno.
NOTA: Esta unidad ha sido ideada y diseñada para reducir al mínimo el
humo y los vapores que generalmente se asocian al uso de la parrilla.

www.KALORIK.com
19
GR 45386 –191217
Ofrece los mismos resultados en interior que los que tendría una parrilla
en el exterior.
GUARDE ESTAS INSTRUCCIONES
SOLO PARA USO DOMÉSTICO
INSTRUCCIONES DEL CONECTOR DE 3
CLAVIJAS
Conecte el aparato a tierra para su seguridad personal. Este aparato
está equipado con un cable de alimentación que tiene un enchufe de
conexión a tierra de 3 clavijas. Para minimizar el posible riesgo de
descarga eléctrica, el cable debe enchufarse en una toma de
corriente en la pared de tipo conexión a tierra de 3 clavijas, de
acuerdo con la última edición del Código Eléctrico Nacional
ANSI/NFPA 70 y todos los códigos y ordenanzas locales. En caso de que
no haya uno disponible, es responsabilidad y obligación del cliente
contar con un electricista cualificado que instale un receptáculo de
pared de 3 clavijas, debidamente conectado a tierra. No intente
modificar el enchufe de ninguna manera.
INSTRUCCIONES DE CABLE CORTO
Se suministra un cable de alimentación corto para reducir los peligros
que resultan de enredarse o tropezar con un cable más largo.
CONOZCA SU PARRILLA SIN HUMO
Ase sus comidas favoritas sin humo con su nueva Parrilla Sin Humo. Con
las características de una parrilla tradicional pero diseñada con un
ventilador incorporado y una tapa sellada de silicona, esta unidad
reduce al mínimo el humo y los vapores que habitualmente se asocian
con la parrilla. La parrilla con revestimiento antiadherente se calienta
rápidamente hasta una temperatura máxima de 460°F. Las piezas
extraíbles permiten una fácil limpieza: simplemente coloque la placa
de la parrilla, la bandeja de goteo, el recipiente colector o la tapa de
vidrio en el lavavajillas.

www.KALORIK.com
20
GR 45386 –191217
USO DEL PANEL DE CONTROL
1. Enchufe el cable de alimentación a una toma de corriente. La luz
LED azul (A) se encenderá y apagará y se escuchará un
tono/pitido audible.
2. Pulse el botón de encendido (B) y el LED (A) continuará
parpadeando hasta que se realice una selección de temperatura.
3. Pulse el botón del ventilador (C). El ventilador funcionará y el LED
azul del Ventilador (D) se encenderá y se escuchará un tono/pitido
audible.
NOTA: El ventilador debe mantenerse funcionando durante todo el
proceso de asado para evitar la acumulación de grasa.
4. Pulse los botones de temperatura + y - (E) para ajustar la
temperatura de cocción de 180°F a 460°F.
NOTA: Puede aumentar o disminuir la temperatura de cocción en
cualquier momento durante el proceso de cocción. Para
mantener los alimentos calientes, fije la temperatura entre 220°F y
250°F.
