K&M Holland FSD3000 User manual

Please read this Operating Manual prior to assembly/installation/initial start-up.
Only properly trained personnel shall be permitted to connect and install the equipment.
Manufacturer: K. & M. Holland GmbH - Industriestr. 14 - D-94327 Bogen
Tel.: [phone] - Fax: [phone] - [e-mail] - www.holland-k.de
Juice Dispenser FSD3000 / FSD3100E
Translation of the original Operating Manual
compliant with EN 60335, Version 1.0
HOLLAND G MBH
EN

2
3
EN Juice Dispenser FSD3000 / FSD3100 © K. & M. Holland GmbH
© K. & M. Holland GmbH Juice Dispenser FSD3000 / FSD3100 EN
Subject to technical change without prior notice! Version 1.0, 05/02/2015
Subject to technical change without prior notice! Version 1.0, 05/02/2015
Table of Contents
Declaration of conformity ........................................................................................... 4
Identication ................................................................................................................. 5
1. Purpose of this guide ................................................................................................ 6
2. Safety ........................................................................................................................... 6
2.1 Safety information 6
2.2 Intended use 8
2.3 Symbols and tips; conventions used in this Operating Manual 8
2.4 Reasonably foreseeable misuse 9
2.5 Damage caused by misuse 9
2.6 Technical safety 9
2.7 In case of damage 10
2.8 Intended use 11
2.9 Personal Protective Equipment 12
2.10 Responsibility of the owner 12
2.11 Responsibility of the personnel 13
 2.12Qualicationofthepersonnel     13

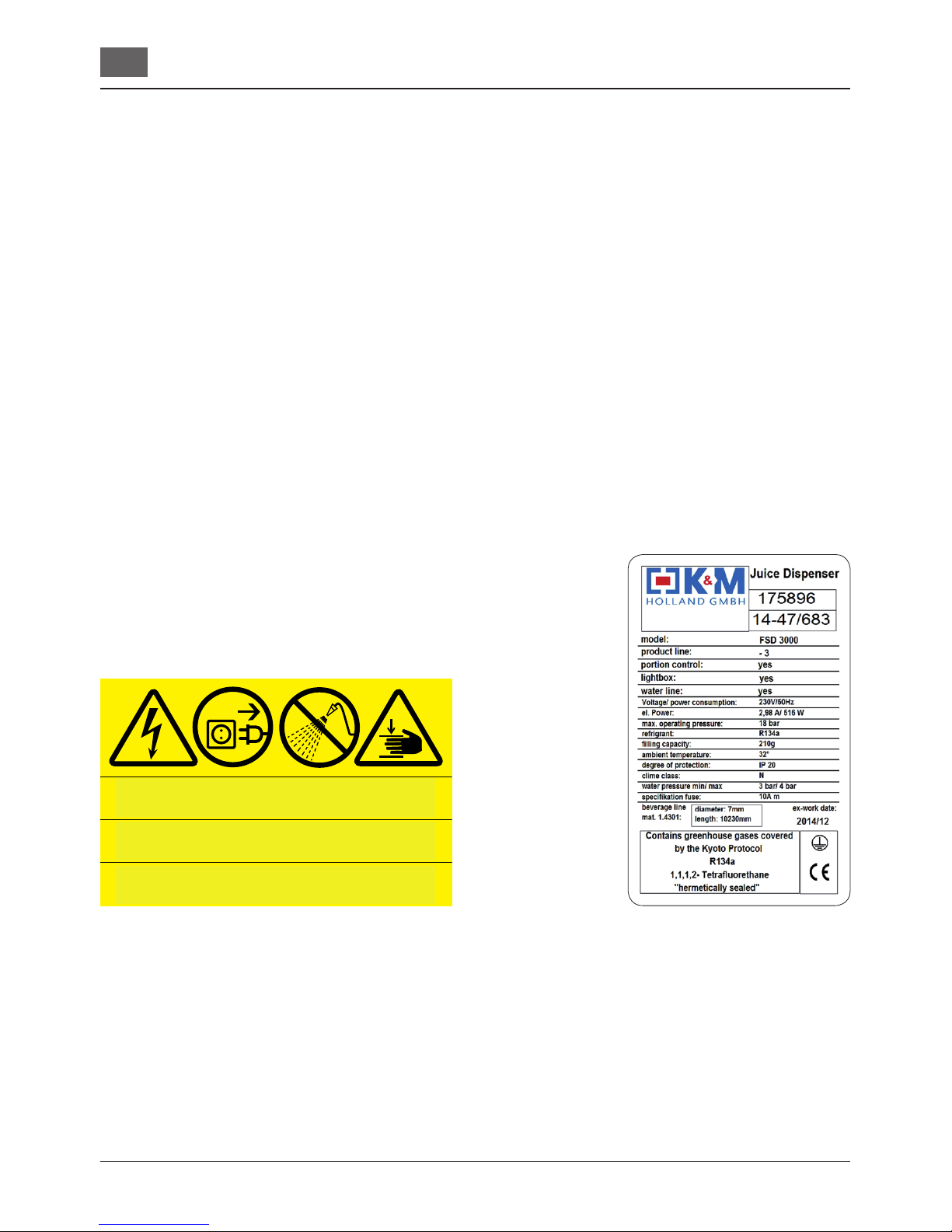

 2.13Machineidenticationandwarninglabels   14
3. Description .............................................................................................................. 15
3.1 Description of function 15
3.2 Technical Data FSD3000 16
3.3 TTechnical Data FSD3100E 17
3.4 Equipment 18
4. Unpacking/scope of delivery ................................................................................ 20
4.1 Disposal of transport packaging 20
4.2 Scope of delivery for Juice Dispenser FSD3000/FSD3100E 20
5. Installation and connection .................................................................................. 21
5.1 Prior to installation 21
5.2 Installation and connection 22

2
3
EN Juice Dispenser FSD3000 / FSD3100 © K. & M. Holland GmbH
© K. & M. Holland GmbH Juice Dispenser FSD3000 / FSD3100 EN
Subject to technical change without prior notice! Version 1.0, 05/02/2015
Subject to technical change without prior notice! Version 1.0, 05/02/2015
6. Initial start up ........................................................................................................... 23
6.1 Inserting and connecting the Bag-In-Box 23
 6.2Waterow/concentratesupplycontrol   24
6.3 Removing an empty Bag-In-Box 24
7. Operation ................................................................................................................. 25
7.1 Requirements for the operation 25
7.2 Condensation water 25
8. Operating and display elements ........................................................................... 26
8.1 Digital thermostat LAE AT1-5 27
8.2 Digital thermostat LAE LTR-5 28
8.2 Mechanical thermostat K50-H1122 29
9. Maintenance and cleaning .................................................................................... 30
9.1 Daily cleaning 31
9.2 Miscellaneous cleaning tasks 32
10. Troubleshooting .................................................................................................... 33
10.1 Possible malfunctions 33
11. Energy-saving and environmental awareness ................................................ 34
12. Disassembly, decommissioning, disposal ........................................................ 35
13. Wiring diagram FSD3000 .................................................................................... 36
14. Wiring diagram FSD3100E .................................................................................... 38
15. Wear and spare parts list ..................................................................................... 40
15.1 Seals 40
15.2 Spare parts for FSD3000 40
15.3 Spare parts for FSD3100E 41

4
5
EN Juice Dispenser FSD3000 / FSD3100 © K. & M. Holland GmbH
© K. & M. Holland GmbH Juice Dispenser FSD3000 / FSD3100 EN
Subject to technical change without prior notice! Version 1.0, 05/02/2015
Subject to technical change without prior notice! Version 1.0, 05/02/2015
Declaration of Conformity
Address: K. & M. Holland GmbH
Industriestraße 14 – D-94327 Bogen
Description of machine: Juice Dispenser
Model description: FSD3000/FSD3100E
This product is compliant with the following European Directives:
2004/108/EC Electromagnetic Compatibility (EMC)
2006/42/EC Directive 2006/42/EC on machinery
The use of the following harmonised standards shall serve as proof of compliance with the fol-
lowing guidelines and directives:
EMC: EN 55014-1:2006 + A1:2009 + A2:2011
EN 55014-2:1997 + A1:2001 + A2:2008
EN 61000-3-2:2006 + A1:2009 + A2:2009
EN 61000-3-3:2013
Safety on machinery: EN ISO 12100:2010
Other applicable EN 60335-2-89: 2010
machinery guidelines: EN 60335-2-75:2004+A1:2005+A11:2006+A2:2008 +A12:2010
Authorised representative for the compilation of the technical documentation:
Department: Organisations- & Verwaltungsabteilung der K. & M. Holland GmbH
Adress: K. & M. Holland GmbH, Industriestraße 14, D-94327 Bogen
Bogen, January 22, 2015
Klaus Holland, CEO
This declaration refers solely to the equipment and the condition it was in when it was put on
themarket.Anypartsaddedand/orsubsequentinterventionsandmodicationsbytheend
usershallnotbetakenintoaccount.Anymodicationtotheequipmentwithoutourpriorap-
proval shall make this declaration null and void.

4
5
EN Juice Dispenser FSD3000 / FSD3100 © K. & M. Holland GmbH
© K. & M. Holland GmbH Juice Dispenser FSD3000 / FSD3100 EN
Subject to technical change without prior notice! Version 1.0, 05/02/2015
Subject to technical change without prior notice! Version 1.0, 05/02/2015
Identication
Manufacturer
K. & M Holland GmbH
Industriestr. 14
D-94327 Bogen
Telephone: [phone]
Telefax: [phone]
[e-mail]
[e-mail]
About this Operating Manual
Issue date: 05/02/2015
Version: 1.0
Last revision: 05/02/2015
©Copyright K. & M. Holland GmbH, 2014. All rights reserved.
Disclaimer
This document is protected by copyright. All rights reserved. Translation into another language
is not permitted without the express approval by K. & M. Holland GmbH. This applies to the en-
tire document as well as parts of thereof.
This Operating Manual was prepared with the utmost care. K. & M. Holland GmbH cannot be
held responsible for the use of the instructions provided in the document.
The content of this document is based on the latest data available at the time of print. K. & M.
Holland GmbH reserves the right to changes at any time without further notice.
Please note that this Operating Manual is intended to refer to a variety of juice dispensers.
Therefore, the document may contain details that do not pertain to your particular juice dis-
penser. Due to the broad spectrum of available options, your juice dispenser may vary from the
displayed diagrams/images.
K&M Holland GmbH can only be held responsible for the content of the original German Ope-
rating Manual.

6
7
EN Juice Dispenser FSD3000 / FSD3100 © K. & M. Holland GmbH
© K. & M. Holland GmbH Juice Dispenser FSD3000 / FSD3100 EN
Subject to technical change without prior notice! Version 1.0, 05/02/2015
Subject to technical change without prior notice! Version 1.0, 05/02/2015
1. Purpose of this guide
This Operating Manual describes the installation, the function, operation, and maintenance
ofthejuicedispenserFurthermore,thismanualprovidesinformationaboutsafeandecient
handling of the juice and dispenser.
2. Safety
This juice dispenser is compliant with the applicable safety regulations. However, improper use
may lead to personal injuries and property damage.
Prior to the initial start-up of the juice dispenser, please read this Operating Manual careful-
ly.Hereyouwillndimportantinformationabouttheinstallation,thesafety,theuse,andthe
maintenance of the fruit dispenser. Understanding this information is for your own safety and
will prevent the damage to the fruit dispenser.
The Operating Manual must be available at the place of installation at all times and easily acces-
sible. If the equipment is sold, please pass the manual on to the new owner!
K. & M. Holland GmbH reserves the right to technical changes without prior notice. This in-
cludes functional changes or aesthetic design changes as well as improvement to the overall
equipment.
2.1 Safety Instructions
nAnd prior to the initial start-up of the juice dispenser the Operating Manual must have
been read and understood by the respective personnel
nWhen transporting, installing, maintaining, and repairing the juice dispenser, compliance
with the following latest rules and regulations is mandatory: The regulations of the respon-
siblelocalpowerutilitycompany,country-specicaccidentpreventionregulations,guide
lines of applicable insurance associations, industrial codes, EC Directives, VDE regulations
(applicableinGermany),compliancewithcommonhygieneregulations,countryspecicru-
les
nThis equipment is not intended for use by anyone (including children) with restricted phy-
sical, sensory or mental ability. It also applies to persons with limited experience and/or li-
mited knowledge of the equipment, unless they are supervised by someone responsible for
their safety, or they receive instruction from the supervisor regarding the use of the equip-
ment

6
7
EN Juice Dispenser FSD3000 / FSD3100 © K. & M. Holland GmbH
© K. & M. Holland GmbH Juice Dispenser FSD3000 / FSD3100 EN
Subject to technical change without prior notice! Version 1.0, 05/02/2015
Subject to technical change without prior notice! Version 1.0, 05/02/2015
nChildren must be supervised in order to ensure they do not play with the juice dispenser
nIn order to prevent damage and/or injuries, only your dealer, the service department, or
qualiedpersonnelshallbepermittedtorepairdamagedelectricalconnectinglines
nThe juice dispenser must be installed on a level and stable surface
nEnsure to provide a clearance of 50 mm behind the juice dispenser in order to provide a
proper air circulation
nThe juice dispenser must only be installed in dry and heated rooms
nDo not installed the juice dispenser in an area that is cleaned with high-pressure cleaners
or water hose
nOnly Bag-In-Box concentrates must be used
nEnsure to take note of the expiry date of the concentrates
nOnly use a juice concentrates that were agreed upon with your respective dealer
nOnly use food-safe and approved cleaning agents
nThe juice dispenser is intended to dispense food. For hygienic reasons, the juice dispenser
must be cleaned once a day according to the cleaning schedule
nOnly properly trained service technicians shall be permitted to install and/or repair the juice
dispenser
nThe juice dispenser must be installed in a manner to ensure proper access for care and
maintenance purposes
nProperly trained personnel must monitor the machine. This applies to self-service opera-
tions or where service is provided. This will ensure compliance with the proper care and as-
certains the availability of personnel in the case of operating questions
nAccess to the mains power plug must be easy
nNever attempted to connect a wet mains power plug or when you hands are wet
nThe use of wear and spare parts provided by third parties bears inherent risks. We strongly
recommend to use only original parts or those approved by the manufacturer. The spare
parts list is available from K. & M. Holland GmbH or can be downloaded at www.holland-k.
de. The manufacturer cannot be held liable for the use of unapproved wear and spare parts
and/or operating supplies that are not approved
nAnymodicationsorretrotstothejuicedispenserareprohibited!Insuchinstances,K.&
M. Holland shall not be held responsible for material damage and warranty claims shall be
excluded! Due to the electromagnetic reactions of the juice dispenser, any additions or mo-
dicationscancauseadverseeects.Therefore,donotattempttomakeanychangesor
modicationstothejuicedispenserwithpriorconsultationwithandwrittenpermissionby
the manufacturer

8
9
EN Juice Dispenser FSD3000 / FSD3100 © K. & M. Holland GmbH
© K. & M. Holland GmbH Juice Dispenser FSD3000 / FSD3100 EN
Subject to technical change without prior notice! Version 1.0, 05/02/2015
Subject to technical change without prior notice! Version 1.0, 05/02/2015
2.2 Intended use
The juice dispenser is designed explicitly to cool and dispense packaged concentrates (Bag-In-
Box = BIB). Water is mixed to the juice concentrate which produces a drinkable beverage (post
mix procedure). In addition, cold water can be dispensed separately. The dispensed juices are in-
tended only for the immediate consumption.
The juice dispenser is designed for the industrial and commercial use. It may also be used by pro-
fessionals or trained users in shops in the consumers goods industry, in agricultural holdings, or
for the commercial use by non-professionals. The juice dispenser may be operated in self-service
areas if properly trained personnel is available who will monitor its operation.
Any other applications (e.g. storage of packaged food or medication), is not permitted and may
prove to be dangerous.
Furthermore, intended use also includes:
ncompliance with all information provided in the Operating Manual
ncompliance with inspection and maintenance schedules
nthe explicit the use of all regional parts
ncompliance with the intended service life of 10 years
2.3 Symbols and tips; conventions used in this Operating Manual
In the juice dispenser was designed according to state-of-the-art technology.
However, there are inherent risks to the machine’s design that cannot be prevented.
In order to ensure the safety of the user, additional safety information will be provided that it
will be highlighted in this document. Only compliance with these warnings will guarantee suf-
cientsafety.Thehighlightedtextshavedierentmeanings:
WARNING
And this indicates a potentially high risk to the life and the health of persons (se-
vere or fatal injuries are possible).
CAUTION
This indicates a potentially dangerous situation (minor injury or damage is pos-
sible).

8
9
EN Juice Dispenser FSD3000 / FSD3100 © K. & M. Holland GmbH
© K. & M. Holland GmbH Juice Dispenser FSD3000 / FSD3100 EN
Subject to technical change without prior notice! Version 1.0, 05/02/2015
Subject to technical change without prior notice! Version 1.0, 05/02/2015
IMPORTANT
This alters the user to act in a responsible manner and relates to the safe usage of
the juice dispenser.
NOTE
Tips and useful information.
2.4 Reasonably foreseeable misuse
Any other use that is not compliant with the “Intended use” or goes beyond the aforementi-
oned is considered incorrect use. Any other applications (e.g. storage of packaged food or me-
dication), is not permitted and may prove to be dangerous.
2.5 Damage caused by misuse
nThe operator/dealer shall be held solely responsible for the dispenser
nThe manufacturer cannot assume any liability
NOTE
Misuse can lead to a variety of risks. Non-compliance with the intended use also inclu-
des exceeding the limits of the juice dispenser.
IMPORTANT
Use the juice dispenser only as intended and in a safe condition! The manufactu-
rer cannot be held liable for damage that was caused by misuse or false operation.
2.6 Technical safety
And prior to installing and connecting juice dispenser, inspect the equipment for visible dama-
ge. Do not attempt to operate a damaged juice dispenser. A damaged juice dispenser can jeo-
pardise your safety!

10
11
EN Juice Dispenser FSD3000 / FSD3100 © K. & M. Holland GmbH
© K. & M. Holland GmbH Juice Dispenser FSD3000 / FSD3100 EN
Subject to technical change without prior notice! Version 1.0, 05/02/2015
Subject to technical change without prior notice! Version 1.0, 05/02/2015
WARNING
If the mains power cable of the juice dispenser is damaged, contact your dealer
prior to initial start-up and have the connection replaced in order to prevent any
risks.
Inthisjuicedispensercontainsthesafetyrefrigeranttetrauoromethane(R134a).Tetrauoro-
methaneisacolourlessandalmostodourlessgas.Contrarytochlorouorocarbon(CFC),itdoes
notadverselyaecttheozonelayer;however,accordingtotheKyotoProtocolitmustnoten-
ter the atmosphere!
Inadditiontothenormaloperatingnoiseofthecompressor,theownoisesinsidetherefrige-
rant circuit may be audible. Unfortunately, this cannot be avoided; however, these symptoms do
notaecttheperformanceofthejuicedispenser.
While transporting and installing the juice dispenser, ensure to prevent any damage to the
components of the refrigerant circuit.
IMPORTANT
Keep spray water away from the juice dispenser.
2.7 In case of damage
nDisconnected the mains power plug
nContact the Customer Service Department
The safe operation of the juice dispenser can only be guaranteed if the juice dispenser is ins-
talled and connected compliant with the Operating Manual.
Prior to connecting the juice dispenser, compare the connection data (voltage and frequency)
provided on the nameplate with the information of the mains power supply. In order to prevent
any damage to the juice dispenser, these data must be compatible. If in doubt, please call the
Customer Service Department.
Extension cables or portable power strips must not be used to connect the juice dispenser to
the mains power supply. These type of connections cannot guarantee the necessary safety (e.g.,
risk of overheating).

10
11
EN Juice Dispenser FSD3000 / FSD3100 © K. & M. Holland GmbH
© K. & M. Holland GmbH Juice Dispenser FSD3000 / FSD3100 EN
Subject to technical change without prior notice! Version 1.0, 05/02/2015
Subject to technical change without prior notice! Version 1.0, 05/02/2015
The electrical safety of the juice dispenser can only be guaranteed if the equipment is connec-
ted properly to a pre-installed earth conductor system. Compliance with this basic safety prere-
quisiteismandatory.Ifnecessary,contactacertiedelectriciantoproceedwiththeinstallation.
The manufacturer cannot be held liable for damage caused by a missing or broken earth con-
ductor system (e.g., risk of electric shock).
Only technicians authorised by the manufacturer shall be permitted to proceed with installation
and maintenance tasks. An improper installation, non-conforming maintenance or repairs tasks
may place the user at considerable risk. In this case, the manufacturer not be held responsible.
Onlyacustomerservicerm,arefrigerationcompanyauthorisedbythemanufacturershallbe
permitted to proceed with repairs on the juice dispenser. Non-compliance will make all warran-
ty claims null and void.
During the installation, maintenance tasks and repair work, the juice dispenser must be discon-
nected from the power supply. The juice dispenser is considered to be disconnected from the
mains power supply only if the following conditions are met:
nthe mains power cable of the juice dispenser is disconnected. When disconnecting the juice
dispenser from the mains power supply do not pull the cable, pull on the plug
nthe respective fuse has been removed
Only use original spare parts when replacing faulty components (see page 40 ”Wear and spare
parts list”). The manufacturer can ensure compliance with the safety requirements only if origi-
nal parts are used.
2.8 Intended use
Thejuicedispenserisdesignedforaspeciedclimateclass(N:ambienttemperaturesof+16
to +32°C, relative humidity up to the max. 75%). The equipment is intended to be used exclu-
sively indoors.
Keep the door open only as long as possible. Otherwise, the temperature inside the refrigera-
ted area will rise. Increased temperatures cause the unnecessary operation of the compressor,
and therefore, increase the power consumption.

12
13
EN Juice Dispenser FSD3000 / FSD3100 © K. & M. Holland GmbH
© K. & M. Holland GmbH Juice Dispenser FSD3000 / FSD3100 EN
Subject to technical change without prior notice! Version 1.0, 05/02/2015
Subject to technical change without prior notice! Version 1.0, 05/02/2015
Donotcoverairintakesandexorcistopenings.Otherwise,asucientairowcannotbegua-
ranteed. Furthermore, the power consumption increases, and damage to the components may
be unavoidable.
NOTE
The manufacturer cannot be held liable for damage caused due to non-compliance
with safety information and warnings.
2.9 Personal Protective Equipment
During the assembly/disassembly of the juice dispenser, we recommend the following perso-
nal protective equipment:
nSafety gloves
nSafety boots
2.10 Responsibility of the owner
It is the responsibility of the owner to employ only personnel to work with the juice dispenser
who
nare familiar with the basic regulations pertaining to safety at the workplace and the preventi-
on of industrial accidents
nhave been introduced to all aspects pertaining to working with the juice dispenser
nhave read and understood this Operating Manual
It is the responsibility of the owner to install the juice dispenser in a manner that allows unobs-
tructed access for the care and maintenance of the equipment.
Inoce/oorsupplyorsimilarself-serviceapplications,onlystainstructedinoperationofthe
juice dispenser shall supervise the juice dispenser. Trained personnel shall carry out care pro-
cedures and be available for questions regarding the use of the equipment.
Theoperatorshallensurethatelectricalequipmentandoperatingfacilitiesareinatstate.
Compliance with the 2007/30/EC Directive for the use of work equipment is mandatory.

12
13
EN Juice Dispenser FSD3000 / FSD3100 © K. & M. Holland GmbH
© K. & M. Holland GmbH Juice Dispenser FSD3000 / FSD3100 EN
Subject to technical change without prior notice! Version 1.0, 05/02/2015
Subject to technical change without prior notice! Version 1.0, 05/02/2015
2.11 Responsibility of the personnel
Prior to the start of work, all personnel responsible for working with the juice dispenser must
nobserved for the regulations pertaining to safety at the workplace and the prevention of in-
dustrial accidents
nhave read and comply with the safety chapter and the safety information provided in this
Operating Manual
If you have any questions, please contact the manufacturer, see page 5.
2.12 Qualication of the personnel
We strongly urge you that the tasks mentioned below will be performed only by specially trai-
ned personnel:
nTransport
nInitial start-up
nTroubleshooting
nSet-up
nMaintenance
nDisposal/recycling
IMPORTANT
Thejuicedispensermustonlybeoperatedwhenproperlyconnected/awlesscon-
dition. Only then can the proper function of the safety devices be guaranteed.
Description of safety equipment and protective devices
nProtective earthing of all metallic components on fruit juice dispenser
nEquipment switch, at the rear panel of the fruit juice dispenser
nIlluminated switch for backlit door (depending on model) on inside of the door
nIlluminated switch for product dispense button on inside of the door
nDripping water protection on the outside of the fruit juice dispenser
nOverheat protection on compressor
nSafety switch to prevent excessive current consumption of the compressor
nAir fans with grip protection
Control device for emergency shutdown
The following equipment is installed in the juice dispenser in case of an emergency shutdown:
nEquipment switch
nMains power plug

14
15
EN Juice Dispenser FSD3000 / FSD3100 © K. & M. Holland GmbH
© K. & M. Holland GmbH Juice Dispenser FSD3000 / FSD3100 EN
Subject to technical change without prior notice! Version 1.0, 05/02/2015
Subject to technical change without prior notice! Version 1.0, 05/02/2015
Bei fehlerhaften Sicherheits- und Schutzeinrichtungen
FehlerhafteSicherheits-undSchutzeinrichtungenkönnenzugefährlichenSituationenführen.
In diesem Fall:
nden Fruchtsaftdispenser sofort ausschalten
ngegen Wiedereinschalten sichern
nNetzsteckerziehen
nWasserzufuhrunterbrechen

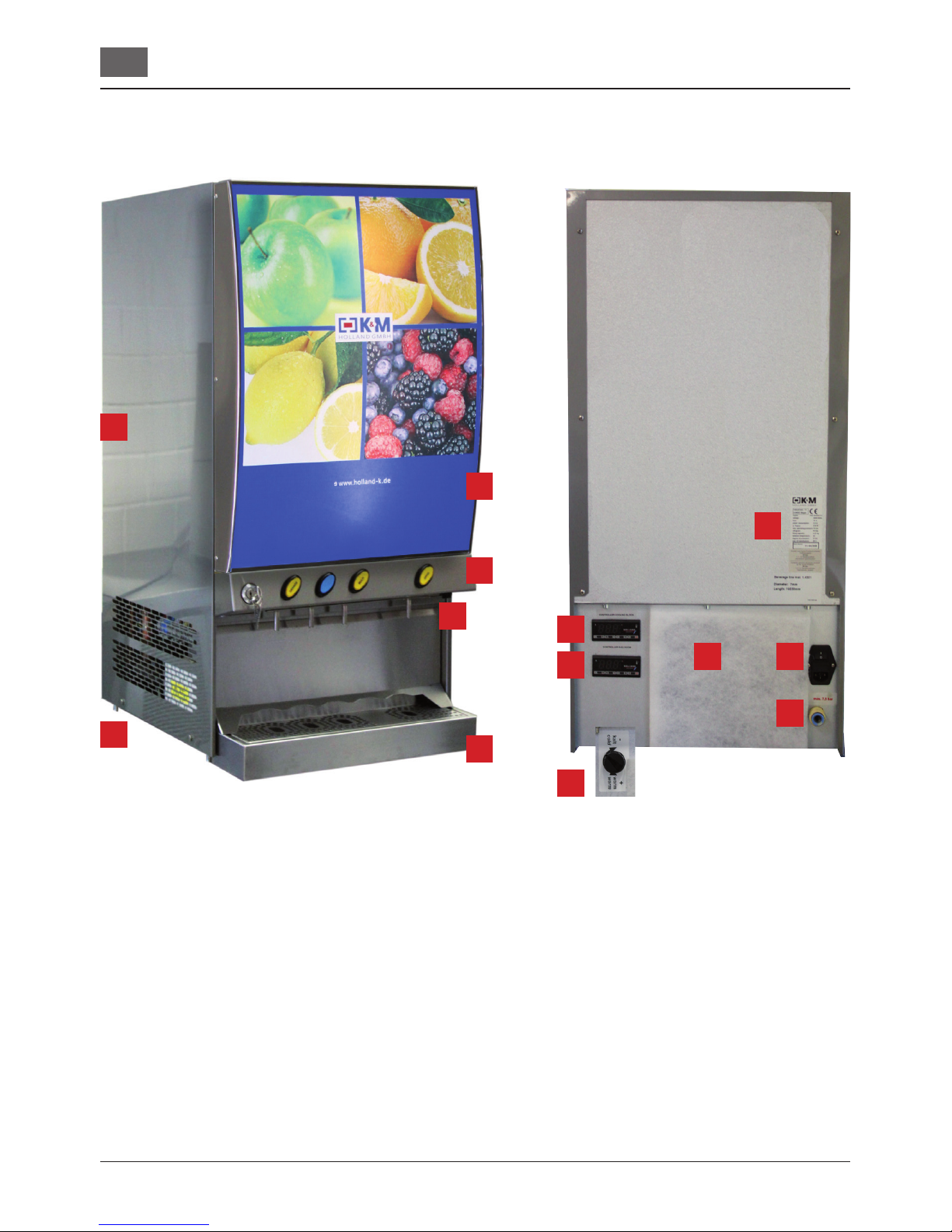

2.13 Machine identication and warning labels
In order to warn of residual risks that cannot be avoided are due to design limitations, the fol-
lowing information has been provided and/or attached to the juice dispenser:
nCleaning instructions
nNameplate with a technical data of the juice dispenser
nWarnings
nSafety instructions
Vor dem Öffnen des Gehäuses Netzstecker ziehen!
Nicht mit Spritzwasser reinigen!
Nicht in den Lüfterbereich hineinfassen!
Disconnect from mains before opening!
Do not spray with water when cleaning!
Keep hands out of fan area!
Mettre l’appareil hors tension avant de l’ouvrir!
Ne pas nettoyer l’appareil au jet d’eau!
Ne pas mettre les mains dans le ventilateur!
VordemÖnendesGehäusesNetzsteckerziehen!
NichtmitSpritzwasserreinigen!
NichtindenLüfterbereichhineinfassen!
Disconnect from mains before opening!
Do not spray with water when cleaning!
Keep hands out of fan area!
Mettre l’appareil hors tension avant de l’ouvrir!
Ne pas nettoyer l’appareil au jet d’eau!
Ne pas mettre les mains dans le ventilateur!

14
15
EN Juice Dispenser FSD3000 / FSD3100 © K. & M. Holland GmbH
© K. & M. Holland GmbH Juice Dispenser FSD3000 / FSD3100 EN
Subject to technical change without prior notice! Version 1.0, 05/02/2015
Subject to technical change without prior notice! Version 1.0, 05/02/2015
3. Description
3.1 Description of function
The juice dispensers FSD3000 and FSD3100E are designed explicitly to cool and dispense pa-
ckaged juices (Bag-In-Box = BIB) at a temperature of 6 to 8°C.
Thisjuicedispenseriscompliantwithclimateclass“N”,whichisspeciedforanambienttem-
peratures of +16 to +32°C.
This juice dispenser is exclusively designed for the indoor operation and must not be used out-
doors.
A refrigeration system with R134a refrigerant is used to cool the juice dispenser.
Athermostatisinstalledtocontroltherefrigerantsystem.Therstthermostatcoolstheairin-
side the bag room, while the second one regulates the heat sink temperature (depending on
model).

16
17
EN Juice Dispenser FSD3000 / FSD3100 © K. & M. Holland GmbH
© K. & M. Holland GmbH Juice Dispenser FSD3000 / FSD3100 EN
Subject to technical change without prior notice! Version 1.0, 05/02/2015
Subject to technical change without prior notice! Version 1.0, 05/02/2015
3.2 Technical Data FSD3000
Model FSD3000-2 FSD3000-3 FSD3000-4
Capacity 2 x 10 l BIB* 3 x 10 l BIB* 4 x 10 l BIB*
Dispensing capacity 60 l/h at +6 to +8 °C
Cooling capacity 725 Watt (t0= 0 °C)
Compressor Aspera NE6170Z
Refrigerant condenser FCE-V 100 U
electrical output 220/230V/50Hz/2,975A
Water pressure 3 – 4 bar
Water connector/wall 3/4“ on 3/8“ / 1,5 m
Fuse 16 A
Refrigerant 0,21 kg, R134a
Noise level max. 67 dBA (while the doors open, during dispensing)
Dimensions FSD3000-2 FSD3000-3 FSD3000-4
Height including base 910 mm 960 mm
Width 320 mm 440 mm 520 mm
Depth: 580 mm (630 mm incl. water supply line)
Clear with, inside 260 mm 380 mm 465 mm
Weight 64 kg 74 kg 84 mm
Adjustable base 35 mm 60 mm
Available options FSD3000-2 FSD3000-3 FSD3000-4
Backlit door l
The front door, stainless steel l
Increased equipment height lnew height 1050 mm
Electrical metering l
Additional water dispensing function ll
Without water l l l
BIB* = Bag-In-Box l= standard l= available ‚– – –‘ = not available

16
17
EN Juice Dispenser FSD3000 / FSD3100 © K. & M. Holland GmbH
© K. & M. Holland GmbH Juice Dispenser FSD3000 / FSD3100 EN
Subject to technical change without prior notice! Version 1.0, 05/02/2015
Subject to technical change without prior notice! Version 1.0, 05/02/2015
3.3 Technical Data FSD3100E
Model FSD3100E-2x10 FSD3100E-3x5 FSD3100E-3x10
Capacity 2 x 10 l BIB* 3 x 5 l BIB* 3 x 10 l BIB*
Dispensing capacity 30 l/h at +6 to +8 °
Cooling capacity 350 Watt (t0= 0 °C)
Compressor Aspera EMT45HDR
Refrigerant condenser FCE 10.2.150
electrical output 220/230V/50Hz/1,3A
Water pressure 3 – 4 bar
Water connector/wall 3/4“ on 3/8“ / 1,5 m
Fuse 16 A
Refrigerant 0,115 kg, R134a
Noise level max. 67 dBA (while the doors open, during dispensing)
Dimensions FSD3100E-2x10 FSD3100E-3x5 FSD3100E-3x10
Height including base 860 mm
Width 320 mm 320 mm 445 mm
Depth: 550 mm (600 mm incl. water supply line)
Clear with, inside 260 mm 260 mm 385 mm
Weight 46 kg 46 kg 65 kg
Adjustable base 60 mm
Available options FSD3100E-2x10 FSD3100E-3x5 FSD3100E-3x10
Backlit door lnew depth 580 mm
The front door, stainless steel l
Increased equipment height – – –
Electrical metering – – –
Additional water dispensing function l
Without water l
BIB* = Bag-In-Box l= standard l= available ‚– – –‘ = not available

18
19
EN Juice Dispenser FSD3000 / FSD3100 © K. & M. Holland GmbH
© K. & M. Holland GmbH Juice Dispenser FSD3000 / FSD3100 EN
Subject to technical change without prior notice! Version 1.0, 05/02/2015
Subject to technical change without prior notice! Version 1.0, 05/02/2015
3.4 Equipment
3
1
4
6
9
7
8
11 12
13
10
1. Side panels removable for maintenance purposes
2. Height-adjustable feet
3.Illuminateddisplayoratstainlesssteeldoor,dependingonthemodel
4. Product dispensing button (labelling provided by the owner), yellow = juice, blue = water
5. ON/OFF button for automatic portion metering, depending on model
6. Drip tray with overrun on back panel, drip grid and drinking glass positioning
7. Equipment and nameplate containing important technical data/electrical information
8. Digital temperature control unit LTR-5 heat sink, depending on model
9. Digital temperature control unit LTR-5 “Bag room”, depending on model
10. Mechanical temperature control unit, alternative to Pos. 8 & 9, depending on model
11.Airlter
12. The master switch ON/OFF and power connection
13.Waterconnectionwithremovablewaterlter(blue)
2
5

18
19
EN Juice Dispenser FSD3000 / FSD3100 © K. & M. Holland GmbH
© K. & M. Holland GmbH Juice Dispenser FSD3000 / FSD3100 EN
Subject to technical change without prior notice! Version 1.0, 05/02/2015
Subject to technical change without prior notice! Version 1.0, 05/02/2015
14. Bag room, refrigerated
15.Bagstorageoor(maximumcapacity55kg),canbefoldedupformaintenancepurposes
16. Solenoid valve
17.VenturimixingnozzlesforconnectingtheBag-In-Boxconcentrates
18. Product dispenser juice/water
19. Access door to the electrical module “Portion metering”, changing the program functions
20.Splashguard,accesstotheventurimixingnozzles,seePos.24
21. Cleaning instructions
22. ON/OFF switch for illuminated door display, see Pos. 3
23. ON/OFF switch for product dispense button, see Pos. 4
24. Flexible water supply hose 3/4 –3/8“ (depending on model), must be connected to Pos. 13.
25.Venturimixingnozzlesformaintenanceandadjustmentpurposes,accessviaPos.17
19
22
21
23
14
15
16
17
18
24
25
20

20
21
EN Juice Dispenser FSD3000 / FSD3100 © K. & M. Holland GmbH
© K. & M. Holland GmbH Juice Dispenser FSD3000 / FSD3100 EN
Subject to technical change without prior notice! Version 1.0, 05/02/2015
Subject to technical change without prior notice! Version 1.0, 05/02/2015
4. Unpacking/scope of delivery
IMPORTANT
When transporting the packaging containing the juice dispenser, ensure to keep
the equipment upright. Otherwise, the refrigeration system may be damaged
and the functionality of the juice dispenser cannot be guaranteed anymore. Compliance with
the respective instructions on the packaging is mandatory!
The juice dispenser must always be a package individually and delivered in an appropriate car-
ton. Inspect the packaging and the equipment for visible damage in the presence of the deli-
very person. Ensure to obtain a receipt on-site (photograph, if necessary). Otherwise, damage
claims cannot be accepted.
In order to process warranty claims, we require a description of the damage
(photograph, if necessary). Furthermore, the type designation and manufacturer number must
be provided.
4.1 Disposal of transport packaging
Prior to disposing of the packaging and material, ensure that all loose parts have been
removed.
The packaging material protects the juice dispenser from damage during transport. All pa-
ckaging material has been selected in consideration of environmentally responsible aspects and
proper means of disposal, therefore, all material is recyclable.
4.2 Scope of delivery for Juice Dispenser FSD3000/FSD3100E
nJuice dispenser, completely installed
nMains power cable
nBluelterforwaterinlet
nWater hose
nOperating Manual
nDrip tray with drip grid and drinking glass positioning
