KanexPro WP-IPKEYPAD8 User manual

WP-IPKEYPAD8
8-button Control based IP Keypad
USER MANUAL

WP-IPKEYPAD8D
DISCLAIMER
The information in this manual has been carefully checked and
is believed to be accurate. KanexPro assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
KanexPro assumes no responsibility for any inaccuracies that may be
contained in this document. KanexPro also makes no commitment to
update or to keep current the information contained in this
document.
KanexPro reserves the right to make improvements to this
document and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer file, in any form or by any means—
electronic, mechanical, magnetic, optical, chemical, manual, or
otherwise—without express written permission and consent from
KanexPro.
© Copyright 2017 by KanexPro. All Rights
Reserved.

WP-IPKEYPAD8D
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of fire,
electrical shock and injury to persons.
• To prevent fire or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
• Do not allow anything to rest on the power cabling or allowany
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufficient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO.
DATE (DD/MM/YY)
SUMMARY OF CHANGE
VS0
24/02/17
First release

WP-IPKEYPAD8D
CONTENTS
1. INTRODUCTION............................................................................................ 1
2. APPLICATIONS ............................................................................................. 1
3. PACKAGE CONTENTS..................................................................................1
4. SYSTEM REQUIREMENTS...............................................................................2
5. FEATURES...................................................................................................... 2
6. OPERATION CONTROLS AND FUNCTIONS ................................................. 3
6.1 Front Panel....................................................................................................... 3
6.2 Rear Panel ....................................................................................................... 4
6.3 Telnet Commands......................................................................................... 5
6.4 Telnet Control .................................................................................................8
6.5 WebGUI Control...........................................................................................10
6.5.1 Macro Settings ...................................................................................11
6.5.2 Extension Macro ................................................................................14
6.5.3 Command Settings...........................................................................14
6.5.4 Device Settings...................................................................................16
6.5.5 Key Settings .........................................................................................16
6.5.6 Schedule..............................................................................................17
6.5.7 Network Settings ................................................................................19
6.5.8 System Settings...................................................................................19
6.5.9 Time Settings .......................................................................................20
7. CONNECTION DIAGRAM.......................................................................... 21
8. SPECIFICATIONS ........................................................................................ 22
9. ACRONYMS ...............................................................................................24
10.Warranty ................................................................................................... 25

WP-IPKEYPAD8D
1| P a g e
1. INTRODUCTION
This KanexPro WP-IPKEYPAD8 is an easy to use, programmable eight
button multi-purpose key pad based over TCP/IP for controlling various
audio-visual devices such as DVD players, projectors, relay bases screens
and much more. These keypads can send commands to any Ethernet or
relay trigger controlled device in your AV system. With up to 16 physical
macro buttons and up to an additional 16 software based macro
buttons (8 each on singe-gang version). Pre-program and recall up to 32
(16 on the single gang) distinct macros delivering complete control over
your audio and video application.
Powered over Ethernet & Colored LED’s for
The soft and colorful LED buttons are suitable for all environments and
PoE (Power over Ethernet) support allows for creative placement of the
keypad within your space without needing to be concerned about
keeping it near a live power source.
2. APPLICATIONS
• Classrooms & Conference centers
• Control Centers
• Product Showrooms
• Ballroom & hotel suites
3. PACKAGE CONTENTS
• 1×Control Keypad (US Double gang or Single gang)
• 1×USB Type A to USB Mini-B OTG Connector
• 1×Terminal Block Connector
• 2×Button Sticker Sheets
• 1×5V/2.6A DC Power Adaptor
• 1×Operation Manual

WP-IPKEYPAD8D
2 | P a g e
4. SYSTEM REQUIREMENTS
• An active Internet connection from a switch or router for control of
Ethernet devices.
• A PoE supporting network switch or hub is required to use the PoE
power function, otherwise access to a local power outlet is needed.
5. FEATURES
• US Double or Single gang wall plate design with adjustable LED
brightness
• 16 (8 on single gang) macros for controlling user equipment
• Up to 128 total commands can be stored and used across all
macros in the system (up to 16 per macro)
• Supports relay triggers to control compatible devices
• Supports time and date macro scheduling (single and recurring)
• Supports 48 hours of backup power for the internal clock and
schedule function to protect against blackouts and temporary
power loss
• Supports customizable daylight savings time settings for scheduling
• Supports Keypad, Telnet and WebGUI control
• Supports PoE or DC power supply
• Multiple uses for home, hotel rooms, central control rooms,
conference rooms, etc.

WP-IPKEYPAD8D
3 | P a g e
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Front Panel
Macro Buttons: Each button contains 2 color LEDs (red and blue)
with adjustable individual brightness levels from 0~100. Each button
can activate a customized macro. (For further detail on these
settings please refer to section 6.5 “WebGUI Control”.)
1
1

WP-IPKEYPAD8D
4 | P a g e
6.2 Rear Panel
CONTROL: Connect to an active Ethernet network via a switch
or router to allow it to control other devices on the network
and to be accessed via Telnet/WebGUI. This unit has PoE (48V,
PD) functionality which means it can be powered directly by
a connected PoE (48V, PSE) switch/hub without the need for a
power adapter.
DC 5V: Plug the 5V DC power adapter into this port and connect it
to an AC wall outlet for power. (optional)
RELAY OUT: Connect to a device that supports DC 0~24V/5A relay
trigger functionality.
Relay
Control
3
1
2
3

WP-IPKEYPAD8D
6 | P a g e
6.3 Telnet Commands
COMMAND
DESCRIPTION
IPCONFIG
Display the current IP
configuration.
SETIP N, N1, N2
Set static Ethernet IP, netmask,
and gateway addresses
simultaneously.
N=X.X.X.X (IP Address)
N1=X.X.X.X (Netmask)
N2=X.X.X.X (Gateway)
X=0~255
SIPADDR X.X.X.X
Set Ethernet IP address.
X=0~255
SNETMASK X.X.X.X
Set Ethernet netmask.
X=0~255
SGATEWAY X.X.X.X
Set Ethernet gateway.
X=0~255
SIPMODE N
Set Ethernet IP mode.
N=STATIC, DHCP
VER
Show unit's firmware version.
FADEFAULT
Set all configurations to factory
defaults.
ETH_FADEFAULT
Reset all Ethernet settings to the
factory defaults.
REBOOT
System reboot.

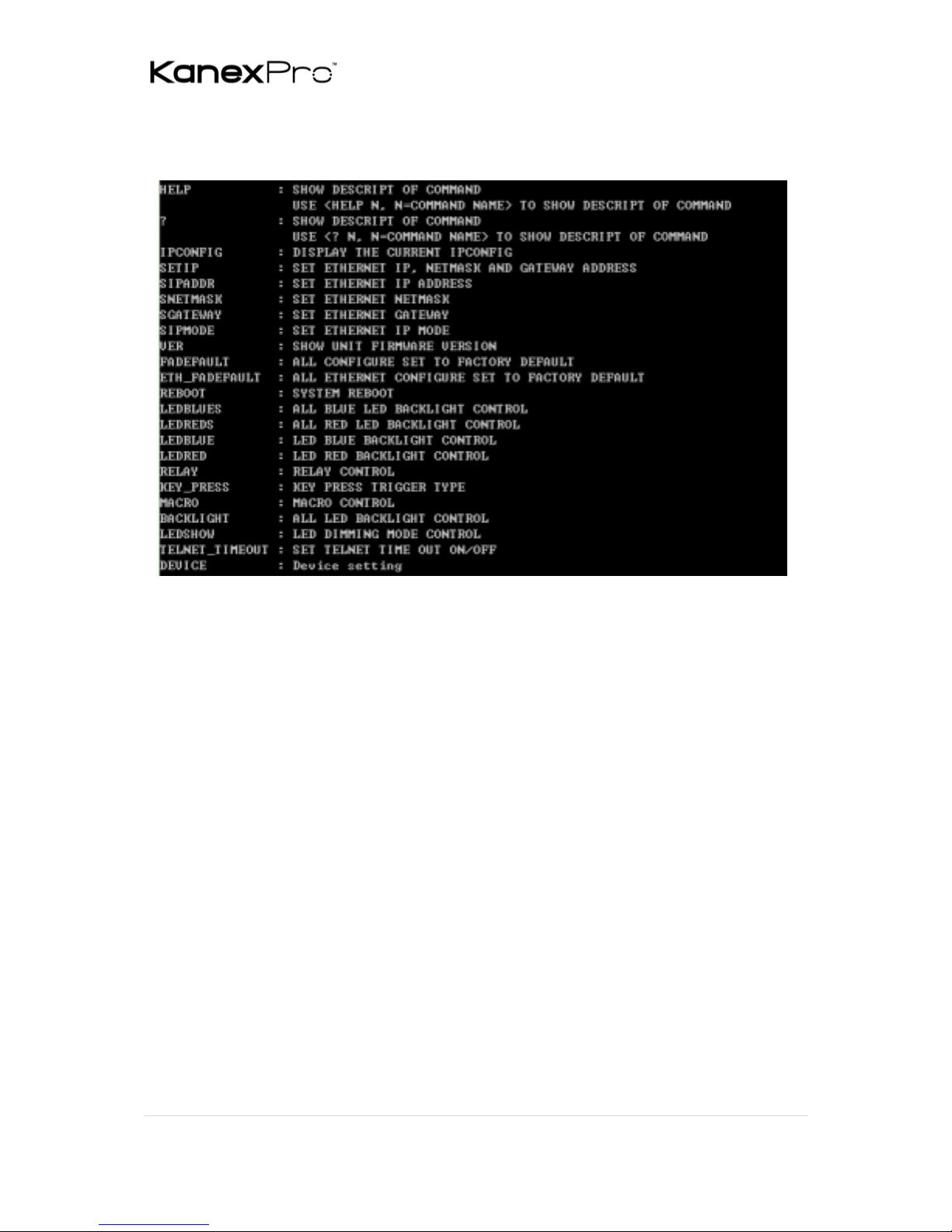

HELP (?)
Show command list.
HELP N
Show description of command.
N={Command Name}
