About This User ’ s Manual
You are reading the Kanvus Virtuoso T5000 / Virtuoso 5001 Graphic Tablet User Manual. This
Manual provides information regarding the components in the Kanvus Graphic Tablet and how to
use them. The following are major sections of this User’s Manual :
1. Product Introduction
Provides information on the Kanvus Graphic Tablet’s components.
2. Getting Started
Provides information on getting started with the Kanvus Graphic Tablet.
3. Using the Tablet
Provides information on using the Kanvus Graphic Tablet.
4. Using the Bundled Software
Provides information on using the Kanvus Graphic Tablet’s utility.
5. Specification Summary
Gives you specifications summary of Kanvus Graphic Tablet.
6. Troubleshooting
Provides information on Kanvus Graphic Tablet, where you can find the answers to most
common questions.
Notes for This Manual
A few notes and manuals are used throughout this guide, allowing you to complete certain tasks
safely and effectively.
1.
WARNING
Important Information that must be followed for safe operation.
2.
IMPORTANT
Vital information that must be followed to prevent damage to data,
components, or persons.
3.
TIP
Tips for completing tasks.
4.
NOTE
Information for special situations.

3
Safety Information
Adhering to the following safety information will prolong the life of the Tablet.
1. DO NOT try to open the housing of the tablet and the digital pen. It will void
your warranty.
2. DO NOT expose to or use near liquids, rain, or moisture.
3. DO NOT place or drop objects on top of the Tablet.
4. DO NOT expose to strong magnetic or electrical fields.
5. DO NOT throw the Tablet in municipal waste. The product has been
designed for proper reuse and recycling of parts. The symbol of the
crossed-out wheeled bin indicates that the product should not be placed in
municipal waste. Check your local regulations for disposal of electronic
products.
Care and Cleanin g
1. DO NOT expose to dirty or dusty environments to avoid wearing-down the
surface of the tablet.
2. Regular cleaning of the tablet surface with a soft cloth will help expand the
life span of your tablet. DO NOT use any kind of volatile liquid on the tablet
surface, as it will damage the plastic case.
3. Store your tablet and the pen in a clean, dry place and avoid extreme
temperatures.

4
1. Product Introduction
-Package Contents
-Tablet
-Digital Pen

5
Package Contents
Check your package for the following items.
Virtuoso T5000
Kanvus Virtuoso T5000 Digital Tablet
Digital Pen & 1.5V AAABattery & Refills &
Pen Clip
Pen Stand
Installation & Tutorial DVD
Corel Painter Essentials 4
(Windows & Mac)
Quick Guide

6
Virtuoso 5001
Kanvus Virtuoso 5001 Digital Tablet
Digital Pen & 1.5V AAABattery & Refills &
Pen Clip
Installation & Tutorial DVD
Quick Guide

7
Tablet
Refer to the picture below.
Virtuoso T5000
Descriptions
○

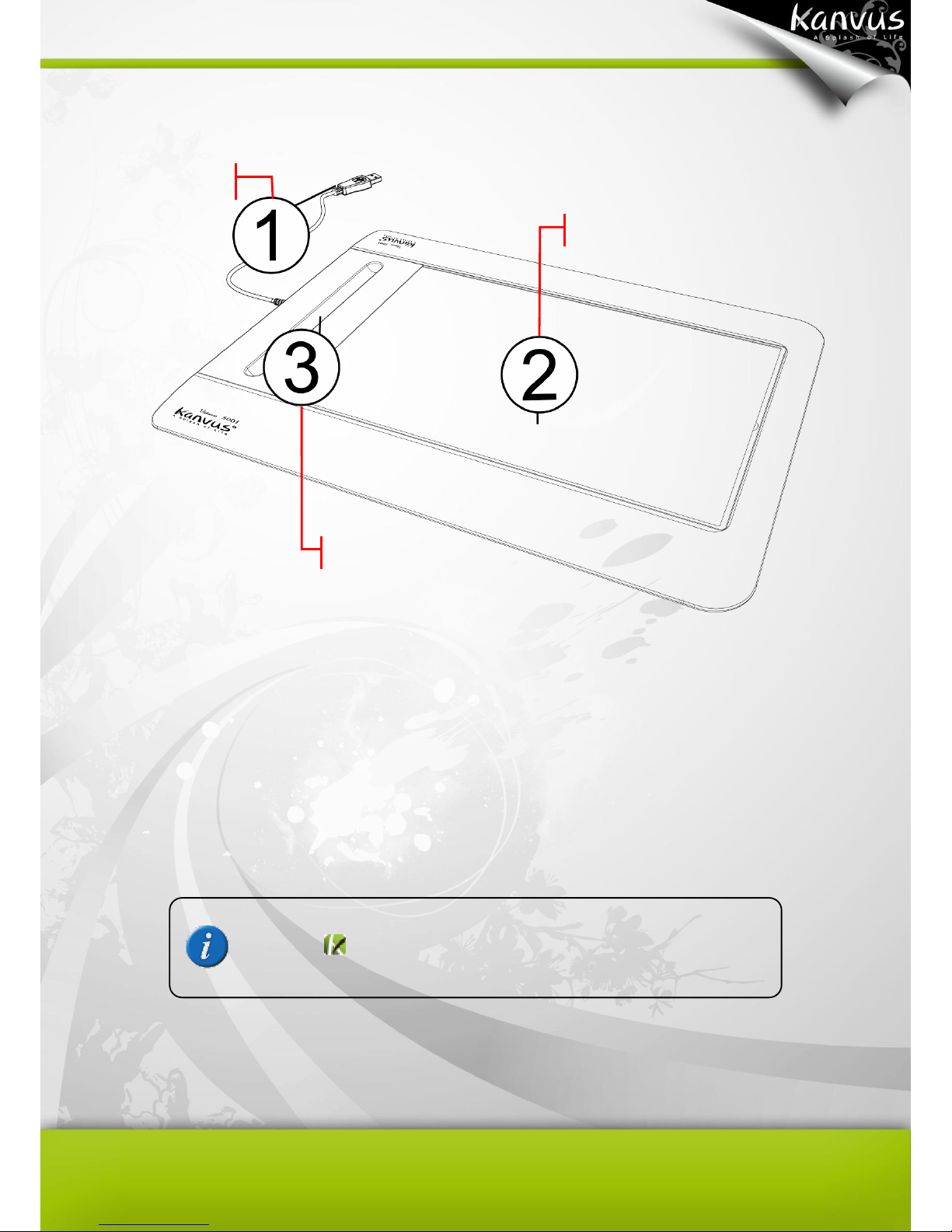

1 —USB Connector : Connect to a USB port on your PC.
○
2 —Working Area : Please refer to Working area section for detail descriptions.
○
3 —Mode Keys / Touch Ring : It allows you to navigate easily in “Scroll”, “Zoom”, “Brush”or
“Volume”functions. The usages of a rolling pad are as follows:
USB Connector
Mode Keys / Touch Ring
Working Area
LED Indicator
Hot Keys

8
Mode Key
Mode
Scroll
Zoom
Brush
Volume
Touch Ring
Clockwise operation
Scroll Down
Zoom Out
Brush Reduce
Volume Reduce
Touch Ring
Counter-Clockwise
operation
Scroll Up
Zoom In
Brush Increase
Volume Increase
○
4 —Hot Keys : you can change the Hot key settings from the Hot Key Configuration Page.
○
5 —LED Indicator : The green LED light on the tablet is the main indicator for hardware
operation. This LED normally stays off, and will only be turned on/off in response to certain
conditions. Pay attention to the states of the LED when you are encountering the following
situations :
(a) Abuilt-in power saving function would execute the power saving mode for the pen if it
is left unused for a period of time. Tap anywhere on the surface with the tip of the pen
to “wake it up” if it has gone into power saving mode.
(b) When the pen tablet is re-activated, the LED light will go on for a moment, and will
then turn off again.
(c) When the tablet detects the digital pen, the LED will blink slowly. This happens when
the pen tip is idling or is being placed within the working area on the tablet.
(d) When you press a button on the pen barrel, the LED light will be turned on.
(e) Moving the pen around the working area will cause the cursor on the screen to move
accordingly.
We design these key functions for Adobe PhotoShop Serial applications.
However, different applications might have different definitions in terms of
Scrolling, Zoom and Brush. Thus, the Touch Ring may not work in all kinds of
applications.

9
Virtuoso 5001
○
1 —USB Connector : Connect to a USB port on your PC.
○
2 —Working Area : Please refer to Working area section for detail descriptions.
○
3 —Pen Slot : Place the Digital Pen.
After the tablet’s device driver has been properly installed, a small
tablet icon will appear in the System Tray, which is normally at
the lower right corner of the desktop.
USB Connector
Working Area
Pen Slot
