KAP Trader IW06B-N User manual

Instruction Manual
High-Definition Link for BMW
IW06B-N
Release Date: 2014 - 12 - 09
Model Name IW06B-N
Latest Firmware Date 2014 - 12 - 03
Manual Version Rev. 3.0
Language English

IW06B-N-related
•You should check the names and colors of each wires exactly, before you connect the wires.
ex) CAN HIGH: White wires / CAN LOW: Blue wires
• The ‘POWER / CAN Cable’ should always be connected last and be disconnected first.
•The 'Mode Switch' is an optional part to change modes forcibly without CAN-BUS.
Generally, the CAN-BUS wires are connected for changing modes by original buttons.
•When the reverse gear is not detected by CAN-BUS,
the 'REVERSE 12V IN wire’ should be spliced with 12V power of reverse light.
HDMI device-related
•HDMI mode accepts general-screen resolution of HDMI devices.
If screen size of HDMI does not fit on the monitor, should adjust screen size & position in 'settings mode'.
•Generally, '5V 1A Power output(5V USB POWER)' is a standard voltage for charging smartphone.
If you need higher voltage than 5V, you should add a separate power supply.
Navigation(GPS) box-related
•When you connect the power wires(B+, ACC) to the navigation(GPS) box,
the 'ACC (12V) OUT' wire supported by IW06B-N should be spliced with anACC wire of navigation box.
•After installation is done, select an applicable navigation(GPS) box model in the 'Navigation model selection
menu' of setting mode.
•The navigation box should be powered off before unplugging the HDMI cable.
Cautions

Width: 142 mm
Length: 91 mm
Height: 22 mm
Exterior
Dimension
ⓐ
DIP SWITCH
ⓑ
AV IN / OUT
ⓒ
TOUCH IN
ⓓ
MODE
ⓔ
POWER / CAN
ⓕ
HDMI IN
ⓖ
5V USB POWER
ⓗ
NAVI IN
ⓘ
UART I/F
ⓙ
LVDS OUT
ⓐⓑⓒⓓⓔ
ⓕⓖⓗⓘⓙ

Power / CAN Cable LVDS Cable LVDS PCB HDMI Cable
(For LVDS) AV IN / OUT Cable 5-pin Micro USB Cable
Components

External Rear View
Camera
Audio(AUX) Output of
Navigation Box
Auxiliary(AUX)
Input of the car
External Front View
Camera
AV device
(ex: DTV Box, Divx)
RV-CAM Video Input
NavigationBox
Power / CAN
Cable
LVDS IN / OUT Connection
DIP S/W Setting
Mode Switch
(optional)
HDMI Device
HDMI
HDMI
HDMI
HDMI USB
FV-CAM Video Input
(AV1)
12V Power Output & GND Output(RV-CAM Power)
NAVI Audio Input
Audio Output
※Optional External Devices
AV-Input(AV2)
Reverse Signal Detection(optional)
Full Installation Diagram
NAVI 12V Power Output(ACC 12V OUT)
GND Output(GROUND)
PAS CAN High
PAS CAN Low
GND Input(GROUND)
B+ Power Input(BAT +)
Pin # 9 = CAN LOW(Yellow / Brown)
“ (Purple)*MINI Cooper
Pin # 11 = CAN HIGH(Yellow / Red)
“ (White)*MINI Cooper
Pin # 12 = GND(Brown)
Pin # 15 = Head Unit Power(Red / Yellow)
※CAN HIGH / LOW Pin Specification
Head Unit –Original Main Harness
1
4
5
8
9
11
12
13
15
16
LVDS
IN / OUT
PCB
OEM Monitor
OEM Head Unit
(Provided LVDS Cable)
(OEM LVDS Cable)
Touch Screen Panel
Touch Cable
(For Type A)
HDMI
HDMI USB
USB

HDMI
HDMI
(Female)
USB
‘Stick Type’ HDMI Devices
HDMI IN 5V USB
POWER NAVI IN UART I/F LVDS OUT
HDMI Device
HDMI IN 5V USB
POWER NAVI IN UART I/F LVDS OUT
HDMI Device
USB
HDMI
HDMI
(Male)
‘Dongle & Adapter’ Type HDMI Devices
HDMI Connection Diagram
(5V-1A Power output for HDMI Device) (5V-1A Power output for HDMI Device)
(HDMI Extender) (HDMI Cable)

HDMI IN 5V USB
POWER NAVI IN UART I/F LVDS OUT
Navigation Connection Diagram(Type B)
Navigation(GPS) Box
HDMI
HDMI
KAP –KG-W14H
(Touch Cable of KG-W14H)
TOUCH IN
Compatibility Navigation(GPS) box
Model Country Dip S/W
(Navigation) Required Parts
KAP
KG-W14H
South
Korea
OFF(↓): 1, 2, 3
ON(↑) : 4 HDMI Cable (Male to Male)
1 2 3 4
ON
↑
•The 'IW06B-N(HD-Link)’ supports navigation(GPS) box models equipped
with 'Digital video output'.
•It does not support the 'RGB video'.

HDMI
HDMI
CIC-HIGH(NBT) Head Unit
HDMI IN 5V USB
POWER NAVI IN UART I/F LVDS OUT
LVDS
IN / OUT
PCB
LCD
Cable (OEM LVDS Cable)
Monitor(OEM)
•'Genuine(OEM) LVDS connector' should be connected
to 'LVDS IN / OUT PCB'.
• ‘Provided LVDS connector' should be connected to the
monitor instead to the genuine connector.
(Provided LVDS Cable)
LVDS Connection Diagram LVDS Connection

POWER / CAN MODE TOUCH-IN AV IN / OUT DIP SWITCH
1 2 3 4 5 6 7 8 9
10
11
12
13
14
15
16
17
18
19
20
21
22
1 2 3 4 5 6 7 8 9
10
1
BATTERY POWER INPUT
2
GND INPUT
3
GND OUTPUT
4
ACC(12V) POWER OUTPUT
5
PAS CAN HIGH
6
PAS CAN LOW
7
-
8
-
9
-
10
-
PAS CAN H
PAS CAN L
BAT +
GROUND GROUND
ACC(12V) OUT
1
RV-CAM VIDEO INPUT
12
GND(RV-CAM VIDEO)
2
RV-CAM POWER OUT
13
GND OUTPUT(RV-CAM)
3
REVERSE DETECTION
14
IR OUT
4
NAVI AUX INPUT R
15
GND(NAVI AUX IN R)
5
NAVI AUX INPUT L
16
GND(NAVI AUX IN L)
6
AUDIO OUTPUT R
17
GND(AUDIO OUT R)
7
AUDIO OUTPUT L
18
GND(AUDIO OUT L)
8
AV1 VIDEO INPUT
19
GND(AV1 VIDEO IN)
9
AV2 VIDEO INPUT
20
GND(AV2 VIDEO IN)
10
AV2 AUDIO INPUT R
21
GND(AV2 AUDIO IN R)
11
AV2 AUDIO INPUT L
22
GND(AV2 AUDIO IN L)
GROUND
IR OUT
REVERSE 12V IN
REAR 12V
REAR CAMERA
NAVI AUD IN R
NAVI AUD IN L
AUDIO OUT R
AUDIO OUT L
AV1 IN V
AV2 IN V
AV2 IN R
AV2 IN L
Push Switch
•The colors of each wires can be changed under manufacturer’s circumstance.
Body Connector specifications
1
2
Length: 100 cm Length: 20 cm
Length: 150 cm
1
2
3
4
Touch Cable
(Type A)
Length: 150 cm

Car Models Production
Year Specific Models
1 Series 2012 - F20, F21
2 Series 2014 - F22
3 Series 2012 - F30, F31, F34(3 GT)
4 Series 2014 - F32, F33, F36
5 Series 2012 - F10, F11, F07(5 GT)
6 Series 2012 - F12, F13
7 Series 2012 - F01, F02
X3 2012 - F25
X4 2014 - F26
X5 2014 - F15
Mini Cooper 2014 - F56
The IW06B
-N is used in combination
with BMW
iDrive CIC-HIGH(NBT)
system.
The IW06B
-N supports the BMW
original screen equipped with
‘6
-pin LVDS round connector’ only.
Please check the specificationof
original LVDS connector on the
sidelines of a production year.
Car Compatibility Chart

1
Button Function Operation Remarks
MENU
Changing
Modes Press the button 2 seconds long. Order: HDMI →NAVI →AV2 →OEM
MENU
Shortcut to
each modes
Press the button 2 times. < OEM → NAVI >
Press the button 3 times. < OEM → AV2 >
MENU Back to OEM Press the button short. Return to the OEM mode in any modes.
MENU
System
Locking /
Unlocking Press the button 10 seconds long.
If you visit car service center, you can lock
the all functions of IW04M.
It is only possible to use the OEM functions
under it is locked.
LEFT
PUSH
Changing
mode to Front
View Camera
mode(AV1)
Push the button left 2 seconds long. It changes the screen from any modes to
AV1 mode directly.
RIGHT
PUSH
Changing
screen ratio
<16:9 ↔ 4:3> Push the button right 2 seconds long. You can use this function only for 3 modes.
(HDMI, NAVI, AV2)
BACK
Reset to
factory default
setting and
power.
Press the button 10 seconds long. You can use this function when you get in trouble to see the screen while setting the
screen.
1
1
For BMW & MINI Cooper
2
1
Activation by original buttons of BMW
2
1
2
1
MINI iDrive Controller
BMW iDrive Controller

Pin
No. ON(▼) OFF(▲)
1 HDMI Mode Skip HDMI Mode
2 NavigationMode Skip NavigationMode
3 External Rear View Camera Original Rear View Camera
4 External Front View
Camera(AV1 Mode) Skip External Front View Camera(AV1 Mode)
5 AV2 Mode Skip AV2 Mode
6
Selectionof car model
7
8
9
10
OFF
ON ON: ▼OFF:▲
No.6 No.7 No.8 No.9 No.10 Car Models
OFF(
▲
)
OFF(
▲
)
OFF(
▲
)
OFF(
▲
)
OFF(
▲
)
5(F10), 6(F12), 7(F01),X5
(F15)
(10.2-inch screen)
OFF(
▲
)
OFF(
▲
)
OFF(
▲
)
OFF(
▲
)
ON(▼)
1(F20),3(F30), 4(F32),X3(F25)
(8.8-inch screen)
OFF(
▲
)
OFF(
▲
)
OFF(
▲
)
ON(▼)
OFF(
▲
)
Mini Cooper(F56)
(8.8-inch screen)
OFF(
▲
)
OFF(
▲
)
OFF(
▲
)
ON(▼)
ON(▼)
1(F20), 2(F22), 3(F30) Series
(6.5-inch screen)
OFF(
▲
)
OFF(
▲
)
ON(▼)
OFF(
▲
)
OFF(
▲
)
X3(F25), X4(F26) 2015
(8.8-inch screen)
IW06B-N supports HDMI and NAVI modes with full size only on BMW 2015 X3, X4 now.
2015 X3, X4 will be updated for Rear-View camera, AV1 & 2 and setting modes, next time.
OFF(
▲
)
OFF(
▲
)
ON(▼)
ON(▼)
ON(▼)
5(F10) Series *6.5-inch
(‘CHIMEI INNOLUX’ screen)
OFF(
▲
)
OFF(
▲
)
ON(▼)
OFF(
▲
)
ON(▼)
X3(F25), X4(F26) *6.5-inch
(‘CHIMEI INNOLUX’ screen)
OFF(
▲
)
OFF(
▲
)
ON(▼)
ON(▼)
OFF(
▲
)
3(F30) Series *6.5-inch
(‘Business Navigation’ model)
DIP Switch Settings

1
Button Function Operation
OPTION Enter into the
setting menu Press the button 5 seconds long.
BACK Back to previous
menu Press the button short.
Selection Select the menu
and setting values. Press the button short.
Turn the dial
counterclockwise
Move the menu-
pointer and adjust
the setting values.
Move the pointer and setting
values to up(↑) and left(←).
Turn the dial
clockwise
Move the menu-
pointer and adjust
the setting values.
Move the pointer and setting
values to down(↓) and right(→).
3
4
2
5
For BMW & MINI Cooper
2 1
4 53
Settings
1. Enter into the setting menu.
<Press the ‘OPTION’ button 5 seconds long.>
- HDMI & Navigation settings
- Rear view camera settings
-AV-input settings

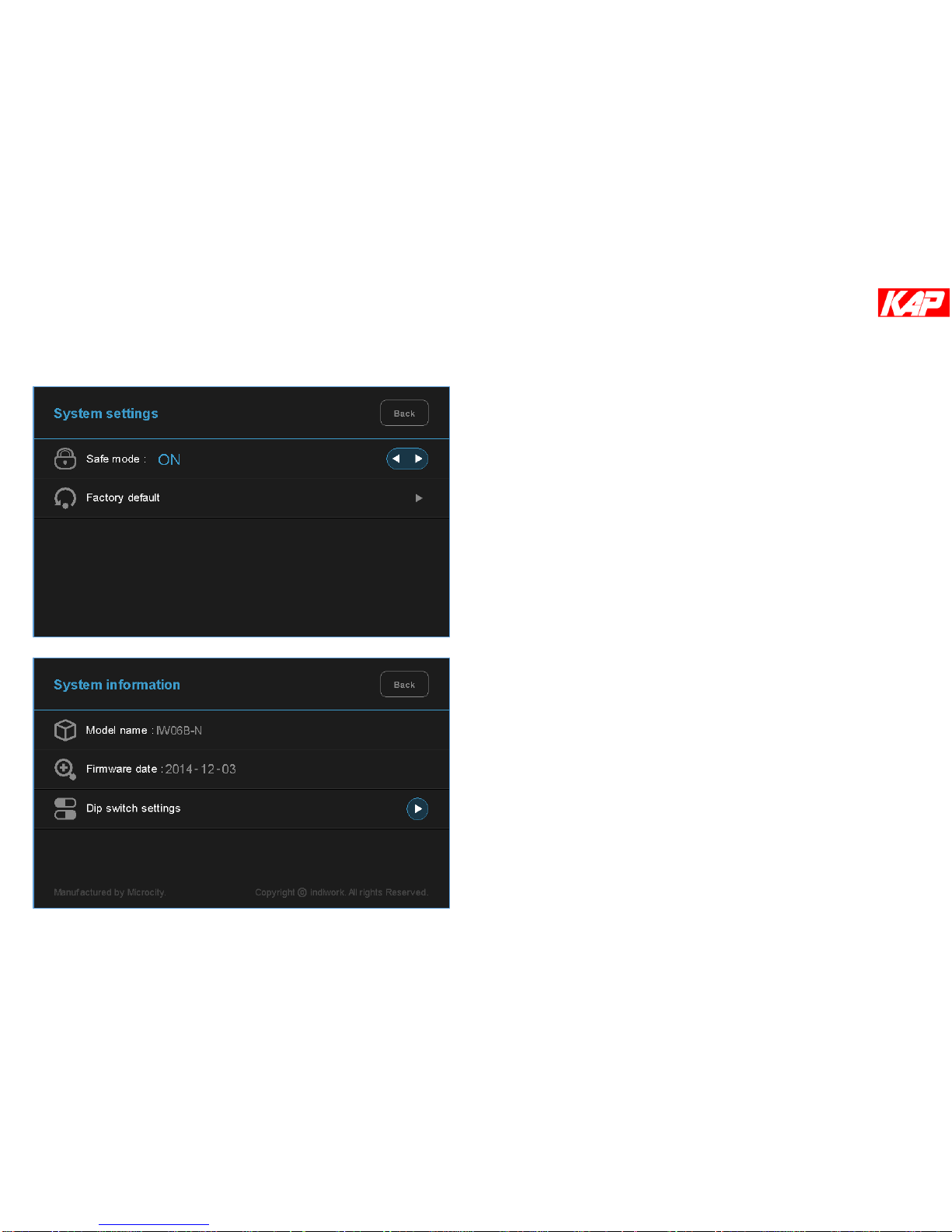

- System settings
- System information
2 1
4 53

Settings
2. HDMI mode settings
- Mode selection: HDMI ↔ NAVI
- Image display
= Adjust the values of brightness and contrast
Red-Green-Bluecolors of HDMI display.
- Screen position & size
= Entry Disabled/ Not applicable.
3. NAVI mode settings
- Mode selection: NAVI ↔ HDMI
- Image display
= Adjust the values of brightness and contrast
Red-Green-Bluecolors of NAVI display.
- Screen position & size
= Entry Disabled / Not applicable.
- Navigation model selection
①N-Link ②iNAVI - CUBE ③imercury –Class settop
④KG-W14H

Settings

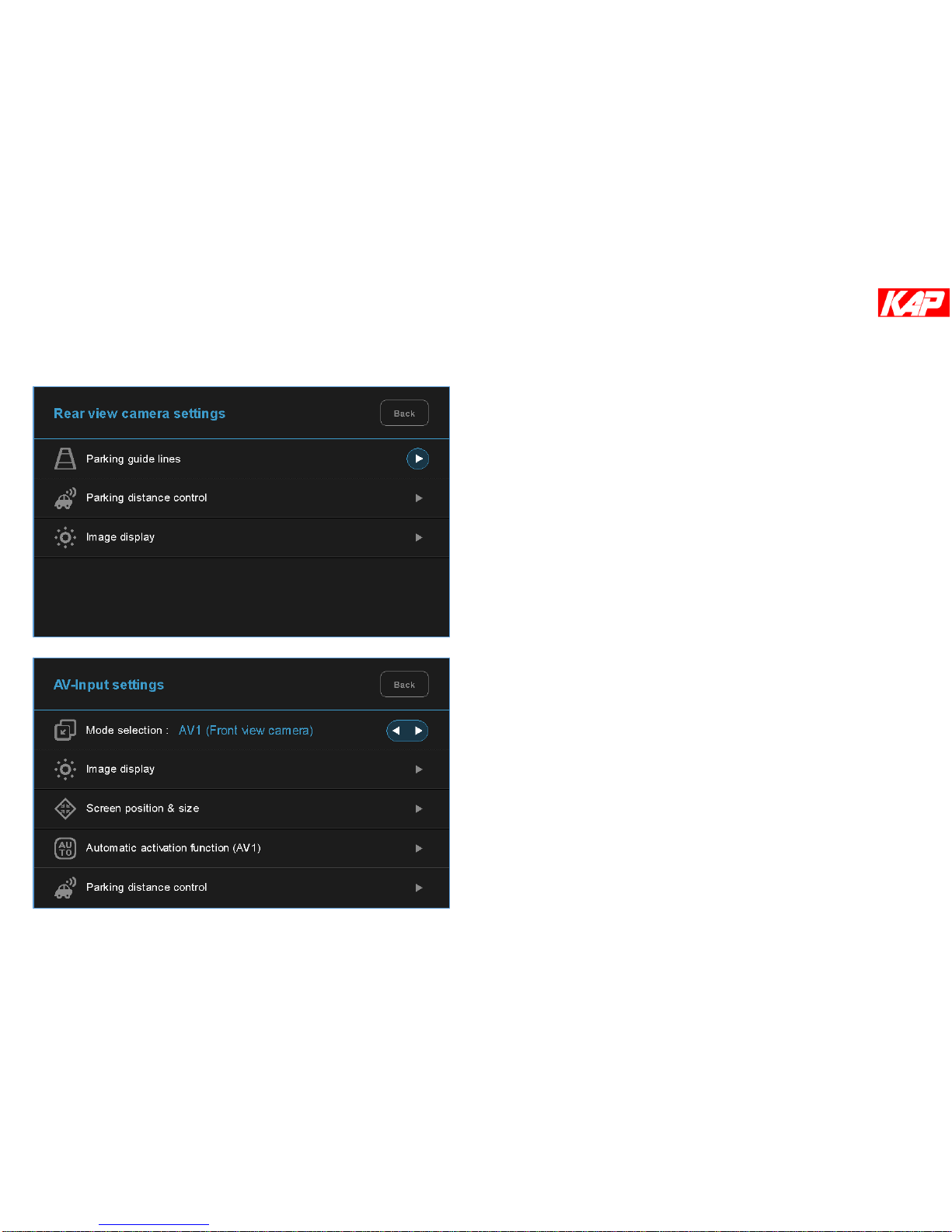

4. Rear view camera settings
- Parking guide lines
= Adjust position of parking guide lines and
select the lines ‘ON or OFF’.
- Parking distance control
= Entry Disabled / PDC function is always activated.
- Image display
= Adjust the values of brightnessand contrast
Red-Green-Blue colors of Rear view camera display.
5. AV1(Front view camera) settings
- Mode selection:AV1(Front view camera) ↔ AV2
- Image display
= Adjust the values of brightness and contrast
Red-Green-Blue colors of AV1(Front view camera) display.
- Screen position & size
= Entry Disabled / Not applicable.
- Automatic activation function(AV1)
= * Please refer to next page.
- Parking distance control
= Entry Disabled / PDC functionis always activated.

Settings

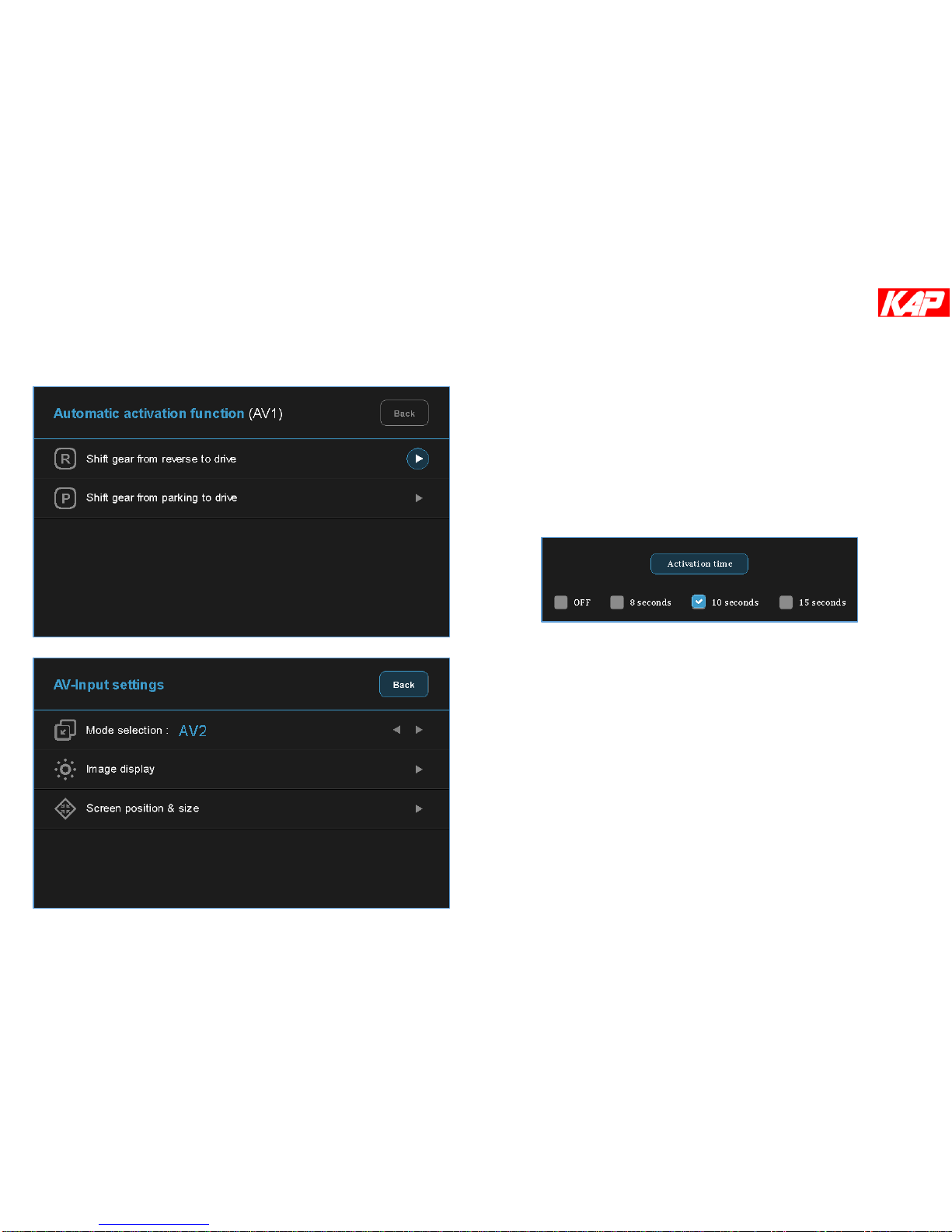

6. Automatic activation function(AV1)
- Shift gear from reverse to drive
- Shift gear from parking to drive
* When you shift gear ‘from reverse to drive’ or ‘from parking to drive’,
it just works automatically during the activation time you selected.
7. AV2 settings
- Mode selection:AV2 ↔ AV1(Front view camera)
- Image display
= Adjust the values of brightness and contrast
Red-Green-Blue colors of AV2 display.
- Screen position & size
= Entry Disabled / Not applicable.

Settings
8. System settings
- Safe mode
= Select the one of two between ‘ON and OFF’.
* If you select ‘ON’, 3 modes(HDMI, NAVI and AV2) will be faded out
when the car is driven.
- Factory default
= Reset all setting values to factory default setting.
9. System information
- Mode name: IW06B-N
- Firmware date: 2014 - 12 - 03(Latest firmware date)
- = You can check the current firmware version date.
- Dip switch settings
= You can check the current positions of dip switch settings.

Settings
10. Information of Dip switch settings
* You can check the current positions of dip switch settings.
ex 2)
Actual DIP switch values. (→)
Appears on the setting menu. (↓)
ex 1)
Actual DIP switch values. (→)
Appears on the setting menu. (↓)
