KAP Trader PCM5.0-TDC3 User manual

INDEX
Specifications
1. Main Spec. ----------------------------------
2. Diagram -------------------------------------
3. Components --------------------------------
4. Exterior --------------------------------------
Settings
1. Dip Switch ----------------------------------
2. Original button -----------------------------
3. Touch screen --------------------------------
4. Key board -----------------------------------
5. OSD Menu ----------------------------------
Installation
1. LVDS -----------------------------------------
2. Navigation -----------------------------------
3. Front camera --------------------------------
4. Rear camera ---------------------------------
5. CAN -----------------------------------------
6. Caution --------------------------------------
1
3
4
5
6
7
8
10
12
13
19
20
21
22
23
24
car-solutions.com

Specification
1. Main spec.
1. Input Spec. (MULTI VIDEO INTERFACE)
- 1 x HDMI Input
- 1 x Analog RGB Input (Navigation System output)
- 2 x A/V Input (External video source)
- 1 x CVBS(REAR CAMERA) Input. (Rear camera source)
- 1 x CVBS(FRONT CAMERA) Input. (Front camera source)
- 1 x LVDS Input. (Car Command System)
2. Output Spec.
- 1 x LCD Output (LCD Operation)
- 1 x Vertual Analog Touch (Navigation System source)
- 1 x Uart Digital Touch (Navigation System source)
3. Power Spec.
- Input Power : 8VDC ~ 24VDC
- Consumption Power : 12Watt, Max
4. Switch Input mode
- OEM button via CAN
2. Features
- Possible to use an original touch screen for external device
- Easy installation by plug&play
2
car-solutions.com
[email protected] car-solutions.com

Specification
3. Diagram
3
Scaler
(PIP)
MCU
CAR
COMMAND
SYSTEM CAN
EEPROM
CAN
RECEIVER
FRONT CAMERA
RGB+Sync
Digital RGB
REAR CAMERA
LVDS
TX
LVDS
TX RELAY
REAR CAMERA
POWER
LVDS
RX
Digital RGB
CAR
TFT-LCD
LVDS
RX
car-solutions.com
[email protected] car-solutions.com

Specification
4. Components
4
RGB NAVI Cable 1 EA
Power Cable 1 EA
Touch Cable(KD-900) 1 EA
OSD Board 1 EA
A/V Cable(20-pin) 1 EA
LVDS Cable 1 EA
car-solutions.com
[email protected] car-solutions.com

Specification
5. Exterior
*NAVI Connect
①R DATA (Red)
②G DATA (Green)
③B DATA (Blue)
④SYNC (White)
⑤GND (Black)
⑥DMB IR (TX)(Green)
⑦DVD IR (RX) (Orange)
①②③④⑤⑥⑦
5
*POWER Connect
1. ACC (Red)
2. N.C
3. Rear-DET (Brown)
4. Front-DET (Blue)
5. CAN-L (White)
6. CAN-H (Purple)
7. CAN-L (Blue)
8. CAN-H (Red)
115
2 16
9. CAN-L (Green)
10. CAN-H (Orange)
11. N.C
12. Rear-VCC (Red)
13. Front-VCC (Red)
14. N.C
15. GND (Black)
16. N.C
*Touch Connect
①Y-
②X-
③Y+
④X+
① ② ③ ④
car-solutions.com
[email protected] car-solutions.com

Settings
1. Dip Switch
* ON : DOWN , OFF : UP
NO. Function Selection
1 NAVI ON : Skipping NAVI
OFF : Display
2 AV1 ON : Skipping Video
OFF : Display
3 AV2 ON : Skipping Video
OFF : Display
4
N.C
5
6
Car model
OFF: Cayenne2019y 12”
Touareg2019y 12”
7OFF: Cayenne2019y 12”
ON :Touareg2019y 12”
8OFF: Cayenne2019y 12”
Touareg2019y 12”
* Example
6
Cayenne2019y 12” Touareg2019y 15”
car-solutions.com
[email protected] car-solutions.com

Settings
- Switching mode (Command)
7
*NAVI Button setting
- Short : Short press for switching mode
- Long : long press (more than 1sec) for switching mode
- OFF : Not used
•DIP-SW 1 should be OFF in case of installing Navigation
Return OEM display mode change
2. Original button – Porsche Cayenne2019y 12”
car-solutions.com
[email protected] car-solutions.com

Settings
2. Original button – VW Touareg2019y 12”
- Switching mode (Steering wheel)
8
•DIP-SW 1 should be OFF in case of installing Navigation
Short press :
Switch to OEM screen directly
Long press (More than 1sec) :
Switch mode
*Steering wheel button setting
- Short : Short press for switching mode
- Long : long press (more than 1sec) for switching mode
- OFF : Not used
car-solutions.com
[email protected] car-solutions.com

9
Touch OEM screen in any mode more than 11
sec. For calibration
(This function can be activated only one time
after switching mode)
Settings
3. Touch screen –Touch calibration
OR
Setup for Touch calibration
(OSD Menu –Utility –Calibration –Execute
or Cancel)
Touch the “+” correctly
car-solutions.com
[email protected] car-solutions.com

10
Settings
3. Touch screen –DVD, DTV control
•DTV –Please contact a supplier in advance for using this function
[Button type-1] [Button type-2]
•DVD
※ Calibration : Touch any point of screen more than 11sec to start a touch calibration
[Power] [Search] [Up] [Down]
[Power] [Menu]
[Return][USB]
[Stop]
[DVD up]
[Play/pause]
[Power]
[MIC]
[Rewind]
[Play Previous
chapter]
[DVD down]
[FF]
[Play Next
chapter]
※ To use this function, It is necessary to offer the remote IR code to manufacturer
or setting OSD IR –Ctrl（P. 19）
car-solutions.com
[email protected] car-solutions.com

Settings
3. OSD Key board
11
4. OSD Menu
※ Press “MENU” button on Key board
Config - NAVI-RGB : Setup for the type of RGB
Config - DVB-T(DMB) : Setup for the type of DVB-T(DMB)
Config - DVD : Setup for the type of DVD
Config - HDMI : Setup for the type of HDMI
Reset : Reset all value
①MENU :Activating OSD Menu
②SEL :Selection
③Up :Moving upward (Increasing value)
④Down :Moving downward (Decreasing value)
MENU SEL UP DOWN
①②③④
car-solutions.com
[email protected] car-solutions.com

12
Settings
Option
•RearCam-Type : Setup for rear camera
ExtDevice - External rear camera
OEM - Original camera
•RearCam-Power : Setup for Rear VCC wire in power cable
ON - +12V out always (current consumption : 200mA)
AUTO - +12V out in rear mode only (200mA)
OFF - Power OFF
•RearCam-Det : Setup for Rear detection
GEAR - By CAN
Extwire –by rear cam detect wire
•FrontCam-Type : Setup for front camera
ExtDevice - External rear camera
OEM - Original camera
•FrontCam-Power : Setup for Front VCC wire in power cable
ON - +12V out always (current consumption : 200mA)
AUTO - +12V out in rear mode only (200mA)
OFF - Power OFF
4. OSD Menu
※ Press “MENU” button on OSD Key board
car-solutions.com
[email protected] car-solutions.com

13
Settings
Option
•FrontCam-Det : Setup for front detection
ExtDevice - External rear camera
OEM - Original camera
•RearCam-RcvOpt : Selecting time of displaying Front camera before
switching to RGB, DVD, OEM from Rear
•AV out : Setup for the external AV out in OEM screen
AV1 : AV1’s AV comes out in OEM screen
AV2 : AV2’s AV comes out in OEM screen
USER : select one of AV out
•Reset : Reset all value
4. OSD Menu
※ Press “MENU” button on OSD Key board
car-solutions.com
[email protected] car-solutions.com

Settings

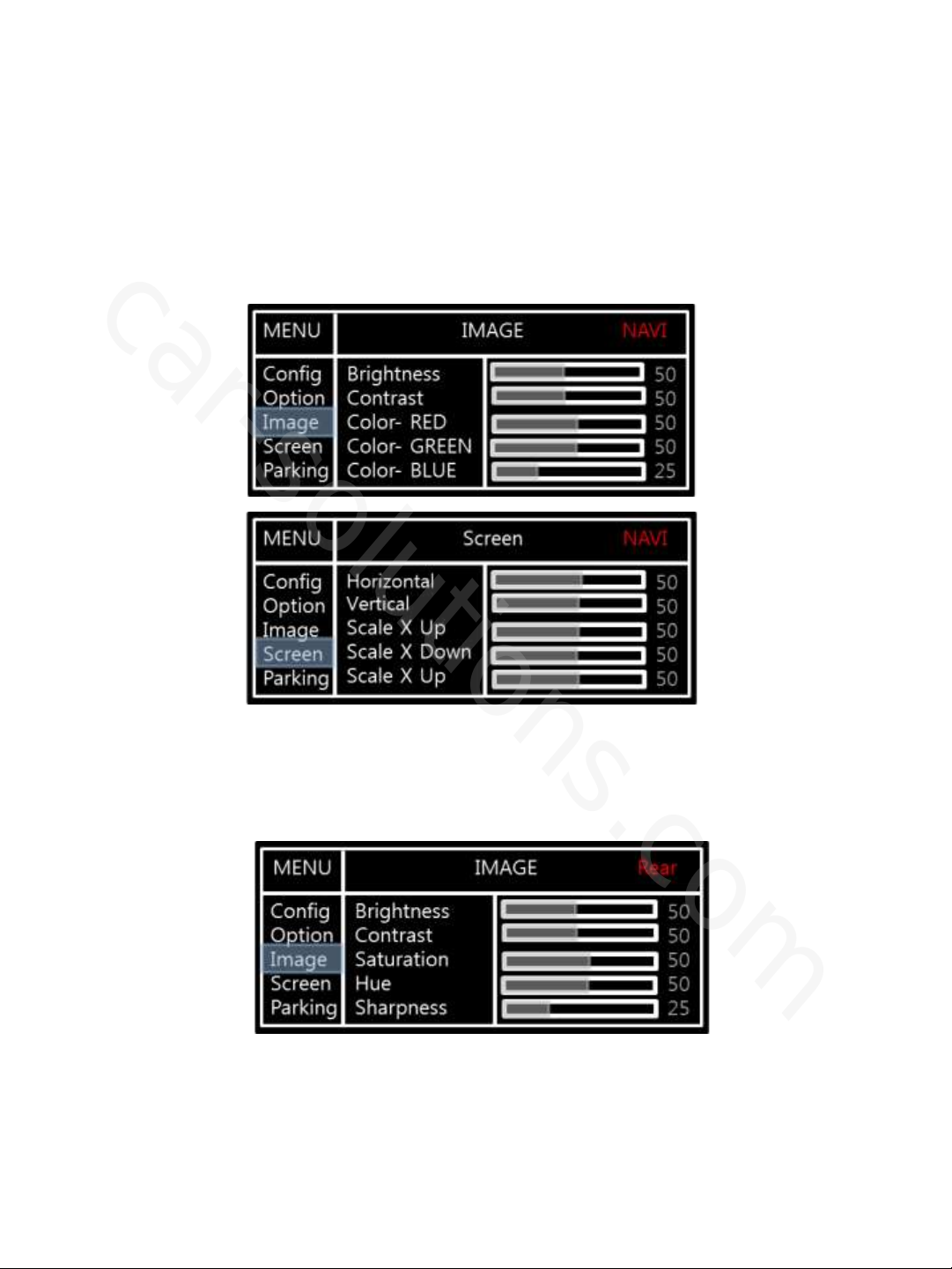

4. OSD Menu
※ Press “MENU” button on OSD Key board
14
- NAVI(RGB) Image / Screen
- DVD, DVBT, NAVI-AV, REAR, FRONT Image
car-solutions.com
[email protected] car-solutions.com

Settings
4. OSD Menu - Parking mode
※ Press “MENU” button on OSD Key board
15
- PDC ON/OFF
Selecting a type of language
(OSD Menu –Parking –Warning Lang)
Selecting a use of OPS(PDC) picture
(OSD Menu –Parking –OSD Display –ON or OFF)
- Language
car-solutions.com
[email protected] car-solutions.com

16
- OSD
- Utility
•Utilityy–INTERFACE SOFTWARE
•OSD –Horizontal
•OSD –Vertical
•OSD –Display : Setting time for displaying OSD menu
•OSD –Transparency
•OSD –Language : Setting language of ODS menu
Settings
5. OSD Menu
※Press “MENU” button on Key board
- IR –Ctrl (p.18)
car-solutions.com
[email protected] car-solutions.com

①Select IR Ctrl DVB/DVD 
Learn to register IR code
※ Caution
•Delete :
ALL Clear –Delete all value
Clr – Delete one button’s Value
•Play/Pause：
To use button, Please register
the IR code in power / Pause menu
separately
17
- IR Ctrl
MENU DVB-T(DMB) DVD
OSD
IR-Ctrl
Utility
DVB - T
DVD Sel Learn Cancel
User
Sys
MENU DVB-T(DMB) DVD
OSD
IR-Ctrl
Utility
ALL - Clear
POWER
SCAN
CH+
CH-
____ _____
____ _____
____ _____
____ _____
MENU DVB-T(DMB) DVD
OSD
IR-Ctrl
Utility
New Code :
Cfm Code :
____ _____
____ _____
Save Clr Cancel
① ②
③
②All Clear : Remove all value of
Remote control registered before
Select one of the buttons registering
to move on to next step
③Press a button on the remote control
of DVD/DTV then the IR code will appear
on “New code”. Press the same button
one more time to confirm the IR code.
(Cfm code = confirm code)
Settings
5. OSD Menu–Register IR code
※Press “MENU” button on Key board
DVB - T
IR-Ctrl IR-Ctrl
IR-Ctrl
car-solutions.com
[email protected] car-solutions.com

GU Electronic
18
Installation
1. LVDS
head unit (command)
Screen
ACC
GND
car-solutions.com
[email protected] car-solutions.com

Installation
2. Navigation
19
KD-900
Analog RGB
Resistive Touch
DVD IR DMB IR GND SYNC BLUE GREEN RED
car-solutions.com
[email protected] car-solutions.com

20
Installation
3. Front camera
115
2 16
Front CAM
12V
car-solutions.com
[email protected] car-solutions.com
