Kapro Prolaser Plus 870 User manual

Prolaser®Plus
Model No. 870
User Manual
Manual del usuario
Manuel d'utilisation
Manual do utilizador
Manuale dell'utente
3AA
165'/50m INCLUDED
Up to 50m/165'

2
Thank you for purchasing Kapro’s 870 Prolaser®Plus. You
now own one of the most advanced laser tools available. This
manual will show you how to get the most out of your laser tool.
APPLICATIONS
The 870 Prolaser®Plus is innovatively designed for a very broad
range of professional and DIY jobs, including:
• Aligning tiles, cabinets, borders, moldings and trimmings
• Doors and windows installation
• All types of DIY jobs, including hanging shelves, pictures and
more
NOTE
Keep this user manual for future reference.
EN
3AA
165'/50m INCLUDED
Up to 50m/165'

3
CONTENTS
• Features 4
• Safety instructions 5-6
• Battery installation & Safety 7-8
• Overview 9
• Operating instructions 10-12
• Maintenance 13
• Field calibration test 14-19
• Specifications 20
• Warranty 21

4
FEATURES
• This laser tool is automatically determines the horizontal
and the vertical plans
• The laser projects intersecting horizontal and vertical lines
• Self-level in automatic mode when the laser is positioned
within its self-leveling range.
• Visual and audible “out of leveling range” warning
• Pulse mode emits pulses that can be detected by a
detector
• The max. Detectable range of the laser in pulse mode is
50m (165’)
• Manual mode allows angular layout/marking
• IP65 Rated for water and dust protection
• Locking mechanism to protect the pendulum during
transportation.
• 1/4" tripod adaptor
• Shock resistant rubber casing
• Compact size – ts in your toolbox
NOTE
This device contain precision components
that are sensitive to external shock, impact or
drop that may compromise its functionality –
handle with care to maintain its accuracy.

5
SAFETY INSTRUCTIONS
WARNING
This product is emitting radiation that is classified
As class II according to EN 60825 -1
The laser radiation can cause serious eye injury
• Do not stare into the laser beam
• Do not position the laser beam so that it unintentionally
blinds you or others.
• Do not operate the laser level near children or let children
operate the laser level.
• Do not look into a laser beam using magnifying optical
devices such as binoculars or a telescope, as this will
increase the level of eye injury.
WARNING: This product contains lead in solder and
certain Electrical parts contain chemicals which are
known to the State of California to cause cancer, birth
defects or other Reproductive harm.
(California Health & Safety Code Section 25249.6- Proposition 65)
NOTE
The red goggles are intended to enhance the
visibility of the Laser beam. They will not
protect your eyes against laser radiation.

6
• Do not remove or deface warning labels on the laser level.
• Do not disassemble the laser level, laser radiation can
cause serious eye injury.
• Do not drop the laser.
• Do not use solvents to clean the laser.
• Do not use in temperatures below -10°C or above 45°C
(14°F / 113°F)
• Do not operate the laser in explosive atmospheres such as
ammable liquids, gases or dust. Sparks from the tool can
cause ignition.
• When not in use, turn off the power, engage the pendulum
lock and place the laser in the carrying pouch.
• Make sure the pendulum lock mechanism is engaged
before transporting the laser.
NOTE
If the Pendulum lock mechanism is not
engaged before Transportation, internal
mechanical damage can occur.

7
1. Press on the latch and open the battery cover.
2. Insert 3 new AA batteries of the same brand, according
to the polarity diagram on the inside of the lid of the battery
compartment.
3. Reclose the battery cover.
BATTERY INSTALLATION & SAFETY
NOTE
If the laser level will not be used for a long
period, remove the batteries from the battery
compartment. This will prevent batteries from
leaking and corrosion damage.

8
WARNING: Batteries can deteriorate, leak or explode, and
can cause injury or re.
1. Do not shorten the battery terminals.
2. Do not charge Alkaline batteries.
3. Do not mix old and new batteries.
4. Do not dispose of batteries into household waste.
5. Do not dispose batteries in re.
6. Defective or dead batteries must be disposed according to
local Regulations.
7. Keep the batteries out of reach from children.

9
OVERVIEW
1. On/Off Locking Switch
2. Laser output window
3. Keypad
a. Manual Mode button d. Manual Mode LED
b. Beam Selector button e. Laser beam LED
c. Pulse Mode button f. Pulse mode LED
4. Battery cover
5. ¼” tripod mount

10
OPERATING INSTRUCTIONS
Working in Automatic mode (self-leveling):
In automatic mode the laser level will level itself at a ± 3°
range and will project horizontal or vertical beams or both
beams simultaneously.
1. Remove the laser from the case and place it on a solid at,
vibration free surface or on a tripod.
2.Slide the locking switch #1 to the ON position - the laser
level will generate the crossed horizontal and vertical
beams and the green LED near the V/H button will light up.
3.Choose the beams that you want to work with by pushing
the Beam button V/H
4.If the initial slope of the laser is beyond ± 3° and the
automatic mode is activated the laser lines will ash and
a beeping alarm will be heard. In this case
reposition the laser on a more leveled surface.
5.Before moving the laser level slide the locking switch #1 to
the OFF position, this will lock the pendulum and protect
your laser.

11
Working in Manual mode:
In Manual mode the 870’s self-leveling mechanism is disabled and
the laser lines can be set at any angle required.
1.Press the Manual mode button . The laser will project the
cross lines and the red LED near the button will light up.
The green LED of the laser beams near V/H button will light up as well.
2.Choose the beams that you want to work with by pushing the
Beam Selector button V/H

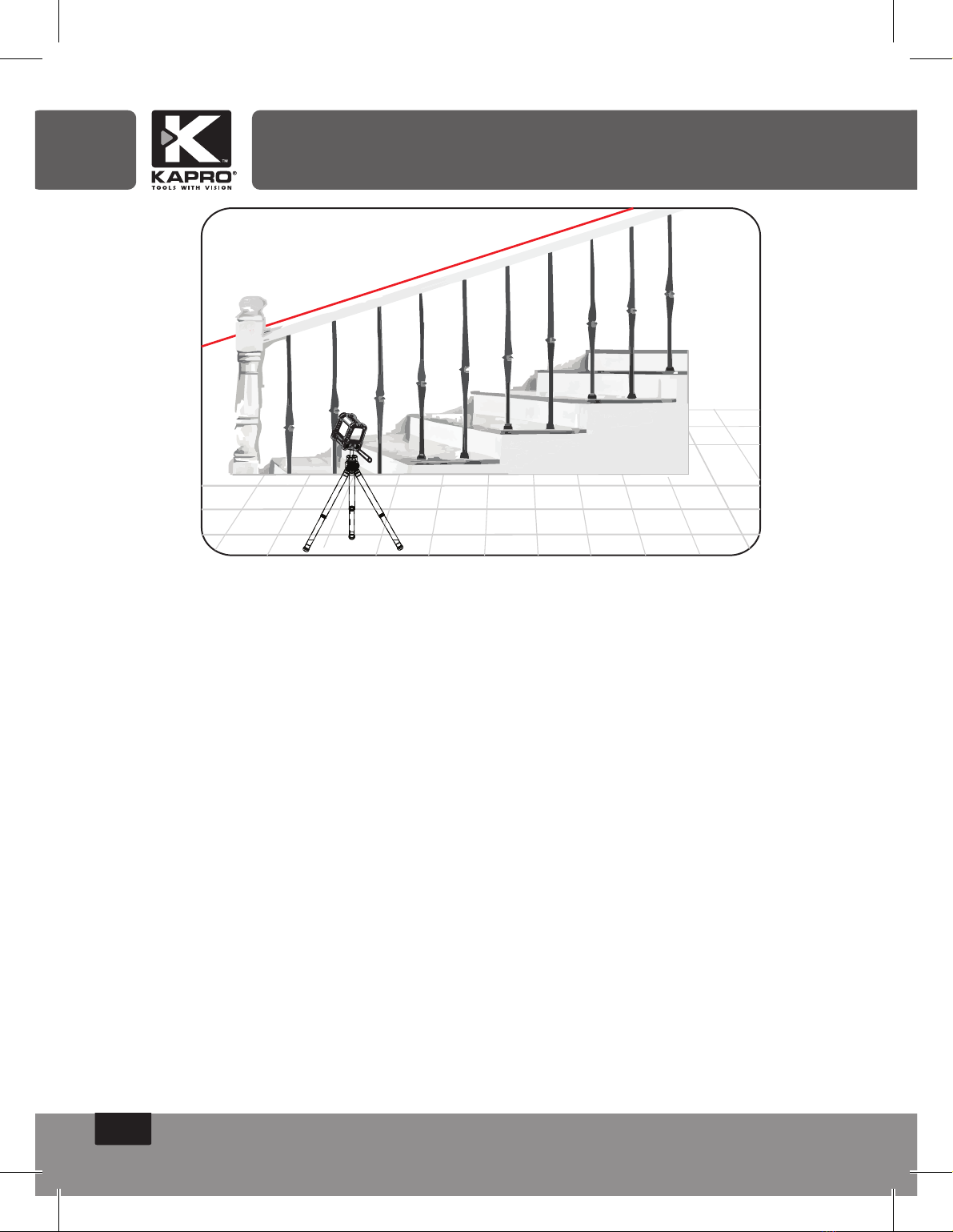

3.To mark a slope, tilt the laser to adjust the right angle and the
height.
4.To turn the manual mode off, press again the Manual mode button
5.While in Manual mode, turning the locking switch #1 from OFF
to ON will turn off the Manual mode and the red LED near the
button. The automatic self–leveling will be activated if the laser
level is within the ± 3° self–leveling range.

12
Working in Pulse mode with a detector:
For outdoor work under direct sunlight, or bright conditions
and for extended indoor ranges up to 50 meters, use the
pulse mode with a Detector.
When the pulse mode is activated the laser lines will ash at
very high frequency (Invisible to the human eye) this will
allow the detector to detect the laser lines.
1. The pulse mode can be activated in Automatic and
Manual modes.
2. To switch on the Pulse Mode press the Pbutton, the
green LED near the P push button will light up.
3. When the pulse mode is switched on, the visibility of the
laser lines are reduced a little bit.
4. To switch off the Pulse Mode press the Pbutton again,
the green LED near the Ppush button will go off.

13
MAINTENANCE
To maintain the accuracy of your project, check the accuracy
of your laser level according to the eld calibration tests
procedures.
• Change the batteries when the laser beams begin to dim.
• Wipe the aperture lens and the body of the laser level with a
clean soft cloth. Do not use solvents.
• Although the laser level is dust and dirt resistant to a certain
degree do not store in dusty places as a long term exposure
may damage internal moving parts.
• If the laser level is exposed to water, dry the laser level
before returning it to the carrying case to prevent corrosion
damages.
• Remove the batteries if the laser level is unused for a long
period of time to prevent corrosion damages.

14
FIELD CALIBRATION TEST
This laser level left the factory fully calibrated.
Kapro recommend that the user will check the accuracy of the
laser periodically, or if the unit falls or is mishandled.
To do so rst check the height accuracy of the horizontal line,
then check the levelling accuracy of the horizontal line, and
nally check the leveling accuracy of the vertical line.
Checking the Height Accuracy of the Horizontal Line.
(Up and down deviation)
1) Set up the laser on a tripod or on a solid surface between
two walls Aand B, approximately 5 meters apart.
2) Position the laser level approximately 0.5 meter from wall A
3) Unlock the pendulum and press the button to project the
horizontal and the vertical cross lines towards wall A.
4) Mark on the wall the center of the cross lines as a1
(see gure # 1).

15
5) Turn the laser 180° towards wall B, and mark on the wall
the center of the cross lines as b1 (see gure 2).
6) Move the laser level towards wall Band position it
approximately 0.5 meter from wall B.
7) Mark on wall Bthe center of the cross lines as b2
(see gure 3).
AB
a1
b1
b2
Figure # 3
0.5m
X
X
X
AB
a1
180°
X
Figure # 2
X
b1

16
8) Turn the laser 180° towards wall A, and mark on the wall the
center of the cross lines as a2 (see gure 4).
9) Measure the distances:
Δa= |a2-a1|
Δb= |b1-b2|
10) The difference | Δa – Δb| should not be more than 2 mm,
otherwise to send the laser level to a qualied technician
for repairs.

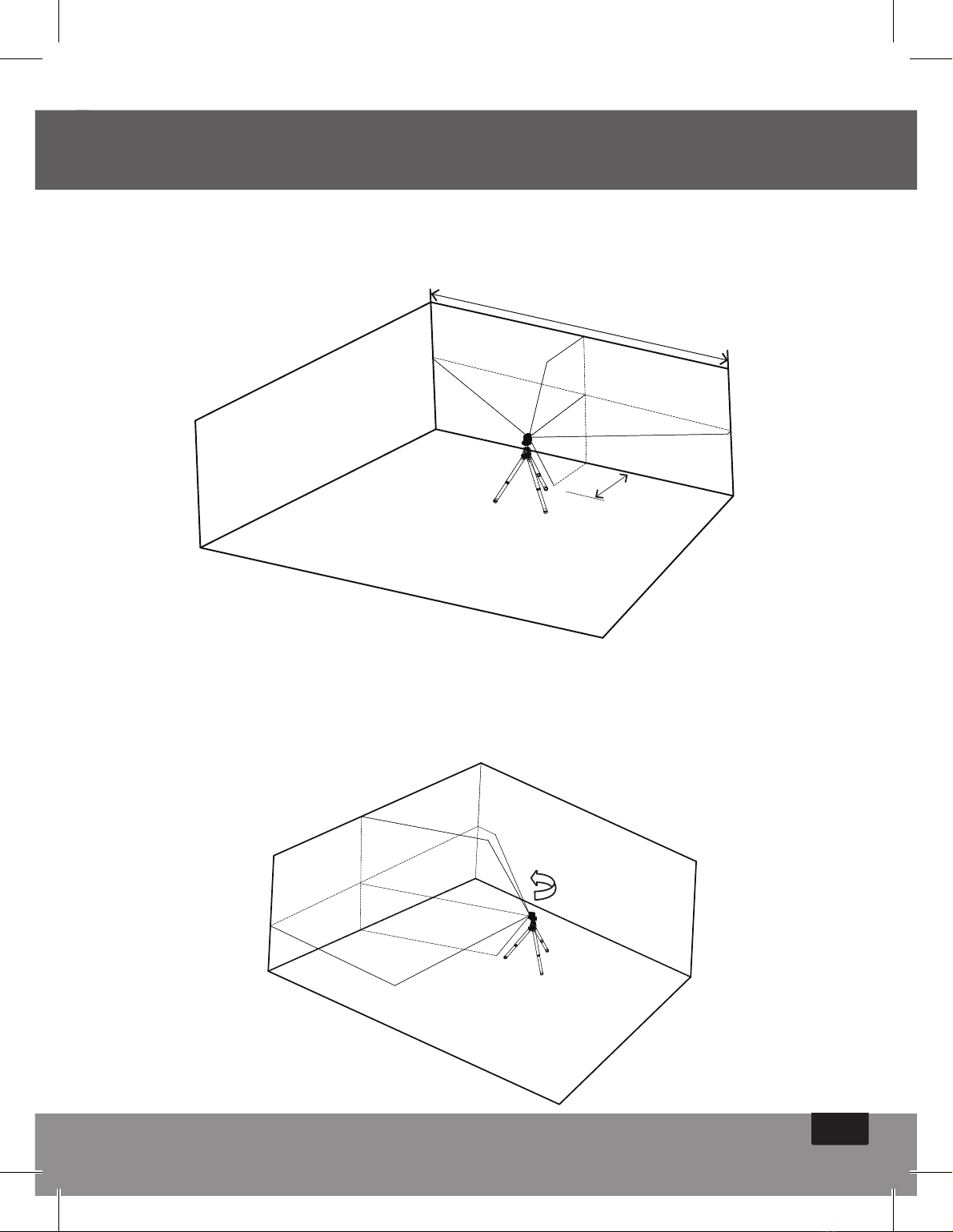

Checking the Level Accuracy of Horizontal Line.
(Side to side inclination)
1) Set up the laser on a tripod or on a solid surface at a distance
of approximately 1.5 meters from a wall 5 meter long.
2) Unlock the pendulum and press the button to project the
horizontal and the vertical cross lines towards the wall.
x a2
x a1
x b1
b2
x
A B
180°
Figure # 4

17
3) Mark point a1 on the wall, in the middle of the horizontal line
at the left edge of the horizontal line (see gure 5).
4) Turn the laser level counterclockwise until the right edge of
the horizontal line reach’s near a1, mark a point a2 on the wall
in the middle of the horizontal line (see gure 6).
a1
approximately 5m
1.5m
Figure # 5
X
x a1
x a2
Figure # 6

18
5) The distance between a1 and a2, should not be more than
1 mm otherwise to send the laser level to a qualied
technician for repairs.

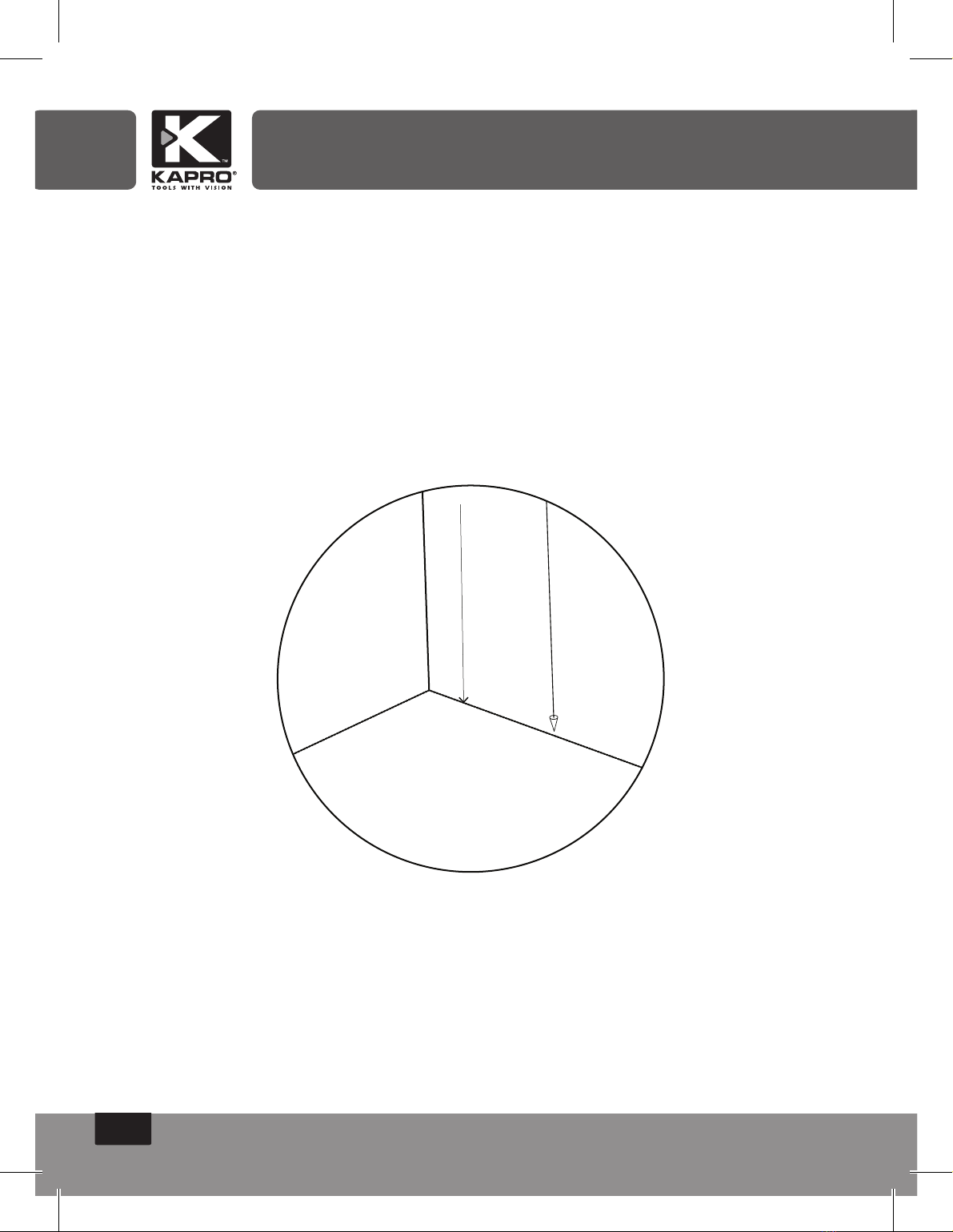

Checking the Accuracy of the Vertical line.
1) Hang approximately 4 meter plumb line on a wall.
2) After the plumb line has settled, Mark point a1 on the wall
behind the plumb line near the plumb cone. (see gure 7).
3) Set up the laser on a tripod or on a solid surface in front of the
wall at a distance of approximately 2 meters.
4) Unlock the pendulum, and press the button to project the
vertical line toward the plumb line.
5) Turn the laser so that the vertical line will merge with the
plumb line below the hanging point.
approximately 4m
Figure # 7
a1 X

19
6) Mark point a2 on the wall, in the middle of the vertical line at
the same height of a1. (see gure 8).
7) The distance between a1 and a2, should not be more than
1mm, otherwise to send the laser level to a qualied technician
for repairs.
a1
X
2m
X
a2
X
Figure # 8

20
Laser beams
output pattern Vertical and horizontal cross lines Horizontal line
Vertical line
Laser range • Indoor - 30m (100ft)
• Outdoor with detector 50m (165ft)
Accuracy ±0.2mm/m (±0.0002in/in)
Fan angle 120° ±5°
Self-leveling range ±3°
Laser line width 2 mm±0.5mm/5m
(0.10” ±0.02” at 20’ )
Wavelength 635 ±5nm - Laser Class II
Power supply 3 AA batteries (included)
Battery life 20 hours of continuous operation
Operating temp -10° C + 45° C (14°F +113°F)
Storage temp -20° C +70° C ( -4°F +158°F)
Water & dust proof IP65
Dimensions 10cm x 9cm x7cm
(3.9” x 3.5” x 2.8” )
Weight including
batteries 415gr±10gr (0.92lbs ±0.35oz )
SPECIFICATIONS
