Prolaser®Plus
Model No. 872 GREEN
User Manual
Manual del usuario
Manuel d'utilisation
Руководство по эксплуатации
3AA
200'/60m INCLUDED

2
NOTE
Keep this user manual for future reference.
EN
Thank you for purchasing Kapro’s 872 GREEN Prolaser®Plus.
You now own one of the most advanced laser tools available.
This manual will show you how to get the most out of your laser
tool.
APPLICATIONS
The 872 GREEN Prolaser®Plus is laser level with green diodes.
This laser innovatively designed for a very broad range of
professional and DIY jobs, including:
• Aligning tiles, marble, cabinets, borders, moldings and
trimmings
• Marking lay out for doors, windows, rails, stairs, fences gates,
decks and pergolas installation.
• All types of DIY jobs, including hanging shelves, hanging
hooks pictures, curtains and more
3AA
200'/60m INCLUDED

3
CONTENTS
•Features 4
•Safety instructions 5-6
•Battery installation & Safety 7-8
•Overview 9
•Operating instructions 10-12
• Maintenance 13
•Field calibration test 14-19
•Specifications 20
•Warranty 21

4
FEATURES
NOTE
This device contain precision components
that are sensitive to external shock, impact or
drop that may compromise its functionality –
handle with care to maintain its accuracy.
• This laser tool is automatically determines the horizontal
and the vertical plans
• The laser projects intersecting horizontal and vertical lines
• Self-level in automatic mode when the laser is positioned
within its self-leveling range.
• Visual and audible “out of leveling range” warning
• The max. detectable range with detector is 60m (200’).
• Manual mode allows angular layout/marking
• Strong and adjustable metal folding legs allow extreme
angles mounting and height adjustment
• Locking mechanism to protect the pendulum during
transportation.
• 1/4" tripod adaptor
• Shock resistant rubber casing
• Compact size – ts in your toolbox

5
SAFETY INSTRUCTIONS
WARNING
This product is emitting radiation that is classified
As class II according to EN 60825 -1
The laser radiation can cause serious eye injury
•Do not stare into the laser beam
•Do not position the laser beam so that it unintentionally
blinds you or others.
•Do not operate the laser level near children or let children
operate the laser level.
•Do not look into a laser beam using magnifying optical
devices such as binoculars or a telescope, as this will
increase the level of eye injury.
WARNING: This product contains lead in solder and
certain Electrical parts contain chemicals which are
known to the State of California to cause cancer, birth
defects or other Reproductive harm.
(California Health & Safety Code Section 25249.6- Proposition 65)
NOTE
The green goggles are intended to enhance
the visibility of the Laser beam. They will not
protect your eyes against laser radiation.

6
• Do not remove or deface warning labels on the laser level.
• Do not disassemble the laser level, laser radiation can
cause serious eye injury.
• Do not drop the laser.
• Do not use solvents to clean the laser.
• Do not use in temperatures below -10°C or above 45°C
(14°F / 113°F)
• Do not operate the laser in explosive atmospheres such as
ammable liquids, gases or dust. Sparks from the tool can
cause ignition.
• When not in use, turn off the power, engage the pendulum
lock and place the laser in the carrying pouch.
• Make sure the pendulum lock mechanism is engaged
before transporting the laser.
NOTE
If the Pendulum lock mechanism is not
engaged before Transportation, internal
mechanical damage can occur.

7
1. Press down on the latch and remove the battery cover.
2. Insert 3 new AA batteries of the same brand according to
the polarity diagram on the inside of the battery compartment.
3. Reclose the battery cover.
BATTERY INSTALLATION & SAFETY
NOTE
If the laser level will not be used for a long
period, remove the batteries from the battery
compartment. This will prevent batteries from
leaking and corrosion damage.

8
WARNING: Batteries can deteriorate, leak or explode, and
can cause injury or re.
1. Do not shorten the battery terminals.
2. Do not charge Alkaline batteries.
3. Do not mix old and new batteries.
4. Do not dispose of batteries into household waste.
5. Do not dispose batteries in re.
6. Defective or dead batteries must be disposed according to
local Regulations.
7. Keep the batteries out of reach from children.

9
OVERVIEW
1. On/Off Locking Switch
2. Metal legs
3. Keypad
a. Manual Mode button d. Manual Mode LED
b. Beam Selector button e. Laser beam LED
c. Pulse Mode button f. Pulse mode LED
4. Laser output window
5. Battery cover
6. ¼” tripod mount

10
OPERATING INSTRUCTIONS
Working in Automatic mode (self-leveling):
In automatic mode the laser level will level itself in the range
of ± 3° and will project horizontally or vertically or both lines
simultaneously.
1. Remove the laser from the case and place it on a solid
at Vibration free surface or on a tripod.
2. Turn the locking switch #1 clockwise to the ON position
the laser level will generate the crossed horizontal and
vertical lines and the green LED near the V/H push
button will light up.
3. Choose the beams that you want to work with by pushing
the Beam push button V/H
4. Use the adjustable metal legs #2 to adjust the height of
the horizontal line.
5. If the initial slope of the laser is beyond ± 3° and the
automatic mode is activated the laser lines will ash and a
beeping alarm will be heard. In this case reposition the
laser on a more leveled surface.
6. Before moving the laser level switch the locking switch #1
to the OFF position, this will lock the pendulum and protect
your laser.

11
Working in Manual mode:
In Manual mode the 872’s self-leveling mechanism is disabled and
the laser lines can be set at any slope required.
1. Press the Manual push button mode . The laser will
project the cross lines and the red LED near the push
button will light up. The green LED of the laser beams near
V/H push button will light up.
2. Choose the beams that you want to work with by pushing
the Beam Selector push button V/H
3. To mark a slope, tilt the laser using the adjustable folding
legs to adjust the right angle and the height.
4. To turn the manual mode off, press again the Manual
push button .
5. While in Manual mode turning the locking switch #1 from
OFF to ON will turn off the Manual mode and the red LED
near the push button. The automatic self – leveling
will be activated if the laser level is within the self – leveling range.

12
Working in Pulse mode with a detector:
For outdoor work under direct sunlight, or bright conditions
and for extended indoor ranges up to 60 meters, use the
pulse mode with a Detector.
When the pulse mode is activated the laser lines will ash at
very high frequency (Invisible to the human eye) this will
allow the detector to detect the laser lines.
1. The pulse mode can be activated in Automatic and
Manual modes.
2. To switch on the Pulse Mode press the Pbutton, the
green LED near the P push button will light up.
3. When the pulse mode is switched on, the visibility of the
laser lines are reduced a little bit.
4. To switch off the Pulse Mode press the Pbutton again,
the green LED near the Ppush button will go off.

13
MAINTENANCE
To maintain the accuracy of your project, check the accuracy
of your laser level according to the eld calibration tests
procedures.
• Change the batteries when the laser beams begin to dim.
• Wipe the aperture lens and the body of the laser level with a
clean soft cloth. Do not use solvents.
• Although the laser level is dust and dirt resistant to a certain
degree do not store in dusty places as a long term exposure
may damage internal moving parts.
• If the laser level is exposed to water, dry the laser level
before returning it to the carrying case to prevent corrosion
damages.
• Remove the batteries if the laser level is unused for a long
period of time to prevent corrosion damages.
Repairs
See the warranty section at the end of this manual.
• Do not take apart the Prolaser 872G, or permit unqualied
person to disassemble the laser level.
• Repair the measuring tool through qualied technician using
original spare parts.
• Unauthorized service may cause eyes injury, irreparably
damaging to the laser level, and warranty will be void.

14
FIELD CALIBRATION TEST
This laser level left the factory fully calibrated.
Kapro recommend that the user will check the accuracy of the
laser periodically, or if the unit falls or is mishandled.
To do so rst check the height accuracy of the horizontal line,
then check the levelling accuracy of the horizontal line, and
nally check the leveling accuracy of the vertical line.
Checking the Height Accuracy of the Horizontal Line.
(Up and down deviation)

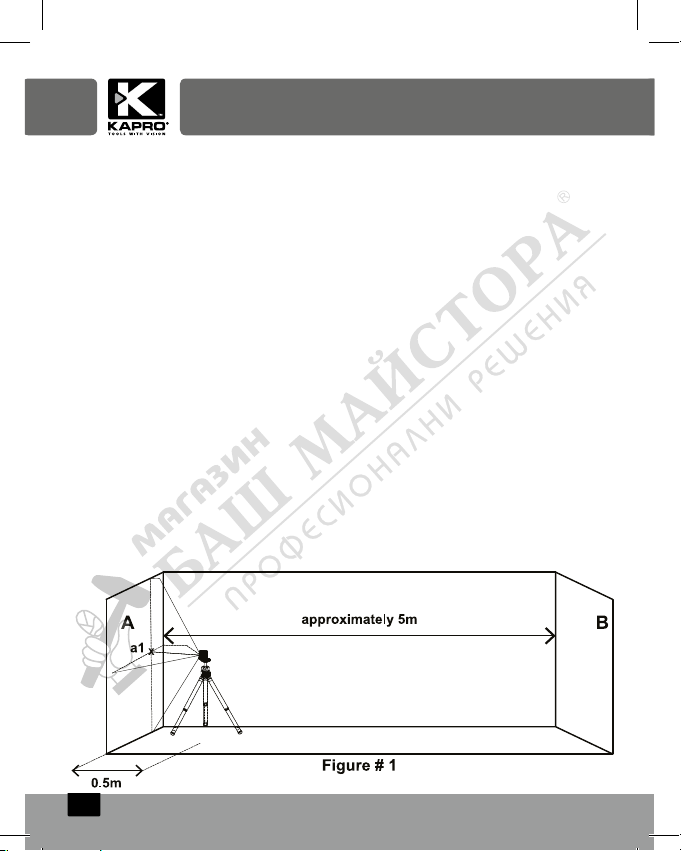

1) Set up the laser on a tripod or on a solid surface between
two walls Aand B, approximately 5 meters apart.
2) Position the laser level approximately 0.5 meter from wall A
3) Unlock the pendulum and press the button to project the
horizontal and the vertical cross lines towards wall A.
4) Mark on the wall the center of the cross lines as a1
(see gure # 1).

15
5) Turn the laser 180° towards wall B, and mark on the wall
the center of the cross lines as b1 (see gure 2).
6) Move the laser level towards wall Band position it
approximately 0.5 meter from wall B.
7) Mark on wall Bthe center of the cross lines as b2
(see gure 3).
AB
a1
b1
b2
Figure # 3
0.5m
X
X
X
AB
a1
180°
X
Figure # 2
X
b1

16
8) Turn the laser 180° towards wall A, and mark on the wall the
center of the cross lines as a2 (see gure 4).
9) Measure the distances:
Δa= |a2-a1|
Δb= |b1-b2|
10) The difference | Δa – Δb| should not be more than 2 mm,
otherwise to send the laser level to a qualied technician
for repairs.

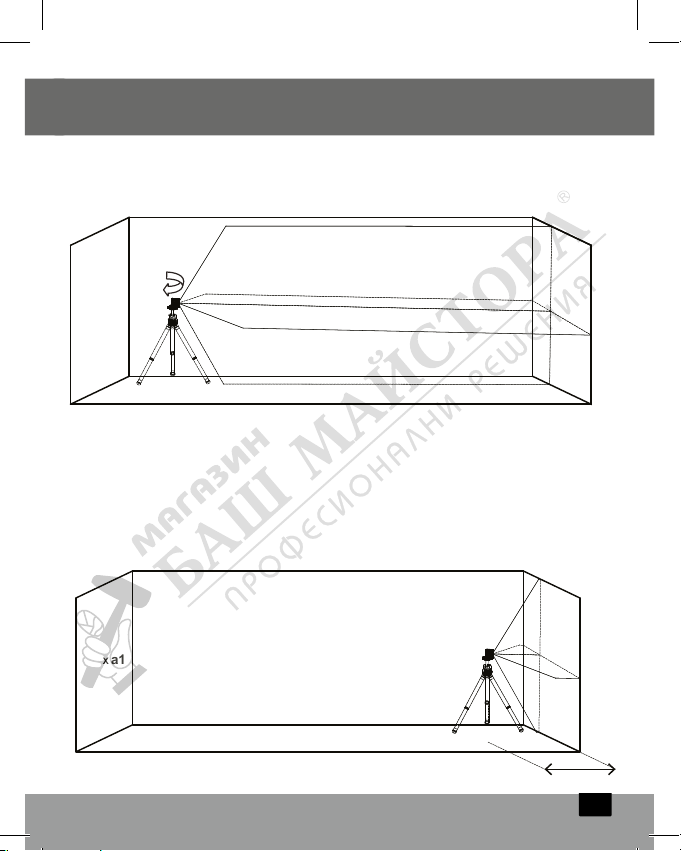

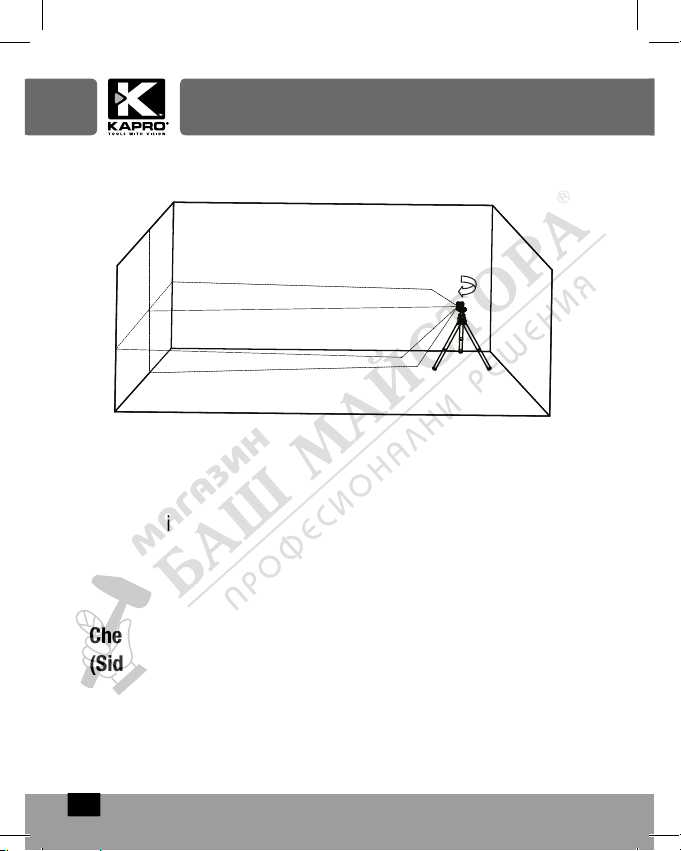

Checking the Level Accuracy of Horizontal Line.
(Side to side inclination)
1) Set up the laser on a tripod or on a solid surface at a distance
of approximately 1.5 meters from a wall 5 meter long.
2) Unlock the pendulum and press the button to project the
horizontal and the vertical cross lines towards the wall.
x a2
x a1
x b1
b2
x
A B
180°
Figure # 4

17
3) Mark point a1 on the wall, in the middle of the horizontal line
at the left edge of the horizontal line (see gure 5).
4) Turn the laser level counterclockwise until the right edge of
the horizontal line reach’s near a1, mark a point a2 on the wall
in the middle of the horizontal line (see gure 6).
a1
approximately 5m
1.5m
Figure # 5
X
x a1
x a2
Figure # 6

18
5) The distance between a1 and a2, should not be more than
1 mm otherwise to send the laser level to a qualied
technician for repairs.
Checking the Accuracy of the Vertical line.

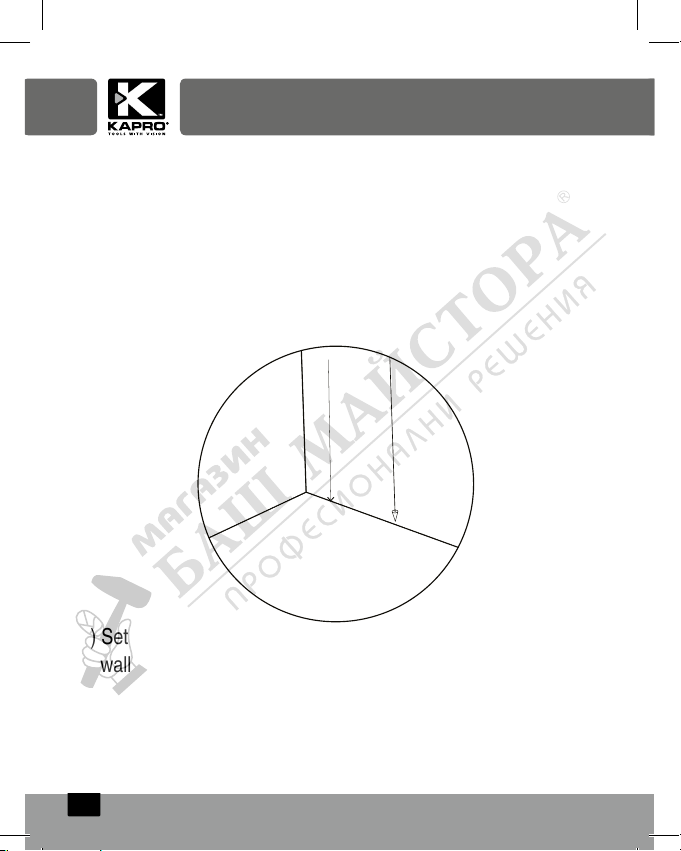

1) Hang approximately 4 meter plumb line on a wall.
2) After the plumb line has settled, Mark point a1 on the wall
behind the plumb line near the plumb cone. (see gure 7).
3) Set up the laser on a tripod or on a solid surface in front of the
wall at a distance of approximately 2 meters.
4) Unlock the pendulum, and press the button to project the
vertical line toward the plumb line.
5) Turn the laser so that the vertical line will merge with the
plumb line below the hanging point.
approximately 4m
Figure # 7
a1 X

19
6) Mark point a2 on the wall, in the middle of the vertical line at
the same height of a1. (see gure 8).
7) The distance between a1 and a2, should not be more than
1mm, otherwise to send the laser level to a qualied technician
for repairs.
a1
X
2m
X
a2
X
Figure # 8

20
SPECIFICATIONS
Laser beams
output pattern
Vertical and horizontal cross lines
Horizontal line
Vertical line
Laser range •Indoor - 30m (100ft)
•Outdoor with detector 60m (200ft)
Accuracy ±0.2mm/m (±0.0002in/in)
Fan angle 120° ±5°
Self-leveling range ±3°
Laser line width 2 mm±0.5mm/5m
(0.10” ±0.02” at 20’ )
Wavelength 520 ±10nm - Laser Class II
Power supply 3 AA batteries (included)
Battery life 6 hours of continuous operation
Operating temp -10° C + 45° C (14°F +113°F)
Storage temp -20° C +60° C ( -4°F +140°F)
Water & dust proof IP54
Dimensions 10cm x 8.2cm x10.4cm
(3.9” x 3.2” x 4.1” )
Weight including
batteries
620gr±10gr
(1.37lbs ±0.35oz )
