KAPSCH CAPRI
125 PLUS
User Manual
This Quick Start Guide clarifies important notes and usage of the product.
Please read the QSG carefully and keep it safe.
A complete Manual can be downloaded on our website
www.kapsch.net/capri125

1
Important information
Please read and understand all the instructions before using the
product.
Damage caused by failure to comply with the instructions does not
be covered under warrant.
Warning
Risk of electric shock or fire
Do not let the product and accessories contact rain or water. Do
not put liquid container (such as vases) on the product side. If the
liquid flows inside the product, please immediately shut down the
product and contact customer service center.
Do not place the products and accessories near fire or other heat
sources, including direct sunlight.
In the lightning weather, the product should be shut down.
Beware of short-circuited or fire！
Before the product is connected to a power supply socket, please
ensure that the voltage of power supply and products on the
back or bottom printing values match. If the voltage is different, do
not connect the product to the power socket.
Beware of damage to the product！
Do not put this product or any objects on the power line or other
electronic devices.
If the delivery of the products at temperature that below 5°C,
please open the product packaging and waiting for it to reach
room temperature, and then connect it to the power socket for
charging.
This part of the product may be made of glass. Please handle with
care, so as not to hurt or damage.

2
Be careful of overheating！
Do not install the production in enclosed spaces. Be sure to set
aside at least 4inches around the product space for ventilation.
Cleaning products
Turn off machine before cleaning it.
Do not use volatile solvents (such as ethanol, rosin, toluene
solvent) to clean the machine. This type of chemicals may damage
the machine.
Use cotton or microfiber cleaning cloth.
In the cleaning process, do not water droplets into the product
panels and speakers causing malfunction.
Environmental protection
The product is made by recyclable and high quality materials. Do
not put together the product with other living
garbage. Please understand the local classification
about collecting electronic, electrical products and battery set. The
correct disposal of these products will help to avoid the potentially
negative impact on the environment and human health. This
product contains the battery cannot be discarded as the
general living garbage. Please understand the local classification
about collecting the provisions of battery. The correct disposal
of the battery helps to avoid the potentially negative impact on the
environment and human health.
Battery
Danger of explosion if battery is incorrectly replaced. Replace only
with the same or equivalent type.
Batteries (battery pack or batteries installed) shall not be exposed
to excessive heat such as sunshine,fire or the like.

3
Adapter
Use only power supplies listed in the user instructions:
<BRAND:Flypower>,
< <Model: PS30D180K1000UD>Model: PS30D180K1000ED>,
<Input: AC 100-240V 50/60Hz>,
<Output:DC 18.0V,1000mA >.
Only use the attachments / accessories specified by manufacturer
The MAINS plug or an appliance coupler is used as the disconnect
device, the disconnect device shall remain readily operable
Packing list
KAPSCH CAPRI 125 PLUS x 1
Quick Start Guide x 1
Adapter (DC18V,1A) x 1

4
Function introduction
POWER: Power switch, ”l ”mean ON, ”O ”mean OFF
ADAPTER:The power input interface
USB: To play audio from a USB device such as a USB Flash stick
AUX in: 3.5mm analog audio input interface
Earphone out: 3.5mm earphone interface

5
The function of keys:
1、MODE/STANDBY:
2、MENU/BACK:
Long press
Short press
Back to standby mode
1、Turn on
2、Entry mode selection
Short press
Show menu for the current mode
Return function

6
3、SLEEP/ALARM:
4、TUNE+、TUNE-:
5、INFO:
6、DEDICATION 125:
Long press
Short press
Set the ALARM
Set the sleep time
MODE
Long press
Short press
FM
Searching
Adjust the frequency
Bluetooth
/
Switching songs
DAB
/
Switching stations
Internet radio
/
Switching stations
Spotify
/
Switching songs
Line in
/
/
Music player
/
Switching songs
MENU
Scrolling menu
Scrolling menu
Short press
View more information about the station or track playing
Long press
Short press
Preset the corresponding radio
station.
Recall the preset or recall
your most listened station
/ track

7
7、VOL-/VOL+:
OK:
Charge
1. Before the first use, please use adapter to charge the machine
fully.
2. When charging, the power display icon scroll.
3. Low power warning
When battery power is insufficient,the screen will display“Battery
Low”
MODE
Rotate the knob
Play mode
clockwise to increase the
volume anticlockwise to reduce
the volume
MENU
Scrolling menu
MODE
Long press
Short press
FM
/
Mute/Unmute
Bluetooth
Disconnect
Play/pause
DAB
/
Mute/Unmute
Internet radio
Adds the station
to My favourites
Play/pause
Spotify
/
Play/pause
Line in
/
Mute/Unmute
Music player
Adds the track to
My playlist
Play/pause
MENU
/
Determine

8
System setting
All the settings parameters for KAPSCH CAPRI 125 PLUS are
available on the Settings menu.Settings menu options:
• Equaliser
• Network - wizard
• Time/Date - wizard
• Inactive Standby
• Language
•Factory Reset
• Software update
• Setup Wizard
• Info
• Backlight
• Multi-room
How to connect to the internet
KAPSCH CAPRI 125 PLUS is compatible with all common
network protocols and encryption methods, including Wi-Fi
Protected Setup (WPS).
To connect KAPSCH CAPRI 125 PLUS to your network, you need
one of the following:
A Wi-Fi wireless router, together with passphrase key, if set
To select a network use the Network wizard. It will start when you
switch on the radio the first time.
Network wizard
This guides you through the necessary steps to join a network.
This is also automatically run as part of the Setup wizard. The
screens and options presented will depend on the type of network
and network protection used.

9
Language
The default language is English. There are many languages for
selection: English, German, Italian, French, Dutch, Polish, Spanish,
Turkish and more
Spotify mode
KAPSCH CAPRI 125 PLUS is compatible with Spotify
Connect ,allowing a KAPSCH CAPRI 125 PLUS unit to act as
wireless speakers controlled by the Spotify App available for iOS,
Android smart devices and a desktop client for PCs.
Note: A Spotify Premium account is required to use Spotify
Connect.
Connect Spotify app to KAPSCH CAPRI 125
PLUS
Step 1. Connect your device to the same wi-fi network as your
phone, tablet or PC running the Spotify app.
Step 2. Open the Spotify app, and play any song.
Step 3. Tap the ”song image” in the bottom left of the screen.
Step 4. Tap the ”DEVICES AVAILABLE” icon
Step 5. Pick your device from the list.
For more information on how to set up and use Spotify Connect
please visit www.spotify.com/connect.

10
The Connect icon is highlighted in green when alternative network
audio devices available.

11
Troubleshooting Methods
The following table contains common problems and solutions,
please read carefully.
Problem
Solution
The
speaker has no
sound
Try to increase the volume;
Please reselect the audio input channel;
Please make sure that all cables are correctly
connected;
The
speaker murmu
r
Please make sure that all cables are correctly
connected;
Please replace the other audio cable;
Please ensure the equipment that
connected audio cable output itself did
not murmur;
No power or
Not charging
Please make sure that the adapter and the host
is connected correctly;
Please check the power adapter voltage and
current demand;
Bluetooth
mode voice
interrupted
Ensure that the machine and Bluetooth devices
to connect at a distance of 10 meters；
Please ensure that no obstruction between the
machine and the Bluetooth device,
or try another Bluetooth device to play;
Line-in mode
without sound
Please check whether the audio cable
is properly connected or not;
Failure in
station scanning
in DAB or FM
mode
Check if the antenna works or reset the
function.

12
Specification
Model KAPSCH CAPRI 125 PLUS
Speaker 1x 3 inch Fullran
g
e speaker
Frequency
response 80Hz-16KHz (-10dB)
Power amplifier Class D
@
10W × 1CH
THD < 10%
SNR >75dB
(
A
)
FM-Frequency
range 87.5MHz~108MHz
DAB-Frequency
range 174MHz~240MHz
Play mode Bluetooth/Line-in/FM/DAB
/Internet radio/Spotify/Music player
Ada
p
ter DC 18V,1A
Batter
y
Lithium batter
y
2200mAh, 11.1V
Standby power Networked standby＜2.5W
Close network connection ＜1W
Product size 222.7mm×155.4mm×73mm
Wi-Fi
Support 802.11 a/b/g/n
–WEP, WPA, WPA2 security
Maximum power
transmitted
19.21 dBm
Frequency
bands
2.4G:
2412 MHz - 2462 MHz
5G:
5150 MHz - 5250MHz
Bluetooth
version V2.1+EDR
Maximum
power
transmitted
5.66 dBm
Frequency
bands
2402 MHz - 2480 MHz
Specifications subject to change without notice.
Please refer to the next page for detailsPlease refer to the next page for details

13
For information about CE Conformity please visit our website.
Hereby, Kapsch TrafficCom AG, declares that this radio speaker is
in compliance with the essential requirements and other relevant
provisions of Directive 2014/53/EU.
The full text of the EU declaration of conformity is available at the
following internet address: www.kapsch.net/capri125
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including
interference that may cause undesired operation.
FCC：
Ø Changes or modifications to this unit not expressly approved by
the party responsible for compliance could void the user’s
authority to operate the equipment.
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference
to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
-- Reorient or relocate the receiving antenna.

14
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for
help.”
This symbol, affixed to the product or its packaging, indicates that
the product must not be processed with househlod waste. It must
be brought to an electric and electronic waste collection point for
recycling and disposal. By ensuring the appropriate disposal of
this product you also help in preventing potentially negative
consequences for the environment and human health. The
recycling of materials helps preserve our natural resources. For
further information regarding the recycling of this product, please
contact your municipality, local waste disposal centre or the store
where the product was purchased.
BAND I:5150-5250MHz BAND II:5250-5350MHz





FCC Radiation Exposure Statement
This device complies with FCC radiation exposure limits set
forth for an uncontrolled environment and it also complies with
Part 15 of the FCC RF Rules. This equipment must be
installed and operated in accordance with provided
instructions and the antenna(s) used for this transmitter must
be installed to provide a separation distance of at least 20 cm
from all persons and must not be co-located or operating in
conjunction with any other antenna or transmitter. End-users
and installers must be provided with antenna installation
instructions and consider removing the no-collocation
statement.
no-

15
Warranty terms
The warranty period shall start when you start the radio the first
time.
If a material or production fault occurs in this product within 24
months of this date, we shall – at our discretion – repair or replace
the product free of charge.
This warranty requires that the defective device has to be sent to
our service centre together with a short description of the fault.
If the fault is covered by our warranty, you will receive the repaired
product or a replacement device.
The warranty period shall not begin again if the product is repaired
or replaced.
Processing of warranty claims
Contact our support (see our website). Our support may already
be able to solve the problem. If the problem cannot be solved,
you will receive instructions on where to send the device to.
Support: ( german / english )
[email protected]
Importer:
Kapsch TrafficCom AG
Am Europlatz 2
1120 Vienna, Austria
Made in China

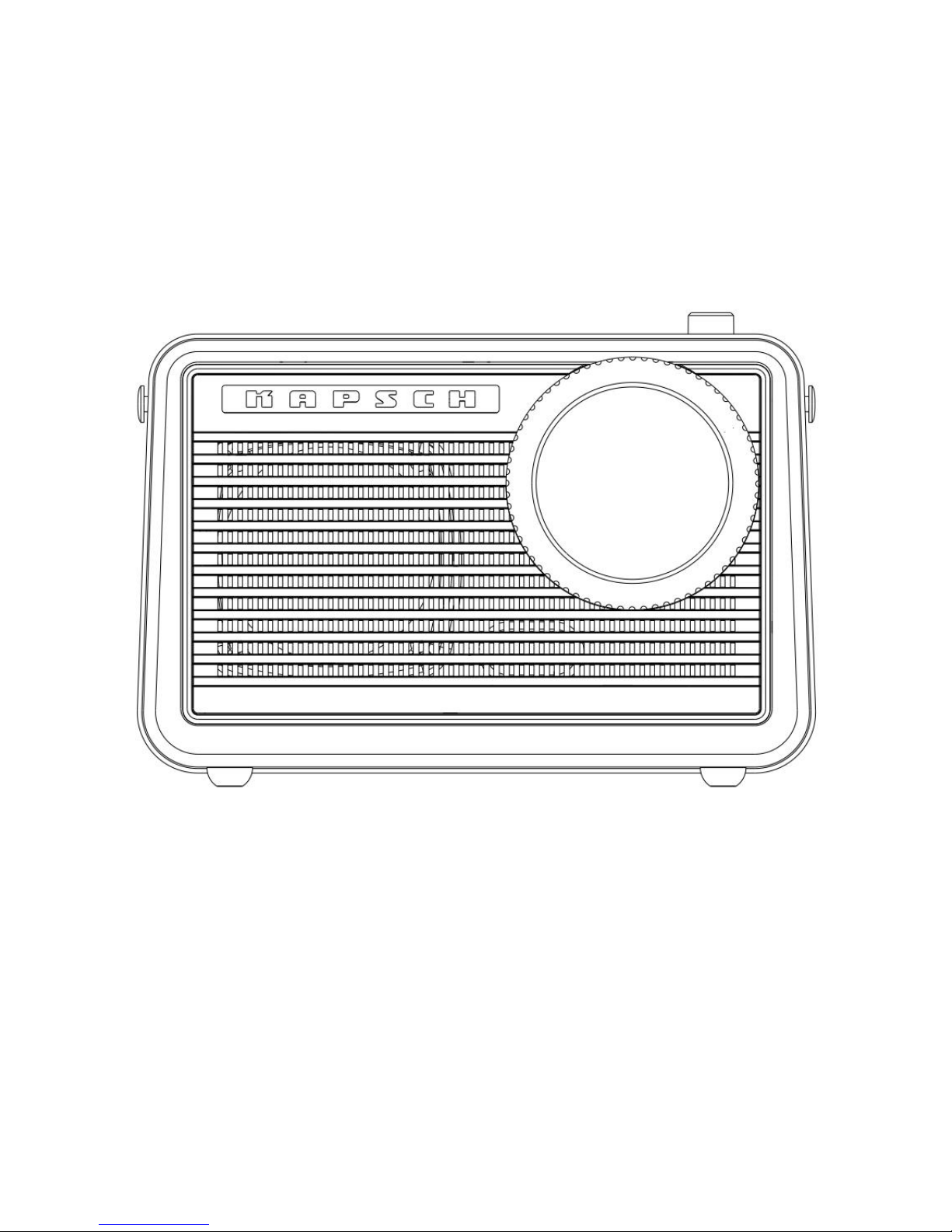

KAPSCH CAPRI
125 PLUS
Quick Start Guide
Dieser Quick Start Guide enthält wichtige Hinweise sowie
Anweisungen zum Gebrauch des Produktes. Lesen Sie sich
den QSG sorgfältig durch, und bewahren Sie ihn gut auf.
Eine ausführliche Bedienungsanleitung finden Sie unter
www.kapsch.net/CAPRI125

1
Wichtige Hinweise
Lesen und beachten Sie alle Warnhinweise und Erklärungen,
bevor Sie dieses Radio einschalten.
Schäden, die aufgrund eines unsachgemäßen Gebrauchs
entstehen, werden nicht durch die Garantie abgedeckt.
Achtung
Stromschlag- und Brandgefahr
Halten Sie das Produkt und sein Zubehör von Regen und Wasser
fern. Stellen Sie keine Behälter mit Flüssigkeiten (zum Beispiel
Vasen) auf oder neben das Produkt. Falls Flüssigkeit ins
Produktinnere gelangt, schalten Sie das Gerät sofort aus und
wenden sich an den Kundendienst.
Halten Sie das Produkt und sein Zubehör von Feuer und
Wärmequellen sowie von extremer Sonneneinstrahlung fern.
Bei Gewitter schalten Sie das Gerät aus und trennen es vom
Stromnetz.
Kurzschluss- und Brandgefahr
Bevor Sie das Gerät mit dem Stromnetz verbinden, müssen Sie
sicherstellen, dass die Stromversorgung den angegebenen
Werten entspricht. Wenn die Spannungsversorgung hiervon
abweicht, dürfen Sie das Produkt nicht an die Steckdose
anschließen.
Gefahr von Sachschäden
Stellen Sie weder das Produkt noch andere Gegenstände auf das
Netzkabel oder auf andere elektronische Geräte.
Liegt bei Erhalt des Produktes die Außentemperatur unter 5 °C,
packen Sie es aus und warten, bis es die Umgebungstemperatur

2
erreicht hat. Erst danach dürfen Sie es an die Steckdose
anschließen.
Einige Bauelemente des Produktes bestehen aus Glas.
Handhaben Sie es deshalb mit Vorsicht, damit das Glas nicht
zerbricht und Verletzungen oder Sachschäden verursacht.
Gefahr von Überhitzung
Achten Sie darauf, dass rund um das Gerät mindestens 10 cm
Platz zur Belüftung frei bleiben.
Reinigung
Schalten Sie das Gerät vor der Reinigung aus.
Verwenden Sie zur Reinigung keine organischen Lösungsmittel
wie Spiritus oder Verdünner. Anderenfalls wird das Gerät
beschädigt.
Verwenden Sie nur Reinigungstücher aus Baumwolle oder
Mikrofaser.
Sprühen oder tropfen Sie kein Wasser oder Reiniger auf das
Gehäuse oder die Lautsprecher. Anderenfalls kann das Gerät
beschädigt werden.
Das Gehäuse ist mit echtem Leder überzogen und muss sorgsam
gepflegt und gereinigt werden.
Umweltschutz
Dieses Produkt wurde aus hochwertigen und wiederverwertbaren
Materialien hergestellt. Sie dürfen es nicht über den Hausmüll
entsorgen. Informieren Sie sich über die Verordnungen zur
Entsorgung elektronischer und elektrischer Geräte sowie Batterien.
Die richtige Entsorgung Ihres Altgerätes schützt die Umwelt und
die Gesundheit. Dieses Produkt enthält einen Akku, der nicht über
den Hausmüll entsorgt werden darf. Informieren Sie sich über die
