Installation Instructions
Please hand the manual to the final customer. Please assemble this appliance correctly
according to this instruction in order to make full use of the functions of the appliance.
Packing list General installation diagram
Please refer to the table below to
confirm whether the accessories
are complete
Materials purchased by customers themselves are
glass glue, sensors etc. This appliance is only
equipped with nozzle, no water inlet connector for
back inlet mode.
Name
Urinal
Securing
block
The bolt of
securing block
Welling colloidal
particles
Spacer
Porcelain leak
Draining pipe
The top
inlet joint
Back inlet
nozzle
Quantity Sketch Remark
Qualification
certificate
Manual
Attached
Attached
Attached
Attached
Attached
Attached
Optional
Attached
Papers
Papers
securing block
sensor
top water inlet pipe
Nozzle
porcelain leak
Align the drain outlet
The front The back The side
finished ground
Model
Size
Kids Kids
Adults Adults
It is different of size J for kid and adult
It is recommended that the K value of children is 380mm and for adults it is 550mm after
the installation.
3. Installation dimension It is suggested that the size of installation shall
be subject to the actual object.
Units: mm
KARAT URINAL 35404VN-WK
35404VN-WK

Essentials of urinal installation
Kids Adults
Kids Adults
Kids
Kids
Adults
Adults
Kids Adults
It is suggested that the size of installation shall
be subject to the actual object.
The dashed area
is the slot
The Nominal
diameter of the
main supply pipe
should be no less
than G1/2” for
single appliance
The Nominal
diameter of the
main supply pipe
should be no
less than G1”
for mufti Multiple
appliance.
distance between the hook and ground
height of the slot
ground （before tiling） ground （before tiling）
The dimension of slots
tiling ground tiling ground
The dashed area
is the slot
The dashed
area is the slot
hook of the urinal
about
The Nominal diameter of the
branch supply pipe should
be no less than G1/2” for
single appliance
The Nominal diameter of the
branch supply pipe should
be no less than G3/4” for
mufti Multiple appliance.
G1/2” inlet pipe wire pipe G1/2”
Cross sectional
area of power
line no less
than 1mm2
top inlet
￠29outlet hole
for accessories，
opened vertically
to the ceramic
body.

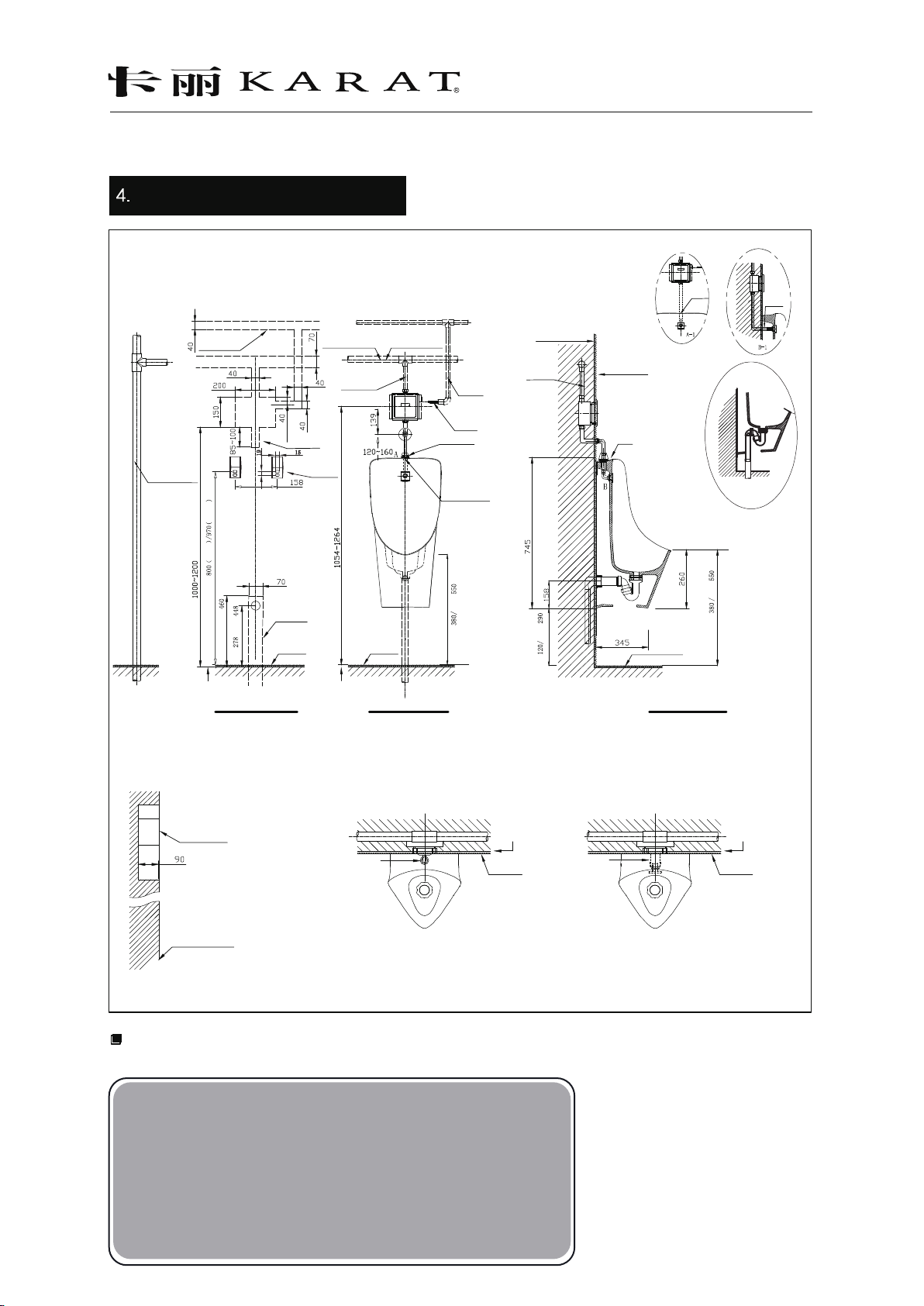

The front diagram
wall before tiling
back inlet mode
back inlet mode
tiling wall
top inlet mode
G1/2” inlet pipe
wall draining
tiling ground
The side diagram
ground draining
connect a hose as needed for
ground draining
wall before tiling
Ground before tiling
top inlet mode back inlet mode
The plan The plan
tiling wall tiling wall
wall before tiling wall before tiling
All information contained in this guideline is based on the latest product information at the time of printing. Karat reserves
the right to change the product characteristics, packaging or supply at any time without notice.
Warning
1、It may cause water leakage in case that the connection
between the urinal and the water inlet pipe is loosen
2、This appliance is fragile. Please do not hit the ceramics
heavily to avoid damage and water leakage
3、This appliance can be operated or stored below 0℃ environment
under the premise of ensuring that the ceramic body is dry and free of water
