DANGER
indicates “an imminently hazardous sit-
uation which, if not avoided, will result
in death or serious injury.”
WARNING
indicates “a potentially hazardous situ-
ation which, if not avoided, could result
in death or injury.”
CAUTION
indicates “a potentially hazardous situ-
ation which, if not avoided, may result
in minor or moderate injury or in prop-
erty damage incidents.”
For household use only!
The owner and/or user must have an
understanding of the manufacturer’s
operating instructions and warnings
before using this pressure washer.
Warning information should be empha-
sized and understood.
If the operator is not fluent in English,
the manufacturer’s instructions and
warnings shall be read to and dis-
cussed with the operator in the opera-
tor’s native language by the purchaser/
owner, making sure that the operator
comprehends its contents.
Owner and/or user must study and
maintain for future reference the man-
ufacturers’ instructions.
Call: 1-800-537-4129 for help or visit
our website:
www.karcherresidential.com
Please take a moment to register your
pressure washer online at
www.karcherresidential.com/warranty
Call: 01-800-024-13-13 for help or visit
our website: www.karcher.com.mx
HIGH PRESSURE WASHER OPERATOR MANUAL
Model Overview 3
Important Safety Instructions 4
Assembly Instructions 6
Operating Instructions 6
Using the Accessories 8
Working with Detergents 11
Taking a Break 11
Shutting Down & Clean-Up 11
Winterizing and Long-Term
Storage
12
Maintenance Instructions 12
Cleaning Tips 13
Optional Cleaning Accessories 15
Troubleshooting 17
Safety Alert Symbols
Specifications
Max. Pressure 1600 PSI
Water Flow 1.25 GPM
Amp draw 13 AMPS
Voltage 120 V
Part No. 1.601-180.0
Serial no.
Owner/User Responsibility
Kärcher Customer Support
USA and Canada
Kärcher Customer Support
Mexico

English 3

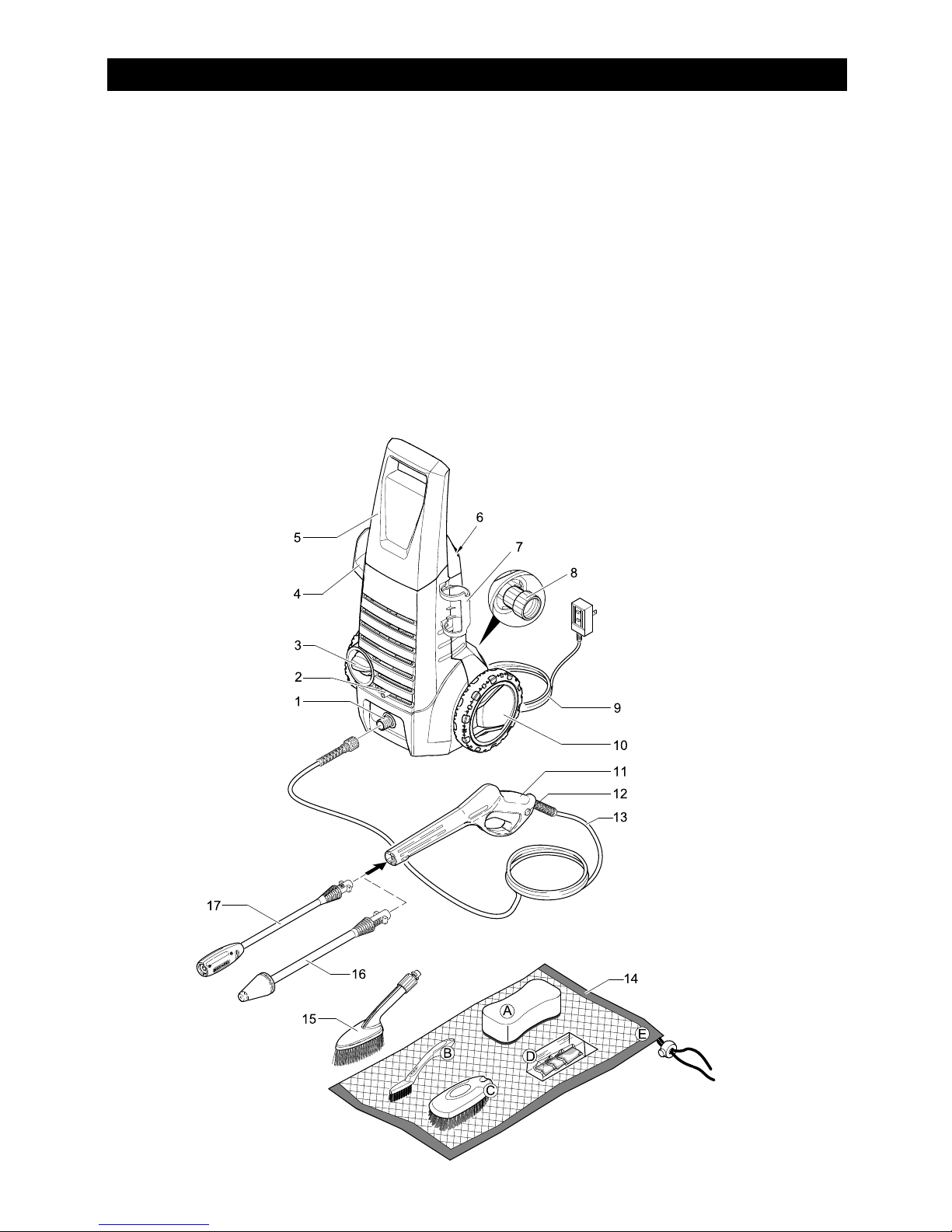

1 High pressure outlet
2 Detergent suction tube with filter
3 ON/OFF switch
4 Hose/Cord Hook
5 Handle
6 Spray Wand Storage
7 Trigger Gun Holder
8 Water inlet with garden hose
connector
9 Power cord with Ground Fault Cir-
cuit Interrupter (GFCI)
10 Wheels
11 Trigger gun
12 Trigger gun safety lock
13 High pressure hose
14 Automobile Kit
A Sponge
B Rim Brush
C Bristle Brush
D Detergent SoapPac
E Accessory Bag
15 Wash brush
16 Dirtblaster® (Rotary spray wand)
17 Vario Power Spray wand
MODEL OVERVIEW

4 English
WARNING
When using this product basic precau-
tions should always be followed, in-
cluding the following:
Read all the instructions before us-
ing the product.
To reduce the risk of injury, close
supervision is necessary when a
product is used near children.
Know how to stop the product and
bleed pressures quickly. Be thor-
oughly familiar with the controls.
Stay alert – watch what you are doing.
Do not operate the product when fa-
tigued or under the influence of al-
cohol or drugs.
Keep operating area clear of all per-
sons.
Do not overreach or stand on unsta-
ble support. Keep good footing and
balance at all times.
Follow the maintenance instruc-
tions specified in the manual.
This product is provided with a
Ground Fault Circuit Interrupter
built into the power cord plug. If re-
placement of the plug or cord is
needed, use only identical replace-
ment parts.
WARNING
Risk of Injection or Injury – Do Not Di-
rect Discharge Stream At Persons.
High pressure jets can be danger-
ous if misused. The jet must not be
directed at persons, animals, elec-
trical devices, or the unit itself.
Wear safety goggles.
WARNING
Risk Of Explosion – Do not spray
flammable liquids.
Do not use acids, alkaline, solvents,
or any flammable material in this
product. These products can cause
physical injuries to the operator and
irreversible damage to the machine.
CAUTION
Gun Kicks Back – Hold with both
hands.
The Trigger Gun Safety Lock pre-
vents the trigger from accidentally
being engaged. This safety feature
DOES NOT lock trigger in the ON
position.
WARNING – Risk of Electrocution
Inspect cord before using – Do not
use if cord is damaged.
Keep all connections dry and off the
ground.
Do not touch plug with wet hands.
Do not use extension cord with this
product.
Connect to individual branch circuit
only.
CAUTION
This unit has been designed for use
with cleaning detergents recommend-
ed by the manufacturer. The use of
other cleaning detergents may affect
the operation of the machine and void
the warranty.
WARNING
DO NOT SPRAY ELECTRICAL
APPARATUS AND WIRING.
DO NOT USE WITH FLAMMABLE
LIQUIDS AND TOXIC CHEMI-
CALS.
HIGH PRESSURE. KEEP CLEAR
OF NOZZLE.
INJECTION HAZARD: EQUIP-
MENT CAN CAUSE SERIOUS IN-
JURY IF THE SPRAY
PENETRATES THE SKIN. DO NOT
POINT THE GUN AT ANYONE OR
ANY PART OF THE BODY. IN
IMPORTANT SAFETY INSTRUCTIONS

English 5
CASE OF PENETRATION SEEK
MEDICAL AID IMMEDIATELY.
THIS SYSTEM IS CAPABLE OF
PRODUCING 1600 PSI TO AVOID
RUPTURE AND INJURY, DO NOT
OPERATE THIS PUMP WITH
COMPONENTS RATED LESS
THAN 1600 PSI WORKING PRES-
SURE (INCLUDING BUT NOT LI-
MITED TO SPRAY GUNS, HOSE
AND HOSE CONNECTIONS).
BEFORE SERVICING, CLEANING
OR REMOVING ANY PARTS,
SHUT OFF POWER AND RELIE-
VE PRESSURE.
IF CONNECTION IS MADE TO A
POTABLE WATER SYSTEM, THE
SYSTEM SHALL BE PROTECTED
AGAINST BACKFLOW.
SAVE THESE INSTRUCTIONS
This pressure washer is provided with
a ground-fault circuit-interrupter (GF-
CI) built into the plug of the power-sup-
ply cord. This device provides
additional protection from the risk of
electric shock. Should replacement of
the plug or cord become necessary,
use only identical replacement parts
that include GFCI protection.
In a double-insulated product, two sys-
tems of insulation are provided instead
of grounding. No grounding means is
provided on a double-insulated prod-
uct, nor should a means for grounding
be added to the product. Servicing a
double-insulated product requires ex-
treme care and knowledge of the sys-
tem, and should be done only by
qualified service personnel. Replace-
ment parts for a double-insulated prod-
uct must be identical to the parts they
replace. A doubleinsulated product is
marked with the words “DOUBLE IN-
SULATION” or “DOUBLE INSULAT-
ED”. The symbol “ ” may also be
marked on the product.
CAUTION
When connecting the water inlet to the
water supply mains, local regulations
of your water company must be ob-
served. In some areas the unit must
not be connected directly to the public
drinking water supply. This is to ensure
that there is no feedback of chemicals
into the water supply. Direct connec-
tion via a receiver tank or backflow pre-
venter, for example, is permitted.
Dirt in the feed water will damage the
unit. To avoid this risk, we recommend
fitting a water filter.
Garden hose must be at least 1/2
inch or 5/8 inch in diameter.
Flow rate of water supply must not
fall below 2 GPM (gallons per
minute).
Flow rate can be determined by
running the water for one minute
into an empty 5-gallon container.
The water supply temperature must
not exceed 104°F/40°C.
Never use the pressure washer to
draw in water contaminated with
solvents, e.g. paint thinners, gaso-
line, oil, etc.
Always prevent debris from being
drawn into the unit by using a clean
water source.
GROUND FAULT CIRCUIT
INTERRUPTER PROTECTION
SERVICING OF A DOUBLE-
INSULATED PRODUCT
WATER SUPPLY
(Cold Water Only)

6 English

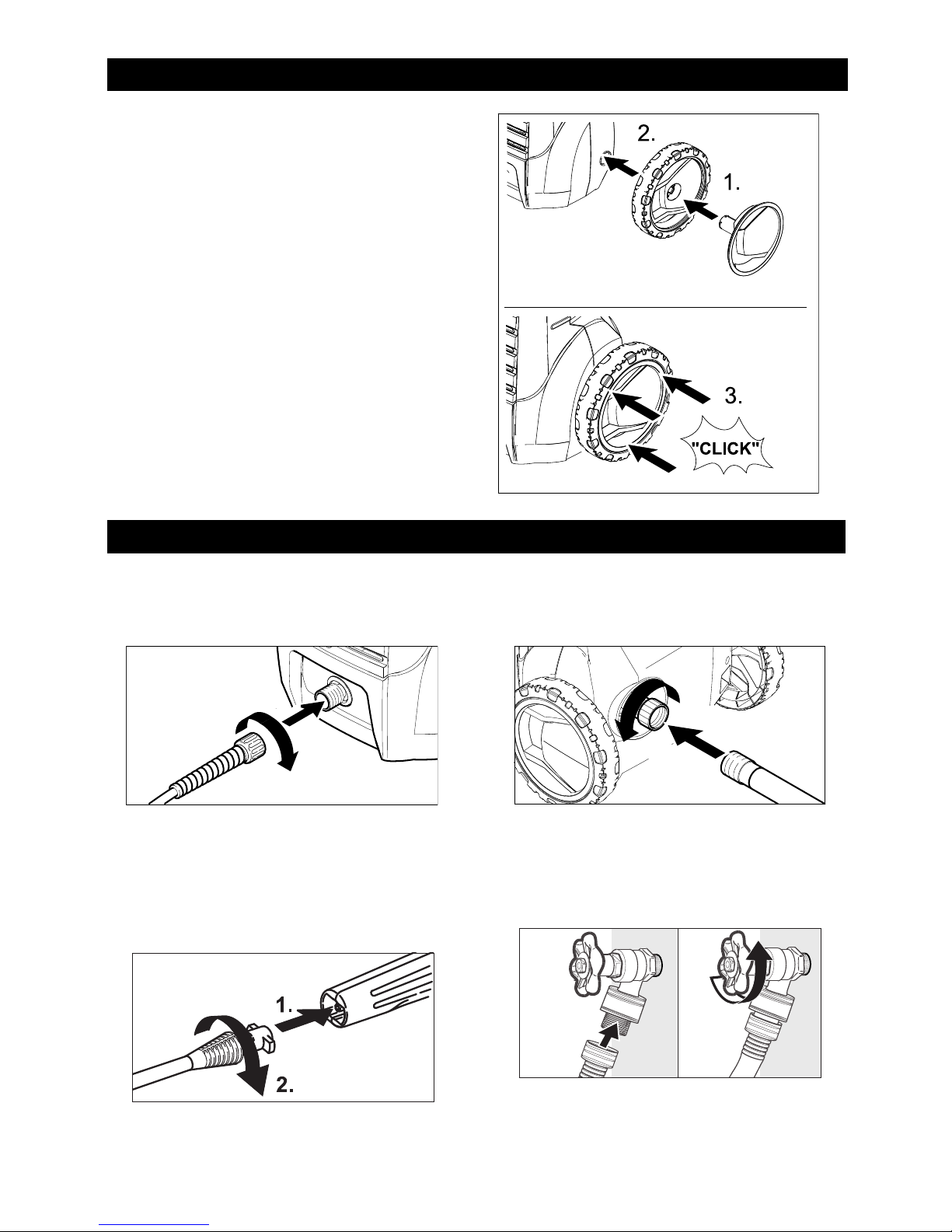

ÎSTEP 1:
Insert wheels into the side holes of
the unit.
ÎSTEP 1:
Connect the high pressure hose to
the unit’s high pressure outlet.
ÎSTEP 2:
Insert the spray wand of your
choice into the trigger gun. Press in
against the spring tension and twist
into locked position.

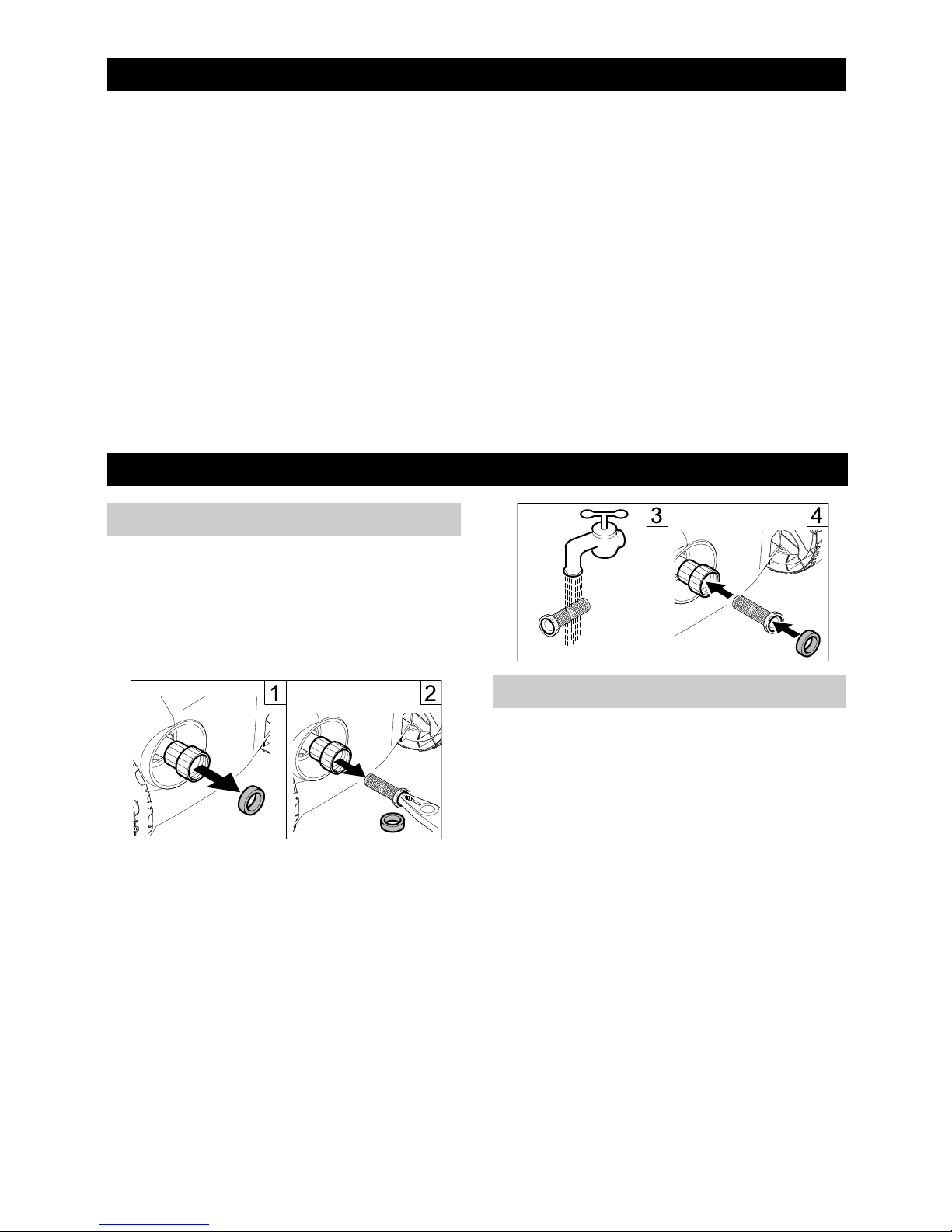

ÎSTEP 3:
Connect garden hose to unit’s wa-
ter inlet.
ÎSTEP 4:
Connect garden hose to the cold
water source and turn water on
completely.
ASSEMBLY INSTRUCTIONS
OPERATING INSTRUCTIONS

English 7

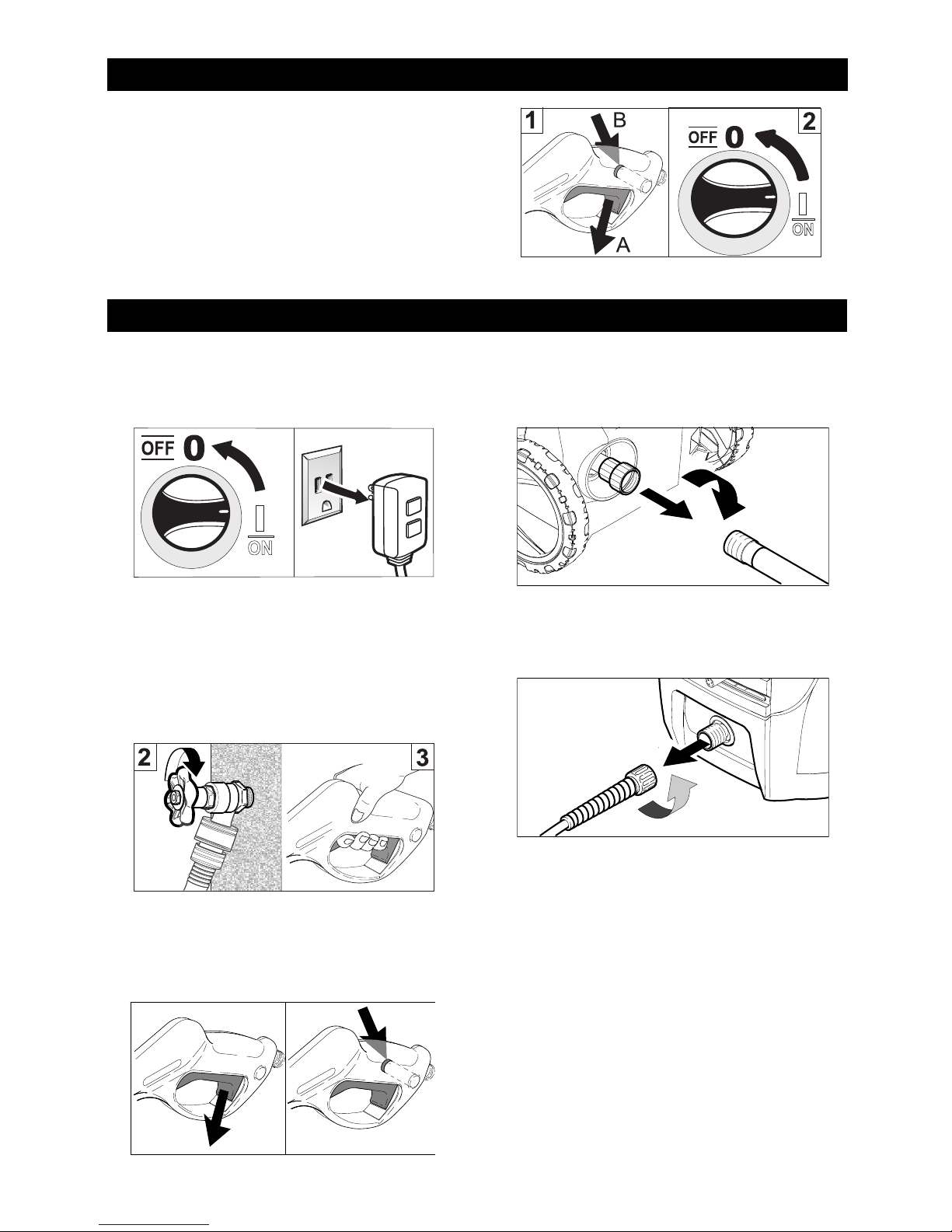

ÎSTEP 5:
Plug the Ground Fault Circuit Inter-
rupter (GFCI) into a receptacle.
Press RESET button, indicator
should be “ON”.
Press TEST button, indicator
should be “OFF”.
Press RESET button for use.
We recommend that you test the GFCI
as part of your startup procedure each
time you use your pressure washer. To
learn how to peform this test on your
unit, visit http://www.karcherresiden-
tial.com/gfci_test.php for detailed in-
structions for your type of GFCI
WARNING
Do not use if above test fails.
ÎSTEP 6:
Unlock the trigger gun safety lock.
Trigger the gun to eliminate trapped
air, wait for a steady flow of water to
emerge from the spray nozzle.
ÎSTEP 7:
Turn on the high pressure washer (I/
ON).
The motor starts only if the trig-
ger of the gun is pulled and shuts
off when the trigger is released.

8 English
WARNING
To avoid serious injury never point
spray nozzle at yourself, other per-
sons or animals.
Always test an inconspicuous area
before cleaning with high pressure.
The Vario Power Spray Wand al-
lows you to adjust the cleaning
pressure.
To clean at maximum pressure, the
wand must be positioned to the high
pressure setting (Max).
For reduced pressure turn the wand
collar in the „Min“ direction.
To apply detergent, the wand
must be positioned to the low
pressure setting (Mix).
This nozzle features a 0º pencil jet
which rotates 360º for maximum dirt
cutting action, effectively increasing
cleaning performance up to 50%.
This nozzle combines the cleaning
performance of a 0º pencil jet with
the surface coverage of a wide an-
gle nozzle.
Not recommended for soft mate-
rials, siding, painted surfaces,
decks or autos.
Always test an inconspicuous area
before cleaning with the Dirtblaster.
This brush is ideal for removing stub-
born dirt and stains from finished sur-
faces. Use with detergents possible.
WARNING
Do not use the rim and bristle brush
on the clear coat finish of a vehicle.
These brushes are intended for
tires, unfinished metal or chrome
finishes.
USING THE ACCESSORIES
Vario Power Spray Wand
Dirtblaster®
Wash Brush
Automobile Kit

English 9
Detergents can only be applied at
low pressure setting (Mix) or with
the Wash Brush.
ÎSTEP 1:
Install the Vario Power Spray
Wand. Set the spray wand to the
low pressure setting (Mix).
OR
Install the Wash Brush.
ÎSTEP 2:
One Gallon Ready to Use Instruc-
tions:
Fill a container with Kärcher deter-
gent. Place the filter end of deter-
gent suction tube into the container.
Kärcher SoapPac Instructions:
Kärcher SoapPacs are designed to
completely dissolve in water. A Kär-
cher SoapPac Sample of Concen-
trated Vehicle Wash & Wax is
included with your pressure was-
her. This product is packaged in
self dissolving film that is formula-
ted to quickly remove dirt, grease
and grime, while leaving the sur-
face film-free. It provides a just-wa-
xed look in one simple product
Do not cut or tear open the
Kärcher SoapPac. Do not handle
with wet hands. Avoid contact
with skin, eyes and mucous
membranes. May cause irrita-
tion. Harmful if swallowed. Mix
only with water. DO NOT mix with
other chemicals or cleaning
agents.
–Insert one SoapPac into a bucket.
–Fill the bucket with cool or warm
water (1/4 gal/1 qt /1 L).
–Agitate water in the bucket and wait
for product to completely dissolve.
–Place the filter end of detergent
suction tube into the container.
–Apply detergent on low pressure
setting OR with the Wash Brush.
For other Kärcher SoapPac Deter-
gents, check your retailer or visit
our website: www.karcher-
usa.com/home or www.karcher-ca-
nada.com for more information.
WORKING WITH DETERGENTS

10 English
ÎSTEP 3:
Turn on the pressure washer (I).
Pull trigger to operate unit. Liquid
detergent is drawn into the unit and
mixed with water. Apply detergent
to work area. Do not allow deter-
gent to dry on surface.
ÎSTEP 4:
Cleaning up: Always draw fresh
water through the detergent suction
tube when the cleaning job is done,
to flush any remaining detergents
from the injection system.
For best results see Cleaning Tips
for specific information on how to
clean different surfaces.
Always Use Kärcher Detergent for
Best Results
Kärcher biodegradable detergents are
specially formulated to protect the en-
vironment and your pressure washer.
The special formula won’t clog the suc-
tion tube filter and will protect the inter-
nal parts of the pressure washer for a
longer life. For Kärcher Detergents,
check your retailer or visit our website:
www.soappac.com
The following Kärcher SoapPac de-
tergents are available:
Vehicle Wash & Wax Cleaner
All Purpose Cleaner
Deck & Patio Cleaner
Degreaser
Exterior House Cleaner
CAUTION
Never use:
–Bleach, Chlorine products and oth-
er corrosive chemicals
–Liquids containing solvents (i.e.,
paint thinners, gasoline, oils)
–Tri-sodium phosphate products
–Ammonia products
–Acid-based products
These chemicals will harm the unit and
will damage the surface being cleaned.
Use of these items will void the war-
ranty.

English 11
ÎSTEP 1:
Release trigger and engage gun
safety lock.
ÎSTEP 2:
Turn pressure washer to OFF (0)
position.
ÎSTEP 1:
Turn the switch to OFF (0) position
and unplug cord from outlet.
ÎSTEP 2:
Turn off the water source.
ÎSTEP 3:
Press trigger to release water pres-
sure.
ÎSTEP 4:
Release trigger and engage gun
safety lock.
ÎSTEP 5:
Disconnect the garden hose from
the water inlet on the unit.
ÎSTEP 6:
Disconnect the high pressure hose
from the high pressure outlet.
TAKING A BREAK ..five minutes or more
SHUTTING DOWN & CLEAN-UP

12 English
Î1: Disconnect all water connec-
tions.
Î2: Turn on the machine for a few
seconds, until the water which had
remained in the pump exits, turn off
immediately.
Î3: Do not allow high pressure hose
to become kinked.
Î4: Store the machine and accesso-
ries in a room which does not reach
freezing temperatures. DO NOT
store near furnace or other sources
of heat as it may dry out the pump
seals.
CAUTION
Failure to follow the above directions
will result in damage to the pump as-
sembly and accessories and will void
the warranty.
Kärcher also recommends the regular
practice of using a pump protector like
“Kärcher Pump Guard” to prevent cold
weather damage during storage in the
winter months.
ÎSTEP 1:
Pull out washer from the water inlet.
ÎSTEP 2:
Pull out water inlet filter with flat-
nose pliers.
ÎSTEP 3:
Rinse out water inlet filter in warm
water.
ÎSTEP 4:
Reinsert water inlet filter and was-
her into the water inlet.
The unit is maintenance-free.
WINTERIZING AND LONG-TERM STORAGE
CARE AND MAINTENANCE INSTRUCTIONS
Cleaning the water inlet filter
Maintenance

English 13
CAUTION
Before cleaning any surface an in-
conspicuous area should be
cleaned to test spray pattern and
distance for maximum cleaning re-
sults.
If painted surfaces are peeling or
chipping, use extreme caution as
pressure washer may remove the
loose paint from the surface.
When using on surfaces which
might come in contact with food,
flush surfaces with plenty of drink-
ing water.
For additional cleaning tips and a
complete video library, visit our
website:
www.karcherresidential.com
(with or without detergent). Pre-rinse
deck and surrounding area with fresh
water. If using detergent, apply to sur-
face at low pressure. For best results,
limit your work area to smaller sections
of approximately 25 square feet. Allow
detergent to remain on surface 1-3
minutes. Do not allow detergent to dry
on surface. Rinse at high pressure in a
long sweeping motion keeping the
spray nozzle approximately 3-6 inches
from the cleaning surface. Always
clean from top to bottom and from left
to right. When moving on to a new sec-
tion of the cleaning surface, be sure to
overlap the previous section to elimi-
nate stop marks and ensure a more
even cleaning result.
(with or without detergent). Pre-rinse
cleaning surface with fresh water. If us-
ing detergent, apply to surface at low
pressure (for best results, limit your
work area to sections of approximately
6 feet and always apply detergent from
bottom to top). Allow detergent to re-
main on surface 1-3 minutes. Do not
allow detergent to dry on surface, if
surface appears to be drying, simply
wet down surface with fresh water. If
needed, use special wash brush at-
tachment (not included) to remove
stubborn dirt. Rinse at high pressure
from top to bottom in an even sweep-
ing motion keeping the spray nozzle
approximately 6 inches from the clean-
ing surface.
(with or without detergent). Pre-rinse
cleaning surface with fresh water. If us-
ing detergent or Degreaser, apply to
surface at low pressure. For best re-
sults, limit your work area to smaller
sections of approximately 25 square
feet. Allow detergent or Degreaser to
remain on surface 1-3 minutes. Do not
allow detergent to dry on surface.
Rinse at high pressure in a sweeping
motion keeping the spray nozzle ap-
proximately 3-6 inches from the clean-
ing surface. Always clean from top to
bottom and from left to right. For re-
moving extremely stubborn stains, use
the Dirtblaster® Nozzle.
CLEANING TIPS
Deck Cleaning
House Siding
Cement Patios, Brick and Stone

14 English
(with or without detergent). Pre-rinse
vehicle with fresh water. If using deter-
gent, apply to surface at low pressure.
For best results, clean one side of ve-
hicle at a time and always apply deter-
gent from bottom to top, do not allow
detergent to dry on surface. If needed,
use special wash brush attachment
(not included) to remove stubborn dirt.
Rinse at high pressure in a sweeping
motion keeping the spray nozzle ap-
proximately 6-8 inches from the clean-
ing surface (distance should increase
when rinsing pin-striping or other sen-
sitive surfaces). Always clean from top
to bottom and from left to right. For best
results, wipe surface dry with a cham-
ois or soft dry cloth.
(with or without detergent). Pre-rinse
cleaning surface with fresh water. If us-
ing detergent or Degreaser, apply de-
tergent at low pressure. Allow
detergent to remain on surface 1-3
minutes. Do not allow detergent to dry
on surface. Rinse at high pressure
keeping the spray nozzle approximate-
ly 3-6 inches from the cleaning surface.
For removing extremely stubborn dirt,
it may be necessary to move the spray
nozzle even closer to the surface for
greater dirt cutting action.
(with or without detergent). Pre-rinse
furniture and surrounding area with
fresh water. If using detergent, apply to
surface at low pressure. Allow deter-
gent to remain on surface 1-3 minutes.
Do not allow detergent to dry on sur-
face. If needed use special Wash
Brush Attachment (not included) to re-
move stubborn dirt. Rinse at high pres-
sure in a sweeping motion keeping the
spray nozzle approximately 3-6 inches
from the cleaning surface. For best re-
sults, clean from top to bottom and
from left to right.
Cars, Boats & Motorcycles
Barbecue Grills, Outdoor Power
Equipment & Gardening Tools
Patio & Lawn Furniture

English 15
Optional accessories are available to
further enhance your cleaning capabil-
ities. These accessories are accurate
as of the printing date of this manual.
Please check our website for pricing
and up-to-date information.
Specially formulated to protect your
pressure washer from freezing, corro-
sion and premature wear. The Pump
Guard also adds lubrication to valves
and seals to prevent sticking. Highly
recommended for all Kärcher pressure
washers!
Part No. 9.558-998.0
Replacement hose fits Kärcher pres-
sure washer with screw-on type gun
connections from 2400 PSI to
2500 PSI, Extension Hose for all
Kärcher high pressure washers be-
tween the original equipment hose and
machine up to 2500 PSI.
Part No. 2.640-850.0
Need to clean second story windows or
other high areas? Increase the reach
of your pressure washer by up to 66"
with this extension kit. Includes 4 alu-
minum sections for variable length. 66"
fully assembled. Fits most Kärcher
pressure washers up to 2300 PSI.
(bayonet)
Part No. 2.640-746.0
For more effortless cleaning of all
smooth surfaces (painted, glass and
plastic) try Kärcher's Rotating Wash
Brush. Use it on your automobile,
house siding or windows. The water
pressure from your pressure washer
causes the inner brushes to gently
spin, making your cleaning job much
easier. The angle of brush head is ad-
justable to help you reach difficult ar-
eas. Excellent for the application of
detergent. A must-have accessory de-
signed for Kärcher pressure washers
up to 2300 PSI. (bayonet)
Part No. 2.640-743.0
Made with soft bristles that will not
harm painted surfaces. Easily attaches
directly to the trigger gun. Ideal for
stubborn dirt on cars, boats, patio furni-
ture and other surfaces. Great for ap-
plying detergent. Fits most Kärcher
pressure washers up to 2300 PSI.
(bayonet)
Part No. 2.640-740.0
OPTIONAL CLEANING ACCESSORIES
Pump Guard
25 Ft. Extension /Replacement
High-Pressure Hose
66" Extension Wand (Four piece)
Rotating Wash Brush (bayonet)
Soft Clean Washing Brush

16 English
Need to clean blocked pipes, drains or
downspouts? Kärcher's pipe cleaning
kit is the answer! The pipe cleaner pro-
pels itself forward while simultaneously
flushing out debris. For example, insert
the cleaning nozzle in the base of a
downspout, pull the trigger on the pres-
sure washer gun and watch as the noz-
zle shoots out leaves and other debris
while climbing upward. Connects di-
rectly to the trigger gun of most Kärch-
er pressure washers up to 2300 PSI.
(bayonet)
Part No. 2.640-747.0
Why spend hours stripping old paint
and rust by hand using harsh chemi-
cals? Let Kärcher's Wet Sandblasting
Kit do the work! Attach the kit to your
pressure washer, add abrasive materi-
al and attack the rust and paint with our
eco-friendly alternative. Fits most
Kärcher pressure washers up to
2300 PSI. (bayonet)
Part No. 2.638-792.0
Ideal for applications which require a
thick foam. Simply fill the resevoir cup
with liquid pressure washer detergent
to generate a foam spray. Connects di-
rectly to the trigger gun. Fits most
Kärcher pressure washers up to
2300 PSI. (bayonet)
Part No. 6.964-507.0
For cleaning surfaces such as patios,
terraces and driveways without splash-
back, there is no better solution than
Kärcher's T 100. It saves time by
cleaning a one foot wide area gently as
it hovers, providing consistent, streak-
free cleaning. When you finish clean-
ing the patio and driveway, remove the
wand and use the handle to clean ga-
rage doors and other vertical surfaces.
Includes two nozzles which spin at
high speed for optimum results. Our
top selling accessory for Kärcher pres-
sure washers up to 2300 PSI. (bayo-
net)
Part No. 2.640-959.0
25 ft. Pipe Cleaning Kit (bayonet)
Wet Sandblasting Kit (bayonet)
Detergent Foamer Attachment
T 100 Wide Area Surface Cleaner

English 17
CAUTION Disconnect the machine from the pow-
er source before making any repair.
TROUBLESHOOTING
Symptom Cause Solution
Motor will not start On/Off switch is in the “OFF”
(0) position.
Turn switch to the “ON” (I) posi-
tion
Power cord is not plugged in. Plug in power cord.
Electrical outlet does not sup-
ply adequate power.
Try a different outlet.
Tripped GFCI plug. Press “RESET” button on GFCI
plug.
Unit does not
reach high pres-
sure.
Diameter of garden hose is
too small.
Replace with a 5/8 inch or larg-
er garden hose.
Water supply is restricted. Check garden hose for kinks,
leaks and blockage.
Not enough inlet water sup-
ply.
Open water source full force.
Water inlet filter is clogged. Remove filter and rinse out in
warm water.
Spray wand is on low pres-
sure position.
Turn spray wand to high pres-
sure position.
Output pressure
varies high and
low.
Not enough inlet water sup-
ply.
Turn water on full force. Check
garden hose for kinks, leaks or
blockage.
Pump is sucking air. Check that hoses and fittings
are air tight. Turn off machine
and purge pump by squeezing
trigger gun until a steady flow of
water emerges through the
nozzle.
Water inlet filter is clogged. Remove filter and rinse out in
warm water.
Discharge nozzle is obstruct-
ed.
Blow out or remove debris with
a fine needle.
Calcified gun, hose or spray
wand.
Run distilled vinegar through
detergent suction tube.

18 English
Call: 1-800-537-4129 for help or visit
our website:
www.karcherresidential.com
Call: 01-800-024-13-13 for help or visit
our website: www.karcher.com.mx
No detergent. Detergent suction tube not
properly connected to the
machine.
Check connection.
Detergent is too thick. Dilute detergent, for best
results use Kärcher detergent.
Filter on detergent suction
tube is clogged.
Run warm water through filter
to remove debris.
Damaged or clogged
detergent suction tube.
Remove obstruction or replace
detergent suction tube.
Spray wand is in high
pressure position.
Turn spray wand tip to low
pressure position.
Discharge nozzle is
obstructed.
Blow out or remove debris with
fine needle.
Garden hose
connection leaks.
Loose fittings. Tighten fittings.
Missing/worn rubber washer. Insert new washer.
Spray wand leaks. Spray wand not properly
attached.
Insert the spray wand into the
trigger gun. Carefully press in
against the spring tension and
twist into the locked position.
Broken o-ring or plastic
insert.
Call Customer Support
Pump is noisy. Pump is sucking air. Check that hoses and fittings
are air tight. Turn off machine
and purge pump by squeezing
trigger gun until a steady flow of
water emerges through the
nozzle.
Water leaks from
pump (up to 10
drops per minute
is permissible).
Loose fittings. Check that all fittings are tight.
Water seals are damaged or
worn.
Call Customer Support
Oil Drip. Oil seals are damaged or
worn.
Call Customer Support
Symptom Cause Solution
Kärcher Customer Support
USA and Canada
Kärcher Customer Support
Mexico

Español 19
PELIGRO
indica “una situación de peligro inmi-
nente que, si no se evita, puede causar
lesiones graves e incluso la muerte”.
ADVERTENCIA
indica “una situación de peligro poten-
cial que, si no se evita, puede causar
lesiones e incluso la muerte”.
ATENCIÓN
indica “una situación de peligro poten-
cial que, si no se evita, puede causar
lesiones de poca importancia o leves",
o daños materiales.
Sólo para uso doméstico.
El propietario y/o el usuario deben
comprender bien las instrucciones de
servicio y advertencias del fabricante
antes de empezar a utilizar este limpia-
dor de alta presión.
Debe prestarse especial atención y te-
ner muy claras las advertencias.
Si el operador no habla bien el espa-
ñol, el propietario/comprador debe res-
ponsabilizarse de leer y comentar las
instrucciones y las advertencias en su
lengua natal, y asegurarse de que en-
tienda a la perfección su contenido.
El propietario y/o el usuario deben leer
y guardar como referencia para el futu-
ro las instrucciones del fabricante.
Llame al: 1-800-537-4129 si necesita
ayuda o visite nuestra página Web:
www.karcherresidential.com
Por favor, dedique unos minutos a re-
gistrar su aparato de lavado a presión
en www.karcherresidential.com/
warranty
Llame al: 01-800-024-13-13 si necesi-
ta ayuda o visite nuestra página Web:
www.karcher.com.mx
MANUAL DE USUARIO DEL LIMPIADOR DE ALTA PRESIÓN
Símbolos de aviso de seguridad
Especificaciones
Presión max. 1600 PSI
Volumen de agua 1.25 GPM
Amperaje 13 AMPS
Voltaje 120 V
Nº de pieza 1.601-180.0
Nº de serie
Responsabilidades del
propietario/usuario
Soporte Kärcher USA / CDN
Soporte Kärcher Mexico

20 Español
1 Salida de alta presión
2 Manguera de succión de detergen-
te con filtro
3 Interruptor de encendido/apagado
4 Soporte para manguera/cable
5 Asa de transporte
6 Zona de recogida, pulverizador
7 Zona de recogida, pistola
8 Toma de agua con conector para
manguera de jardín
9 Cable de potencia con interruptor
de circuito de avería por puesta a
tierra
10 Ruedas
11 Pistola de disparo
12 Pestillo de seguridad de la pistola
de disparo
13 Manguera de alta presión
14 Juego para automóvil
Esponja
Cepillo para rines
Cepillo de cerdas suaves
Paquete detergente
Bolsa para accesorios
15 Cepillo de lavado
16 Dirtblaster® (Lanza rotativa de alta
presión)
17 Lanza de alta presión variable
VISTA GENERAL DEL MODELO
