Karma BLAZER User manual

User manual
BLAZER
Blazer_handleiding_omslag_EN.indd 1Blazer_handleiding_omslag_EN.indd 1 15-3-2021 14:48:2915-3-2021 14:48:29

2

3
1. Index
1. Index.......................................................................................................... 3
2. How to contact Karma............................................................................... 7
3. Declaration of conformity .......................................................................... 8
4. Introduction................................................................................................ 9
4.1 Chassis number ................................................................................ 9
5. Used symbols for warning, caution and note..........................................11
6. Warranty..................................................................................................12
7. Intended use / intended user...................................................................13
8. Intended environment ............................................................................. 13
9. Tyre pressure.......................................................................................... 13
10. Wheelchair .............................................................................................. 14
10.1 Chassis............................................................................................14
10.1.1 Chassis suspension ................................................................14
10.1.2 Anti-tippers .............................................................................. 14
10.1.3 Transport fixation loops........................................................... 15
10.1.4 Lights and reflectors (Optional)...............................................15
10.1.5 Battery compartments............................................................. 15
10.1.6 Main fuse................................................................................. 17
10.2 Seat................................................................................................. 17
10.2.1 Upholstered seat cushion........................................................ 19
10.2.2 Seat tilt (Sling Seat only).........................................................19
10.2.3 Upholstered backrest .............................................................. 20
10.2.4 Angle adjustable/ Manual recline backrest (Optional)............. 20
10.2.5 Armrest.................................................................................... 21
10.2.6 Footrest ................................................................................... 21
10.2.7 Headrest.................................................................................. 22
10.2.8 Positioning belt (optional)........................................................ 22

4
10.3 Control.............................................................................................23
10.3.1 Side steering control................................................................23
10.4 Other optional accessories.............................................................. 24
11. First setup................................................................................................ 25
11.1 Seat adjustments.............................................................................25
11.1.1 Seat depth............................................................................... 25
11.1.2 Backrest (seat-to-back) angle ................................................. 27
11.1.3 Armrest width ..........................................................................27
11.1.4 Armrest height......................................................................... 28
11.1.5 Armrest depth..........................................................................29
11.1.6 Footrest longitudinal position .................................................. 30
11.1.7 Footrest Length .......................................................................31
11.1.8 Headrest setting for Sling Seat ............................................... 32
11.1.9 Headrest setting for Captain Seat........................................... 33
11.2 Positioning belts.............................................................................. 33
11.3 Control settings ............................................................................... 34
11.3.1 Height adjustment side control................................................34
11.3.2 Depth adjustment side control.................................................34
12. Controller.................................................................................................35
12.1 Charging socket .............................................................................. 35
12.2 Joystick............................................................................................35
12.3 Control panel................................................................................... 36
12.3.1 Battery indicator ...................................................................... 37
12.3.2 On/Off button...........................................................................37
12.3.3 Horn button.............................................................................. 38
12.3.4 Speed Indicator .......................................................................38
12.3.5 Speed decrease/ increase button ...........................................38
12.3.6 Seat position indicator.............................................................38
12.3.7 Seat position button.................................................................38

5
12.3.8 Hazard warning button............................................................38
12.3.9 Lights button............................................................................38
12.3.10 Left/ Right Indicator button..................................................39
12.3.11 Wheelchair lock...................................................................39
13. Electric system........................................................................................ 40
13.1 Batteries ..........................................................................................40
14. Using the wheelchair............................................................................... 41
14.1 General warnings and advices........................................................41
14.2 Use in combination with other products.......................................... 42
14.3 Hot and cold surfaces ..................................................................... 42
14.4 Danger of pinching.......................................................................... 43
14.5 Surroundings...................................................................................43
14.6 Precautions to prevent dangerous situations.................................. 44
14.7 Use on slopes: driving on downhill slopes ......................................45
14.8 Use on slopes: driving on uphill slopes...........................................46
14.9 Driving on sideways slopes............................................................. 47
14.10 Obstacle climbing........................................................................ 48
14.11 Use in presence of electromagnetic fields ..................................49
15. Driving the wheelchair............................................................................. 50
15.1 Driving in general ............................................................................50
15.2 Driving technique............................................................................. 51
15.3 Stopping the wheelchair.................................................................. 52
16. Using the powered seat functions...........................................................52
16.1 Seat tilt ............................................................................................ 52
16.2 Backrest Recline .............................................................................53
17. Handling the mechanical brakes.............................................................54
17.1 Release the mechanical brakes...................................................... 54
18. Charging the maintenance free batteries................................................ 55
18.1 Battery level..................................................................................... 55

6
18.2 Charging socket .............................................................................. 57
18.3 Disposal of broken or worn out batteries ........................................ 58
19. Transport of the wheelchair.....................................................................59
19.1 4-point tie down restraint system ....................................................59
19.1.1 Transportation guideline..........................................................61
19.1.2 Safety belt ...............................................................................62
19.2 Transportation on an airplane ......................................................... 65
19.2.1 Batteries .................................................................................. 65
19.2.2 The wheelchair’s dimensions and weight................................ 65
20. Maintenance and repairs......................................................................... 66
20.1 Battery charging.............................................................................. 66
20.2 Short term storage........................................................................... 66
20.3 Long term storage........................................................................... 66
20.4 Tools................................................................................................68
20.5 Wheels and tires.............................................................................. 68
20.5.1 Puncture repair........................................................................69
20.6 Cleaning ..........................................................................................70
20.6.1 Upholstery, cloth / air mesh..................................................... 70
20.6.2 Metal surfaces......................................................................... 71
20.6.3 Plastic covers ..........................................................................71
20.7 Brake release, freewheel mode ......................................................72
20.8 Battery replacement........................................................................72
21. Refurbishment and re-use of the product. .............................................. 76
22. Disposal of the product ........................................................................... 76
23. Trouble shooting...................................................................................... 77
23.1 Diagnostics VR2..............................................................................77
24. Technical specifications .......................................................................... 79
25. Accessories............................................................................................. 82

Contact information
If you are the wheelchair user, you should rst contact your local supplier in case
of a problem or question about your wheelchair. When the local supplier is not
able to help you, please contact the distributor:
Head o󰀩ce Karma
Karma Medical
NO.2363, Sec. 2
University Road
Min-Hsiung Shiang
Chia-Yi 621
Taiwan
[email protected]
European representative
Karma Mobility S.L.
Calle Periodista Francisco Carantoña
Dubert nº23 - abajo
33209 – Gijón (Asturias)
Spain
[e-mail]
The Netherlands
Life & Mobility B.V.
Logistiekweg 7
7007 CJ Doetinchem
The Netherlands
[e-mail]
www.life-mobility.com
Germany
Life & Mobility GmbH
Oderstraße 59
14513 Teltow (Berlin)
Germany
[e-mail]
www.life-mobility.com/de
France
Life & Mobility France
2736 Route de Ravel
69440 Mornant
France
[e-mail]
www.life-mobility.com/fr
Belgium
Revimex bvba
Waterrijtstraat 11a
3900 Overpelt
Belgium
[email protected]
www.revimex.be

8

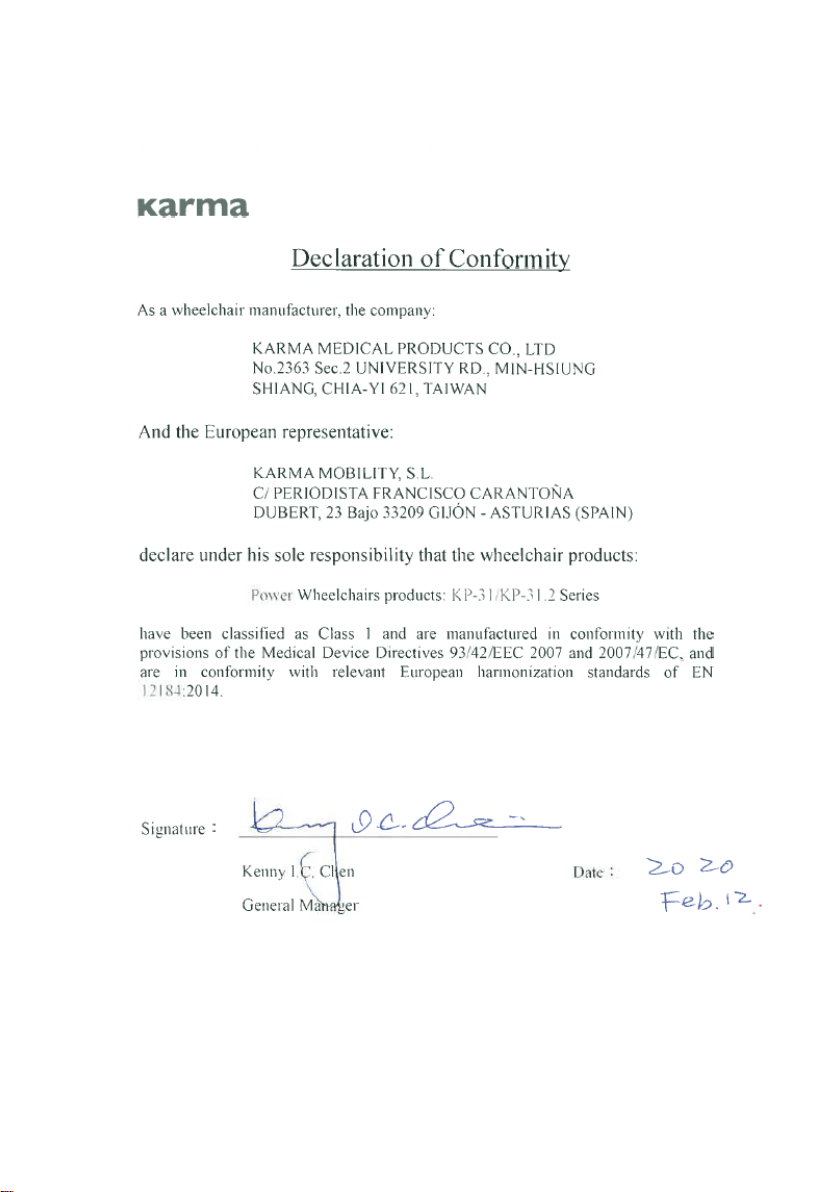

3. Declaration of conformity

9
4. Introduction
Congratulation with your new Karma product! This product has been made
with great care and dedication. The Karma product will increase your freedom
of mobility and independence. Karma and its resellers all over the world are
there to support in any way. So if you have questions or suggestions about our
products, do not hesitate to get in contact with us at
[email protected]m.tw.
Before you use the Karma product, we strongly recommend you to read this
manual carefully and always keep it with your product. This way you are
always able to find additional information when needed.
Karma runs the policy of continuously product improvement. Therefore,
pictures of products or options as shown in this manual might be different from
what you see in this manual. Karma reserves the right to make changes to the
product without prior notice.
4.1 Chassis number
The chassis number is a very important number. Your wheelchair will be
stored in our data system under this main number. You can find the number in
between driving wheel and caster wheel.
Chassis serial plate

10
The used symbols on the chassis plate are explained below:
describes the model and type of the product.
stands for indoor- and outdoor use (Class B).
stands for the date of production.
this icon stands for the maximum driving speed.
this icon stands for the maximum slope to drive on.
this icon stands for the maximum user weight.
SN: stands for the chassis serial number.

11
5. Used symbols for warning, caution and note
General warnings are indicated by a symbol. There are three levels of
warnings:
1. Warning
2. Caution
3. Note
If you see this sign, please use extreme caution where this symbol
appears. Neglecting these warnings can lead to personal or material
damage.
If you see this symbol, use caution to prevent dangerous situations.
If you see this symbol, we provide additional information which might be
good to know. Please take notice of this information.
● Before using the wheelchair, you should read this manual to get
familiar with this product.
● Make sure the local reseller has set up the product in a proper way to
exactly fit your needs and requirements.
● Always be accompanied by an attendant person when you drive the
wheelchair for the first time.
● The first drive should take place in a safe and wide area so you can get
acquainted to your wheelchair without any danger.
● Always start to drive the wheelchair in the lowest possible driving
speed first.

12
6. Warranty
Karma Medical supplies warranty of two years on this product. Your local
supplier will carry out this warranty. For batteries and battery charger you
receive one-year warranty from manufacture date.
For a warranty claim you get in contact with our local authorized Karma
reseller or directly with Karma Mobility S.L. Make sure you also provide the
chassis serial number of your product.
The warranty does not apply to damage or faults of the product caused by
wrong or improper use, or neglected maintenance. The evaluation of it is the
privilege of Karma Medical or a representative to be appointed by Karma
Medical.
This guarantee does not apply to components susceptible to wear such as
tyres, brake shoes or pads, clutch shoe and lining, light bulbs, fuses,
upholstery and seating, brake cable, oil seal packing and gasket, screws/bolts
and washers, lubricant oil and grease, carbon brush inside the motor, battery
liquid, footrest carpet, etc.
Karma Medical reserves the right to alter the specifications at any time. No
responsibility can be accepted for any changes in the specifications.
Change of specification can be caused by e.g. availability of parts, product
improvement based on market experience, changed legislations etc.
The use of non-original parts on this product can lead to personal or
material damage. Karma Medical cannot be held responsible for these
results.
Repairs executed by unauthorized persons can lead to personal or
material damage. Karma Medical cannot be held responsible for these
results.
If you have any doubt about the service provided to your wheelchair,
please contact Karma Medical Taiwan for information.

13
7. Intended use / intended user
The Blazer powered wheelchair is meant to provide mobility to persons who
are not able to walk, stand or use a manual wheelchair, but who are very well
able to control and use the interface of a powered wheelchair. The wheelchair
is designed for a maximum user weight of 136 kg.
It is strongly suggested to have the use of the wheelchair evaluated by a
trained doctor, therapist or other qualified and trained staff.
This wheelchair is not suitable for persons who do not have the cognitive skills
to drive a powered wheelchair by themselves. Also it is not suitable for visually
impaired persons.
8. Intended environment
The product is not restricted to only indoor or only outdoor use. Because of the
large wheels placed in the rear, the wheelchair is able to cope with many
terrain differences. This, combined with the compact size of the product and
the excellent speed range and battery capacity, making the wheelchair
suitable for both indoor and outdoor use. It is allowed to use the wheelchair in
different weather conditions. It can be used at temperatures of -25 degrees up
to maximum 55 degrees Celsius and the charger operate temperatures is 0 up
to 40 degrees Celsius. It however must be noticed, that metal or plastic
surfaces of the wheelchair can become very hot when exposed to direct sun
for longer time. Because of the harmful combination of salt water and sand it is
advised not to use the wheelchair on beaches. We advise to clean the
wheelchair after having been in contact with sand and/or salt water as
described in the paragraph “cleaning”.
9. Tyre pressure
The product uses air-filled tyres in the front and solid or air-filled tyres in the
rear. The choice of having solid or air-filled rear tyres is made by the user
during the ordering of the wheelchair. In order to prevent tyre damage and to
preserve the performance of the wheelchair, the tyre pressure must be
checked at least on a monthly basis. The tyre pressure should be:
Front air-filled tyres (small): max. 350 Kpa / 50.7 PSI / 3.5 bar
Rear air-filled tyres (large): max. 350 Kpa / 50.7 PSI / 3.5 bar
The tire pressure is also shown on the stickers in the rims of the chassis

14
10. Wheelchair
10.1 Chassis
The chassis is the base of the wheelchair. It contains wheels, drive motors,
batteries, and electronics. The steel parts of the chassis are electrolytic
anodized and powder coated to ensure a long life without corrosion.
Each of the rear wheels is propelled by a powerful drive motor. These motors
also take care for the steering of the wheelchair.
10.1.1 Chassis suspension
The chassis has suspension on the rear wheels.
10.1.2 Anti-tippers
The anti-tippers prevent the wheelchair tipping over at all time. The anti-
tippers are standard equipped and positioned at the rear of the chassis.
DO NOT operate the wheelchair without anti-tippers being installed,
otherwise the wheelchair might tip over and hurt the user.
.

15
10.1.3 Transport fixation loops
The fixation loops are marked with this sign:
Further information about transportation of the wheelchair
you will find in chapter "transportation".
10.1.4 Lights and reflectors (Optional)
The chassis has very strong and bright LED lights to make sure you can have
a safe drive in the dark. The optional orange reflectors and the red reflectors
can also make you visible for other people as well. The lights fulfill the
European requirements. The additional LED indicators give our environment
clear information in which direction you want to go.
10.1.5 Battery compartments
Fixation loops in the front
Fixation loops in the rear
L
L
R
R
L
L

16
The compartment can hold maintenance-free batteries up to 50Ah. For the
specification of the batteries see the chapter technical specifications.
The maintenance-free batteries can be reached from the back. To reach the
batteries, untighten 2 knobs (A) to take off the top-back cover. Then, untighten
these 4 knobs (B) to take off back-rear cover.
After taking the cover off, the maintenance free battery can be pulled out of
the box. Mind the cables! At installing the maintenance free battery, one
should pay great attention to make sure the cables are not jammed between
the battery and the battery box.
Wiring instructions
When pulling the battery out of the box do mind to not overstretch the
cables. This might lead to technical failure.
Before reconnecting the battery, read the wiring instructions on the inside
of the battery cover.
A
B

17

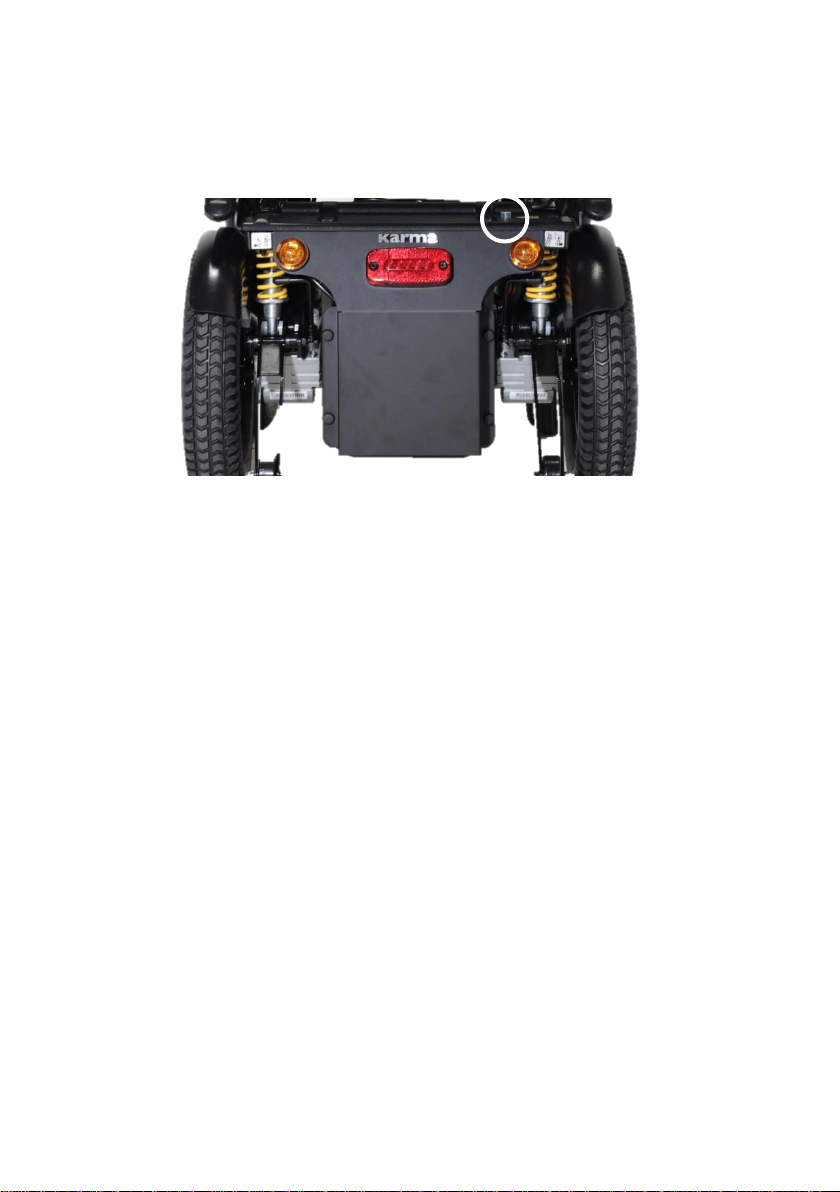

10.1.6 Main fuse
The chassis contains a circuit breaker which is located at the rear of the
chassis. The circuit breaker protects the whole electrical system of the
wheelchair.
Circuit breaker location
This circuit breaker will pop-up when the electrical system is over-load. Once
the breaker pops, you will not be able to control the wheelchair by joystick.
This situation happens typically when the wheelchair is climbing up a hill that
is steeper than what is restricted. Should the circuit breaker pop-up, you need
to eliminate the cause first. And then, push down the circuit breaker. You will
be able to drive again.
10.2 Seat
There are two different seating system used in Blazer Series, Sling Seat and
Captain Seat. The choice is made by the user during the ordering of the
wheelchair. Please identify firstly which one is mounted on your Blazer.

18
Sling Seat
The Sling Seat can be adjusted in seat depth, footrest hanger position, and
seat-to-back angle. It can be up-graded into manual recline or power tilt. The
seat pan is flat so other seating cushion can be fitted on to the seat as well.
Captain Seat
The Captain Seat offers manual recline function and can be adjusted in
footrest hanger position.

19
10.2.1 Upholstered seat cushion
The Sling Seat upholstered seat cushion is available in different sizes to
provide optimal seating comfort and support to the user. The cloth is air mesh.
The seat cushion is well fixed with Velcro on to the seat pan to prevent it from
sliding. The Captain Seat surface is made with PU material.
10.2.2 Seat tilt (Sling Seat only)
The seat tilt in Blazer model can be used to release pressure. The tilting angle
is from 8 to 28°. The tilt can also be used when driving down a slope for
compensating the negative seat angle. This provides a more stable seat
position and safe driving.
If the tilt is activated over a certain angle, the driving speed will be reduced.
This is to reduce the risk of danger whilst driving at high speed.
Always drive carefully on slopes. The angle of the slope has great
influence on the total stability of the wheelchair.
When tilting, always check if there are no obstructions close to the
wheelchair. Especially in the front or rear of the wheelchair.
When tilting, the wheelchair will get longer. This has influence on the
driving characteristics of the wheelchair. Make sure there is enough
space to drive.
MAX 28°

20
10.2.3 Upholstered backrest
The Sling Seat upholstered backrest is available in different sizes to provide
optimal seating comfort and support to the user. The cloth is breathable fabric.
The backrest is well fixed with Velcro on to the backrest plate to prevent it
from sliding. The Captain Seat surface is made with PU material.

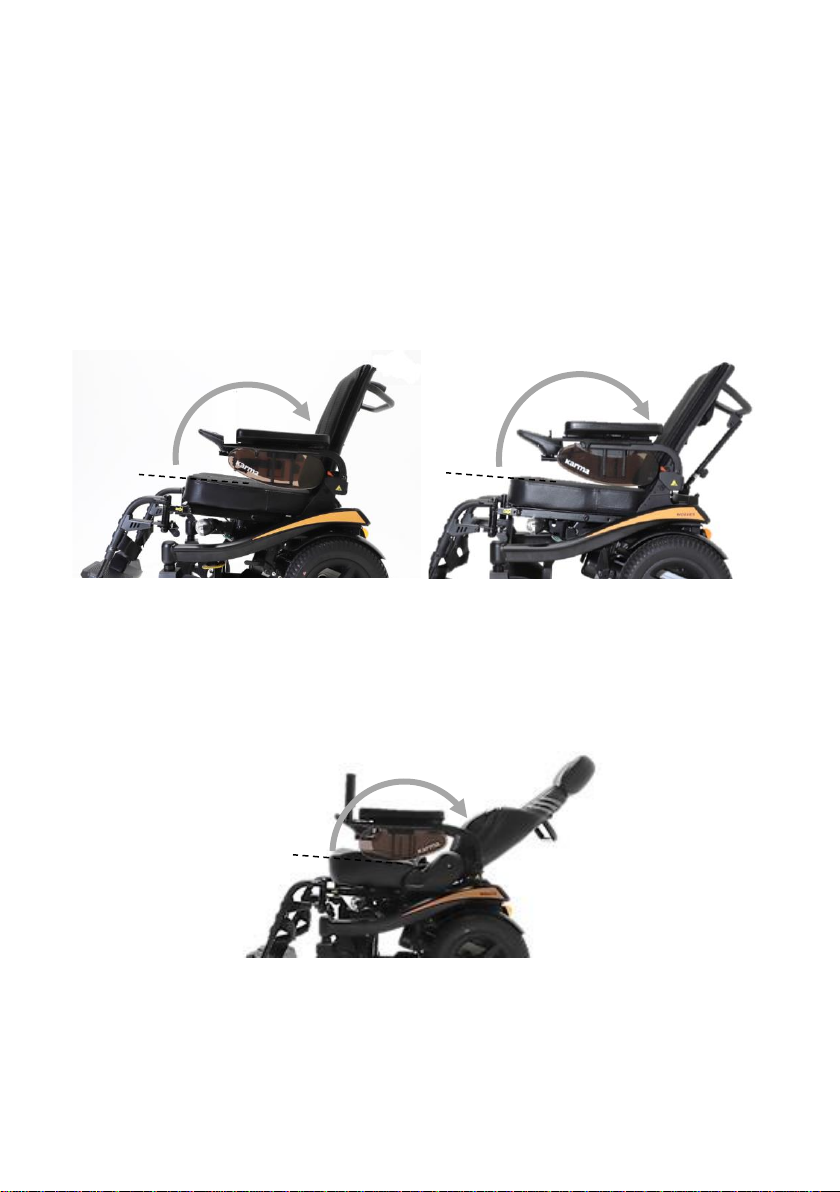

10.2.4 Angle adjustable/ Manual recline backrest (Optional)
There are two different seating system used in Blazer Series, Sling Seat and
Captain Seat. Please identify firstly which one is mounted on your Blazer.
Sling Seat angle adjustment Manual Recline Add-on
The Sling Seat backrest angle can be set tool-free from 100°/ 105°/ 110°. With
manual recline add-on, Sling Seat can recline from 90° to 121°.
Captain Seat
The Captain Seat offers manual recline backrest. It can be set tool-free from
90° to 146°. It gives the user the possibility to move into a laying position.
MAX 146°
100°/ 105°/ 110°
MAX 121°
