Karma SOMA ECON 800 SERIES User manual

Manual Wheelchair Owner's Manual
Econ 800 Series

i
GENERAL WARNING
DO maintain your chair well, in particular check the tire pressure since this
affects the efficiency of the brakes.
DO make sure both brakes are applied before getting in or out of the chair.
DO make sure both brakes are applied when the chair is not being pushed or
used.
DO take care when climbing curbs or turning on slopes.
DO avoid steep or uneven surfaces that may cause the chair to tip over.
DO avoid soft surfaces because the casters may become bogged down.
DO travel smoothly in all conditions.
DO look well ahead to anticipate hazards such as furniture, doors, potholes,
etc.
DO make sure that both feet are safely on the footrests and that clothing is
safely tucked out of the way so that it cannot get caught in the wheels.
DO take care when traveling up or down or across inclines.
DO keep both hands on the push handles to control the chair, if you are the
attendant.
DO pay attention to keep the chair balanced.
DO check the frame and components regularly and refer to this user guide
during and after the warranty period.
DO tie-up the upholstery or replace which with a new one when it becomes
loose.
DO lubricate the bearings regularly.
DO equip with anti-tippers to avoid falling backwards.
DO equip with a seat belt designed for disabled people.
DO equip with "heel loops" for disabled people.
DO be far away of flame, it might injury user and damage the chair.
DO clean both hands after oiling the wheelchair.
DO Not overload the chair in any circumstance.
DO Not hang anything heavy on the back of the chair that could cause the
chair to become unstable, particularly when negotiating inclines.
DO Not allow more than one user at a time.
DO Not use with an unconscious patient.
DO Not use other transport to pull the wheelchair.
DO Not do "wheelies", since you my fall or tip over backwards and suffer a
severe injury.
DO Not sit in the wheelchair within a moving vehicle.
DO Not go too fast or turn too quickly.
DO Not stand on the footplates when getting in or out of the chair.
DO Not go down steps forward, whether solo or with an attendant.
DO Not attempt to lift the wheelchair by any removable (detachable) parts.
Lifting by means of any removable (detachable) parts of the wheelchair may
result in injury to the user and/or assistant or damage to the wheelchair.

ii
DO NOT use the wheelchair when the back is folded. This alters the centre
of gravity and may cause the wheelchair to tip backwards. The back should
only be folded for storage or transport of the wheelchair.
DO Not hang anything on the back joint that could cause the backrest to fold
suddenly and may cause injury.
YOU AND YOUR KARMA SERVICE PROVIDER
No tools are required for assembly. Your wheelchair should be assembled
by your authorized Karma dealer. Your authorized Karma dealer is also your
service provider. Unauthorized repairs, upgrades and add-ons will negate
your warranty. Anything wheelchair related that requires tools should be
done by your authorized Karma service provider. Your Karma service
provider has the necessary service/maintenance manual for your wheelchair.
If you have any defective parts or lose any parts, please contact your dealer
for repair and/or replacement. Please only use parts authorized by Karma.
Use of parts that are not authorized by Karma will negate your warranty.
Part numbers are listed on our bill of materials (explosion drawings), which
we give to our authorized dealers and service providers. Customers should
order parts through their dealer as well as all repairs and scheduled
maintenance.
Customers should go to their dealership for all service needs to guarantee
their warranty is not nullified. Always go to an authorized service provider.
Unauthorized repairs will nullify your warranty. Procedures other than those
described in this manual must be performed by a qualified technician. They
also have the service manual with a complete list of maintenance required to
keep your Karma wheelchair in top performance. Check the warranty section
of this manual to find out what Karma guarantees and what maintenance
service and parts that are not covered by the warranty.
Karma does not have an official list of service providers at this time. Please
contact your dealer for service. If you cannot contact your dealer, please
contact another authorized Karma dealer for service. If all else fails, contact
Karma directly via our website or give us a call and we can refer you to your
new service provider.

iii
CE MARKING
This wheelchair complies with the requirements of the Medical Devices Directive
93/42/EEC.
CAUTION:
● When prescribing wheelchairs for use by full or partial amputees (above or
below knee, single or double) or other conditions that affects the user's natural
center of gravity and might cause the wheelchair to tip or the person on the
wheelchair to fall off, we suggest contacting your therapist or dealer as well as
attaching anti-tippers, pelvic belt, or other additional safety accessories.
● When using the wheelchair, ALWAYS follow the Highway Code or your local
traffic regulations when outdoors and the guidelines written in this manual.

TABLE OF CONTENTS
TABLE OF CONTENTS .............................................................. 1
1. PREFACE ............................................................................... 1
2. SAFETY .................................................................................. 2
3. INTENDED USE & PARTS ..................................................... 5
4. OPERATION ........................................................................... 8
5. INSPECTION AND MAINTENANCE..................................... 19
6. OPTIONS AND ACCESSORIES........................................... 23
7. TROUBLESHOOTING .......................................................... 24
8. SPECIFICATIONS ................................................................ 25
9. CLEANING & RECYCLING .................................................. 26
10. WARRANTY........................................................................ 27

1
1. PREFACE
Please carefully read this owner's manual before using the wheelchair. Improper use
of the wheelchair could result in harm or injury. Therefore, for safe and enjoyable
use of the wheelchair, please read this owner's manual.
This owner's manual includes operation instructions for the aspects of the
wheelchair, unfolding/folding instructions and instructions on how to deal with
possible accidents.
This owner's manual is written for Karma wheelchair: Econ 800 (SM-802.2).
The symbols used in this manual are explained below. Pay special attention to
the parts marked with these symbols.
WARNING: Improper use could lead to serious injury or death.
CAUTION: Improper use could lead to serious injury and/or
damage to your wheelchair.
SUGGESTION: Follow these instructions to keep the wheelchair in
good condition.
This manual includes the repair and maintenance chart as well as the warranty.
If someone else uses the wheelchair, make sure that you give him or her this
owner's manual for his or her reference.
As designs change, some illustrations and pictures in this manual may not
correspond to the wheelchair that you purchased. We reserve the right to make
design modifications without further notice.

2
2. SAFETY
2.1 Doorways
The safest way to operate the chair is on level floors that are free of obstacles.
Whenever possible use a ramp to enter or exit a facility. Keeping your hands on the
push rims will allow you to maintain maximum balance. Do not try to force yourself
over an obstruction by propulsion and never use the sides of a doorway to pull
yourself through a passageway.
2.2 Leaning
Do not lean over the side of your wheelchair since such an action may cause your to
lose balance and fall. (See Figure 2.1)
2.3 Navigating Inclines
Never turn on a hill due to the danger of tipping.
When assisting, go straight up a slope. If user needs to go down midway, walk
backwards until user is on level ground. (See Figures 2.2 and 2.3)
Avoid stopping on an incline; it can potentially cause you to lose control of the chair.
Do not use the brakes to slow down or stop the wheelchair; this could cause it to seize
up, causing you to lose control or fall out of the chair.
Whenever possible, utilize help from an assistant/attendant while navigating inclines.
2.4 Kerbs
Whenever possible get help from an assistant/attendant (if you have assistance make
sure that your chair is equipped with push handles).
Avoid hard impacts when descending a kerbs. A hard impact could adversely affect the
chair.
Never try to scale or descend kerbs that exceed a normal height.(30-50mm)
Always be careful when climbing kerbs and never move up or down a kerbs in reverse
without an assistant.
2.5 Stairs
Always use two or more assistants.
Never go down steps forwards.
Never use an escalator for transport, use an elevator.
2.6 Streets
Always use extreme caution when crossing streets. Reflective tape on the chair and/or
your clothing will make you more visible to drivers.
Avoid potholes and rough terrain that might cause the casters to become stuck. (See
Figure 2.4)
2.7 General
Always make sure BOTH brakes are applied before getting in or out of the chair.
Never stand on the footplates when getting in or out of the chair.
Never carry more than one passenger. Karma wheelchairs are limited to one user.
Use caution to assure your clothing doesn't get tangled with the wheels.

3

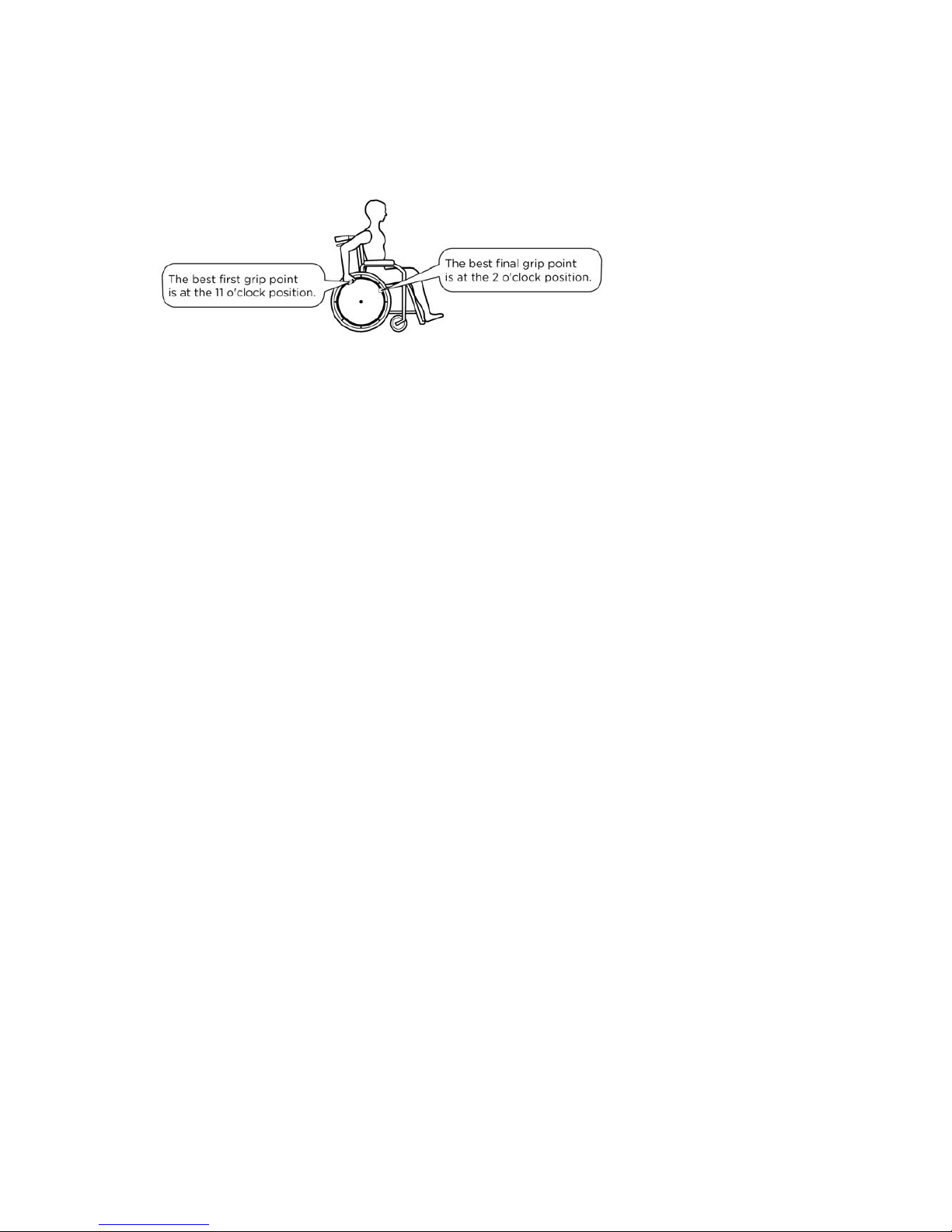

When the user is opearting the wheelchair using the pushrim, please push the
wheelchair gently. DO NOT apply a sudden huge force on the pushrim. It could cause
the chair to tip over. Please refer to the figure below for the best grip points for using the
pushrim.
2.8 Transport
Do not use other transportation to pull the wheelchair.
Do not get transported on any vehicle while seated in your wheelchair. Karma doesn't
approve of any tie-down systems. Please transfer into seating approved by the
automotive (or other) industry and wear a safety belt.
2.9 Upholstery
When cleaning the upholstery, use warm water and a mild soap.
Upholstery cleaner/foam can also be used, but avoid other cleaning solvents.
2.10 Anti-tippers
Please purchase anti-tippers and always use them to avoid personal injury.
2.11 Maximum User Weight Limit
Refer to "Max. User Weight" in Section 8. SPECIFICATIONS. Loads exceeding
maximum capacity can damage your wheelchair and cause malfunctions yielding a
safety hazard. The warranty does not cover damage caused by improper operation
of the wheelchair.
2.12 Avoid General Misuse
Please note that our "Owner's Manual" contains a number of cautions -- any vehicle can
cause injury if misused -- use within our guidelines and with reasonable care and your
safety will be increased. Your wheelchair will give years of safe use if used sensibly and
carefully. Be aware that careless use endangers your own safety as well as that of
others.
Do not let children stand or play on the wheelchair. (See Figure 2.5)

4
Figure 2.1 Figure 2.2 Figure 2.3
Figure 2.4 Figure 2.5

5
2.13 Labeling
Please carefully read all the labeling on the wheelchair before driving it. Do not
remove them. Protect them for future reference.
3. INTENDED USE & PARTS
3.1 Intended Use
The Econ 800 series (SM-802.2) is a self-propelled chair. That is, it can either be
pushed by an attendant or by the patients themselves.
These wheelchairs are suitable for users up to 115 kg in weight. Hand brakes are
provided for both rear wheels.
It has pneumatic tires for traction and comfort. It also has an extremely durable
aluminum alloy frame with tough accessories and does not suffer in dramatic extremes
of temperature (neither user nor attendant need to touch metal parts in normal use).
The casters have PU tires for greater durability; pneumatic casters are available on
request.
Rear wheels are 24 inches in diameter and solid PU tires are available on request.

6

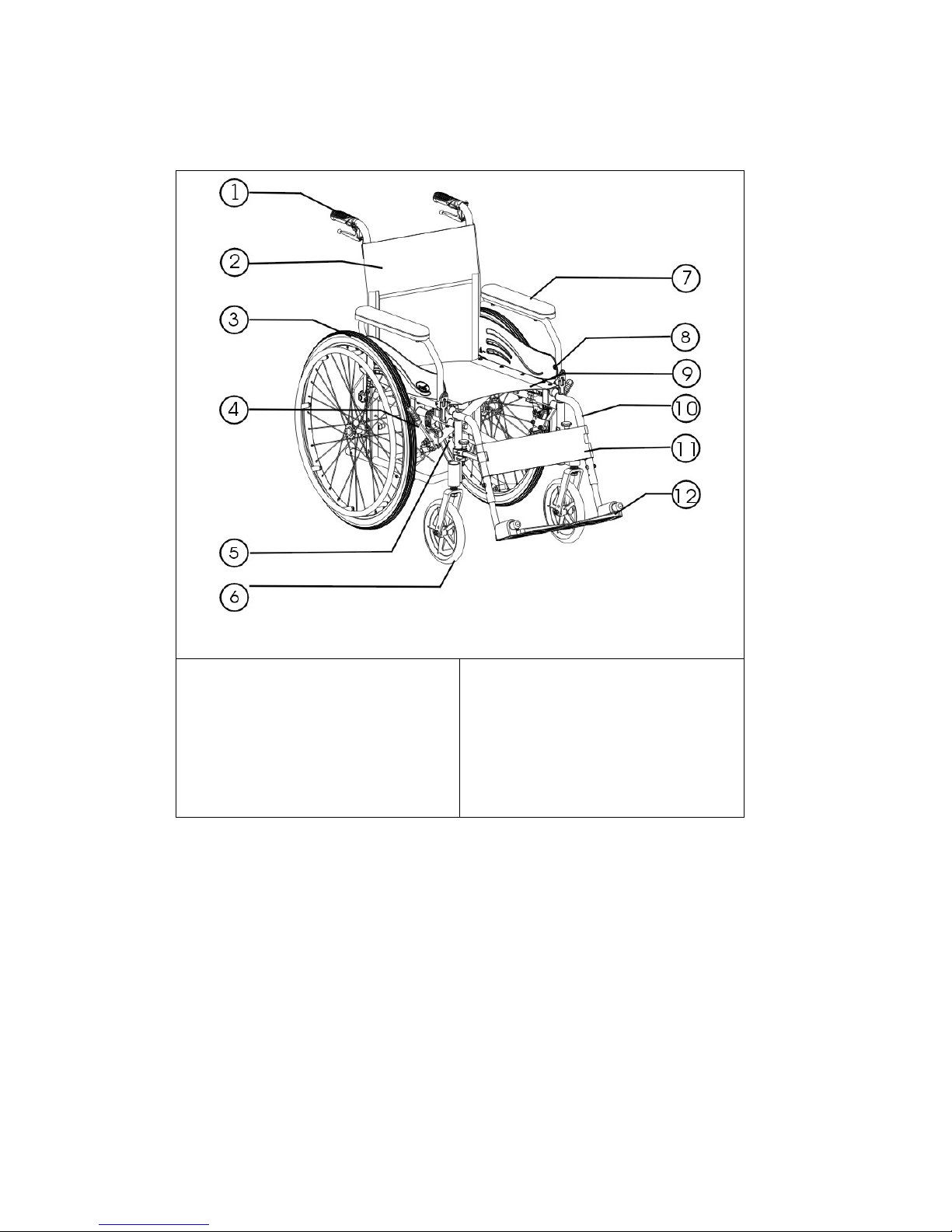

3.2 Econ 800 Parts Description
3.2.1 Econ 805 Parts Description
1. Push Handle
2. Backrest Upholstery
3. Rear Wheel
4. Brake
5. Cross Frame (Cross Bar)
6. Castor(Caster)
7. Armrest
8. Side Panel
9. Seat Upholstery
10. Footrest
11. Calf Strap
12. Footplate

7
3.2.2 Econ 805 Parts Description
1. Push Handle
2. Backrest Upholstery
3. Rear Wheel
4. Brake
5. Cross Frame (Cross Bar)
6. Castor(Caster)
7. Back Joint
8. Armrest
9. Side Panel
10. Seat Upholstery
11. Footrest
12. Calf Strap
13. Footplate

8
4. OPERATION
4.1 Preparing For Use
4.1.1 Unfolding
Holding the armrests, pull outwards. (See Figure 4.1)
Pointing your fingers inward with the palm of your hand on the frame, push down until
the seat is fully lowered. Make sure the frame is firmly seated in its holder. (See Figure
4.2)
Connect the hook and loop fabric on the bottom of the backrest upholstery to the
underside of the seat. (See Figure 4.3)
Place the holes at the top of the footrest arm over the dome studs on the front of the
wheelchair. Swing the footrest towards the middle until you hear it click into place.
(See Figure 4.4)
Flip the footplates down. (See Figure 4.5)
Ready for action! (See Figure 4.6)
Alternatively, you can stand at the side of the chair and complete step 1 by pulling
the nearest armrest towards you and pushing the other one away.
Figure 4.1 Figure 4.2 Figure 4.3
Figure 4.4 Figure 4.5 Figure 4.6

9
CAUTION:
When completing step 2 never put your fingers around
the sides or under the chair as they can be trapped
between the seat and the frame. (See Figure 4.7)
Fi
g
ure 4.7
4.1.2 Folding
Flip up the footplates. (See Figure 4.8)
Pull the swing-away footrest release lever inwards and the footrest will swing-away
automatically. Then, lift the footrest arm off of its dome stud mounting posts. (See Figure
4.9)
Separate the hook and loop fabric of the seat’s underside from the backrest upholstery.
(See Figure 4.10)
Pull up on the seat upholstery by holding it in the center of its front and back edge.
(See Figure 4.11)
Press the two release levers on the backrest frame (push handle tubes) to fold the
backrest down for compact storage and easy transport. (See Figure 4.12)
Folding is now completed.
Figure 4.8 Figure 4.9 Figure 4.10
Figure 4.11 Figure 4.12

10
CAUTION:
Be careful not to get your fingers caught when folding the wheelchair.
4.1.3 Adjustments
4.1.3.1 Armrest
Armrest flips back by pressing the release lever located at the front base of the
armrest. After you press the release lever, you can lift and rotate the armrest
backwards. (See Figures 4.13 and 4.14)
The height adjustable armrest feature is optional. If your model has it, simply loosen
and remove the knob bolt, then adjust the armrest to the desired height and finally
reattach the knob bolt.
Figure 4.13 Figure 4.14
4.1.3.2 Rear Wheel
Your wheelchair may be supplied with quick-release wheels. If so, please follow the
instructions below.
4.1.3.2.1 Rear Wheel Removal
Support the weight of the chair with one hand by holding the push handle.
Depress the hub cover and hold down the quick-release mechanism.
Remove the wheel. (See Figure 4.15)
4.1.3.2.2 Rear Wheel Attachment
Pick up the wheel: Hold the center of the rear wheel by grasping two adjacent spokes
with four fingers of one hand, use the thumb to depress and keep depressed the
quick-release. Take the quick-release axle and depress the button in its center. This
retracts the bearings at the opposite end of the axle. This will allow you to push the axle
through the center of the hub of the wheel. Your wheels are now ready to be assembled
to the frame of your wheelchair.
First ensure that the brake is in the OFF position. Take up the assembled wheel and
axle and depress the button in the center of the axle, as above. This retracts the ball
bearings that will allow you to push the axle into the wheel bracket that is located on the
lower rear frame of the wheelchair. When you remove your thumb from the button on the
axle, the ball bearings should be visible protruding from the axle at the back of the wheel

11
bracket. This will secure the wheel safely in the frame. (See Figure 4.16)
CAUTION:
You must make sure that the axle is fully located in the wheelchair bracket and that the
ball bearings are fully open and have positively attached the wheel in the frame.
The rear wheel can be mounted at different positions on the frame to alter the seat
height and overall stability of the chair. Changing the wheel position should be carried
out by your approved repairer or therapist.
Figure 4.15 Figure 4.16
4.1.3.2.3 Important DO's and DON'Ts
Do: Keep axles clean and lubricated with light oil or maintenance spray.
Do: Maintain correct tire pressure if using pneumatic tires.
Do not: Try to remove the wheels while the wheelchair is occupied even when using
anti-tippers.
4.1.3.3 Footrest
Footrests can rotate out and are detachable, which makes transferring in tight
spaces easier and makes it easier to work at a desk. (See Figures 4.17)
4.1.3.4 Footplate Height
To adjust footplate height use the Karma tool provided to loosen the bolt at the side of
the footrest arm.
Adjust to required height and re-tighten the screw and make sure the footplate is firm.
Then tighten the nut as a locknut from outside. (See Figure 4.18)

12
Figure 4.17 Figure 4.18 Figure 4.19
SUGGESTION:
Make sure that the footplate height is adjusted properly according to the user's calf
length to reduce pressure on the body.
The footrest height must be more than 5 cm. (See Figure 4.19)
4.1.3.5 Seat Height
The following information is for your reference only. It will be utilized by your authorized
service agent and your therapist to customize the wheelchair to your specific body
dimensions.

13

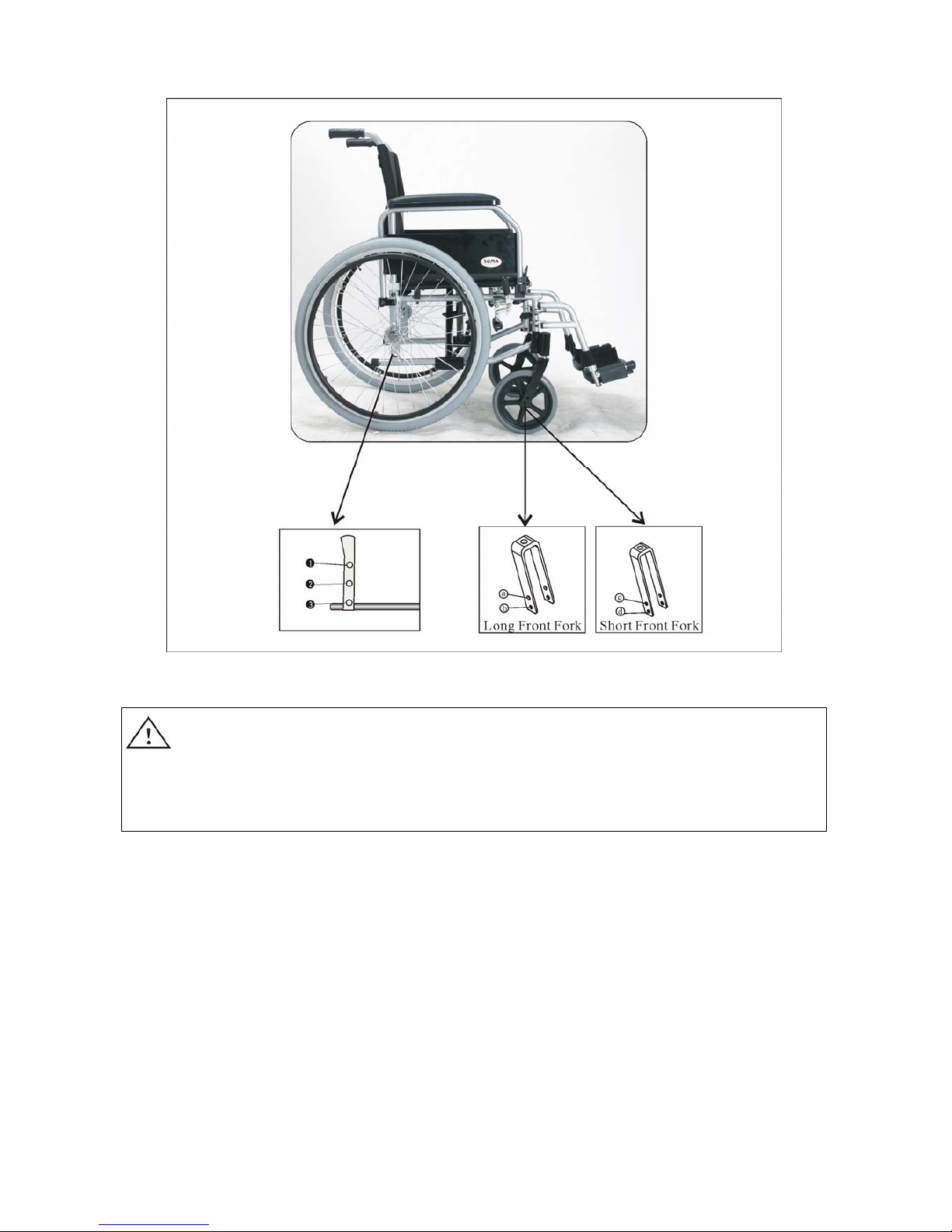

Figure 4.20
CAUTION:
When you change wheel position (whether rear wheels or casters) the
center-of-gravity will change simultaneously. We recommend you contact your
Karma dealer and therapist, as well as attach anti-tippers.

14

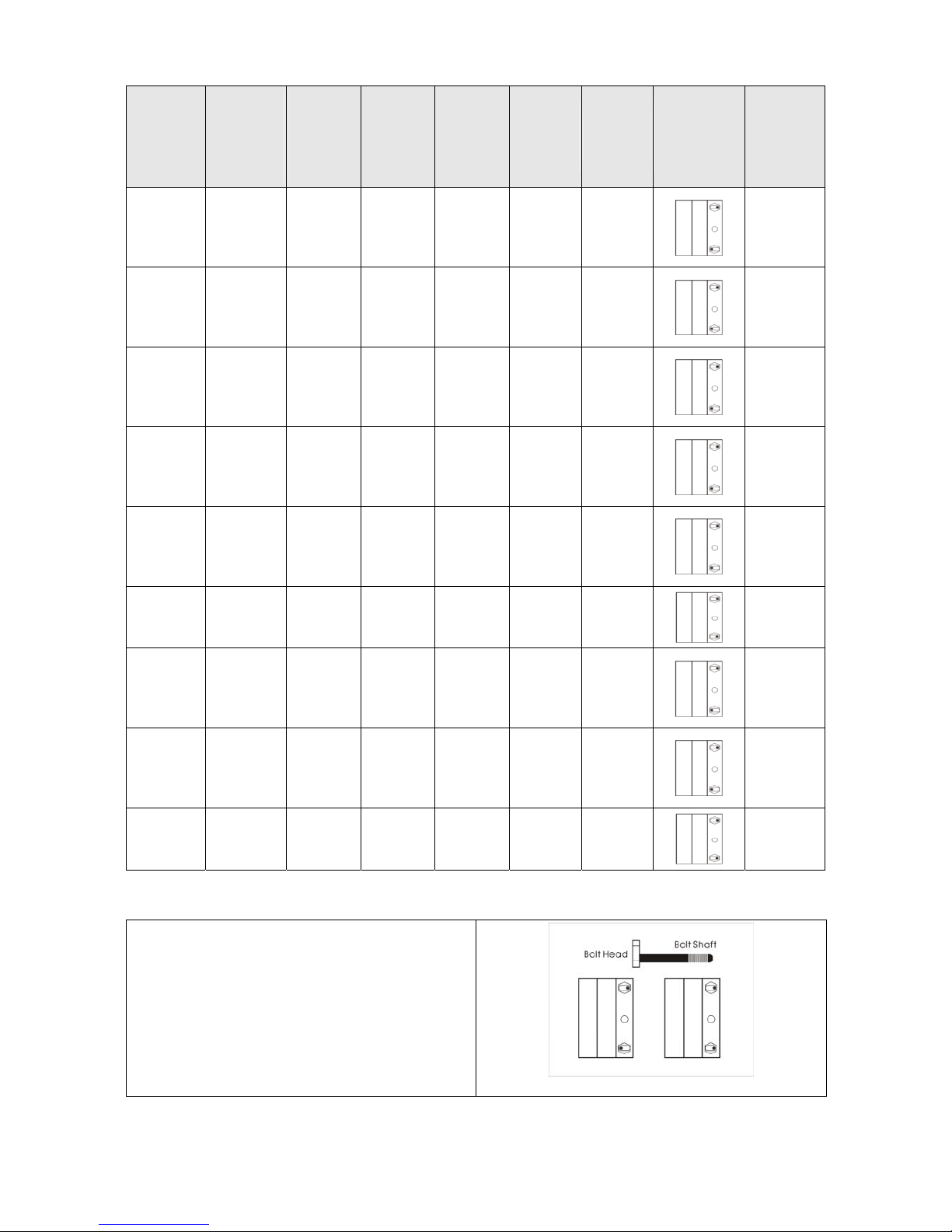

Front
Seat
Height
(mm)
Front
Caster
Size
(inch)
Front
Fork
Position
Wheels
Size
(inch)
Wheel
Bar
Position
Push
Handle
Height
Seat
Angle
Caster
Fork Bolt
Direction
Caster
Angle
495 8” b 24” 2 940 4° 90°
475 8” a 24” 1 910 4° 90°
475 8” a 16” 3 900 4° 91°
469 6” b 16” 3 900 3° 89°
450 6” d 22” 1 880 4° 90°
428 6” c 22” 1 890 1° 91°
438 6” d 20” 2 895 4° 90°
430 6” c 20” 1 860 4° 90°
445 6” d 16” 3 910 1° 91°
Caster Angle
According to different position of caster
fork and direction of bolt, caster angles
can be adjusted.
Fi
g
ure 4.21
