0058E Security Latch with Electric Flush Strike
Part Number: 10058E*
INSTALLATION INSTRUCTIONS
User must supply hardware to mount:
• Strike Plate: (6) 1/4” hex screws
• Latch: (4) 1/4” flat head screws
• Latch Cover: (4) #10 screws with T27 type tamper-resistant
torx drive
Note: Retrofit kit available for through bolting when no structure
exists in the door or jamb to securely attach components.
Note: The 0058 Latch requires one of the following Inside Releases:
0481C, 0481SC, 0482C, 0486C, 0487C, 0488C, 0489C
STEP 1
STEP 2

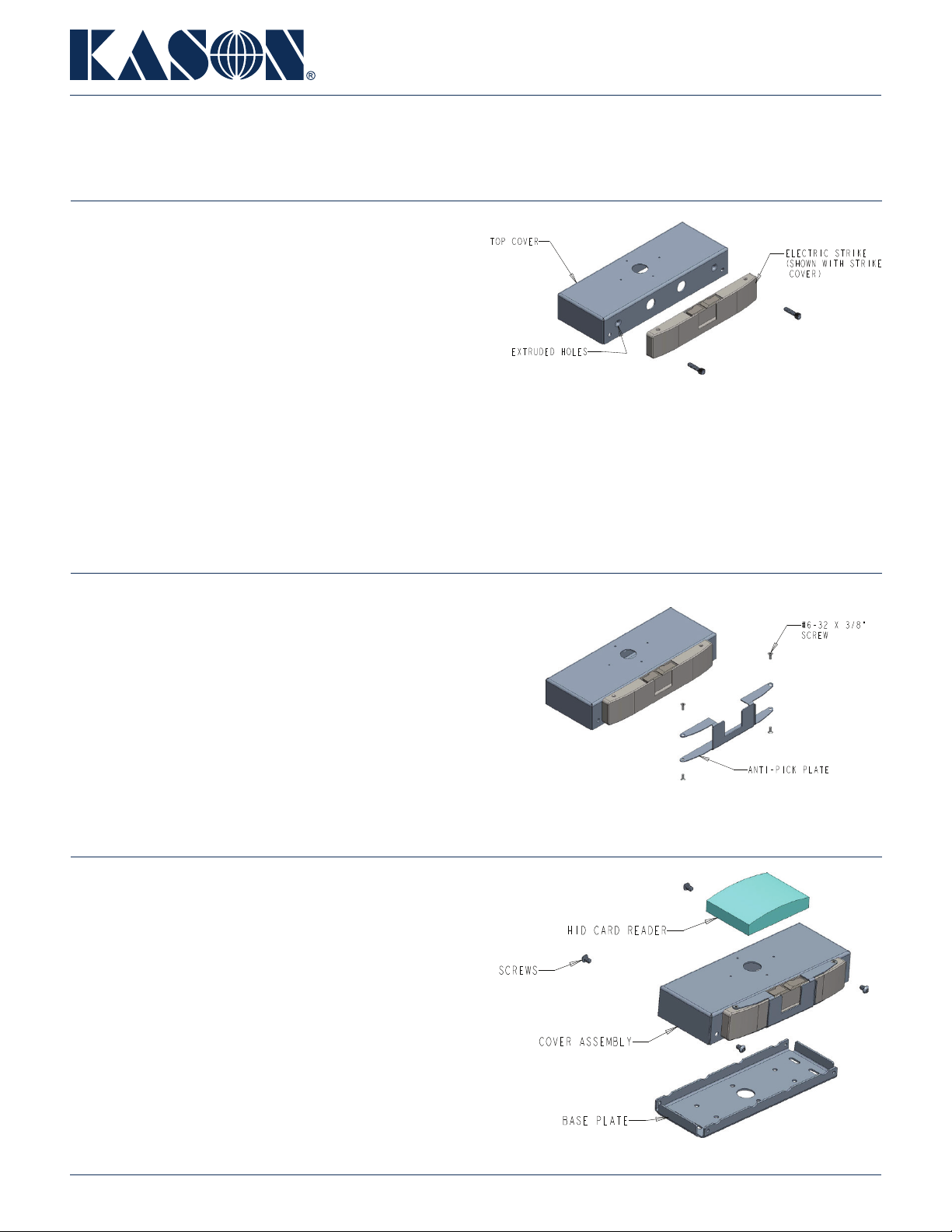

Install 0058E latch on spacer plate and mount to door making
sure it is flush with the edge of the door.
• Center strike plate on 0058E latch
• Mark center of 4 slots
• Install (4) 1/4” mounting screws (not included)
Note: Do not fully tighten screws in slots and adjust plate
to approx. 1-3/16” for initial setup

© 2023 Kason Industries, Inc. IS-0058E 0223 kasonind.com | 1.800.935.2766 | PAGE 2
0058E Security Latch with Electric Flush Strike
Part Number: 10058E*
INSTALLATION INSTRUCTIONS
STEP 3
STEP 4
STEP 5
• Use Assa Abloy 9600 Electric Strike installation directions
included to install electric strike on top cover
• Once electric strike is installed on top cover, install top cover
on base plate and verify strike, latch tongue fitup. Adjust as
necessary (leave strike cover off for this step)
• Temporarily attach top cover assembly to the strike plate and
check fit and function with latch tongue (extra holes can be
used to lock position of base plate)
• Install insert and place cover in place as shown (Step 6)
ɣ Check for proper fit of cover around edges of strike
ɣ Adjust the strike closer or farther from latch to ensure most
tamper resistant installation
• Tighten all (4) screws in slots
Assemble electric strike cover and anit-pick plate to electric strike
and attach using longer #6-32 x 3/8” screws provided.
• Install HID card reader to top cover assembly
Note: Non-Kason HID card readers may be purchased
separately and installed
• Wire card reader and electric strike per mfg. requirements
• Mount assembly to base plate with (4) 1/4-20 x 3/8”
security screws (use T27 wrench to install)
• Verify strike, tongue fitup before tightening screws

© 2023 Kason Industries, Inc. IS-0058E 0223 kasonind.com | 1.800.935.2766 | PAGE 3
0058E Security Latch with Electric Flush Strike
Part Number: 10058E*
INSTALLATION INSTRUCTIONS
STEP 6
STEP 7
• Install insert into installed latch space (as shown)
• Install latch cover and secure to the door using tamper
resistant screws (not provided)
• Check for proper function of latch, door, lock, and inside release
• Install safety decal
