Kathrein RRU 4 series User manual
User Guide Reader
Generation 3
English
Kathrein RFID UHF Readers
IMPORTANT
Read carefully
before use!
2 of 112
Copyright © 2017 Kathrein Solutions GmbH
All rights reserved. No part of this document may be reproduced, distributed, stored in a retrieval system, translated into
any language or computer language or transmitted in any form or by any means, electronic, mechanical, photocopying,
recording or otherwise, without the prior written permission of Kathrein Solutions GmbH.
Kathrein Solutions GmbH accepts no liability for omissions or inaccuracies in this document or in relation to the provi-
sion or use of the information contained in this document. Kathrein Solutions GmbH reserves the right to change the
products described in this document at any time without notice and does not accept any liability in relation to the appli-
cation or usage of the products described in this manual. The latest version of this manual is available at our website
www.kathrein-solutions.com.
Information provided in this manual is intended to be accurate and reliable. However, Kathrein Solutions GmbH
assumes no responsibility for its use; nor for any infringements of rights of third parties which may result from its use.
This document and the information contained in it are proprietary information of Kathrein Solutions GmbH and must be
treated as confidential. Kathrein Solutions GmbH provides this document to its customers in connection with contacts
of sale for the products described therein. If the person in possession of this document, being a legal or natural person,
is not a contractual sales partner of Kathrein Solutions GmbH, or Kathrein Solutions GmbH has not intended him by
other means as the recipient of the document and the information contained therein, the person in possession is hereby
informed that the use of this document is unlawful and a violation of the rights of Kathrein Solutions GmbH.
3 of 112
Contents
1 Preface 6
2 About This Guide 6
3 Explanation of Symbols and Signal Words 7
3.1 Symbols 7
3.2 Signal Words 7
3.3 Other Symbols 7
4 Professional Installation Guidelines for the U.S. 8
4.1 Installation Personnel 8
4.2 External Antenna 8
4.3 Final Output Power 8
5 Safety Instructions 9
5.1 General Safety Instructions 9
5.2 CE Marking for the Kathrein RFID Readers with the Type Designation ETSI 10
5.3 FCC and ISED Canada Regulatory Information 10
5.3.1 Radiation Exposure Statements 11
5.3.2 Safety Instructions 12
5.3.3 Recommended Antenna Types 12
6 Warranty Information 13
7 Introduction to the RIFD System 14
7.1 RFID System 14
7.2 Kathrein RFID Antenna Interface ©KRAI 15
7.2.1 WIRA 70 ©KRAI Polarisation Switch Antenna (PLS) 15
7.2.2 ©KRAI SMSH (Smart Shelf) Antenna 17
7.3 Further Reference Material 18
8 The Reader 19
8.1 Functional Specification 19
8.2 Features 19
8.3 Scope of Delivery 19
8.4 Accessories 20
8.4.1 Antennas 20
8.4.2 Antenna Cables 20
8.4.3 Antenna Adapters 20
8.4.4 Antenna Mounting Accessories 20
8.4.5 Antenna Protective Cover 21
8.4.6 Reader Connecting Cables 21
8.4.7 Reader AC/DC Adapters 21
8.4.8 PoE+ Power Supply Unit 21
8.4.9 Reader and Antenna Wall/Pole Mounting Kit 21
8.4.10 Reader Protective Covers 21
9 Connections and Displays 22
9.1 Front View 22
9.2 Rear View 23
9.2.1 GPIO 24
9.2.2 Power Supply 24
9.2.3 Ethernet 25
9.2.4 Buzzer 25
10 Installing the Reader 26
10.1 Selecting the Installation Site 26
10.2 Installing the Reader 27
10.2.1 Wall Mounting 28
10.2.2 Wall/Pole Mounting 28
4 of 112
11 Transmission Methods 29
11.1 UART transmission (RS232, RS422, RS485 or similar) 29
11.1.1 Physical Layer 29
11.1.2 Data Link Layer 29
11.2 LLRP Protocol 30
11.3 Ethernet Transmission 31
11.3.1 Ethernet Transmission Generation 2 Readers 31
11.3.2 Ethernet Transmission Generation 3 Readers 31
12 Connecting the Reader 33
12.1 Connecting Digital Inputs and Outputs 33
12.2 Connecting the Antenna 36
12.3 Turning the Reader On and O 36
12.4 Reading the PWR LED Indications 36
13 Operating
ReaderStart
Software 37
13.1 System Requirements 37
13.2 Installing the Software 37
13.3 Connecting the Reader in the
ReaderStart
Software 40
13.3.1 Requirements 40
13.4 Navigating in the
ReaderStart
User Interface 43
13.4.1 Menu Bar 43
13.4.2 Status Field 57
14 Operating the Reader Using the
ReaderStart
Software 58
14.1 Communication 58
14.1.1 Ethernet Section 58
14.1.2 Communication Configuration Linux Module 61
14.2 Application 69
14.2.1 Available Applications 71
14.3 Basic Reading 72
14.3.1 Mode 73
14.3.2 Starting and Stopping the Reading 73
14.3.3 Statistics 74
14.3.4 Options 75
14.3.5 Grouping 76
14.3.6 Expert settings 76
14.3.7 ARU-CSB-ELC Antenna Reader Unit 77
14.4 LED 78
14.4.1 Selecting Functions 79
14.5 RSSI LED Bar (received signal strength indicator) 80
14.6 GPIO Functions 81
14.6.1 IO Configuration 81
14.6.2 Test Input and Output 82
14.6.3 Action List and Assign Input to Action List 83
14.7 Expert Settings 1 85
14.7.1 Port Power 87
14.8 Expert Settings 2 88
14.8.1 Default Parameter Set 88
14.8.2 Copy Parameter Set 88
14.8.3 Change Reader Parameter 89
14.8.4 Select Filter Settings 89
14.8.5 Applying a Select Filter (Example) 90
14.9 Test Gen 2 Functions 91
14.9.1 Get All Tags 91
14.9.2 Password for Operation 92
14.9.3 Write EPC 92
14.9.4 Read Data 93
14.9.5 Write Data 94
5 of 112
14.9.6 Change Password 95
14.9.7 Lock 96
14.9.8 Kill 97
14.10 @KRAI 98
14.10.1 Polarisation 99
14.10.2 LED 99
14.10.3 Jumper Cable Attenuation 100
14.10.4 Direction 100
14.11 AppManager 101
14.11.1 Currently Available Apps 101
14.11.2 Installing an App 102
14.12 TagScan 103
14.13 Spectral Scan 105
14.14 Authentication 106
14.14.1 Key 106
14.14.2 Functions 107
15 Contact Information 110
16 Waste Disposal 111
6 of 112
Preface
1 Preface
Dear customer,
Please follow all the information given in this GUIDE. KATHREIN Solutions GmbH has made every eort to ensure the
information and descriptions are correct and complete.
We reserve the right to make changes to this guide without prior notice. In particular, this applies to changes made due
to technical advancements.
2 About This Guide
This document describes installation, configuration and operation of the reader. Furthermore, it provides detailed tech-
nical data in order to better familiarise the user with the features of the reader.
The target group of this guide is specialist personal who install, configure and put the reader into operation.
This document is valid for all Generation 3 Kathrein RFID readers.
Tip This document applies to all Generation 3 Kathrein RFID readers. Even if it’s referred to in the text as
RRU4xxx, it is possible to control all other readers of the RRU4xxx and ARU3xxx series using the same
commands.
Tip Keep these instructions for further reference, and if the device passes to another owner, pass them on to
the new owner.
►For more information, visit our website www.kathrein-solutions.com.
➯The manuals are available for download at the internet product page.
7 of 112
3 Explanation of Symbols and Signal Words
3.1 Symbols
General warning sign
Fire hazard
Radiation hazard
Risk of material damage or malfunction in safety instructions or call for attention
3.2 Signal Words
Warning This signal word indicates a hazard with a medium level of risk which can lead to death or severe
injuries.
Caution This signal word indicates a hazard with a low level of risk which can lead to minor or moderate
injuries.
Notice This signal word indicates a hazard which can lead to damage to property or malfunction.
Tip This signal word indicates useful tips and recommendations.
3.3 Other Symbols
Symbol Meaning
►Operating instruction
1, 2, 3...n Operating instructions in a fixed order
➯Result of an operating instruction
✔Condition for the execution of an operating instruction
●List/list entry
Program
connections on the reader; push buttons in the user interface of the
ReaderStart
dbfdfbdfb commands and file names
Putty
cross references within the text, proper names or titles of other documents
www.putty.org hyperlinks
Browse
homepage/Windows elements
8 of 112
Professional Installation Guidelines for the U.S.
4 Professional Installation Guidelines for the U.S.
4.1 Installation Personnel
UHF RFID readers require professional installation!
►You must be a professional installer with RF and related rule knowledge.
►The installation requires special trained professionals to access and setup the system.
►The system is not to be installed by the general public, general user shall not attempt to install
the device or change the settings.
4.2 External Antenna
►You must follow Part 15 of the FCC rules, and specifically Part 15.203 pertaining antenna require-
ments of an intentional radiator.
►Make sure to use a 13dBi or less patch antenna.
►Only use antennas which have been approved by the applicant. The use of none-approved anten-
na(s) may produce unwanted spurious emissions or excessive RF transmitting power which may
lead to the violation of the FCC/ISED limit and is prohibited.
4.3 Final Output Power
WARNING
►Carefully select the installation position.
►Make sure that the final output power does not exceed the limit set in relevant rules. The viola-
tion of the rule could lead to serious federal penalty!
If you are not a professional installer, STOP.
►Do not proceed any further with the installation.
►Do not install the unit or change the settings.
9 of 112
5 Safety Instructions
5.1 General Safety Instructions
WARNING
Danger to life from electric shock! Fire hazard!
Improper interventions in the device may jeopardise its electrical safety. Unauthorized changes to the
unit and the use of spare parts and peripheral devices which are not sold or recommended by the man-
ufacturer can result in fire, electric shock and injuries.
The manufacturer accepts no liability for accidents caused by the user opening or changing the device.
Opening the device and attempting to repair it yourself voids all warranty and guarantee claims. The
applicable version of the manufacturer's guarantee is that which was valid at the time of purchase. We
accept no liability for unsuitable manual or automatic adjustments made to the unit's parameters and
inappropriate use of the unit.
►Make sure that all the connection, installation and maintenance work as well as all other work on
the unit is carried out by properly qualified and trained sta.
►Make sure that the installation team is properly qualified, familiar with and comply with the safety
regulations applicable in the respective country.
►Do not open, change or damage the device and its components.
►Make sure that any repairs on the device are carried out by personnel authorised to perform them.
►Keep and operate the device out of reach of children.
►Do not modify, remove or disfigure the notices and markings applied by the manufacturer.
►Only use the unit for the purpose intended by the manufacturer.
►Before each use, make sure that the device is not damaged.
►Only use the power supply unit supplied.
►Make sure that the power supply cable is not damaged.
►Make sure that a unit with a damaged power supply cable is repaired by an electrical specialist
before being used again.
WARNING
Danger to life from electric shock or fire hazard due to incorrect voltage, insucient ventilation,
moisture, direct sunlight, heat or naked flames!
If the supply voltage is too high, there is a risk of fire.
►Make sure the unit is operated only at the stated supply voltage; see the rear of the device or the
external power supply unit.
►When installing the unit in cabinets or shelves, make sure there is sucient ventilation.
►Do not cover the ventilation slots on the unit.
►Protect the unit from moisture, dripping and splash water.
►Do not operate the unit in damp areas.
►Only use the unit in a moderate climate, not in tropical conditions.
►Do not place any liquid-filled items on top of the unit.
►Do not expose the unit to inadmissible heat, direct sunlight or fire.
►Do not install the device close to the sources of heat, e.g. heating.
►Do not place anything with a naked flame on the device.
10 of 112
Safety Instructions
5.2
CE Marking for the Kathrein RFID Readers with the Type Designation ETSI
WARNING
Danger to life due to radiation electromagnetic field!
This reader is designed ETSI
for operation according to EN302208. In some circumstances, heart
pacemakers may suer interference if wearers are close to the antenna when the unit is in operation
(reader and antenna).
►When the unit is operated with antennas connected, comply with the human exposure regulations
in accordance with EN 50364.
►Ensure a minimum clearance of 35cm between the antenna and the human body.
►Comply with the operating instructions for RFID antennas.
►In case of doubt, make sure people with peacemakers contact the manufacturer of their peace-
maker or their doctor.
5.3
FCC and ISED Canada Regulatory Information
The operator and the specialist company which carries out the installation are responsible for ensuring that
only certified systems are used in the United States. Use of this system in any other combination (e.g. sev-
eral antennas which transmit the same information in the same location) is expressly prohibited. Changes
or modifications not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
To meet the certification regulations according to Part 15 of the FCC regulations in the United States:
►Make sure the operation is subject to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may
cause undesired operation.
►Make sure the unit is properly installed, see
FCC RF Radiation Exposure Statement, p.11
and
ISED RF Radiation
Exposure Statement, p.11
.
The readers with the identifier FCC are designed to operate under FCC Part 15 and can be found at the FCC homepage
under grantee code WJ9. This device complies with Part 15 of the FCC Rules and with ISED license-exempt RSS stand-
ard(s).
Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and, (2) This
device must accept any interference received including interference that may cause undesired operation.
ISDE
Le présent appareil est conforme aux CNR d‘ISDE applicables aux appareils radio exempts de licence. L‘exploitation
est autorisée aux deux conditions suivantes : (1) l‘appareil ne doit pas produire de brouillage, et (2) l‘utilisateur de l‘ap-
pareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d‘en compromettre le
fonctionnement.
Under ISED regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser)
gain approved for the transmitter by ISED.
►To reduce potential radio interference to other users, choose the antenna type and its gain such that the equivalent
isotropically radiated power (EIRP) is not more than that necessary for successful communication.
En vertu des réglementations d'ISDE, cet émetteur radio ne peut être utilisé qu'avec une antenne de type et un gain
maximum (ou inférieur) approuvé pour l'émetteur par ISDE.
►Pour réduire les interférences radio potentielles avec d'autres utilisateurs, choisissez le type d'antenne et le gain de
sorte que la puissance isotrope rayonnée équivalente (PIRE) ne soit pas supérieure à celle nécessaire pour une com-
munication réussie.
This radio transmitter has been approved by ISED to operate with the antenna types listed in
Recommended Antenna Types,
p.12
with the maximum permissible gain and required antenna impedance for each antenna type indicated.
11 of 112
Cet émetteur radio a été approuvé par ISDE pour être utilisé avec les types d'antennes énumérés dans
Recommended
Antenna Types, p.12
avec le gain maximum admissible et l'impédance d'antenne requise pour chaque type d'antenne
indiqué.
Modifications or conversions which are carried out on this unit without the express permission of Kathrein may
invalidate the FCC permit for the operation of this unit.
5.3.1 Radiation Exposure Statements
WARNING
Danger to life due to radiation electromagnetic field!
►As a result of the RF exposure information given in the
FCC RF Radiation Exposure Statement, p.11 and
ISED RF Radiation Exposure Statement, p.11.
Ensure a minimum clearance of 35cm between the antenna
and the human body.
►Comply with the operating instructions for RFID antennas.
►In case of doubt, make sure people with peacemakers contact the manufacturer of their peace-
maker or their doctor.
FCC RF Radiation Exposure Statement
This transmitter must not be co-location or operating in conjunction with any other antenna or transmitter.
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment.
►Make sure this equipment is installed and operated with a minimum distance of 23 centimetres between the radiator
and your body.
ISED RF Radiation Exposure Statement
This equipment complies with ISED RSS-102 radiation exposure limits set forth for an uncontrolled environment.
►Make sure this equipment is installed and operated with a minimum distance of 34 centimetres between the radiator
and your body.
ISDE Déclaration d'exposition aux radiofréquences
Le présent appareil est conforme aux limites d'exposition aux radiofréquences d'ISDE CNR-102 définies pour un environ-
nement non contrôlé.
►Assurez-vous que cet équipement est installé et utilisé avec une distance minimale de 34 centimètres entre le radia-
teur et votre corps.
12 of 112
Safety Instructions
5.3.2 Safety Instructions
NOTICE
Risk of harmful radio communication interference!
Following corresponding tests, it has been ascertained that this unit adheres to the limit values for
class B digital units in accordance with Part 15 of the FCC regulations. These limit values are intended
to provide private user's systems with appropriate protection against harmful radio interference. This
unit generates and uses energy in the radio frequency range and is also able to radiate this; if it is not
installed and used in accordance with the regulations, the unit may cause harmful radio communica-
tion interference. However, there is no guarantee that interference will not occur in a specific system.
If this unit causes harmful radio or television reception interference, which can be ascertained by
switching the unit on and o, we recommend that the user attempts to rectify this interference via one
or more of the following measures.
►Turn the unit on and o to make sure the radio or television reception interference is caused by the
unit.
►Realign the receive antenna or change its position.
►Increase the distance between the unit and the receiver.
►Plug the unit into a socket in a current circuit other than that to which the receiver is connected.
►Seek advice from the retailer or an experienced radio/television technician.
5.3.3 Recommended Antenna Types
Antenna types not included in this list or having a gain greater than the maximum gain indicated for that type are
strictly prohibited for use with this device.
Les types d'antennes non inclus dans cette liste ou avec un gain supérieur au gain maximum indiqué pour ce type sont
strictement interdits pour l'utilisation avec cet appareil.
Order number Type Shortened designation Gain
circular linear
52010087 WIRA-30-circular-FCC wide-range 30° antenna FCC,
902–928 MHz, 30° circular 11dBiC 8dBi
52010228 WIRA-30-CSB-KRAI-FCC wide-range 30° CSB KRAI antenna
FCC, 902–928 MHz, 30° circular 6dBiC 3dBi
52010249 WIRA-30-linear-FCC wide-range 30° antenna FCC,
902–928 MHz, 30° linear n.a. 11dBi
52010252 WIRA-40-linear-FCC wide-range 40° antenna FCC,
902–928 MHz, 40° linear n.a. 13dBi
52010079 WIRA-70-circular-FCC wide-range 70° antenna FCC,
902–928 MHz, 70° circular 8.3dBiC 5.3dBi
52010194 WIRA-70-KRAI-FCC wide-range 70° KRAI antenna FCC,
902–928 MHz, 70° circular
7/7/n.a./n.a.
4.5/4.5/
7.5/7.5
52010083 MIRA-100-circular-FCC mid-range antenna FCC,
902–928 MHz, 100° circular 2.5dBiC –0.5dBi
52010172 S-MIRA-100-circular-ETSI-FCC short Mid-range antenna ETSI/FCC,
865–928 MHz, 100° circular –10dBiC –13dBi
52010085 LORA-FCC low-range antenna FCC,
902–928 MHz –12dBiC –15dBi
13 of 112
52010092 U-LORA-ETSI-FCC ultra Low-range antenna FCC,
865–928 MHz –27dBiC –30dBi
52010219 SMSH-30-30-ETSI-FCC
antenna modul
SMSH antenna/-module,
865–928 MHz, circular –7dBiC –10dBi
52010258 SMSH-30-30-KRAI-ETSI-FCC
antenna
SMSH KRAI antenna/-module,
865–928 MHz, circular –7dBiC –10dBi
52010318 SMSH-HighGain-30-30-
KRAI-FCC
SMSH antenna/-module,
902–928 MHz, circular 5dBiC 2dBi
52010319 SMSH-HighGain-30-30-FCC
SMSH antenna/-module,
902–928 MHz, circular 5dBiC 2dBi
52010334 WRA 7070 Antenna Unit wide-range antenna,
902–928 MHz, circular 8.5dBiC 5.5dBi
52010336 WRA 7070 KRAI Antenna Unit wide-range antenna,
902–928 MHz, circular/linear
7/7/n.a./n.a.
4.5/4.5/
7.5/7.5
6 Warranty Information
Switching on the AC or DC power supply prior to connecting the LAN cable is considered incorrect installa-
tion. Any functional defect arising as a result is excluded from the warranty/guarantee. Kathrein accepts no
liability if the customer fails to implement the precautions listed here. In such cases, any claims under the
warranty/guarantee are void.
►Before installing or servicing the reader, make sure that the person concerned has read the manual and
understood its contents.
14 of 112
Introduction to the RIFD System
7 Introduction to the RIFD System
7.1 RFID System
An RFID system is comprised of the control computer of the reader, antennas, antenna connection cables and the tags.

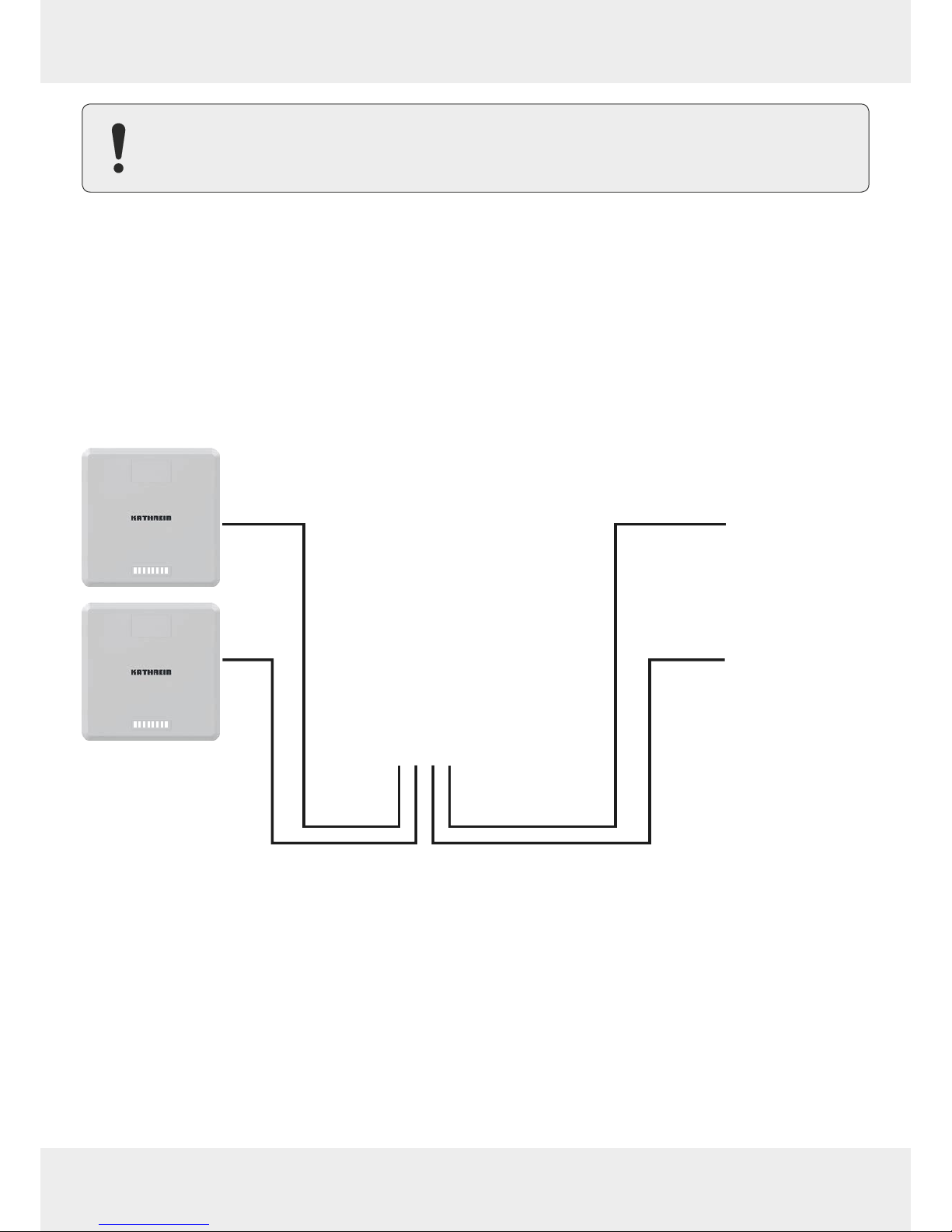

The figure below shows the schematic structure of the system:
Ethernet
or
serial interface
RFID UHF
Gen2 Tag
Fig. 1: RFID system (example)
The tags consist of an antenna and a small chip. The chip is the true carrier of the information, the EPC (
Electronic Product
Code
) number. This number can identify products or product groups. Alternatively, the EPC can be overwritten with new
information.
To read the tag information, the reader switches on an RF carrier by means of a selected antenna, thus supplying the
tags in the RF field with energy.
To read the information from a tag, it is necessary to inventory the tags and then select a tag from the population of
tags. Upon successful completion of the inventory, the EPC number of each tag can be read and sent to the PC. It is
possible to attach additional information to the EPC, for example, the antenna which read it or the time at which it was
read.
NOTICE
The reader operates using the frequency hopping process to avoid faults and interference between readers.
Within the FCC area, this procedure is mandatory. The reader changes its transmission frequency randomly,
with equal distribution across the 52 available channels. Each channel is used for max. 400ms in an interval
of 20s.
The
ReaderStart v3
software can be used for testing and parametrising.
The communication between the
ReaderStart v3
and the reader is based on the DLL (
Dynamic Link Library
), which includes the
communication protocol, see
Communication Protocol Kathrein RFID UHF Readers
. For specific applications, the user can build its
own control software based on the reader DLL. The DLL includes all the relevant commands and functions required to
control the reader.
It is necessary for the user to create his own control software. The user-specific control software can run directly on the
reader. Therefore, a stand-alone operation without permanent network connection is possible.
15 of 112
To be able to use the complete range of the reader performance in customer applications, we recommend
using the readers ARU3500 or RRU4500. It is not possible to run any customer applications on the basic
ARU3400 and RRU4400 readers.
7.2 Kathrein RFID Antenna Interface ©KRAI
With the ©KRAI product series, Kathrein has introduced a revolutionary system. By using Kathrein ©KRAI antennas, it is
possible to increase the flexibility due to having several antenna properties at one installation point (in case of PLS and
CSB antennas) and functionality (when cascading SMSH antennas).
©KRAI consists of a digital control bus which enables connection between the RFID reader and the RFID antennas to
allow control and regulation tasks in remote antennas
7.2.1 WIRA 70 ©KRAI Polarisation Switch Antenna (PLS)

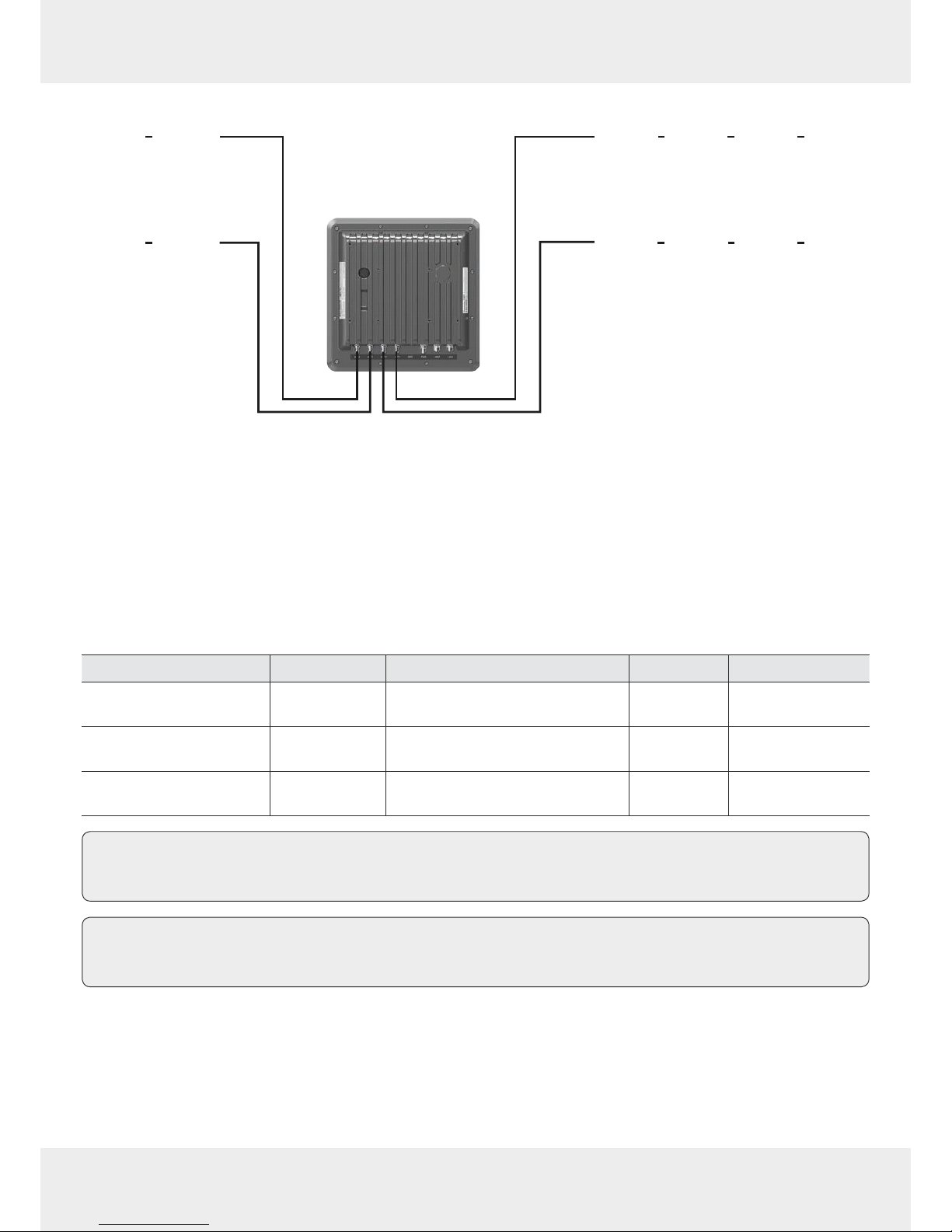

Fig. 2: PLS antennas connected to the reader
With the ©KRAI PLS antenna, built as a WiRa 70° antenna, the polarisation can be switched statically or dynamically. The
following settings are possible in any combination:
●circular LHCP
●circular RHCP
●linear horizontal
●linear vertical.
It is possible to select the best polarisation for wide-range application and to carry out a flexible adjustment of the
antenna on site.
Furthermore, it is possible to increase the read rate via the switching circular LHCP/RHCP by up to 33%.
16 of 112
Introduction to the RIFD System
Type Order number Far-field half-power beam width Polarisation Frequency range
WIRA 70 ©KRAI ETSI 52010193 70°/70° circular 865–868 MHz
WIRA 70 ©KRAI FCC 52010194 70°/70° circular 902–928 MHz
WRA 7070 ©KRAI ETSI 52010335 70°/70° circular 865–868 MHz
WRA 7070 ©KRAI FCC 52010336 70°/70° circular 902–928 MHz
Tip PLS antennas have 4 LEDs to visualise customer applications.
The LEDs will be supplied and controlled by the RRU4xxx reader via the existing antenna cable.
Tip Note that for the internal antenna, the ARU3560 reader has all four polarisations already built in. The
ARU3560 reader cannot switch polarisation for external antennas.
Fig. 3: Circular and linear polarisation
17 of 112
7.2.2 ©KRAI SMSH (Smart Shelf) Antenna
Fig. 4: ©KRAI smart shelf antennas connected to the reader (cascaded)
Up to 8 ©KRAI smart shelf (SMSH) antennas can be cascaded per reader port; 8 antennas x 4 ports = 32 SMSH antennas
in total.
The SMSH 3030 @KRAI slave antenna was developed for applications in the field of point of sale, smart shelf applica-
tions and Kanban solutions. The antenna is characterised by an extremely homogeneous read zone, which is emitted by
the high front-to-back ratio. Therefore, it is suitable for static detection of multiple transponders. Due to the extremely
thin design, the antenna module can be integrated into dierent applications.
The antenna is equipped with an intelligent bypass circuit that allows for cascading up to 8 SMSH antennas per reader
port. The control is done by a RRU4xxx Kathrein RFID reader. The ©KRAI control signals are transmitted via the standard
antenna cable.
Type Order number Far-field half-power beam width Polarisation Frequency range
SMSH 3030 ©KRAI ETSI
FCC antenna 52010258 60°/60° circular 865–928 MHz
SMSH high-gain 3030
©KRAI ETSI antenna 52010259 60°/60° circular 865–868 MHz
SMSH high-gain 3030
©KRAI FCC antenna 52010318 60°/60° circular 902–928 MHz
Tip Note that the ©KRAI SMSH high-gain antennas have a read range of up to 3m.
The ©KRAI SMSH standard antennas read transponders at a distance of up to 1m.
Tip Note that the SMSH high-gain antennas (order no. 52010260) and SMSH standard antennas (order no.
52010219) do not have ©KRAI and cannot be cascaded.
18 of 112
Introduction to the RIFD System
7.3 Further Reference Material
In order to configure the reader correctly and adapt it to the respective application, it is necessary to have detailed
knowledge of the EPCglobal standards of GS. This standard describes the principle of operation of the interface between
the tag and the reader.
The parameters available for the configuration of the reader are described in the
Configuration Manual for Kathrein RFID UHF
Readers
.
The reader is controlled via the Kathrein reader protocoll (KBRP), the current version of which is described in detail in the
Communication Protocol Kathrein RFID UHF Readers
.
Document Application
Communication Protocol Kathrein RFID UHF Readers
software development
Configuration Manual for Kathrein RFID UHF Readers
commissioning
Installation Manual for Kathrein Antennas
setup and installation
EPCglobal Gen2 Specification
1)
software development
Putty – SSH Client
(http://www.putty.org) software development
Make sure the version of the document matches the software version of the reader, see
https://www.kathrein-solutions.com/get-started.
1) EPCTM Radio-Frequency Identity Protocols Class-1 Generation-2 UHF RFID Version 2.0.1 at
https://www.gs1.org/epcrfid/epc-rfid-uhf-air-interface-protocol/2-0-1.
19 of 112
8 The Reader
8.1 Functional Specification
The Kathrein RFID (Radio Frequency Identification) reader of the RRU 4xxx and ARU3xxx series is a multi-protocol-ca-
pable device for reading active and passive RFID tags in the frequency range from 865 to 868 MHz for Europe and 902
to 928 MHz for the American market. Based on the latest RFID standards, such as
EPC Gen2v2
/ISO 18000-63, the Kathrein
RRU 4xxx series support all market leading transponder chip features for security, authentication and encoding. As sup-
plied, the unit can read and write tags in accordance with the
EPC Gen2v2
standard.
It is possible to load additional protocols using software updates.
The device has a maximum of four external antenna ports for connection of the transmission/reception antennas for
communication with RFID tags.
For integration into a variety of infrastructures, the device has dierent communication interfaces, depending on the
variant. The power supply is provided either by a 4-pin M12 panel connector in A coding or by PoE+ according to 802.3at
(10–57)1).
The Kathrein UHF RFID reader system RRU 4xxx is characterised by great flexibility in regard to RFID applications. One
reason for it is the wide variety of reading devices compatible to each other, which allows to select a reader from the
Kathrein product portfolio ideally suited for the respective application. Another reason for this flexibility is the wide
range of parameters for configuring the reader firmware.
8.2 Features
●basic computing module
●dual-core embedded PC
●2 Ethernet ports, 1 Ethernet port (RRU 4400 and ARU3400)
●GPIO
●©KRAI (RRU4xxx)
●PoE+
●LED visualisation
●Wi-Fi (RRU 4560 and ARU3560)
●Bluetooth (RRU 4560 and ARU3560)
●2G/3G (RRU 4570 and ARU3570)
8.3 Scope of Delivery
●RRU 4xxx reader
1) Internal supply of GPIO VCC pin is not possible with PoE+
20 of 112
The Reader
8.4 Accessories
This chapter gives an overview of the accessories available for the reader. For more information, visit our website at
https://www.kathrein-solutions.com/products/hardware/accessories or contact our sales oce at + 49 8036 90831 20.
8.4.1 Antennas
For use with UHF RFID antennas we recommend the Kathrein antenna types ULoRa, LoRa, MiRa, WiRa. These antenna
types are available for all frequency ranges and are water proof according to at least IP 65 standard.
8.4.2 Antenna Cables
Order number Type Description
52010174 R-AC 3 TNC-TNCR LL240 flex, 3 m, IP 67 ruggedised
52010175 R-AC 6 TNC-TNCR LL240 flex, 6m, IP 67 ruggedised
52010176 R-AC 10 TNC-TNCR LL240 flex,10m, IP 67 ruggedised
52010177 R-AC 15 TNC-TNCR LL240 flex,15m, IP 67 ruggedised
52010250 R-AA N-TNC LL440 flex,15m, IP 67 ruggedised
52010090 R-AC 3 SMA-TNCR RG 58, 3m
52010208 R-AC 05 SMA-SMA RG 58, 5m
8.4.3 Antenna Adapters
Order number Type Description
52010178 R-AA TNC-N(f-m) adapter TNC-N (f-m)
52010243 R-AA TNC-SMA (f-m) adapter TNC-SMA (f-m)
8.4.4 Antenna Mounting Accessories
Pole Mounting
Order number Type Description
52010005 MK-AMB-100 Outdoor wall mount/mast mount kit for WIRA 30° antennas
Wall Mounting
Order number Type Description
52010261 MK-WM-100-100 Indoor wall mount kit for WIRA 70° antennas
Wall/Pole Mounting
Order number Type Description
52010128 MK-WPM-100-100 Outdoor wall/pole mount kit for WIRA 70° antennas
52010262 MK-WPGM-100-100 Outdoor wall/pole mount kit for WIRA 40° antennas
