Kathrein UFS 702si User manual

Operator‘s manual
DVB Satellite Receiver
UFS 702sw/si

2
Preface
Dear customer,
This operating manual is intended to help you make the
fullest use of the extensive range of functions offered by
your new satellite receiver.
We have tried to make the operating instructions as easy
as possible to understand, and to keep them as concise as
possible. To help you understand particular specialist terms
that cannot be translated, we have added a short glossary
at the end of the manual.
The power switch is an environmentally friendly feature.
If you will not be using your receiver for a longer period, you
should use the power switch to disconnect it from the power
supply and save energy. For shorter breaks, you can switch
the receiver to standby on the remote control, which uses
only a minimal amount of energy.
We wish you good reception and much pleasure using your
new DVB satellite receiver.
Yours,
The KATHREIN team
Important Information
The channels available on the satellites and transponders
are subject to continual change. If changes do occur, the
new channels have to be set in the receiver because the
factory preset programming corresponds to the status on
the date of manufacture. The information for these settings
can be found on the Internet or in relevant magazines.
Your receiver is factory fitted with the latest software
version. We are, however, constantly working on adapting
the software to the wishes of our customers and to
developments in technology. The “Software and Channel
List Update” section contains additional information.
Please keep the original packaging in case you need
to return the product at any time!
Make a note of the receiver’s basic settings, so as to
be able to restore them if necessary!
DiSEqC™ is a trademark of Eutelsat.
UFO®micro and UFO®mini are registered trademarks of
KATHREIN-Werke KG.

3
Contents
Preface 2
Contents 3
Safety instructions - important notes 5
Receiver features 6
Controls, displays and connections 7
Important note on setting up receiver on a UFO®micro system 9
Connection and set-up 10
Remote control 12
Operating instructions 14
Menu concept 14
Menu tree 15
Language selection - OSD 15
On-Screen Displays (OSD) 16
Channel notifications 16
Error signalling 16
Channel hopping display 17

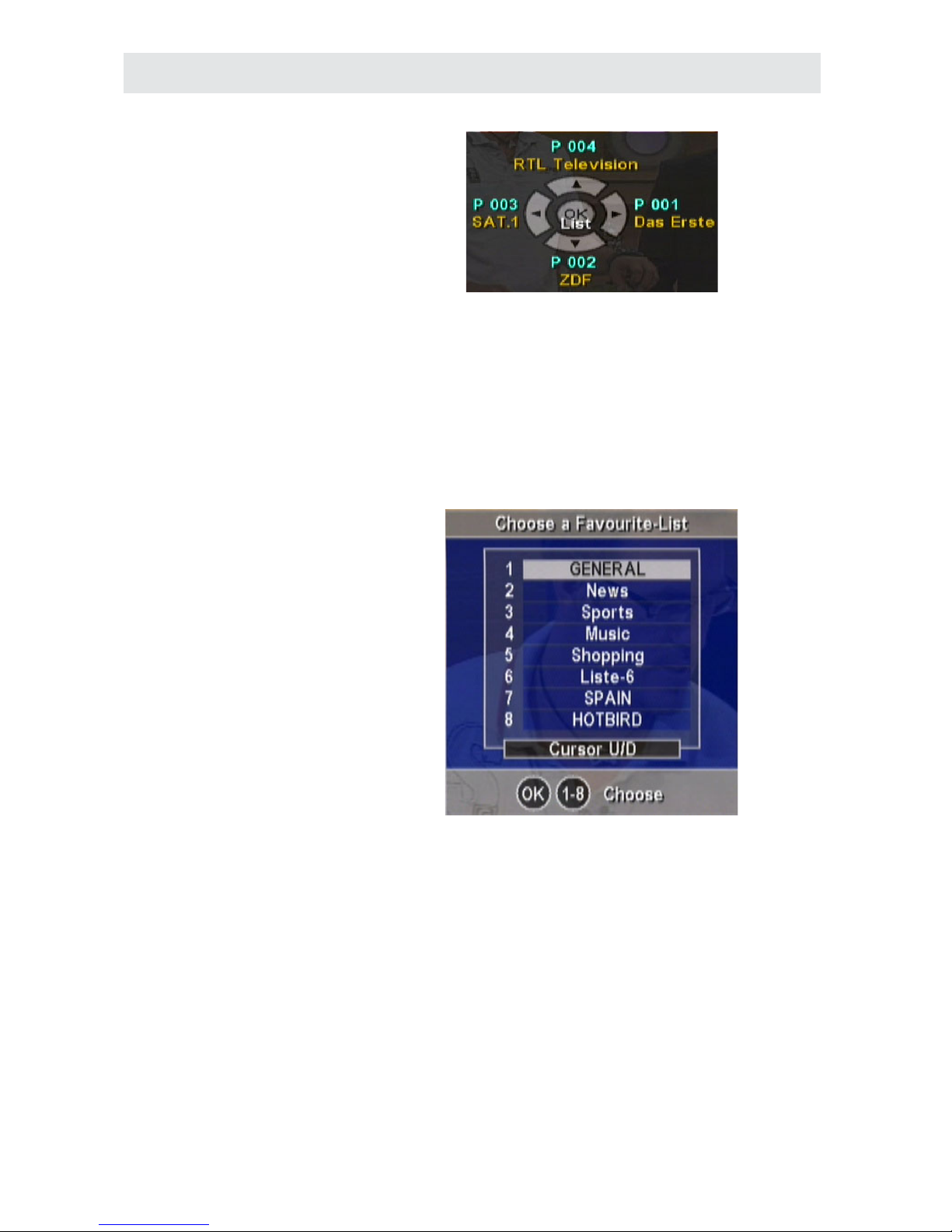

Channel list – TV/radio 17
Channel selection 18
Switch between TV/radio mode 18
Channel selection using number buttons and &button 18
Channel list – TV/radio 18
Channel hopping display 19
Select last channel 19
Favourites list 19

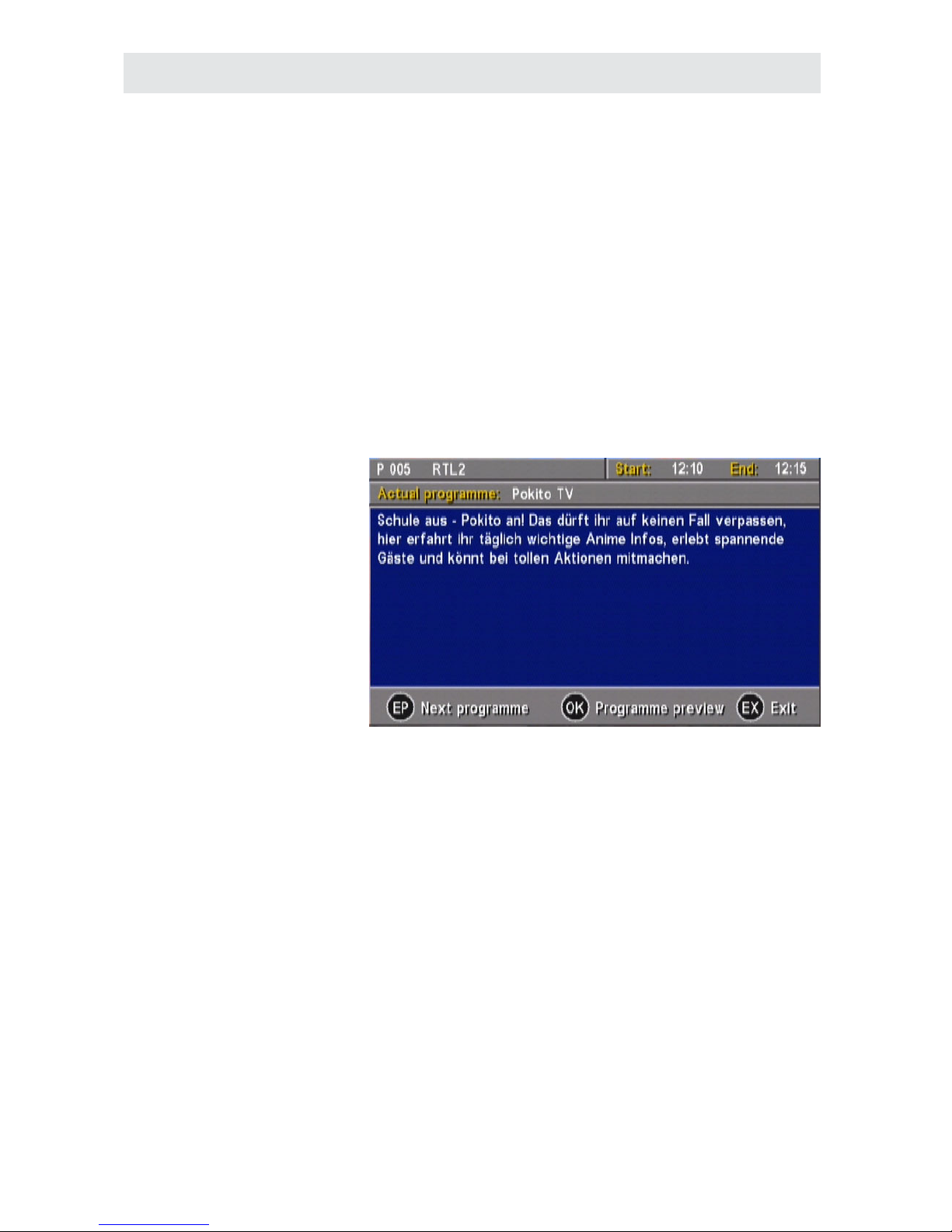

EPG - Electronic Programme Guide 20
Channels menu – channel management 22
Favourites list/channel arrangement (move, delete, copy) 23
Move 25
Delete 25
Copy 26
Move channel block 27
Delete channel block 28
Copy channel block (copy from channel pool to favourites list) 28
Change names of favourites lists 29
Channel pool 29
Delete one channel/all channels in channel pool 30
Antenna signal and reception parameters button 30
Parental control (child lock/PIN) 31
Search 33
Satellite search 33
Transponder search 33
Manual input (for experts)34
Videotext (teletext) 35
Timer 36
Manual Timer Setting 36
Automatic Timer Setting 36
Deleting a Timer Event 36
VPS 37

4
Contents
Satellites 38
Satellites (for experts) 38
Setting and activation 40
Enable 40
Installation 41
Time offset 41
Language/character Set 42
Select language 42
Select character set (factory setting - “Latin”) 42
Signal paths (TV, VCR, picture format, record, digital audio) 42
TV Scart, VCR Scart 42
Picture format 43
Digital audio 43
VCR signals 43
LNB settings 44
DiSEqCTM (Digital Satellite Equipment Control) 45
UFO®46
Various (display time, RC, LCD, download, factory reset) 46
Display time 46
function 46
LCD display settings 47
Download 47
Factory reset 47
Download-Over-Air (Software update via satellite) 49
Video recorder/PVR connection 51
Recording 51
Playback 51
Return path 52
Audio settings 53
Digital output 53
Digital/analogue – audio mode 53
Analogue outputs 54
Digital output 55
Using the front panel 56
Receiver to receiver data transfer 57
Technical appendix 58
Technical features 58
Accessories 61
Scart socket assignment 61
VHS/S-VHS switching 61
Connection example 62
Short technical guide 63
Glossary 65
Error detection/troubleshooting and service 67

5

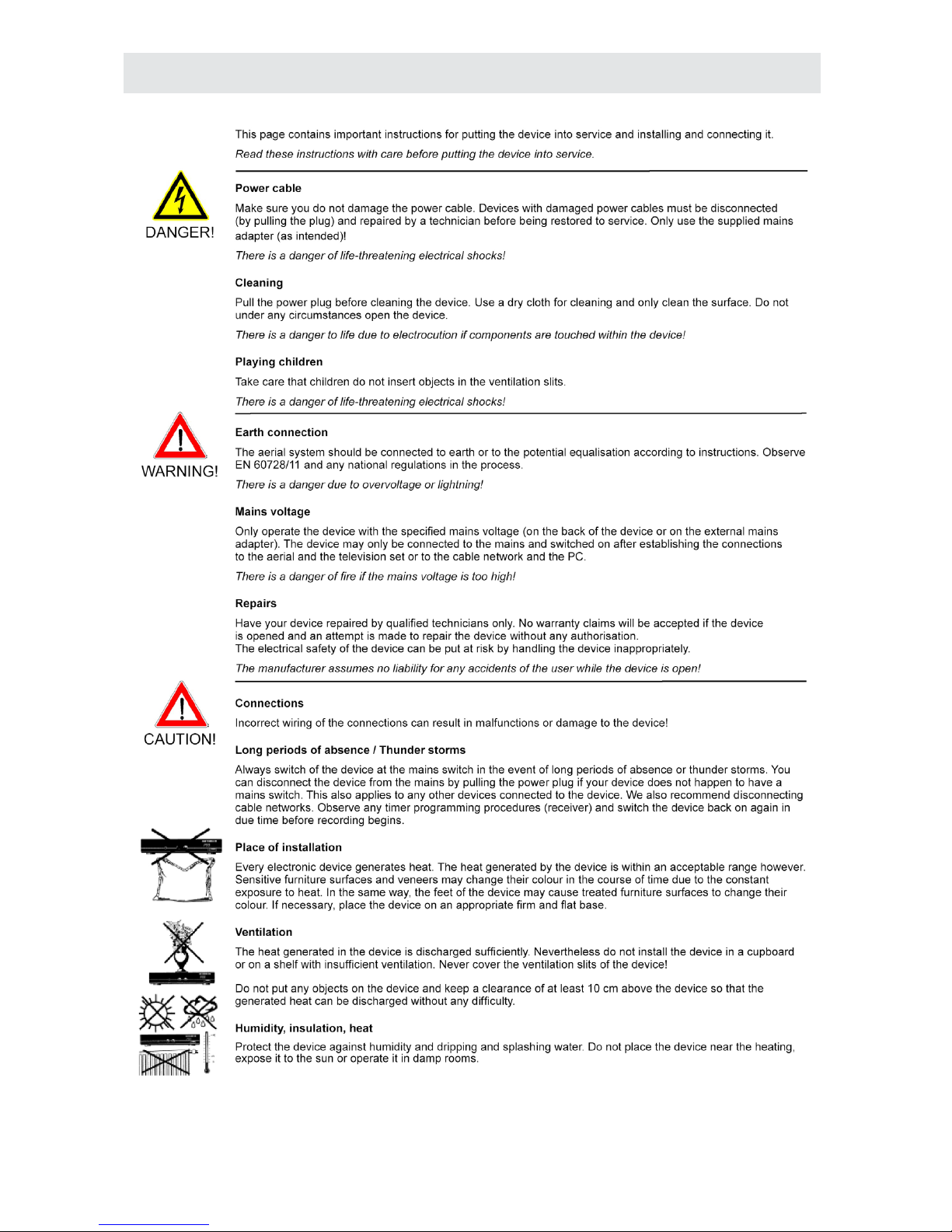

Safety instructions - important notes

6
Receiver features
The UFS 702si and UFS 702sw receivers are suitable for
receiving FTA digital satellite TV and radio programmes. In
addition to providing high-quality pictures and sound, these
receivers also feature an attractive design in a modern
housing. Despite their small size, the receivers have all of the
features of large receivers, such as an electrical and optical
audio output for Dolby Digital (AC 3), videotext (teletext)
with memory for 800 pages, a 16-character alphanumeric
display for programme names, radio data and much more.

7
Controls, displays and connections
This section provides a brief description of all the controls,
displays and connections. The button symbols presented
here can also be found in the description of the operating
steps.
View of front panel (flap folded down)
View of rear panel

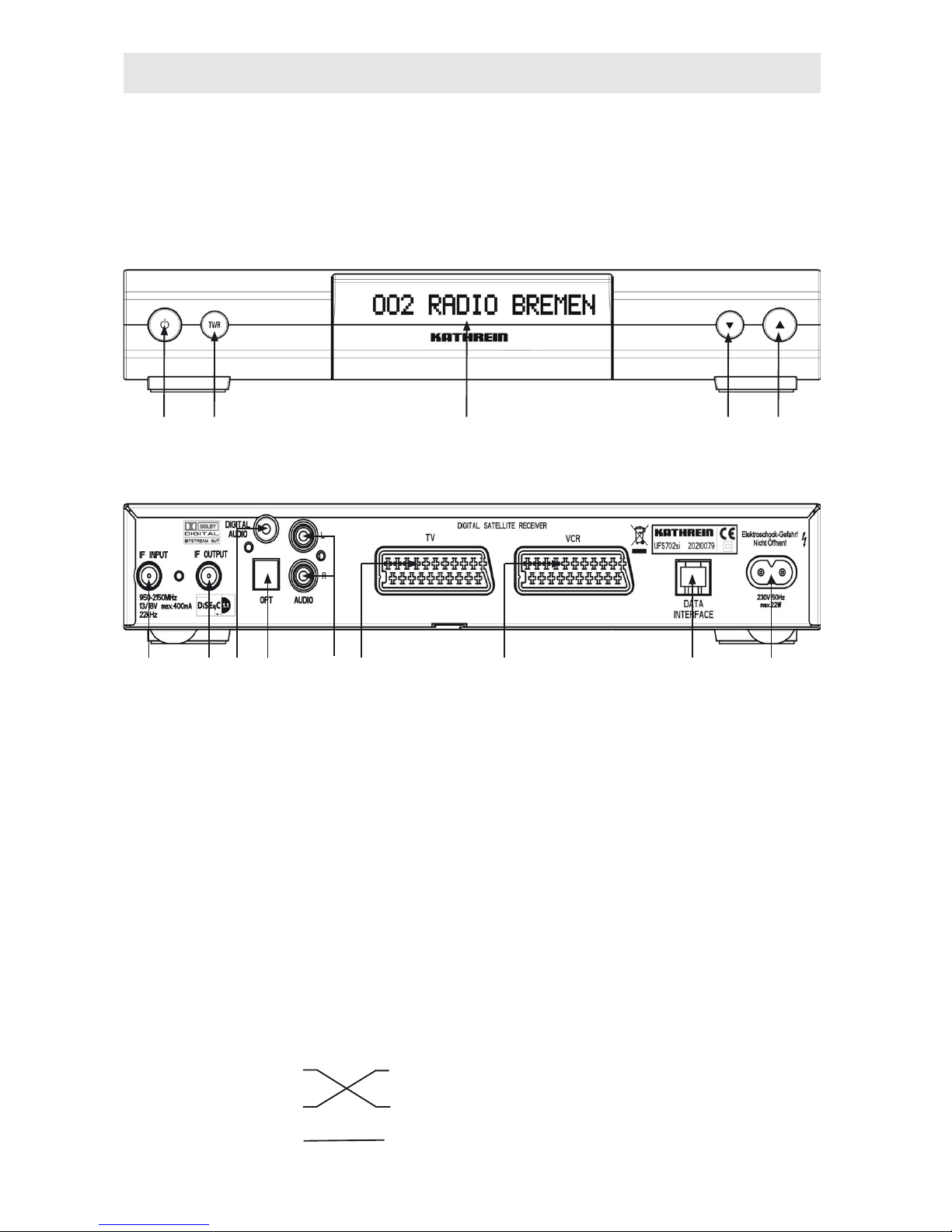

Front panel controls and displays
1. On/Off switch (with mains disconnect)
2. TV/R button for switching between TV
and radio mode
3. 16-character alphanumeric display for
channel names, radio data etc.
4. Channel down button
5. Channel up button
Rear panel controls and displays
1. LNB input
2. LNB loop-through input
3. Electrical data stream output (SPDIF/
Sony Philips Digital Interface Format)
for Dolby Digital AC 3 audio
4. Optical data stream output (SPDIF/
Sony Philips Digital Interface Format)
for Dolby Digital AC 3 audio
5. Audio outputs (L/R) - cinch sockets
6. Scart socket for TV connection
7. Scart socket for VCR connection
8. 6-pin modular socket with RJ 11 port for
serial data transfer in service mode or
connection for remote infrared receiver
9. Mains power cable
  
 

Data cable
Receiver modular
socket () Connection
sequence
PC Connection
sequence
Pin 6 = RXD RXD
Pin 5 = TXD TXD
Pin 2 = GND GND

8
LCD Display
The channel number and channel name are displayed on
a 16-character LCD display.
Display of TV channel and channel name during numerical
entry (channel selection)
Display of TV channel number and channel name upon
completion of numerical entry.
Display of programme name during operation, when all
other information has been processed.
Display of radio programmes during entry
Display of radio programme name during operation
Information that takes up more than 16 characters is
displayed in scroll mode i.e. the area marked grey is moved
to the left
The following information is also displayed as scrolling
text:
- Start and end time of the current programme
- Name of the current programme
- Start and end time of the next programme
- Name of the next programme
Display when device is muted ()
Display when TV mode is activated using the !button
(green). The picture and sound then come from the TV set
itself (e.g. via cable) or from another device attached to
the TV set
Display when the device is transferring a picture and sound
signal from the video recorder to the TV set.
Important: If you open a menu or information window in
radio or TV mode using the , (red), "(yellow) or 
buttons, the receiver no longer responds to the &buttons.
Press the button to close the window!
Controls, displays and connections

9
Important note on setting up receiver on a UFO®micro
system
When registering the receiver to a UFO®micro single-cable
matrix EXU 544, you must do the following:
- Connect the receiver to the TV set, but do not yet connect
it to the ESU 32 antenna socket.
- Perform a UFO®micro reset on the receiver as described
below.
1.Press the button to switch to the main menu.
2.Press the  buttons to get to the installation menu and
confirm your entry by pressing .
3.Press the  buttons to get to the DiSEqC™ menu and
confirm your entry by pressing .
4.Press the  buttons to select the “UFO” option.
5.In the UFO menu press the  buttons to select
“UFO®micro”.
6.Press and change the selection to RESET with the
 buttons, then confirm your entry by pressing .
7.Press to exit the UFO menu (press to confirm the
changes).
8.Press three times to get back to the starting point.
- Press the
button to switch the receiver to standby
mode.
- Now you can connect the receiver to the antenna
socket.
- Press the
button to switch the receiver on.
- The registration is then performed automatically – the
screen briefly shows: “UFO®micro active”.

10
Connection and set-up
The following section is intended specifically for specialist
dealers. You only need to pay attention to this section if you
are carrying out the installation yourself.
The “Connection examples” section provides a sample
configuration.
Do not connect the unit to the mains until all installation
work has been properly carried out.
Refer to the information in the “Safety instructions” section.
Connecting the unit
Sat IF Connections Connect the Sat IF inputs on the receiver to the satellite
reception system.
Use coaxial cable with an F standard connector.
If the F standard connectors are not yet fitted on the cable,
strip the insulation from the cable as shown in the following
illustration and carefully twist the F standard connectors
onto the ends of the cables until they are securely fitted.
When fitting the connector, make sure that no wires from
the braiding are touching the inner conductor, so no short
circuit can occur.
The quality of the reception signal depends on the
connection.
Reception requirements
Make sure that your own satellite antenna system is
equipped at least with a universal LNB for digital reception
in the high-band range.
Reception system presets
The presets for the control signals have been made for
standard reception systems, i.e. 14/18 V for polarity reversal
and 22 kHz switching signal for low/high band changeover
on multi-feed reception systems.
The preset will need to be changed in the installation menu
under “DiSEqC™” if tone burst switching matrices are
used in the reception system. Refer to the section headed
“Installation menu”, “DiSEqC™”. Always follow the operating
instructions for the matrix used.

11
Connection and set-up
TV and Video recorder connection
Connect the satellite receiver (TV Scart socket) and the TV
set using a Scart cable (see “Connection example”).
If your TV has a stereo feature, you can receive the sound
in stereo via the Scart connection.
Also connect the satellite receiver (VCR/AUX Scart socket)
and the video recorder/PVR using a Scart cable.
If you are recording using an external video recorder,
remember not to operate the receiver during recording,
otherwise all the on-screen displays will appear on your
recording.
Audio connection
If you want to play the sound on your Hi-Fi system, connect
the audio cinch sockets to the input sockets on the Hi-Fi
system with an appropriate cable (see “Connection
example”).
Dolby connection
The Dolby Digital output (electrical/optical) is intended for
connection to a Dolby Digital system (see “Connection
example”).
Inserting batteries into the remote control
Remove the cover on the rear of the remote control.
Insert the two supplied batteries into the remote control.
Ensure correct polarity of the batteries; the + and – markings
are indicated inside the battery compartment.
Slide the cover back into the housing until it locks in place.
Used batteries are special waste!
Do not throw spent batteries into your domestic waste; take
them to a collection point for old batteries!
Electronic equipment is not domestic waste - in accordance
with directive 2002/96/EC OF THE EUROPEAN
PARLIAMENT AND THE COUNCIL dated 27th January
2003 on used electrical and electronic appliances, it must
be disposed of properly.
Please take this unit to a public collection point intended for
this type of disposal at the end of its useful life.

12
Remote control

Sound on/off
... 
ON mode, numerical
input for channels,
parental control etc.

Select main menu
(red)
Favourites list
selection
!(green)
TV switching
voltage and channel
arrangement/pool
%
Volume

Quit menu, return to
last channel

Cursor operation in
channel pool

Select timer menu,
transfer a programme
from EPG to timer
menu

Standby

Select videotext
(teletext), channel
arrangement/pool
"(yellow)
Audio mode,
channel arrangement/
pool
#(blue)
Switch between
TV/Radio, channel
arrangement/pool

Select channel
information or display
signal quality
&
Channel selection
up/down

Confirm entry, select
channel list (when
pressed twice)

Cursor buttons

Select EPG
(Electronic
Programme Guide)

Set menu
transparency

13
Remote control RC 660
The RC 660 remote control supports up to four devices
(which are supplied with the RC 660 as standard) as well
as the receivers of the UFD 5xx (not UFD 552, 554, 558)
and UFD 4xx families.
First switch all receivers off at the power switch.
To configure a receiver to an infrared code:
Switch on the relevant receiver.
On the remote control simultaneously press
Address 1 = + + 
Then switch the receiver off again at the power switch and
do the same for the other units (+ + for second
receiver; + + for third receiver and + + 
for fourth receiver)
Make sure only one receiver is on at a time!
To switch the remote control to an infrared code:
When you have configured all receivers to their infrared
code, to switch between units on the remote control do the
following:
For the first receiver’s remote (address 1) press + ; for
the second receiver + ; for the third receiver + ;
and for the fourth receiver + .
+ (red) = Kathrein UFD 5xx code for remote control
RC 400
The RC 600 and RC 650 remote controls cannot be
replaced!
Remote control

14
Operating instructions
Menu concept The structure of the menu concept is based on logical
operating sequences.
Note: The selected menus, sub-menus and options, as well as
the parameters to be set, are each highlighted in colour or
by a border. The menus are self-explanatory.
Pay attention to the bar at
the bottom of the on-screen
display. This provides hints
on what to do next.
Press the button to access the main menu, and use
the  buttons to select the sub-menus.
Press the button to access the sub-menus. Use the 
buttons to select the sub-menu options.
The settings under the various options are made either by
pressing the  buttons or using the number pad. The
main menus, sub-menus and individual options can be
exited step-by-step using the button. After each change,
you are asked whether you want to confirm () or cancel
() the changes.
You will find detailed descriptions of the
selected menu items in the relevant sections of
the operating manual!

15
Operating instructions
Menu tree
Main menu
Channels Favourites list
Parental control
Favourites names
Channel pool
Search Satellites
Manual
Transponder
Satellites
Installation Time offset
LNB
Signal paths
Language
DiSEqC™
Language selection - OSD
The language for the on-screen display is set as follows:
→ →Installation →→Language →→
→ →English →.
The languages available are German, English, Italian,
French, Dutch, Portuguese, Spanish and Turkish.
It is also possible to change the character set.
Available options: Latin, Cyrillic, Arabic, Greek, Hebrew,
Standard, Auto. “Latin” is preset.
Settings are made in the same way as the OSD language.
Once you have finished changing the settings, exit the menu
with the button and press the button to save.
Various

16
On-Screen Displays (OSD)
TV channel information
Channel information is shown for a few seconds each time
the channel is changed (duration can be changed under
“Installation”, “Various”, “Display time”) or continuously with
the button (if not set to signal quality).
Radio channel information
The information for the current radio channel has the same
layout.
Channel number
Start and end time of
the current and next
programme
Selected
satellite
Selected channel
or favourites list
A = two or more language channels
(soundtracks) available ("button, yellow)
F = FTA
(unencrypted)
channel/
$ = encrypted
channel
Day of week
with time
Channel information
“No signal” indicates that an error has occurred in the
reception system or in the receiver settings, or that the
transponder is not transmitting.
Check the Sat IF connection and the LNB configuration.
If you have changed settings, compare them against the
basic settings (if you made a note of them as suggested).
Error signalling
One or more
Dolby Digital
channels
available

17
On-Screen Displays (OSD)

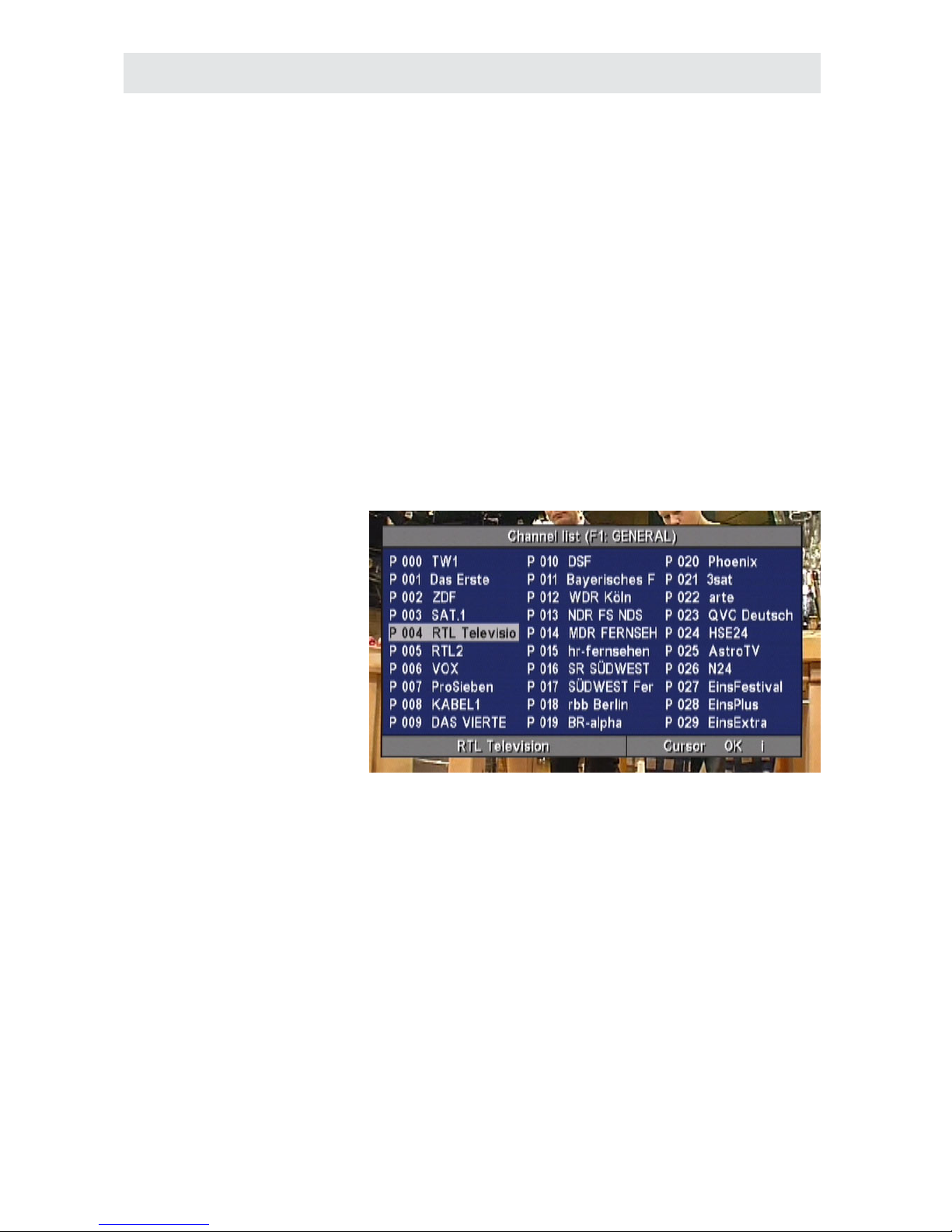

Channel list – TV/radio
Press the button twice to display a list sorted by channel
number (see “Channel selection”, “Channel list”. Press the
button to exit the list.
Press the button to display the last four selected
channels. Press the relevant cursor button () to
select a channel.
Channel hopping display

18
Channel list – TV/radio
Press the button twice to display a list sorted by channel
number. Press the button to display the channel list in
alphabetical order. Press the button again to sort the
channel list by channel number again. Select the required
channel with the  buttons followed by the 
button.
Channel selection
Switch between TV/radio mode
Press the #button (blue) to switch between TV and radio
mode and then select the respective channels. Channel
selection works in the same way in both modes.
Channel selection using number buttons and &buttons
Use the number buttons to select a channel directly
(“0” is also a channel number).
Use the &buttons to select the next or previous channel
from the currently selected favourites list.

19
Select last channel
Press the button to switch between the last two selected
channels.
Channel selection
Favourites list
Press the button (red) to display the favourites lists. The
required favourites list can either be selected directly using
the number buttons or with the  buttons followed by
the button. The receiver automatically switches to the
last channel viewed in the selected favourites list.
Use the number buttons or the &buttons to continue
channel selection. Press the button twice to display
the list of channels allocated to the selected favourites list.
Now select the required channel as described under
“Channel list – TV/radio”.
Press the button to display the last four selected
channels. Press the relevant cursor button () to
select a channel.
Channel hopping display

20
EPG - Electronic Programme Guide
The EPG (Electronic Programme Guide) displays
information on the current and upcoming programmes.
The information provided is determined by the programme
providers, and differs widely from programme to programme.
Many programmes are broadcast with no usable ancillary
information (SI data). The same is true with regard to the
programme previews.
Some programme providers transmit no data, others offer a
programme preview with additional programme information
days in advance.
Press the button to access the EPG. The following
display appears (example):
You now have the following options:
- Press the button to see information on the next
programme
- Press the button to see a programme preview of
the currently selected channel. Depending on the
programme provider, you are shown a programme
preview covering the current day or several days in
advance (see picture).
Use the
 buttons to scroll forwards or back-
wards in the programme preview on a line-by-line or
page-by-page basis. Once you have selected the
programme you want, you can press the button to
view more details (if available). If no ancillary information
is available a message is displayed telling you so.
