Kathrein 738 440 User manual
936.1533/e Subject to alteration.
738 440 Page 1 of 2
Elevation
compensation

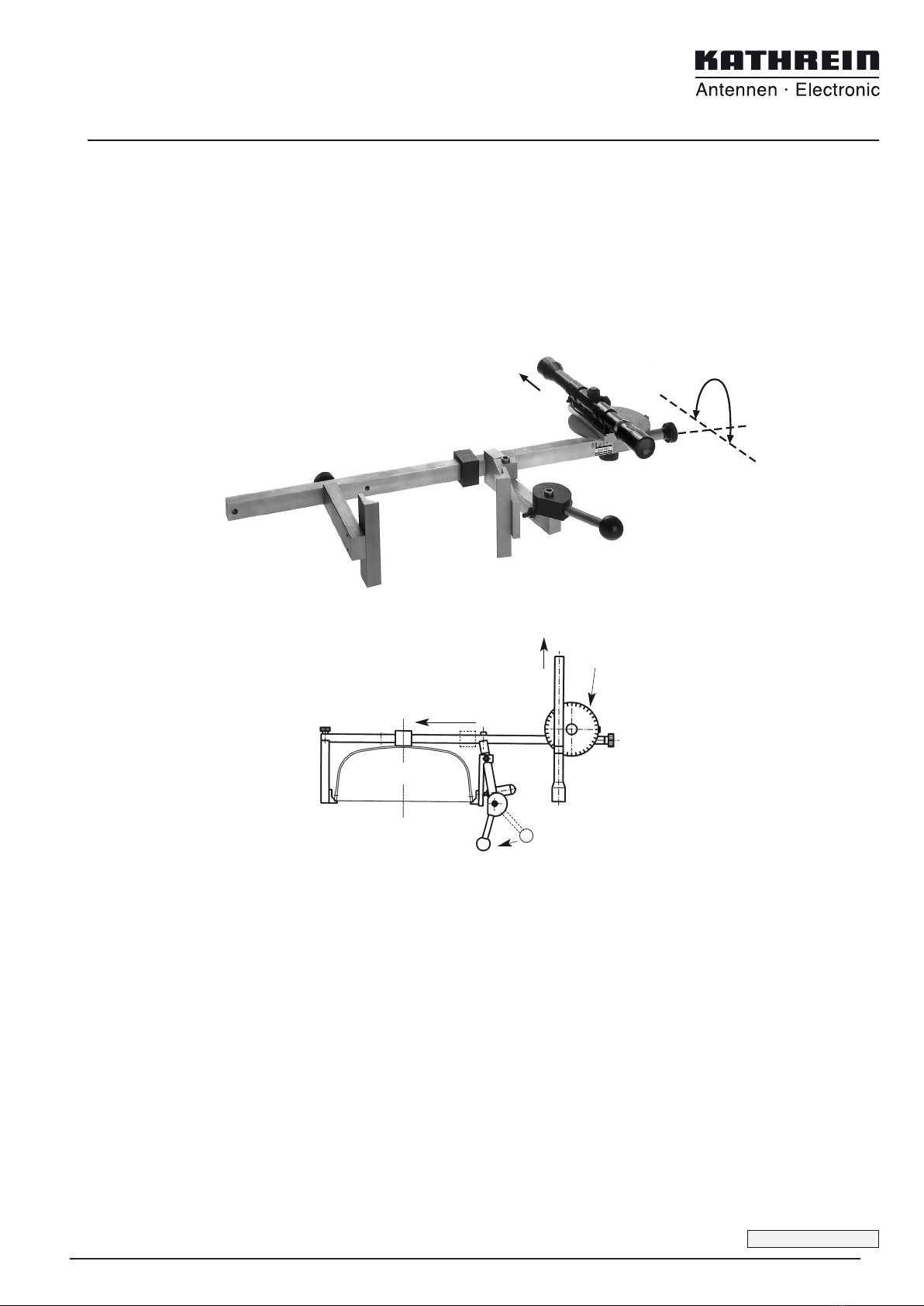

Precise azimuth adjustment for mast mounted antennas can easily be achieved by using the azimuth
adjustment tool.
This tool is suitable to all types of Panels and Tri-Sector Pipe Antennas with a maximum width
of 315 mm.
Instruction:
– Use a map to work out the angle between the designed antenna azimuth and target
(church, building, mountain peak).
– Set this angle on the scale of the adjustment tool.
– Place the adjustment tool onto the antenna and tighten the clamping device.
– Use the telescope to aim at the target object, if necessary, use elevation compensation.
– Then rotate the antenna until the target object appears in the telescope.
* Observe the position of the stopper when fitting the azimuth adjustment tool.
Target object
Clamping device
Scale
Panel
Move the stopper to central position*
Target object
Azimuth Adjustment Tool
738 440
Kathrein USA Greenway Plaza II, 2400 Lakeside Blvd., Suite 650, Richardson TX 75082
All specifications are subject to change without notice.
The latest specifications are available at www.kathreinusa.com
936.1533/e Subject to alteration.
Page 2 of 2 738 440
Azimuth Adjustment Tool
738 440
