KAUP T 413G-1L User manual

SAP 100074
en
Operating Manual
Original Operating Manual
1
Edition 04/17
Subject to modifications
Appliance Clamp
T 413G-1L, T 403G-1L
T 413G-2L, T 403G-2L
T 413-1, T 414-1
T 414-1L, T 404-1L
T 414-2L, T 404-2L
T413-1
T414-1
T413G-1L
Appliance Clamp with sideshift and arms with rubber covering for „white
appliances“, 1 arm swivelling
T403G-1L
Appliance Clamp without sideshift and arms with rubber covering for „ white
appliances“, 1 arm swivelling
T413G-2L
Appliance Clamp with sideshift and arms with rubber covering for „ white
appliances“, 1 arm swivelling, 2 contact pads per arm
T403G-2L
Appliance Clamp without sideshift and arms with rubber covering for „ white
appliances“, 1 arm swivelling, 2 contact pads per arm
T414-1L
Appliance Clamp with sideshift and arms with rubber covering for „ white
appliances“, both arms swivelling
T404-1L
Appliance Clamp without sideshift and arms with rubber covering for „ white
appliances“,both arms swivelling
T414-2L
Appliance Clamp with sideshift and arms with rubber covering for „ white
appliances“, both arms swivelling, 2 contact pads per arm
T404-2L
Appliance Clamp without sideshift and arms with rubber covering for „ white
appliances “, both arms swivelling, 2 contact pads per arm

Operating Manual
2
Original Operating Manual
Contents Page
1. Introduction ............................................................................................................................................. 4
1.1 Working with this manual......................................................................................................... 4
1.2 Warning notes and symbols..................................................................................................... 4
1.3 Copyright.................................................................................................................................. 4
1.4 CE-Mark................................................................................................................................... 5
1.5 Qualified and authorised personnel ......................................................................................... 5
1.6 Warranty claims based on defects........................................................................................... 5
1.7 Limits of applicable use............................................................................................................ 5
2. Safety aspects......................................................................................................................................... 6
3. Design ...................................................................................................................................................... 7
3.1 Clamp with mounting................................................................................................................ 7
3.2 Clamping arms......................................................................................................................... 7
3.3 Proper use of the equipment.................................................................................................... 8
3.4 Improper use............................................................................................................................ 8
4. Installation and checking out ................................................................................................................ 9
4.1 Installation................................................................................................................................ 9
4.1.1 Appliance clamp........................................................................................................... 9
4.1.2 Pressure plate toe-in / preload adjustment as necessary and depending on attachment design ........... 11
4.2 Checking out .......................................................................................................................... 12
4.2.1 Bleeding the hydraulic system ................................................................................... 12
4.2.2 Adjustment after putting into service.......................................................................... 12
5. Operation ............................................................................................................................................... 14
5.1 General................................................................................................................................... 14
5.2 Load handling......................................................................................................................... 14
5.3 Driving.................................................................................................................................... 14
6. Maintenance and servicing.................................................................................................................. 15

Operating Manual
Original Operating Manual
3
6.1 General ...................................................................................................................................15
6.2 Significant modification...........................................................................................................16
6.3 Schedule for routine maintenance and lubricants ..................................................................16
6.3.1 Clamp..........................................................................................................................17
6.3.2 Mounting (with or without sideshift) ............................................................................17
6.3.3 Clamping arms, model T403G-1L / T413 G-1L and T403G-L / T413G-L...................19
6.3.4 Right-hand or left-hand appliance/polystyrene clamp arms for T403-1 / T413-1 and T404-1 / T414-1
models 20
6.3.5 Clamping arms right and left, model T404-1L / T 414-1L...........................................21
6.3.6 Clamping arms right and left, model T404-2L / T414-2L............................................22
6.3.7 Right-hand or left-hand swivelling appliance/polystyrene clamp arms for T403-1 / T413-1 and T404-1 /
T414-1 models.............................................................................................................................24
6.3.8 Pressure plate toe-in / preload adjustment.................................................................25
6.3.9 Identification plate and caution board.........................................................................26
7. Troubleshooting.....................................................................................................................................27
8. Disposal..................................................................................................................................................28
9. Transport ................................................................................................................................................28
10. Decommissioning and storage ............................................................................................................29
11. Spare parts list (not part of the Operating Manual) ...............................................................................29
12. EC Declaration of Conformity (Summary)...........................................................................................29
Our service department in Aschaffenburg will be happy to answer your technical questions and to provide additional support.
Technical Support:
0049 (0)6021 865 395
0049 (0)6021 865 284
0049 (0)6021 865 352
Orders for spare parts Domestic
0049 (0) 6021 865205
0049 (0) 6021 865251
Orders for spare parts Export
0049 (0) 6021 865344
0049 (0) 6021 865348
Outside of normal business hours the Kaup –Service Hotline is available to you 365 days a year:
0049 (0) 172 6295 297
Monday - Friday: 17:00 –7:00 Uhr
Saturday and Sunday: 8:00 –18:00 Uhr
Kaup GmbH & Co KG • Braunstr. 17 • D-63741 Aschaffenburg • email: [e-mail] •
www.kaup.de

Operating Manual
4
Original Operating Manual
1. Introduction
1.1 Working with this manual
This operating manual contains important information on how to operate the attachment properly,
safely and efficiently.
The operating manual shall be read, understood and applied by all personnel working on or with the
equipment, for example:
Installation and operating the equipment
Inspection, maintenance and repair
Transport and disposal
The manual must be kept available for ready reference at the equipment’s place of use.
The illustrations in this operating manual may deviate from the actual version
of the equipment.
1.2 Warning notes and symbols
The following symbols are used in this operating manual to highlight details of special importance:
Identifies details relating to do’s and don’ts for the purpose of avoiding injury
and property damage.
Specific details relating to the efficient use of the attachment and other advice.
Lists are denoted by a shadowed box.

Steps to be performed by the operator are denoted by a black dot.
(1)
In illustrations, particular elements have numbered pointers. Numbers in brackets in
the text refer to the corresponding elements.
1.3 Copyright
This documentation including all parts is copyrighted. Any use or change outside the narrow limits of
copyright law without permission from KAUP GmbH & Co KG is forbidden and liable to prosecution.
This applies, in particular, to reproduction, translation, microfilming as well as storage and
processing in electronic systems.

Operating Manual
Original Operating Manual
5
1.4 CE-Mark
KAUP-Attachments carry the CE-mark. The EC Declaration of Conformity ensures that the
attachment conforms to the EC machinery guideline.
1.5 Qualified and authorised personnel
Qualified and authorised personnel are equipped by way of their education and training to perform
the tasks assigned to them in accordance with accepted practice and safety regulations. They are
assigned tasks by the equipment owner.
1.6 Warranty claims based on defects
KAUP shall not be liable for any damage to the equipment resulting from:
Improper use / operation.
Modifications to components.
Inappropriate installation, maintenance, inspection and servicing.
Assignment of unqualified or non-authorised personnel.
Claims raised by third parties.
1.7 Limits of applicable use
KAUP-attachments are intended for use under the following climatic conditions:
Average ambient temperature for continuous operation:
+25°C
Allowable maximum ambient temperature, short term (up to 1h):
+40°C
Allowable minimum ambient temperature for attachments intended for
indoor use:
+5°C
Allowable minimum ambient temperature for attachments intended for
outdoor use:
-20°C
Standard models of KAUP-attachments are NOT suitable for:
Use in cold storage facilities.
Use in explosive environments.
Use in conjunction with hydraulic systems involving biological oils.
Use in rough environmental conditions (e.g. seawater).
The transport of acidic liquids.

Operating Manual
6
Original Operating Manual
2. Safety aspects
As the user, extend the safety instructions with generally applicable, legal and other
measures that ensure a safe and environmentally friendly operation of the
attachment.
Pay close attention to all safety- and danger-related signs on the attachment and in
this operating manual. Failure to observe these can result in severe injury or even
death.
Pay close attention to the operating manual provided by the manufacturer of the fork
lift truck.
Keep a safe distance away from moving, reciprocating or rotating parts of the
attachment to avoid danger of crushing, pinching or entanglement.
Notify the responsible department/person immediately of changes and faults in
operation of the attachment that affect safety.
The attachment shall be shut down.
Use aids to vision (e.g. mirrors, camera, etc.) where goods being transported obstruct
vision.
Only allow work on the attachment to be carried out by qualified and authorised
persons. Adhere to the legal minimum age in the country of operation!
The attachment should only be used for the purpose intended.
Never work on or with attachments while under the influence of drugs, alcohol or
medicines which affect reaction time.

Operating Manual
Original Operating Manual
7
3. Design
3.1 Clamp with mounting

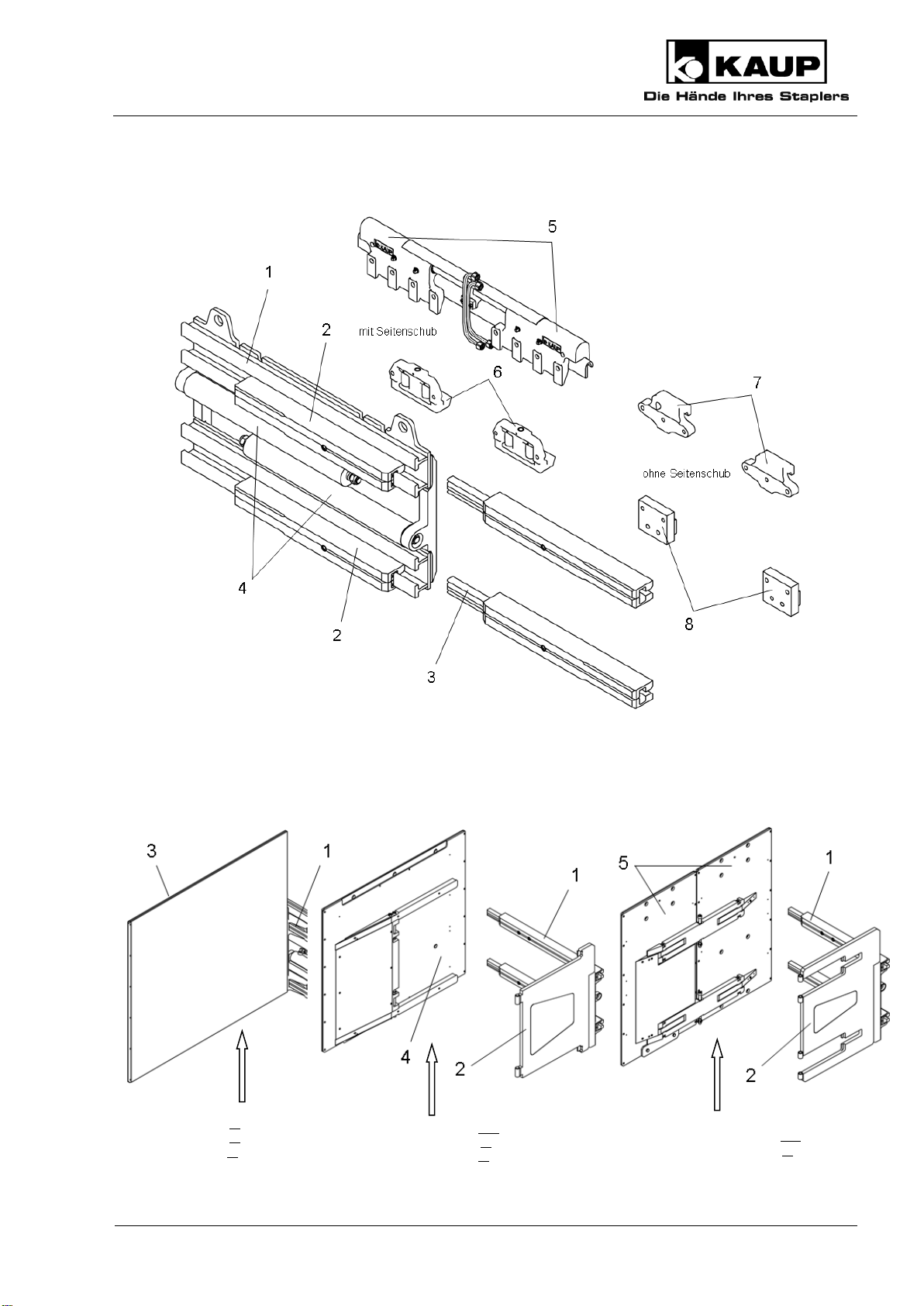

A clamp consists of a clamp body (1) on which conduits (2) are mounted. Cylinders (4) move the
conduits (2), which are equipped with sliders (3). Sideshift components (5, 6) or hooks (7, 8) are
optionally attached to the clamp body (1).
3.2 Clamping arms
T403G-1L/T413G-1L right or left arm
T403G-2L/T413G-2L right or left arm
T403-1 / T413-1 right or left arm
T404-1L/T414-1L right and left arm
T403G-1L/T413G-1L right or left arm
T404-1 / T414-1 right or left arm
T404-2L/T414-2L right and left arm
T403G-2L/T413G-2L right or left arm

Operating Manual
8
Original Operating Manual

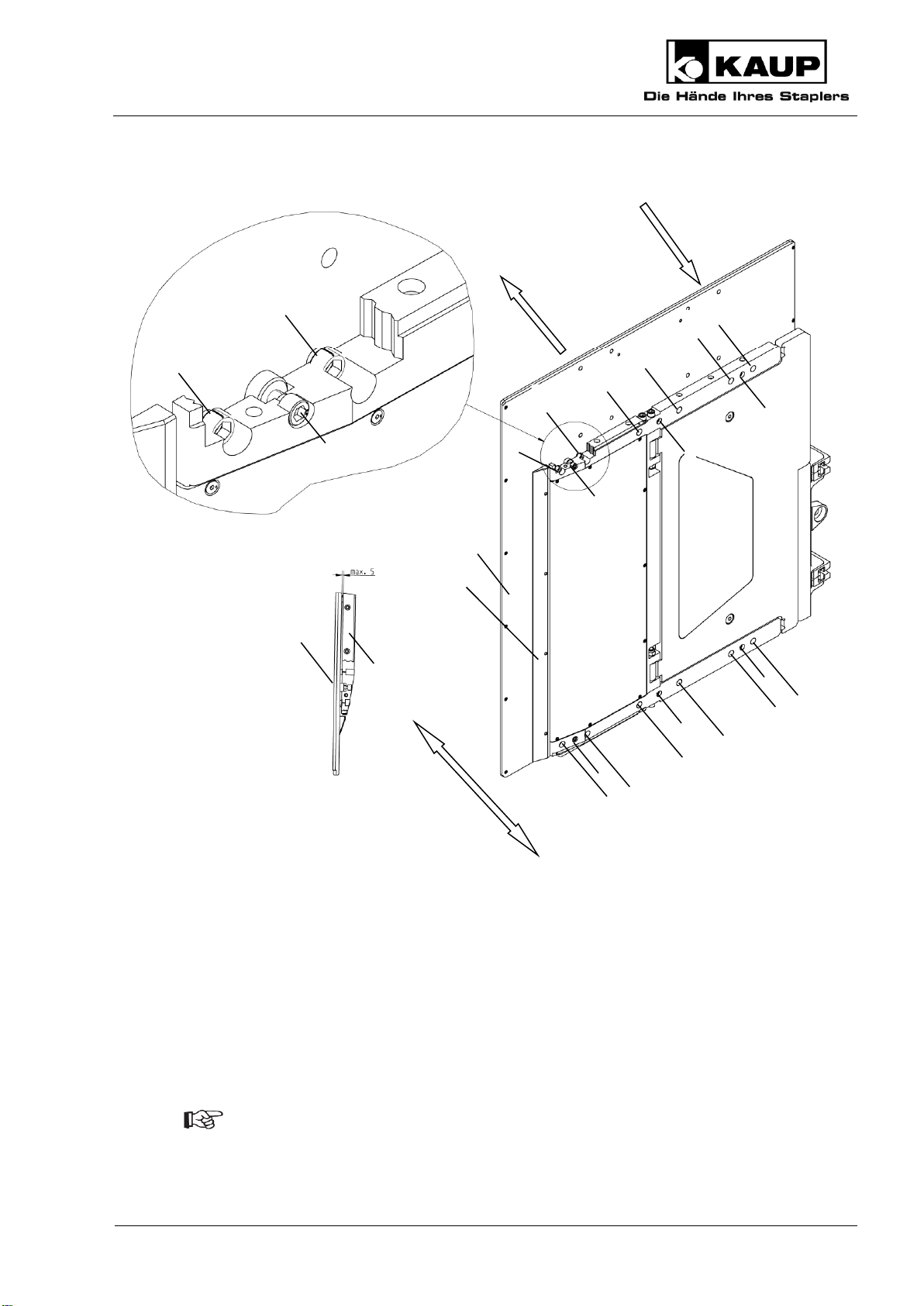

The right or left arm of models T403G-1L / T413G-1L and T403G-2L / T413G-2L consists of
conduits (1) and a rigid arm (3).
For the T403-1 / T413-1 model, this applies to the right-hand or left-hand arm. The left arm consists
of conduits (1) onto which an arm carrier (2) is welded.
A pressure plate (4), model T403G-1L / T413G-1L, or pressure plates (5), model T403G-2L / T413G-
2L, are mounted so that they swing in the arm carrier (2). For the T404-1 / T414-1 model and
T403G-2L / T413G-2L, this applies to the right-hand or left-hand arm.
Both arms of the model T404-1L / T414-1L consist of hollow guide sections (1) onto which an arm
carrier (2) is welded. A pressure plate (4) is mounted so that it swings in the arm carrier (2).
Both arms of the model T404-2L / T414-2L consist of conduits (1) onto which an arm carrier (2) is
welded. Two pressure plates (5) per arm are mounted so that they swing in the arm carrier (2).
The pressure plates of the arms have rubber coverings that are glued or screwed on and that are
adapted to the load requirements.
3.3 Proper use of the equipment
All models are suitable for the lifting and transport of “white appliances”, e.g. washing machines,
refrigerators etc.
Proper use of the machine and/or equipment includes the following:
Observance of the operating manual at all times.
Observance of the technical data on the identification plate on the attachment.
Adherence to the specified inspection and maintenance instructions.
3.4 Improper use
Exceeding the allowable load capacity and load centre.
Dragging or pushing loads with the attachment
Transporting persons with the load or load handling devices
Mounting auxiliary equipment on the attachment such that the original mode of usage
is changed, (e.g. fork extensions) must be authorised by the manufacturer.

Operating Manual
Original Operating Manual
9
4. Installation and checking out
4.1 Installation
Installation and commissioning should be performed by qualified and authorised
personnel only.
Pay attention to a sufficient load-carrying capacity of the lifting means.
The following are examples of preferred lifting means:
Capacity
250 kg/M16
1200 kg/M16
2000 kg/M16
Part-no.
9710160008
0360010201
0360010301
4.1.1 Appliance clamp

Operating Manual
10
Original Operating Manual

Hoist the attachment at the positions indicated (1).

Demount the lower hooks (2).

Mount the attachment on the fork carriage of the lift truck (3).

Check that the attachment is correctly seated in the centre lock (4).

Mount the lower hooks (2), tightening the screws (5) with a torque of 190 Nm.

Connect the hose lines (6) to the hydraulic connectors on the lift truck.

Trucks equipped with attachments which hold the load by power (e.g. paper clamp) shall
feature control(s) with a secondary action to prevent unintentional release of the load. Also
take note in this respect of the operating instruction of the lift truck.

Before initial operation, check the functions and the identification of the attachment with the
movement directions of the operating elements (operating lever, joystick, etc.).

Mount the residual carrying capacity notice and identification of the operating elements (if
not already present) of the combination of lift truck/attached equipment on the lift truck.

Operating Manual
Original Operating Manual
11
4.1.2 Pressure plate toe-in / preload adjustment as necessary and depending on attachment design

Adjust the toe-in (a) or preload (b) by loosening the screws (1).

Use the adjusting screws (2) to set the pressure plate (3) to the desired position.

Torque the screws (1) to 77 Nm.
The maximum clearance between pressure plate (3) and pressure plate support (4)
should be 5mm!
1
1
1
1
1
1
1
4
2
2
2
2
2
2
2
2
3
2
2
2
2
2
2
(a)
(b)
(b)
3
4

Operating Manual
12
Original Operating Manual
4.2 Checking out
KAUP-attachments are delivered pre-lubricated. If the attachment has been in storage
for a longer period, we recommend that it be lubricated again before being placed in
service. See 6. Maintenance and onwards.
Failure of the safety devices (e.g. the pressure relief valve and the non-return
valve) and incorrect connection of the controls to the actuators can cause
malfunctioning of the attachment and damage to it.
After mounting and before initial operation, check the functions and the
identification of the attached equipment with the movement directions of the
operating elements (operating lever, joystick, etc.).
4.2.1 Bleeding the hydraulic system

Start the lift truck.

Move the sideshifter repeatedly in both directions to maximum extent.

Repeatedly cycle the clamp from the fully open to the fully closed position.

Inspect the hydraulic connections for leakage.
4.2.2 Adjustment after putting into service
The hydraulic system is under pressure. During work on hydraulic components
oil spurting out can cause injuries. Unload the system in accordance with the
operating instructions of the lift truck manufacturer. In the case of injuries
caused by high pressure oil, inform the works physician and seek out a
specialist immediately.
Synchronising the arms
The synchronization of arms is adjusted ex-factory. This can alter for different friction
conditions (wear), temperatures and volumes conveyed. Perform a readjustment. The
recommended working temperature of the hydraulic fluid is approx. 35 °C.

Operating Manual
Original Operating Manual
13

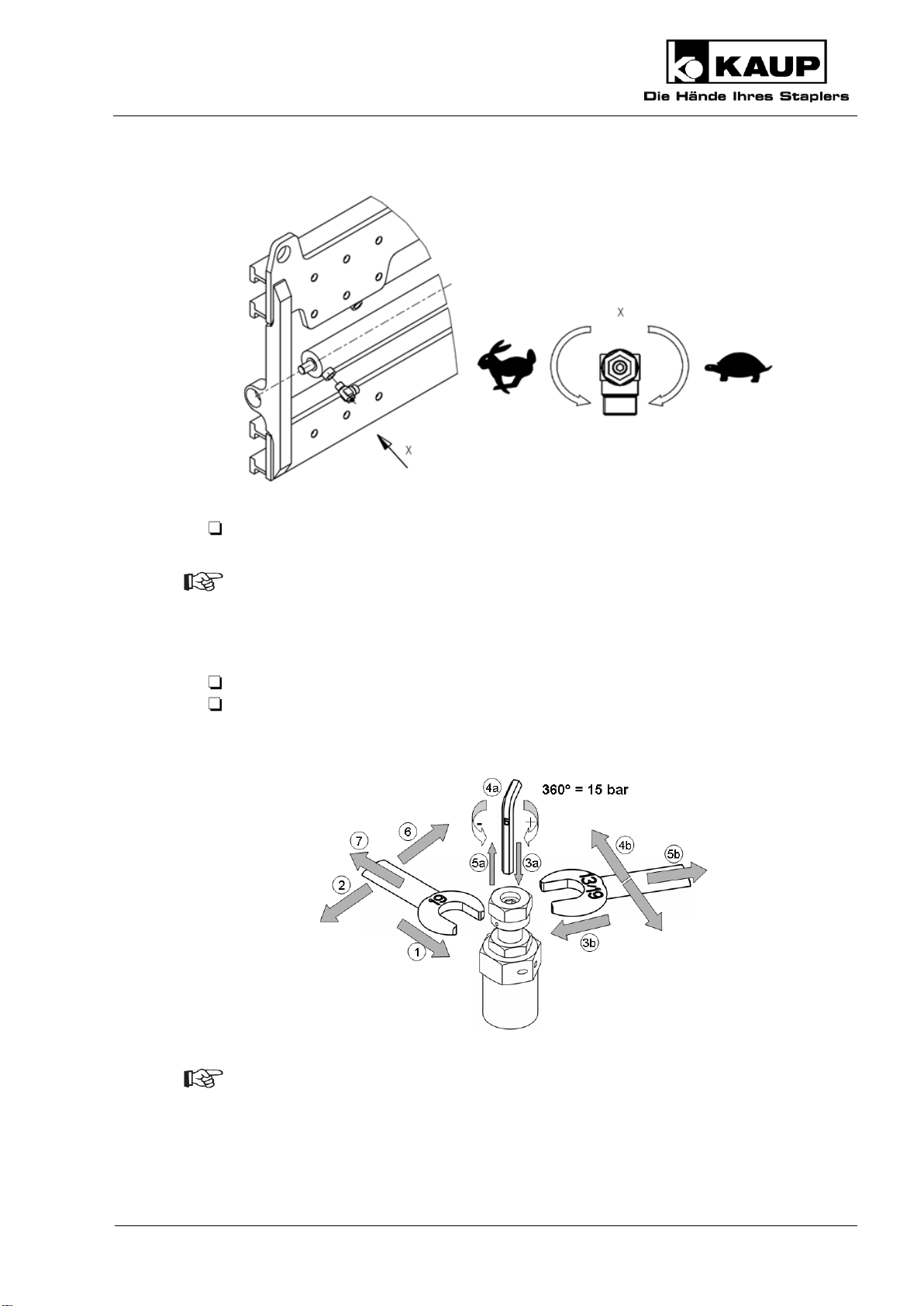

The synchronization is adjustable by means of two throttles on the bottom of the cylinders.
Setting the clamping pressure with a pressure limiting valve
Attachments are adjusted ex-factory to a pressure of 160 bar.
A change in pressure is necessary only, if the load
slips or
is damaged.
Make the settings in the numerical sequence and in the direction of the arrows.
The pressure indication on the manometer gauge drops after clamping.
This is not a malfunction of the attachment, being caused by the installation of a
transmission.

Operating Manual
14
Original Operating Manual
5. Operation
5.1 General
At least once per working shift, the machine and equipment must be inspected for
visible damage and defects.
Repeat faults to your superior and have them rectified without delay.
Be aware of persons present in the area where you are working or driving and ensure
that they are not endangered.
Do not transport any load exceeding that specified on the residual load plate for the
particular combination of lift truck and attachment.
Note the load-bearing capacity of the attachment as stated on the rating plate. This
figure always represents the load carried by two or more arms.
5.2 Load handling
Set the forks as wide apart as possible for the load to be carried.
Position the mast vertically and take up the load parallel to the floor.
Always transport pallets, boxes and containers using both forks.
Drive the attachment up to the load to maximum extent.
Raise the load about 300 mm and tilt the mast backwards.
Centre the load to the middle of the lift truck during take-up and transport.
5.3 Driving
Do not drive with the mast tilted forward.
Take care when driving that neither the attachment nor the load comes into contact
with the ground.
Ensure that multiple items stacked on top of one another are securely fastened.

Operating Manual
Original Operating Manual
15
6. Maintenance and servicing
6.1 General
Regular maintenance is essential to ensure reliable operation and long service life of the KAUP
attachment.
Ensure that maintenance and servicing are performed by qualified and authorised
personnel only.
Lubrication and cleaning work on the attachment may also be performed by the lift truck
operator.
Perform maintenance and servicing work only when the attachment is parked securely
on a stable, level foundation. For installing and removing, it is recommended to use a
pallet to take the attachment. The attachment can thus be securely placed and
transported.
Pay attention to a sufficient load-carrying capacity of the lifting means.
Replace missing or defective warning signs on the attachment.
Do not use third party spare parts. Through poor quality or incorrect matching
they can result in a risk of accident. The EC Declaration of Conformity by the
manufacturer becomes invalid and you assume full responsibility in the case of
accident.
Use only original spare parts from the manufacturer.
The hydraulic system is under pressure. During work on hydraulic components
oil spurting out can cause injuries. Unload the system in accordance with the
operating instructions of the lift truck manufacturer. In the case of injuries caused
by high pressure oil, inform the works physician and seek out a specialist
immediately.
Screw connections can loosen due to vibration of the attachment. During routine
maintenance check that screw connections are correctly torqued and replace
screws which are visibly damaged.
Note the following tightening torques which are valid for screws with connecting surfaces according
to ISO 4762, ISO 4014, ISO 4032 etc.:
Screw/bolt rating
8.8
10.9
12.9
M6 thread
9,3Nm
14Nm
16Nm
M8 thread
23Nm
33Nm
39Nm
M10 thread
45Nm
66Nm
77Nm
Μ12 thread
77Nm
115Nm
135Nm
Μ16 thread
190Nm
280Nm
330Nm
Μ20 thread
385Nm
550Nm
640Nm

Operating Manual
16
Original Operating Manual
Failure of the safety devices (e.g. the pressure relief valve and the non-return
valve) and incorrect connection of the controls to the actuators can cause
malfunctioning of the attachment and damage to it.
After mounting and before initial operation, check the functions and the
identification of the attached equipment with the movement directions of the
operating elements (operating lever, joystick, etc.).
6.2 Significant modification
Significant modifications are, for example, those which affect the stability, performance, speed and
strength of components.
The EC Declaration of Conformity is invalidated by a significant modification of the attachment.
Modifications to the attachment may only be made with prior approval by the manufacturer.
6.3 Schedule for routine maintenance and lubricants
Lubricants approved and recommended by KAUP
Greases
Note
Lithium soap grease
NLGI Class 2
e.g. Avialith 2
Designation DIN51825:
K 2 K-30
Complex soap grease
NLGI Class 2
e.g. Turmogrease Gel M 5
Foundry quality
Teflon spray
e.g. Wieds or Rivolta
Only for plastic sections
The specified maintenance schedules can change as a result of the operating conditions
such as extreme cold, heat and dust or poor ground conditions and this must be taken
into account by the owner.
With other loads, such as fork arms with a length of over 2,400 mm or raised load
centres, amended/shorter maintenance intervals should be agreed by the user with the
manufacturer.

Operating Manual
Original Operating Manual
17
6.3.1 Clamp
6.3.2 Mounting (with or without sideshift)

Operating Manual
18
Original Operating Manual
Daily
Check all lines, hoses and connections for leakage and damage.
After 50h / every 500h thereafter
Check:
Screws (11) on the sideshifter housing (12).
Screws (17) on the upper hooks (18).
Screws (13) on the lower hooks (14).
Screws (19) on the spacers (20).
Replace loose or damaged screws. Torque the screws as specified in Chapter 6.1
General.
Weekly
Grease:
Sliding pieces (2) by way of the greasing nipples (1).
Sliding pieces (10) by way of the greasing nipples (9).
Supporting rollers on the lower hooks (16) as necessary.
Every 200h
Check wear on:
Sliding pieces (2).
Sliding pieces (10).
Supporting rollers (15).
As necessary
Renew worn sliders (10) by removing the hooks (14). Remove the complete. clamp
body (7)in the reverse order to that described in section 4.1. Replace the sliders (10).
During installation pay close attention that the sliders (10) are seated correctly. Then
fit the clamp as described in section 4.1.
Replace worn sliders (2) by removing nut (5) from each cylinder (6). Pull the arms to
the side to remove. Remove the greasing nipple (1) and the screws (3, 3a). Replace
the sliders (2). When installing the new sliders, make sure that the axial stops (4) are
correctly seated. Remount the screws (3, 3a) and the greasing nipple (1). Push the
arms into clamp body and reinstall nuts (5) of cylinders (6).

Operating Manual
Original Operating Manual
19
Replace defective supporting rollers (15) in the hooks (14) by removing the screws
(13). Using suitable hoisting gear tilt the clamp body (7) forwards away from the fork
carriage on the lift truck. Remove the bolts in the hooks, remove the defective
supporting rollers (15) and replace them with new ones. Remount the clamp body (7)
in the reverse order.
After installing or removing a cylinder (6), always check the clearance between the
cylinder mount and nut of the cylinder (8). Cylinders are installed with axial clearance
of 1.5 to 2 mm.
6.3.3 Clamping arms, model T403G-1L / T413 G-1L and T403G-L / T413G-L
As necessary
Replace the
worn rubber covering (1).
worn bars (2, 4, 7, 9) by removing the screws (3, 5, 6, 8).
6
7
8
9

Operating Manual
20
Original Operating Manual

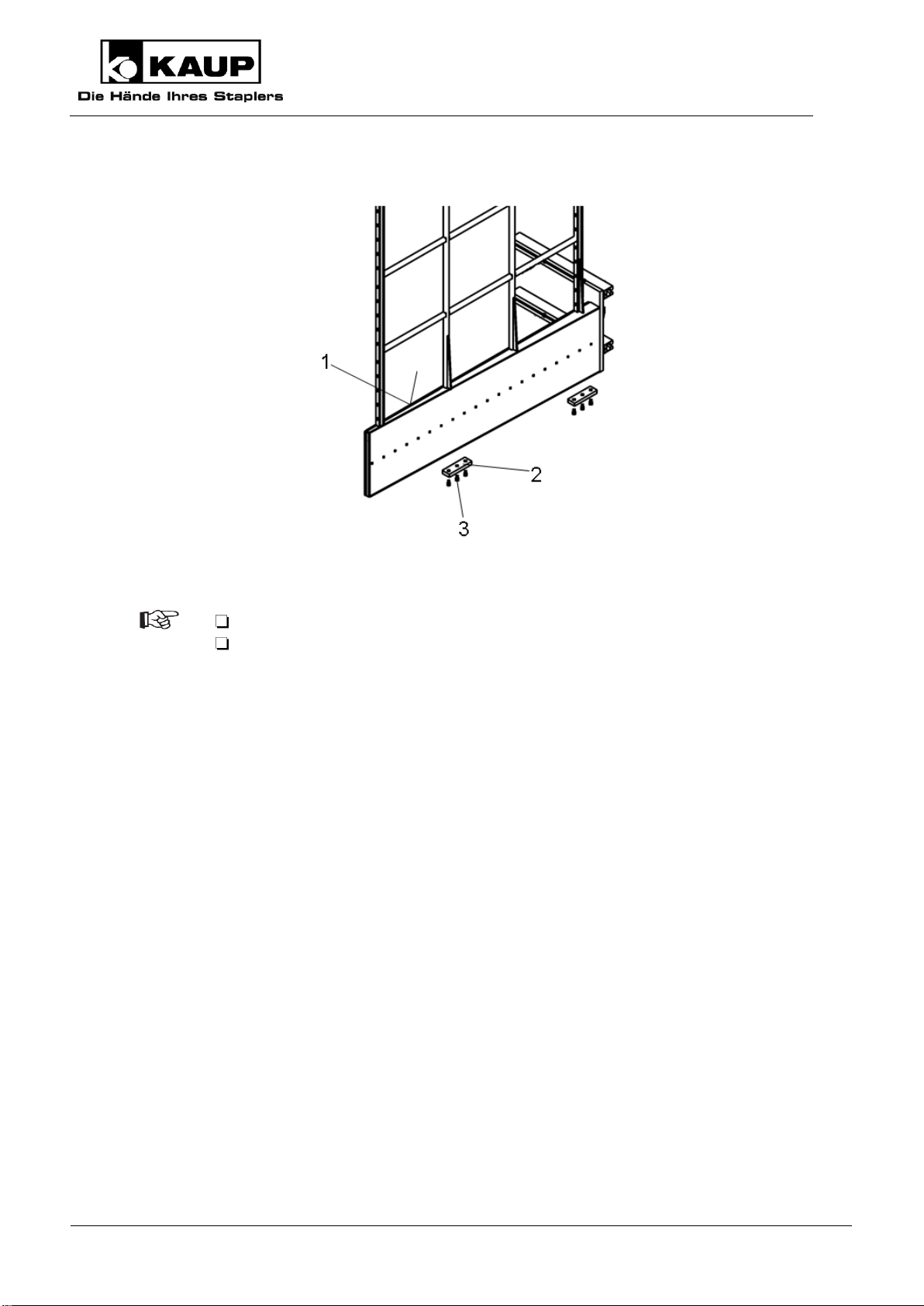

6.3.4 Right-hand or left-hand appliance/polystyrene clamp arms for T403-1 / T413-1 and T404-1 /
T414-1 models
As necessary
Replace the
worn rubber covering (1).
worn bars (2), by removing the screws (3).
