Kawai ES4/es1P User manual

Kawai Musical Instruments
Manufacturing Co., Ltd.
Manufacturing Date June 2005
ES4/es1P
Service Manual
DIGITAL PIANO
SE984E-S0512
month of issue: January 2006
Copyright © 2006 Kawai Musical Instruments Mfg. Co.,Ltd. All rights reserved.

– 2 –
■Contents
Specifications................................................................... 3
Hardware List ................................................................... 4
Opening Procedure ......................................................... 5
Case Assembly ................................................................ 6
Keyboard Unit (RG88 Type) ............................................. 7
Keyboard Disassembling Procedure ............................... 8
Electrical Parts List .......................................................... 9
P.W.B. KEP-126 (23), (24) Assembly Parts List ............ 10
P.W.B KEP-196 – 198 (1) Assembly Parts List ............ 10
P.W.B KEP-192 – 194 (1) Assembly Parts List ............ 11
P.W.B KEP-099 (4) Assembly Parts List ....................... 12

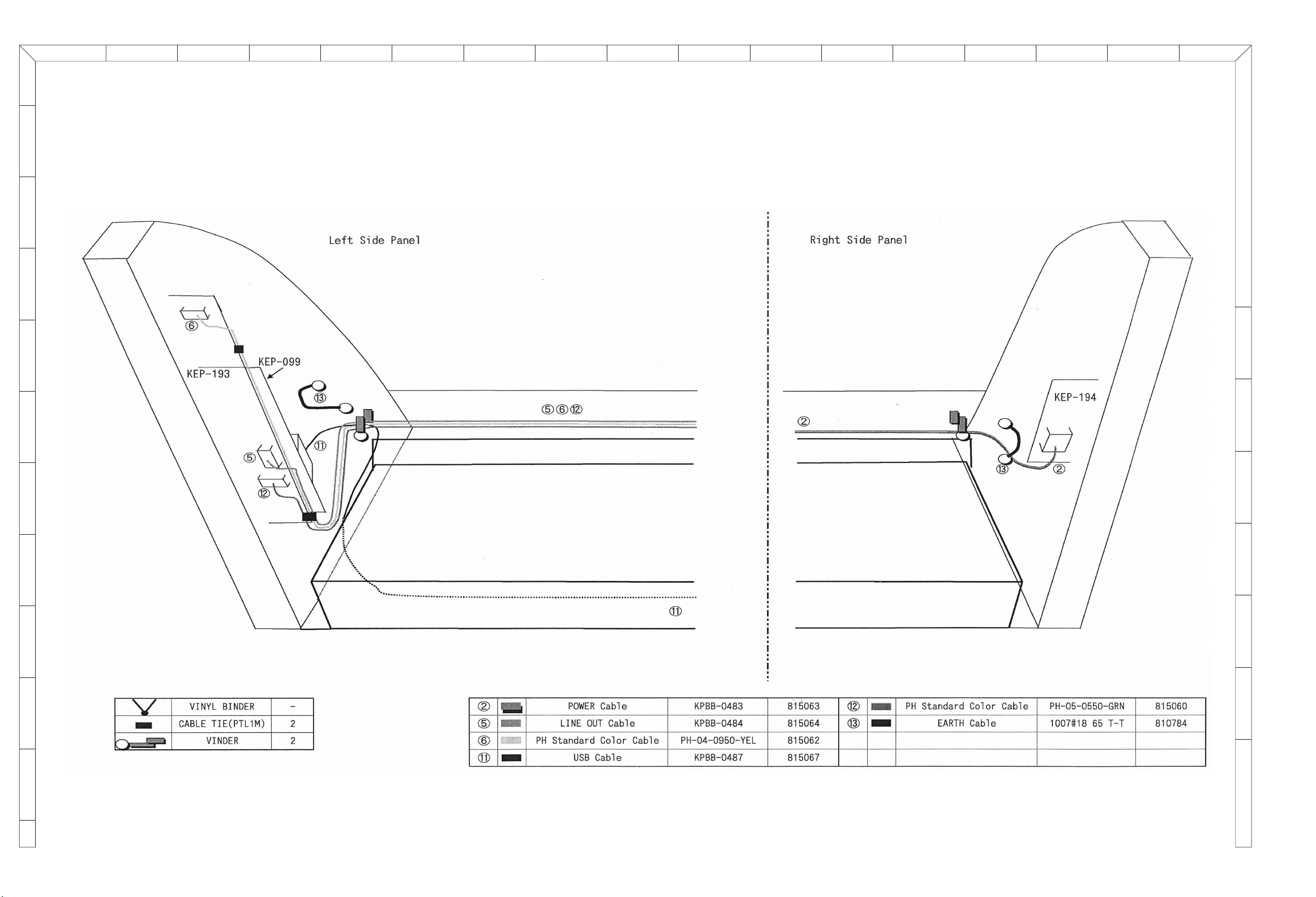

Cable Wiring Specification (1) ....................................... 13
Block Diagram ................................................................ 15

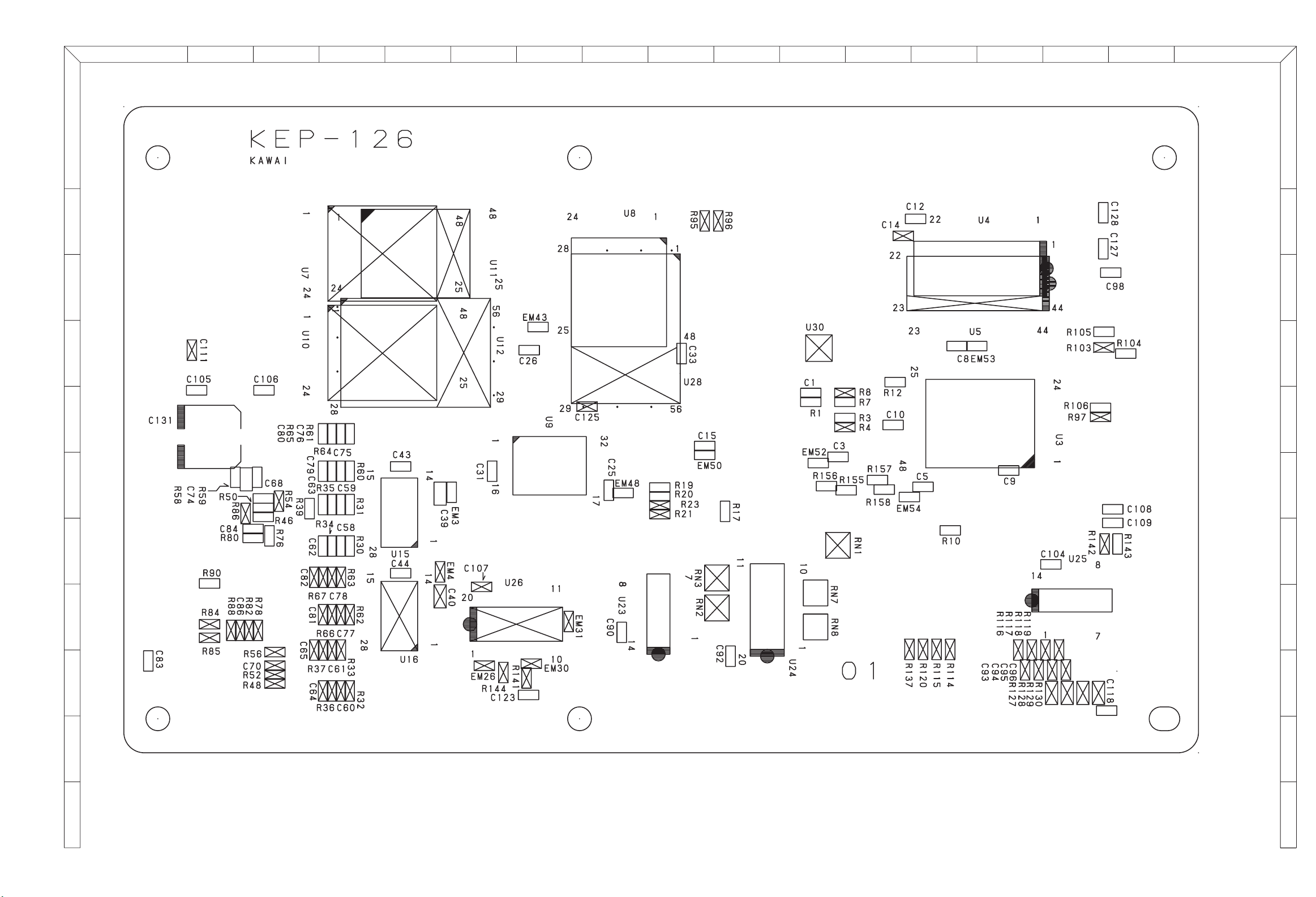

P.W.B. KEP-126 Assembly [TOP] .................................. 16

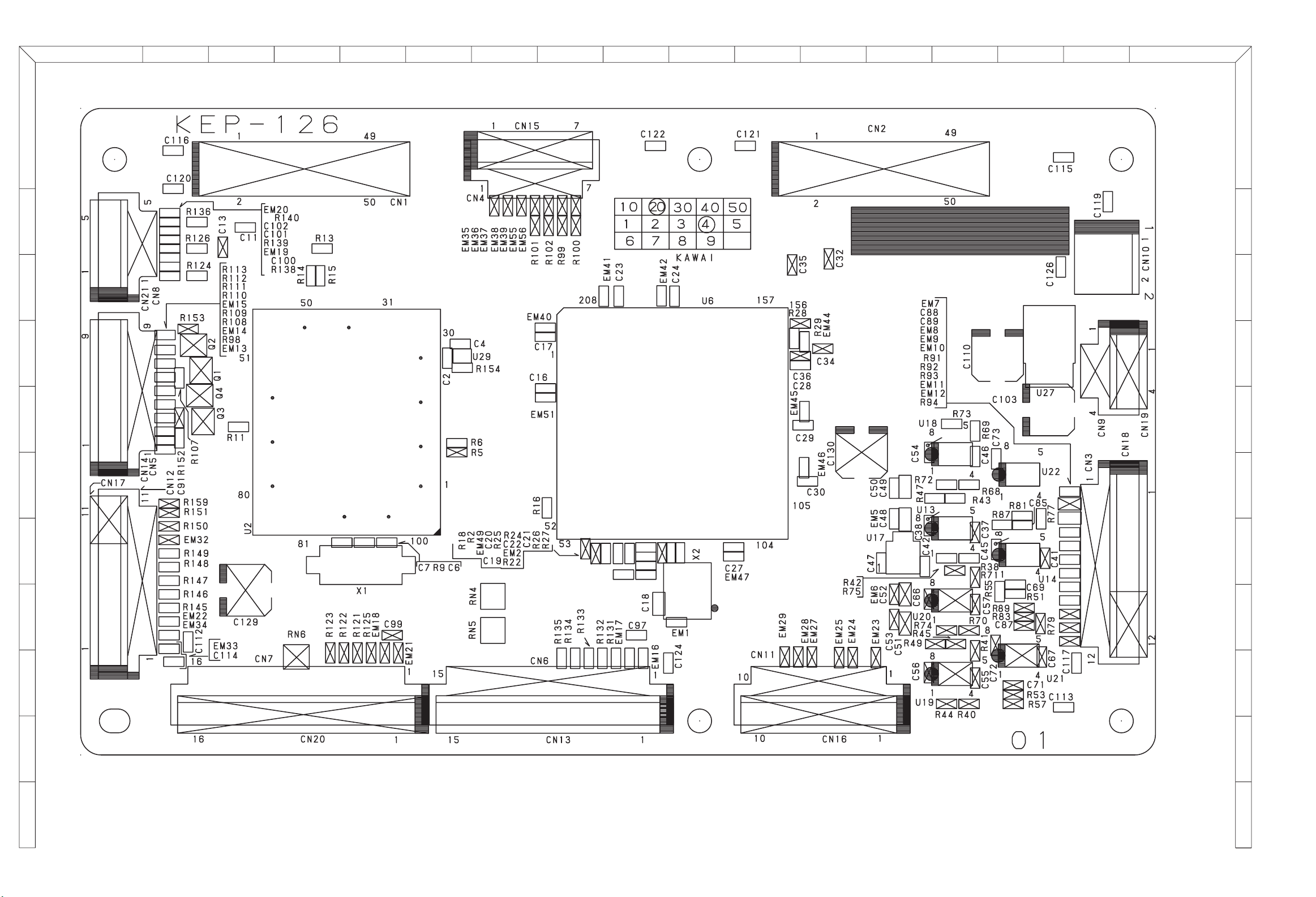

P.W.B. KEP-126 Assembly [BACK] ................................ 17

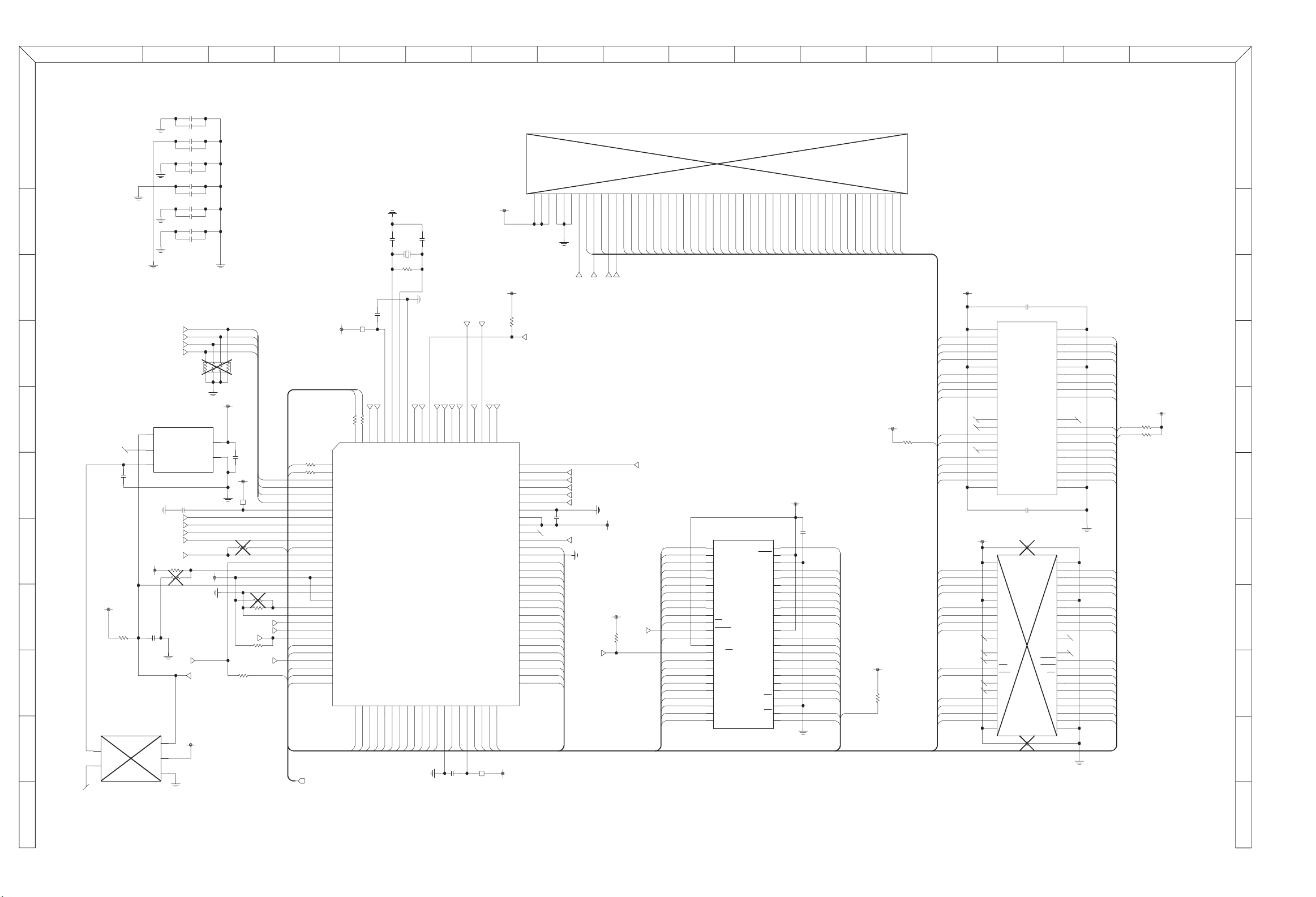

P.W.B. KEP-126 Circuit 1/4 ............................................ 18
P.W.B. KEP-126 Circuit 2/4 ............................................ 19
P.W.B. KEP-126 Circuit 3/4 ............................................ 20
P.W.B. KEP-126 Circuit 4/4 ............................................ 21
P.W.B. KEP-196 – 198 Assembly .................................. 22
P.W.B. KEP-196 – 198 Circuit ........................................ 23
P.W.B. KEP-192 – 194 Assembly 1/2 ............................ 24
P.W.B. KEP-192 – 194 Assembly 2/2 ............................ 25
P.W.B. KEP-192 – 194 Circuit 1/2 .................................. 26
P.W.B. KEP-192 – 194 Circuit 2/2 .................................. 27
P.W.B. KEP-099 Assembly ............................................. 28
P.W.B. KEP-099 Circuit .................................................. 29
P.W.B. KKB-015 Circuit .................................................. 30
Key Switch Matrix .......................................................... 31

– 3 –
■Specifications
* Specifications are subject to change without notice.
ES4 es1P
88 Keys with Advanced Hammer Action IV
Maximum 96
Piano (3), E. Piano (3), Organ (3), Piano1 (4), Piano2 (4), E.Piano (4), Organ (4)
Harpsi/Mallets (3), Strings (3), Choir/Pad (3), Harpsi (4), Strings (4), Choir/Bass (4)
Bass (3)
Chorus, Delay (3), Tremolo, Rotary (2) —
Room 1, Room 2, Stage, Hall 1, Hall 2
Equal (Piano Only), Mersenne pure (Major),
Mersenne pure (minor), Pythagorean,
Meantone, Werckmeister III, Kirnberger III,
Equal (flat), Equal
Master Volume, Dual, Split, Master Volume, Dual,
Dual/Split Balance, Transpose, Tune, Transpose, Tune, Damper Effect,
Damper Effect, String Resonance, Brilliance, String Resonance, Brilliance, EQ (3)
EQ (3), Touch Curve (Normal, Light (2), Touch Curve (Normal, Light (2),
Heavy (2), Off), Heavy (2), Off)
MIDI (16 part multi-timbral capability) MIDI (16 part multi-timbral capability)
2 Tracks, 4 Songs 2 Tracks, 4 Songs
The total memory capacity is approximately The total memory capacity is approximately
10,000 notes. 15,000 notes.
Damper (Sustain, Soft with optional foot pedal)
* F-1r: Normally closed switch
Headphone (2), LINE IN (Stereo), LINE OUT (L/MONO, R), PEDAL, MIDI (IN, OUT), USB
13W x 2
35W 30W
PS-153 15V 4A (+) Center
5 cm x 6
2” x 6
136.2 x 32.1 x 13.8 cm
54” x 13” x 5”
20.7 kg, 46 LB’s
Model
Keyboard
Polyphony
Preset Tones
Effects
Reverb
Temperaments
Other Features
Recorder
Pedal
Jacks
Output Power
Power Consumption
Adapter
Speakers
Dimensions
(W x D x H)
Weight

– 4 –
+Binding Head
P-Tite Tapping #1B-Tite S-Tite
+Truss Head +Pan Head
Machine Machine W/WahersTapping #1
■Hardware List
No. PARTS NAME Q'TY CODE No. SIZE
ES4 es1P
1 +Bind/B-Tite 3 797980 3 x 12
2 +Bind/B-Tite 4 798484 3 x 16
3 +Bind/B-Tite 37 798325 3 x 8
4 +Bind/P-Tite 12 797983 3 x 16
5 +Bind/P-Tite/Black Chromating 2 798425 3 x 10
6 +Bind/S-Tite 18 798030 3 x 8
7 +Bind/S-Tite/Black Chromating 5 812650 3 x 10
8 +Bind/Tapping #1 12 798176 3 x 35
9 +Bind/Tapping #1/Black Chromating 24 798074 3 x 12
10 +Pan/Machine Screw, w/Washers 5 812256 M5 x 20
11 +Pan/Machine Screw, w/Washers 4 797813 M5 x 25
12 +Truss/Machine Screw/Black Chromating 4 798373 M4 x 16
13 +Truss/Machine Screw/Black Chromating 5 798529 M5 x 25
14 +Truss/Tapping #1 16 797022 4 x 12
15 +Truss/Tapping #1 4 798357 4 x 14
16 +Truss/Tapping #1/Black Chromating 2 797284 4 x 8
17 Plain Washer/Black 5 797502 M3
18 +Bind/B-Tite/Black Chromating —4 797990 3 x 8
19 +Bind/P-Tite/Nickel —2 798749 2.6 x 5

A
B
C
D
E
F
G
H
I
J
K
A
B
C
D
E
F
G
H
I
J
K
1 234567891011121314151617
– 5 –

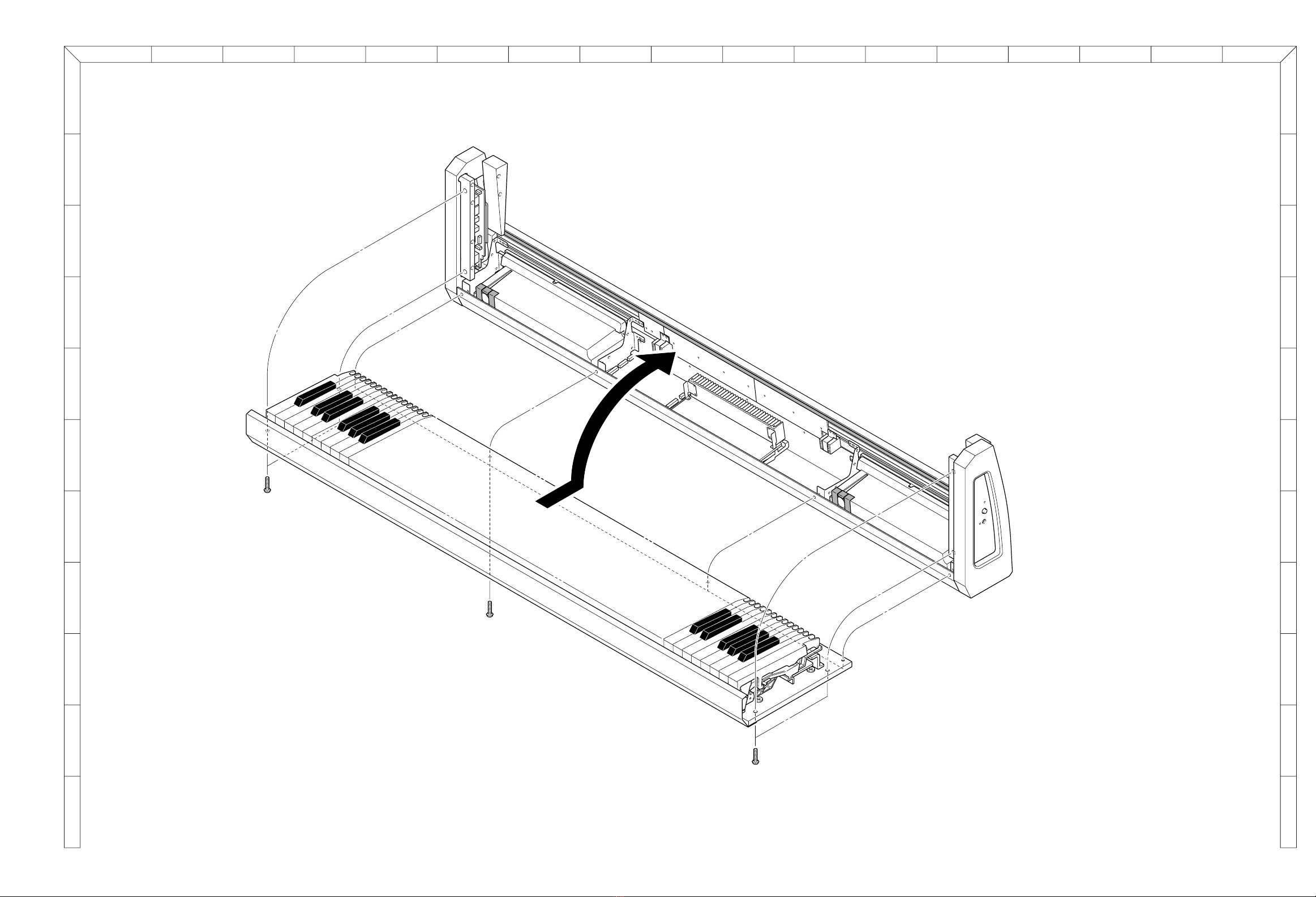

■Opening Procedure
No.11 Screw
(M5 x 25)
No.12 Screw
(M4 x 16)
No.11 Screw
(M5 x 25)
* Screw No.: Refer to Screw List

A
B
C
D
E
F
G
H
I
J
K
A
B
C
D
E
F
G
H
I
J
K
1 234567891011121314151617
–6 –
■Case Assembly NO. PARTS NAME Q'TY CODE NO.
ES4B es1PB es1PW
1 ARM L 1 815027 815027 815031
2 JACK PANEL L 1 814998 814998
3 GROUND TERMINAL 1 810784 810784
4 SUPPORT FITTING L 1 815000 815000
5 CHEEK BLOCK L 1 815033 815033 815037
6 WOOD BLOCK 1 815040 815040
7 INSERT NUT 2 815026 815026
8 ARM R 1 815028 815028 815032
9 JACK PANEL R 1 814999 814999
10 GROUND TERMINAL 1 810784 810784
11 SUPPORT FITTING R 1 815001 815001
12 CHEEK BLOCK R 1 815034 815034 815038
13 WOOD BLOCK 1 815040 815040
14 INSERT NUT 2 815026 815026
15 POWER SW KEY TOP 1 808909 808909
16 KEY BED 1 815039 815039
17 INSERT NUT 4 798510 798510
18 LEG 4 814941 814941
19 KEY SLIP 1 815002 815002 815004
20 CUSHION SPACER 2 813369 813369
21 KEY SLIP CUSHION 1 815019 815019
22 PANEL 1 814993 814993 814995
23 KEY TOP 19 815021 815021 815020
24 SLIDE VOL.KNOB 1 815024 815024 813806
25 LED COVER 1 813809 813809
26
SLIDE VOLUME COVER CLOTH 1 811034 811034
27 KEY STOP RAIL FELT 1 812440 812440 813246
28
MUSIC RACK STOPPER 2 810030 810030
29
MUSIC RACK STOPPER FITTING 2 815005 815005
30
BACK PANEL GENERAL ASSY. 1 815006 815006 815007
31 SPEAKER NET 1 815008 815008 815010
32 SPACER 5 815041 815041
33 BAFFLE BOARD L 1 815042 815042
34 BAFFLE BOARD R 1 815043 815043
35
BAFFLE BOARD CUSHION A 4 815016 815016
36
BAFFLE BOARD CUSHION B 4 815017 815017
37 SPEAKER BOX 2 815025 815025
38
SPEAKER BOX CUSHION 6 815018 815018
39 SPEAKER RING L 6 815023 815023
40 SPEAKER RING R 6 815085 815085
41
SPEAKER CABLE CUSHION 2 815022 815022
42 HEATSINK 1 812953 812953
43 HEATSINK FITTING L 1 815011 815011
44 HEATSINK FITTING R 1 815012 815012
45 PWB SPACER 1 815056 815056
46 SUPPORT FITTING L 1 815000 815000
47 SUPPORT FITTING R 1 815001 815001
48 MUSIC RACK 1 815080 —
49 MUSIC RACK 1 —815079
50 MUSIC RACK UNDER 1 —946190
51 MUSIC RACK FITTING 2 —946185
52 SPEAKER (KS05-010) 6 814992 814992
47
16
18
17
19
20
18
21
17
20
4
6
7
2
3
38
1
5
46
43
42
45
44
38
8
10
12
15
14
9
11
13
31
32
30
40
39
32
32
32
39
40
32
29
28 27
22
23
25
23
29
28
26
24
48
49
51
50
51
35
34
52
52
33
52
52
35
36
36
37
37
41
41
35
35
36
36
No.16
Screw
(4x8)
No.15
Screw
(4x14)
No.10
Screw
(M5x20)
No.3
Screw
(3x8)
No.8
Screw
(3x35)
No.8
Screw
(3x35)
No.3
Screw
(3x8)
No.6
Screw
(M3x8)
No.14
Screw
(4x12)
No.14
Screw
(4x12)
No.14
Screw
(4x12)
No.14
Screw
(4x12)
No.7
Screw
(3x10)
No.9
Screw
(3x12)
No.2
Screw
(3x16)
No.4
Screw
(3x16)
No.4
Screw
(3x16) No.4
Screw
(3x16)
No.16
Screw
(4x8)
No.13
Screw
(M5x25)
No.15
Screw
(4x14)
No.14
Screw
(4x12)
No.6
Screw
(M3x8)
No.14
Screw
(4x12)
No.3
Screw
(3x8)
No.8
Screw
(3x35)
No.5
Screw
(3x10)
No.7
Screw
(3x10)
No.2
Screw
(3x16)
No.14
Screw
(4x12)
No.8
Screw
(3x35)
No.18
Screw
(3x8)
No.18
Screw
(3x8)
No.19
Screw
(2.6x5)
No.6
Screw
(3x8)
No.3
Screw
(3x8)
No.6
Screw
(3x8)
No.6
Screw
(3x8)
No.3
Screw
(3x8)
No.6
Screw
(3x8)
No.4
Screw
(3x16)
No.9
Screw
(3x12)
No.4
Screw
(3x16)
Washer
(M3)
Washer
(M3)
Washer
(M3)
Washer
(M3)
Washer
(M3)
No.6
Screw
(3x8)
No.6
Screw
(3x8)
No.6
Screw
(3x8)
No.6
Screw
(3x8)
No.6
Screw
(3x8)
No.6
Screw
(3x8)
No.6
Screw
(3x8)
No.6
Screw
(3x8)
KEP-099
KEP-193
KEP-126
KEP-192
KEP-196
KEP-197
KEP-198
KEP-194
* Screw No.: Refer to Screw List

A
B
C
D
E
F
G
H
I
J
K
A
B
C
D
E
F
G
H
I
J
K
1 234567891011121314151617
–7 –
17
13
12
16
10
15
14
15
14 11
1
5
6
2
18
7 8
3
4
9
■Keyboard Unit (RG88 Type)
<Keyboard Parts List>
No. Code No. Parts Name Description Q’ty
814849 Complete Keyboard Unit 1
1 814651 White Key (C) 7
814652 White Key (D) 7
814653 White Key (E) 7
814654 White Key (F) 7
814655 White Key (G) 7
814656 White Key (A) 7
814657 White Key (B) 8
814658 White Key (AA) lowest A key 1
814659 White Key (CC) highest C key 1
2 814660 Black Key 36
3 814661 Chassis (A-G#) 7
814662 Chassis (A-C) 1
4 947901A Rib Assy 8
5 814650 Guide Spacer 16
6 947902 Front Rail 1
7 947903 Stopper Rail 1
8 947904 Switch Rail 1
9 947905 Back Rail 1
No. Code No. Parts Name Description Q’ty
10 947907A Hammer Assy (White Key Low) Key No. 1- 15 9
947908A Hammer Assy (White Key Mid-Low) Key No. 16- 32 10
947909A Hammer Assy (White Key Mid-High) Key No. 33- 63 18
947910A Hammer Assy (White Key High) Key No. 64- 88 15
947911A Hammer Assy (Black Key Low) Key No. 1- 15 6
947912A Hammer Assy (Black Key Mid-Low) Key No. 16- 32 7
947913A Hammer Assy (Black Key Mid-High) Key No. 33- 63 13
947914A Hammer Assy (Black Key High) Key No. 64- 88 10
11 814664 Slip Tape 88
12 814665 Guide Tape 88
13 813171 Key Stopper Cushion 1
14 814666 Stopper Felt 2
15 814667 Hammer Upper-Limit Cushion 1
16 814668 Hammer Lower-Limit Cushion 1
17 237347 PWB, KKB-015 Assy 1
800760 IC (Decoder) 74HC138P 3
807339 Diode 1S2076A 176
18 813175 Rubber Contact F-E (12-cup) 8

A
B
C
D
E
F
G
H
I
J
K
A
B
C
D
E
F
G
H
I
J
K
1 234567891011121314151617
–8 –
22
1
1
1
open
Snap Ring pliers
grasp
WHITE KEY
Fulcrum point
2BLACK KEY
Stopper Fulcrum point
Stopper Fulcrum point
■Keyboard Disassembling Procedure
First, remove the keyboard fixing screws (10 pcs.) at the bottom of the piano and slide the Keyboard unit backward.
<How to take a key off>
1.Spread the key at fulcrum point and lift it up. (We recommend to use Snap Ring pliers.
If not available, use a flat blade (tapered) screwdriver.)
2.Pull the key off. (Pay attention to the stopper.)
* To remove a black key, the white keys on either side must be removed first.
<How to take a hammer off>
1.Lift the hammer at the fulcrum point.
2.Pull the hammer off.

– 9 –
Code No. Parts Name Q'ty Parts Number Remarks Model
237806 P.W.B. Assy 1 KEP-126 (23) CPU ES4
237807 P.W.B. Assy 1 KEP-126 (24) CPU es1P
237808 P.W.B. Assy 1 KEP-196 – 198 (1) PANEL
237809 P.W.B. Assy 1 KEP-192 – 194 (1) ANALOG
237810 P.W.B. Assy 1 KEP-099 (4) USB/MIDI
237347 P.W.B. Assy 1 KKB-015 (1) KEYBOARD
805062 PH Standard Color Cable 1 PH-04-0950-YEL AMP-JACK
947667 PH Standard Color Cable 1 PH-09-0150-WHT CPU-AMP
815061 PH Standard Color Cable 1 PH-06-0200-BLU AMP-PANEL
942695 PH Standard Color Cable 1 PH-08-0250-GRY CPU-PANEL
815060 PH Standard Color Cable 1 PH-05-0550-GRN CPU-JACK
815068 CPU POWER Cable 1 AMP-CPU
815063 POWER Cable 1 INLET-AMP
815065 SP Cable R 1 AMP-SP
815066 SP Cable L 1 AMP-SP
815064 LINE OUT Cable 1 AMP-JACK
815059 KEYBOARD Cable 1 CPU-KEYBOARD
815067 USB Cable 1 CPU-USB/MIDI
810784 EARTH Cable 1 1007#18 65 T-T INLET-EARTH
814987 AC adaptor 1 PS-153 15VDC 4A (+) CENTER
809168 AC Cable 1 DC-354-J12 es1P
815340 AC Cable 1 US SZC7S ME301P ES4 (US,GE120)
809170 AC Cable 1 EC-511-E07 ES4 (CD,GE230)
809171 AC Cable 1 SC-078-J02 ES4 (AU)
813178 AC Cable 1 2P FOR BS 2.5M BA ES4 (CG)
■Parts List
Electrical Parts List

– 10 –
KEP-196 (VOLUME)
813787 SLIDE VOLUME 1 RS30112 VR1
804578 Connector 1 S6B-PH-K-S CN2
KEP-197 (PANEL)
812220 IC(HCMOS) 1 74HC166P U1
808457 IC(HCMOS) 3 74HC595P U2,3,4
805851 Transistor 7 DTC143TS Q1,2,3,4,5,6,7
810922 LED DISPLAY 1 LB-203ML LED1,
813111 LED 10 3105VRT LED2,3,4,5,6,7,8,9,10,11
800625 DIODE 10 1SS133T-77 D1,2,3,4,5,6,7,8,9,10
808345 SWITCH 10 KSH0612AT SW1,2,3,4,5,6,7,8,9,10
804580 CONNECTOR 1 S8B-PH-K-S CN1
809434 Cable Holder 1 51048-0900 CN4
KEP-198 (PANEL)
813111 LED 7 3105VRT LED14,15,16,17,18,19,20
800625 DIODE 9 1SS133T-77 D11,12,13,14,15,16,17,18,19
808345 SWITCH 9 KSH0612AT SW11,12,13,14,15,16,17,18,19
809434 Cable Holder 1 51048-0900 CN3
945265 Panel Joint Cable 1
Code No. Parts Name Q'ty Parts Number Parts Address
812979 CPU 1 KP430-F7FP (MB91F109PF-G) U2
814414 TG 1 K022-FP MB87L8040 U6
814435 RESET IC 1 BD5245 FVE-TR U29
810368 REGULATOR 1 NJM78L05UA-TE1 U17
812219 OP-AMP 6 NJM4580E-T1 U13,14,18,22
813047 REGULATOR 1 µPC2933AT-E1 U27
814447 FLASH ROM 1 KP461-F9FP (A29L160HTV-70) U3 (ES4 model)
814447 FLASH ROM 1 KP462-F9FP (A29L160HTV-70) U3 (es1P model)
814418 DRAM 1 IC41LV16257-35T-EL U4
814416 SRAM 1 UT62L2568LS-70LL UT62L2568LS-70LLI U9
814981 ROM 1 KP459-MDFW MR27V12800J U8
814074 DAC 2 AK4393VF-E2 U15
812217 LOGIC 2 TC74HCT7007AF-TP1 U23,25
804056 LOGIC 1 HD74HC245FPEL U24
812958 X'tal Oscillator 1 DSO751SV 33.8688MHz X2
812722 X'tal Oscillator 1 SMD-49 12.5MHz CX-49G 12.5MHz X1
813358 Chip Bead 27 BLM18AG601SN1D EM1,2,5,8,9,10,13,14,15,16,17,19,20,
22,33,34,40,41,42,44,45,46,47,49,51
R16,93
P.W.B. KEP-126 (23), (24) Assembly Parts List
Code No. Parts Name Q'ty Parts Number Parts Address
P.W.B KEP-196 – 198 (1) Assembly Parts List

– 11 –
P.W.B KEP-192 – 194 (1) Assembly Parts List
KEP-192 (AMP)
800676 IC 2 M5218AP U2,4
812222 IC 1 LA6517 U3
811018 IC 1 PST600C U1
812950 IC 1 TA8221AH U6
807032 IC 1 PQ05RD11 U5
812125 Transistor 2 2SC3792 Q4,5
812527 Transistor 12 2SC5395 Q2,6,7,8,9,10,11,12,13,14,16,17
810851 Transistor 2 DTC143ES Q1,15
808973 Transistor 1 DTA114ES Q3
800625 Diode 2 1SS133 D2,3
807082 Zener Diode 1 HZS6C3 D1
805989 Zener Diode 1 HZS4ALL D4
811717 Retaldant Resistor 4 RDF50SS 2R2J R89,90,91,92
810861
Metal Oxide Resistor 1 RSS2 L15 2R7J R88
809432 Metal Film Resistor 2 CRB20 FX3301 R1,2
809242 Ceramic Capacitor 2 UP050SL220J C9,10
809252 Ceramic Capacitor 6 UP050B102K C13,36,37,49,53,54
806466 Ceramic Capacitor 3 UP050F104Z C18,27,46
805921
Electrolytic Capacitor 4 ECA1HM010B C5,7,51,52
809769
Electrolytic Capacitor 6 ECEA1EKS4R7B C1,2,6,8,11,12
805923
Electrolytic Capacitor 6 ECA1CM100B C3,4,40,41,55,56
807028 Electrolytic Capacitor 6 ECA1CM101B C14,16,38,39,42,50
805926
Electrolytic Capacitor 1 ECA1CM221B C57
707333 Electrolytic Capacitor 1 ECA1EM102B C45
807403
Electrolytic Capacitor 1 ECA1EM222B C56
809125 Film Capacitor 4 ECQ-V1H 104JL C59,60,61,62
812961 IC Protecter 1 ICP-N10 F1
807413 Connector 1 B2P-VH CN5
803428 Connector 1 B3P-VH CN8
802906 Connector 1 B4P-VH CN7
802908 Connector 1 B6P-VH CN6
804571 Connector 1 B4B-PH-K-S CN4
805737 Connector 1 B6B-PH-K-S CN2
804573 Connector 1 B7B-PH-K-S CN3
805827 Connector 1 B9B-PH-K-S CN1
KEP-193 (JACK)
812297 Retaldant Resistor 4 CFPS1/2CT26A680J R95,96,97,98
809252 Ceramic Capacitor 15 UP050B102K C66,67,68,69,70,71,72,73,74,
75,76,77,78,79,80
804571 Connector 1 B4B-PH-K-S CN10
804572 Connector 1 B5B-PH-K-S CN9
804573 Connector 1 B7B-PH-K-S CN11
803439 Phone Jack 2 YKB21-5074 JA4,5
802576 Phone Jack 3 YKB21-5006 JA1,2,6
805867 Phone Jack (MINI) 1 YKB21-5101A JA3
809852 Slide Switch 1 SSSF122-S06N0 SW1
815057 Poly Switch 1 RUEF300 F2
Code No. Parts Name Q'ty Parts Number Parts Address Model

– 12 –
KEP-194 (POWER SW)
815073 Diode 1 SF5S4-7100 D5
814982 DC Jack 1 LGP7031-1200C JA7
803428 Connector 1 B3P-VH CN12
813212 Push Switch 1 SDKLA-AP SW2
813940 Screw Terminal 1 TP00799-23
Code No. Parts Name Q'ty Parts Number Parts Address Model
P.W.B KEP-099 (4) Assembly Parts List
KEP-099 (USB/MIDI)
814016 IC 1 M38K07M4-056HP U2
808932 IC 1 PC400T U3
811645 IC 1 PST575CMT U1
810920 Transistor 2 DTC143EKA Q1,2
809834 Diode 1 HSK120TR D1
813928 X’tal Resonator 1 SMD-49 6.0MHz
CX-49G 6.0MHz X1
809845
Electrolytic Capacitor 1 ECEV1CS100SR C1
813358 Chip Bead 3 BLM18A601SPT EM1,2,3
813937 Chip Bead 2 BLM21PG600SN1 EM4,7
813938 Chip Bead 2 BLM18BB121SN1 EM5,6
808473 MIDI Jack 1 YKF51-5053 JA1
813805 USB Connecter 1 YKF45-0002 J1
805827 Connector 1 B9B-PH-K-S CN1
813940 Screw Terminal 1 TP00799-23
Code No. Parts Name Q'ty Parts Number Parts Address Model

– 13 –
21
A
B
A
C
D
E
F
G
H
173 4 5 6 7 8 9 10 11 12 13 14 15 16
B
C
D
E
F
G
H
I
J
■Cable Wiring Specification (1)

– 14 –
21
A
B
A
C
D
E
F
G
H
173 4 5 6 7 8 9 10 11 12 13 14 15 16
B
C
D
E
F
G
H
I
J
■Cable Wiring Specification (1)

– 15 –
21
A
B
A
C
D
E
F
G
H
173 4 5 6 7 8 9 10 11 12 13 14 15 16
B
C
D
E
F
G
H
I
J
■Block Diagram

A
B
C
D
E
F
G
H
I
J
K
A
B
C
D
E
F
G
H
I
J
K
21 34567891011121314151617
– 16 –
■P.W.B. KEP-126 Assembly [TOP]
B5B-PH
102C
104C
102R
102R
B601
102R
103R
103R
104C
103R
103R 103R
B9B-PH
102R
102R
B601
B601
332R
105R
104C
222R
102R
102R
102R
102C
B601
B601
B601
104C
102R 102R
4580
4580
D125
150C 105R 150C
B15B-PH
102R
150C
B9B-PH
103103
102R 102R 102R 102R B601 B601
104C
B601
104C 103R
0R0R
0R0R
103R
102C
101R
104C
B601
104C
225C
B601
V33.868
103C
103R
PF
0R0R
B601
104C
B601
104C
104C
B601
B601
B601
B601B601
104C
104C
104C
104C
104C
0R0R
B601
104C 102C
102C
102C
104C
104C
B2P-VH
102C
100uF 6.3V
100uF
6.3V
2933
102R
102R
102R
332R
102R 102R
0R0R
332R
102C
102C
332R
0R0R
225C
B601
B601
B601
332R
332R
B601
104C
225C
B601
225C
105C
105C
0R0R
332R
0R0R
104C
104C
4580
4580
8C
104C
KP463-F7F
K022-FP
104C
103R
105R
8C:NJM78L05UA
B601:BLM18AG601SN1D
PF:BD5245FUE
Ｒ３８，４２，４３，４７，５１，６８，６９，７２，７３，７７，８１ ： Ｒｅｓｉｓｔａｎｃｅ Ｔｏｌｅｒａｎｃｅ ±１％
B8B-PH
B601
102C
102C
102C
102R
222R
102R
222R
B601
102R
B601

A
B
C
D
E
F
G
H
I
J
K
A
B
C
D
E
F
G
H
I
J
K
21 34567891011121314151617
– 17 –
■P.W.B. KEP-126 Assembly [BACK]
１０４Ｃ １０４Ｃ
１０２Ｃ
100μF/6.3V
３３２Ｒ
３３２Ｒ
１０２Ｃ
３３２Ｒ
３３２Ｒ
104R
106C
104R
１０２Ｒ
３３２Ｃ １０２Ｒ ３３２Ｃ
１０２Ｒ
３３２Ｃ
１０２Ｒ
３３２Ｃ
１０２Ｒ
３３２Ｃ １０２Ｒ ３３２Ｃ
１０２Ｒ
３３２Ｃ １０２Ｒ ３３２Ｃ
１０２Ｒ
１０３Ｒ
１０２Ｃ
105C
105C
ＡＫ４３９３
２２５Ｃ
Ｂ６０１
Ｂ６０１
１０４Ｃ
KP459-MDFW
１０４Ｃ
ＵＴ６２Ｌ２５６８ＬＳ−７０ＬＬ
１０４Ｃ
Ｂ６０１
Ｂ６０１
0R0R
0R0R
１０４Ｃ
Ｂ６０１
１０４Ｃ
１０４Ｃ
７４ＨＣＴ７００７
７４ＨＣ２４５
１０１ １０１
１０２Ｃ
１０２Ｒ １０３Ｒ
１０３Ｒ
１０３Ｒ
１０４Ｃ
１０４Ｃ
Ｂ６０１
１０１Ｒ
１０１Ｒ
１０１Ｒ
１０１ＲＢ６０１
１０３Ｒ
１０４Ｃ
105C
１０３Ｒ
１０２Ｒ
１０４ＣＢ６０１
GLT440L16-35TC
１０４Ｃ
105C
１０４Ｃ
KP461-FAFP
0R0R
１０４Ｃ
３３２Ｒ
７４ＨＣＴ７００７
１０４Ｃ
１０２Ｃ
１０４Ｃ
Ｂ６０１ ： ＢＬＭ１８ＡＧ６０１ＳＮ１Ｄ
Ｒ３０，３１，３４，３５，３９，４６，５０，６０，６１，６４，６５，７６，８０ ： Ｒｅｓｉｓｔａｎｃｅ Ｔｏｌｅｒａｎｃｅ ±１％
１０４Ｃ
３３２Ｒ
0R0R

A
B
C
D
E
F
G
H
I
J
K
A
B
C
D
E
F
G
H
I
J
K
21 34567891011121314151617
– 18 –
■P.W.B. KEP-126 Circuit 1/4
VCC
I/O0
I/01
I/O2
I/O3
VCC
I/O4
I/O5
I/O6
I/O7
NC
NC
NC
WE
RAS
NC
NC
A0
A1
A2
A3
VCC GND
A4
A5
A6
A7
A8
A9
OE
UCAS
LCAS
NC
NC
I/O8
I/O9
I/O10
I/O11
GND
I/O12
I/O13
I/O14
I/O15
GND
VCC
I/O1
I/O2
I/O3
I/O4
VCC
I/O5
I/O6
I/O7
I/O8
NC
NC
-WE
-RAS
NC
A0
A1
A2
A3
VCC VSS
A4
A5
A6
A7
A8
-OE
-UCAS
-LCAS
NC
I/O9
I/O10
I/O11
I/O12
VSS
I/O13
I/O14
I/O15
I/O16
VSS
FG2
FG3
FG5
PB2/CS0H
PB3/DW0X
EOP4/PB4/RAS1
DREQ2/PB5/CS1L
DACK2/PB6/CS1H
PB7/DW1X
VCC3
PA6/CLK
PA5/CS5X
PA4/CS4X
EOP1/PA3/CS3X
PA2/CS2X
PA1/CS1X
CS0X
NMIX
HSTX
RSTX
VSS
MD0
MD1
MD2
P80/RDY
P81/BGRNTX
P82/BRQ
RDX
WR0X
P85/WR1X
P20/D16
P21/D17
P22/D18
P23/D19
P24/D20
P25/D21
P26/D22
P27/D23
D24
D25
D26
D27
D28
D29
D30
VSS
D31
A00
VCC5P
A01
A02
A03
A04
A05
A06
A07
A08
A09
A10
A11
A12
A13
A14
A15
A16/P60
A17/P61
A19/P63
A18/P62
A20/P64
A21/P65
VSS
A22/P66
A23/P67
A24/EOP0
AVCC
AVRH
AVSS/AVRL
AN0
AN1
AN2
AN3
SI0/PF0
SO0/PF1
SC0/PF2/OCPA3
SI1/PF3
SO1/PF4
SI2/PF5/OCPA1
SO2/PF6/OCPA2
PF7/OCPA0
DACK1/PE7
DACK0/PE6
DREQ1/PE5
DREQ0/PE4
INT3/PE3/SC2
INT2/PE2/SC1
VSS
X1
X0
VCC5
INT1/PE1
INT0/PE0
RAS0/PB0
CS0L/PB1
WE
A15
A14
A13
A12
A11
A10
A9
A8
N.C.
N.C.
RESET
N.C.
N.C.
RY/ BY
A18
A17
A7
A6
A5
A4
A3
A2
A1 A0
CE
VSS
OE
DQ0
DQ8
DQ1
DQ2
DQ3
DQ9
DQ10
DQ11
VCC
DQ4
DQ5
DQ6
DQ7
DQ12
DQ13
DQ14
DQ15/A
VSS
BYTE
A16
VOUT
VDD
GND
C.T.
N.C.
3G
3G
3G
3G
3G
3G
3G
3G
3G
3G
3G
3G
3G
3GFG
3G
VOUT
SUB
C.T.
GND
VDD
FG1
FG4
3G
C1
C2
C3
C5
C6 C7
C8
C9
C10
C11
C12
R1
R6
R9
R10
R11
R12
R13
R14
R15
C113
C114
C115
C116
R3
R154
C121
C123
C117
C118
C119
C120
C122
C124
RN1
EM54
EM52
EM53
R156
R155
R158
R157
C4
X1
CN1
C13
U5
C14
R5
R4
R8
R7
U30
U3
U29
U4
U2
104C/25V
104C/25V
103R
103R
103R
103R
104C/25V
104C/25V
0R0R
104C/25V
102R
102C/50V
104C/25V
104C/25V
104C/25V
150C/50V 150C/50V
105R
103R
103R
102C/50V
102C/50V
102C/50V
102C/50V
103R
103R
102C/50V
102C/50V
104C/25V
104C/25V
104C/25V
104C/25V
104C/25V
104C/25V
MNR14E0ABJ472
B601
B601
B601
101R
101R
101R
101R
103C/50V
SMD-49
D125
XX
XX
XX
16M
XX
XX
XX
103R
XX
BD5245G
4.5V
A29F160TV-70
BD5245FVE
GLT440L16-35TC
MB91F109
(4-5J)
(4-5J)
(4-7E)
(4-5J)
(4-5J)
(4-12B)
(4-14B)
(4-14I)
(4-7E)
(3-14I)
(3-14I)
(3-14I)
(4-5I)
(4-2F)
(4-1J)
(4-2F)
(4-5I)
(4-5I)
(4-2F)
(4-1J)
(4-1I)
(4-12A)
(4-12A)
(2-1A)
(1-9H)
(2-13J)
(2-13F)
(1-9H)
(1-8C)
(4-12I)
(2-1D)
(2-13I)
(2-16D)
(2-13F)
(4-2F)
(4-14B)
(4-14B)
(1-9C)
(1-9C)
(1-8C)
(3-14J)
(4-7E)
(4-1I)
(4-12B)
(4-12I)
(1-2I)
(1-8C)
(4-12I)
(2-1D)
(2-13I)
(2-16D)
(2-13F)
(4-12A)
(4-2F)
(4-2F)
(3-1H)
(1-2I)
(1-2G)
(1-4I)
(1-2I)
(1-9H)
(4-12I)
(2-1D)
(2-13I)
(2-16D)
(2-13F)
(1-6E)
(2-13J)
(2-13F)
3.3V
LDB4
LDB6
LDB7
LDB5
AN0
3.3V
5V
3.3V
3.3V
3.3V
3.3V
CPU_BUS
3.3V
3.3V
3.3V
3.3V
RY-BY
RST3
RST3
3.3V
3.3V
AN1
AN2
AN3
SOSTE
CS0X
CS1X
PNLS/L
PNLRCK
PNLG
WR1X
PNLCK
PNLIN
MIN
MOUT
LCDE
LCDRW
LCDRS
HPMUTE
SPMUTE
3.3V
P67PA3
PNLOUT
USBI
USBO
3.3V
SOFT
PA4
3.3V
3.3V
CS0X
CS1X
HP-IN
PF7
WR1X
RST3
RY-BY
TGRST
3.3V
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22 23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
12
12
12
12
12
12
12
1
2
1
2
12
12
12
12
12
1
21
2
1
2
3
4
5
6
7
8
1212
12
1
2
1
2
1
2
1
2
12
1
2
123456789
1011 121314 1516171819 2021222324 2526272829 303132 3334353637 3839404142 434445 4647484950
12
12
1
2
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22 23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
12
12
12
12
1
2
3
4
5
12
12
12
12
12
12
12
12
12
1
2
12
12
12
12
1
2
1
2
12
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
3132 3334 353637 383940 4142434445 4647484950
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81828384858687888990919293949596979899
100
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24 25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
1
2
3
4
5
D19
D20
D21
D22
D23
D24
D25
D26
D27
D28
D29
D30
D31
D16
D17
D18
A1
A2
A3
A4
A0
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
A20
A21
A22
LDB4
LDB5
LDB6
LDB7
LDB4
LDB5
LDB6
LDB7
A1
A2
A3
A4 A5
A6
A7
A8
A9
D24
D25
D26
D27
D28
D29
D30
D31 D16
D17
D18
D19
D20
D21
D22
D23
WR0X
RDX
RDX
CASL
CASL
CASH
CASH
RASRAS
CSFLR
D16
D17
D18
D19
D20
D21
D22
D23D24
D25
D26
D27
D28
D29
D30
D31
DW0X
RAS
A1
A2
A3
A4 A5
A6
A7
A8
A9
A10
RDX
CASH
CASL
A1A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16 A17
A18
A19
A20
A21
A22
D16
D17
D18
D19
D20
D21
D22
D23
D24
D25
D26
D27
D28
D29
D30
D31
WR0X
CSTGCSFLR
CSFLR
RDX
RDX
WR0X
D16
D17
D18
D19
D20
D21
D22
D23
D24
D25
D26
D27
D28
D29
D30
D31
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
A20
A21
A22
CSFLR
CASH
CASL
RAS
DW0X
DW0X
KP461-FAFP(ES4)
KP462-FAFP(es1P)
KP463-FAFP
KP464-FAFP
(ES4)
(es1P)

– 19 –
2
B
A
C
D
E
F
G
H
I
J
B
A
C
D
E
F
G
H
I
J
3 4 5 6 7 8 9 10 11 12 13 14 15 16 171

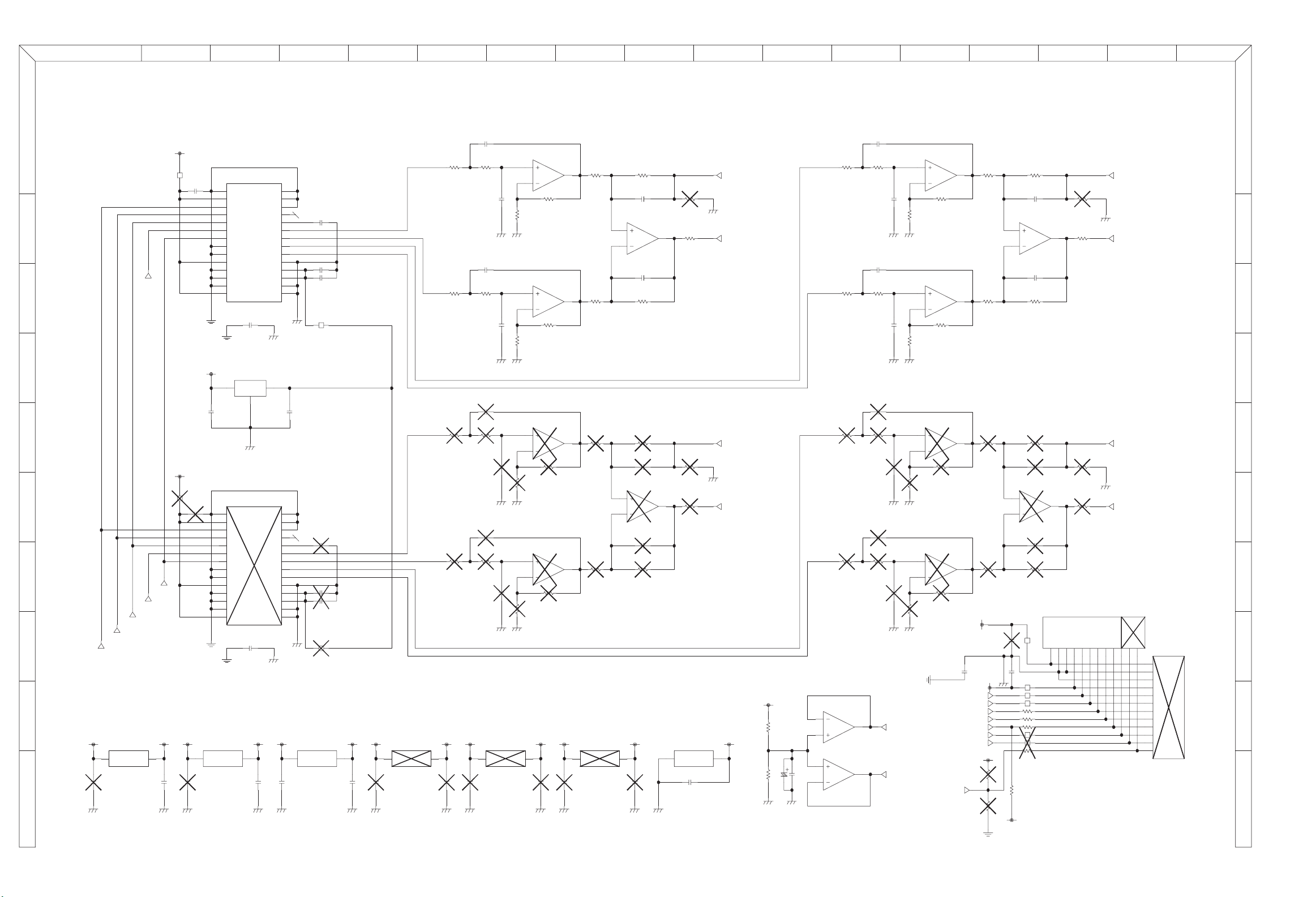

■P.W.B. KEP-126 Circuit 2/4
3G
3G
3G
3G
3G
BYTE
A16
A15
A14
A13
A12
A11
A10
A9
A8
A19
A21
A20
A18
A17
A7
A6
A5
A4
A3
A2
A1
A0
CE
VSS
VSS
D15/A-1
D7
D14
D6
D13
D5
D12
D4
VCC
VCC
D11
D3
D10
D2
D9
D1
D8
D0
OE
VSS
VSS
A22
BYTE
A16
A15
A14
A13
A12
A11
A10
A9
A8
A19
A21
A20
A18
A17
A7
A6
A5
A4
A3
A2
A1
A0
CE
VSS
VSS
D15/A-1
D7
D14
D6
D13
D5
D12
D4
VCC
VCC
D11
D3
D10
D2
D9
D1
D8
D0
OE
VSS
VSS
A22
BYTE
A16
A15
A14
A13
A12
A11
A10
A9
A8
A19
A21
A20
A18
A17
A7
A6
A5
A4
A3
A2
A1
A0
CE
VSS
VSS
D15/A-1
D7
D14
D6
D13
D5
D12
D4
VCC
VCC
D11
D3
D10
D2
D9
D1
D8
D0
OE
VSS
VSS
A22
A11
A9
A8
A13
WE
CE2
A15
VCC
A17
A16
A14
A12
A7
A6
A5
A4 A3
A2
A1
A0
I/O1
I/O2
I/O3
GND
I/O4
I/O5
I/O6
I/O7
I/O8
CE1
A10
OE
NC
A15
A14
A13
A12
A11
A10
A9
A8
A19
A20
WE#
RESET#
A21
RY/BY#
A18
A17
A7
A6
A5
A4
A3
A2
A1
NC
NC
NC
A0
CE#
VSS
OE#
DQ0
DQ8
DQ1
DQ9
DQ2
DQ10
DQ3
DQ11
DQ4
DQ12
DQ5
DQ13
DQ6
DQ14
DQ7
DQ15/A-1
VSS
BYTE#
A16
NC
NC
A22
WP#/ACC
(NC)
VDD
NC
A15
A14
A13
A12
A11
A10
A9
A8
A19
A20
WE#
RESET#
A21
RY/BY#
A18
A17
A7
A6
A5
A4
A3
A2
A1
NC
NC
NC
A0
CE#
VSS
OE#
DQ0
DQ8
DQ1
DQ9
DQ2
DQ10
DQ3
DQ11
DQ4
DQ12
DQ5
DQ13
DQ6
DQ14
DQ7
DQ15/A-1
VSS
BYTE#
A16
NC
NC
A22
WP#/ACC
(NC)
VDD
3G
CONT
GND OUT
VDD
3G 3G 3G
3G
3G
3G 3G
3G
3G
3G 3G
3G
3G
3G
3G
3G
3G
3G
3G
A15
A14
A13
A12
A11
A10
A9
A8
A19
A20
WE
RESET
A21
WP/ACC
RY/BY
A18
A17
A7
A6
A5
A4
A3
A2
A1 A0
CE
VSS
OE
DQ0
DQ8
DQ1
DQ9
DQ2
DQ10
DQ3
DQ11
VCC
DQ4
DQ12
DQ5
DQ13
DQ6
DQ14
DQ7
DQ15/A-1
VSS
BYTE
A16
3G
3G
3G
3G
3G
3G
U6
C15
C16
C17
C20
C22
C23 C24
C25
C26
C27
C28
C29
C31
X2
R22
R24
R25
C18
R26
R29
C30
EM2
EM1
EM40
EM41
EM42 EM43
EM44
EM45
EM46
EM47
EM48
EM49
R16
R17
C19
R27
EM50
EM51
U11
U9
U28
C125
U12
C36
C35
R18
R23
R28
CN2
C33
U10
U8U7
C32
C34
R21
R2
C21
R19
R20
K022-FP
LQFP
DSO751SV
V33.868
101R
103R
103R102C
0R0R
104C/25V
104C/25V
104C/25V
104C/25V
104C/25V
104C/25V
104C/25V
104C/25V
104C/25V104C/25V104C/25V
0R0R
104C/25V
225C/16V
104C
B601
B601
B601
B601
B601 B601
B601
B601
B601
B601
B601
B601
B601
B601
150C
0R0R
B601
B601
64M
UT62L2568LS-70LL
2M
XX
XX
XX
XX
XX
XX
XX
XX
XX
104C
128MB
128MB128MB
0R0R
0R0R
(1-2J)
(4-2A)
(3-1H)
(4-12H)
(3-1G)
(4-12H)
(4-12I)
(3-2G)
(3-2C)
(3-2G)
(4-12H)
(4-14H)
CK256FS
SCK
WCK
LRCK
SDAC
MDAC
DWO2
3.3V
3.3V
3.3V
3.3V
3.3V
3.3V
3.3V
3.3V
3.3V
3.3V
3.3V3.3V3.3V
3.3V 3.3V
3.3V
RST3
3.3V
RY-BY
RST3
3.3V
RST3
RY-BY
3.3V
KBD_BUS
CPU_BUS
DWI5
3.3V
3.3V
3.3V
3.3V
RST3
RY-BY
TGRST
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
12
12
12
12
12
12
1
2
1
23
4
12
1
2
12
1
2
12
1
2
1
2
1
2
1
2
1
2
1
2
1
2
12
1
2
1
2
1
2
1
2
1
2
121212
1
2
1
2
12
1
21
2
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24 25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24 25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
12
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24 25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
12
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24 25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
1
2
12
12
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16 17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28 29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28 29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
12
12
1
2
1
2
1
2
1
2
1
2
1
2
1
2
1
2
1
2
1
2
1
2
1
2
A0
A1
A2
A3
A4
CSTG
RDX
WR0X
D24
D25
D26
D27
D28
D29
D30
D31
MA00
MA01
MA02
MA03
MA04
MA05
MA06
MA07
MA08
MA09
MA10
MA11
MA12
MA13
MA14
MA15
MA16
MA17
MA18
MA19
MA20
MA21
MA22
MD10
MD11
MD12
MD13
MD14
MD15
MWR
MRD
ME0
ME1
EA00
EA01
EA02
EA03
EA04
EA05
EA06
EA07
EA08
EA09
EA10
EA11
EA12
EA13
EA14
EA15
EA16
EA17
ED0
ED1
ED2
ED3
ED4
ED5
ED6
ED7
ERD
EWR
SC0
SC1
SC2
SC3
SC4
SB0
SB1
SB2
SB3
SA0
SA1
SA2
SA3
MD15
MD14
MD13
MD12
MD11
MD10
MA00
MA01
MA02
MA03
MA04
MA05
MA06
MA07
MA08
MA09
MA10
MA11
MA12
MA13
MA14
MA15
MA16
MA17
MA18
MA19
MA20
MA21
MA22
MRD MRD
ME1
MA00
MA01
MA02
MA03
MA04
MA05
MA06
MA07
MA08
MA09
MA10
MA11
MA12
MA13
MA14
MA15
MA16
MA17
MA18
MA19
MA20
MA21
MA22
MD00
MD01
MD02
MD03
MD04
MD05
MD06
MD07
MD08
MD09
MD10
MD11
MD12
MD13
MD14
MD15
MA22
MA21
MA20
MA19
MA18
MA17
MA16
MA15
MA14
MA13
MA12
MA11
MA10
MA09
MA08
MA07
MA06
MA05
MA04
MA03
MA02
MA01
MA00
MD15
MD14
MD13
MD12
MD11
MD10
MD09
MD08
MD07
MD06
MD05
MD04
MD03
MD02
MD01
MD00
MA00
MA01
MA02
MA03
MA04
MA05
MA06
MA07
MA08
MA09
MA10
MA11
MA12
MA13
MA14
MA15 MA16
MA17
MA18
MA20
MD00
MD01
MD02
MD03
MD04
MD05
MD06
MD07
MD08
MD09
MD10
MD11
MD12
MD13
MD14
MD15
ME1
MRD
MWR
MD00
MD01
MD02
MD03
MD04
MD05
MD06
MD07
MD08
MD09
MRD
MA19
MD00
MD01
MD02
MD03
MD04
MD05
MD06
MD07
MD08
MD09
ME2
MA00
MA01
MA02
MA03
MA04
MA05
MA06
MA07
MA08
MA09
MA10
MA11
MA12
MA13
MA14
MA15
MA16
MA17
MA18
MA19
MA20
MA21
MA22
MD00
MD01
MD02
MD03
MD04
MD05
MD06
MD07
MD08
MD09
MD10
MD11
MD12
MD13
MD14
MD15
MRD
MA00MA01
MA02
MA03
MA04
MA05
MA06
MA07
MA08
MA09
MA10
MA11
MA12
MA13
MA14
MA15
MA16
MA17
MA18
MA19
MA20
MA21
MD00
MD01
MD02
MD03
MD04
MD05
MD06
MD07
MD08
MD09
MD10
MD11
MD12
MD13
MD14
MD15
MRD
MWR
MA21
ME0
ME1
ME2
ED0
ED1
ED2
ED3
ED4
ED5
ED6
ED7
ERD
EA00
EA01
EA02
EA03EA04
EA05
EA06
EA07
EA08
EA09 EA10
EA11
EA12
EA13
EA14
EA15
EA16
EA17
EWR
MA22
MA00MA01
MA02
MA03
MA04
MA05
MA06
MA07
MA08
MA09
MA10
MA11
MA12
MA13
MA14
MA15 MA16
MA17
MA18
MA19
MA20
MA21
MA22
MD00
MD01
MD02
MD03
MD04
MD05
MD06
MD07
MD08
MD09
MD10
MD11
MD12
MD13
MD14
MD15
ME0
MRD
MWR
ME2
ME0
ME2
ROM2
FROM1 FROM2
FROM3
ROM3
ROM1
KP459-MDFW

– 20 –
2
B
A
C
D
E
F
G
H
I
J
B
A
C
D
E
F
G
H
I
J
3 4 5 6 7 8 9 10 11 12 13 14 15 16 171
■P.W.B. KEP-126 Circuit 3/4
DVSS
DVDD
MCLK
PDN
BICK
SDATA
LRCK
SMUTE/CSN
DFS
DEM0/CCLK
DEM1/CDTI
DIF0
DIF1
DIF2 BVSS
VREFL
VREFH
AVDD
AVSS
AOUTR+
AOUTR-
AOUTL-
AOUTL+
VCOM
P/S
CKS0
CKS1
CKS2
DVSS
DVDD
MCLK
PDN
BICK
SDATA
LRCK
SMUTE/CSN
DFS
DEM0/CCLK
DEM1/CDTI
DIF0
DIF1
DIF2 BVSS
VREFL
VREFH
AVDD
AVSS
AOUTR+
AOUTR-
AOUTL-
AOUTL+
VCOM
P/S
CKS0
CKS1
CKS2
V+V-
3G
3G
V+V-
3G
3G
OUT
GND
IN
3G
V+V- V+V- V+V- V+V- V+V-
FG1
U13(1/3)
U13(2/3)
U13(3/3)
U14(1/3) U14(2/3)
U14(3/3)
U15
U17
U18(1/3)
U18(2/3)
U18(3/3)
C38
C42
C45
C50
C54
C83
C85
C84
C69
C68
R30
R31
R34
R35
R38
R39
R42
R43
R46
R47
R50
R51
R55
R60
R61
R64
R65
R68
R69
R72
R73
R76
R77
R80
R81
R87
R90
EM8
EM9
EM5
EM3
C39
C48
C49
C47
R48
U19(1/3)
U19(2/3)
U19(3/3)
U21(1/3) U21(2/3)
U21(3/3)
R52
C70
R56
R57
C71
R53
R49
R45
R41
C65
C61
R37
R33
R40
C64
R32 R36
C60
C51
C52
C53
EM6
U16
C40
EM4
R44
U20(1/3)
U20(2/3)
U20(3/3)
C57
C66
C55
C56
C67
C72
C77
R62 R66
C81
R70
R74
R78 R82
C86 R88
R89
C87
R83R79
C78
R63 R67
C82
R75
R71
EM11
R93
EM12
R94
R84
R85
C58
C62
C59
C63
C75
C79
C76
C80
CN3
R86R54
U22(1/3)
U22(2/3)
U22(3/3)
C73
R58
R59
C74
R91
C88
EM7
C89
C43
C44
C131
CN18
C46
C41
C37
EM10
R92
AK4393
24BIT-DAC
NJM4580E
104C/25V
102R
102R
332R 332R
332R 332R
102R 102R
102R
102R
NJM4580E
102R
102R
332R 332R
332R 332R
102R 102R
102R
102R
104C/25V
104C/25V
NJM4580E
NJM4580E
104C/25V
NJM78L05UA
NJM4580E
NJM4580E
102R102R
NJM4580E NJM4580E
0R0R
102R102R
0R0R
NJM4580E
102C/50V
103R
105C/10V
102C/50V
102C/50V
102C/50V
102C/50V
B601
B601
B601
B601
225C/16V
225C/16V
225C/16V
105C/10V
XX
XX
XX
XX XX
XX
XX
XX
XX
XX
XX
XX
XX
XX
XX
XX
XX
XXXX
XX
XX
XX XX
XX
XX
XX
XX
XX
XX
XX
XX
XX
XX
XX
XX
XX
XX
XX
XX
XX
XX
XX
XX XX
XX
XX
XX
XX XX
XX XX
XX
XX
XXXX
XX
XX XX
XX
XX
XX
XX
B601
XX
XX
XX
XX
332C/50V
332C/25V
332C/50V
332C/25V
332C/50V
332C/25V
332C/50V
332C/25V
NJM4580E
NJM4580E
NJM4580E
104C/25V
104R
104R
106C/10V
332R
0R0R
225C/16V
105C
105C
100UF/16V
B9B-PH-K-S
0R0R
B601
332R
(3-10E)
(3-12I)
(3-14I)
(3-15E)
(3-12J)
(3-14I)
(3-10A)
(3-12I)
(3-14I)
(3-15A)
(3-12J)
(3-14I)
(3-15B)
(3-10B)
(1-6E)
(1-5E)
(1-5E)
(3-15F)
(3-10F)
(1-8G)
(3-10A)
(3-10E)
(3-15A)
(3-15E)
(2-2I)
(4-12I)
(2-2I)
(2-2I)
(4-12H)
(2-2H)
(1-7D)
(2-2H)
3.3V
OFSET-L
SIG-ML
OFSET-R
SIG-MR
3.3V
OFSET-L
SIG-SL
OFSET-R
SIG-SR
-12V -12V -12V -12V -12V -12V 12V12V12V12V12V12V
12V
SIG-MR
SIG-ML
HPMUTE
SPMUTE
HP-IN
SIG-SR
SIG-SL
P67
3.3V
12V
OFSET-L
OFSET-R
12V
12V
3.3V
MDAC
LRCK
SDAC
SCK
CK256FS
TGRST
1
2
3
4
5
6
7
8
9
10
11
12
13
14 15
16
17
18
19
20
21
22
23
24
25
26
27
28
1
2
3
4
5
6
7
8
9
10
11
12
13
14 15
16
17
18
19
20
21
22
23
24
25
26
27
28
84
12
12
12
1
2
12
1
2
12
12 12
12 12
1212
12
1
2
84
12
12
1
2
12
12 12
12 12
1212
12
1
2
12
12
12
12
12
12
12
1
2
12
12 12
12 12
1212
12
1
2
12
12
1
2
12
12 12
12 12
1212
12
1
2
12
12
1
2
1
2
1
2
1
2
2
3
1
6
5
7
2
3
1
6
5
7
2
3
1
6
5
7
2
3
1
6
5
7
1
2
1
2
1
2
1
2
1
2
1
2
1
2
1
2
12
12
12
1
2
2
3
1
6
5
7
1
2
3
12
12
1
2
1
2
2
3
1
6
5
7
1212
1
2
12
12
1
2
12
1
2
2
3
1
6
5
7
12
12
1212
12
1
2
12
1
2
12
12
1212
1
2
12
12
1
2
12
1
2
12
12
1212
12
1
2
12
1
2
12
12
84848484
1
2
12
12
1
2
84
12
1
2
1
2
1
2
1
2
3
4
5
6
7
8
9
10
11
12
12
12
1
2
1
2
1
2
1
2
123456789
1011 12
1
2
SPMUTE
MAIN-DAC
SUB-DAC
TO KEP-192 CN1
AGND
AGND
HPMUET
HP-IN
A+13
AGND
SIG-1R
SIG-1L
