KAYA TOYS 5088R User manual

ITEM# 5088R
MY FIRST CAR
INSTRUCTION MANUAL
Illustrations are representative only, design and style may vary.
KAYA TOYS ENT., LTD LIMITED WARRANTY
This product is warranted against defects in materials and workmanship for a period of 90
days from date of original purchase.Service will be accepted against purchase invoice only.
Keep your receipt from the original purchase in case of any warranty claims and service.
Warranty does not cover failures that result from misuse or abuse.
Any questions, help or need for service during warranty period please contact us:
P.O. Box address:
KAYA Toys
P.O. Box 320,Manteno, Illinois 60950
Email.: [email protected] (Easy,correctly and directly to manufacturer to handle service)
or call tollfree: 866-781- 2266 Kaya Toys Service Centre
***********************************************************
Do not return any items to distributor, store, or any sellers or Service center without a
pre - approved authorization. They will not accept any returns or reimburse any cost
incured. All returns must be sent pre - paid and customer is responsible for all other
related shipping and handling charges.
************************************************************
Please carefully read this manual before use and keep for future reference.

WARNING:
Assembly should be done by adults only. Never allow children to play with the small
parts or the plastic bag the vehicle is placed in. Injury may occur. Small parts could
be a choking hazard! Polybags could be a suffocation hazard to small children.
Dispose of these bags in appropriate refuse container.
Speed: 2MPH, 2.5 km/hr
Battery: One 6V4.5AH sealed dry cell battery
Time for charging: 8 – 12 hours after each use
Ages: 2 – 5
Load Max capacity: 55 pounds/ 25kgs.
Charger: Input 120 Volt, depending on local voltage; Output – DC 6V500mA
Life of Battery: Approximately 200 hours, 300 times. Depending on usage.
Working time: About 40 miniutes to 90 minutes, depending on rider,road surfce and
whether battery was fully charged.
Function: Forward,backward,stop, horn sound and engine sound.
IMPORTANT:
ASSEMBLY INSTRUCTIONS
TECHNICAL DATA
PARTS LIST
To prolong battery life, you must recharge the battery after each use. You must also
charge your battery if it has not been used for 30 days or more.
1
Vehicle Body Controller
Steering Wheel Rear Mirror Roll Bar
with nut and bolt
WWARNING:
ADULT ASSEMBLY REQUIRED!
Charger

ASSEMBLY OF VEHICLE
Tools Needed: 1 Phillips head screwdriver ( not included).
2
1. Remove the bolt and nut from the steering wheel with screwdriver.
2. Place the steering wheel on the steering rod, align the hole of the steering wheel
with the hole of the steering rod. Insert the bolt. Tighten the bolt and tighten the nut
securely with a screwdriver.
2
2
3
1
STEP 2
STEP 1
1. Insert the rear mirrors into the holes of the car body until they click into the position.
Make sure the rear mirrors can’t be drawn out easily.
STEP 3
1. Insert the roll bar into the holes of the car body until they click into the position.
Make sure the roll bar can’t be drawn out easily.

3

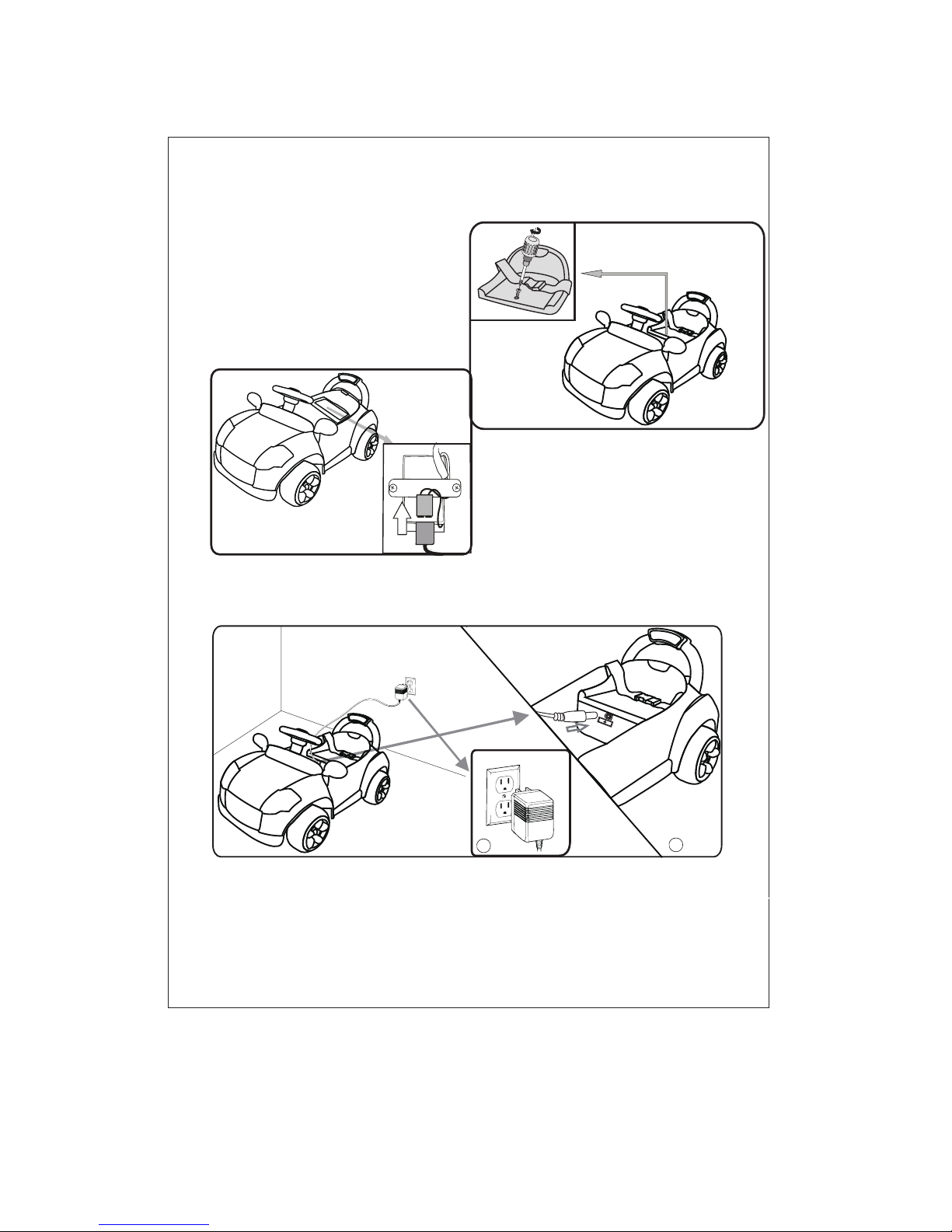

CONNECTING THE VEHICLE BATTERY
1. Use a phillips head screwdriver to
remove the screw at the front of the seat.
2. Remove the seat.
3. Plug the wire connector into the battery
connector.
4. Insert the tabs on the back of the seat
into the slots in the vehicle.
5. Use a philips head screwdriver to screw
and secure the seat to the vehicle body.
CHARGING THE BATTERY
1. The vehicle charging input socket is under the front of the seat,plug the charger port
into the input socket.
2.
3. After 8 -10 hours fully charged, unplug the charger plug from the wall outlet and unplug
the charger port from the input socket on the vehicle.
1
2
Plug the charger plug into the the wall outlet as shown.

1. The battery compartment is located unde the seat. The seat is installed in factory.
For first use,unscrew the seat and lift it away from the vehicle to expose the battery
compartment to connect battery.
2. The factory connected and secured all the wires to the battery terminals so they
can’t be easily removed. The factory connected the red wire to the red battery
terminal and the black wire to the black terminal. Please note never try to connect
Red to Black or Black to Red or a short circuit will occur!
3. Make sure the battery is connected for use before you install the seat!
1. The charger is not a toy. The battery should be charged by adults only.
2. Do not allow children to play with the charger or to recharge the battery.
3. Before the first use, you should fully charge the battery for 8-12 hours. Do not
recharge the battery for more than 15 hours to avoid overheating the charger.
4. To recharge the battery, plug the charger into household wall outlet,the battery
will begin charging. After the battery are fully charged, unplug the charger from
the battery and wall outlet.
5. It is normal for the charger to feel warm during charging, but if the charger feels
very hot, stop charging and check the battery and charger for damage.
6. When the vehicle begins to run slowly, recharge the battery.
7. To lengthen the life of the battery, always recharge the battery before storing and
at least every three months thereafter.
8. Use only battery of same type as recommended by the manufacturer.
9. Do not connect the battery terminals directly or the vehicle will short circuit.
10. Charger should be examined regularly for damage to the cord, plug, and other
parts. Any damage is found,charger should be repaired or replaced immediately.
11. Do not use a damaged charger.
IMPORTANT:
To prolong battery life, you must recharge the battery after each use.You must also
charge your battery if it has not been used for 30 days or more.
RECHARGING PRECAUTIONS AND WARNING
CAUTION:
4
INSTALLING THE CONTROLLER BATTERIES
In order to use the vehicle remote control function, first install the batteries for controller.
1. Open the battery compartment by unscrewing the cover on the back of the controller.
Note instruction for correct batteries installation.
2. Install 2 X “ AA” alkaline batteries ( not included)
as instructed.
3. After checking for the correct operation of the
function, reinstall the battery cover.
4. Do not mix old and new batteries together when in use.
5. Do not mix rechargeable,standard or alkaline batteries.
6. Do not dispose exhausted battery in fire or water,
to avoid explosion hazard or pollution of environment.
7. Do not charge standard batteries.

OPERATION
1. To move forward, set the direction switch
to “forward” position on the left,and step
on the accelerato r.
2. To move reverse, set the direction switch
to“reverse” position on the left and and
step on the accelerato r.
3. Release foot from the accelerator to stop the vehicle before changing directions.
4. To make BB sound, press the Sound Button on the steering wheel.
5. Set the Forward/Reverse switch to on the middle position,step on the accelerator,
the vehicle will not work.
5
Accelerator
Sound Button
Remote/Pedal
switch
Forward
Reverse
NORMAL RIDING
Under normal riding without remote function,
set the Remote/Pedal switch on the “Pedal”
position. Never set the Remote/Pedal switch
on the “Remote” position under the normal
riding status. Or the vehicle can’t be run
and operated
Two functions can be operated by child enjoyed or adult. One is NORMAL RIDING,
another is REMOTE CONTROL FUNCTION.
Under remote function,set the Remote/Pedal
switch on the “ Remote ” position. Never set the
Remote/Pedal switch on the “ Pedal” position.
Or the vehicle can’t be run and operated with
the remote controller and no remote function.
Under remote control function,Forward/Reverse
switch and Acceleration are not any feature.
1. Before remote control the vehicle, installed
the batteries for the controller as instructed
and set the Remote and Pedal switch on the
“Remote” position.
2. Press the controller “ Forward” button, the
vehicle will work forward. Press the controller
“ Reverse” button, the vehicle will work reverse.
3. Press the controller “ Left” or “ Right” button, the vehicle will work left or right.
WARNING:
The normal riding and remote control function can’t be used at the same time.
Please don’t shift the Remote/ Pedal switch when child ride the vehicle.
Only one function can be choosed for child riding when use.
The remote control function must be supervised by adult only.
Must be removed the batteries from the controller when it is not in use.
Changes or modifications to this unit not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
Toys should be periodically examined potential hazards and that any potentially
hazardous parts be repaired or replaced.
REMOTE CONTROL FUNCTION

OVERLOAD PROTECTION
WARNING:
NEVER change the direction by pressing the Forward/Backward switch while the
car is moving. You must always come to stop the car before changing direction.
IMPORTANT!
The recharge battery equipped with an auto – recovery device itself to confrom to the
vehicle designed. If the vehicle is overloaded or operated incorrectly, or power current
is greater than the recharge battery device is designed to accept, the battery device will
shut off power automatically. The vehicle will stop working. After one or two minutes the
battery device will reset itself and resume the power. The vehicle will work normally.
TROUBLE SHOOTING
1. If the vehicle fails to move:
• Make sure direction switch is not set to the “ stop” position.
• Make sure the battery wires are connected properly.
• Recharge battery, if necessary.
• Check if you overload and relay triped. Never allow more 1 rider
and more than 55LBS.
2. If the vehicle runs slowly: Recharge the battery.
3. If the battery cannot be recharged: Battery or adaptor may need to be replaced.
4. For Remote Control function fails:
To check if the controller batteries installed correctly,reinstall the battery.
To check if the batteries exhausted, replace the new ones.
To set the Remote/Pedal switch on the “Remote” position.
Reinstall the antena of the controller correctly and securely
5. If the vehicle still fails to operate,contact Kaya Toys Service :[email protected]
• Adults should read this manual carefully before allowing children to use the vehicle.
Vehicle should be assembled by an adult.
• Children should always be supervised by an adult when operating the vehicle.
• Do not overload, maximum weight 55LBS/25kgs.
• Only 1 child should ride on this vehicle at a time.
• Do not operate vehicle on sandy, muddy, or rugged surfaces to avoid damage to the
vehicle.
• Do not ride the vehicle in dangerous places such as busy streets, roads, or highways.
• Never use near swimming pools or other bodies of water.
• Never ride the toy in the mud or in sandy areas. Never ride in hilly areas or on steep
slopes.
• Never ride in the dark or in dimly lit areas.
• Use the toy only on flat surfaces, such as inside your house, garden, or playground.
• Do not clean the vehicle while the charger is attached.
• Use only batteries recommended by the manufacturer.
• Use only chargers specified by the manufacturer.
• Clean the vehicle only with a damp cloth—never submerge vehicle in water or spray
vehicle with water from a hose.
6
•
•
•
•

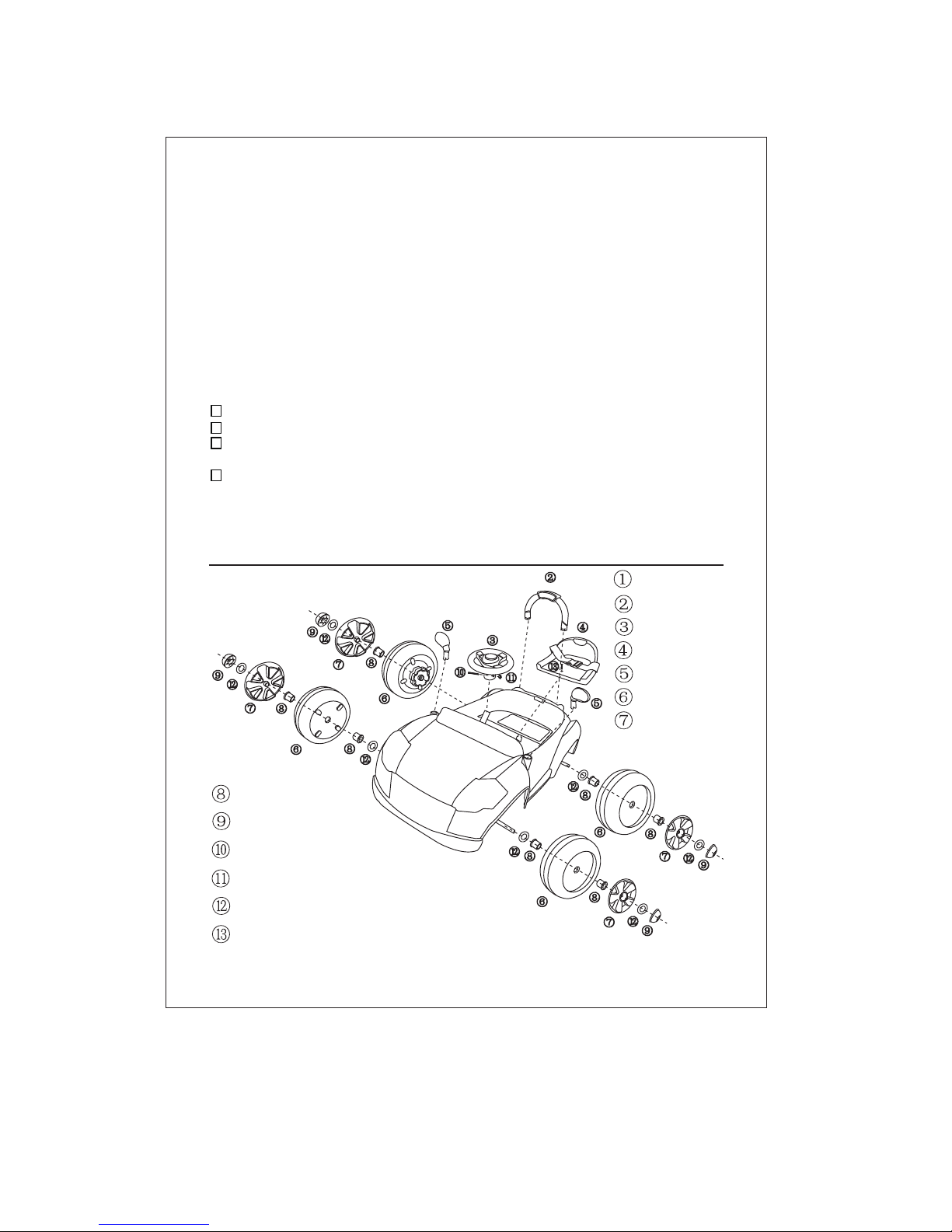

DIAGRAM
Vehicle Body
Roll Bar
Steering Wheel
Seat
Rear Mirror
Wheel
Wheel Cover
Bushing
Wheel Cap
Bolt
Nut
Washer
Screw
NOTE:
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Shielded cables must be used with this unit to ensure compliance with the Class B FCC
limits.
7

Manufactured by
Kaya Toys Enterprises Limited
7/F., Kin On Commercial Building, 49-51 Jervois Street,
Sheung Wan, Hong Kong
WARNING:
TO REDUCE THE RISK OF INJURY, ADULT SUPERVISION IS REQUIRED.
NEVER USE IN ROADWAYS,NEAR MOTOR VEHICLES,ON OR NEAR STEEP
INCLINES OR STEPS, SWIMMING POOLS OR OTHER BODIES OF WATER;
ALWAYS WEAR SHOES, AND NEVER ALLOW MORE THAN 1 RIDER.
8
To order parts contact Kaya Toys Customer Service: [email protected]. Include the
modle number found and brief description of the part
