Kaysun KAY-26 DN7 User manual

PRODIGY 3D Inverter
Technical Manual

PRODIGY Technical Manual
CONTENTS
1. Precaution .................................................................................................................................................... 3
1.1 Safety Precaution.......................................................................................................................... 3
1.2 Warning......................................................................................................................................... 3
2. Function and specifications....................................................................................................................... 5
3. Dimension .................................................................................................................................................. 10
3.1 Indoor Unit................................................................................................................................... 10
3.2 Outdoor Unit................................................................................................................................ 14
4 .Refrigerant Cycle Diagram ....................................................................................................................... 18
5 .Installation Details..................................................................................................................................... 19
5.1 Wrench torque sheet for installation........................................................................................... 19
5.2 Connecting the cables ................................................................................................................ 19
5.3 Pipe length and the elevation ..................................................................................................... 20
5.4 Installation for the first time......................................................................................................... 21
5.5 Adding the refrigerant after running the system for many years ................................................ 23
5.6 Re-installation while the indoor unit need to be repaired ........................................................... 24
5.7 Re-installation while the outdoor unit need to be repaired......................................................... 25
6. Disassemble Guide.................................................................................................................................... 27
7. Operation Characteristics......................................................................................................................... 33
8. Electronic function.................................................................................................................................... 34
8.1 Abbreviation ................................................................................................................................ 34
8.2 Display function........................................................................................................................... 34
8.3 Main Protection........................................................................................................................... 35
8.4 Operation Modes and Functions................................................................................................. 36
8.5 Multi-function board instruction (This multi-function board is optional)...................................... 43
9. Troubleshooting......................................................................................................................................... 46
9.1 Indoor Unit Error Display............................................................................................................. 47
9.2 Trouble shooting.......................................................................................................................... 48

PRODIGY Technical Manual
3
1. Precaution
1.1 Safety Precaution
To prevent injury to the user or other people and
property damage, the following instructions must
be followed.
Incorrect operation due to ignoring instruction
will cause harm or damage.
Before service the unit, be sure to read this
service manual at first.
1.2 Warning
Installation
Do not use a defective or underrated circuit
breaker. Use this appliance on a dedicated circuit.
There is risk of fire or electric shock.
For electrical work, contact the dealer, seller, a
qualified electrician, or an authorized service center.
Do not disassemble or repair the product, there is risk of
fire or electric shock.
Always ground the product.
There is risk of fire or electric shock.
Install the panel and the cover of control box
securely.
There is risk of fire of electric shock.
Always install a dedicated circuit and breaker.
Improper wiring or installation may cause fore or electric
shock.
Use the correctly rated breaker of fuse.
There is risk of fire or electric shock.
Do not modify or extend the power cable.
There is risk of fire or electric shock.
Do not install, remove, or reinstall the unit by
yourself (customer).
There is risk of fire, electric shock, explosion, or injury.
Be caution when unpacking and installing the
product.
Sharp edges could cause injury, be especially careful of
the case edges and the fins on the condenser and
evaporator.
For installation, always contact the dealer or an
authorized service center.
Do not install the product on a defective
installation stand.
Be sure the installation area does not deteriorate
with age.
If the base collapses, the air conditioner could fall with it,
causing property damage, product failure, and personal
injury.
Do not let the air conditioner run for a long time
when the humidity is very high and a door or a
window is left open.
Take care to ensure that power cable could not be
pulled out or damaged during operation.
There is risk of fire or electric shock.
Do not place anything on the power cable.
There is risk of fire or electric shock.
Do not plug or unplug the power supply plug
during operation.
There is risk of fire or electric shock.
Do not touch (operation) the product with wet
hands.
Do not place a heater or other appliance near the
power cable.
There is risk of fire and electric shock.
Do not allow water to run into electrical parts.
It may cause fire, failure of the product, or electric shock.
Do not store or use flammable gas or combustible
near the product.
There is risk of fire or failure of product.
Do not use the product in a tightly closed space
for a long time.
Oxygen deficiency could occur.
When flammable gas leaks, turn off the gas and
open a window for ventilation before turn the
product on.
If strange sounds or smoke comes from product,
turn the breaker off or disconnect the power supply
cable.
There is risk of electric shock or fire.
Stop operation and close the window in storm or
hurricane. If possible, remove the product from the
window before the hurricane arrives.
There is risk of property damage, failure of product, or
electric shock.
Do not open the inlet grill of the product during
operation. (Do not touch the electrostatic filter, if the
unit is so equipped.)
There is risk of physical injury, electric shock, or product
failure.

PRODIGY Technical Manual
4
When the product is soaked, contact an
authorized service center.
There is risk of fire or electric shock.
Be caution that water could not enter the product.
There is risk of fire, electric shock, or product damage.
Ventilate the product from time to time when
operating it together with a stove etc.
There is risk of fire or electric shock.
Turn the main power off when cleaning or
maintaining the product.
There is risk of electric shock.
When the product is not be used for a long time,
disconnect the power supply plug or turn off the
breaker.
There is risk of product damage or failure, or unintended
operation.
Take care to ensure that nobody could step on or
fall onto the outdoor unit.
This could result in personal injury and product damage.
CAUTION
Always check for gas (refrigerant) leakage after
installation or repair of product.
Low refrigerant levels may cause failure of product.
Install the drain hose to ensure that water is
drained away properly.
A bad connection may cause water leakage.
Keep level even when installing the product.
It can avoid vibration of water leakage.
Do not install the product where the noise or hot
air from the outdoor unit could damage the
neighborhoods.
It may cause a problem for your neighbors.
Use two or more people to lift and transport the
product.
Do not install the product where it will be exposed
to sea wind (salt spray) directly.
It may cause corrosion on the product. Corrosion,
particularly on the condenser and evaporator fins, could
cause product malfunction or inefficient operation.
Operational
Do not expose the skin directly to cool air for long
time. (Do not sit in the draft).
Do not use the product for special purposes,
such as preserving foods, works of art etc. It is a
consumer air conditioner, not a precision
refrigerant system.
There is risk of damage or loss of property.
Do not block the inlet or outlet of air flow.
Use a soft cloth to clean. Do not use harsh
detergents, solvents, etc.
There is risk of fire, electric shock, or damage to the
plastic parts of the product.
Do not touch the metal parts of the product when
removing the air filter. They are very sharp.
Do not step on or put anything on the product.
(outdoor units)
Always insert the filter securely. Clean the filter
every two weeks or more often if necessary.
A dirty filter reduces the efficiency of the air conditioner
and could cause product malfunction or damage.
Do not insert hands or other objects through air
inlet or outlet while the product is operated.
Do not drink the water drained from the product.
Use a firm stool or ladder when cleaning or
maintaining the product.
Be careful and avoid personal injury.
Replace the all batteries in the remote control
with new ones of the same type. Do not mix old and
new batteries or different types of batteries.
There is risk of fire or explosion.
Do not recharge or disassemble the batteries. Do
not dispose of batteries in a fire.
They may burn of explode.
If the liquid from the batteries gets onto your skin
or clothes, wash it well with clean water. Do not use
the remote of the batteries have leaked.

PRODIGY Technical Manual
5
2. Function and specifications
Model Names of Indoor/Outdoor Units
3D inverter
Capacity
Indoor units
Outdoor units
9k
KAY-26 DN7
KAE-26 DN7
12k
KAY-35 DN7
KAE-35 DN7
18k
KAY-52 DN7
KAE-52 DN7
24k
KAY-71 DN7
KAE-71 DN7

PRODIGY Technical Manual
6
Specifications
Indoor
KAY-26 DN7
KAY-35 DN7
Outdoor
KAE-26 DN7
KAE-35 DN7
Power supply
Ph-V-Hz
220-240V~ 50Hz, 1Ph
220-240V~ 50Hz, 1Ph
Rated Cooling
Capacity
Btu/h
9000(4000-11300)
12000(4300-15200)
Cooling Power input
W
816(100-1270)
1153(110-1720)
Cooling Current
A
3.5(0.4-5.5)
5.0(0.5-7.5)
Rated Heating
Capacity
Btu/h
10000(2800-12700)
13000(3640-16600)
Heating Power input
W
811(140-1330)
1055(170-1740)
Heating Current
A
3.5(0.6-5.7)
4.6(0.7-7.6)
Seasonal Cooling
Pdesignc
kW
2.6
3.5
SEER
W/W
6.8
6.7
Energy Efficiency Class
A++
A++
Heating(Average )
Pdesignh
kW
2.4
2.6
SCOP
W/W
4.1
4.2
Energy Efficiency Class
A+
A+
Tbiv
℃
-7
-7
Heating(Warmer )
Pdesignh
kW
3.0
3.0
SCOP
W/W
5.1
5.2
Energy Efficiency Class
A+++
A+++
Tbiv
℃
2
2
Tol
℃
-15
-15
Moisture Removal
L/h
1.0
1.2
Max. input consumption
W
2075
2200
Max. current
A
9.5
10
Starting current
A
---
---
Compressor
Model
ASN98D22UFZ
ASN98D22UFZ
Type
ROTARY
ROTARY
Brand
GMCC
GMCC
Capacity
Btu/h
10014
10014
Input
W
748
748
Rated current(RLA)
A
5,35
5,35
Locked rotor Amp(LRA)
A
/
/
Thermal protector
/
/
Thermal protector position
/
/
Capacitor
uF
/
/
Refrigerant oil/oil charge
ml
ESTER OIL VG74/370
ESTER OIL VG74/370
Indoor fan motor
Model
ZKFP-20-8-6
ZKFP-20-8-6
Output
W
20
20
Capacitor
uF
----
----
Speed(Hi/Mi/Lo)
r/min
----
----
Indoor coil
a.Number of rows
1+2
1+2
b.Tube pitch(a)x row
mm
21x13.37
21x13.37

PRODIGY Technical Manual
7
pitch(b)
c.Fin spacing
mm
1.3
1.2
d.Fin type (code)
Hydrophilic aluminium
Hydrophilic aluminium
e.Tube outside dia.and type
mm
Φ6,innergroove tube
Φ7,innergroove tube
f.Coil length x height x width
mm
510x84x13.37+510x189x26.74
598x84x13.37+598x189x26.74
g.Number of circuits
2
2
Indoor air flow (Hi/Mi/Lo)
m3/h
472/360/254
563/497/224
Indoor sound pressure level (Hi/Mi/Lo/Silent)
dB(A)
40/35/28/20
41/40/33/22
Indoor sound power level (Hi)
dB(A)
53
52
Indoor unit
Dimension(W*D*H)
mm
717x193x302
805x193x302
Packing (W*D*H)
mm
785x375x285
875x375x285
Net/Gross weight
Kg
7.0 / 9.3
7.7/10.2
Outdoor fan motor
Model
ZKFN-40-8-1L
ZKFN-40-8-1L
Output
W
40
40
Capacitor
uF
- -
- -
Speed
r/min
810/710/520
810/710/520
Outdoor coil
a.Number of rows
1
1
b.Tube pitch(a)x row
pitch(b)
mm
21x13.37
21x13.37
c.Fin spacing
mm
1,2
1.2
d.Fin type (code)
Hydrophilic aluminium
Hydrophilic aluminium
e.Tube outside dia.and type
mm
Ф7, innergroove tube
Φ7,innergroove tube
f.Coil length x height x width
mm
744x504x13.37
870x504x13.37
g.Number of circuits
2
2
Outdoor air flow
m3/h
1900
2000
Outdoor sound pressure level
dB(A)
55
56
Outdoor sound power level
dB(A)
58
59
Outdoor unit
Dimension(W*D*H)
mm
770x300x555
800x333x554
Packing (W*D*H)
mm
900x345x585
920x390x615
Net/Gross weight
Kg
26.6/29
29.1/31.9
Refrigerant
Type
R410A
R410A
GWP
2088
2088
Charged quantity
Kg
0.8
0.95
Design pressure
MPa
4.2/1.5
4.2/1.5
Refrigerant piping
Liquid side/ Gas side
mm(inch)
Φ6.35/Φ9.52(1/4"/3/8")
Φ6.35/Φ9.52(1/4"/3/8")
Max. refrigerant pipe length
m
25
25
Max. difference in level
m
10
10
Connection wiring
1.5(Optional)
1.5(Optional)
Plug type
--
--
Thermostat type
Remote Control
Remote Control
Operation temperature
Indoor(cooling/ heating)
℃
17～32/0～30
17～32/0～30
Outdoor(cooling/heating)
℃
-15～50/-15～30
-15～50/-15～30

PRODIGY Technical Manual
8
Indoor
KAY-52 DN7
KAY-71 DN7
Outdoor
KAE-52 DN7
KAE-71 DN7
Power supply
Ph-V-Hz
220-240V~ 50Hz, 1Ph
220-240V~ 50Hz, 1Ph
Rated Cooling
Capacity
Btu/h
18000(6500-20900)
24000(9100-26900)
Cooling Power input
W
1633(150-2350)
2306(230-3030)
Cooling Current
A
7.1(0.7-10.2)
10.0(1.0-13.2)
Rated Heating
Capacity
Btu/h
19000(4870-23000)
26000(7100-31200)
Heating Power input
W
1500(230-2400)
2302(310-3270)
Heating Current
A
6.5(1.0-10.5)
10.0(1.3-14.2)
Seasonal Cooling
Pdesignc
kW
5.3
7.0
SEER
W/W
6.8
6.4
Energy Efficiency Class
A++
A++
Heating(Average )
Pdesignh
kW
4.4
5.6
SCOP
W/W
4.2
4.0
Energy Efficiency Class
A+
A+
Tbiv
℃
-7
-7
Heating(Warmer )
Pdesignh
kW
4.7
7.2
SCOP
W/W
5.4
5.2
Energy Efficiency Class
A+++
A+++
Tbiv
℃
5
4
Tol
℃
-15
-15
Moisture Removal
L/h
1.7
2.3
Max. input consumption
W
2550
3700
Max. current
A
11.5
17
Starting current
A
----
----
Compressor
Model
ASM135D23UFZ
ATF235D22UMT
Type
ROTARY
ROTARY
Brand
GMCC
GMCC
Capacity
Btu/h
13836
24345
Input
W
1035
1970
Rated current(RLA)
A
7,32
6,95
Locked rotor Amp(LRA)
A
/
/
Thermal protector
/
/
Thermal protector position
/
/
Capacitor
uF
/
/
Refrigerant oil/oil charge
ml
ESTER OIL VG74/450
POE(VG74)/670
Indoor fan motor
Model
ZKFP-30-8-3
ZKFP-58-8-1
Output
W
30(Output)
58
Capacitor
uF
- -
- -
Speed(Hi/Mi/Lo)
r/min
----
----
Indoor coil
a.Number of rows
2
2
b.Tube pitch(a)x row pitch(b)
mm
21x13.37
21x13.37
c.Fin spacing
mm
1.2
1.3
d.Fin type (code)
Hydrophilic aluminium
Hydrophilic aluminium

PRODIGY Technical Manual
9
e.Tube outside dia.and type
mm
Φ7, innergroove tube
Φ7, innergroove tube
f.Coil length x height x width
mm
750x294x26.74
820x315x26.74
g.Number of circuits
3
3
Indoor air flow (Hi/Mi/Lo)
m3/h
870/730/500
1176/921/446
Indoor sound pressure level (Hi/Mi/Lo/Silent)
dB(A)
45/43/34/26
47/45/35/28
Indoor sound power level (Hi)
dB(A)
58
61
Indoor unit
Dimension(W*D*H)
mm
964x222x325
1106x232x342
Packing (W*D*H)
mm
1045x405x305
1195x420x315
Net/Gross weight
Kg
10.1/13.6
13.2/17
Outdoor fan motor
Model
ZKFN-40-8-1L
ZKFN-50-8-2
Output
W
40
50
Capacitor
uF
- -
- -
Speed
r/min
810/700/550
810/750/600
Outdoor coil
a.Number of rows
2
2
b.Tube pitch(a)x row pitch(b)
mm
25.4x22
25.4x22
c.Fin spacing
mm
1.4
1.4
d.Fin type (code)
Hydrophilic aluminium
Hydrophilic aluminium
e.Tube outside dia.and type
mm
Φ9.52,innergroove tube
Φ9.52,innergroove tube
f.Coil length x height x width
mm
860x508x44
730x660x44
g.Number of circuits
4
4
Outdoor air flow
m3/h
2100
2700
Outdoor sound pressure level
dB(A)
58
61
Outdoor sound power level
dB(A)
63
65
Outdoor unit
Dimension(W*D*H)
mm
800x333x554
845x363x702
Packing (W*D*H)
mm
920x390x615
965x395x755
Net/Gross weight
Kg
37.8/40.5
48.4/51.6
Refrigerant
Type
R410A
R410A
GWP
2088
2088
Charged quantity
Kg
1.48
2.0
Design pressure
MPa
4.2/1.5
4.2/1.5
Refrigerant piping
Liquid side/ Gas side
mm(inch)
Φ6.35/Φ12.7(1/4"/1/2")
Φ9.52/Φ15.9(3/8"/5/8")
Max. refrigerant pipe length
m
30
50
Max. difference in level
m
20
25
Connection wiring
2.5(Optional)
2.5(Optional)
Plug type
--
--
Thermostat type
Remote Control
Remote Control
Operation
temperature
Indoor(cooling/ heating)
℃
17～32/0～30
17～32/0～30
Outdoor(cooling/heating)
℃
-15～50/-15～30
-15～50/-15～30

PRODIGY Technical Manual
10

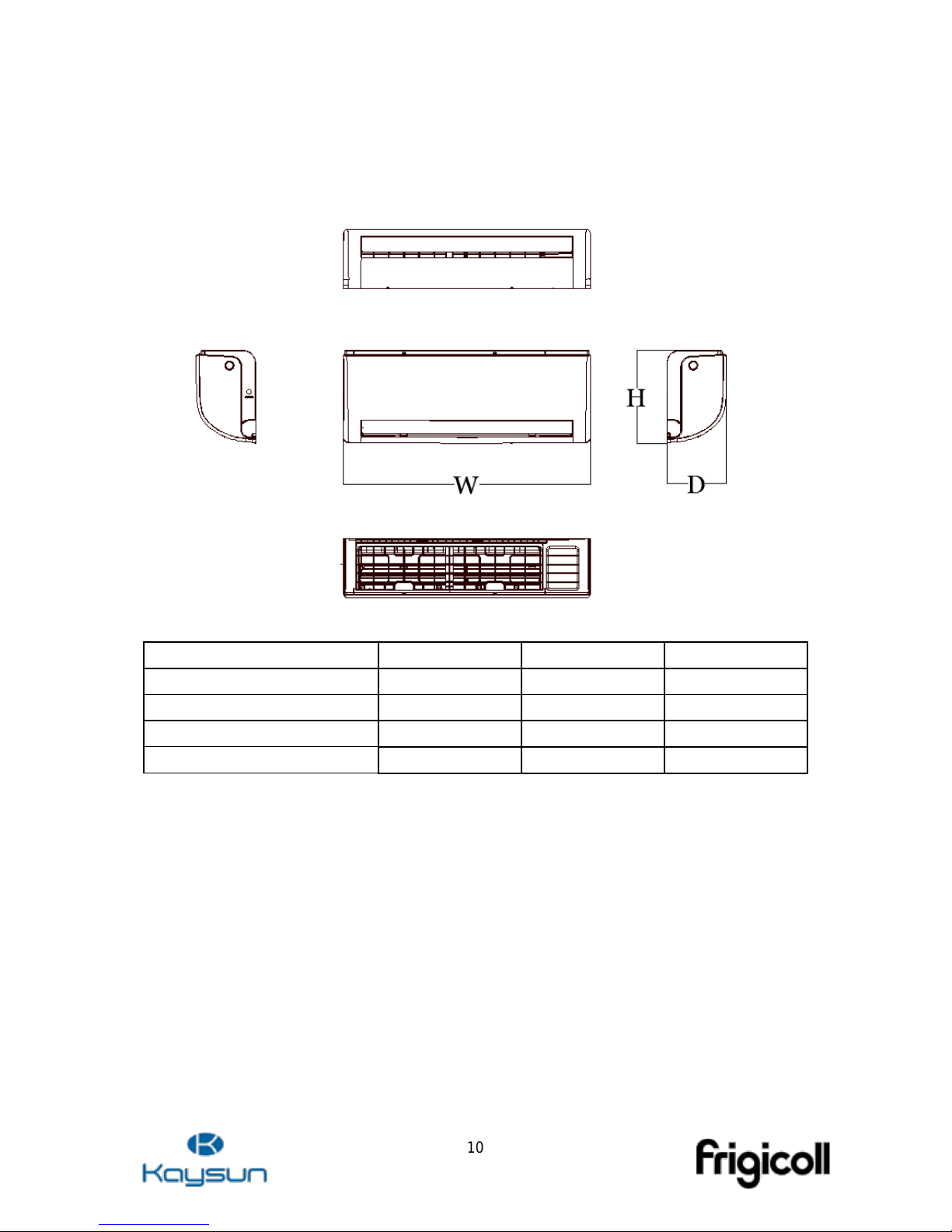

3. Dimensions
3.1 Indoor Unit
Model
W
D
H
KAY-26 DN7
717
193
302
KAY-35 DN7
805
193
302
KAY-52 DN7
964
222
325
KAY-71 DN7
1106
232
342

PRODIGY Technical Manual
11

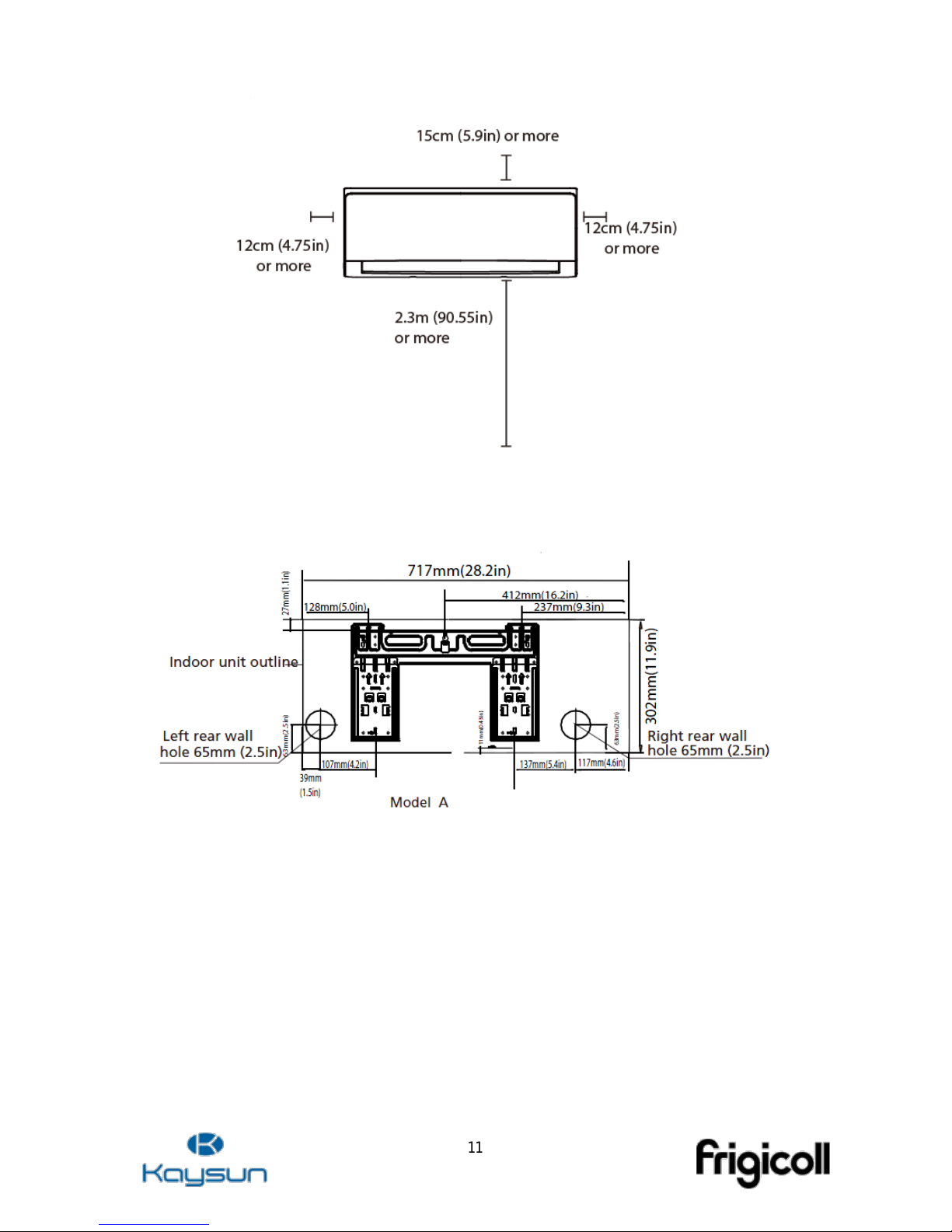

For KAY-26 DN7,

PRODIGY Technical Manual
12

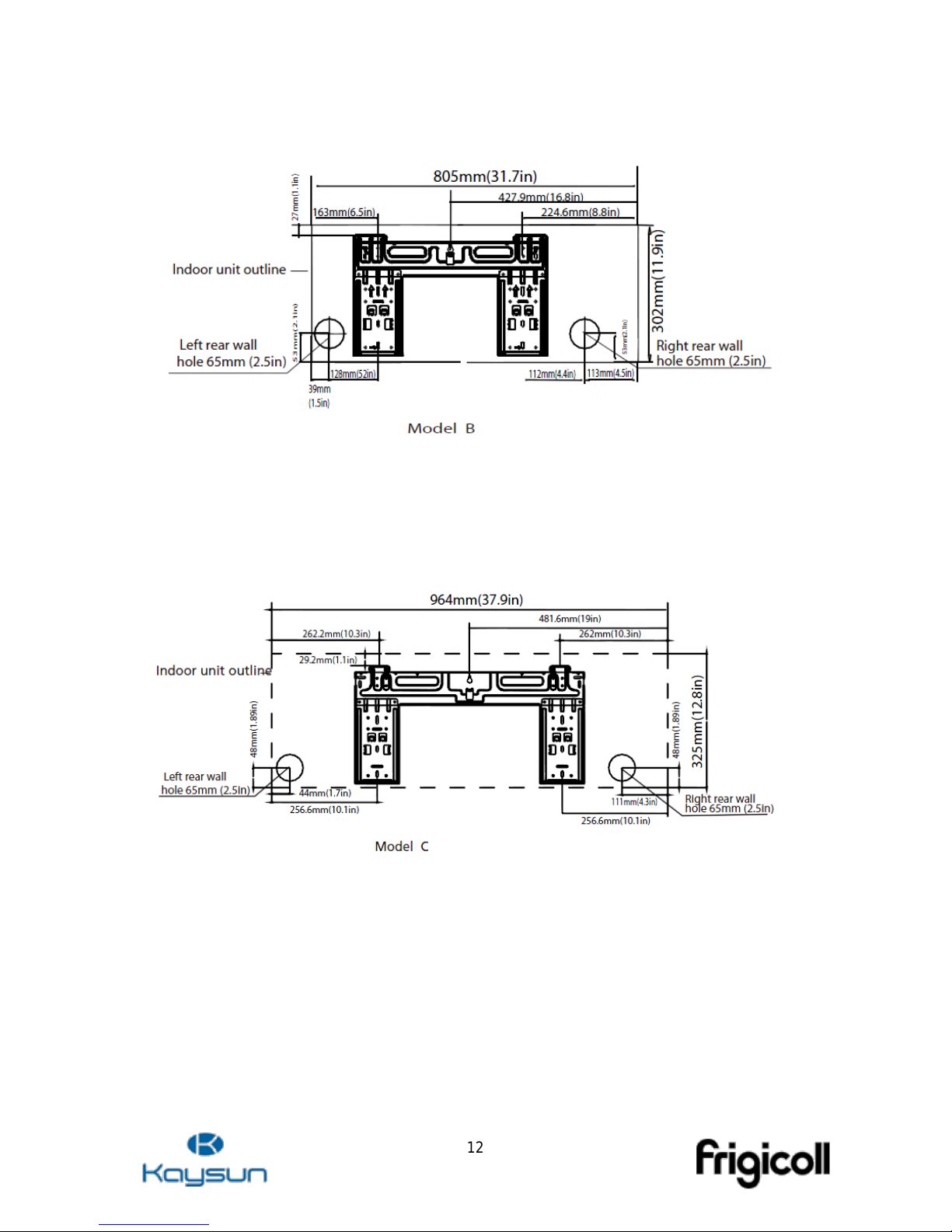

For KAY-35 DN7,
For KAY-52 DN7,

PRODIGY Technical Manual
13

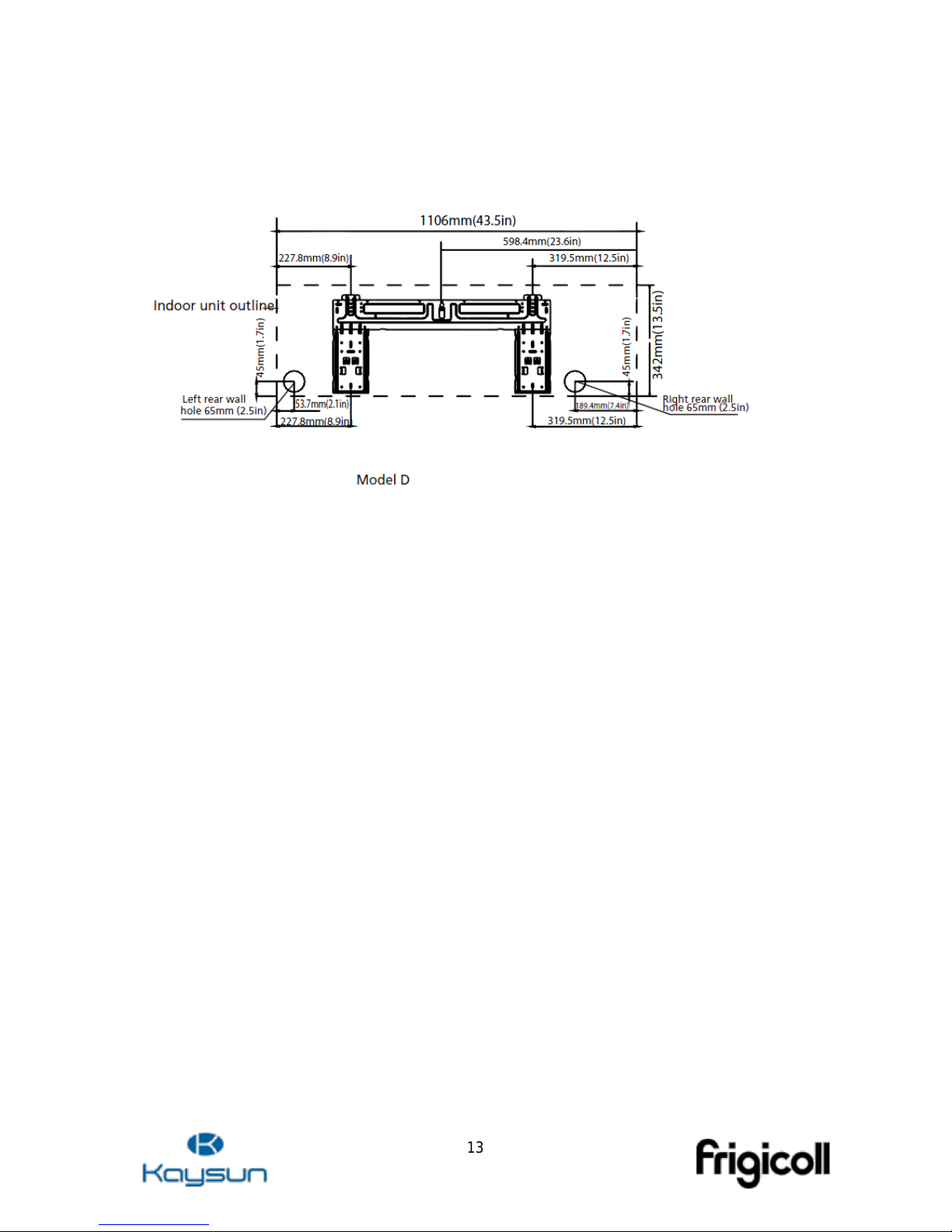

For KAY-71 DN7,

PRODIGY Technical Manual
14
3.2 Outdoor Unit

PRODIGY Technical Manual
15
For KAE-26 DN7,

PRODIGY Technical Manual
16

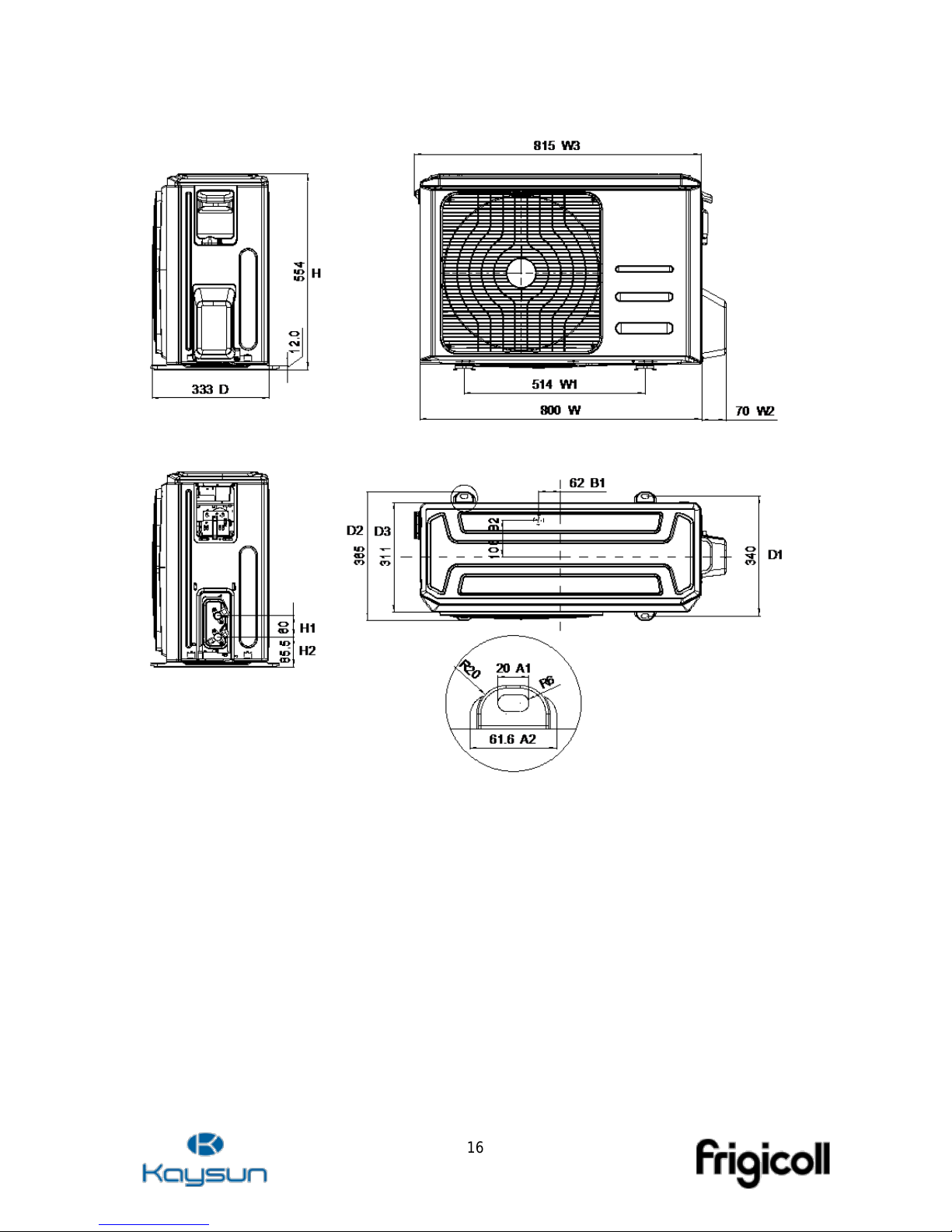

For KAE-35 DN7,KAE-52 DN7，

PRODIGY Technical Manual
17

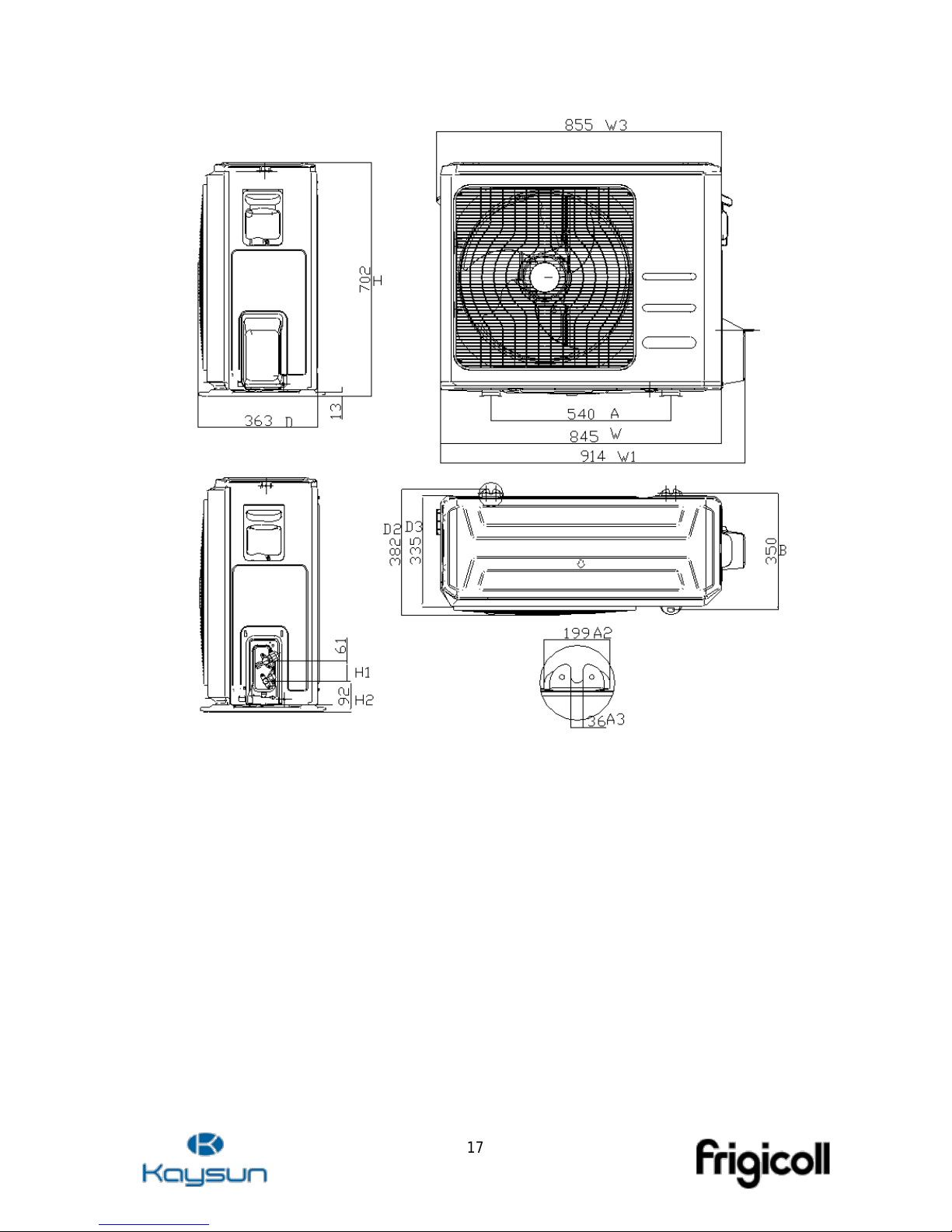

For KAE-71 DN7,

PRODIGY Technical Manual
18
4 .Refrigerant Cycle Diagram
LIQUID SIDE
GAS SIDE
HEAT
EXCHANGE
(EVAPORATOR)
HEAT
EXCHANGE
(CONDENSER)
COMPRESSOR
2-WAY VALVE
3-WAY VALVE
4-WAY VALVE
COOLING
HEATING
T2 Evaporator
temp. sensor
T1 Room temp.
sensor
ACCUMULATOR
INDOOR OUTDOOR
CHECK VALVE
(Heating Model only)
CAPILIARY TUBE

PRODIGY Technical Manual
19
5 .Installation Details
5.1 Wrench torque sheet for installation
Outside diameter
Torque
Additional tightening torque
mm
inch
N.cm
N.cm
Ф6.35
1/4
1500(153kgf.cm)
1600(163kgf.cm)
Ф9.52
3/8
2500(255kgf.cm)
2600(265kgf.cm)
Ф12.7
1/2
3500(357kgf.cm)
3600(367kgf.cm)
Ф15.9
5/8
4500(459kgf.cm)
4700(479kgf.cm)
Ф19
3/4
6500(663kgf.cm)
6700(683kgf.cm)
5.2 Connecting the cables
The power cord of connect should be selected according to the following specifications sheet.
Rated current of appliance
Nominal cross-sectional area (mm²)
>3 and ≤6
0.75
>6 and ≤10
1
>10 and ≤16
1.5
>16 and ≤25
2.5
The cable size and the current of the fuse or switch are determined by the maximum current indicated
on the nameplate which located on the side panel of the unit. Please refer to the nameplate before
selecting the cable, fuse and switch.

PRODIGY Technical Manual
20
5.3 Pipe length and the elevation
The pipe length and refrigerant amount:
Model
Pipe size
Standard
length
(m)
Max.
Elevation
B (m)
Max.
Length
A (m)
Additional
refrigerant
(g/m)
Gas
Liquid
KAY-26 DN7 + KAE-26 DN7
3/8‟‟
(Ф9.52)
1/4‟‟
(Ф6.35)
5
10
25
15
KAY-35 DN7 + KAE-35 DN7
3/8‟‟
(Ф9.52)
1/4‟‟
(Ф6.35)
5
10
25
15
KAY-52 DN7 + KAE-52 DN7
1/2‟‟
(Ф12.7)
1/4‟‟
(Ф6.35)
5
20
30
15
KAY-71 DN7 + KAE-71 DN7
5/8‟‟
(Ф15.9)
3/8‟‟
(Ф9.52)
5
25
50
30
Caution:
The capacity test is based on the standard length and the maximum permissive length is based on the
system reliability.
