Kaysun KCCT-64 IPS User manual

INSTALLATION AND OPERATION
INSTRUCTIONS
Centralised Control
KCCT-64 IPS
Thank you very much for purchasing our product.
Before using your unit, please read this manual carefully and keep it for future reference.

WARNING
CAUTION
IMPORTANT
•This manual provides the installation instructions for this controller.
Refer to the included wiring diagrams to connect the controller to the
indoor unit.
•The controller uses low voltage. Keep a minimum distance of 12” (305
mm) between low voltage control wire and high voltage power wires.
•Ensure there are no gaps between the controller back cover and the
mounting surface.
•Ground the shielded control wiring.
•
Do not use a megger to test insulation.
Do not install controller in areas where harmful gases containing
sulfur or other damaging may exist ot the controller may be damaged.
Clean controller using a clean, damp cloth. Do not spray cleanser on
or around controller.
Read all of the information in this manual before using this controller. All
wiring must conform to local and national building and electrical codes
and ordinances. This is a 12 VDC controller. Do not install on voltages
higher than 12 VDC.

INSTALLATION

1. Installation
• Connecting to one Outdoor Unit
Connect the controller to the main control board of the outdoor unit using
2-conductor shielded cable XY, Fig-1(a). Alternatively, user can connect the
controller to the indoor units directly throught XY cable in V4+ and V5 models,
Fig-1(b).
See Fig-1.

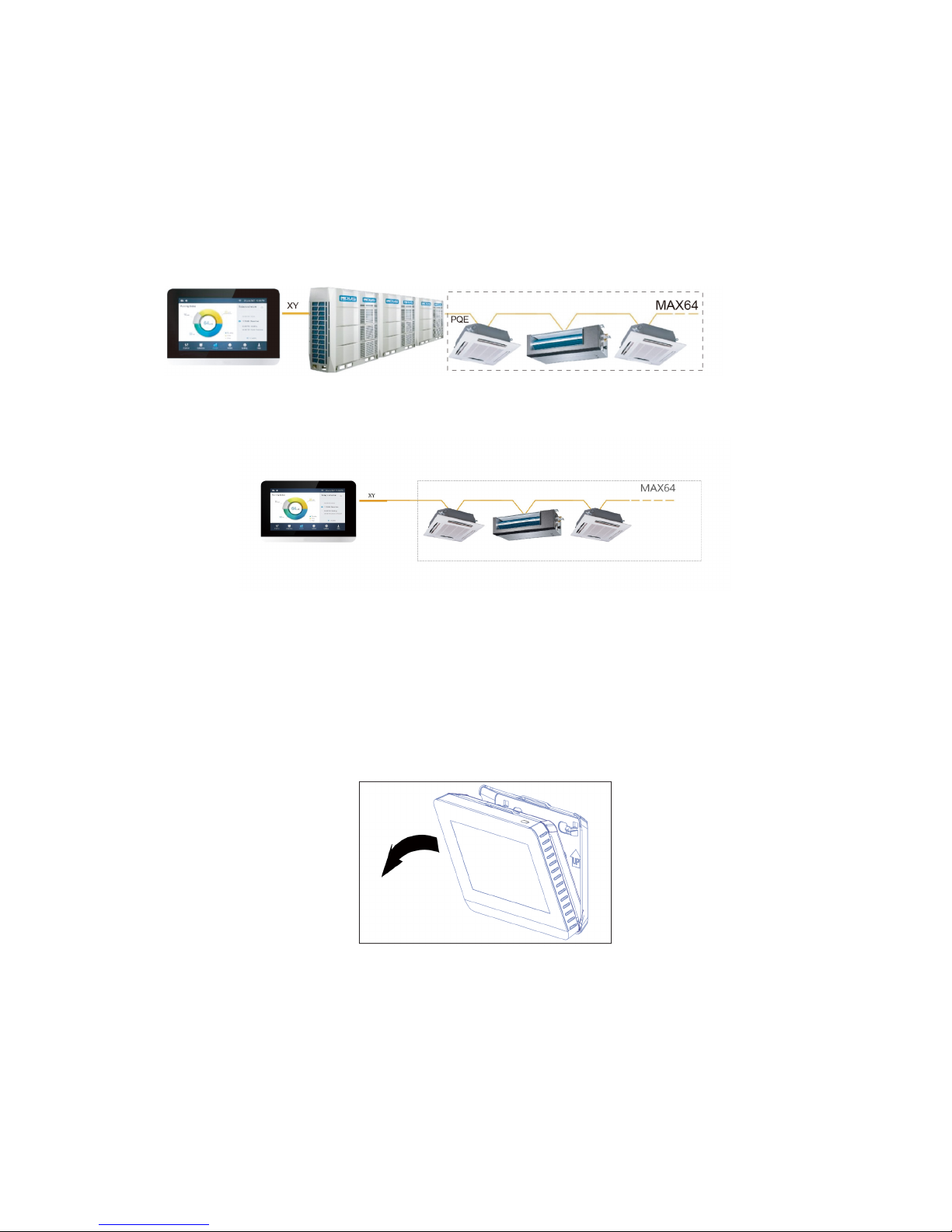

Fig-1(a)
Controller to Single Outdoor Unit Wiring Diagram
Fig-1(b)
Controller directly to Indoor Units Wiring Diagram
• Mounting the Controller
Remove the back cover from the controller using a phillips-head screwdriver as
shown.
See g-2.
Fig-2
Remove Back Cover from Controller

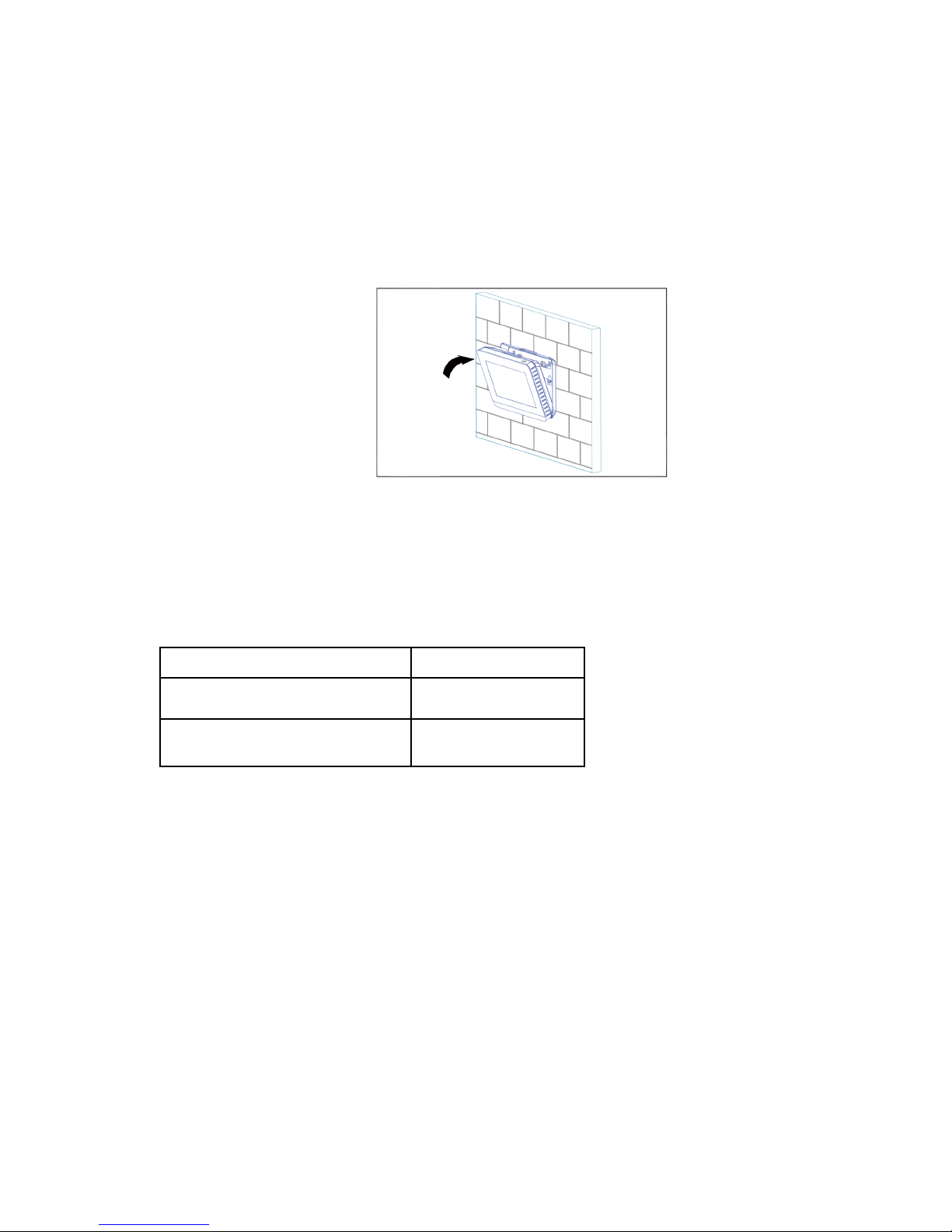

Attach the back cover to the wall using screws.
See g-3.
Fig-3
Attach Back Cover to Wall
Insert the controller into the bottom snap joints of the back cover at an angle.
See g-4.
Fig-4
Insert Controller into Back Cover

Push the controller back toward the wall until it “snaps” into place.
See g-5.
Fig-5
Snap Controller Into Place
Specication
Table-1
Input Voltage 12VDC
Ambient Temperature 23~110°F (-5~43°C)
Ambient Humidity RH40%~RH90%

OPERATION

1 Home Page Button and Display Description
This section includes the descriptions for login page and home page and provides the
instructions related to these two pages.

• Table-1 Home Page Button and Display Description
Table-1
NO. Button and Display Description
1Screen ON/OFF
button Turn the Screen on/off
2 Username Insert login username
3 Password Insert login password
4 Save Password Enable saving login password
5 Auto-login Enable auto-login in every power on
6 Login Login botton
7 Operation History Display the operating history of ODUs and IDUs
8 Logout Back to login page
9Date and Time Display the date and time
10 Today’s Schedule Display the list of schedules
11 Running Status Display the running status of the IDUs

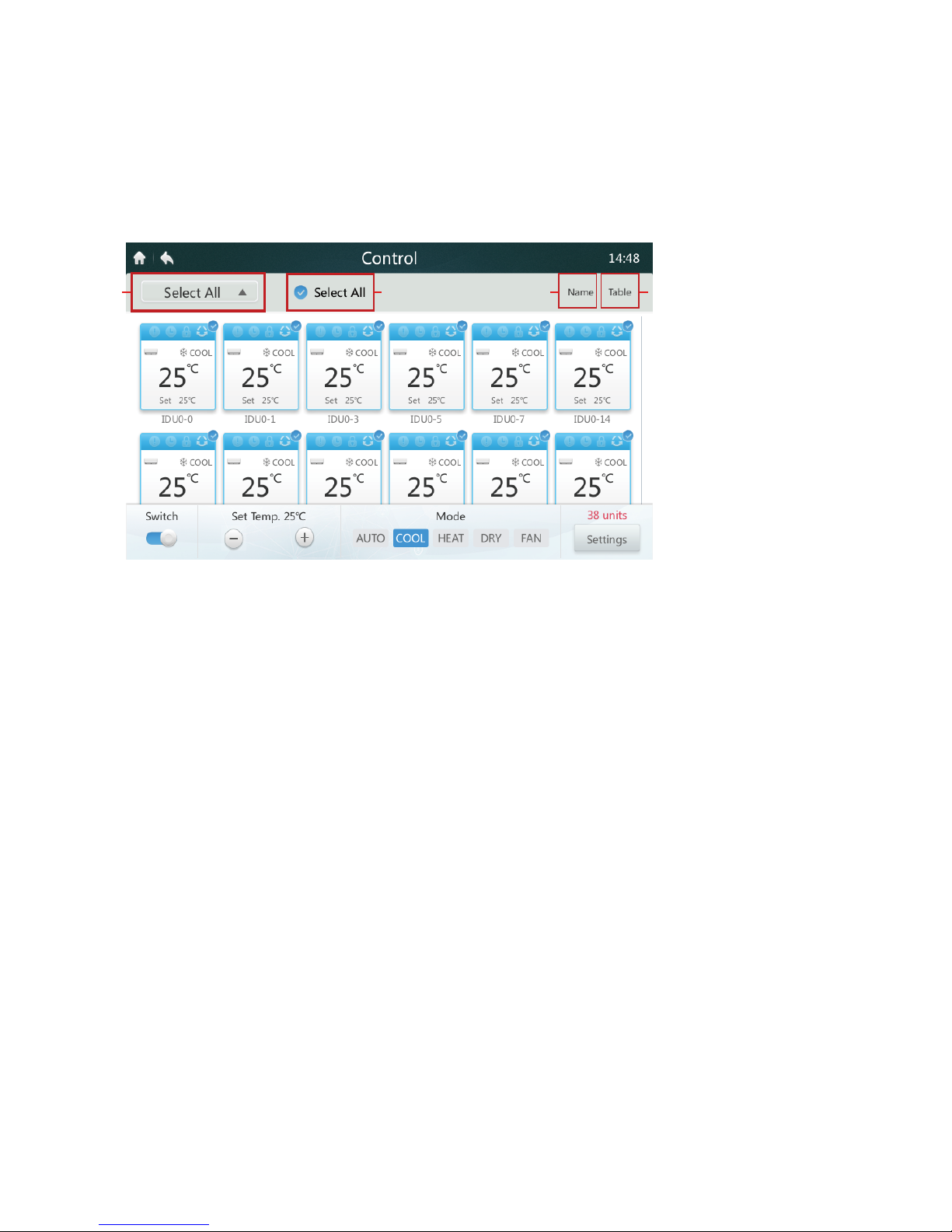

12 Control Enter the control page, to control the IDUs
13 Schedule Enter the Schedule page, to setup the daily schedules
14 Reports Enter the report page, to view the error history of ODUs and
IDUs, and total running hours
15 Conguration Enter the Install page, to search, rename and group the IDUs
16 Setting Enter the setting page, to setup the parameters for centralized
controller, IDUs, ODUs and user accounts.
17 Help Enter the help page, to view the user manual and explanations
of error codes
• Login
1. Power the controller
2. Enter username and password, and touch Login button
3. Enable both of the save password and auto login, auto login in every power on
• Logout
On the top left corner of the home page, touch the Logout icon
• Turn the Screen ON
After login if the screen backlight turns off, press Screen ON/OFF button or touch the Screen
to turn the screen on
